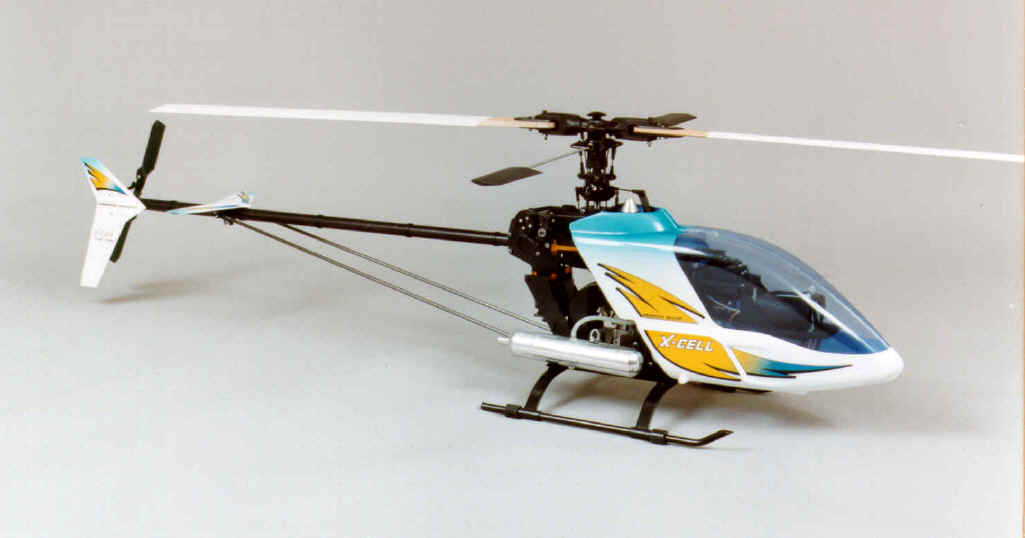

X-Cell ST - Sport Tainer Mod.1001




X-Cell Sport Trainer

Specification:

  Over-All Length  54.0" (1371.6mm)
  Over-All Height  16.75" (425mm)
 Main Rotor Dia  60.6" (1540mm)
 Tail Rotor Diameter.   12.0" (340.8mm)
  Total Weight  Approx. 10 Pounds
 Gear Ratio   9.0:1:4.37
 Engine  61 Cu. In.
 Standard Blades.  690.0mm
 Collective Pitch Range  20 - 22 Degrees


Documents:

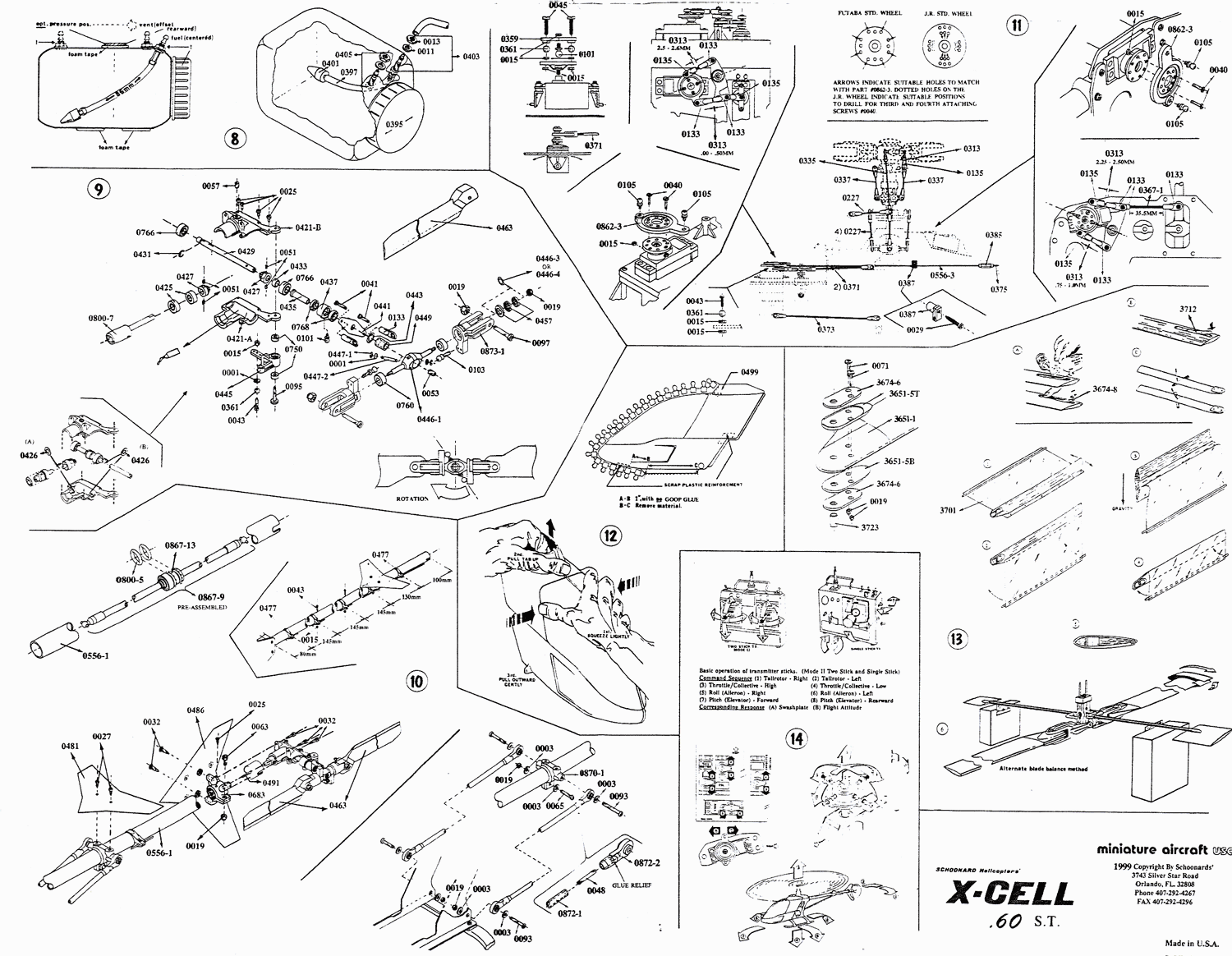

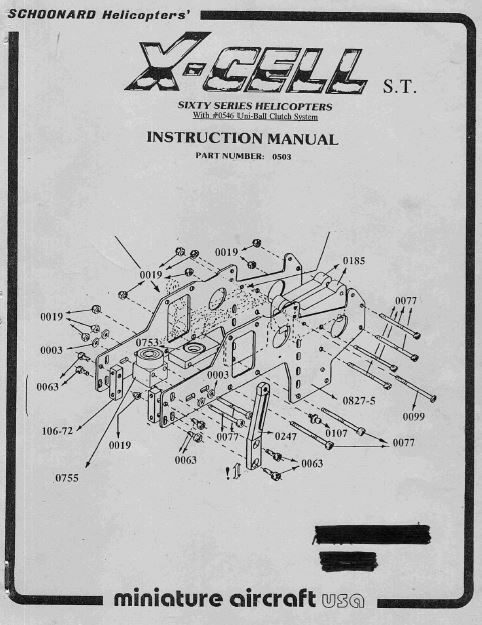

Manual X-Cell ST

BEARING COUNT

Ball Bearings.........44
 Thrust Bearings.......4
 Sprag Bearing.........2

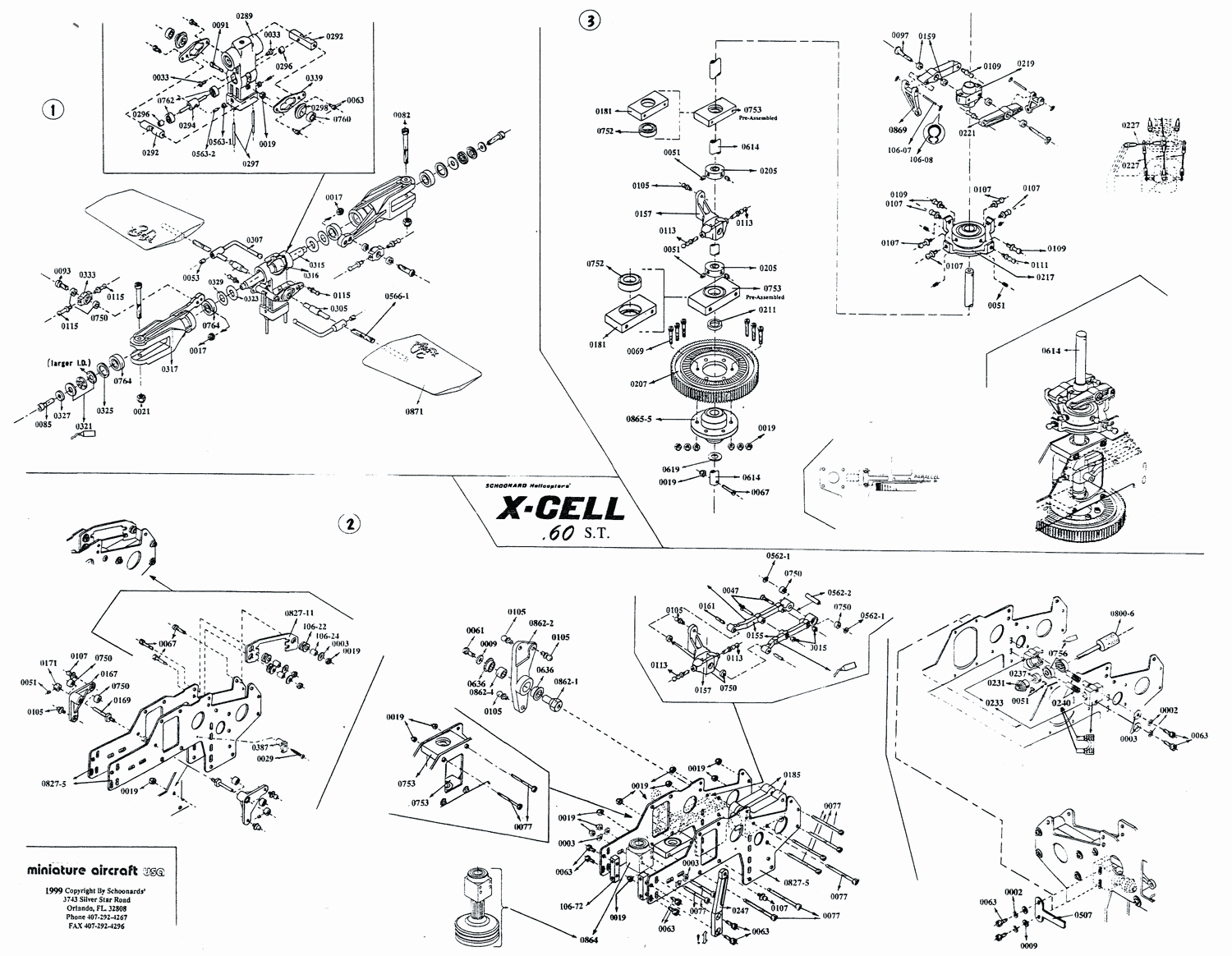

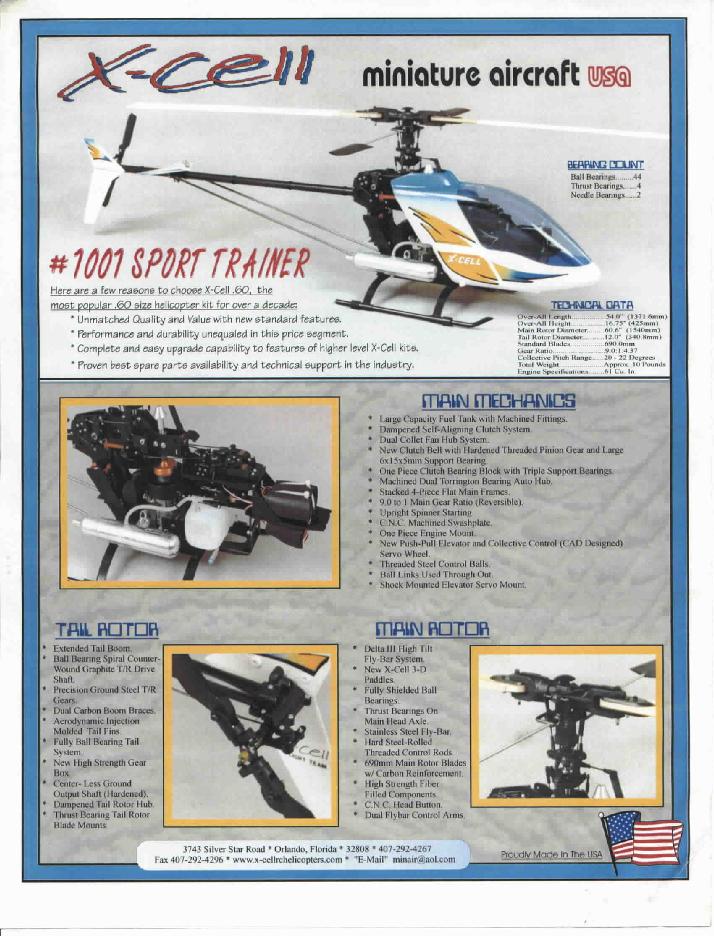

1001 ST MAIN MECHANICS - Features:

Large Capacity Fuel Tank with Machined Fittings.
Dampened Self-Aligning Clutch System.
Dual Collet Fan Hub System.
New Clutch Bell with Hardened Threaded Pinion Gear and
Large 6x15x5mm Support Bearing.
One Piece Clutch Bearing Block with Triple Support Bearings.
Machined Dual Torrington Bearing Auto Hub.
Stacked 4-Piece Flat Main Frames.
9.0 to 1 Main Gear Ratio (Reversible).
Upright Spinner Starting.
C.N.C. Machined Swashplate.
One Piece Engine Mount.
New Push-Pull Elevator and Collective Control (CAD  Designed) Servo Wheel.
Threaded Steel Control Balls.
Ball Links Used Throughout.
Shock Mounted Elevator Servo Mount

1001 ST MAIN ROTOR - Features:

Delta III High Tilt Fly-Bar System.
New X-Cell 3-D Paddles.
Fully Shielded Ball Bearings.
Thrust Bearings On Main Head Axle.
Stainless Steel Fly-Bar.
Hard Steel-Rolled Threaded Control Rods.
690mm Main Rotor Blades w/ Carbon Reinforcement.
High Strength Fiber Filled Components.
C.N.C. Head Button.
Dual Flybar Control Arms.

1001 ST ROTOR - Features:
Extended Tail Boom.
Ball Bearing Spiral Counter-Wound Graphite T/R Drive Shaft.
Precision Ground Steel T/R
Gears.
Dual Carbon Boom Braces.
Aerodynamic Injection Molded Tail Fins.
Fully Ball Bearing Tail System.
New High Strength Gear Box.
Center- Less Ground Output Shaft (Hardened).
Dampened Tail Rotor Hub.
Thrust Bearing Tail Rotor Blade Mounts.


Optional Features for XCell .60 ST

part number description details
0232 High Speed Tail Drive Front Gear Replaces #0231 16tooth bevel gear
0446 One Piece Steel T/R Hub Conversion
0446-0 T/R Holder Triple Bearing Conversion Requires #0446 hub
0504 Sport Canopy - Epoxy Glass Requires #0575 plastic radio tray
0508 Ball Bearing Aileron Mixing For Plastic Aileron Servo Cradle
0533 Easy Off Flybar Weights Do not require flybar paddle removal
0534 Autorotation Thrust Bearing Replaces #0211 spacer
0536 Adjustable Roll Bellcranks 2 bellcranks - (Fury requires additional bellcrank - order 1-#0536-1,2-#106-02,1-#0101)
0537 Pro Wash-Out Mixer Arm Kit
0538 Pro Adjustable Bell Mixers Five mixing ratios
0540 Main Shaft Thrust Bearing Kit
0547 Speed Up T/R Gears Requires Use of lightweight T/R blades
0551 Slipper - Adjustable Drag T/R Drive For non-stepped mainshaft
0561 Pro Adjustable CG Paddles 15-30gm variable weight using brass inserts
0561-5 Pro-2 FAI Paddles variable 24-45gm. CG corrected
0571 Machined Washout Hub
0579-4 CNC Machined Aluminum Fan
0586-0 Carbon Graphite Frame Set
0596 Adjustable Roll Servo Control Arm Order 0596F for Futaba and 0596J for JR servos
0597 Machined Bearing Spacer kit for Plastic Bellcranks
0818 Rudder Graphite Rear Servo Mount
0819 Machined push/pull Elevator Arm
0822 Machined Aluminum Lower Frame Landing Gear Plates
0823 Machined Upper Thrust Bearing Block with Anti-Rotation
0825 Machined Elevator Bellcrank Requires #0826
0826 Machined Aluminum Elevator Swingarm
0844 Aluminum Head Block Included in #0848
0846 Stainless Steel Head Axle
0848 Pro CNC All Metal Rotorhead
0850 CNC Angled Flybar Control Arm Kit
0854-1 Machined Aluminum one piece Aileron Servo Cradle
0855 Graphite '99 Servo Tray
0856 Aluminum CT Radio Conversion Tray
0859 Machined Pro T/R Bellcrank and Pitch Slider Requires #0422 or #0861 T/R Housing
0860 Aluminum T/R Grips
0861 Machined Aluminum T/R Gear Box Housing
0866 Split Gear Constant Drive (Order #0866 - 9:1, #0866-1 - 9.3:1, #0866-2 - 9.5:1)
0883 Linear Servo Link Kit (Order #0883 for JR and #0883-1 for Futaba Servos)
