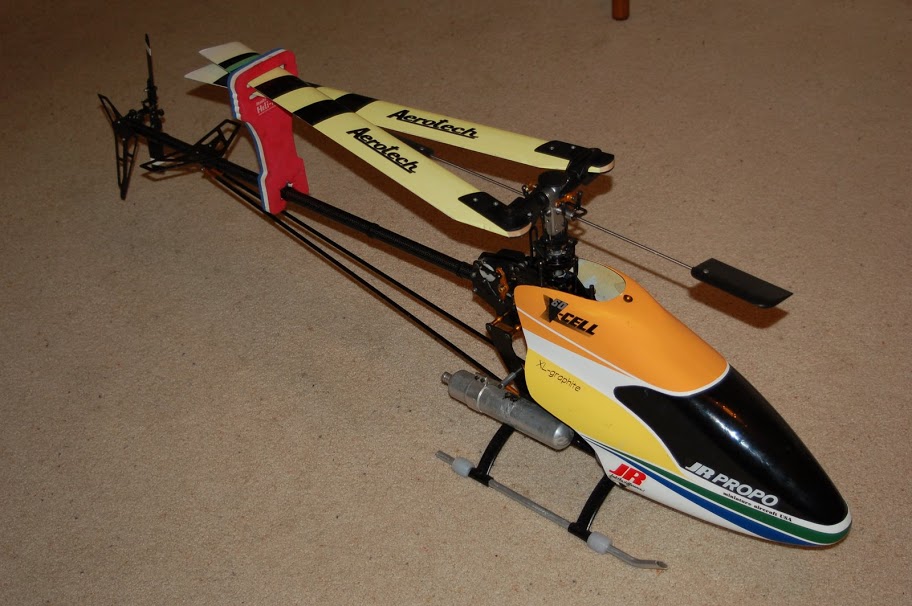

X-Cell Graphite 60 (1994-1997) Mod.1004

		Specification:   Over-All Length  54.0" (1371.6mm)   Over-All Height  16.75" (425mm)  Main Rotor Dia  60.6" (1540mm)  Tail Rotor Diameter.   12.0" (340.8mm)   Total Weight  Approx. 10 Pounds  Gear Ratio   9.0:1:4.37  Engine  61 Cu. In.  Standard Blades.  690.0mm  Collective Pitch Range  20 - 22 Degrees

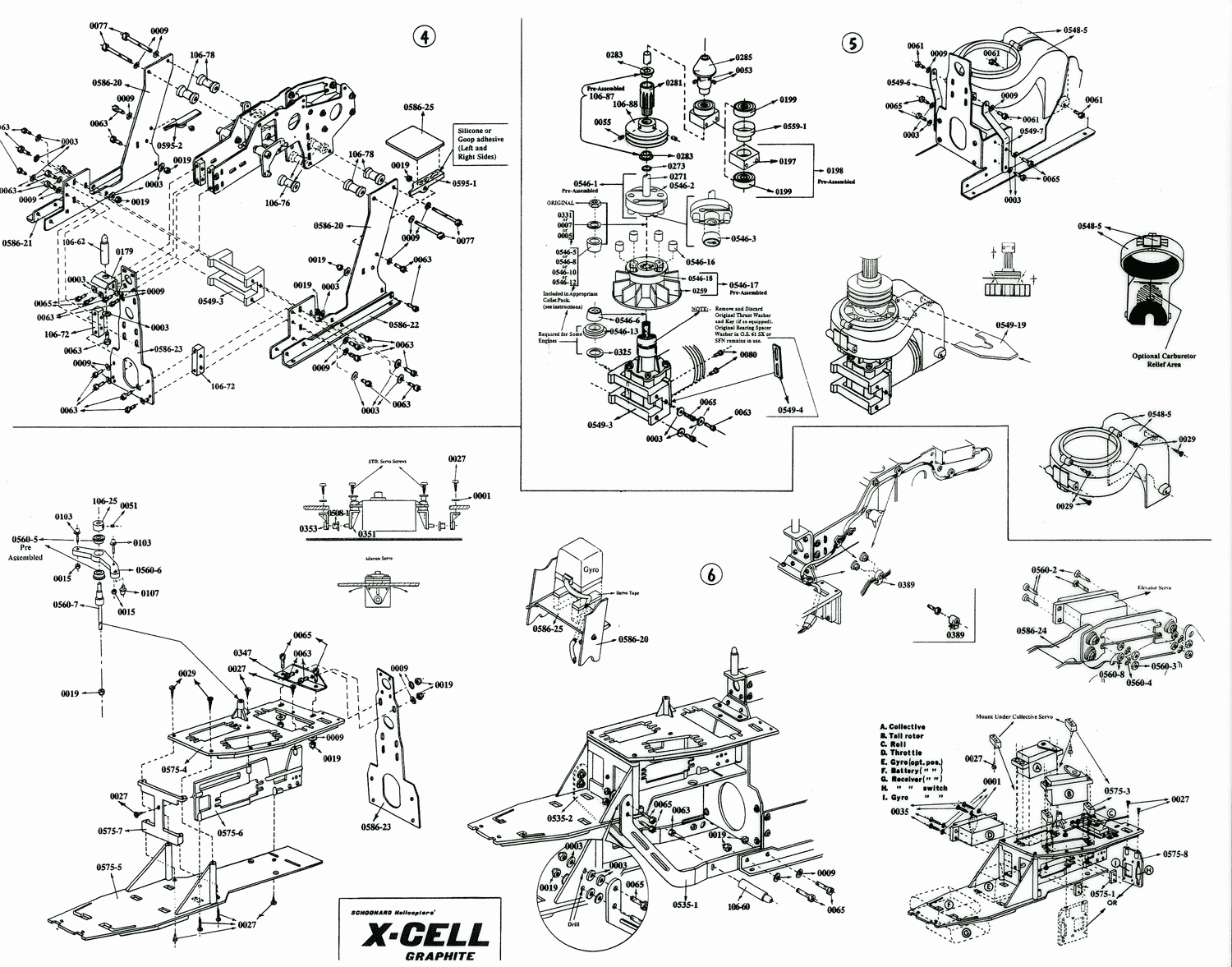

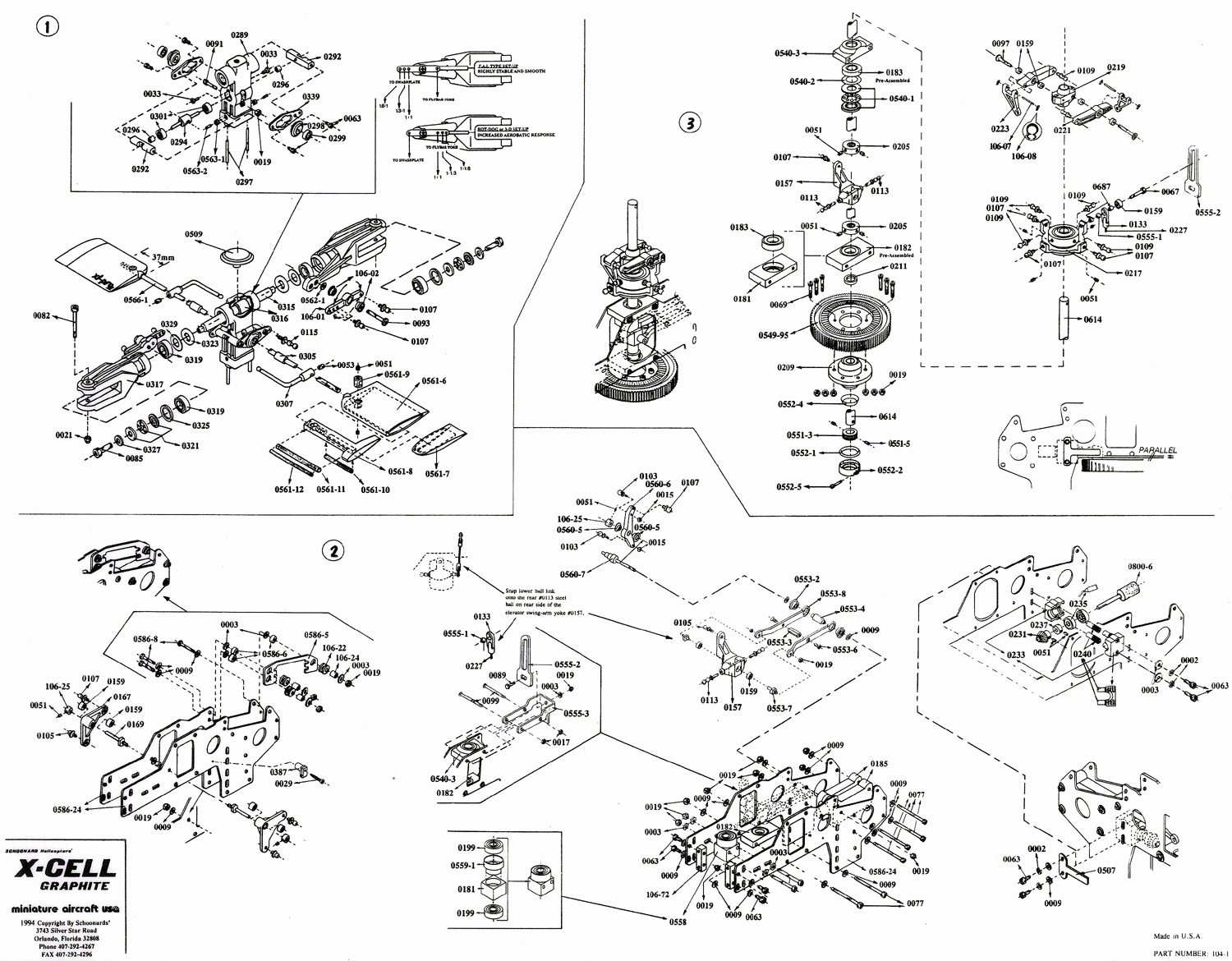

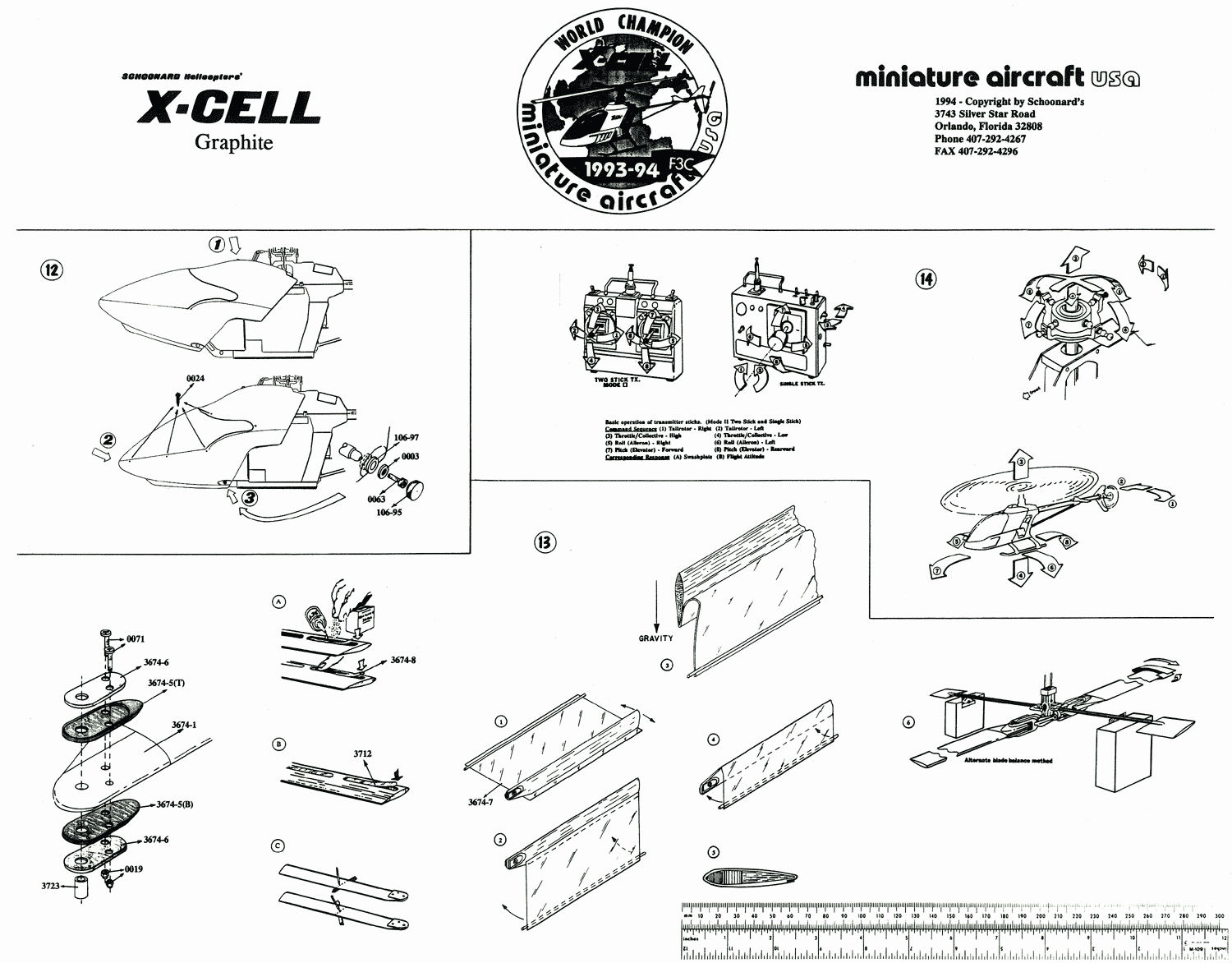

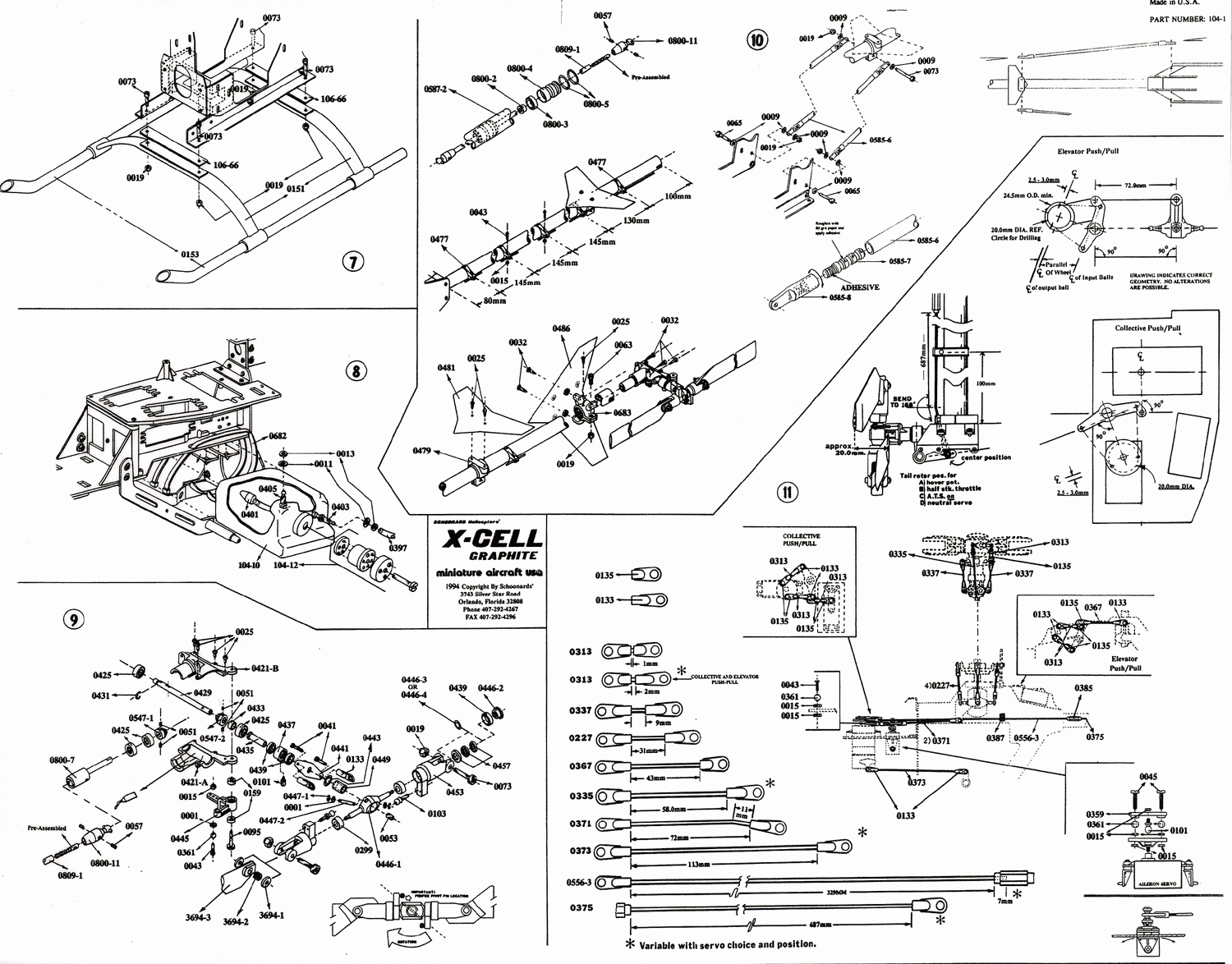

Documents:

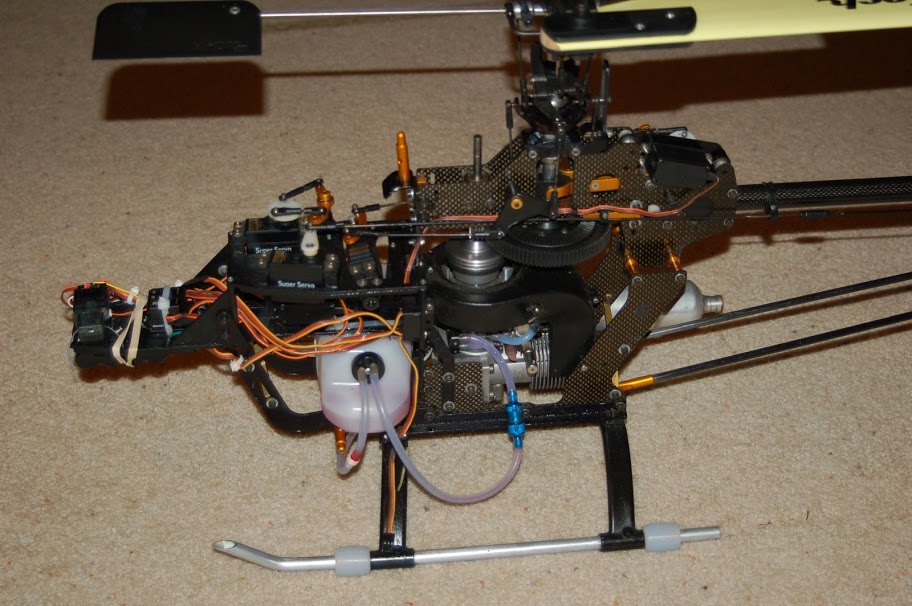

Stacked Graphite Frames, Plastic Servo Tray
Front mount rudder servo Uniball clutch
Standard silver clutch drum, Plastic fan

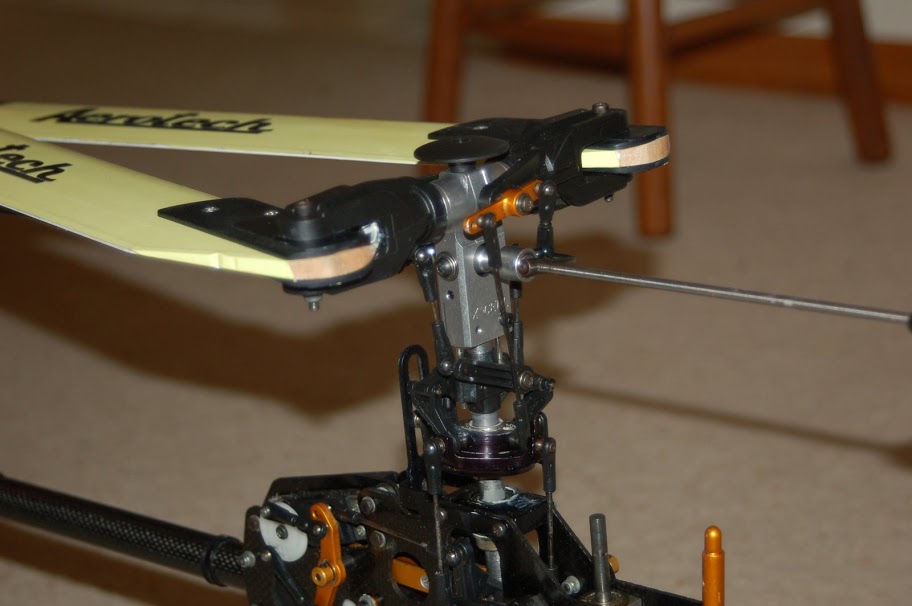

Plastic head block, Plastic blade grips
Stamped aluminum rear anti-rotation, Upper main shaft thrust bearings
Ball bearing aluminum elev swing arm , Rear Gyro mounts, lower frames
Head button , Ball bearing aileron tray mount
Ball bearing push/pull collective , Ball bearing push/pull elevator
Metal end CF dual boom support , Slipper clutch driven tail
Torque tube tail drive system , Wire tail pushrod
Standard tail gear box , Standard front transmission
2 radial 1 thrust tail blade bearing , Fiber glass canopy
Standard plastic fin , 31.5" graphite tail boom
