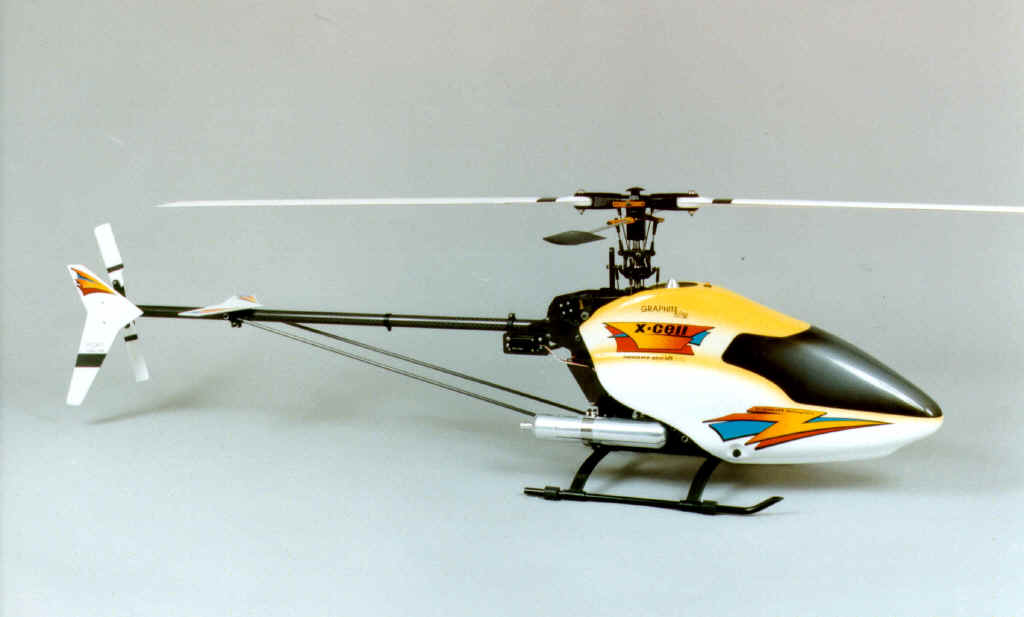

X-Cell SE - Special Edition (1999) Mod.1004


X-Cell Special Edition

Specification:

  Over-All Length  54.0" (1371.6mm)
  Over-All Height  16.75" (425mm)
 Main Rotor Dia  60.6" (1540mm)
 Tail Rotor Diameter.   10.25" (260mm)
 Total Weight  Approx. 10 Pounds
 Gear Ratio  9.0:1:4.66
 Engine  61 Cu. In.
 Standard Blades.  690.0mm
 Collective Pitch Range  20 - 22 Degrees
Documents:







  • blades

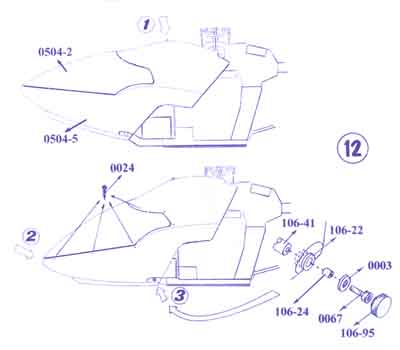

  • canopy

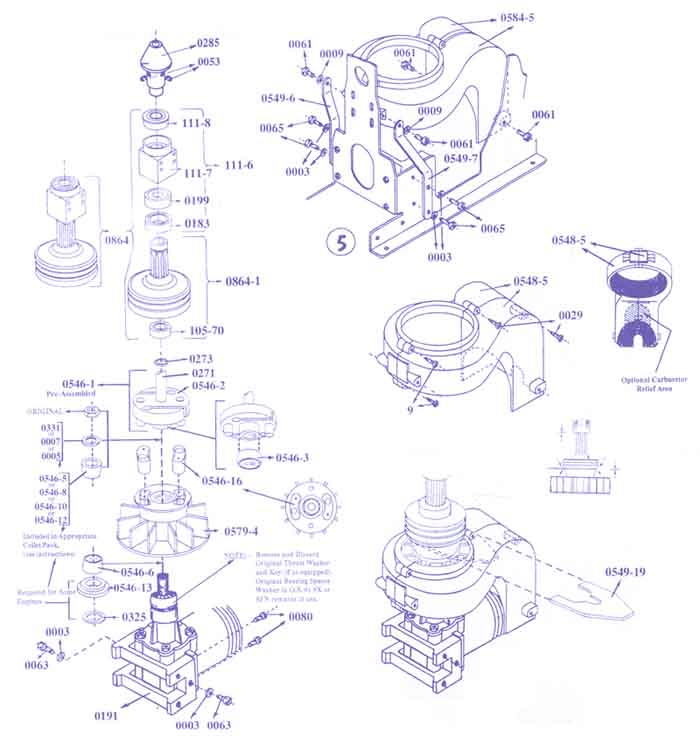

  • engine
  • fuel_tank

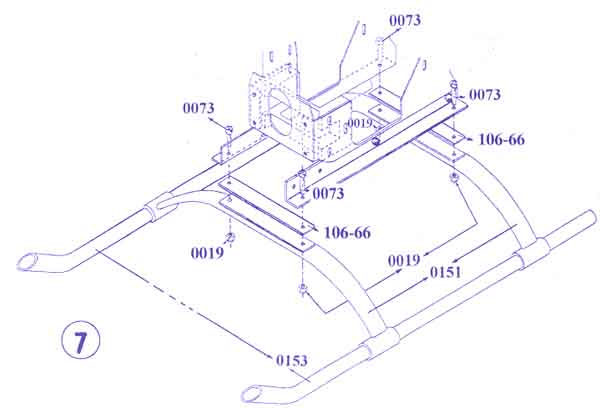

  • landing_gear

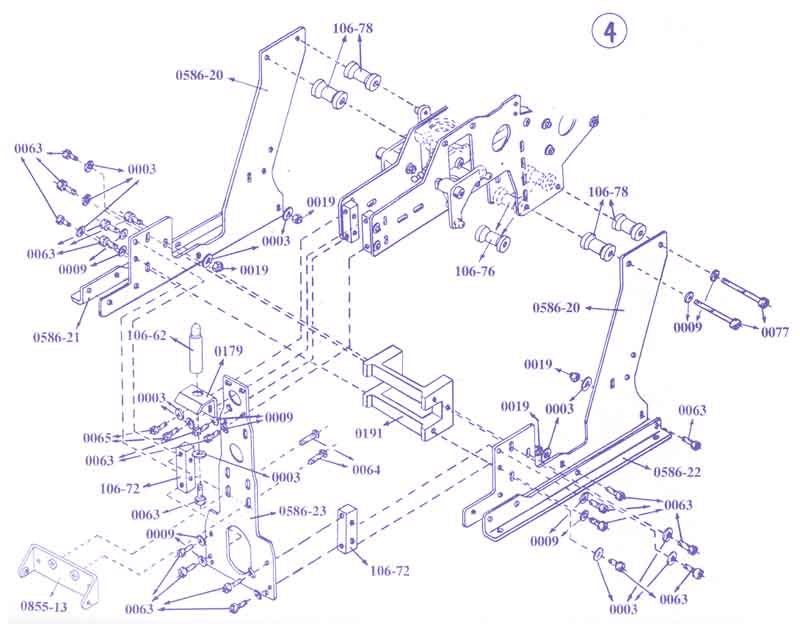

  • lower_frames

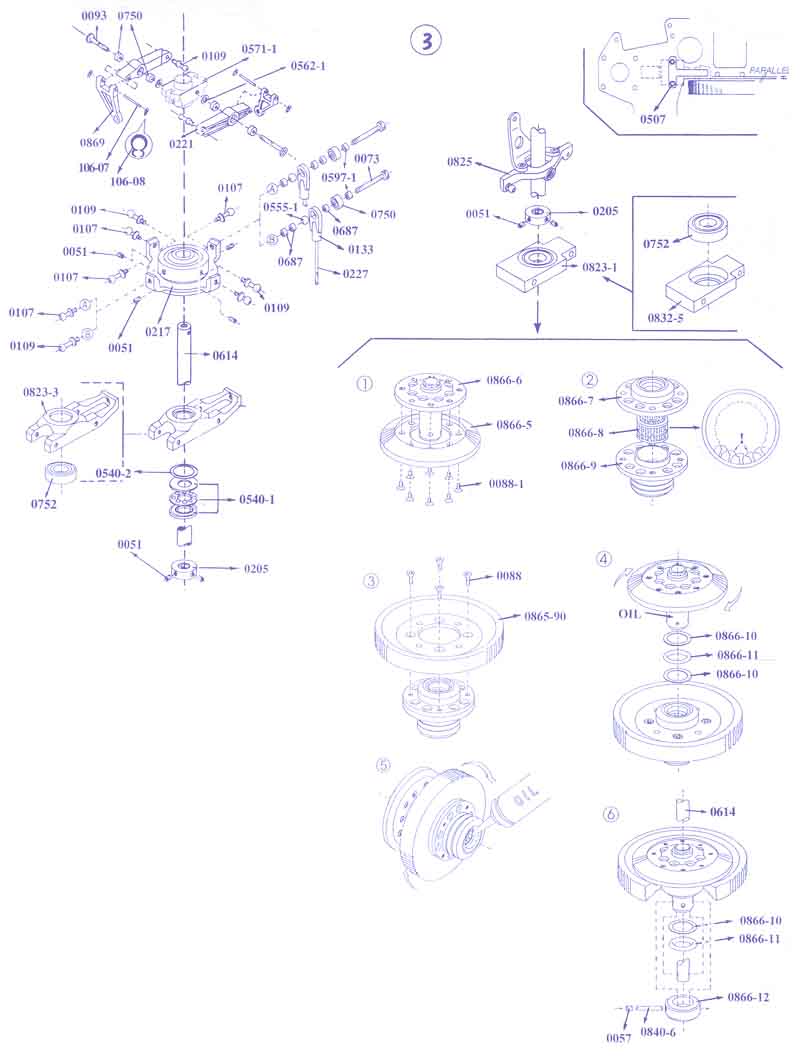

  • main_shaft

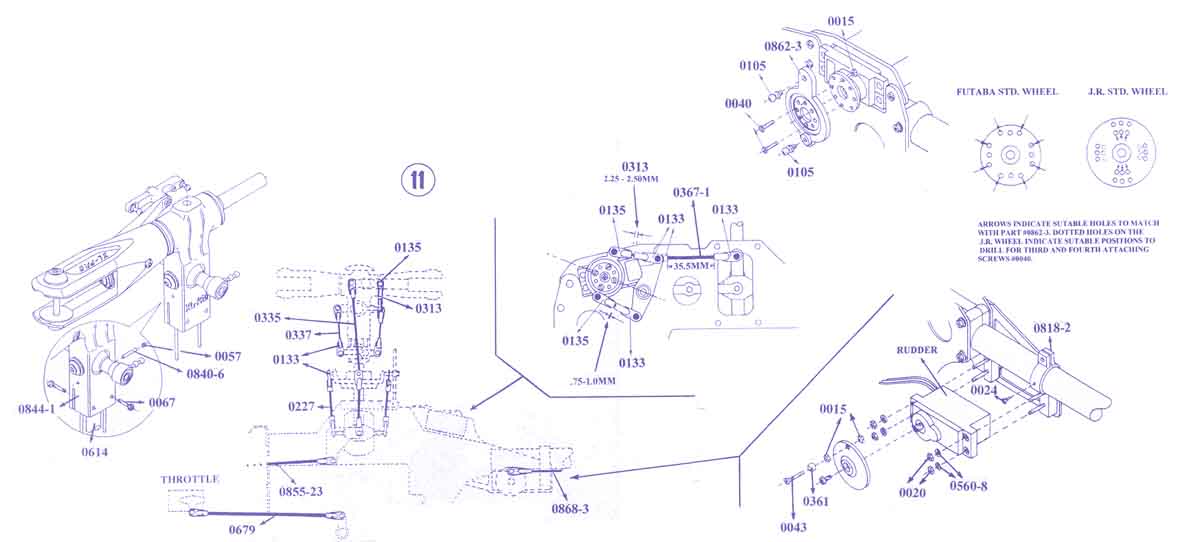

  • pushrods

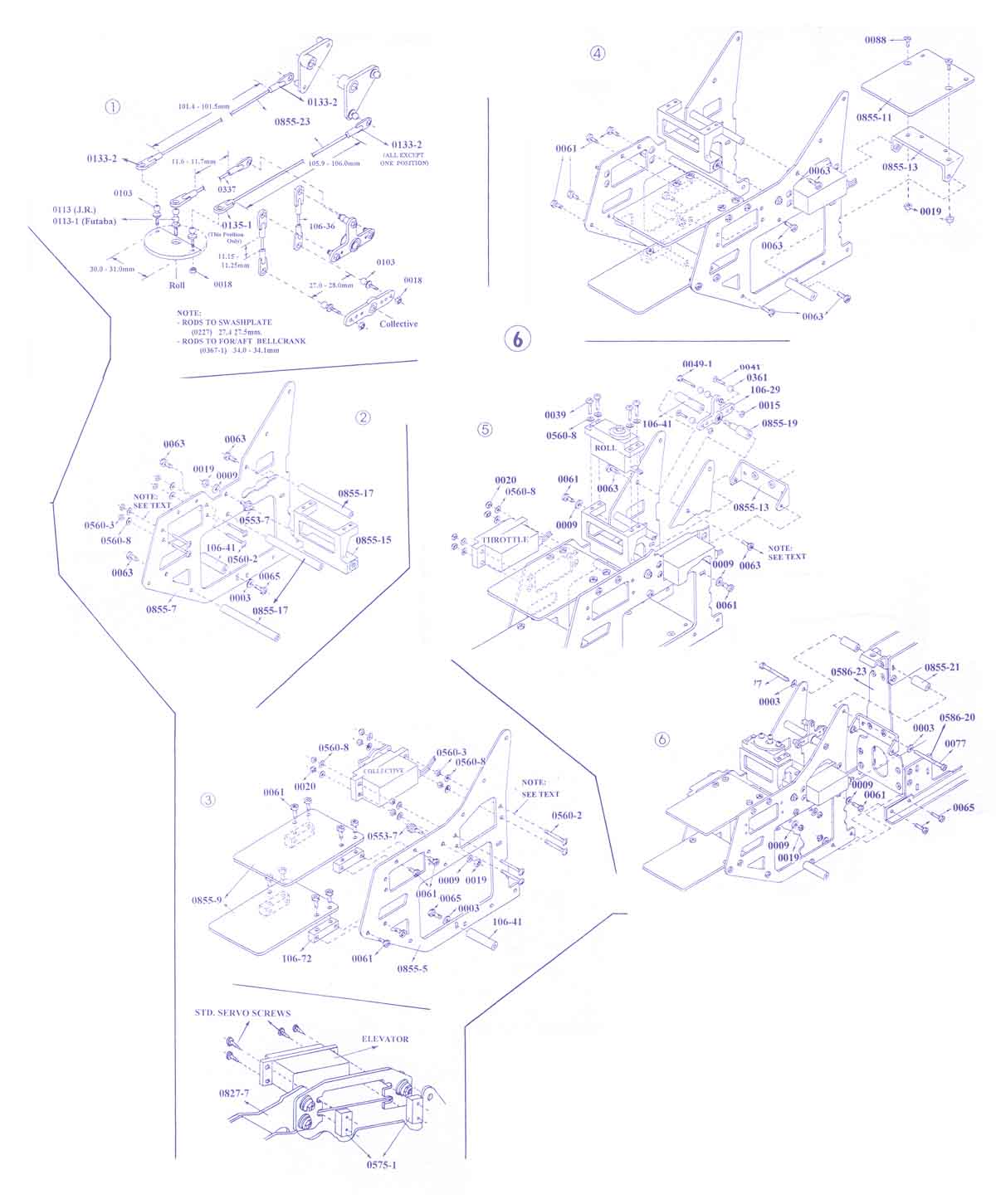

  • radio_tray

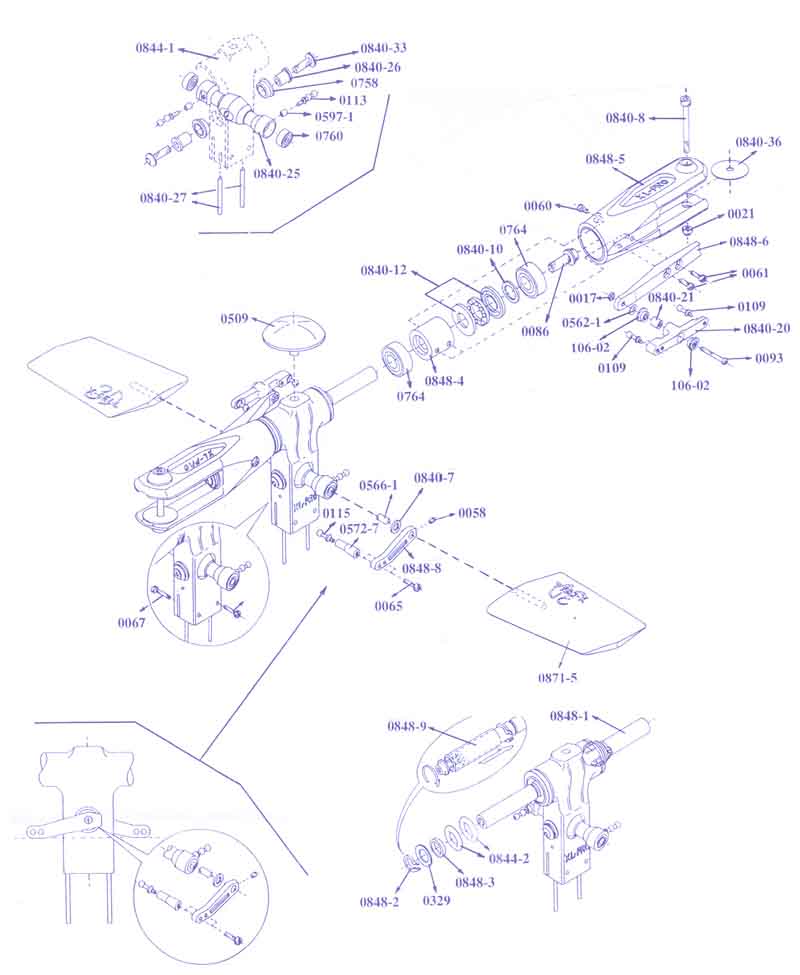

  • rotor head

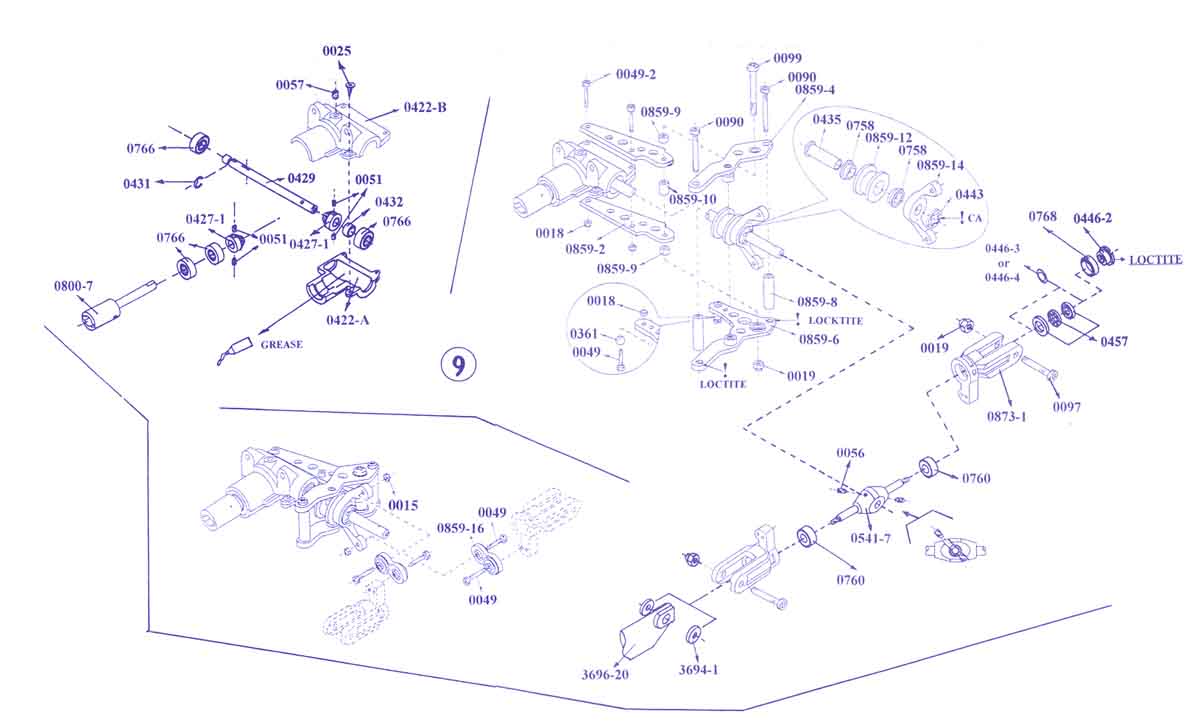

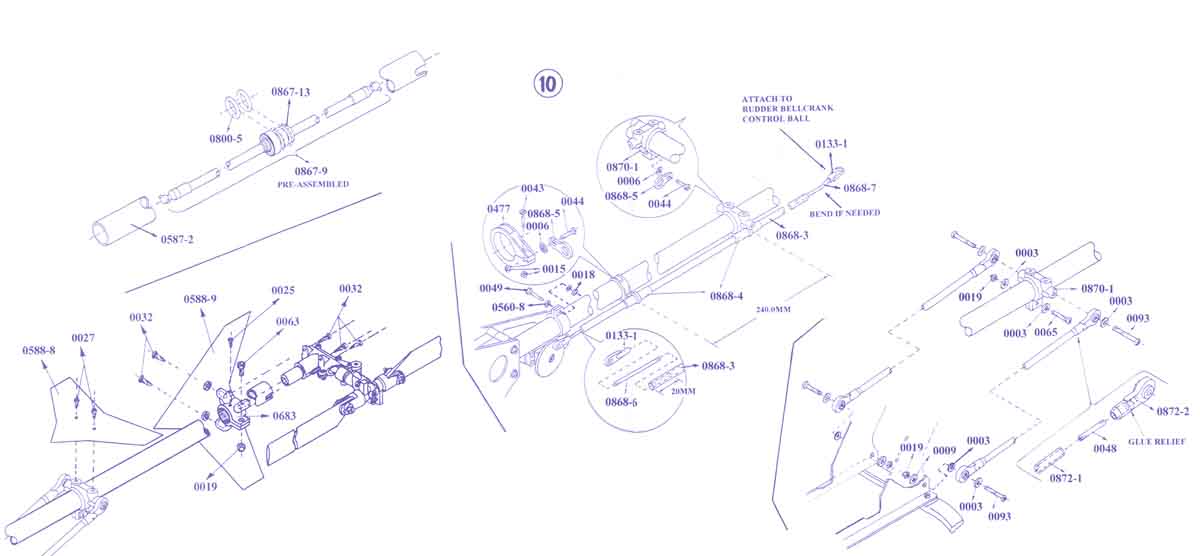

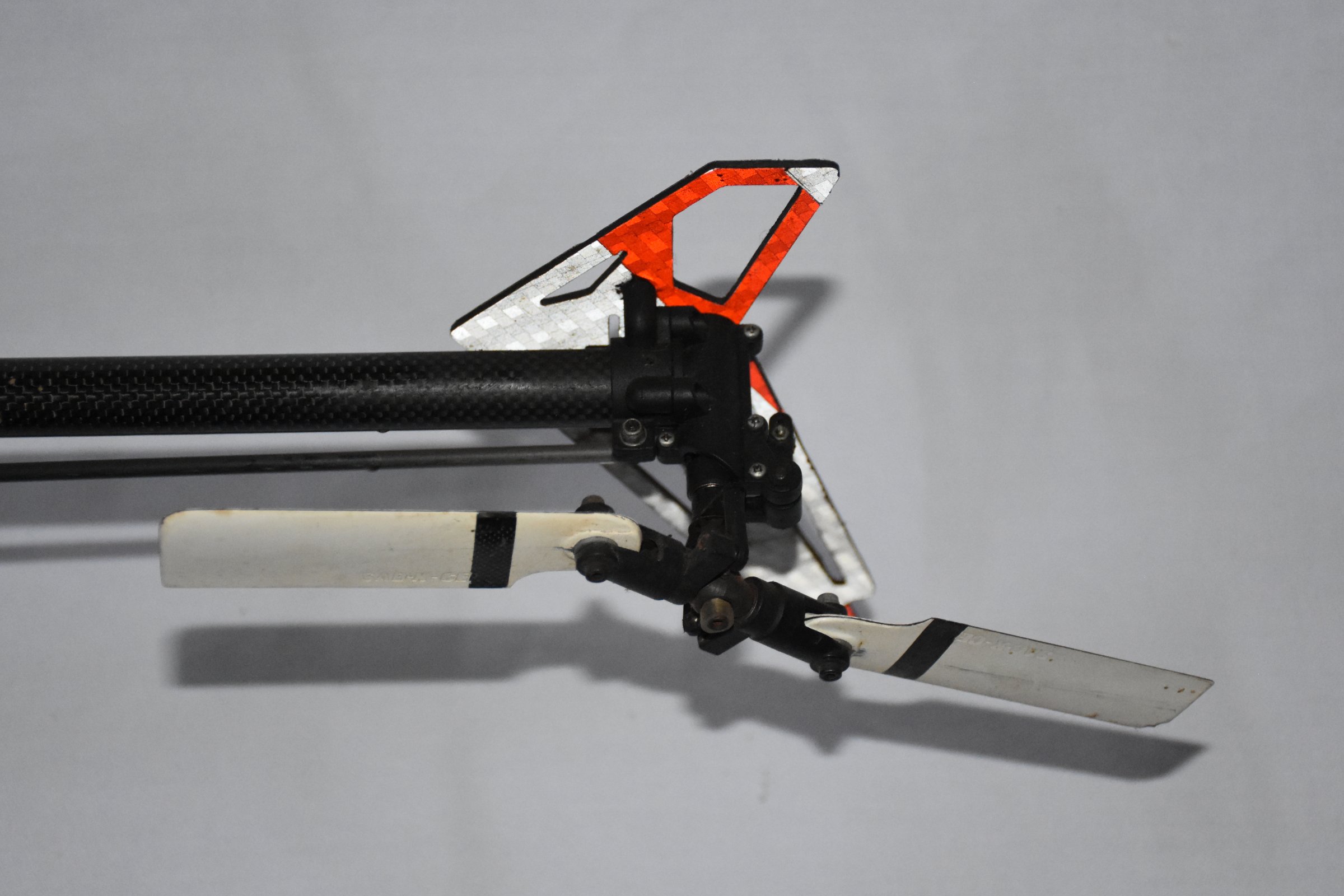

  • tail_gear_box
  • tailboom

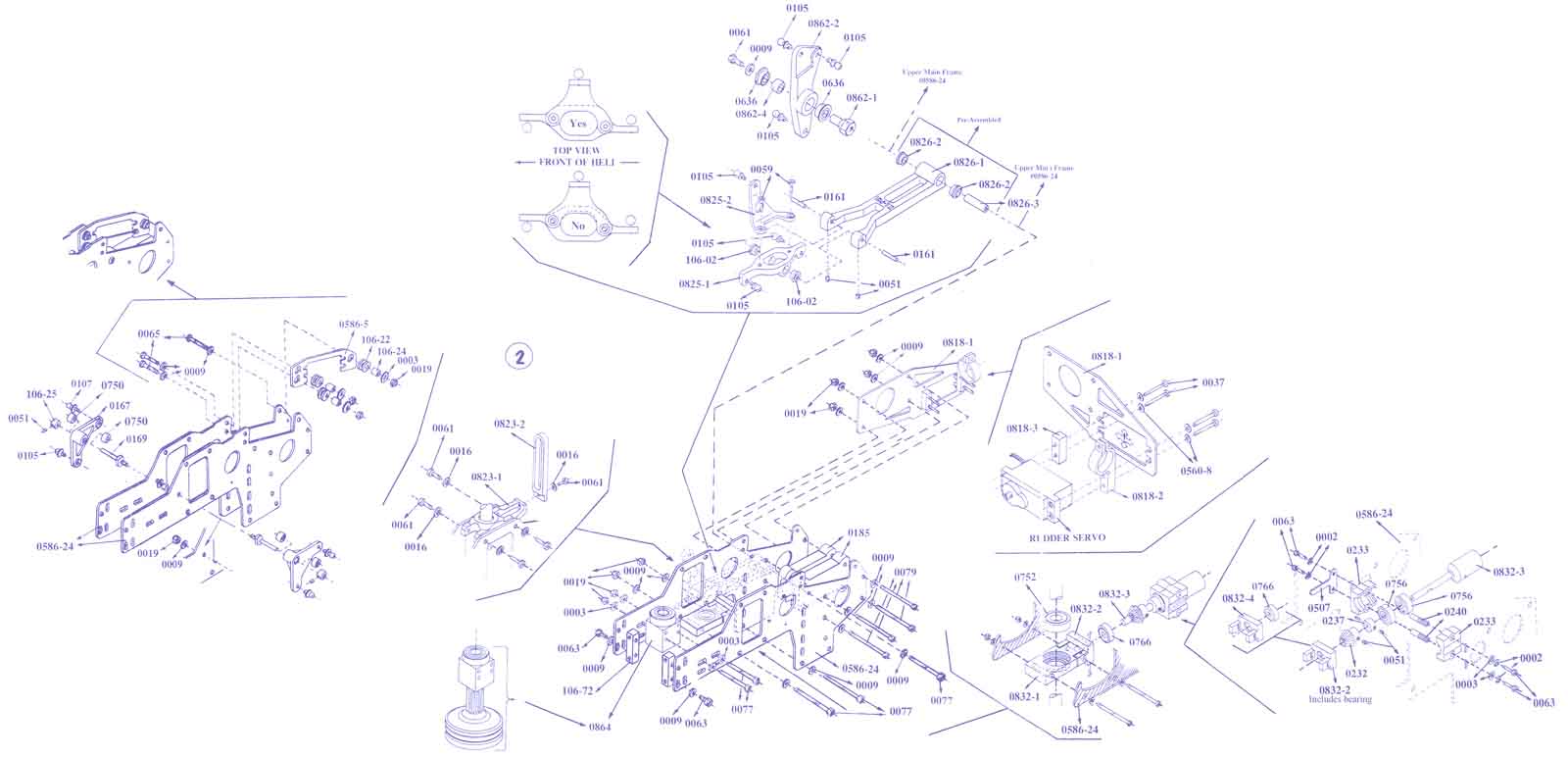

  • top_mainframe




1004 SE MAIN MECHANICS
Features:
Stacked 4-Piece Graphite Flat Main Frames.
Upper Thrust Bearing Main Shaft Block.
Front Tail Rotor Drive Support Bearing.
New Split Gear Constant Drive Autorotation Unit With "Sprag" Type One Way Clutch (9 to 1).
100% Machined Teflon Impregnated Delrin Gears.
Upright Spinner Starting.
New One-Piece Clutch Bearing Block With Triple Bearing Support.
Dampened Self-Aligning Clutch System.
C.N.C. Aluminum Fan With Dual Collet System.
New Clutch Bell With Hardened Threaded Pinion Gear And Large 6x15x15mm Support Bearings.
One-Piece Motor Mount.
New C.A.D. Designed Push / Pull Elevator Control.
New C.A.D. Designed Pre-Drilled Servo Wheel.
One-Piece C.N.C. Aluminum Elevator Swing Arm.
C.N.C. Aluminum Elevator Bellcrank.
Rubber Shock Mounted Elevator Servo.
Threaded Steel Control Balls.
Ball Bearing C.N.C. Aluminum Swashplate Anti-Rotation.
Improved Washout 3-D Link.
C.N.C. Machined Swashplate.
C.N.C. Aluminum Hard Coated Wash-Out Hub.
Super Rigid "Boxed" Radio Compartment.
C.N.C. Machined Collective Push-Pull.
C.N.C. Machined Ball Bearing Roll Cradle.
Extra Space For Today's Radio Equipment Needs.
Large Capacity Fuel Tank With Machined Fitting.
Easy On / Easy Off Lower Canopy Studs.
White Epoxy Glass Canopy.
Smoked Color Clear Windshield.
Four-Color Decal Striping Kit.

1004 SE MAIN ROTOR SYSTEM
Features:
New X-Cell 3-D Paddles.
Stainless Steel Flybar.
690mm Main Rotor Blades.
Extended Pitch Range.
Fully Shielded Ball Bearings.
C.N.C. Machined Pro II Rotor Head.
Expanded Dampening Range.
Hard Steel-Rolled Threaded Control Rods.
Thrust Bearings On Main Head Axle.
360 Degree Center Support Blade Axle.
Adjustable Bell Mixers w/ Heavy Duty Pitch Arms.
Adjustable Ratio C.N.C. Machined Flybar Control Arms.

1004 SE TAIL ROTOR SYSTEM
Features:
NEW Ball Bearing Spiral Counter-Wound Tail Rotor Drive Shaft.
Lightweight Carbon Tail-Rotor Rod with Teflon Sleeve Guides.
New Horizontal Fin Clamp Utilizing Wider Grip For Dual Boom Braces.
New High Strength T/R Gear Box (Carbon/Nylon).
New Rigid T/R Blade Grips (Carbon/Nylon).
Lightweight Gel-Coated Carbon Tail Fins.
Precision Ground Steel T/R Gears.
Rear-Mounted Tail Rotor Servo.
Centerless Ground Output Shaft.
Rigid Tail Hub.
New Carbon Sealed Tipped T/R Blades.
Single Thrust + Dual Radial Bearing Tail Blade Mounts.
New Tail-Rotor Pitch Mechanism Featuring:
* Transmission Brace
* C.N.C. Components
* Zero Wear Points
* Dual Ball Bearings At Every Mounting Point
* Geometry Optimized For Maximum Tail Control During Severe Use

 Optional Features for XCell .60 SE

part number description details
0232 High Speed Tail Drive Front Gear Replaces #0231 16tooth bevel gear
0533 Easy Off Flybar Weights Do not require flybar paddle removal
0536 Adjustable Roll Bellcranks 2 bellcranks - (Fury requires additional bellcrank - order 1-#0536-1,2-#106-02,1-#0101)
0537 Pro Wash-Out Mixer Arm Kit
0538 Pro Adjustable Bell Mixers Five mixing ratios
0547 Speed Up T/R Gears Requires Use of lightweight T/R blades
0561 Pro Adjustable CG Paddles 15-30gm variable weight using brass inserts
0561-5 Pro-2 FAI Paddles variable 24-45gm. CG corrected
0597 Machined Bearing Spacer kit for Plastic Bellcranks
0818 Rudder Graphite Rear Servo Mount
0819 Machined push/pull Elevator Arm
0822 Machined Aluminum Lower Frame Landing Gear Plates
0823 Machined Upper Thrust Bearing Block with Anti-Rotation
0825 Machined Elevator Bellcrank Requires #0826
0826 Machined Aluminum Elevator Swingarm
0846 Stainless Steel Head Axle
0861 Machined Aluminum T/R Gear Box Housing
0883 Linear Servo Link Kit (Order #0883 for JR and #0883-1 for Futaba Servos)



 X-Cell Graphite 60 SE (1998) Mod.1004


Specification:

  Over-All Length  54.0" (1371.6mm)
  Over-All Height  16.75" (425mm)
 Main Rotor Dia  60.6" (1540mm)
 Tail Rotor Diameter.   12.0" (340.8mm)
  Total Weight  Approx. 10 Pounds
 Gear Ratio   9.0:1:4.37
 Engine  61 Cu. In.
 Standard Blades.  690.0mm
 Collective Pitch Range  20 - 22 Degrees
Documents:

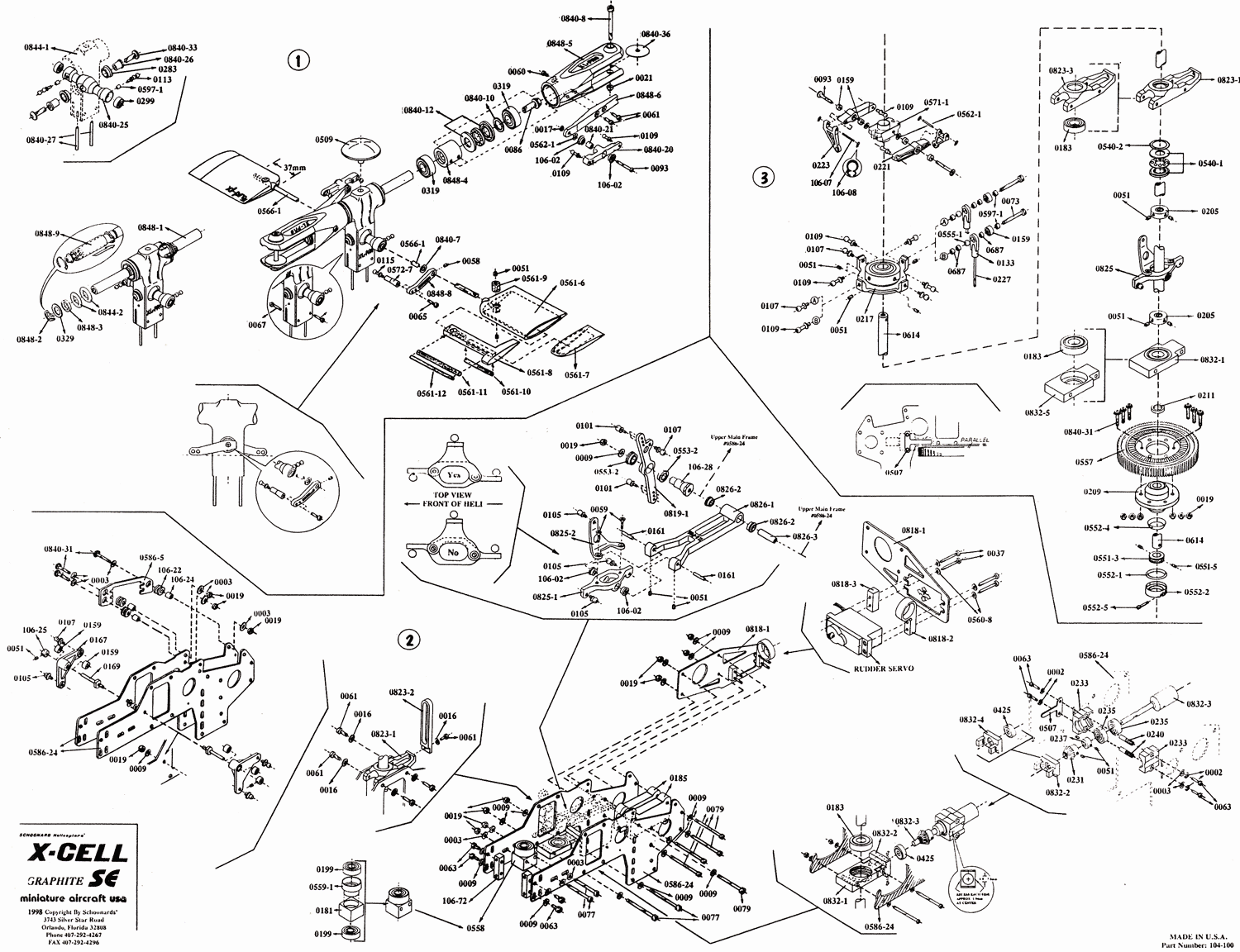

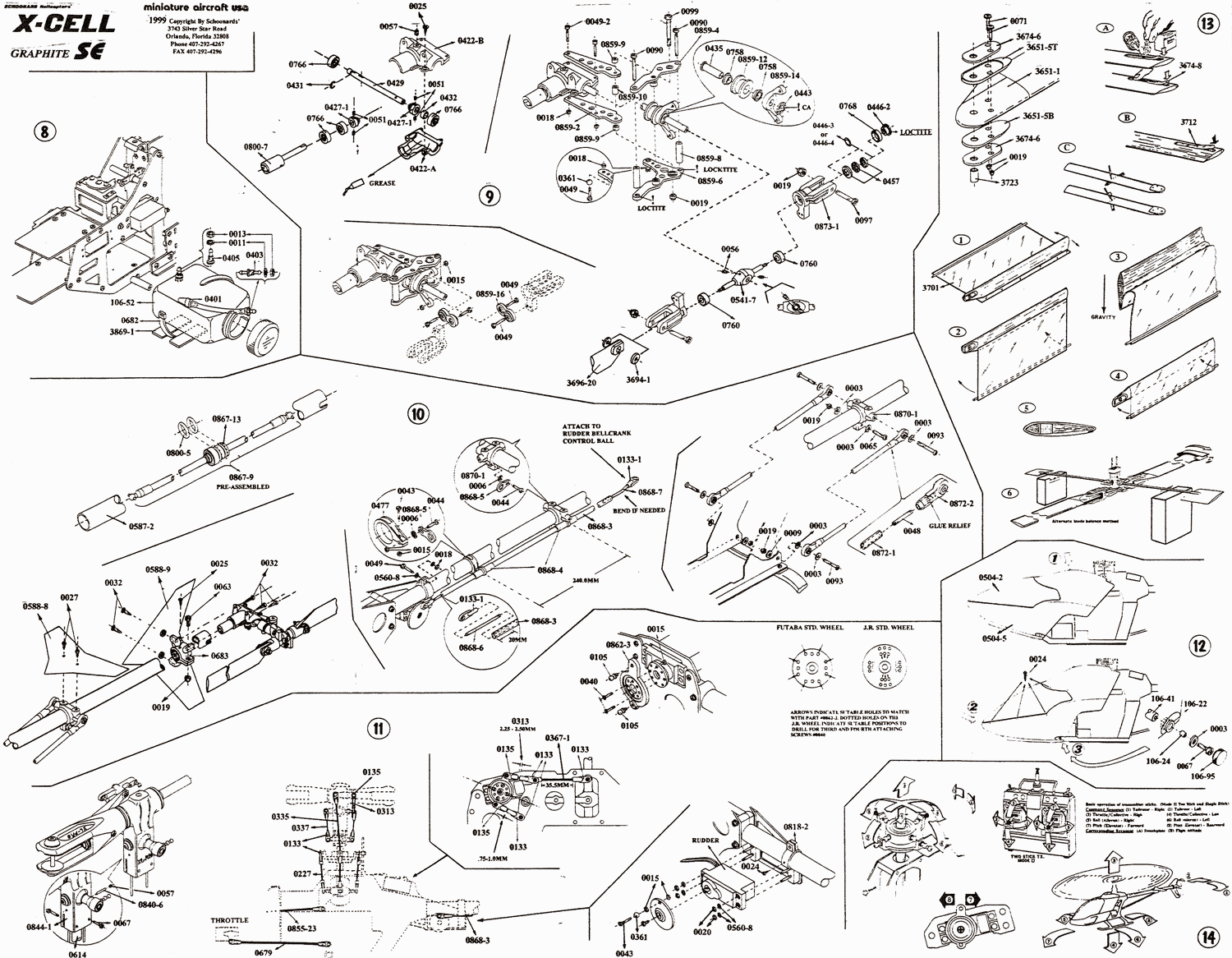

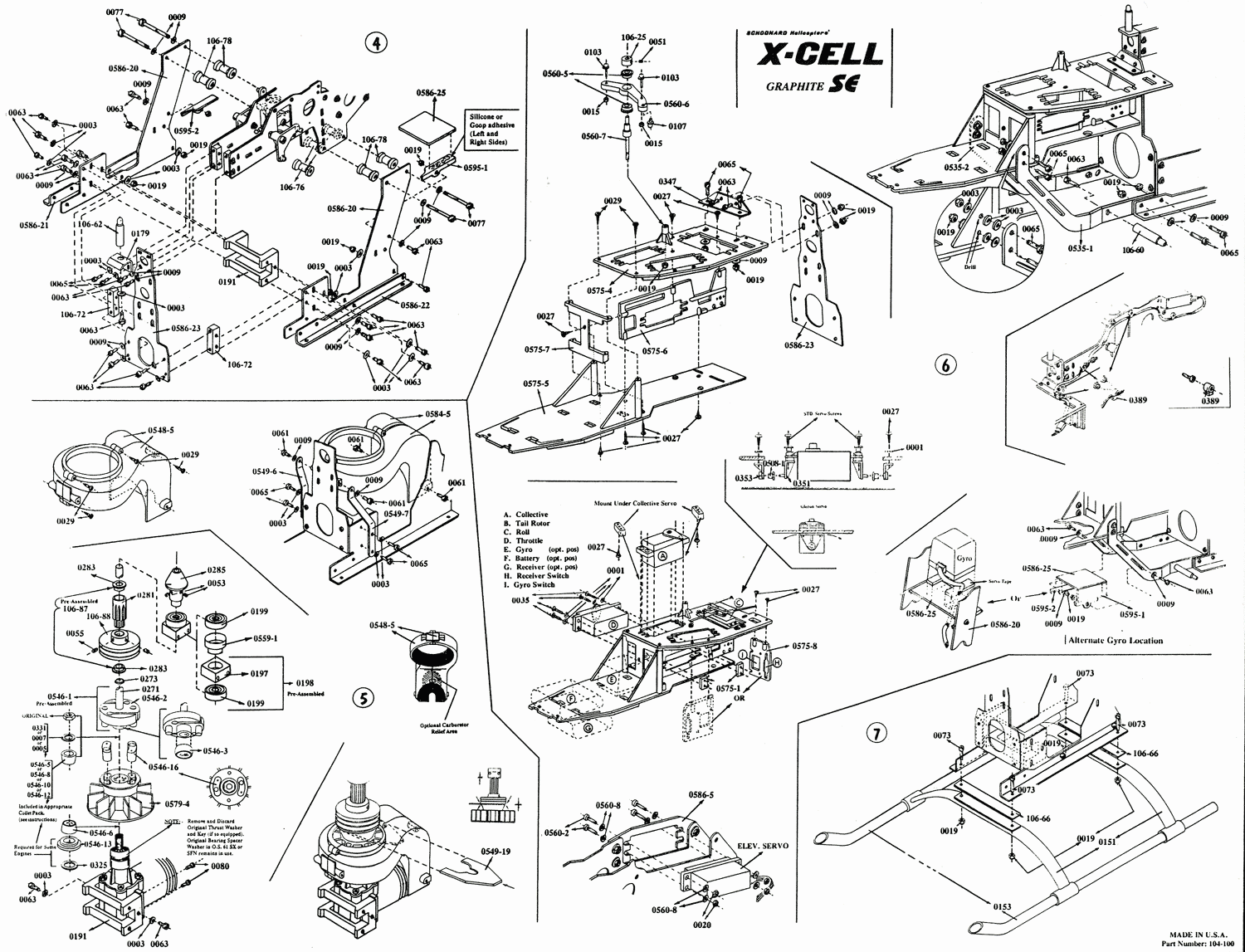

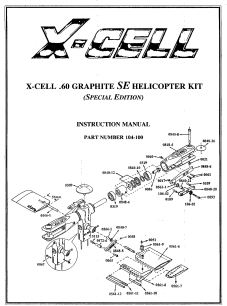

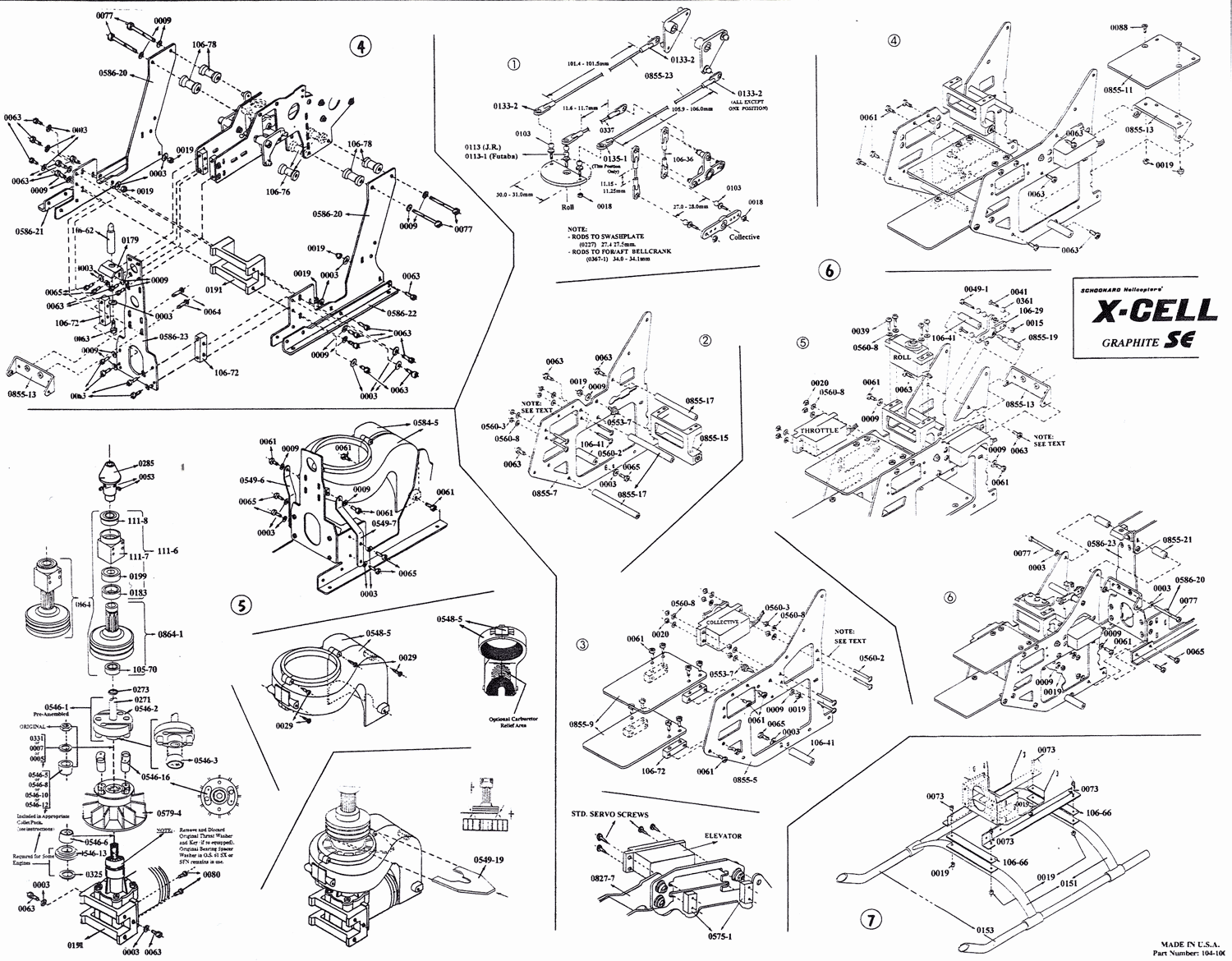

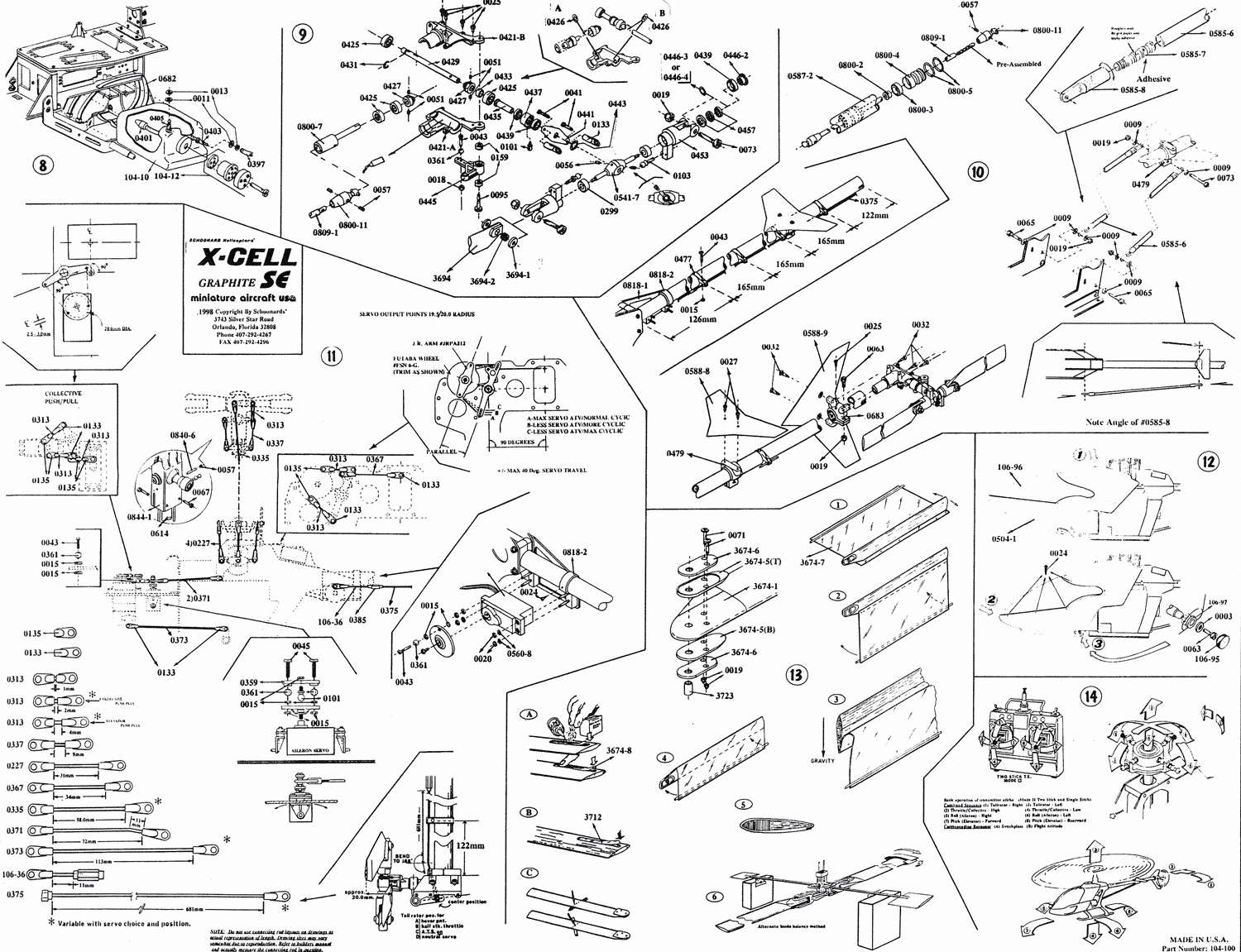

Instruction Manual
Graphite 60 SE



Over the past three years, the X-Cell Graphite .60 has become the
favorite of most "Hot-Dog" pilots due to it's simple and proven design, rugged durability and exhilarating aerobatic performance. Now, the Graphite Sixty Special Edition continues that success by offering unequaled value combined with all the latest C.N.C. upgrades as standard equipment. Examine the list of special features and you will be surprised at the incredible value in this kit.

Stacked Graphite Frames , Plastic servo tray
Rear mount rudder servo , Uniball clutch
Standard silver clutch drum , Aluminum fan
Pro II head block , Pro II aluminum blade grips
Machined rear swashplate anti-rotation, Upper main shaft thrust bearings
Ball bearing aluminum elev swing arm , Rear Gyro mounts, lower frames
Head button , Ball bearing aileron tray mount , Ball bearing push/pull collective
Ball bearing push/pull elevator , Metal end CF dual boom support
Slipper clutch driven tail , Torque tube tail drive system ,Wire tail pushrod
Standard tail gear box , HD front transmission , 2 radial 1 thrust tail blade bearing
Fiber glass canopy , Gel coated solid graphite tail fins
31.5" graphite tail boom

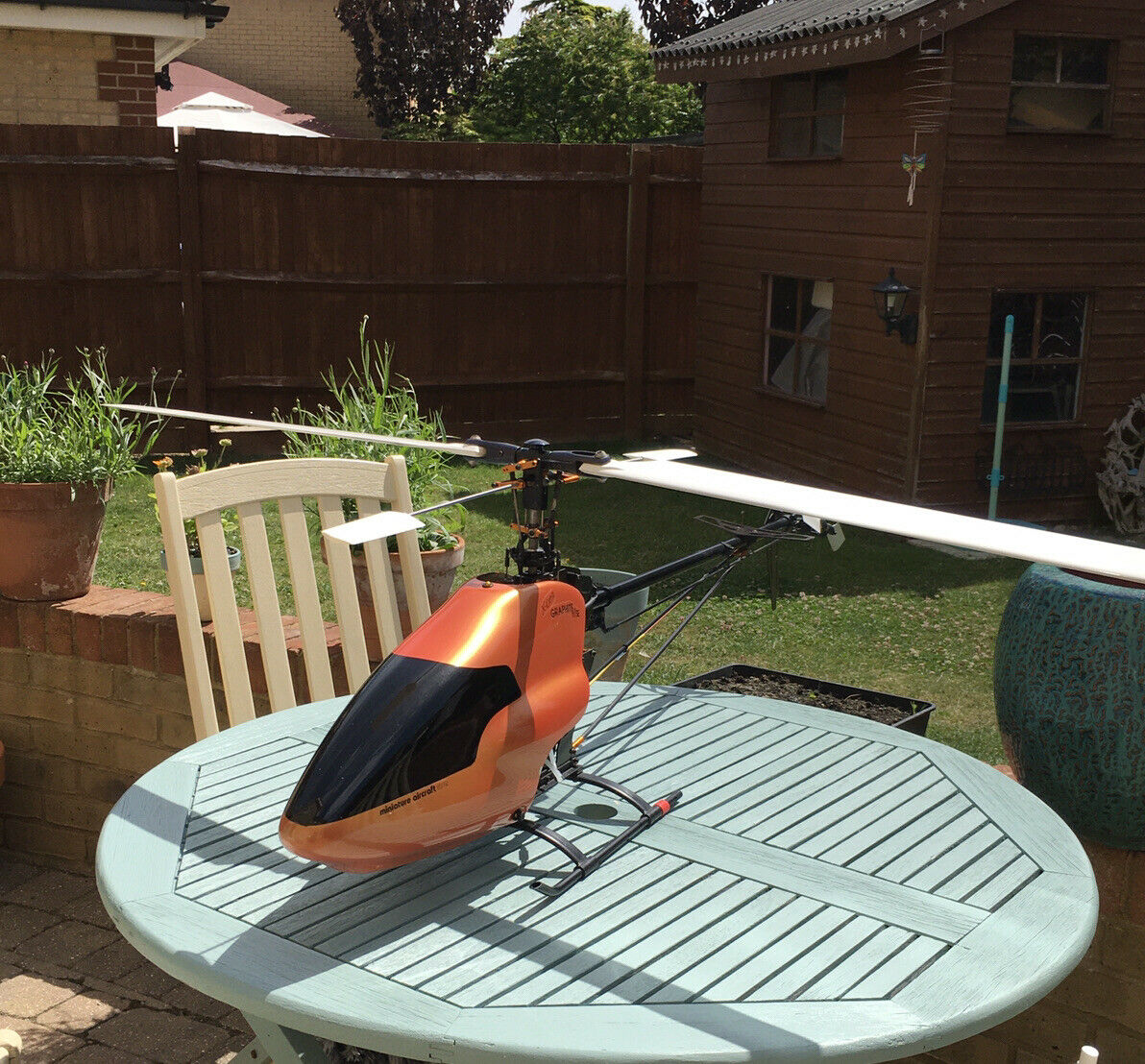

  • Graphite_SE_101

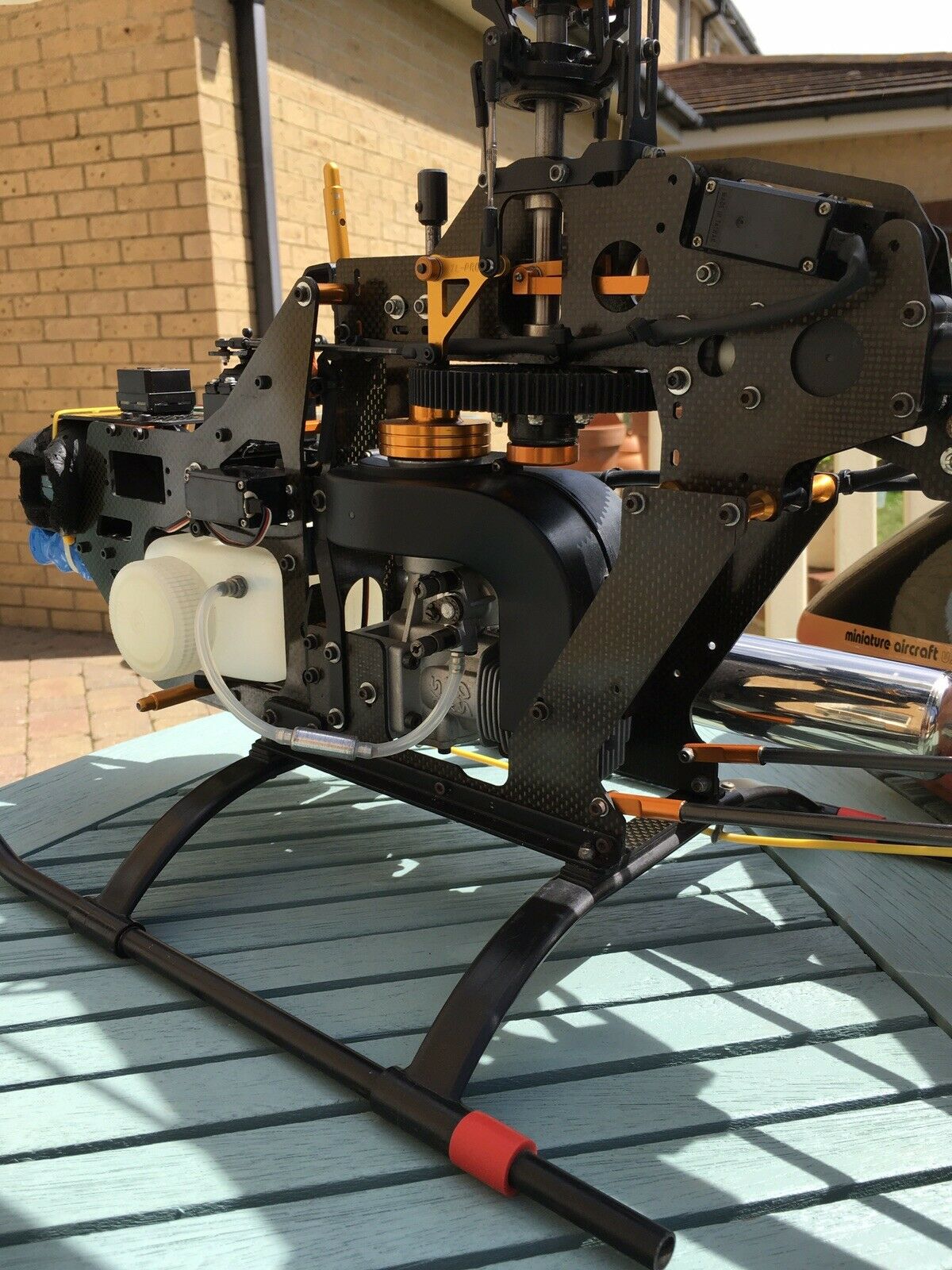

  • Graphite_SE_102

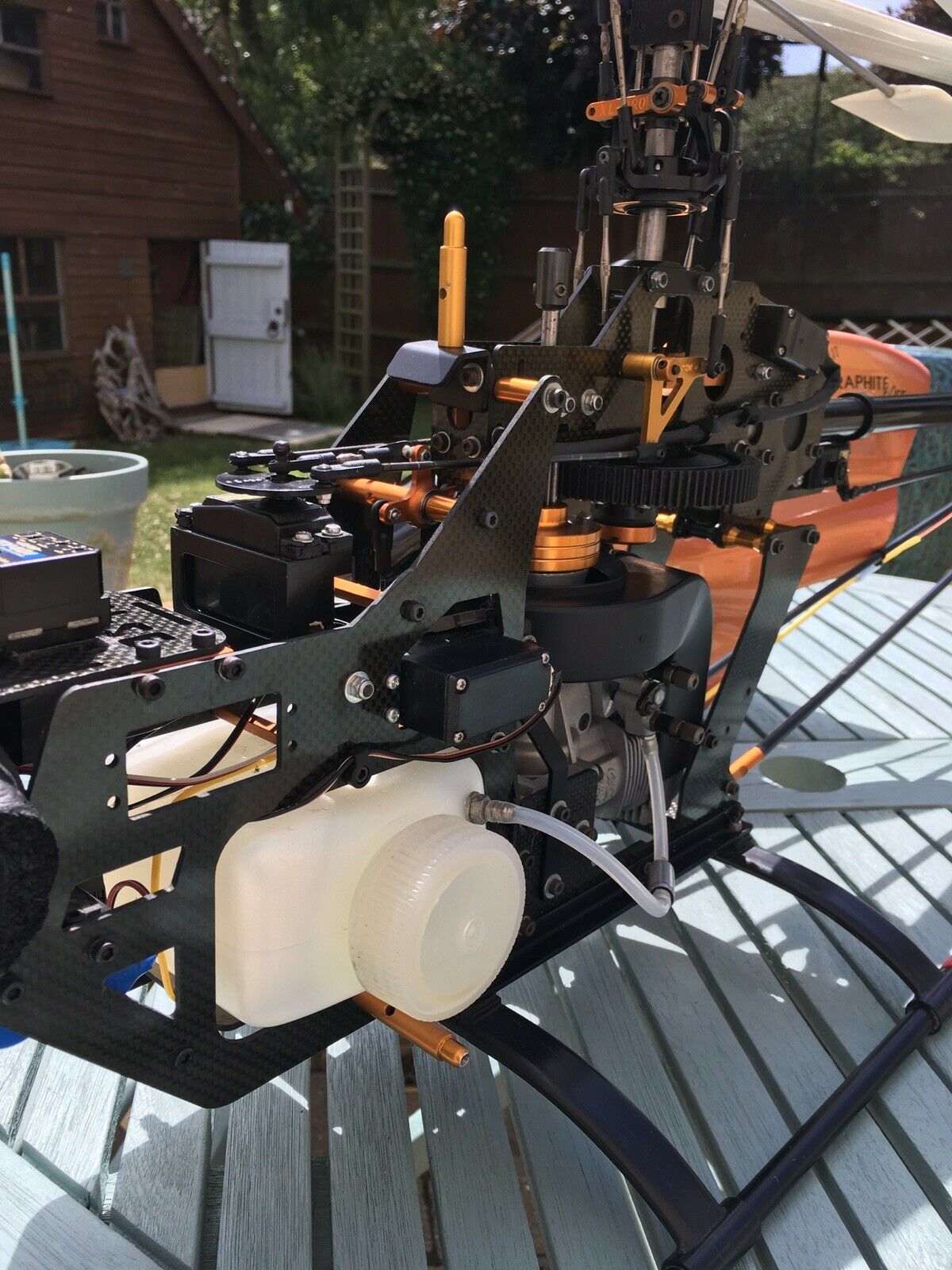

  • Graphite_SE_103

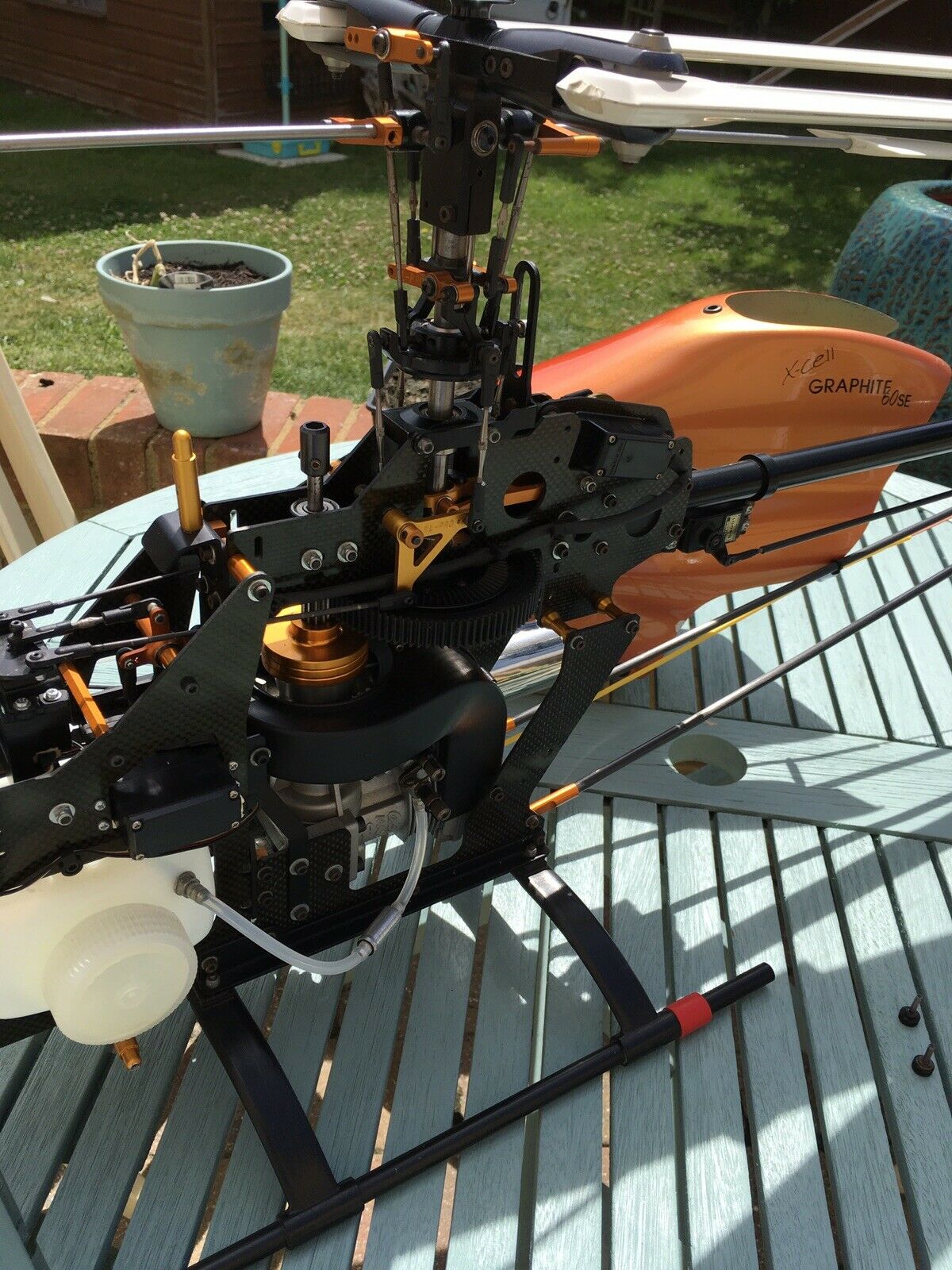

  • Graphite_SE_104
  • Graphite_SE_105

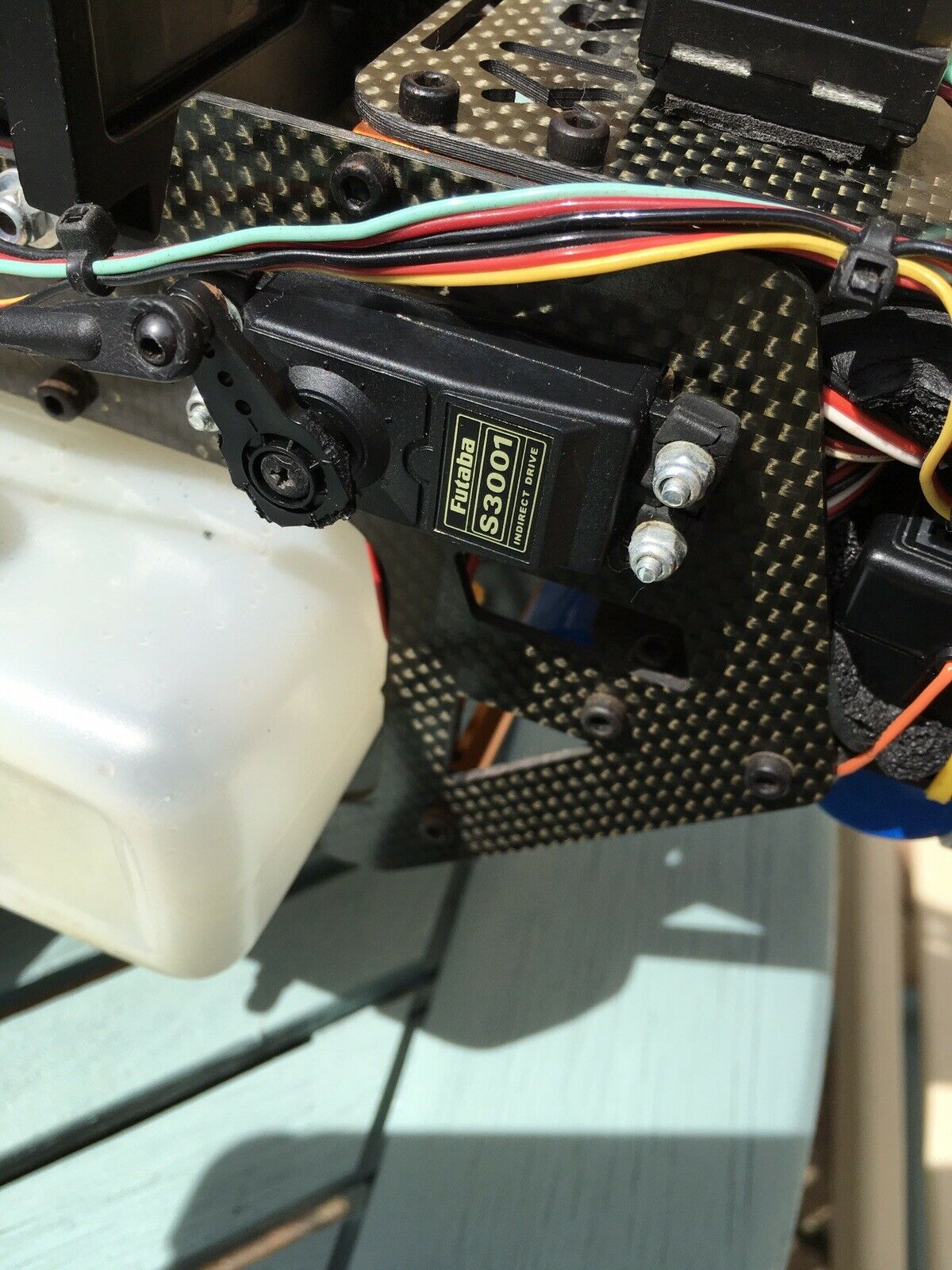

  • Graphite_SE_106

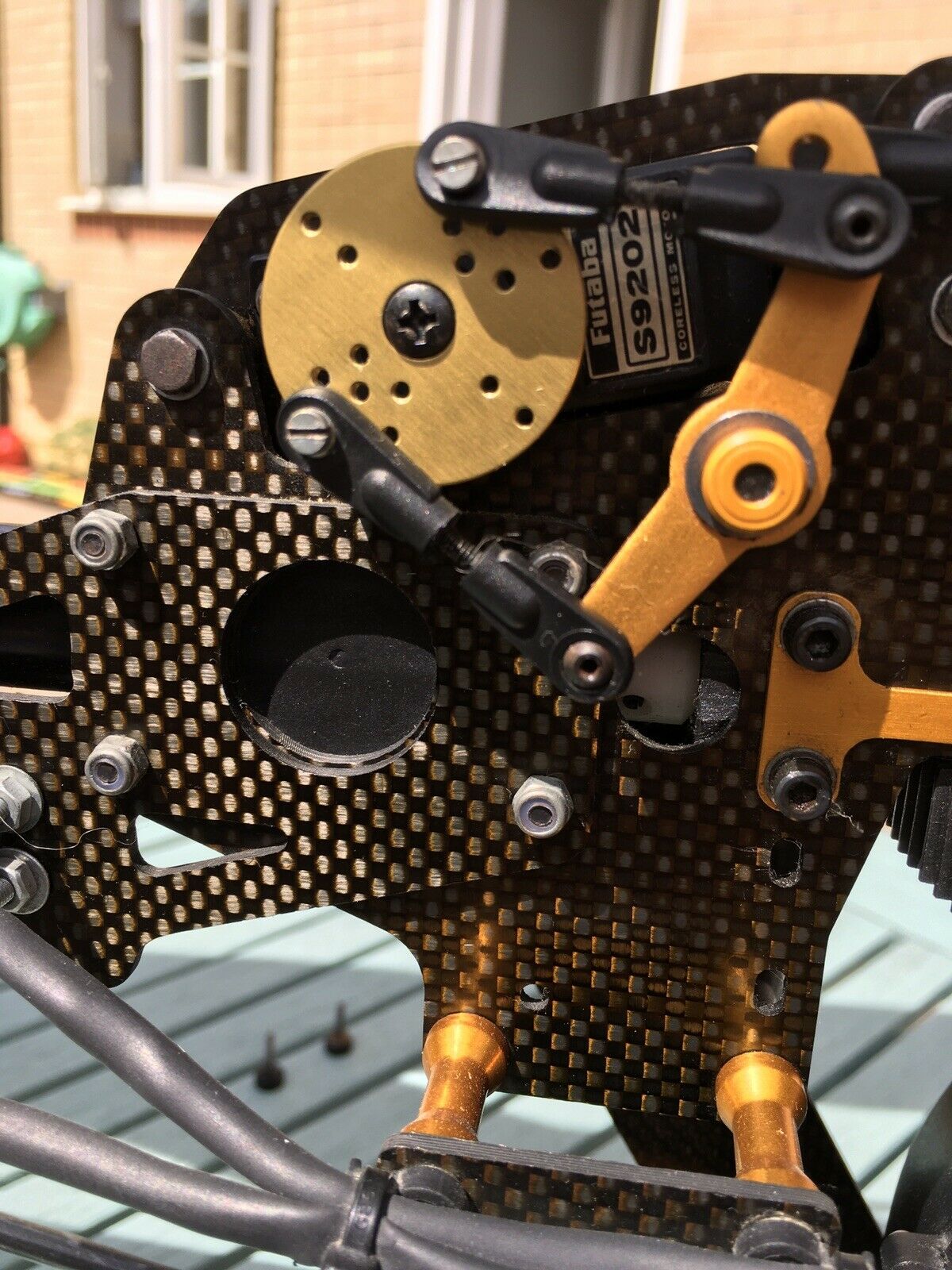

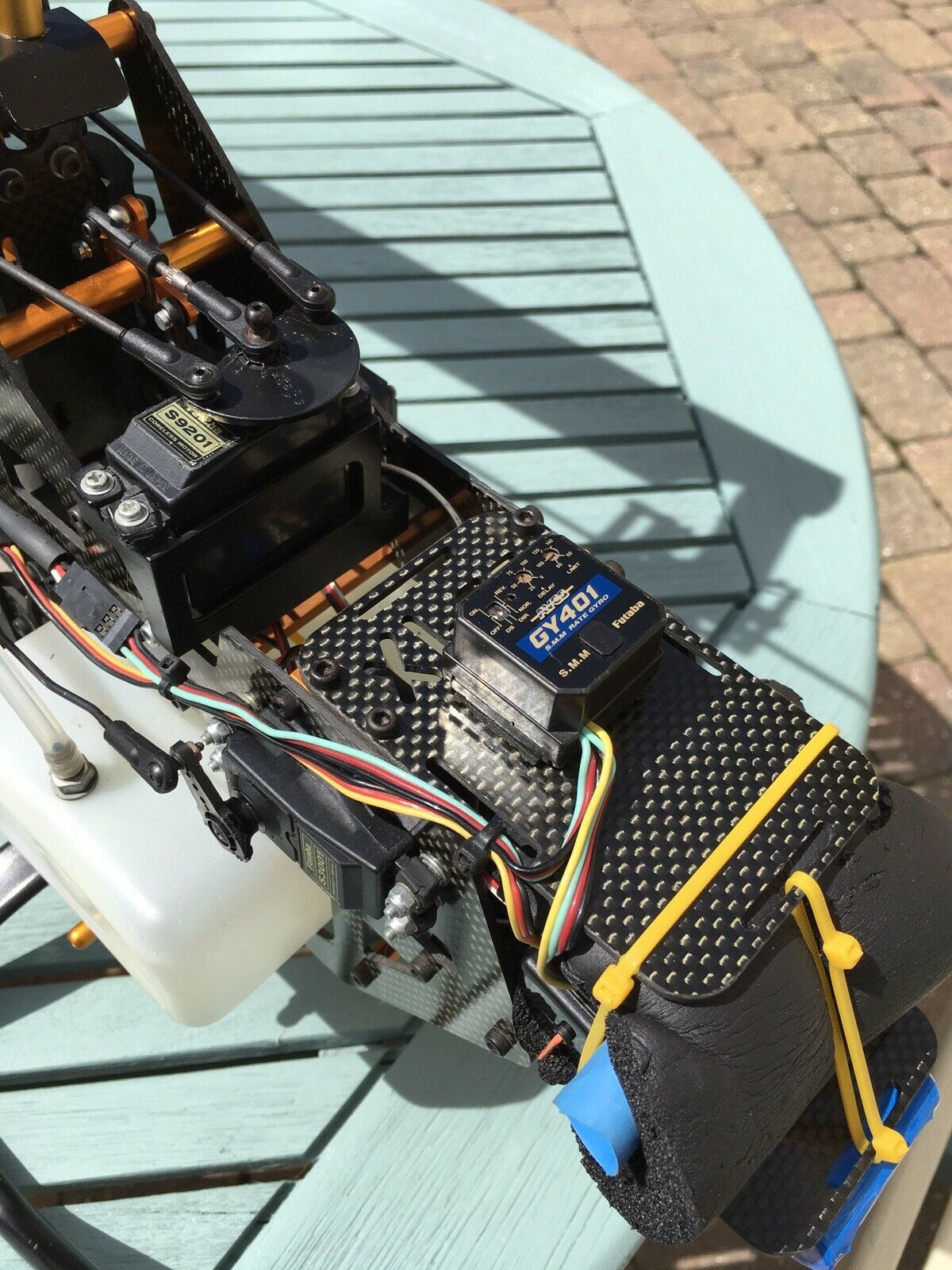

  • Graphite_SE_107

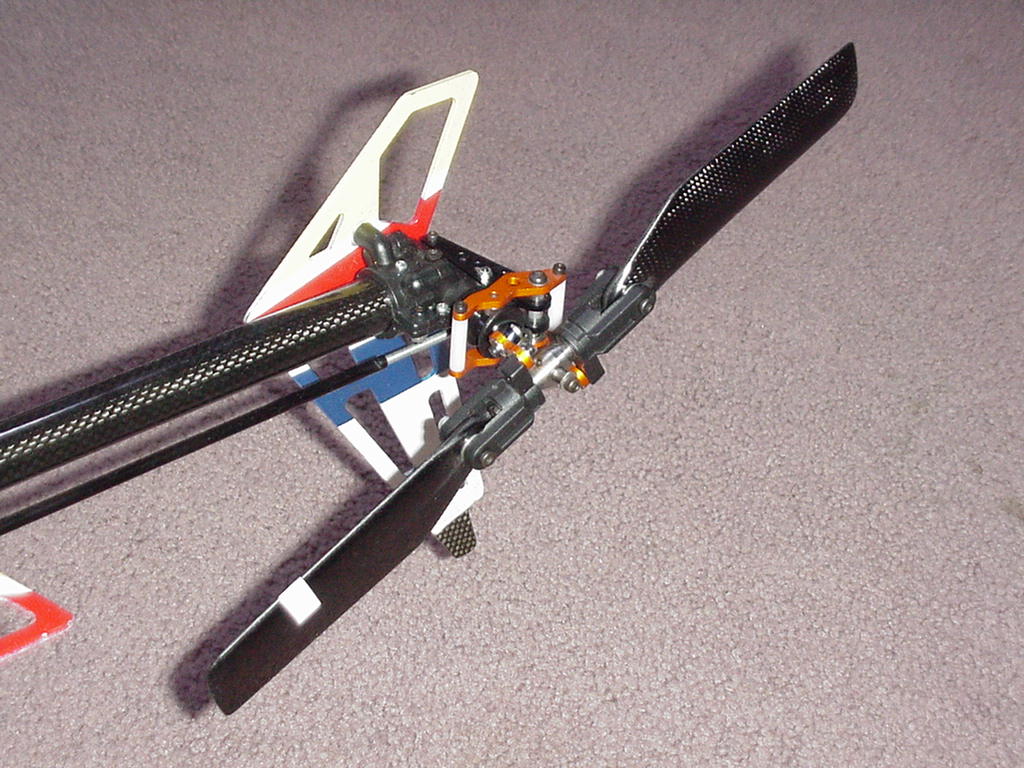

  • MVC-347S

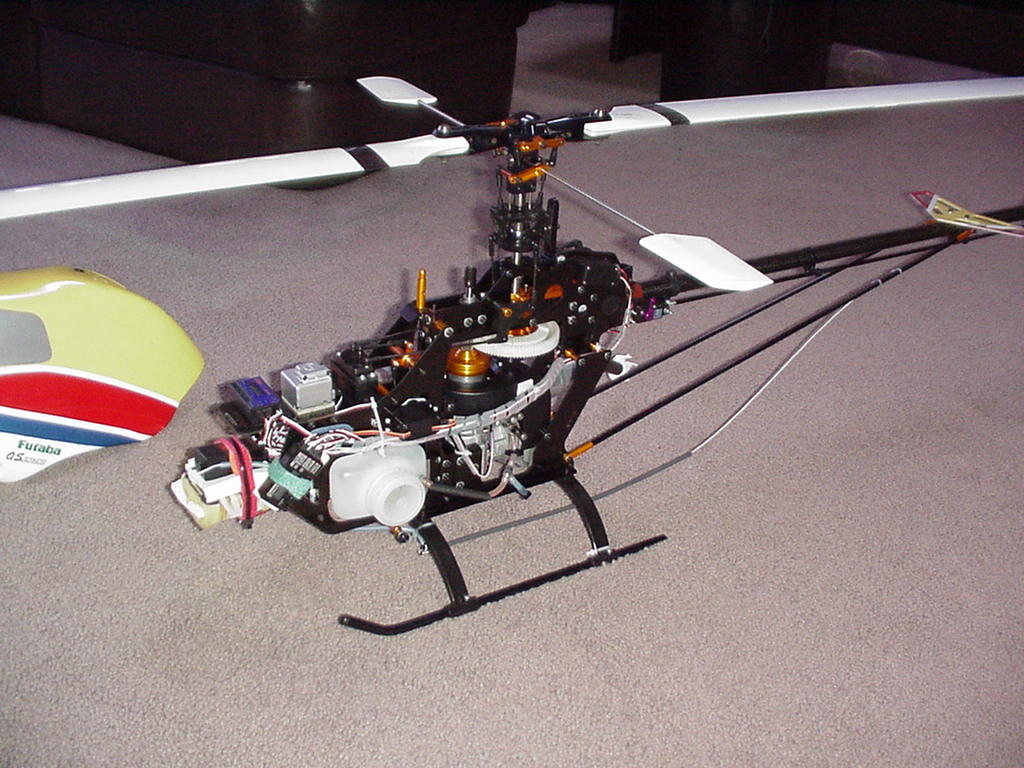

  • MVC-348S

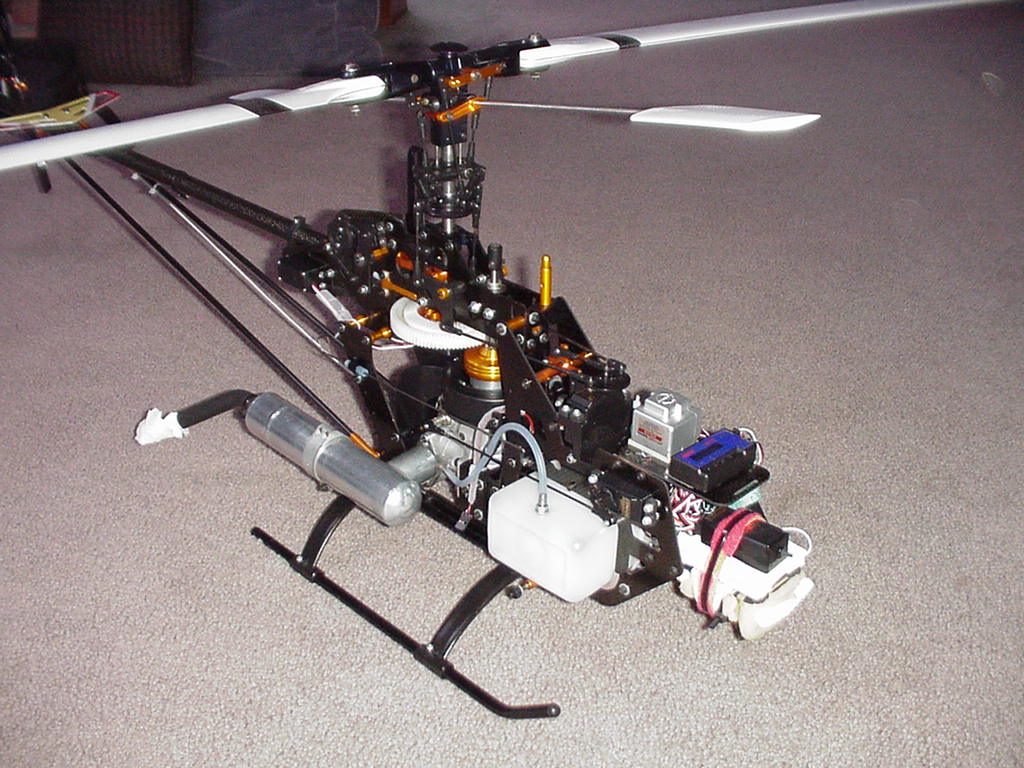

  • MVC-350S

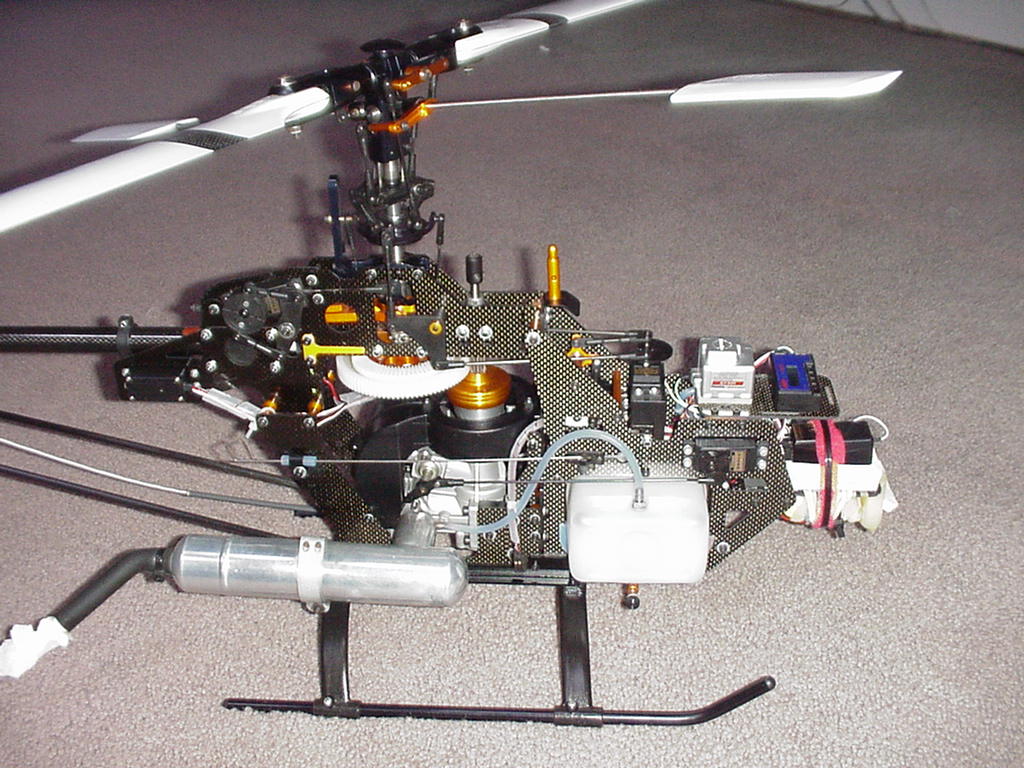

  • MVC-351S

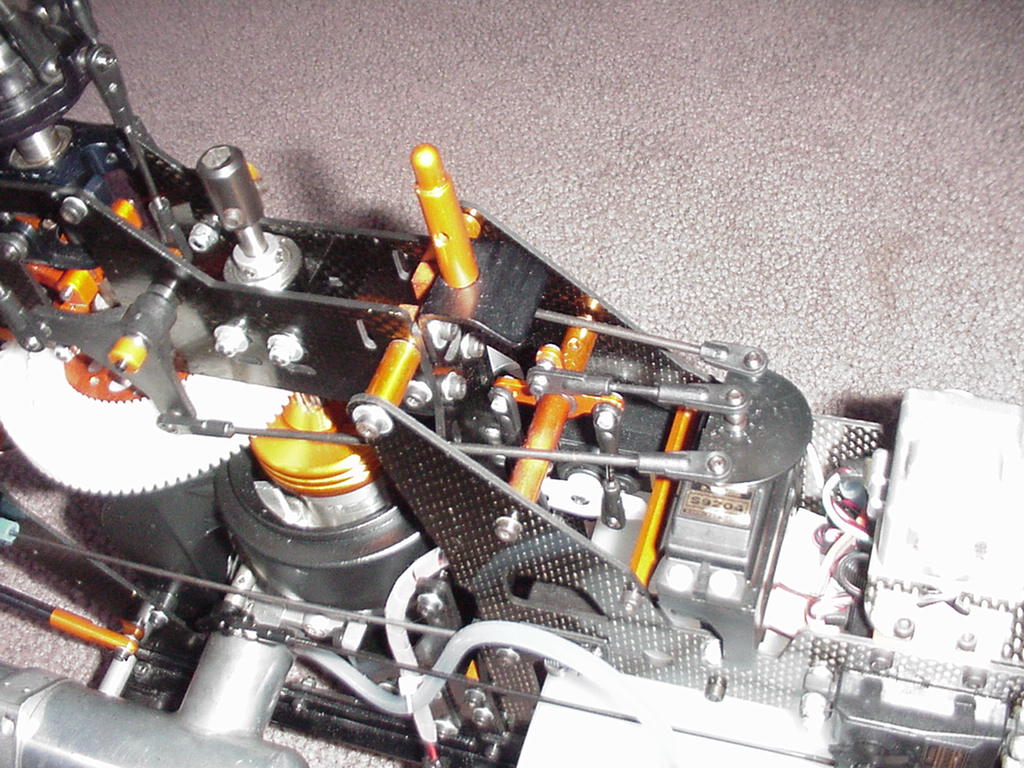

  • MVC-353S

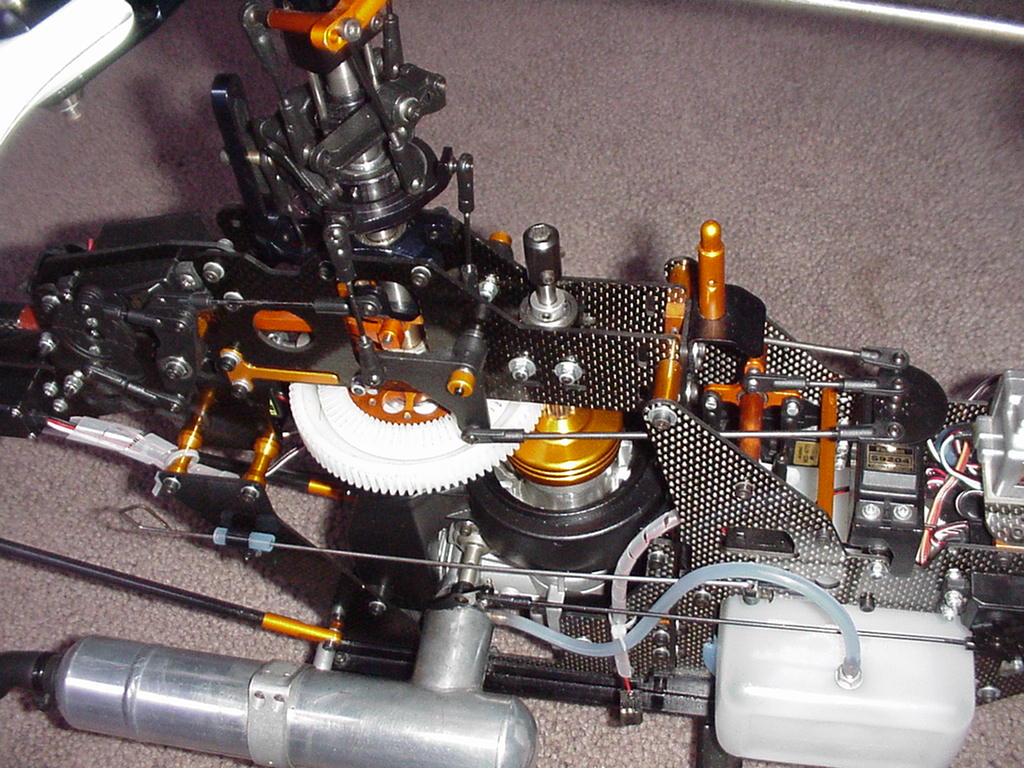

  • MVC-354S
  • MVC-3562S
  • XCell 60 4 (7)

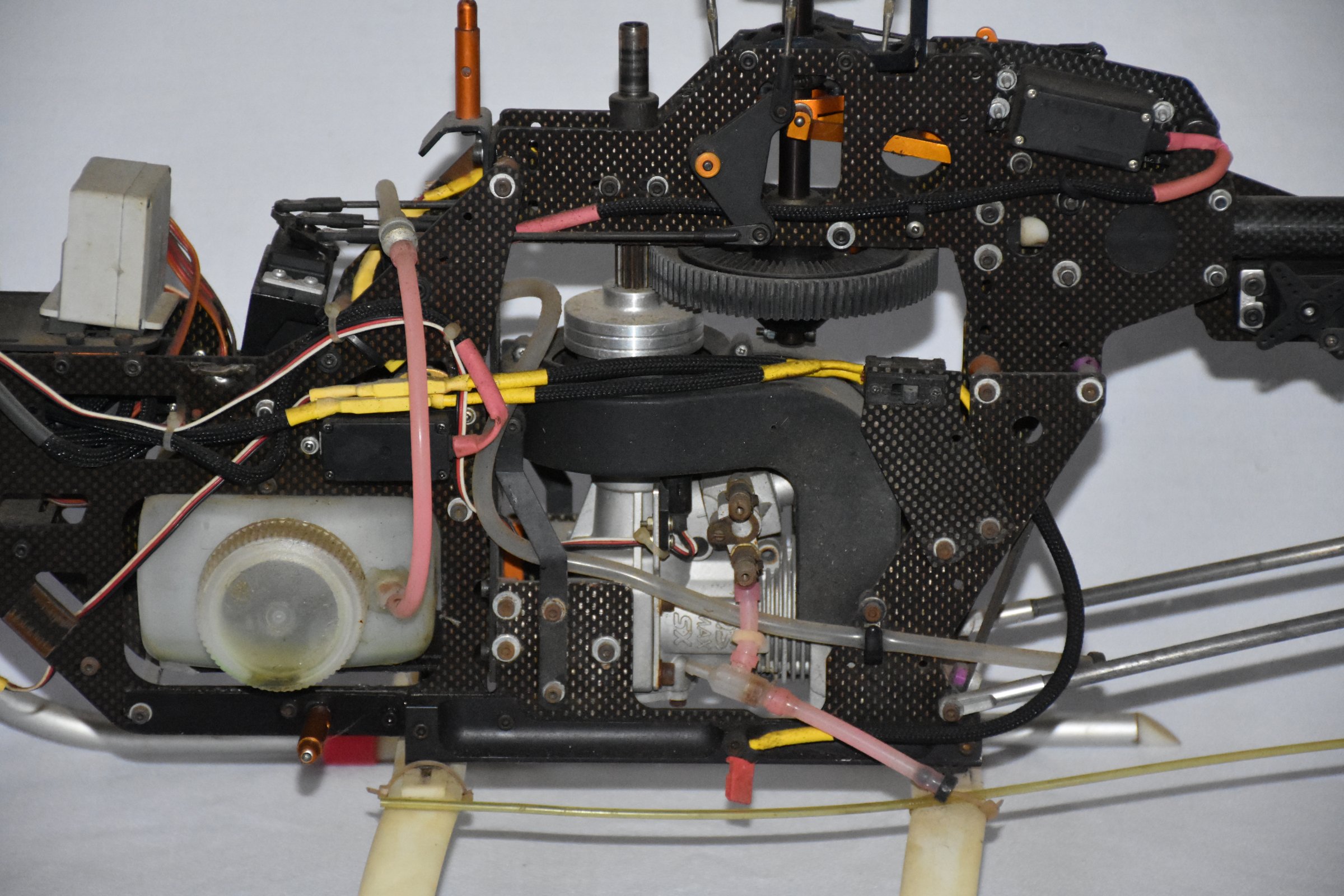

  • XCell 60 4 (8)
  • XCell 60 4 (9)




X-Cell Graphite 60 SE 99 Spec (1999-2002) Mod.1004


Specification:

  Over-All Length  54.0" (1371.6mm)
  Over-All Height  16.75" (425mm)
 Main Rotor Dia  60.6" (1540mm)
 Tail Rotor Diameter.   12.0" (340.8mm)
  Total Weight  Approx. 10 Pounds
 Gear Ratio   9.0:1:4.37
 Engine  61 Cu. In.
 Standard Blades.  690.0mm
 Collective Pitch Range  20 - 22 Degrees

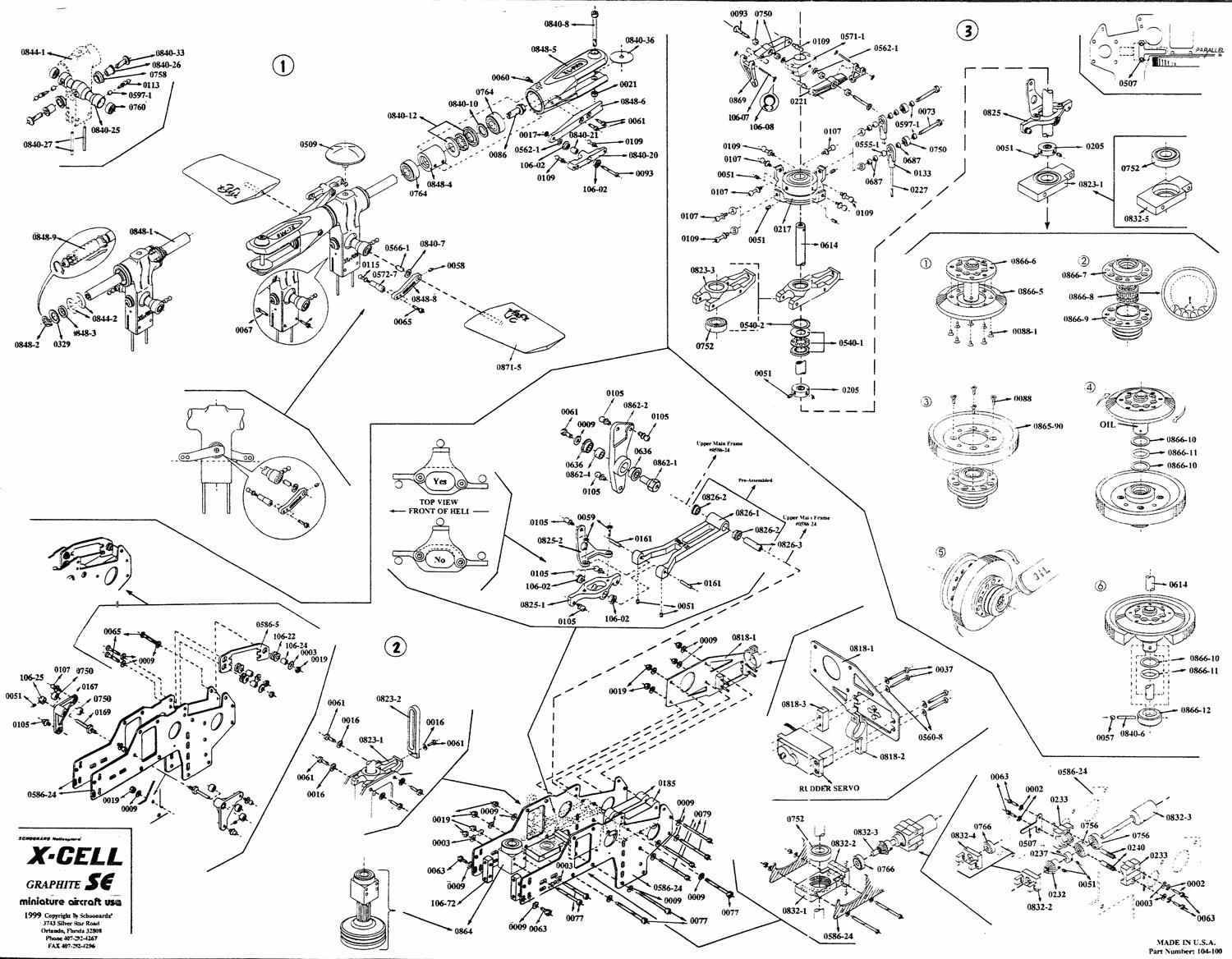

Documents:






Stacked Graphite Frames , SE type graphite servo tray
Rear mount rudder servo , Uniball clutch
Gold large bearing clutch drum , Aluminum fan
Pro II head block , Pro II aluminum blade grips
Machined rear swashplate anti-rotation, Upper main shaft thrust bearings
One piece aluminum elev swing arm , Front tray Gyro mounts, lower frames
Head button , Ball bearing aileron tray mount , Ball bearing push/pull collective
Ball bearing push/pull elevator , Plasticl end CF dual boom support
Split gear driven tail , 99 Spec Torque tube tail drive system ,Carbon  tail pushrod
Carbon/nylon tail gear box , HD front transmission , 2 radial 1 thrust tail blade bearing
Fiber glass canopy , Gel coated solid graphite tail fins
31.5" graphite tail boom





X-Cell 60 Graphite SE 4 Stroke (1998) Mod.1012
