X-Cell - Custom 60 (Mod.1003) 1993
 X-Cell Custom |
|
||||||||||||||||||
| Documents: | |||||||||||||||||||
|
|
 |
 |
 |
||||||||||||||||
 |
 |
 |

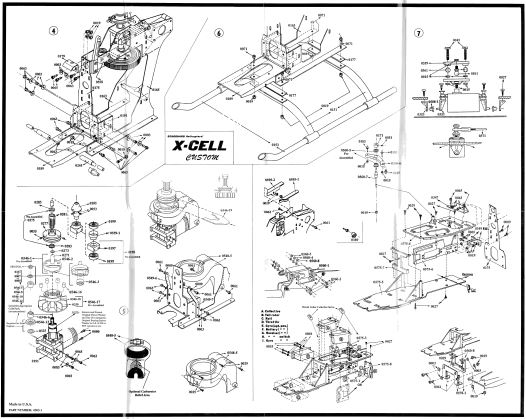

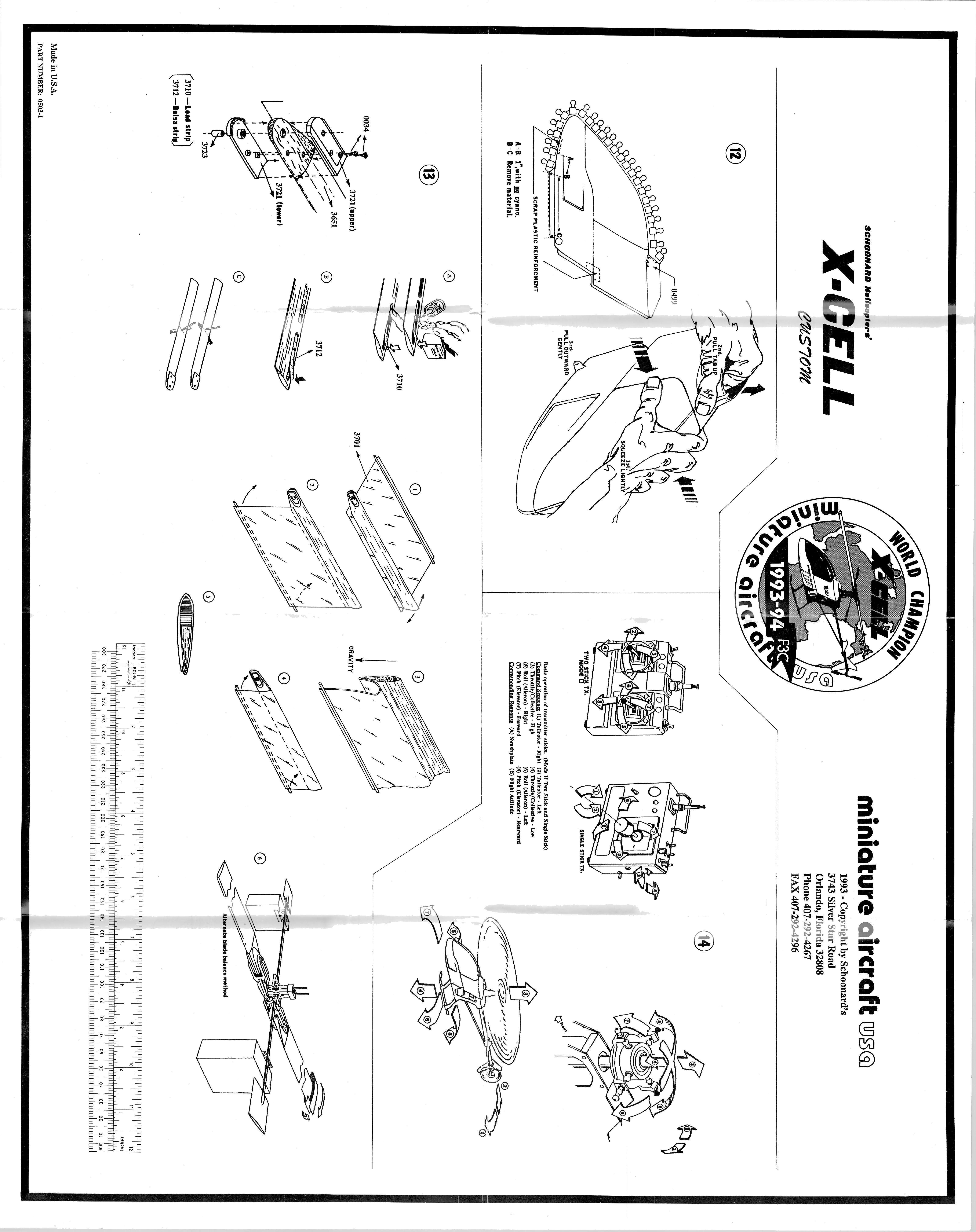

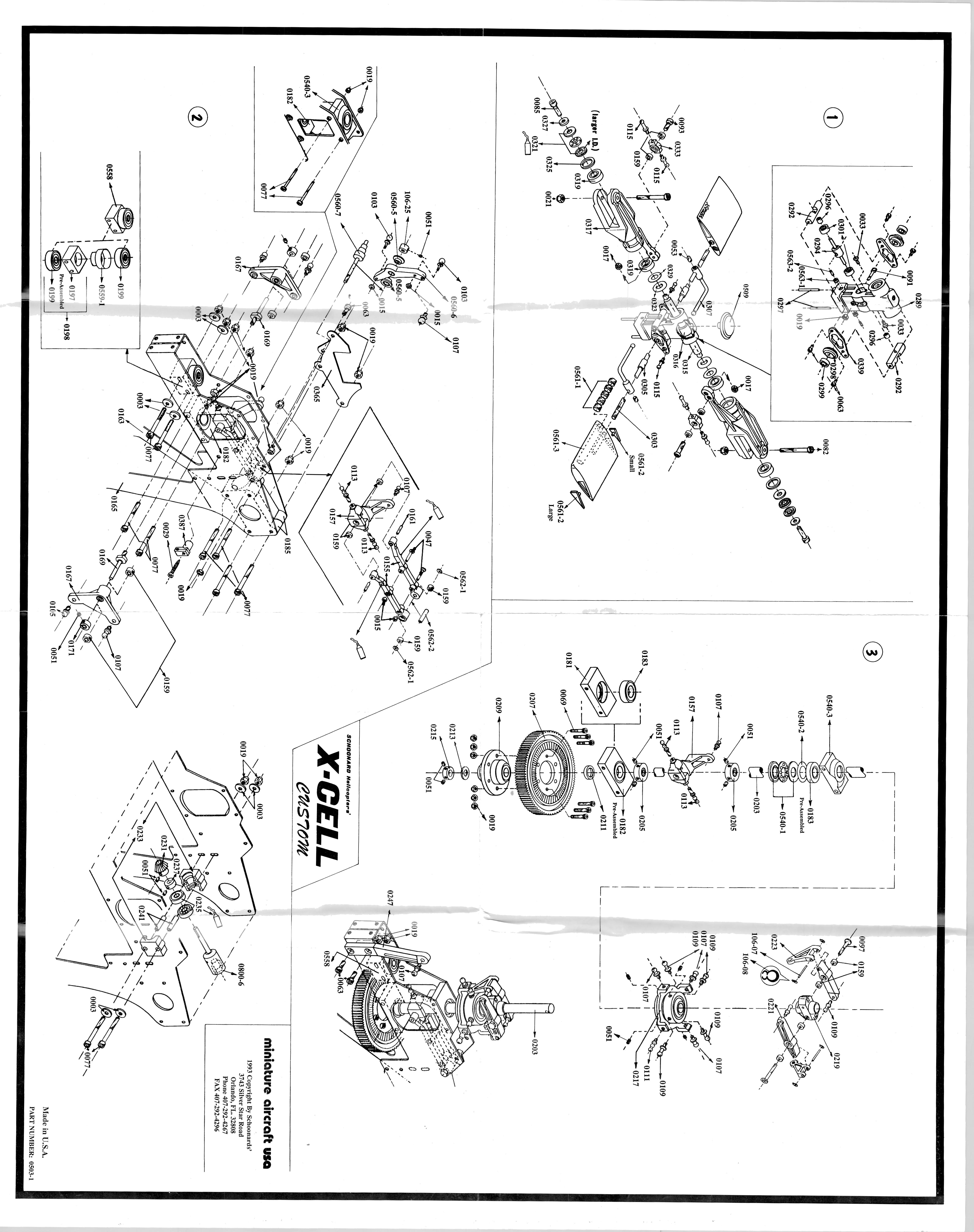

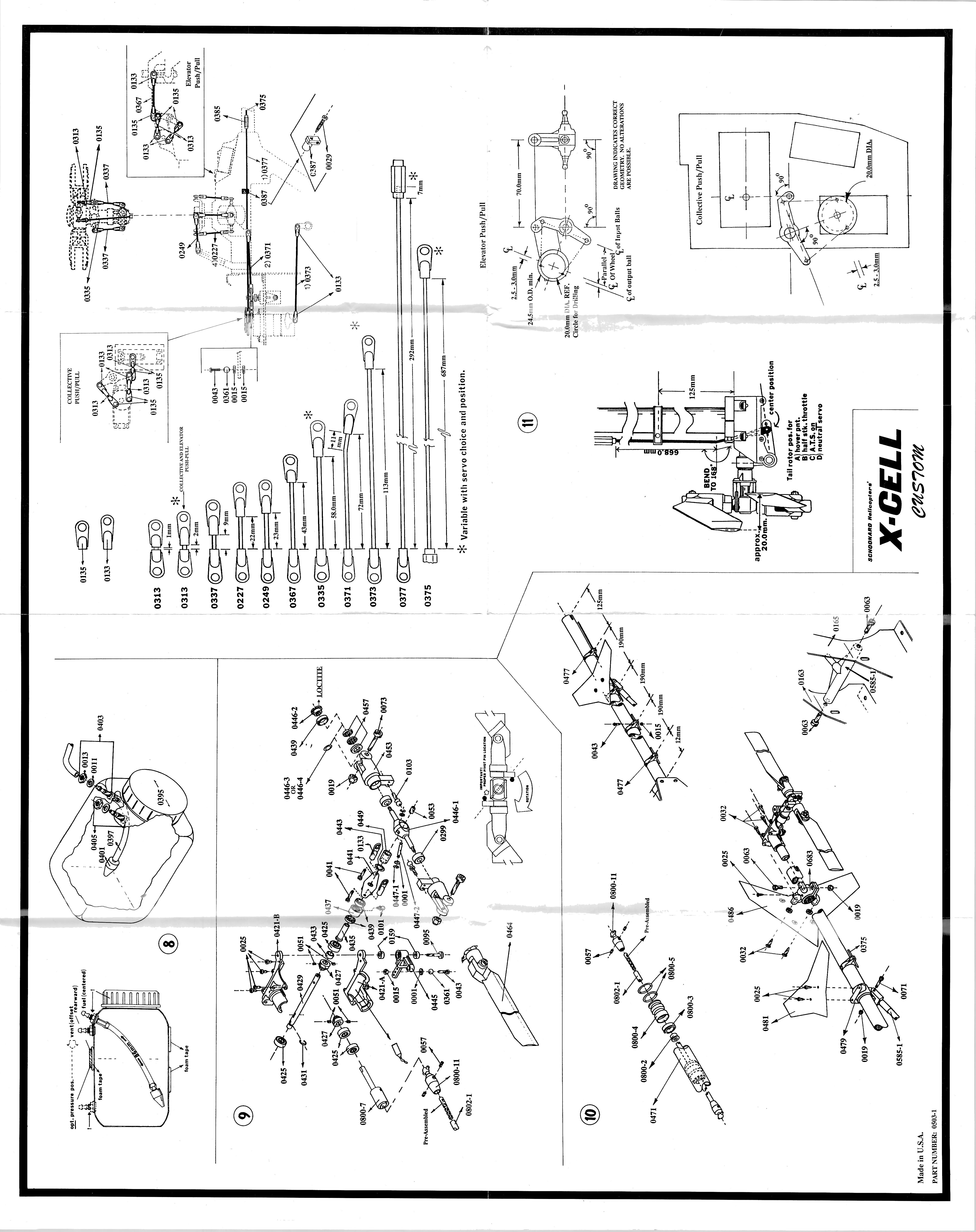

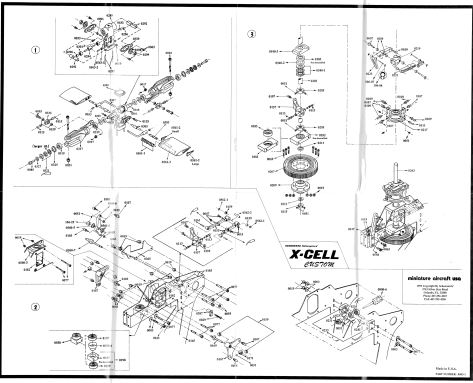

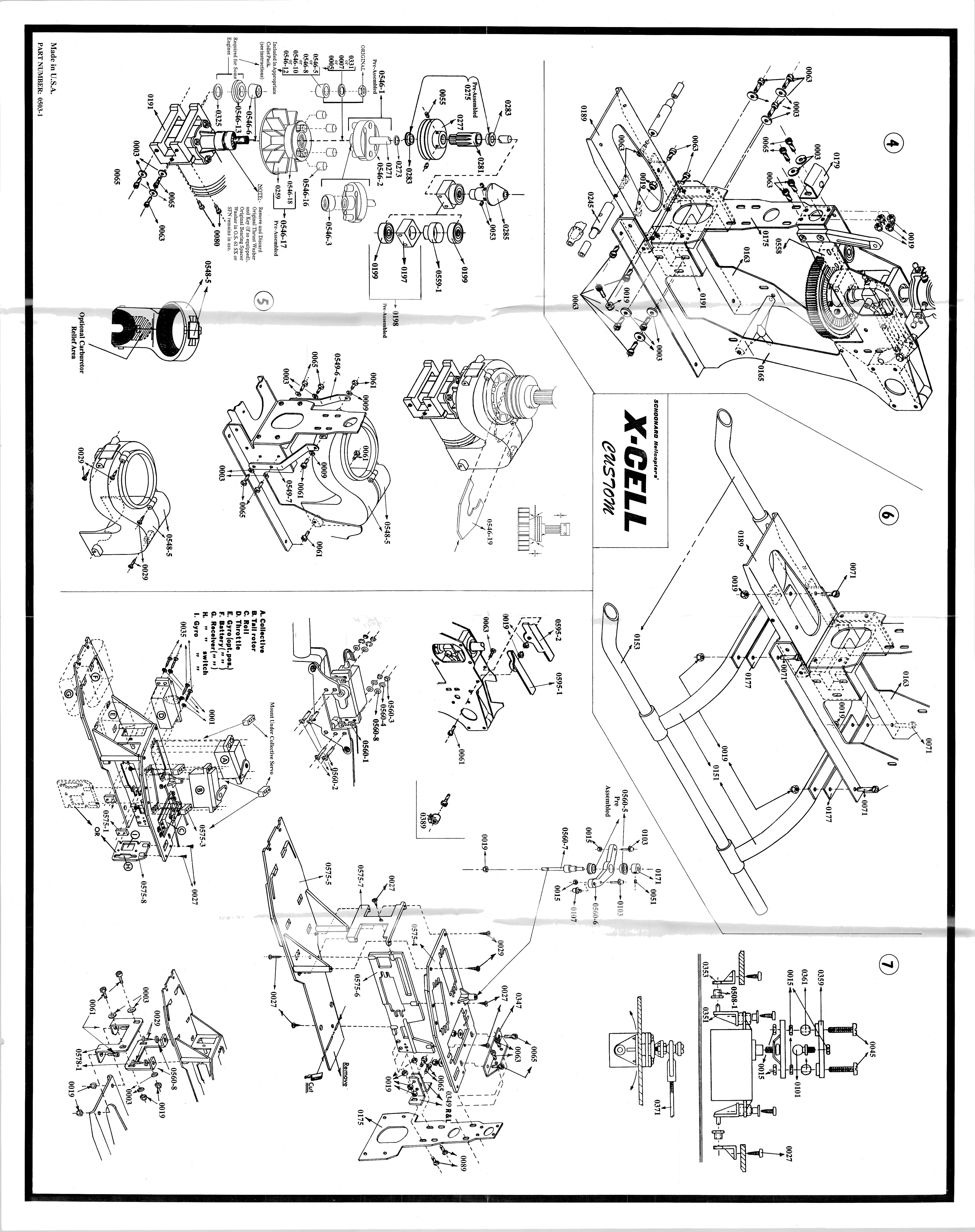

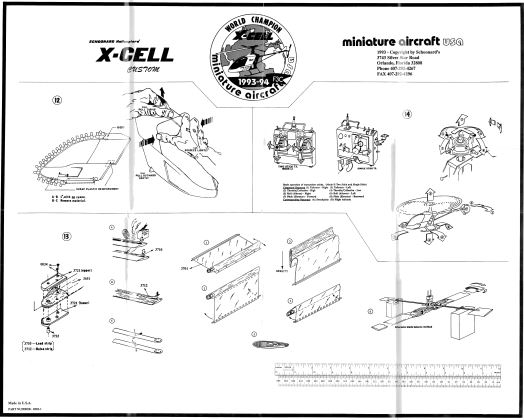

 1003 Custom Instruction manual(16MB) |
||||||||||||||||
| X-Cell 60 Custom (Pre 1993) | X-Cell 60 Custom (1993 - 1997) | X-Cell 60 Custom ( 1998) |
| Bent Aluminum Frames Wood Servo Tray Front mount rudder servo Bolt to hub clutch (Non-uniball) Standard silver clutch drum Plastic head block Plastic canopy ? 30" tail boom |
Bent Aluminum Frames |
Stacked Aluminum Frames Plastic Servo Tray Front mount rudder servo Uniball clutch Standard silver clutch drum Plastic head block Side arn trailing link auto-rotation Main shaft thrust bearings Ballbearing aluminum elev swing arm Rear gyro mounts, between lower frames Head button Ball bearing aileron tray mount Ball bearing push/pull collective Ball bearing push/pull elevator Carbon fiber single boom support Non drive tail Torque tube tail druive system HD front transmission 2 radial 1 thrust tail blade bearing Fiber glass canopy 31,5" tail boom - 680 main blades |
Additional notes:
The bent frame version of the 1001 was also available in a "white frame" version #1001W . This version included White main frames, tail boom,
boom supports, strut supports, elevator plate, struts & skids.
When the "white frame" version of the 1001 was first released (circa 1990) it was called a #1005. (Not to be confused with the later 1005 X-Cell Gas graphite
