X-Cell Pro II Graphite (1998) Mod.1006







Specification:

  Over-All Length   54.5" (1384.3mm)
  Over-All Height   16.75" (425mm)
 Main Rotor Dia  60.6" (1540mm)
 Tail Rotor Diameter.   9.45" (240mm)
  Total Weight   Approx. 10 Pounds
 Gear Ratio   9.3:1:5.2
 Engine  61 Cu. In.
 Standard Blades.  690.0mm
 Collective Pitch Range -20 + 23 Degrees


Documents:
X-Cell Pro 2K

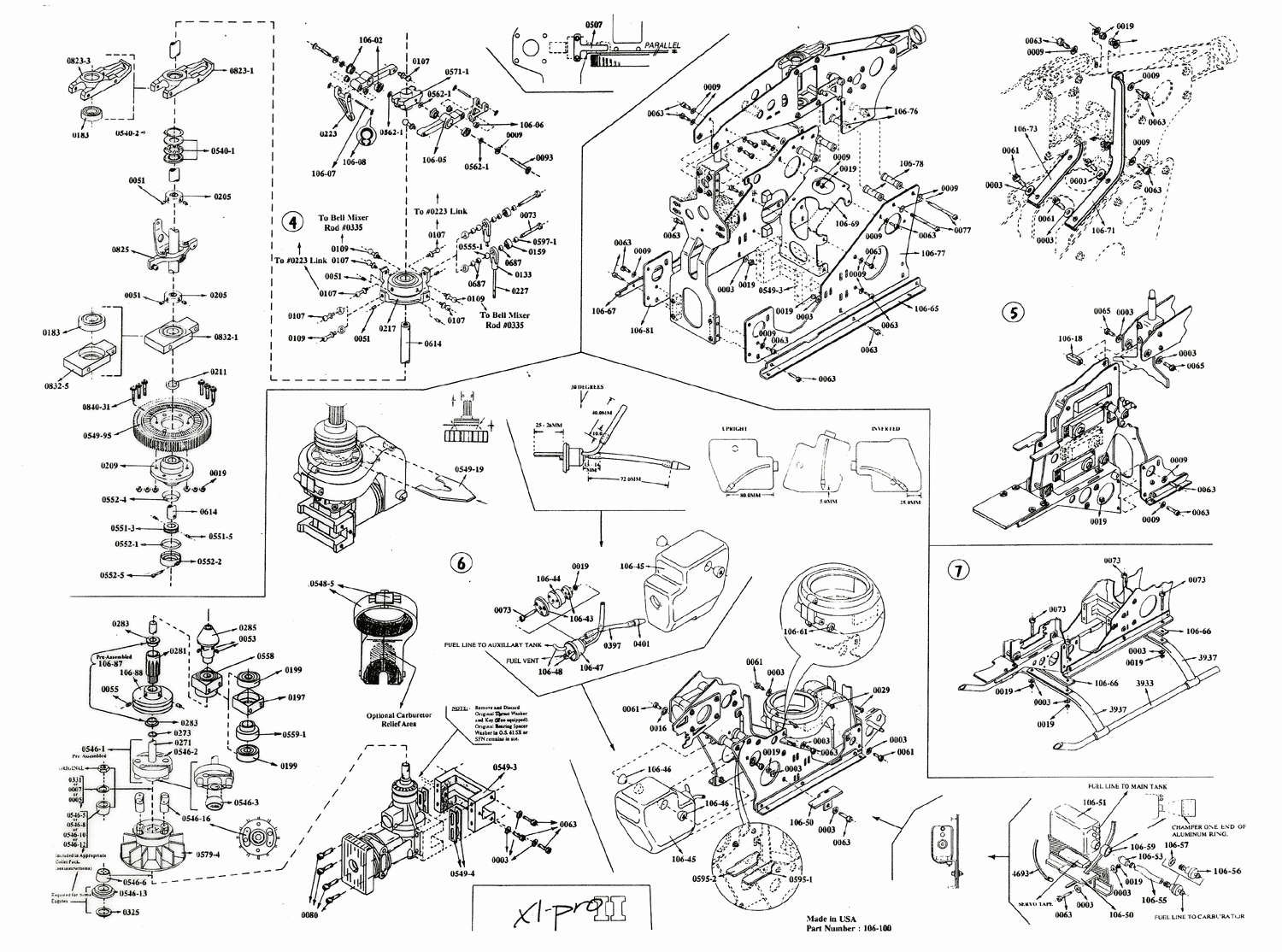

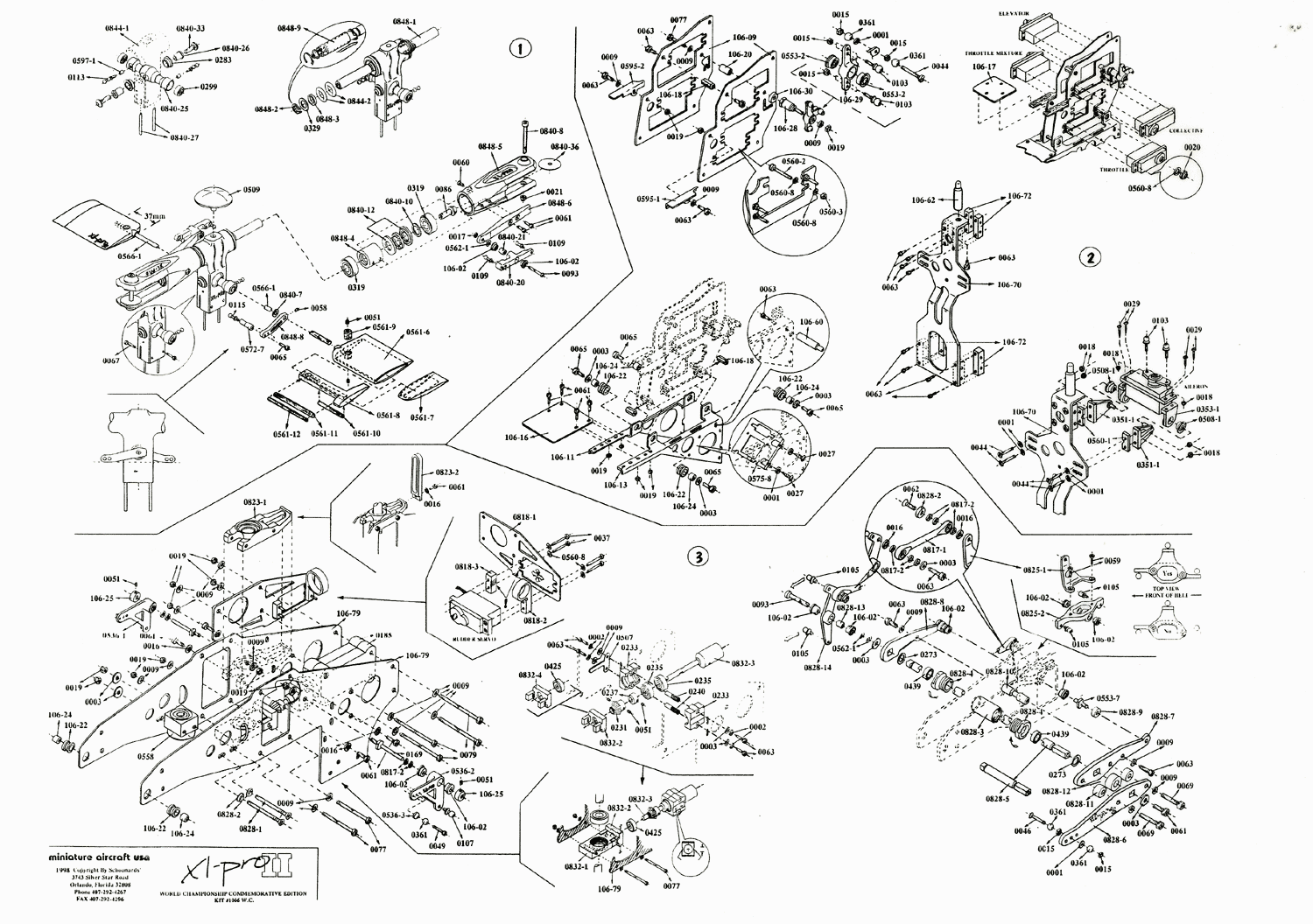

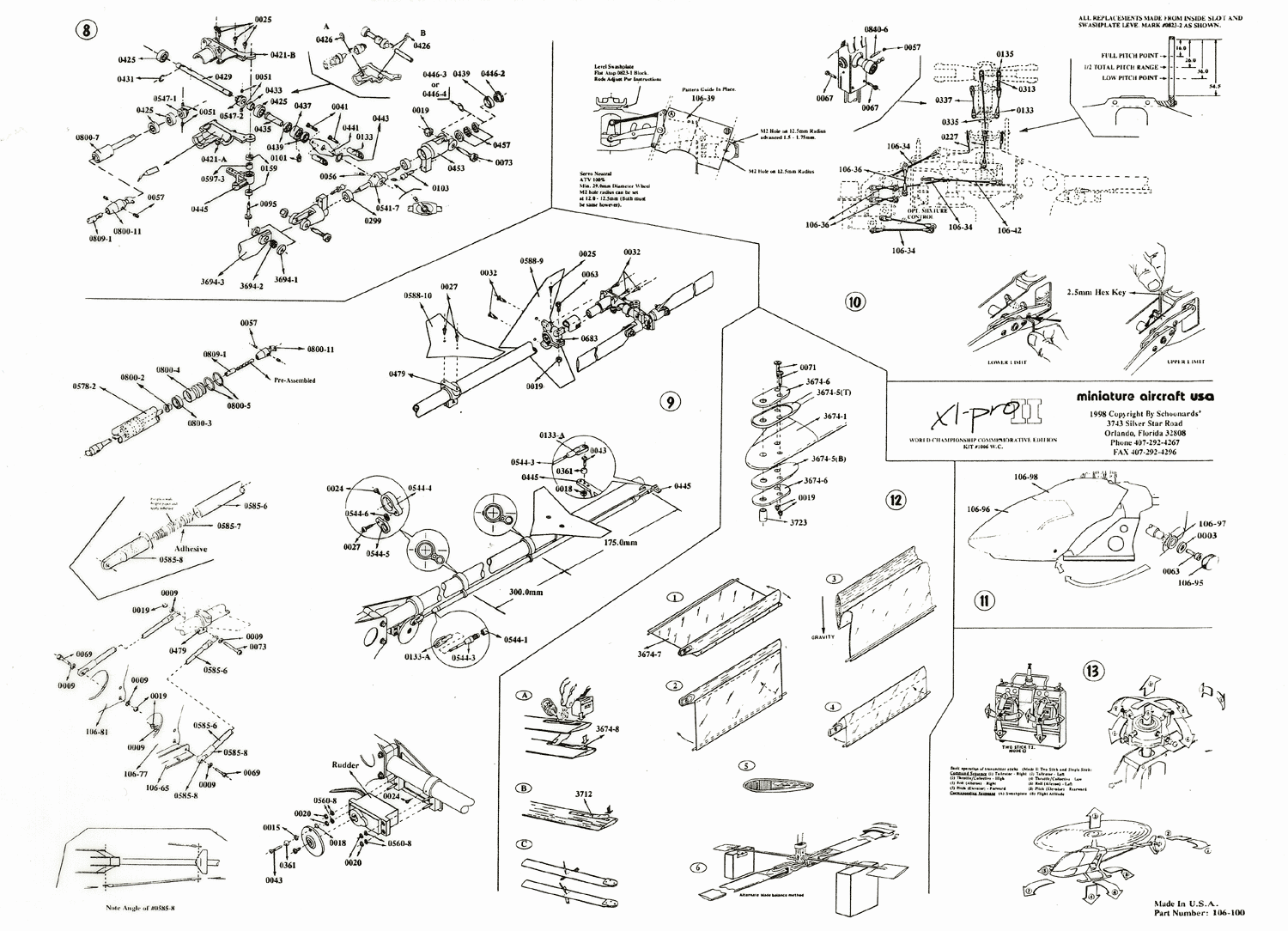

X-Cell Pro II







  • XCELL_PRO_II_005
  • XCELL_PRO_II_010
  • XCELL_PRO_II_015
  • XCELL_PRO_II_025
  • XCELL_PRO_II_030
  • XL_PRO_II_101
  • XL_PRO_II_102
  • XL_PRO_II_103
  • XL_PRO_II_104

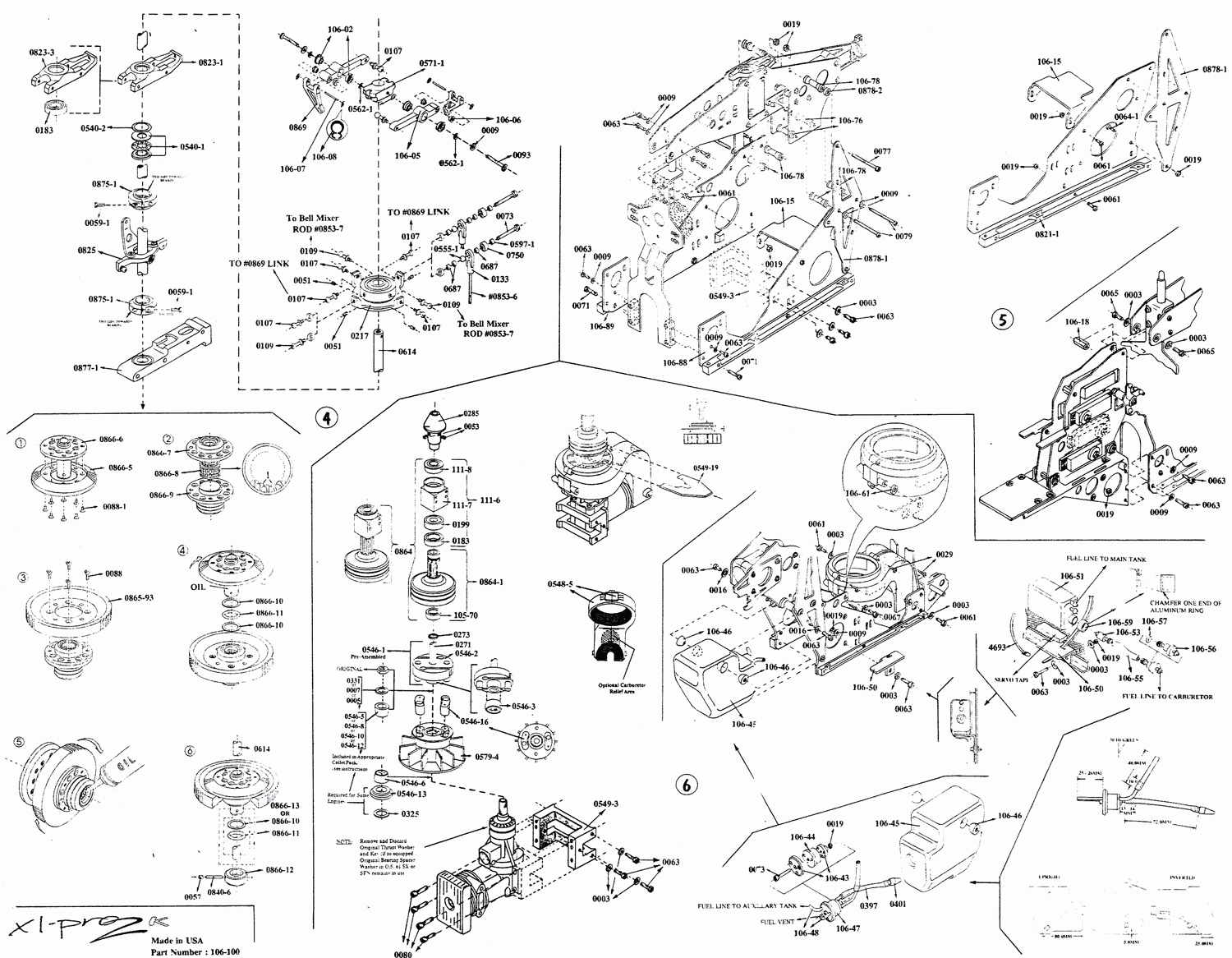

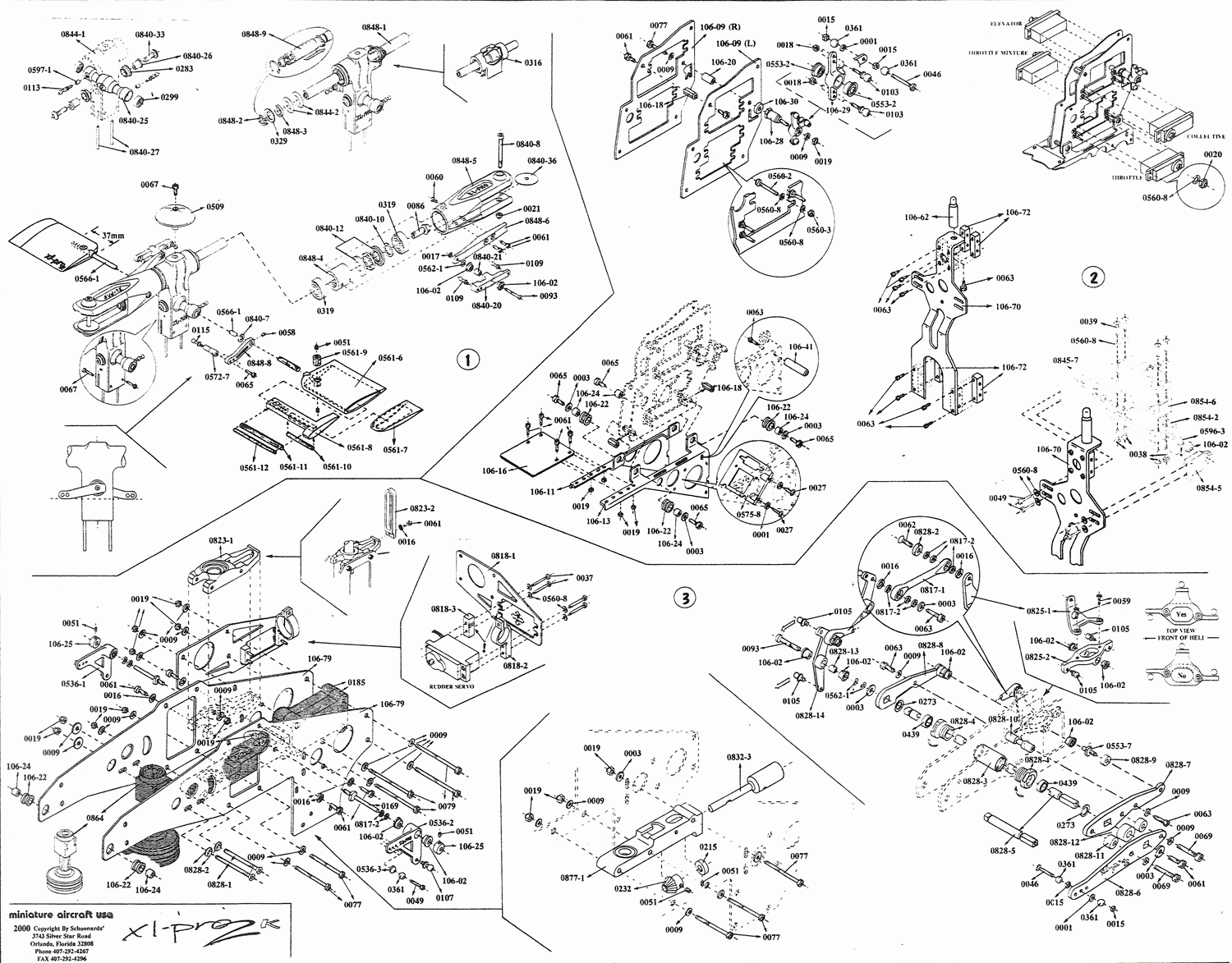

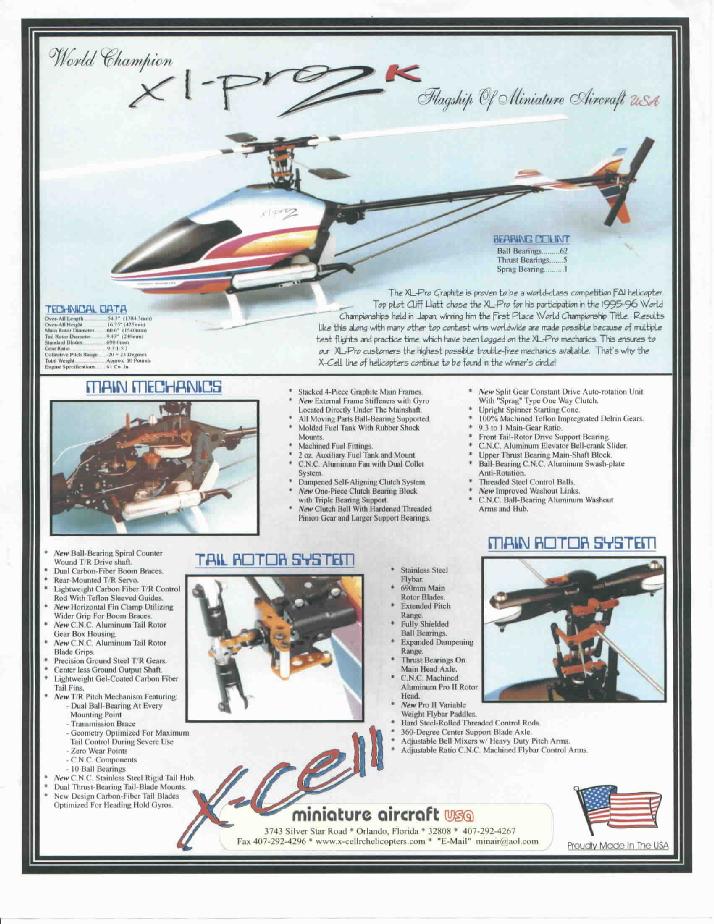

 X-Cell Pro 2 K (2000) Mod.1006

Optional Features for XCell Pro2K

part number description details
0232 High Speed Tail Drive Front Gear Replaces #0231 16tooth bevel gear
0533 Easy Off Flybar Weights Do not require flybar paddle removal
0537 Pro Wash-Out Mixer Arm Kit
0538 Pro Adjustable Bell Mixers Five mixing ratios
0547 Speed Up T/R Gears Requires Use of lightweight T/R blades
0561 Pro Adjustable CG Paddles 15-30gm variable weight using brass inserts
0561-5 Pro-2 FAI Paddles variable 24-45gm. CG corrected
0597 Machined Bearing Spacer kit for Plastic Bellcranks
0817 Ball Bearing Push-Pull Elevator Rod
0818 Rudder Graphite Rear Servo Mount
0820 Machined Lower Frame Landing Gear Plates
0823 Machined Upper Thrust Bearing Block with Anti-Rotation
0846 Stainless Steel Head Axle
0883 Linear Servo Link Kit (Order #0883 for JR and #0883-1 for Futaba Servos)



X-Cell Pro II Graphite 4-Stroke (1998) Mod.1011



Optional Features for XCell 4-Stroke Pro

part number description details
0232 High Speed Tail Drive Front Gear Replaces #0231 16tooth bevel gear
0504 Sport Canopy - Epoxy Glass Requires #0575 plastic radio tray
0533 Easy Off Flybar Weights Do not require flybar paddle removal
0537 Pro Wash-Out Mixer Arm Kit
0538 Pro Adjustable Bell Mixers Five mixing ratios
0547 Speed Up T/R Gears Requires Use of lightweight T/R blades
0561 Pro Adjustable CG Paddles 15-30gm variable weight using brass inserts
0561-5 Pro-2 FAI Paddles variable 24-45gm. CG corrected
0597 Machined Bearing Spacer kit for Plastic Bellcranks
0817 Ball Bearing Push-Pull Elevator Rod
0818 Rudder Graphite Rear Servo Mount
0820 Machined Lower Frame Landing Gear Plates
0823 Machined Upper Thrust Bearing Block with Anti-Rotation
0846 Stainless Steel Head Axle
0883 Linear Servo Link Kit (Order #0883 for JR and #0883-1 for Futaba Servos)
