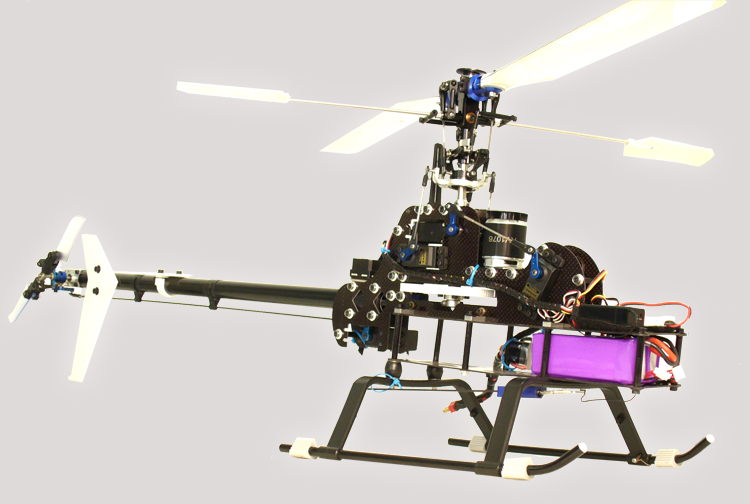

Quick Fly (2007)
Quick Fly, now classed as a '500' size machine.

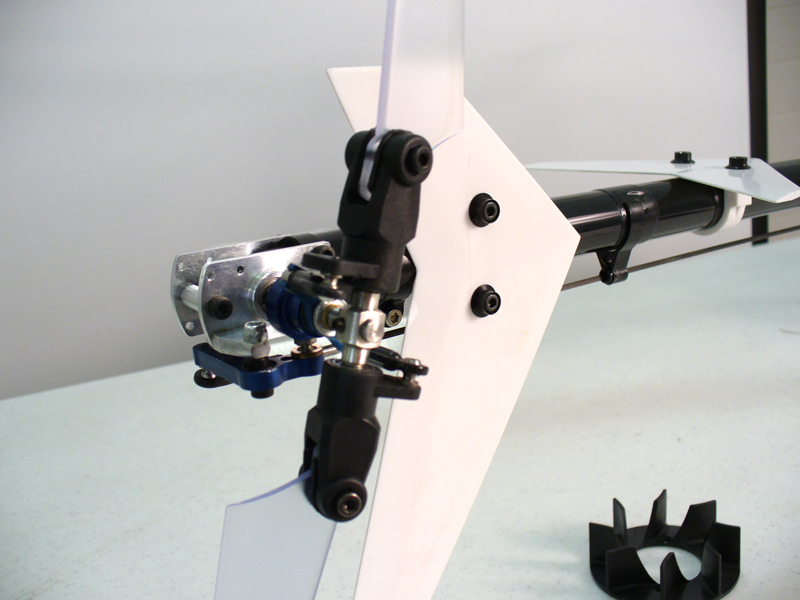

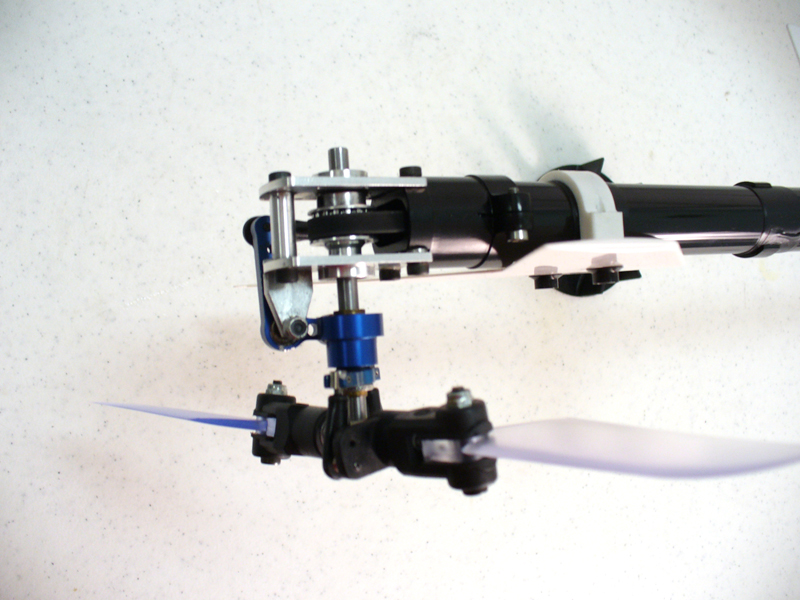

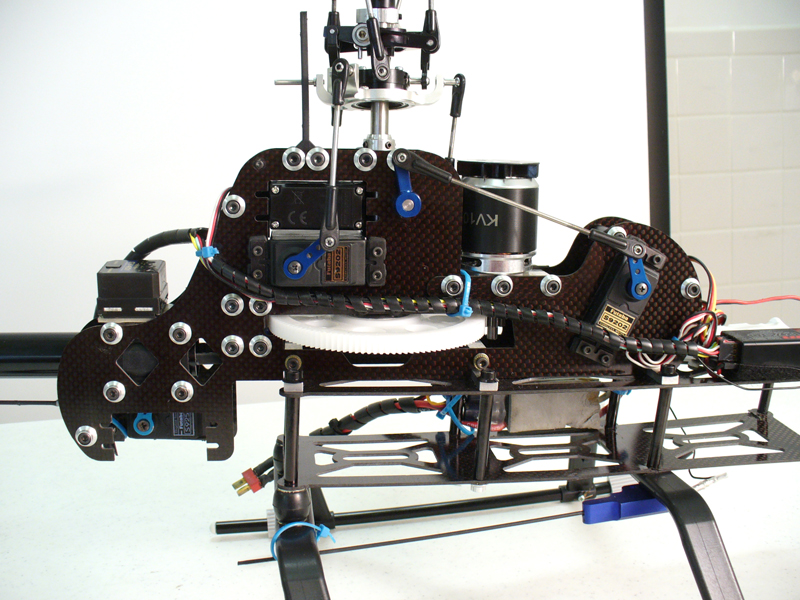

Revised version of the '8' size line of electric models and following on from the EP 475MM with same specifications as noted below and available in Pro Carbon and Sport G10 versions. Has the standard black and white canopy, adjustable battery compartment and could also be fitted with the option shaft drive system and CNC SE tail upgrade.
|
Specifications |
Length
|
42 in. w/ Canopy 38in w/o Canopy
|
Height
|
16 in.
|
Full Equipped Weight
|
4.9 lbs (2.2 kg) |
Batteries
|
6S or 3S x 2
|
Motor
|
Quick Ray Power 2826/10
|
Motor KV
|
1050 |
ESC
|
Phoenix Castle 60 |
Blades
|
Quick 475 mm* |
Tail Blades
|
Plastic**
|
Frame Thickness
|
1.5 - 1.65 mm
|
Head Speed
|
1700 - 2300 rpm |
Pinion
|
10 - 16 tooth |
Spindle
|
6 mm
|
Mainshaft
|
8 mm
|
Canopy
|
Fiberglass
|
Flying
|
Beginner to 3D |
Flight Time
|
10 -20 min |
|
PRICE CHART |
Part Number
|
Heli Type
|
Combo/Kit
|
Price
|
Order
|
QKE06S
|
Sport |
Kit Only |
$349.99 |
|
QKEC06S
|
Sport |
Combo |
$549.99 |
|
QKE06P
|
Pro |
Kit Only |
$424.99 |
|
QKEC06P
|
Pro |
Combo |
$649.99 |
|
Kit Prices are for kit only, Combo includes motor, main blades, ESC, and the kit. |
Differences Between Sport and Pro Kit |
|
Sport |
Pro |

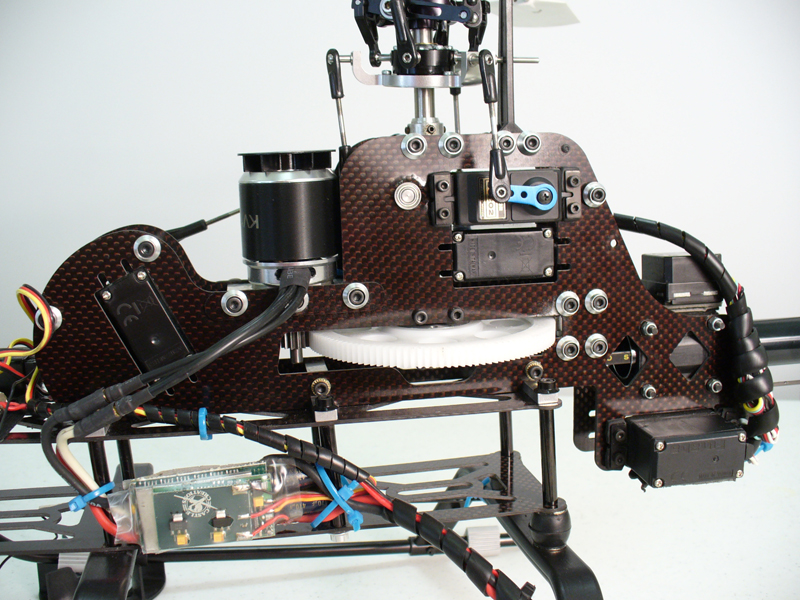

Frames
|
G-10 Fiberglass |
Carbon Fiber |
Head
|
Molded Blade Grips |

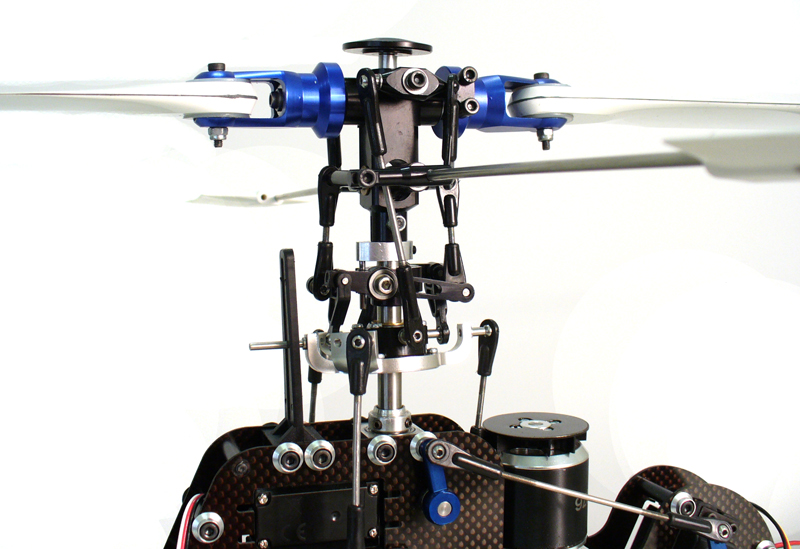

Fully Metal Head w/ Thrust Bearings |
Autorotation Hub
|
No |
Yes |
Boom Supports (Do Not Come in Kit)
|
Fiberglass |
Carbon |
|
Quick Fly build manual - 2008 detailed manual with photo assembly for both Pro and Sport models.
Quick Fly review - 2008 build and flying review by Tony Yap from Fly RC.
The Quick Fly was to remain on the web site until QWW ceased trading.
