Quick Learner (2001)

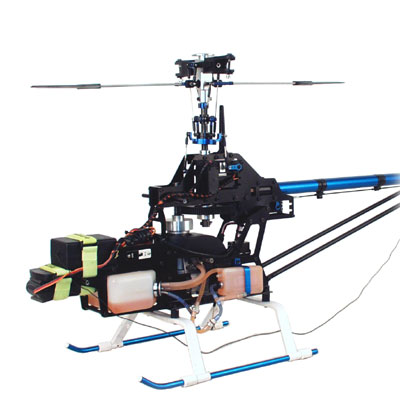

Introduced late 2001 with the same basic design as the 30 but with a number of cost reducing options so as to provide a lower priced introduction machine; changes noted below.  Note that the fundamental change to the head design etc thus identifies the model as a separate machine.

The Quick Learner featured the same machined control items the Pro 30 including the anti rotation guide pin, washout, inline flybar control arms, and swashplate. The head was different in that the Pro 30 features a double spindle, centre dampened head, the learner features a single spindle head.  The Pro 30's head was completely machined, while the Learner head had plastic blade grips.



The major control system difference between the Pro 30 and the Learner was the method in which Elevator servo is hooked up.  In the Pro model the elevator servo was in front of the main frame support with the servo connected to the swashplate with two ball bearings and a bell crank.  In the Learner the elevator swashplate was behind the main frame support connecting the servo directly to the swashplate.

Cost reducing included moulded anti-rotation guide instead of a metal item, plastic cross members and composite supports with plastic ends. and

Final change was a moulded plastic radio tray and gyro mount, both with brass inserts in as shown above.

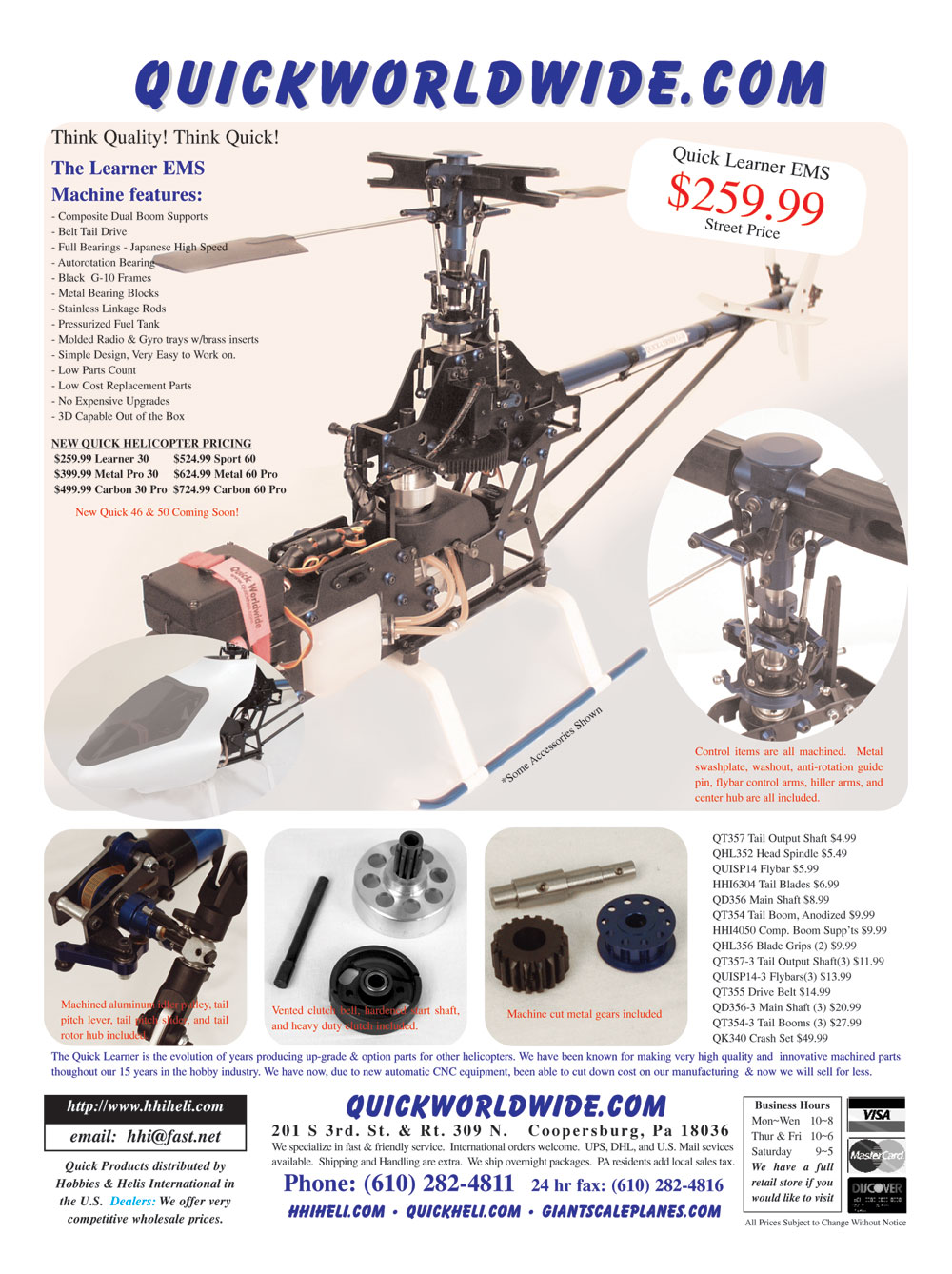

2002 advert Learner with all 30 size prices.

Quick Learner parts - General spare parts listing for 2002.

Quick Learner build manual  -  Detailed manual with photo assembly sequences.

Quick Learner review  -  Rotary Modeler build and flying review from March 2002 (low resolution).

Additionally in 2002 the Learner could also be supplied as a '46' size models as per the 30 Pro.

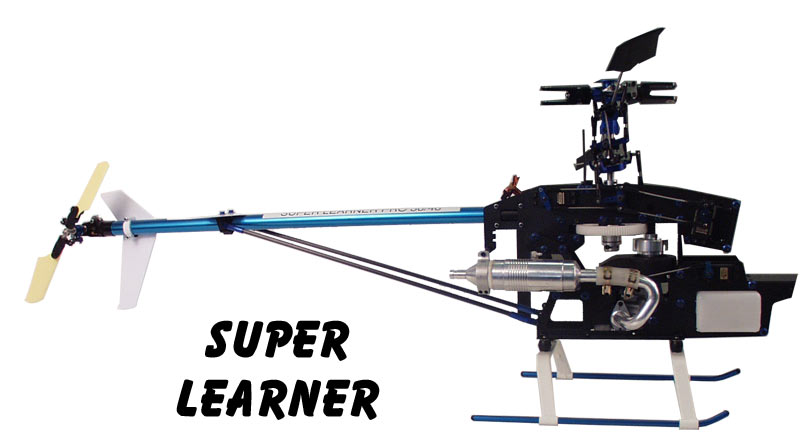

Quick Super Learner (2005)

In line with the rest of the range the Learner was brought up to the same specification as either Sport G10 or Pro Carbon.  All versions now had autorotation with the now standard 10mm main shaft and 8mm spindle shaft.  Nine and ten tooth options were available depending upon engine chosen and also the head speed for the desired flying style (1500 to 2000 RPM).  Recommended blades were now 550 to 580mm and model size had a length of 44.5" and height 0f 18.5".

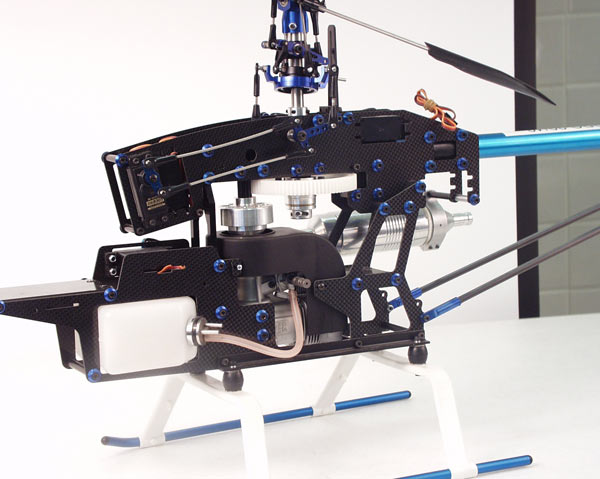

  • Super Learner 01

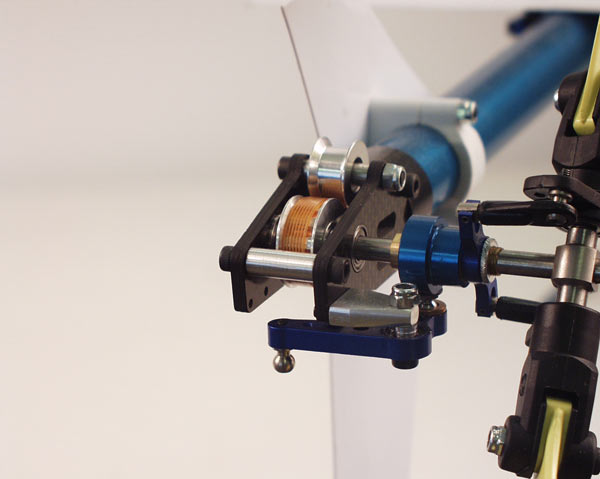

  • Super Learner 02

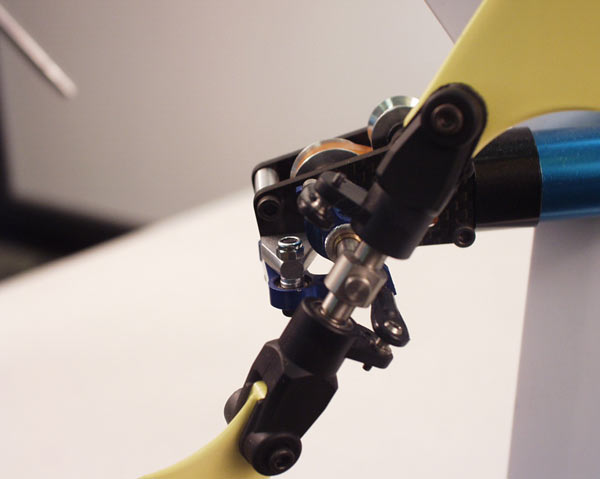

  • Super Learner 03

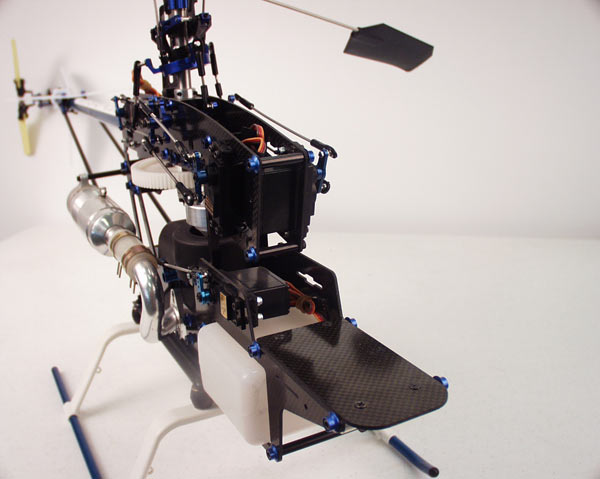

  • Super Learner 04

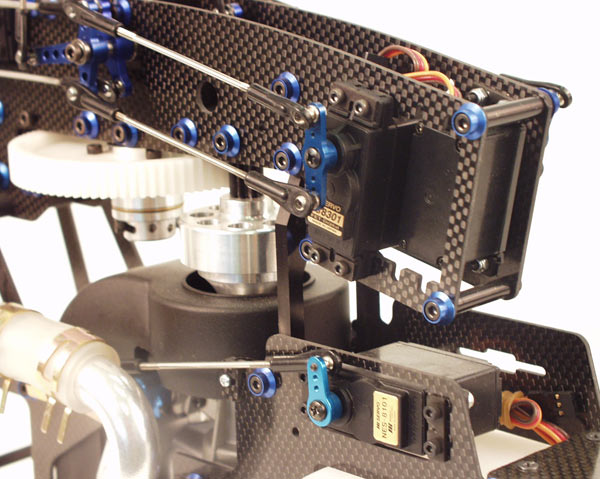

  • Super Learner 05

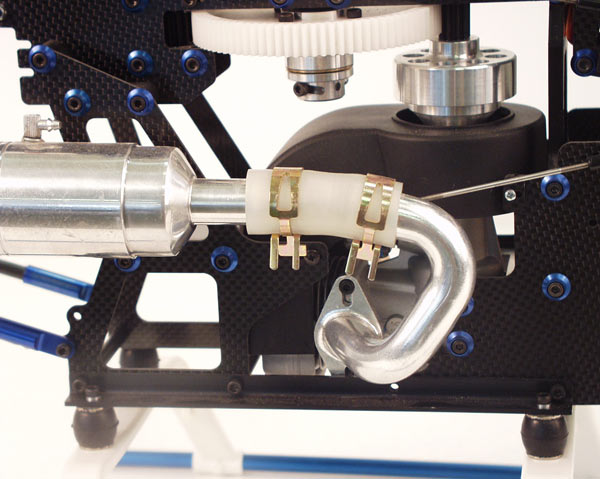

  • Super Learner 06

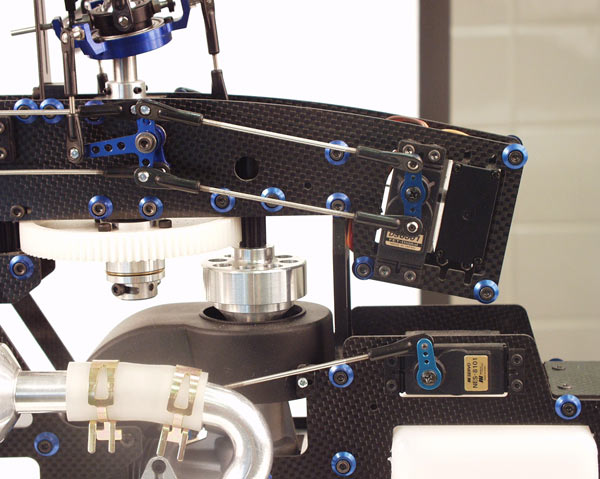

  • Super Learner 07

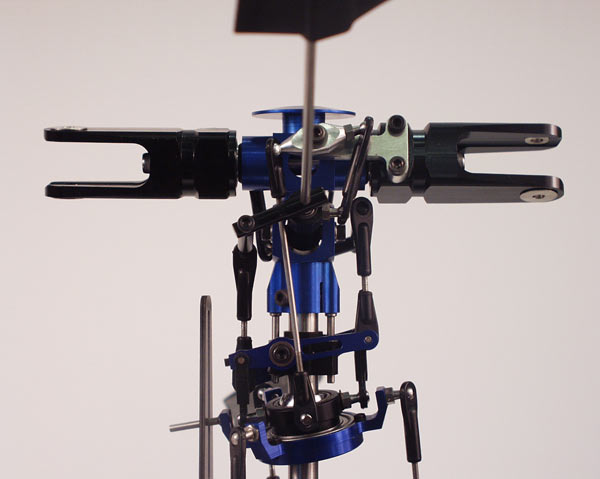

  • Super Learner 08

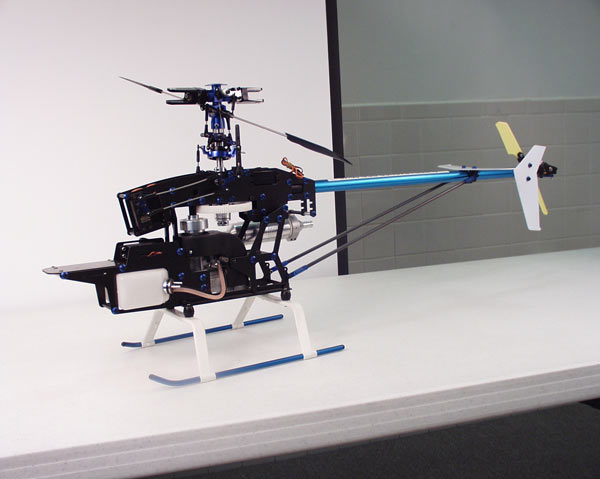

  • Super Learner 09

Helicopter

Motor

Blades

Muffler

Combo
Price

Kit Only Price

Original Quick Learner

OS 32
Heli Ringed

Quick 550mm
Wood

One Piece
30 Size

$419.99

$239.99

Basic Learner - Sport G10
(32 Size)

OS 32
Heli Ringed

Quick 550mm
Glass

One Piece
30Size

$499.99

$279.99

Basic Learner - Pro Carbon
(32 Size)

OS 32
Heli Ringed

Quick 550mm
Glass

One Piece
30 Size

$624.99

$349.99

Super Learner - Sport G10
(37 Size)

OS 37
Heli Ringed

Quick 550mm
Glass

One Piece
30 Size

$599.99

$279.99

Super Learner - Pro Carbon
(37 Size)

OS 37
Heli Ringed

Quick 550mm
Glass

One Piece
30 Size

$699.99

$359.99

Super Learner - Sport G10
(46 Size)

OS 46
Heli Ringed

Quick 550mm
Glass

One Piece
46 Size

$599.99


$319.99

Super Learner - Pro Carbon
(46 Size)

OS 46
Heli Ringed

Quick 550mm
Glass

One Piece
46 Size

$699.99

$399.99

Kit Prices are for kit only, Combo includes motor, main blades, muffler, and the kit.

By 2005 a lot of 30 size helicopters were being fitted with the now 'standard' option of a 37-38 size engine.  Though named the Quick Super learner, there was also a 'basic' version in both Sport and Pro options; this was mainly for when buying the combo as it was the same kit for basic 32 and Super 37 sizes but the price difference was due to the basic being supplied with the OS32 engine as opposed to the OS37 engine.

Quick Super Learner build manual  -  2005 detailed manual with photo assembly for both Pro and Sport models.

May 2008 saw the model range removed from the web site though all were still in the general price listings and even as late as 2012 a full spares price listing was advertised.
