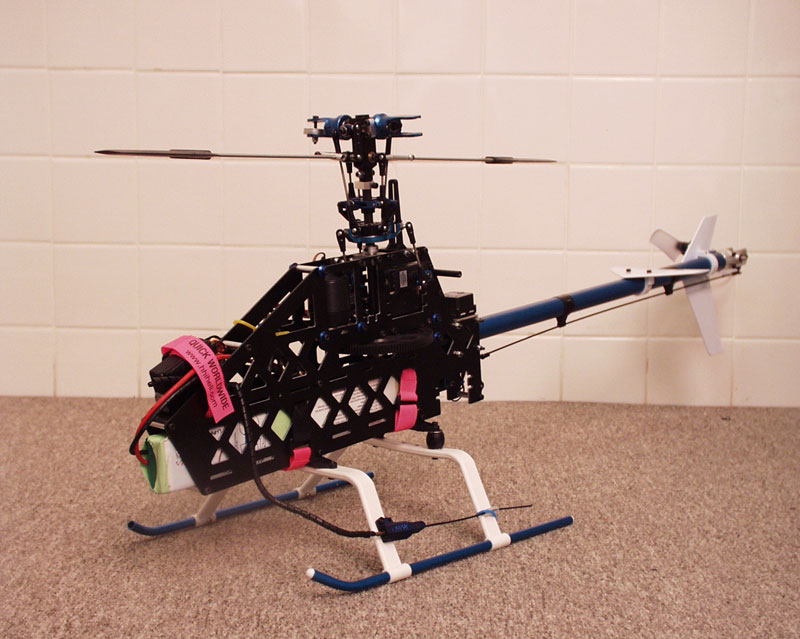

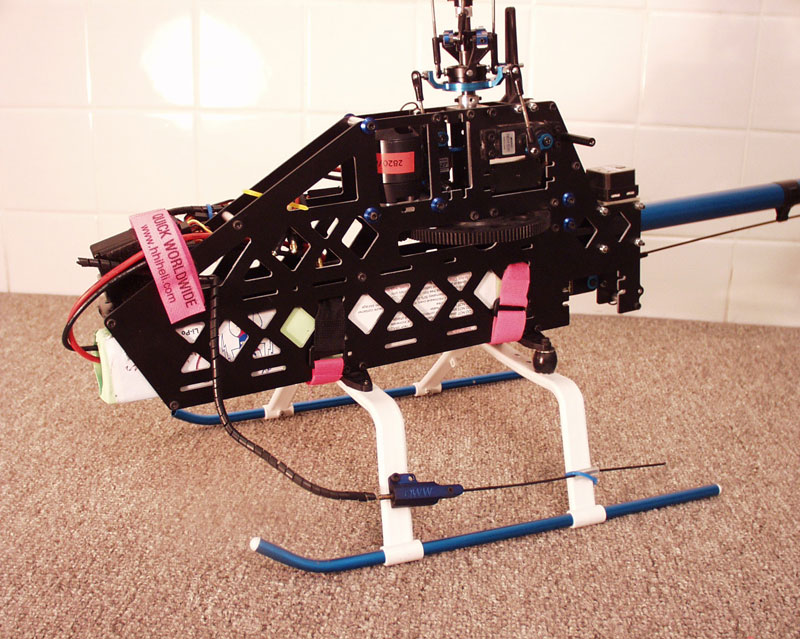

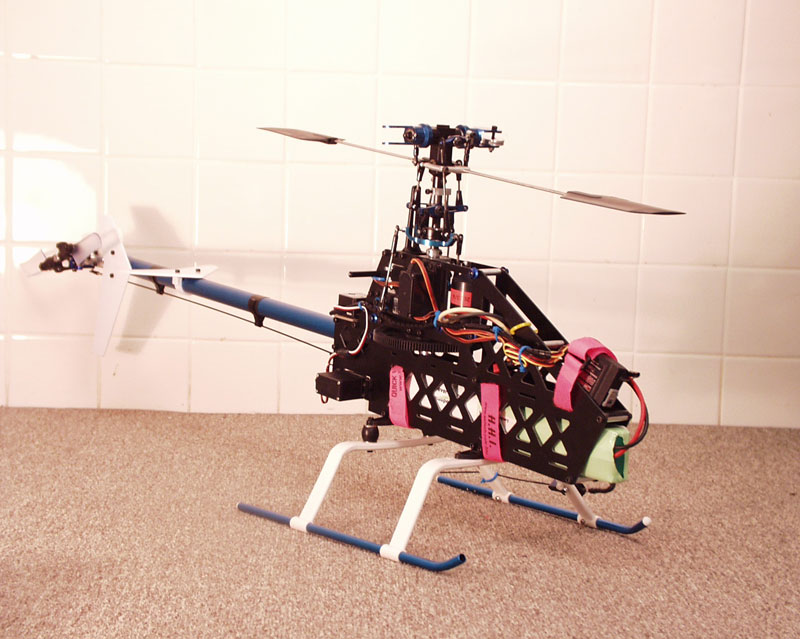

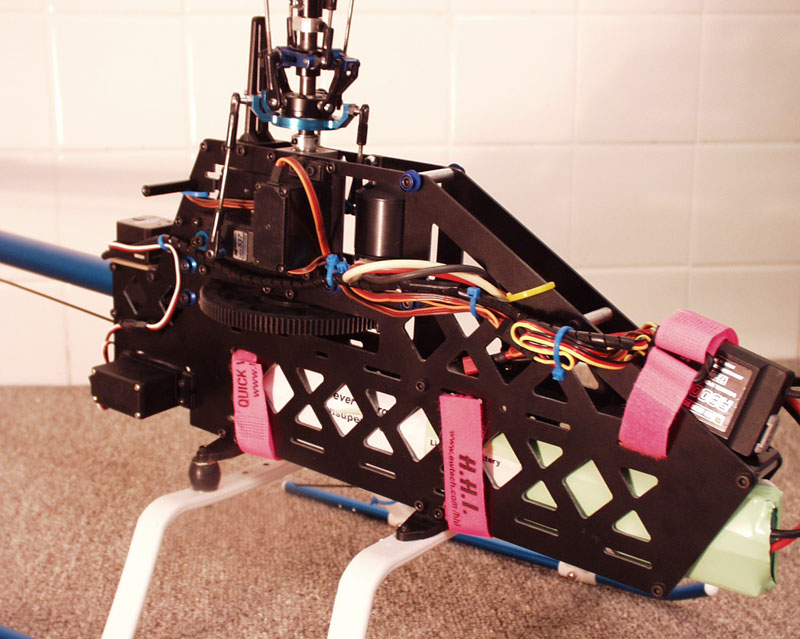

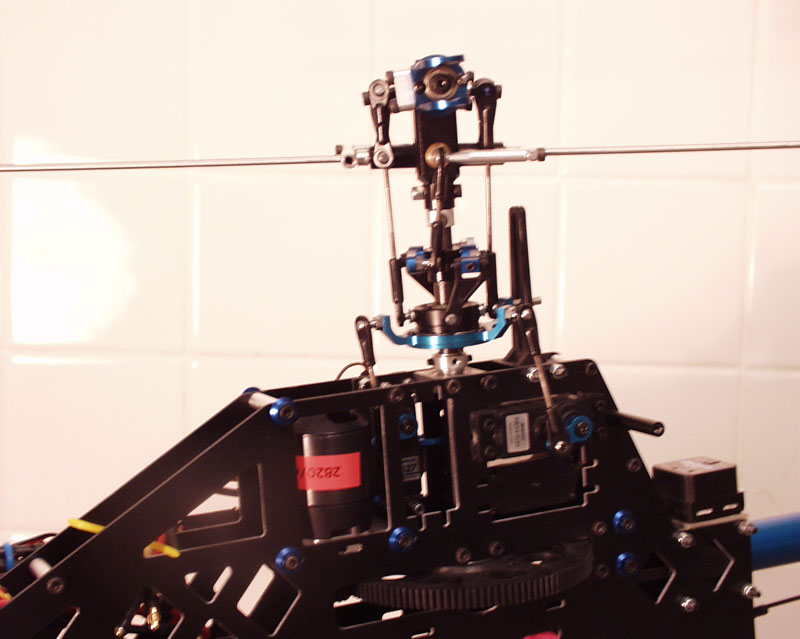

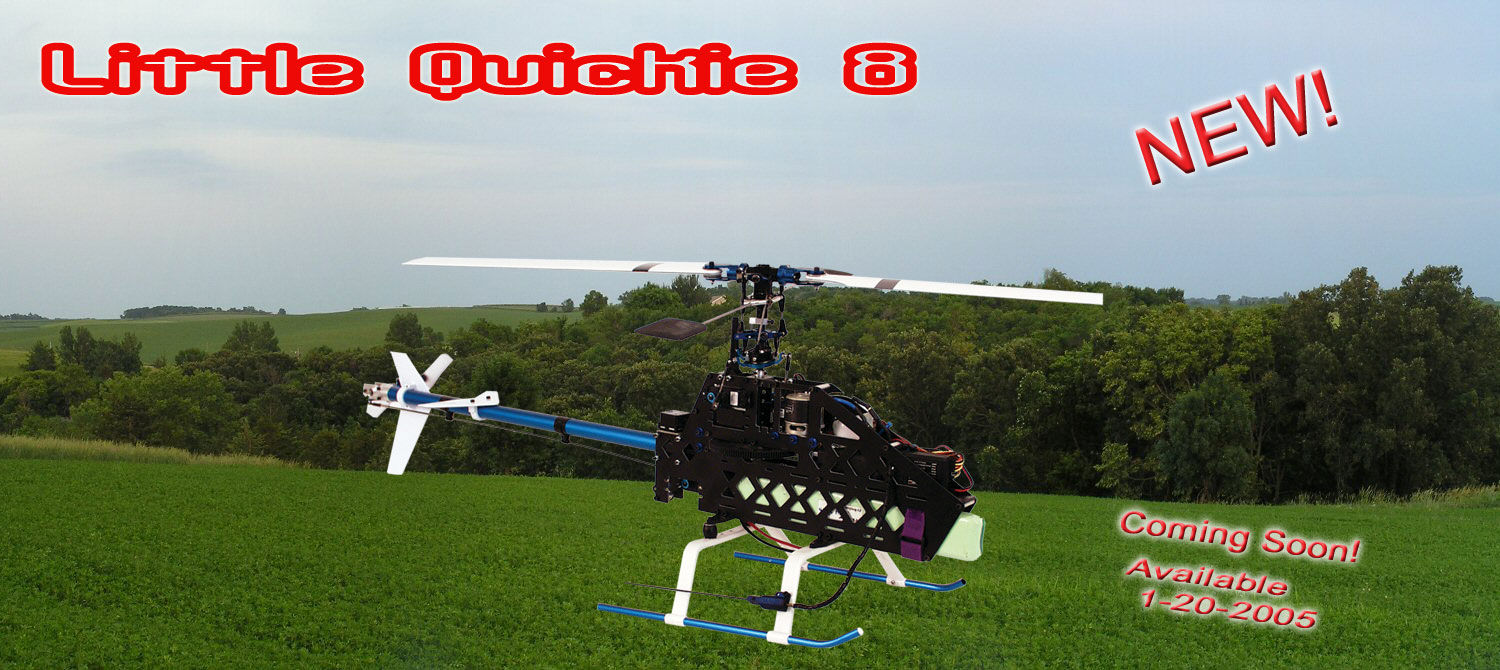

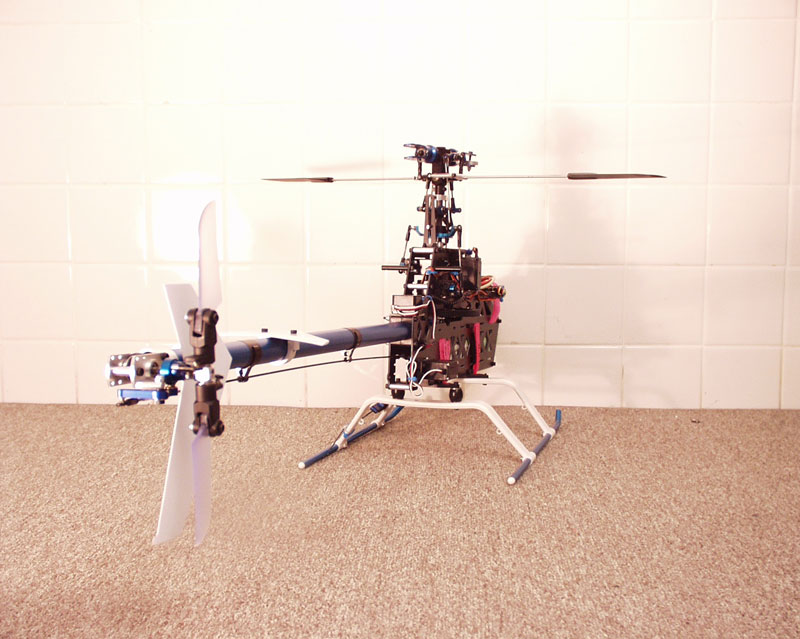

Quick Little Quickie 8 (2005)

Smaller version of the Sweet 16 EP for 420 to 440mm main blades with 8mm main shaft and 5mm head spindle. Two versions available, Sport and Pro (De-luxe) with difference as per the Sweet 16 EP and both supplied with White and Black Fibreglass canopy.

Designed for brushless motor and 4s Li-Po and similarly to the OutDo it was marketed as a full kit; this was to include Fibreglass 420 main blades plus power package of Axi motor with suitable ESC and Lipo battery.

Batteries
4S2P Li-Po
16V 4000mAh
Motor
Axi 28/26
ESC
Phoenix 60
Motor KV
~ 2000 rpm
Pinion
12-14 tooth
Blades
Quick 420/440 mm
Head Speed
1900-2000 rpm
Flight Time
20-26 min
Flying
3D
Batteries
4S2P Li-Po
16V 4000mAh
Motor
Axi 2826/6 OEM
       KV-2000
ESC
Phoenix 60
Motor KV
~ 2000 rpm
Pinion
11-15 tooth
Blades
Quick 440/475 mm
Head Speed
1700-2300++ rpm
Flight Time
15-20 min
Flying
Beginner to 3D


By the time the model was released it had 'grown' slightly with recommended main blades now identical to the EP 10 of 440 to 475mm.  The recommended power train had also changed slightly thus giving slightly difference setup and performance figures. Additionally, the quoted sizes of Length of 41" and Height of 16" made it a significantly larger machine than the EP10, also at 5 Lbs (2.3 Kg) it was definitely no 'lightweight'.

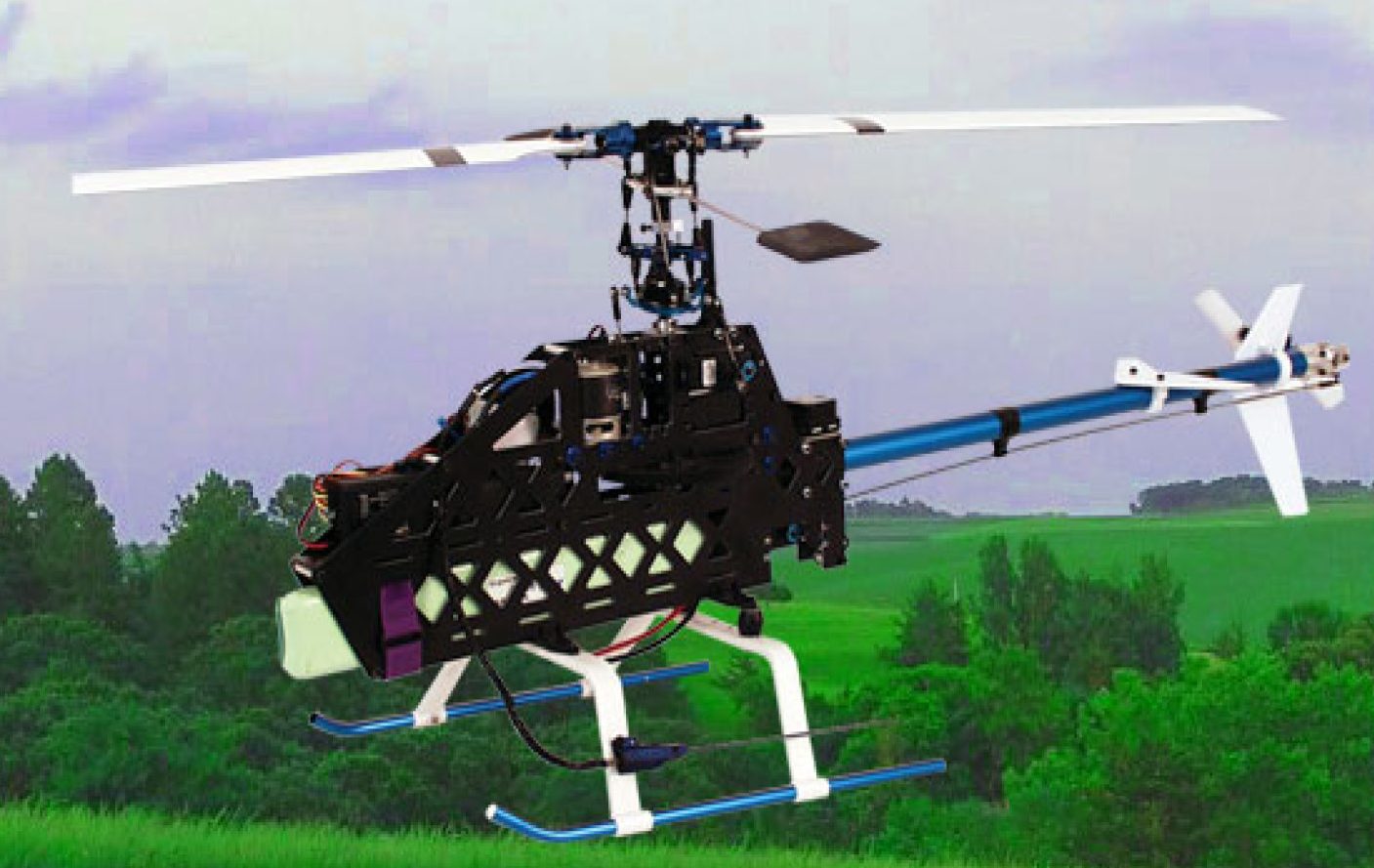

Little Quickie 8 build manual  -  Detailed manual with photo assembly for both Pro and Sport models.

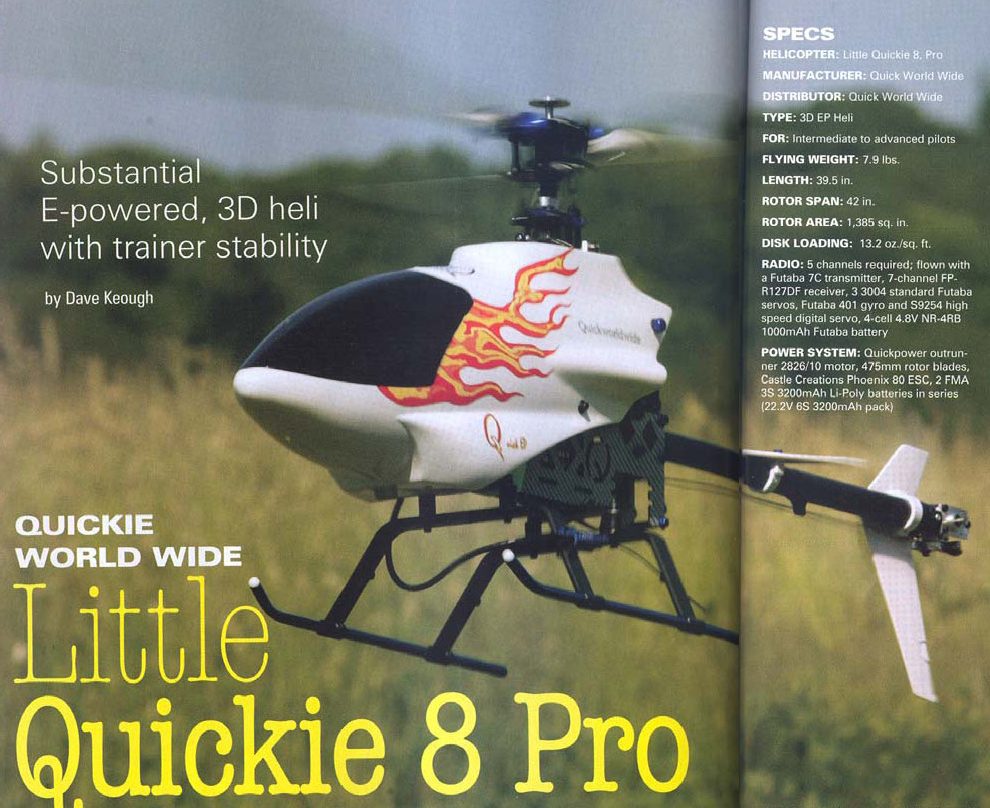

Little Quickie 8 review  -  Review of the Pro version by Dave Keough in 2006 from Fly RC Magazine.

Despite removal from the main web site it was to be available on the general price listing for many years and even as late as 2012 a full spares price listing was advertised.



Quick EP 475MM (2007)

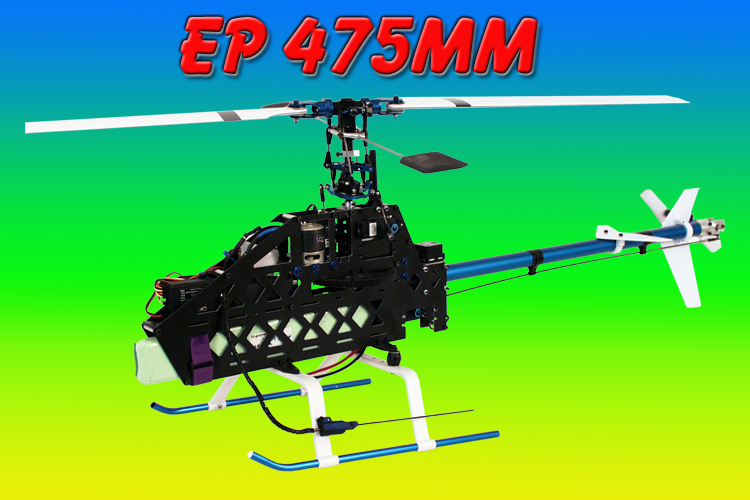

EP 475MM Package deal advert.

By 2007 electric models were generally being classified by general electric motor definitions i.e. 400 / 450 etc or by their recommended blade size i.e. 550 / 600 etc.  To follow this same convention, Quick renamed their small electric model the Quickie 8 to EP 475MM.

Whilst the machine was the same the power train had been updated and now a 6S battery with revised motor and ESC was recommended.

PRICE CHART
Part Number
Heli Type
Combo/Kit
Price

QKE08
Sport Kit Only $199.99
QKE08P
Pro Kit Only $249.99
Kit Prices are for kit only, Combo includes motor, main blades, ESC, and the kit.

Specifications
Length
42 in. w/ Canopy
38in w/o Canopy
Height
16 in.
Full Equipped Weight
4.9 lbs (2.2 kg)
Batteries
6S
Motor
Quick Ray Power 2826/10
Motor KV
1050
ESC
Phoenix Castle 60
Blades
Quick 475 mm*
Tail Blades
Plastic**
Frame Thickness
1.5 - 1.65 mm
Head Speed
1700 - 2300 rpm
Pinion
10 - 16 tooth
Spindle
5 mm
Mainshaft
8 mm
Canopy
Fiberglass
Flying
Beginner to 3D
Flight Time
10 -20 min

Differences Between Sport and Pro Kit
  Sport Pro
Frames
G-10 Fiberglass Carbon Fiber
Head
Molded Blade Grips Fully Metal Head w/ Thrust Bearings
Autorotation Hub
Yes Yes
Boom Supports (Do Not Come in Kit)
Fiberglass Carbon

This model was not to remain in the range long as later in the year it underwent another redesign to come out under the new name of the Quick Fly.
