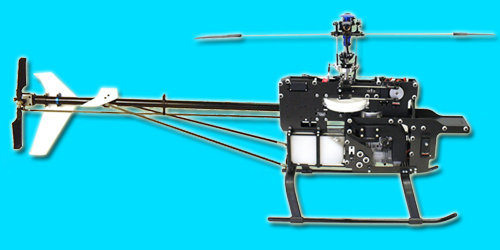

Quick Bat 70 (2008)



Following on from the Bat 50, the body layout was revised to take a 70 size and slightly thicker main frames.  Triple bearings for the main shaft so as to ensure minimal flexing of the drive train during 'hard' collective operation.  Available in the standard Sport G10 and Pro Carbon versions along with options of the CNC tail upgrade and the tail shaft drive system.  gear ratios etc remained the same with the only other difference being larger main blades for the increased power of the 70 engine.

Initial price list below



PRICE CHART

Part Number

Heli Type

Description

Price



QKB70S

Sport

Standard Sport Kit

$549.99



QKBC70S

Sport

Sport Kit w/ Motor, Main Blades, and Muffler

$949.99



QKB70P

Pro

Standard Pro Carbon Kit

$649.99



QKBC70P

Pro

Pro Carbon Kit w/ Motor, Main Blades, and Muffler

$1049.99



This helicopter is also available with optional CNC Tail Upgrade or ADS Shaft Drive System

Shaft Drive Tail System add $150.00.

2001 price list above

Specifications

Length

 43.5 in w/o canopy

Height

 17 inches w/ stock LG

Motor

OS 70

Blades

Quick 640 - 680 mm

Tail Blades

 95 mm

Frame Thickness

 2.0 mm

Gear Ratio

 8.8:1

Weifht

8.6 Lbs

Spindle

 8 mm

Mainshaft

 10 mm

Canopy

 Fiberglass

Flying

 Beginner to 3D

Differences Between Sport and Pro Kit



Sport

Pro

Frames

G-10 Fibreglass

Carbon Fibre

Head

Silver Anodized w/ plastic blade grips

Fully Metal Head w/ Thrust Bearings

Autorotation

Yes (Triple bearing)

Yes (Triple bearing)

Boom Supports

Fibreglass

Carbon



Shortly after introduction, the Octane Bat 50 Pro was available in pre-built ARF form.

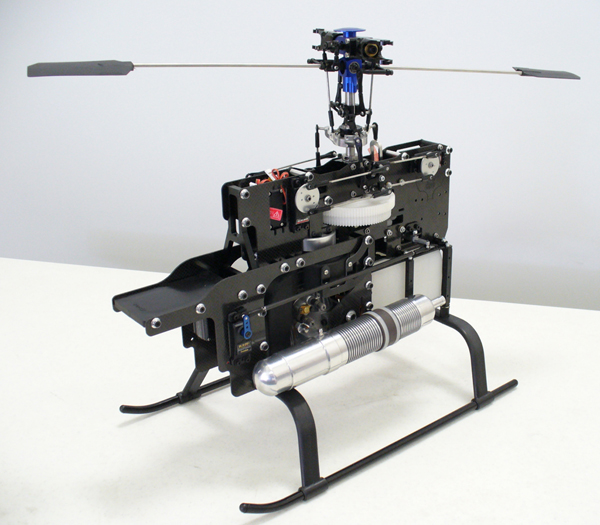

Quick Bat 70 Pro Nitro

Included in the offer:

  OS 70 Heli Ringed
  Zimmmerman Tuned Muffler
  Four Blue Bird 825DMG High Performance Servos
  Futaba Y401 Gyro w/ 9254 Servo
  Available with CNC Tail or Shaft Drive Tail
(Price is for CNC Tail version)

Price: $2349.99

 http://web.archive.org/web/20080609210216im_/http:/quickheli.com/images/prebuilt/prebuiltbat70.jpg

Quick Bat manual  -  build manual covering all Bat versions 50/70/90.



Quick Budget Bat 70 (2008)

By late summer 2008 the Bat range had been revised slightly but this time with reverse specifications in order to reduce the price thereby allowing a cheaper entry to their Bat range without the need to buy one of the Learner range.

Specifications of budget Bat 70;

  • Moulded main & tail grips, autorotation hub, tail links
  • Two main shaft bearings
  • No bearing on clutch bell
  • Fiberglas boom supports
  • Basic tail system
  • No head or tail thrust bearings
  • Basic autorotation but without the driven tail



Differences Between Budget, Sport, and Pro Kit



Budget

Sport

Pro

Frames

G-10 Fibreglass

G-10 Fibreglass

Carbon Fibre

Head

Anodized w/ plastic blade grips

Anodized w/ plastic blade grips

Fully Metal Head w/ Thrust Bearings

Tail

Dual Bearing, Moulded Grips
(no thrust bearing)
Standard tail w/ G10 side plates
Plastic tail pitch plate w/ plastic links

Dual Bearing, Moulded Grips
(no thrust bearing)
Standard tail w/ G10 side plates
Plastic tail pitch plate w/ standard ball links and metal pins

Metal Grips, Triple Bearing (includes thrust bearing),
Bat 50 Pro: Standard tail w/ carbon side plates
Bat 70 & Bat 90 Pro's included One Piece CNC Tail System
Metal tail pitch plate w/ standard ball links and metal pins

Autorotation

Yes (moulded w/ one way bearing and brass upper / lower bearing supports), non driven tail system

Yes (Triple bearing),
Driven Tail System

Yes (Triple bearing), Driven Tail System

Boom Supports

Fibreglass

Fibreglass

Carbon

Main Shaft

Two Main Shaft Bearings

Triple Bearing Mainshaft Support

Triple Bearing Mainshaft Support

Control Parts

G-10 Fiberglas's w/ prim nut inserts: includes washout arms, hiller arms, aileron bellcrank's, tail pitch lever, rudder bellcrank

V1 Front metal elevator arm w/ rear anti-rotation guide with pin

All control parts are CNC machined metal parts

V2 Metal elevator arm/ anti-rotation combo system

All control parts are CNC machined metal parts

V2 Metal elevator arm/ anti-rotation combo system



PRICE CHART

Part Number

Heli Type

Description

Price



QKB70B

Budget

Quick Budget Bat 70 Kit:
Kit w/ motor:
Kit w/ motor & muffler:

$399.99
$654.99
$754.99



QKB70S

Sport

Standard Sport Kit

$599.99



QKBC70S

Sport

Sport Kit w/ Motor, Main Blades, and Zimmerman Special Tuned Muffler

$1049.99



QKB70P

Pro

Standard Pro Carbon Kit

$699.99



QKBC70P

Pro

Pro Carbon Kit w/ Motor, Main Blades, and Zimmerman Special Tuned Muffler

$1149.99



*****Free Muffler offer available on shopping cart when ordering kit*****

This helicopter is also available with optional CNC Tail Upgrade or ADS Shaft Drive System

Shaft Drive Tail System add $150.00.

The reduction in price was $200 on the Sport version which was a reasonable saving to get a 70 size machine, the machine could be brought up to normal Bat Sport specifications for a reasonable price but it would have been an expensive upgrading to Pro specification as can be seen by reference to the Bat upgrades listing.

Quick Bat manual  -  build manual covering all Bat versions 50/70/90.



Quick Bat 90 (2008)



For the 'Flagship' model of the 'Bat' range, the frames of the revised Bat 70 layout increased to 3mm in order to accept a 90 size engine and the gear ratio changed to lower the head speed so that larger blades could be fitted, all other specifications and options remained the same.

Specifications

Length

 43.5 in w/o canopy

Height

 17 inches w/ stock LG

Motor

OS 90

Blades

Quick 700 - 710 mm

Tail Blades

 105 mm

Frame Thickness

 3.0 mm

Gear Ratio

 8.08:1

Weight

8.9 Lbs

Spindle

 8 mm

Mainshaft

 10 mm

Canopy

 Fibreglass

Flying

 Beginner to 3D

Quick Budget Bat 90 (2008)

As per the Bat 70, late summer 2008 the top model Bat 90 was also available in the budget specification with details as per the Budget Bat 70 above.

PRICE CHART

Part Number

Heli Type

Description

Price



QKB90B

Budget

Quick Budget Bat 90 Kit:
Kit w/ motor:
Kit w/ motor & muffler:

$449.99
$774.99
$899.99



QKB90S

Sport

Standard Sport Kit

$599.99



QKBC90S

Sport

Sport Kit w/ Motor**, Main Blades, and Zimmerman Special Tuned Muffler

$1174.99



QKB90P

Pro

Standard Pro Carbon Kit

$749.99



QKBC90P

Pro

Pro Carbon Kit w/ Motor**, Main Blades, Zimmerman Special Tuned and Muffler

$1324.99



**Combo includes OS 90 w/o pump, upgrade to OS 90 w/ pump available for additional $50.00.**

*****Free Muffler offer available on shopping cart when ordering kit*****

This helicopter is also available with optional CNC Tail Upgrade or ADS Shaft Drive System

Shaft Drive Tail System add $150.00.

The reduction in price was $150 on the Sport version which was a reasonable saving to get a 90 size machine, the machine could be brought up to normal Bat Sport specifications for a price but it would have been an expensive upgrading to Pro specification as can be seen by reference to the Bat upgrades listing.
