SJM ( RC-TEK?)

 SJM 400 Pro




Specification:

  Length  600 mm
  Height  200 mm
 Main Rotor Dia   700 mm
 Tail Rotor Diameter.
 Total Weight  540 - 580 g
 Gear Ratio  1:5
 Engine  BL 3950KV

Documents:

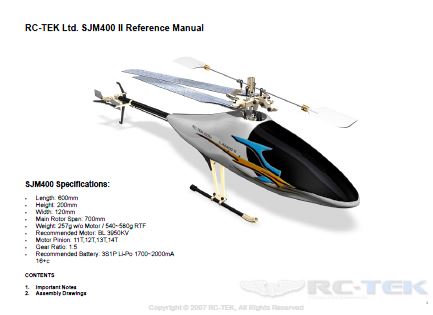

Manual

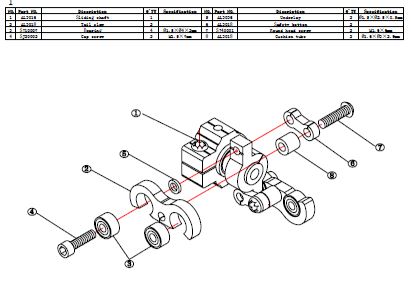

Drawings

r1 Drawings




  • SJM400_005
  • SJM400_010
  • SJM400_015
  • SJM400_020
  • SJM400_025
  • SJM400_030
  • SJM_400_050
  • SJM_400_051
  • SJM_400_052
  • SJM_400_053
  • SJM_400_054
  • SJM_400_055
  • SJM_400_056
  • SJM_400_057

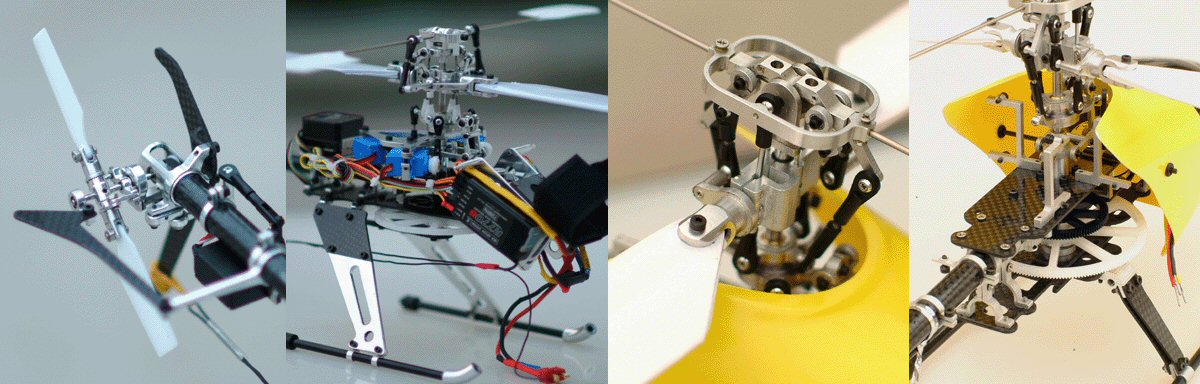

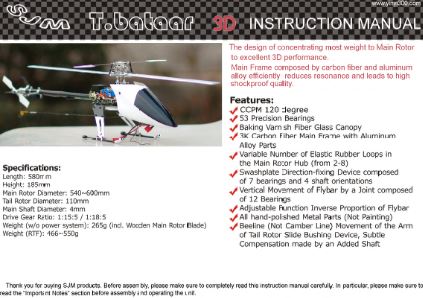

T-Bataar (2006)



 Futuristic design and looks a lot like a Star Trek Klingon 'bird of prey' and quite a complicated build though excellent for an engineer.  Has a very low flybar mix so displays the 'Flybarless' tendency to nose up and roll left when in forward flight.

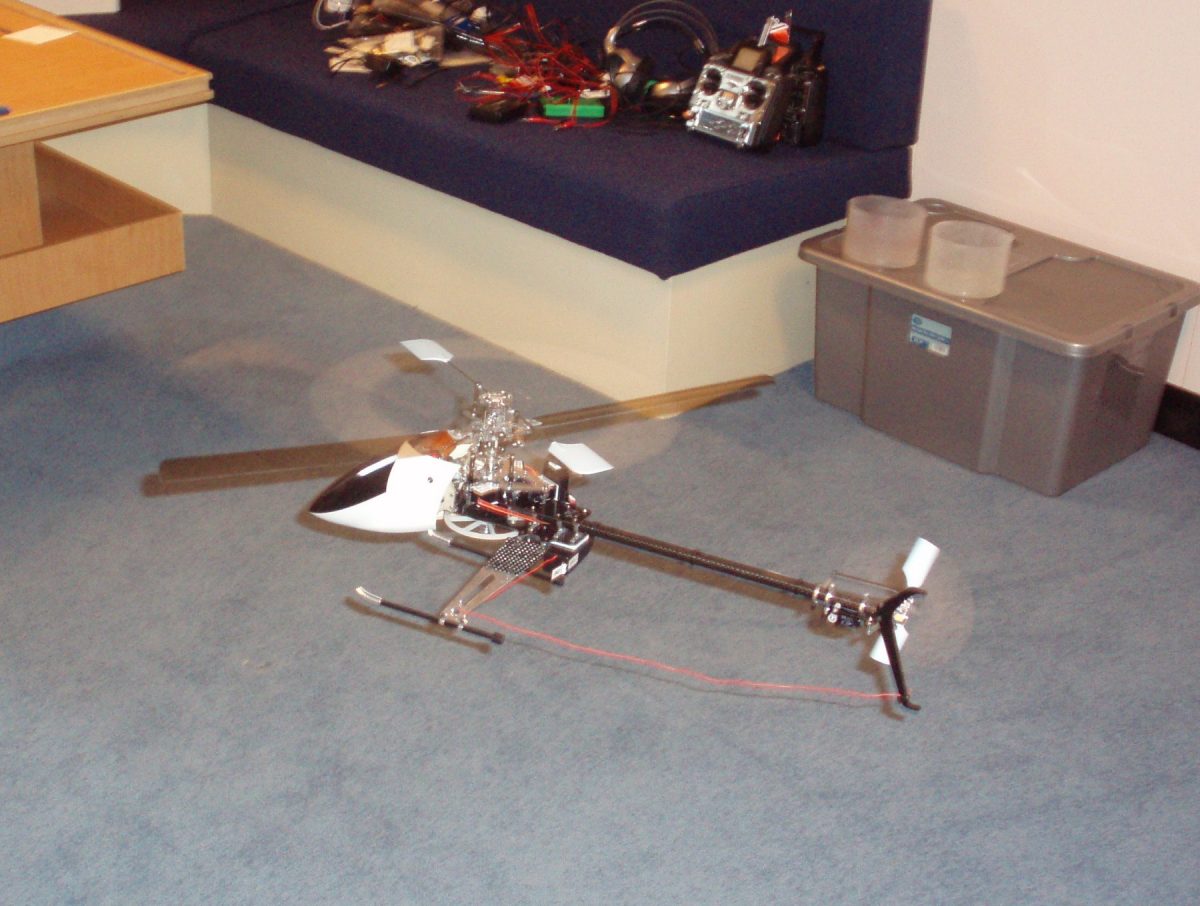

  • T-Bataar - 2006-10 - Hovering
