Quick OutDo 600 (2005)


EP 600 Prototype review Summer 2004

Initially called the EP 600 and based on the Quick 50 nitro model with 600mm blades.  Prototype was powered by an Actro Brushless motor and 10 cell lipo.  As per the rest of the range it was to be available in two versions available, Sport with G-10 frames and plastic blade holders; Pro with Carbon frames and full metal head. With the recommended main blades, motor and battery combination and 6600 mAh Lipo the resulting flight times were in excess of 20 minutes; though depending upon the flight envelope undertaken.  Note that as per a lot of performance electric machines at the time the brushless set up used was of the high voltage type with European motor, it was to be a few years before lower cell count brushless motor from the far east were to make electric flight more affordable.

Though tested in Summer 2004, it was to be early 2005 before the model was available and by then it had been renamed to the Quick EP 600 OutDo and then a few months later changed to just OutDo 600 (Short for Out Doors, fairly obvious!!!).

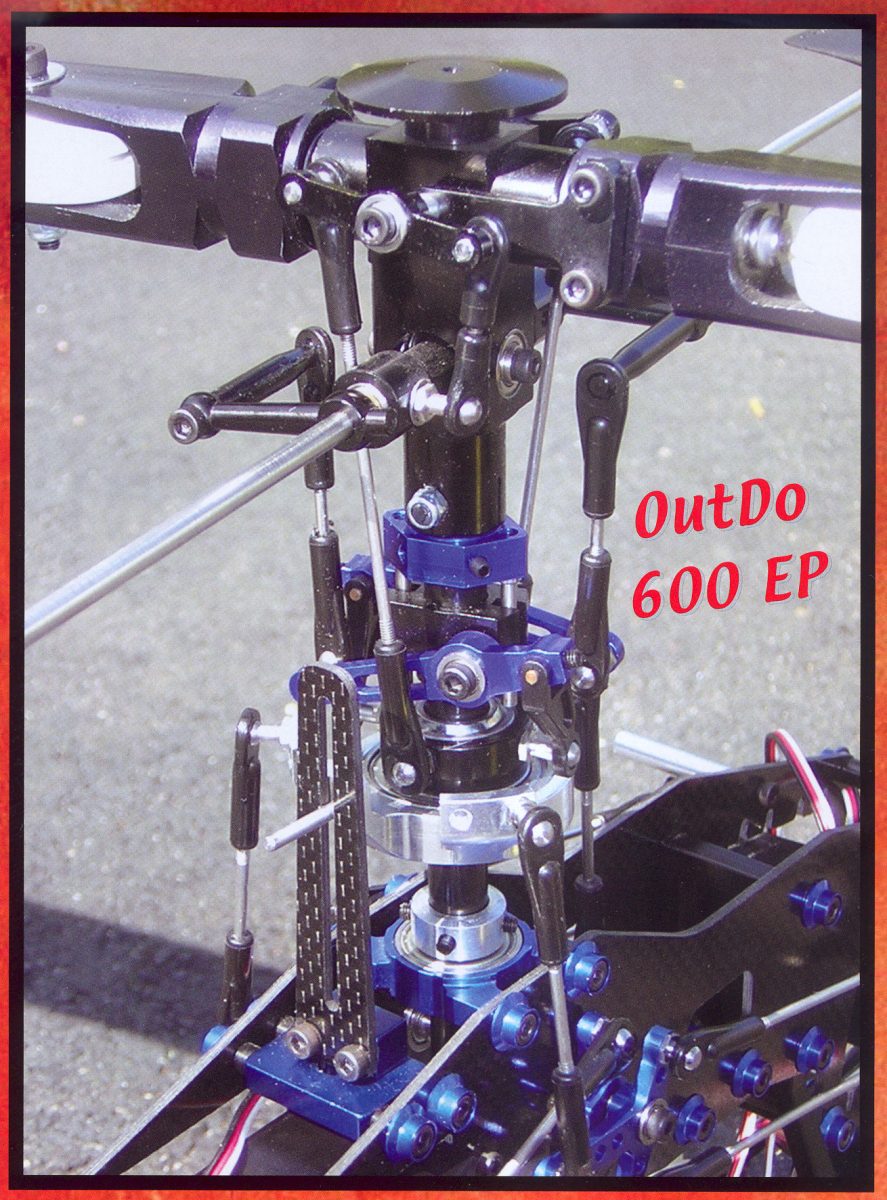

As standard the OutDo came in two versions, both with 2mm frame thickness, 8mm head spindles and an un-painted black & white Fibreglass canopy.  The De-luxe having a fully machined head and metal grips with Carbon Fibre frames and supports plus auto rotation with driven tail . The Sport version had G10fiberglass frames etc, molded main blade and tail blade grips and NO autorotation capability; this latter omission by 2005 was quite unusual given that this feature had been fitted to all to very basic small electric machines for at least 10 years plus the other main electric helicopter from Quick, the Sweet 16 EP had autorotation on the standard version????

For the first time Quick marketed this model as a complete includes the kit, motor, battery, 600mm Fibreglass blades & Electronic Speed Control; thus buyers did not need to outsource the electrical equipment and it ensured the machine had the expected performance right from the start.

Specifications:

Main Blades 600mm
Length  44.5 in.
Height 18.5 in
Batteries Lithium Polymer 5S 3Px2
Motor Axi 41 30/16 OEM
ESC         Jeti OEM

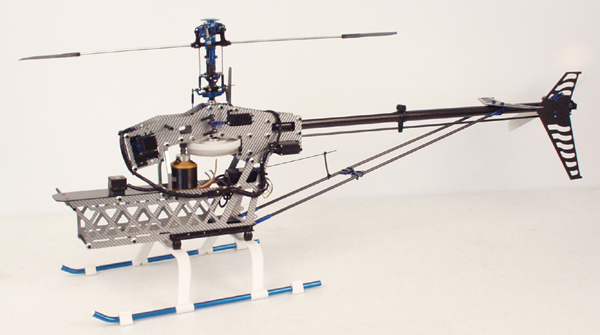

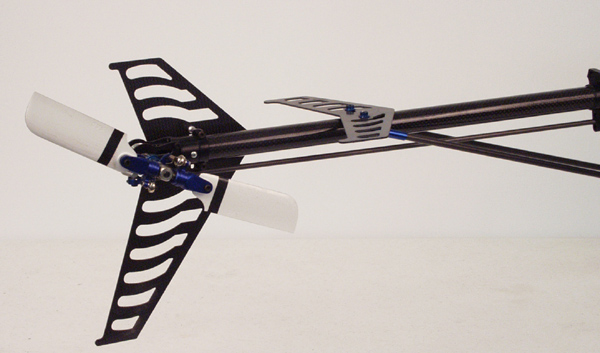

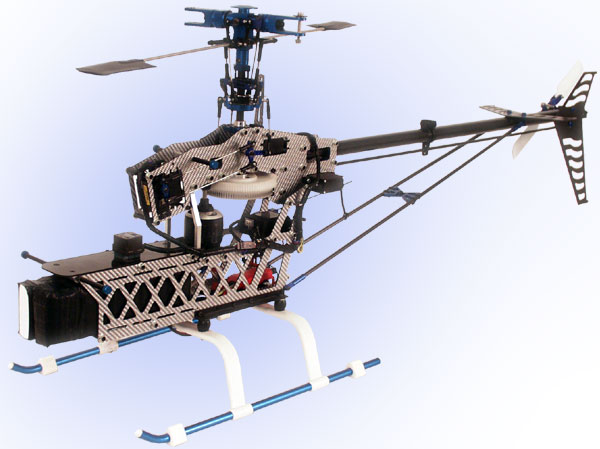

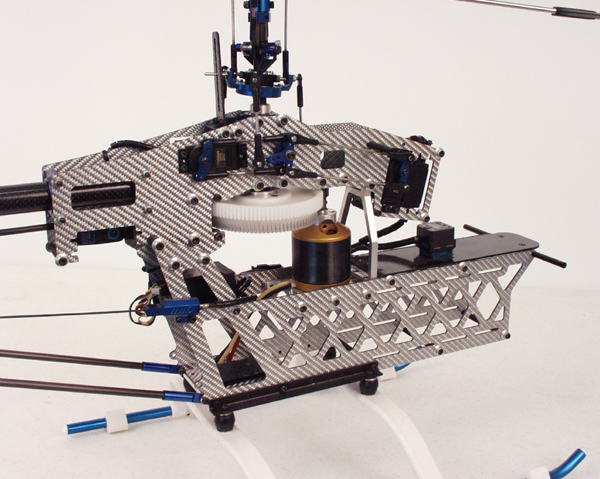

OutDo 600 Sport

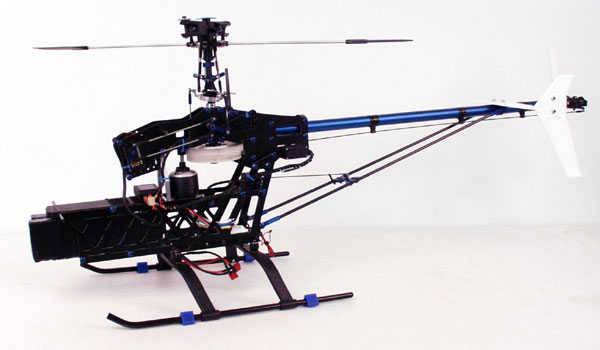

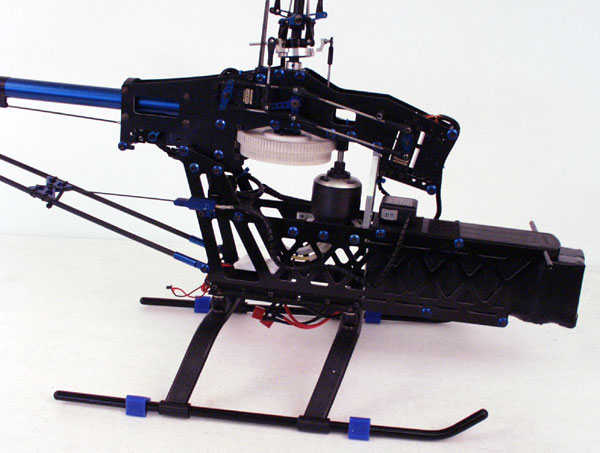

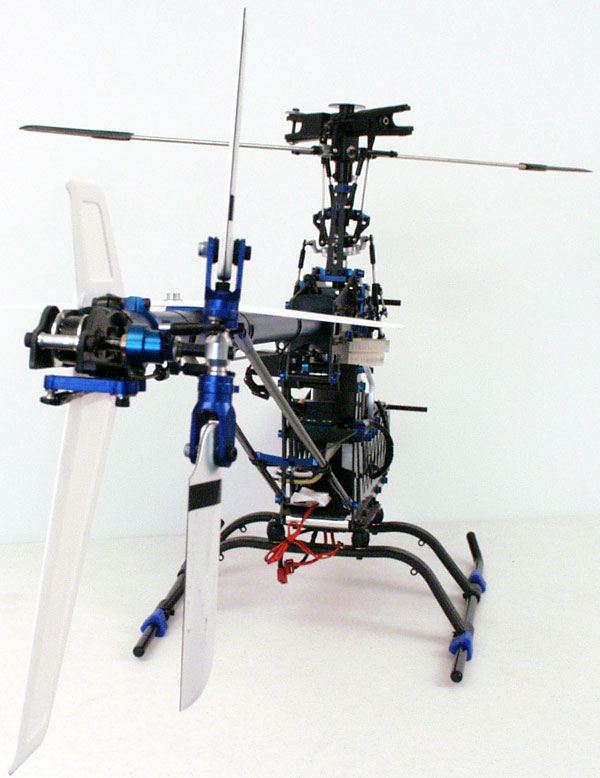

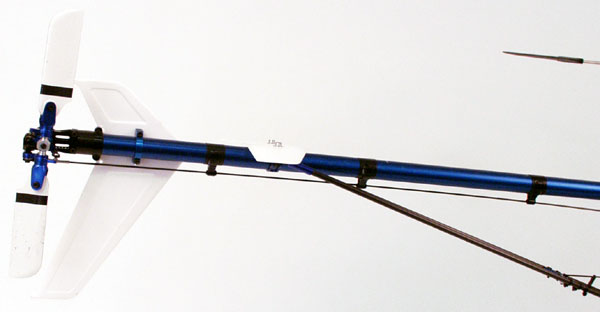

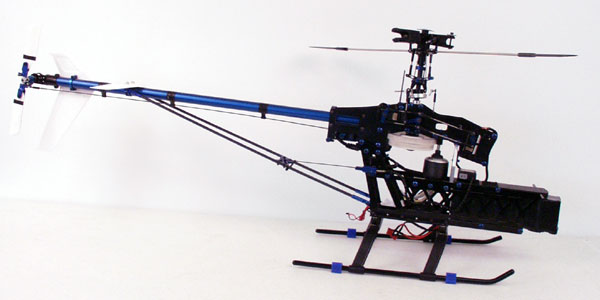

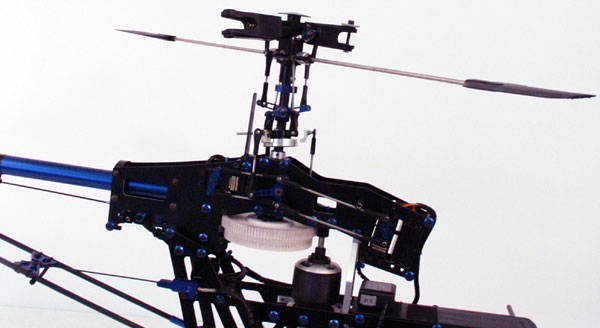

OutDo 600 De-luxe

Quick Outdo 600 build manual  -  Detailed manual with photo assembly and flight setup information (for both Sport and Pro models (version 1.1).

Quick Outdo 600 review  -  Review of the Pro version by Dr Wang from Rotary Magazine.

For 2008 the recommended power train was revised;

PRICE CHART

Part Number

Heli Type

Combo/Kit

Price



QKE50S

Sport Kit Only $349.99

QKEC50S

Sport Combo $749.99

QKE50P

Pro Kit Only $449.99

QKEC50P

Pro Combo $849.99
Kit Prices are for kit only, Combo includes motor, main blades, ESC, and the kit.
Specifications

Length

44.5 IN

Height

18.5 in.

Full Equipped Weight

10.5 lbs (4.6kg)

Batteries

6S1P x 2 = 44.4V for 10,000mAh


Motor

Quick Power 4130/16 OEM

Motor KV

390 - 420

ESC

Phoenix Castle 85

Blades

Quick 600mm-640mm

Tail Blades

85 - 110

Frame Thickness

2 mm

Head Speed

1650 - 2300

Pinion

11 - 18 tooth

Spindle

8 mm

Mainshaft

10 mm

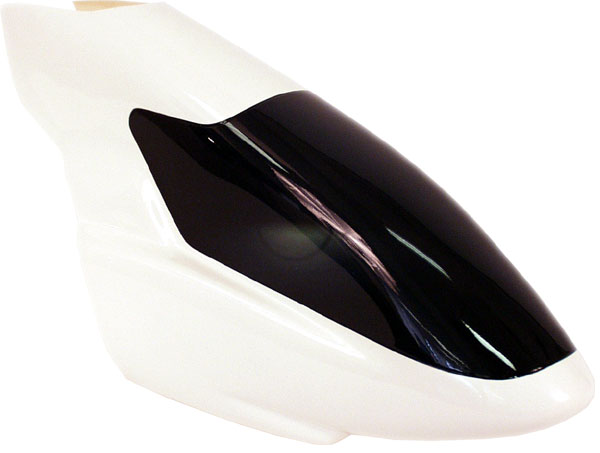

Canopy

Fiberglass

Flying

3D

Flight Time

According to MAH
Differences Between Sport and Pro Kit
  Sport Pro

Frames

G-10 Fiberglass Carbon Fiber

Head

Silver anodized w/ plastic blade grips Fully Metal Head w/ Thrust Bearings

Boom Supports

Fiberglass Carbon

Autorotation Hub

No Yes

Quick OutDo 600 V2 (2011)

Revised version of the original model and now for a 12S power system.

PRICE CHART

Part Number

Heli Type

Description

Price

Purchase

QKE50B2

Basic

Standard Basic Kit

$399.99
QKE50S2

Sport

Standard Sport Kit

$549.99



QKE50P2

Pro

Standard Pro Carbon Kit

$649.99

Add $100 for optional ADS Shaft Drive System



Specifications
Length 44.5 IN

Height

18.5 in.

Full Equipped Weight

10.5 lbs (4.6kg)

Batteries

6S1P x 2 = 44.4V for 10,000mAh


Motor

Quick Power 4130/16 OEM

Motor KV

390 - 420

ESC

Phoenix Castle 85

Blades

Quick 600mm-640mm

Tail Blades

85 - 110

Frame Thickness

2 mm

Head Speed

1650 - 2300

Pinion

11 - 18 tooth

Spindle

8 mm

Mainshaft

10 mm

Canopy

Fiberglass

Flying

3D

Flight Time

According to MAH





Differences Between Sport and Pro Kit



Sport

Pro

Frames

G-10 Fibreglass

Carbon Fibre

Head

Silver Anodized w/ plastic blade grips

Fully Metal Head w/ Thrust Bearings

Autorotation

Yes (Triple bearing)

Yes (Triple bearing)

Boom Supports

Fibreglass

Carbon

The OutDo 600 V2 was to remain on the web site until QWW stopped trading.
