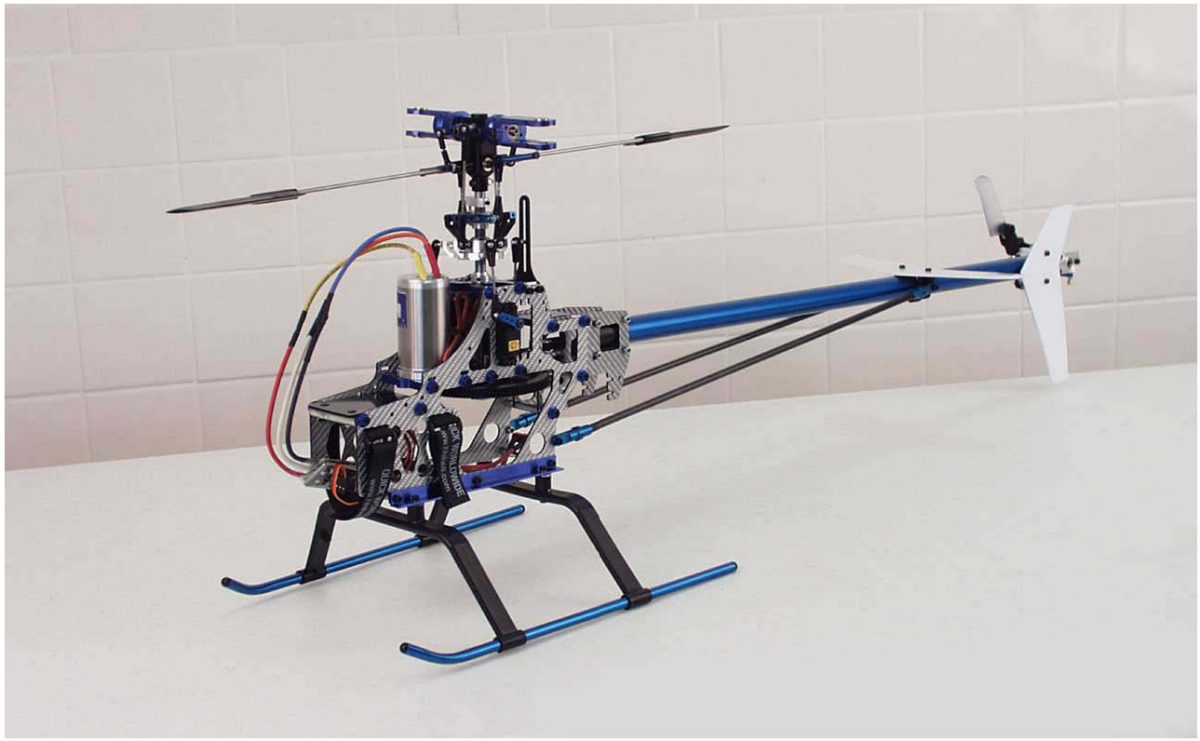

Quick Sweet 16EP (2004)

Uprated version of the 10EP and as such available in both De-luxe and Standard version with same difference as the EP 10 and additionally De-luxe with Carbon boom supports and Standard with Fibreglass supports.  However, whereas the EP 10 was the electric version of the Quickie 15/18, the 16 EP was now nearer a '30' size and designed for main blades of 530 to 580mm, 72 to 80mm tail blades along with a 8mm main shaft and a total of 20 degrees pitch movement thus allowing for all the 3D manoeuvres being carried out at the time.  The power plant was now significantly larger for Brushless motor with 16-24 Sub-C cells nicad/NiMH or 8-10 cell Lipo; the following table lists the recommended power combinations at the time of introduction along with remarks of the suitable flying style.

Batteries
16 cell NiMH
20V 3300mAh
20 cell NiMH|
26V 3300mAh
24 cell NiMH
31V 3300mAh
8S3P Li-Po
32V 6600mAh
10S2P Li-Po
38V 4400mAh
Motor
Aveox 36/38/2 Aveox 36/38/3 Aveox 36/38/3 Aveox 36/38/3 Aveox 36/30/4
ESC
CC Phoenix 80 CC Phoenix 80 Min 35V 60A Min 35V 60A Min 40V 60A
Motor KV
~ 1100 rpm ~ 800 rpm ~ 800 rpm ~ 800 rpm ~ 600 rpm
Pinion
10-11 tooth 12-13 tooth 10-11 tooth 10-11 tooth 10-11 tooth
Blades
Quick 550mm Quick 550mm Quick 550mm Quick 550mm Quick 550mm
Head Speed
1650-1800 rpm 1650-1800 rpm 1700-1900 rpm 1700-1900 rpm 1650-1800 rpm
Flight Time
7-8 min 8-10 min 9-11 min 20-26 min 18-20 min
Flying
Light Duty Aerobatic / 3D 3D 3D 3D
Fit
Good, In Frame Good, In Frame Good, In Frame Good, On Frame Good, On Frame
Remarks
OK for Basic Flying Recommended For MAX Power Recommended High Voltage Setup

 Introduction price of the Sweet 16 EP was £299 for the standard kit and $399 for the De-luxe.

If hard use was expected then it was recommended to fit the Quick heat sink for the Aveox motor.

Quickie Sweet 16 EP build manual  -  Detailed manual with photo assembly plus Exploded part views and Q50 Pro head upgrade.

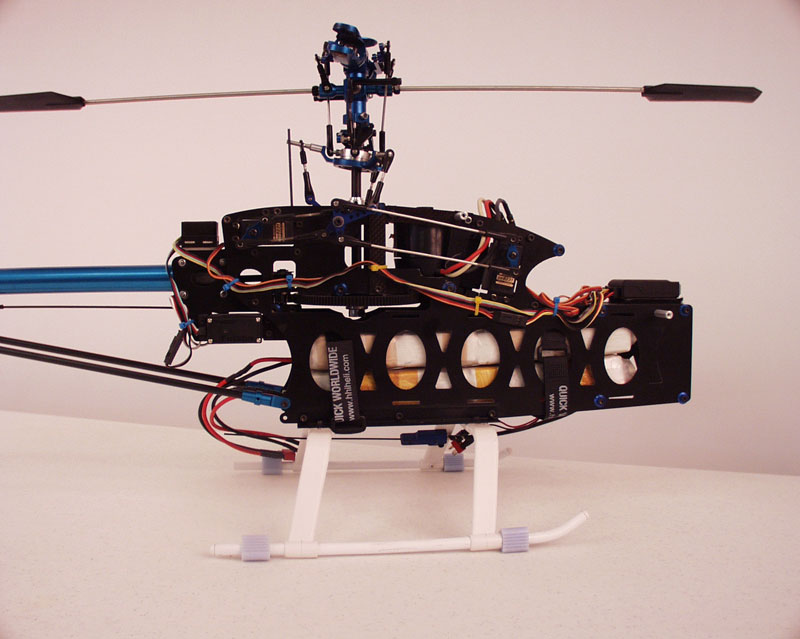

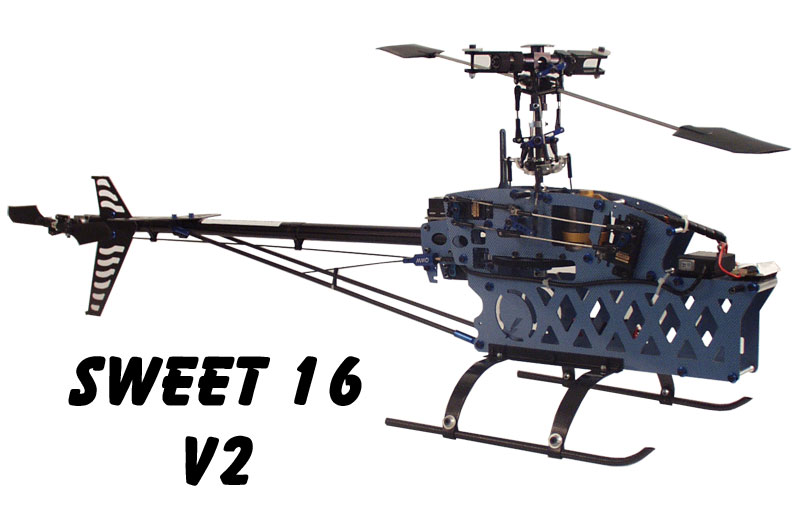

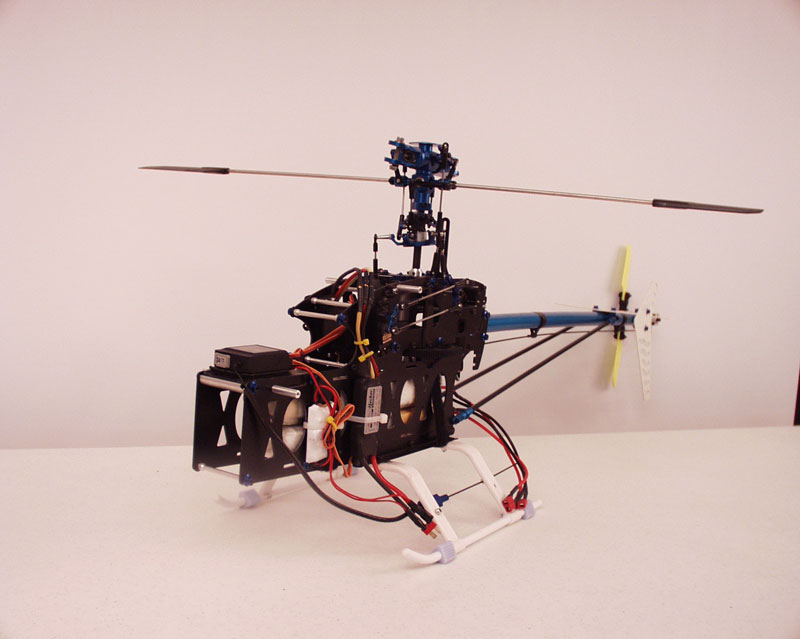

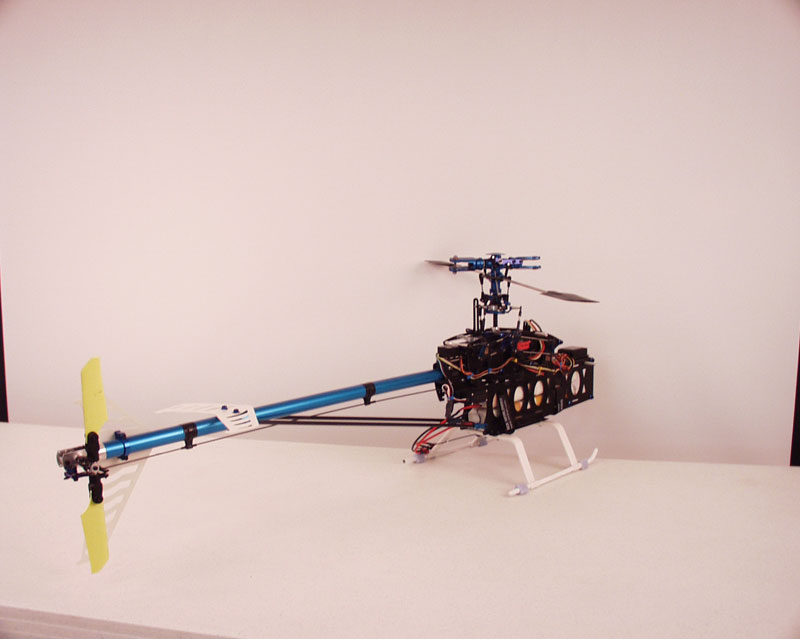

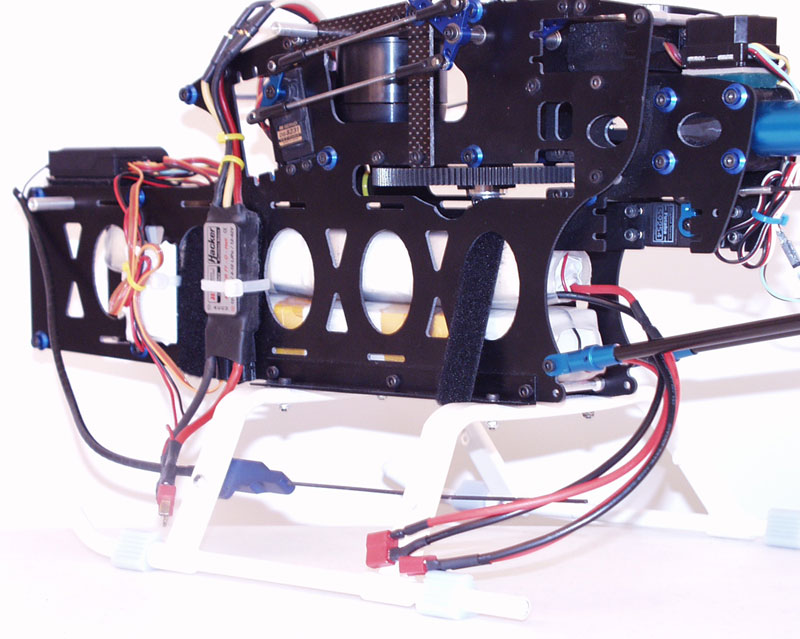

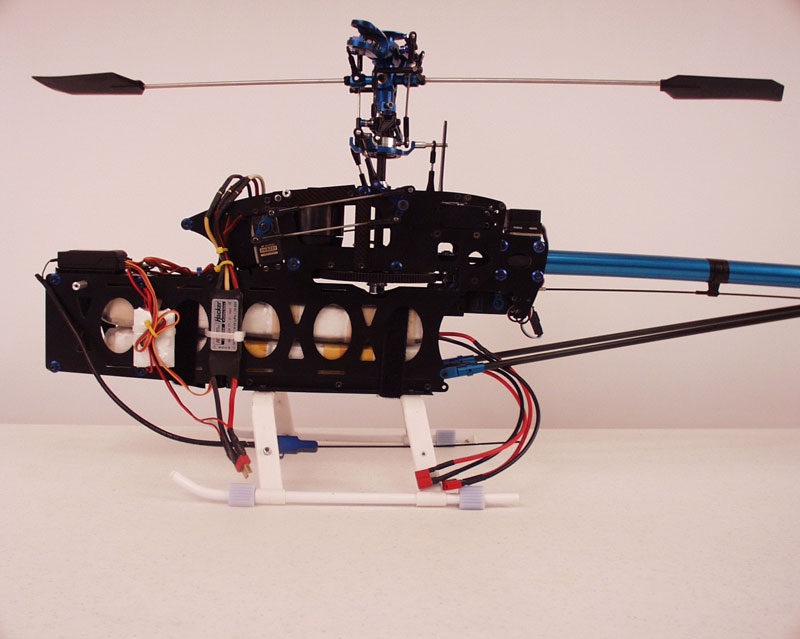

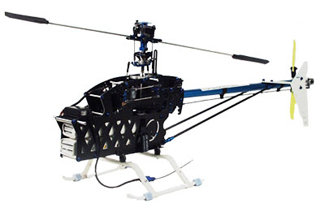

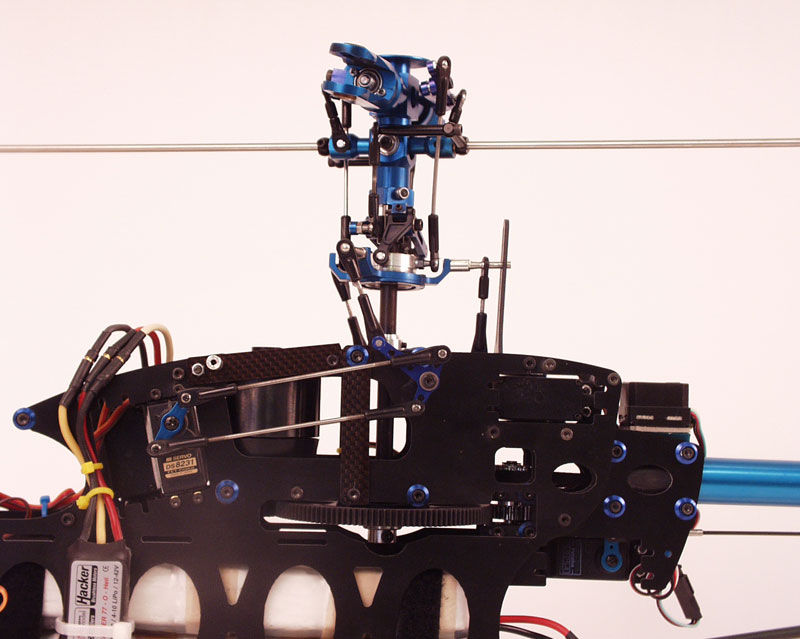

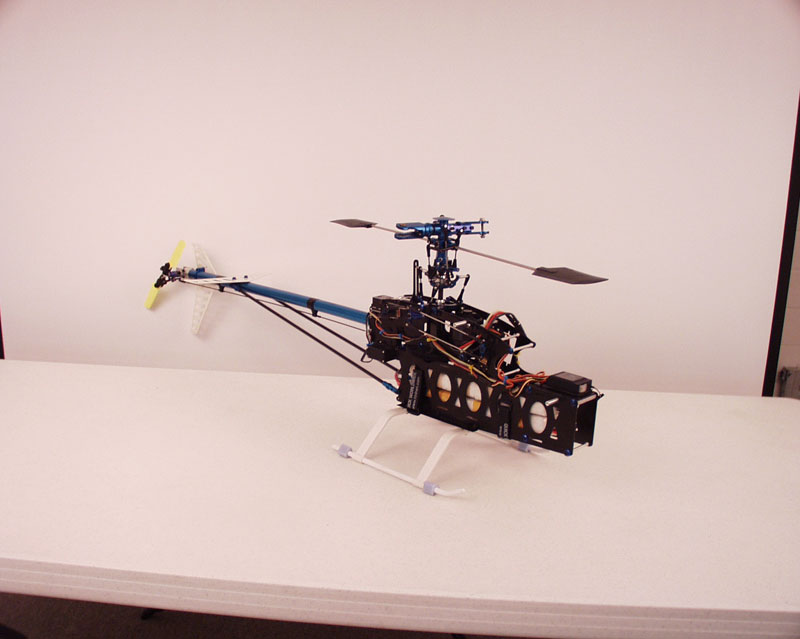

Quick Sweet 16EP V2 (2005)

For 2005 the Sweet 16 came out as the V2 version and inline with the EP10 the power train recommendations were reduced to just two with the high voltage and 'learner' setups removed.  This was a fundamental redesign with a completely different frame layout with the basic layout common with the revised EP10 model now called the little Sweetie 10.

Batteries
20 cell NiMH
26V 3300mAh
8S3P Li-Po
32V 6600mAh
Motor
Aveox 36/38/3 Aveox 36/38/3
ESC
Aveox SH-48 Aveox SH-48
Motor KV
~ 800 rpm ~ 800 rpm
Pinion
12-13 tooth 10-11 tooth
Blades
Quick 550mm Quick 550mm
Head Speed
1650-1800 rpm 1700-1900 rpm
Flight Time
8-10 min 20-26 min
Flying
Aerobatic / 3D 3D

The model names also changed with the designation De-luxe and Standard being replaced with Pro and Sport so as to align the naming convention with the rest of the range; additionally, after introduction of the Sweet 16V2 priced at Pro $500 and Sport $375, conversions kits were made available so that owners of the original version could upgrade to the equivalent Sweet 16V2; costs for this were Pro at $150 and Sport $110.

Quick Little Sweet 16V2 manual - Build manual with details of both 10 and 16 size machines.

Late in 2005 the recommended power train was revised;

Specifications
Length
41
Height
15.25 in.
Weight (Just the Kit)
2.9 lbs
Batteries
8 -9 Cell Li-Po

Motor
Axi 4120/ OEM
Motor KV

ESC
Jeti 77
Blades
Quick 550mm or 580mm
Tail Blades
Plastic
Frame Thickness
2 mm
Head Spead
1650 - 1900*
Pinion
10-15 tooth
Spindle
5 mm
Mainshaft
8 mm
Canopy
Fiberglass
Flying
Aerobatic to 3D
Flight Time
10 - 15 min




Differences Between Sport and Pro Kitc

  Sport Pro
Frames
G-10 Fiberglass Carbon Fiber
Head
Un-anodized w/ plastic blade grips Fully Metal Head w/ Thurst Bearings
Boom Supports
Fiberglass Carbon
Autorotation Hub
Yes Yes



The model was to remain in the range for many years and once again in 2008 the power train recommendation was revised;

Specifications
Length
49 in with canopy
43.5 in w/o canopy
Height
15.25 in.
Full Equipped Weight
9 lbs (4kg)
Batteries
5S 2P x 2 = 10S (42V)
For 8000mah

Motor
Quick Ray Power 4120/ OEM
Motor KV
450
ESC
Phoenix Castle 85
Blades
Quick 580mm/600mm
Tail Blades
85 - 100mm
Frame Thickness
2 mm
Head Speed
1650 - 2400*
Pinion
10-15 tooth
Spindle
5 mm
Mainshaft
8 mm
Canopy
Fiberglass
Flying
Aerobatic to 3D
Flight Time
According to MAH

The model remained on the web site until 2011.
