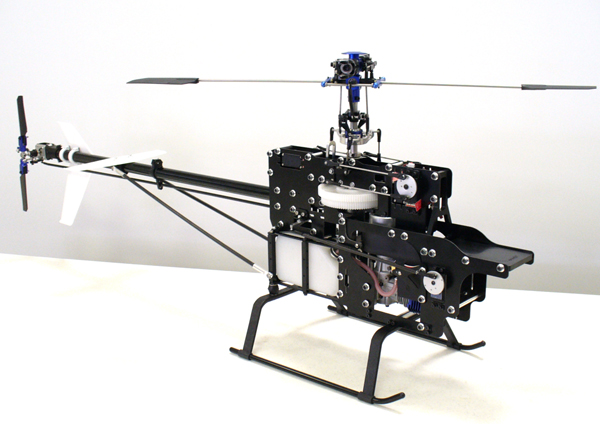

Quick Bat 50 (2008)



Next generation nitro machine the Bat 50  (initially called the Quick Bat Copter 50) was designed with 3D capability as a priority.  The redesign also included triple bearings for the main shaft so as to ensure minimal flexing of the drive train during 'hard' collective operation.  Available in the standard Sport G10 and Pro Carbon versions along with options of the CNC tail upgrade and the tail shaft drive system.

PRICE CHART
Part Number
Heli Type
Description
Price
Purchase
QKB50S
Sport Standard Sport Kit $449.99
QKB50P
Pro Standard Pro Carbon Kit $549.99
This helicopter is also available with optional CNC Tail Upgrade or ADS Shaft Drive System
Shaft Drive Tail System add $150.00.



Specifications
Length
 43.5 in w/o canopy
Height
 17 inches w/ stock LG
Motor
OS 50
Blades
Quick 580 - 640 mm
Tail Blades
 95 mm
Frame Thickness
 1.65 mm
Gear Ratio
 8.8:1
Weight
8.4 Lbs
Spindle
 8 mm
Mainshaft
 10 mm
Canopy
 Fiberglass
Flying
 Beginner to 3D



Differences Between Sport and Pro Kit



Sport

Pro

Frames

G-10 Fibreglass

Carbon Fibre

Head

Silver Anodized w/ plastic blade grips

Fully Metal Head w/ Thrust Bearings

Autorotation

Yes (Triple bearing)

Yes (Triple bearing)

Boom Supports

Fibreglass

Carbon

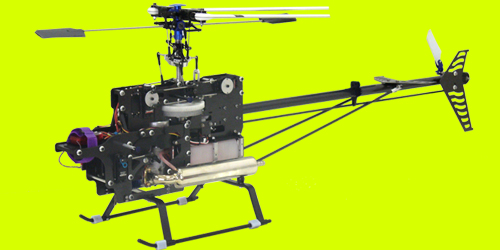

Shortly after introduction, the Quick Bat 50 both Sport and Pro was available in pre-built ARF form.

Quick Bat 50 Nitro

Included in the offer:

  OS 50 SXH Ring Hyper
  Zimmmerman Tuned Muffler
  Four Blue Bird 825DMG High Performance Servos
  Futaba Y401 Gyro w/ 9254 Servo
  Available with CNC Tail or Shaft Drive Tail
(Price is for CNC Tail version)

Sport Price: $1899.99
 Pro Price: $1999.99

 http://web.archive.org/web/20080609210216im_/http:/quickheli.com/images/prebuilt/prebuiltbat50.jpg

Quick Bat manual  -  build manual covering all Bat versions 50/70/90.

This model was to remain until QWW ceased trading.

Quick Budget Bat 50 (2008)



By late summer 2008 the Bat range had been revised slightly but this time with reverse specifications in order to reduce the price thereby allowing a cheaper entry to their Bat range without the need to buy one of the Learner range.

Specifications of budget Bat 50;

  • Moulded main & tail grips, autorotation hub, tail links
  • Two main shaft bearings
  • No bearing on clutch bell
  • Fiberglas boom supports
  • Basic tail system
  • No head or tail thrust bearings
  • Basic autorotation but without the driven tail





Differences Between Budget, Sport, and Pro Kit



Budget

Sport

Pro

Frames

G-10 Fibreglass

G-10 Fibreglass

Carbon Fibre

Head

Anodized w/ plastic blade grips

Anodized w/ plastic blade grips

Fully Metal Head w/ Thrust Bearings

Tail

Dual Bearing, Moulded Grips
(no thrust bearing)
Standard tail w/ G10 side plates
Plastic tail pitch plate w/ plastic links

Dual Bearing, Moulded Grips
(no thrust bearing)
Standard tail w/ G10 side plates
Plastic tail pitch plate w/ standard ball links and metal pins

Metal Grips, Triple Bearing (includes thrust bearing),
Bat 50 Pro: Standard tail w/ carbon side plates
Bat 70 & Bat 90 Pro's included One Piece CNC Tail System
Metal tail pitch plate w/ standard ball links and metal pins

Autorotation

Yes (moulded w/ one way bearing and brass upper / lower bearing supports), non driven tail system

Yes (Triple bearing),
Driven Tail System

Yes (Triple bearing), Driven Tail System

Boom Supports

Fibreglass

Fibreglass

Carbon

Main Shaft

Two Main Shaft Bearings

Triple Bearing Mainshaft Support

Triple Bearing Mainshaft Support

Control Parts

G-10 Fiberglas's w/ prim nut inserts: includes washout arms, hiller arms, aileron bellcrank's, tail pitch lever, rudder bellcrank

V1 Front metal elevator arm w/ rear anti-rotation guide with pin

All control parts are CNC machined metal parts

V2 Metal elevator arm/ anti-rotation combo system

All control parts are CNC machined metal parts

V2 Metal elevator arm/ anti-rotation combo system





PRICE CHART
Part Number
Heli Type
Description
Price
Purchase
QKB50B
Budget

Quick Budget Bat 50 Kit:
Kit w/ motor:
Kit w/ motor & muffler:
$349.99
$524.99
$609.99
QKB50S
Sport
Standard Sport Kit
$449.99
QKB50P
Pro
Standard Pro Carbon Kit
$549.99

This helicopter is also available with optional CNC Tail Upgrade or ADS Shaft Drive System
Shaft Drive Tail System add $150.00. Click here to see shaft drive system.

The reduction in price was $100 on the Sport version which was not a lot and although the machine could be brought up to normal Bat Sport or Pro specifications, it would be an expensive way of doing it as can be seen by reference to the Bat upgrades listing.
