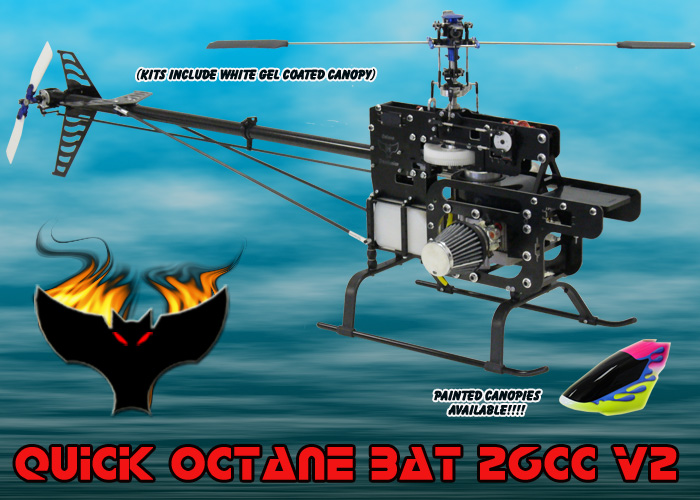

Quick Octane Bat 26cc V2 (2008)

The replacement for the Octane Dominator and developed from the revised frame layout of the Nitro Bat models to take the 26cc Petrol.    Triple bearings for the main shaft so as to ensure minimal flexing of the drive train during 'hard' collective operation.  Available in the standard Sport G10 and Pro Carbon versions with options in both versions to use electronic ignition for the Zenoah engine.  The standard options of the CNC tail upgrade and the tail shaft drive system was also available plus an additional option of an extended tail boom in order to allow the use of 800mm blades.

PRICE CHART

Part Number

Heli Type

Description

Price

QKGB26S

Sport

Standard Sport Kit

$849.99

QKGB26P

Pro

Standard Pro Carbon Kit

$1049.99

QKGB26S_EI

Sport

Standard G-10 Sport Kit w/ custom designed motor mount for Zenoah 26cc motors with EI (price doesn't include motor)

$874.99**

QKGB26P_EI

Pro

Standard Pro Carbon Kit w/ custom designed motor mount for Zenoah 26cc motors with EI (price doesn't include motor)

$1074.99**
This helicopter is also available with optional CNC Tail Upgrade or ADS Shaft Drive System

**Save $25 off of Electronic Ignition Kits w/ purchase of motor with kit!!



Differences Between Sport and Pro Kit



Sport

Pro

Frames

G-10 Fibreglass

Carbon Fibre

Head

Silver Anodized w/ plastic blade grips

Fully Metal Head w/ Thrust Bearings

Autorotation

Yes (Triple bearing)

Yes (Triple bearing)

Boom Supports

Fibreglass

Carbon





Specifications
Length
 48.5 in w/o canopy
Height
 18 inches w/ stock LG
Motor
Zenoah G-26
Muffler
Customer Choice
Gear Ratio
 8.8:1
Blades
Quick 640 - 680 mm
(800mm w/ extended boom)
Tail Blades
 95 mm
Frame Thickness
 3.0 mm
Tail
Sport: Standard Tail
Pro: One Piece CNC Tail
Weight
11.9 Lbs
Spindle
 8 mm
Mainshaft
 10 mm
Canopy
 Fiberglass
Flying
 Beginner to 3D

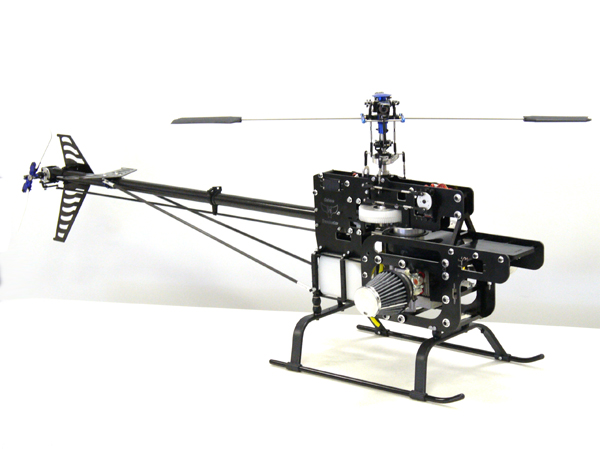

  • image1
  • image2_th
  • image3_th
  • image4a_th
  • image5_th
  • image6_th
  • image6a_th
  • image7_th
  • image8_th

Shortly after introduction, the Octane Bat 26cc V2 Sport was available in pre-built ARF form.

Quick Octane Bat 26cc V2 Sport


Included in the offer:

  Zenoah 26cc motor
  Zimmerman Tuned Muffler
  Four Blue Bird 825DMG High Performance Servos
  Futaba Y401 Gyro w/ 9254 Servo
  Available with CNC Tail or Shaft Drive Tail
(Price is for CNC Tail version)

Price: $2499.99

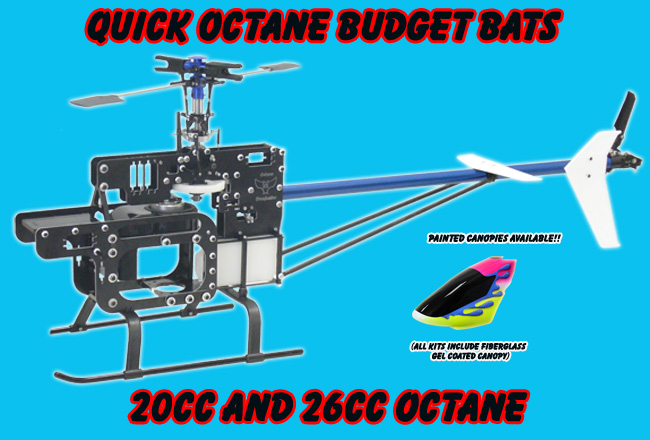

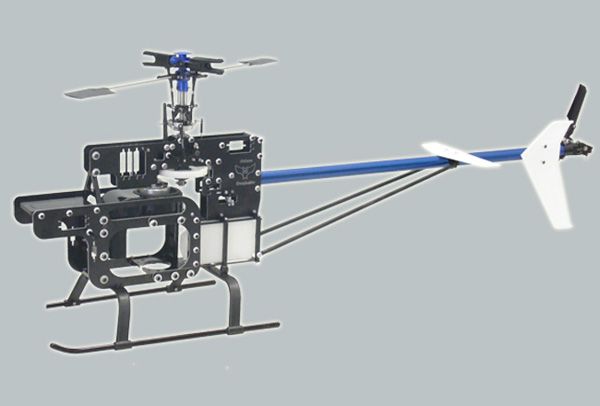

Quick Octane Budget Bat 26cc V2 (2008)

In line with the rest of the Bat range, 'Budget' versions were also made available for the Octane Bat models.

Specifications of budget Octane Bat;

Moulded main & tail grips, autorotation hub, tail links

Two main shaft bearings

No bearing on clutch bell

Fiberglas boom supports

Basic tail system

No head or tail thrust bearings

Basic autorotation but without the driven tail



Differences Between Budget, Sport, and Pro Kit



Budget

Sport

Pro

Frames

G-10 Fibreglass

G-10 Fibreglass

Carbon Fibre

Head

Anodized w/ plastic blade grips

Anodized w/ plastic blade grips

Fully Metal Head w/ Thrust Bearings

Tail

Dual Bearing, Moulded Grips
(no thrust bearing)
Standard tail w/ G10 side plates
Plastic tail pitch plate w/ plastic links

Dual Bearing, Moulded Grips
(no thrust bearing)
Standard tail w/ G10 side plates
Plastic tail pitch plate w/ standard ball links and metal pins

Metal Grips, Triple Bearing (includes thrust bearing),
Bat 50 Pro: Standard tail w/ carbon side plates
Bat 70 & Bat 90 Pro's included One Piece CNC Tail System
Metal tail pitch plate w/ standard ball links and metal pins

Autorotation

Yes (moulded w/ one way bearing and brass upper / lower bearing supports), non driven tail system

Yes (Triple bearing),
Driven Tail System

Yes (Triple bearing), Driven Tail System

Boom Supports

Fibreglass

Fibreglass

Carbon

Main Shaft

Two Main Shaft Bearings

Triple Bearing Mainshaft Support

Triple Bearing Mainshaft Support

Control Parts

G-10 Fiberglas's w/ prim nut inserts: includes washout arms, hiller arms, aileron bellcrank's, tail pitch lever, rudder bellcrank

V1 Front metal elevator arm w/ rear anti-rotation guide with pin

All control parts are CNC machined metal parts

V2 Metal elevator arm/ anti-rotation combo system

All control parts are CNC machined metal parts

V2 Metal elevator arm/ anti-rotation combo system



PRICE CHART

Part Number

Heli Type

Description

Price

Purchase

QKGB26B

Budget

Quick Octane Budget Bat 26cc Kit:
Kit w/ motor:
Kit w/ motor & muffler:
Kit w/ motor & tuned pipe:

$499.99
$839.99
$1029.99
$1074.99

Order

*****Motor in offers are Zenoah 20cc EI and Zenoah 26cc respectively.*****
*****Exhaust offered are Zimmerman full stainless steel tuned muffler or
tuned pipe respectively.*****

This helicopter is also available with optional CNC Tail Upgrade or ADS Shaft Drive System

Shaft Drive Tail System add $150.00.

The reduction in price was $350 on the Sport version was a reasonable saving to get a Petrol engine machine, it could be brought up to normal Bat Sport specifications and Pro specification as can be seen by reference to the Bat upgrades listing.

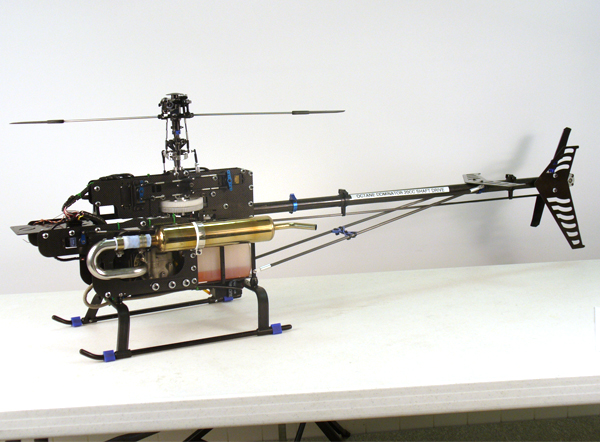

Quick Octane Bat 20cc V2 (2008)



Following the introduction of the 26cc version, the Octane Bat was then revised to take the smaller 20cc Petrol.  Same specification but without the extended tail boom option as the 20cc engine could not run with 800mm blades.

PRICE CHART
Part Number
Heli Type
Description
Price
QKGB26S
Sport
Standard Sport Kit
$699.99
QKGB26P
Pro
Standard Pro Carbon Kit
$849.99
This helicopter is also available with optional CNC Tail Upgrade or ADS Shaft Drive System
Specifications
Length
 48.5 in w/o canopy
Height
 18 inches w/ stock LG
Motor
Zenoah G-20cc
Muffler
Customer Choice
Gear Ratio
 8.8:1
Blades
Quick 640 - 680 mm
Tail Blades
 95 mm
Frame Thickness
 3.0 mm
Tail
Sport: Standard Tail
Pro: One Piece CNC Tail
Weight
11.9 Lbs
Spindle
 8 mm
Mainshaft
 10 mm
Canopy
 Fiberglass
Flying
 Beginner to 3D

Shortly after introduction, the Octane Bat 20cc V2 Pro was available in pre-built ARF form.

Quick Octane Bat 20cc V2 Pro


Included in the offer:

  Zenoah 20cc motor w/ EI
  Zimmmerman Tuned Pipe System
  Four Blue Bird 825DMG High Performance Servos
  Futaba Y401 Gyro w/ 9254 Servo
  Available with CNC Tail or Shaft Drive Tail
(Price is for CNC Tail version)

Price: $2449.99



Quick Octane Budget Bat 20cc V2 (2008)

As per the 26cc model the 20cc was also available as a 'Budget' versions with the same basic difference as noted above.

PRICE CHART

Part Number

Heli Type

Description

Price

QKGB20B

Budget


Quick Octane Budget Bat 20cc Kit:
Kit w/ motor:
Kit w/ motor & muffler:
Kit w/ motor & tuned pipe:

$399.99
$719.99
$909.99
$954.99

*****Motor in offers are Zenoah 20cc EI and Zenoah 26cc respectively.*****
*****Exhaust offered are Zimmerman full stainless steel tuned muffler or
tuned pipe respectively.*****

This helicopter is also available with optional CNC Tail Upgrade or ADS Shaft Drive System

Shaft Drive Tail System add $150.00.

The reduction in price was $300 on the Sport version was a reasonable saving to get a Petrol engine machine, it could be brought up to normal Bat Sport specifications and Pro specification as can be seen by reference to the Bat upgrades listing.
