Omega

Up to the mid 80's TSK provided the aftermarket upgrades for the Kalt range however they then started to produce their own machines and moved away from the upgrade market.  To fill this gap Kalt set up a subsidiary section called Ω Omega to provide upgrades and thus the model incorporating all these upgrades was named after the section.   The new section also produced a number of high performance fuselages for various models in the Kalt range.

Kalt Omega (1987)

Pod and boom aerobatic helicopter for 60 size engines and designed by the first F3C world champion pilot Shigteda Taya.  The original mechanics were developed for use in the Jet Stream body for competition work and for use in pod and boom format for general flying.

Kalt Omega-Pro (Professor) (1987)




Specification:

 Full Length of Fuselage  1400 mm
 Rotorhead  Blacl-10 SII
 Main Rotor Dia  1560 mm
 Gear   9.78 : 1 : 5.52
 Engine   .60 cu  in (10 cc)
 Full Equipped Weight  4600-4700 g



Documents:

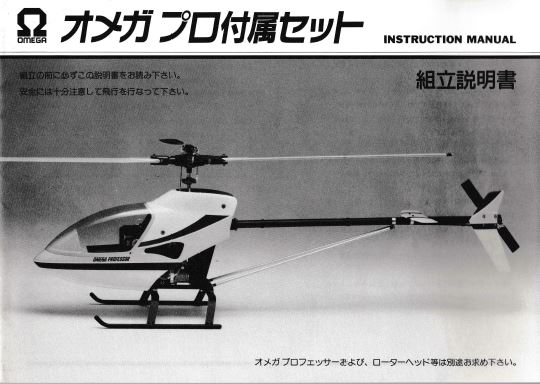

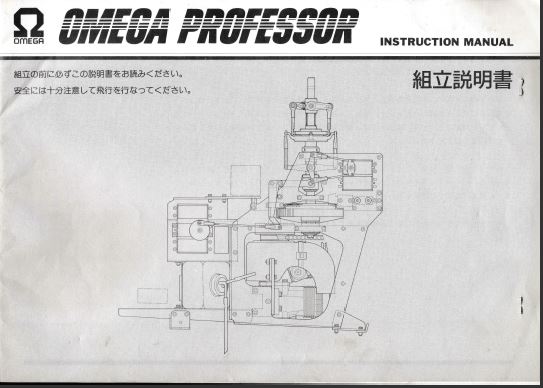

Manual Omega

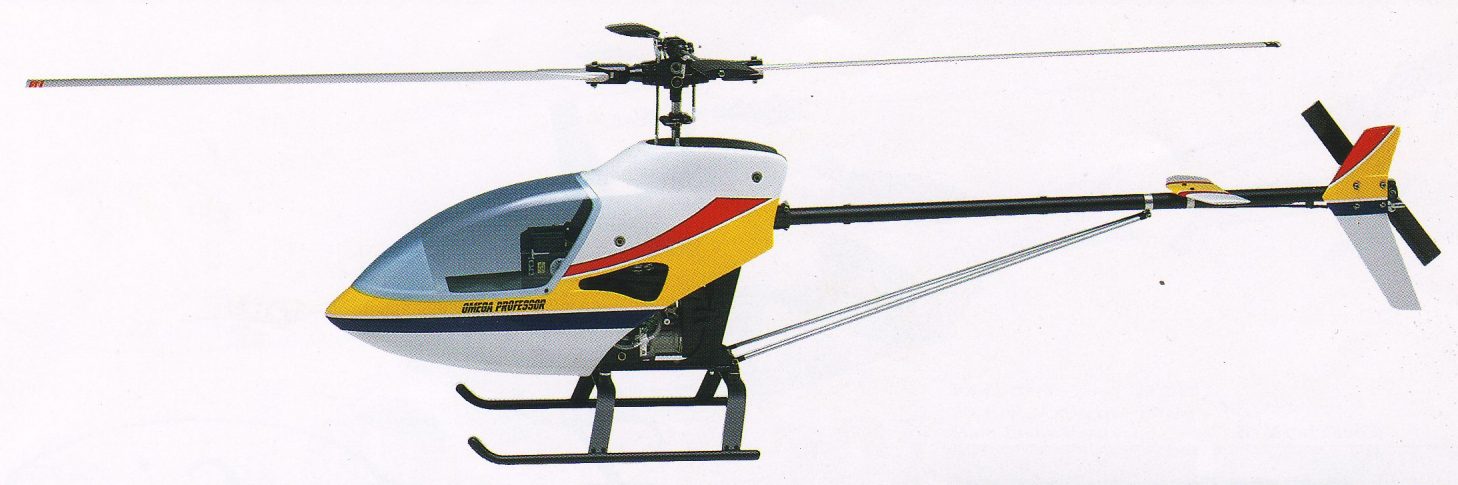

Professor

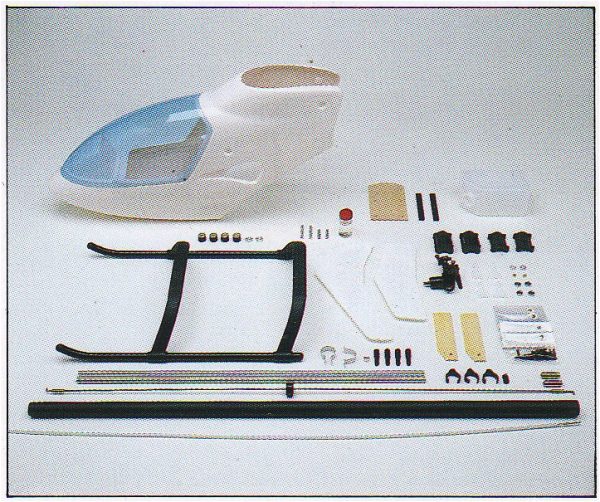

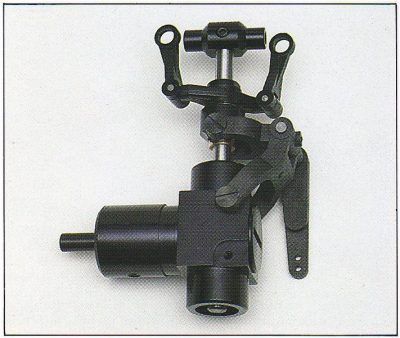

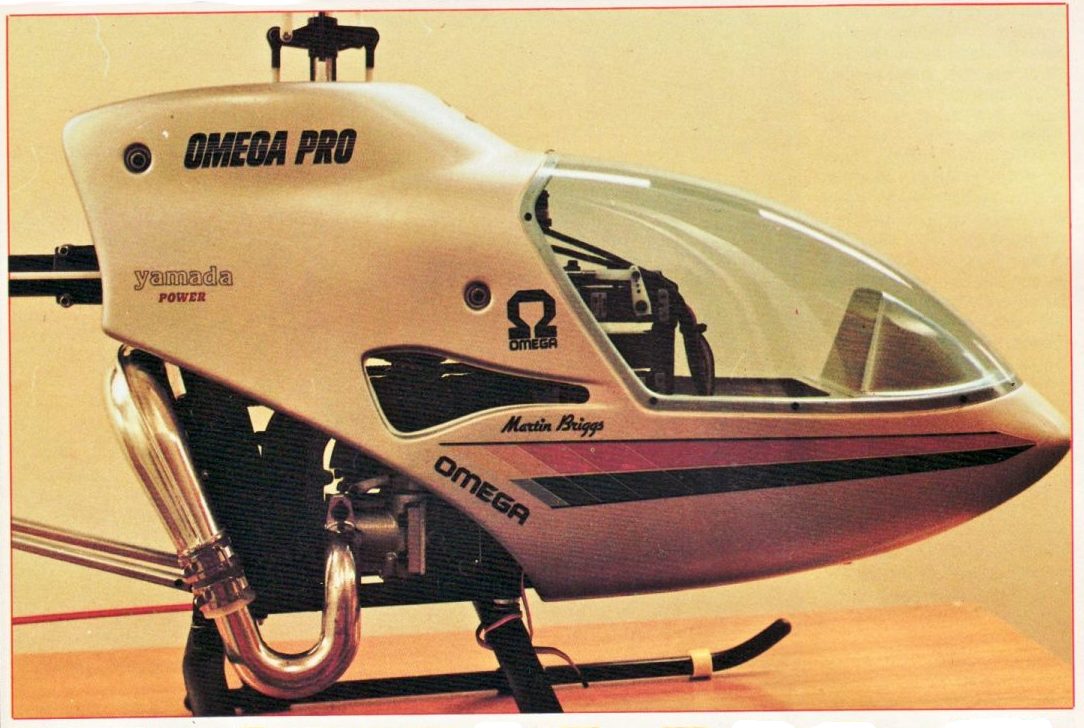

Next development of the omega with a number of general improvement plus the addition of a JetRanger scale body for competition.  The 'Pro' include the Black-10 SII rotor head, H55W main blades and Omega CF tail blades.

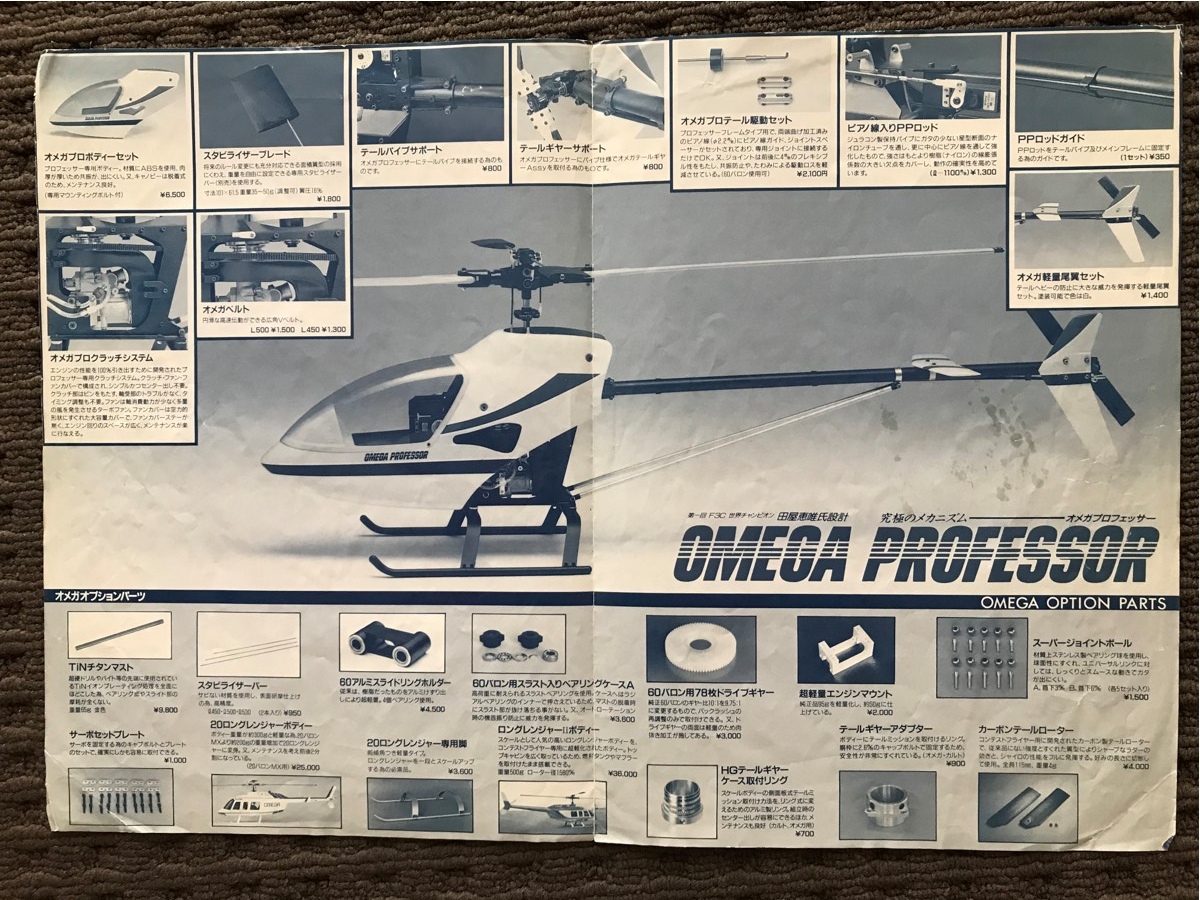

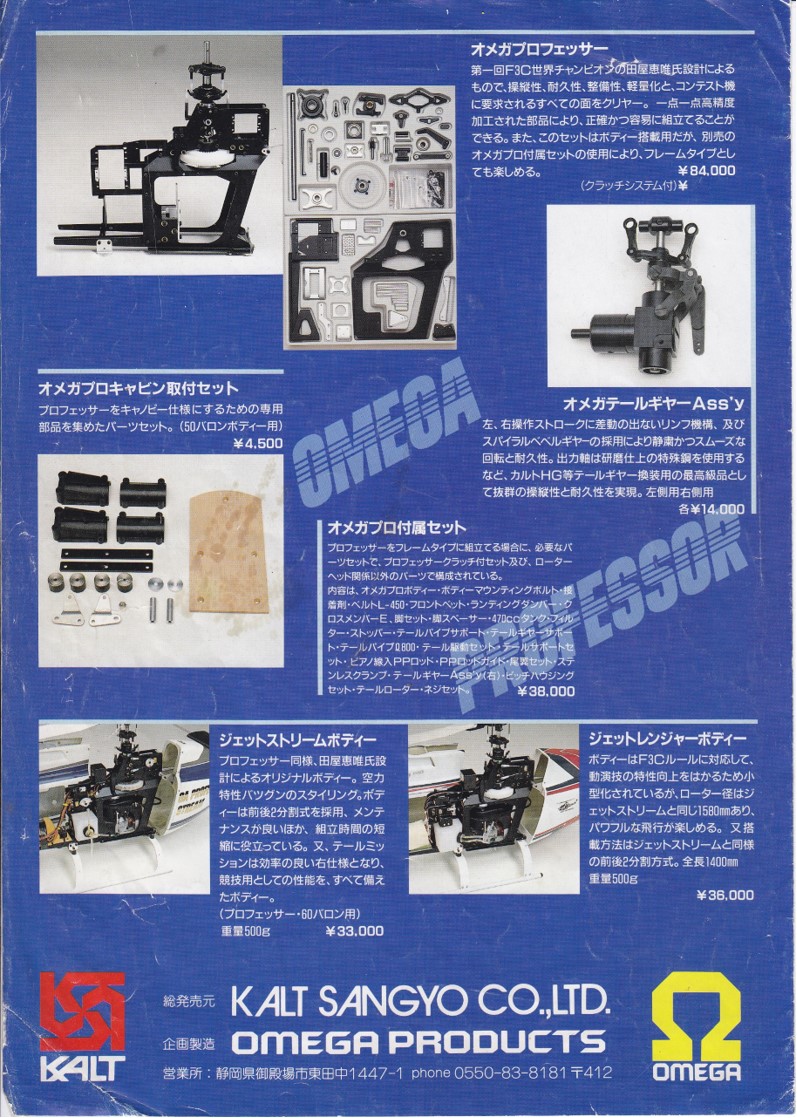

    Omega Pro advert 1989

The Kazuyuki Sensui designed 'Epsilon' contest fuselage was also made available which had the unique option of no landing legs only 'fins' which reduced drag for a higher top speed.

Omega Pro review - Review from 1989 - Courtesy of Model Helicopter World -  www.modelheliworld.com

Omega Pro review update - Flying update from 1989 - Courtesy of Model Helicopter World -  www.modelheliworld.com

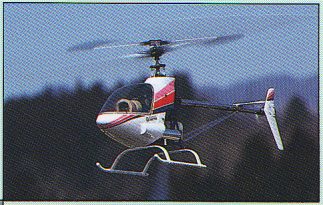

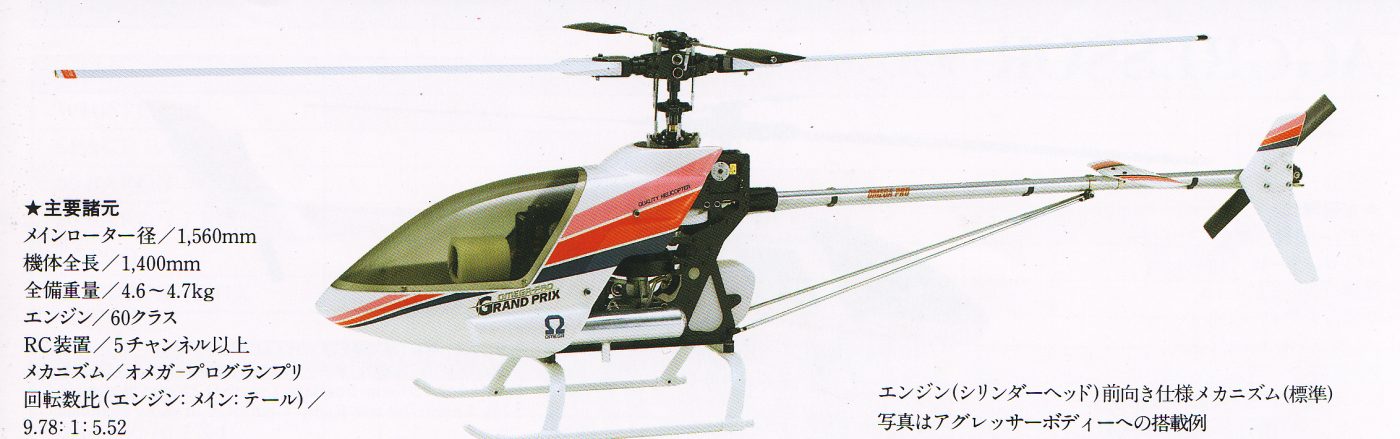

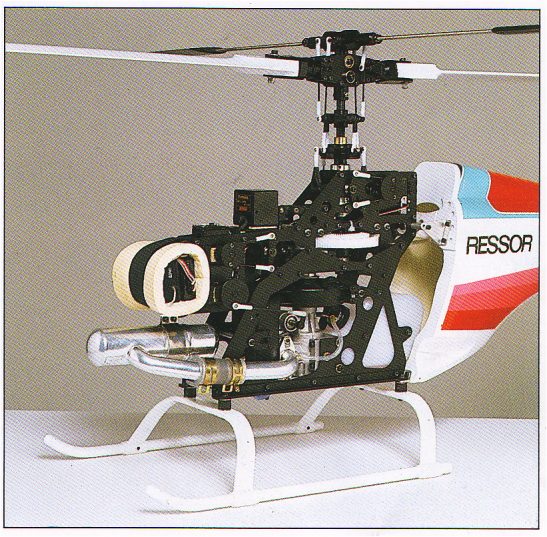

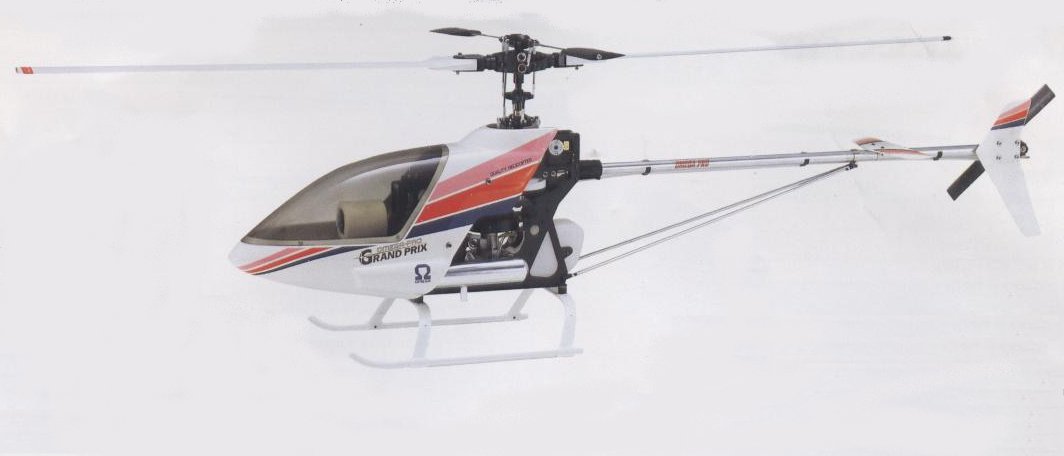

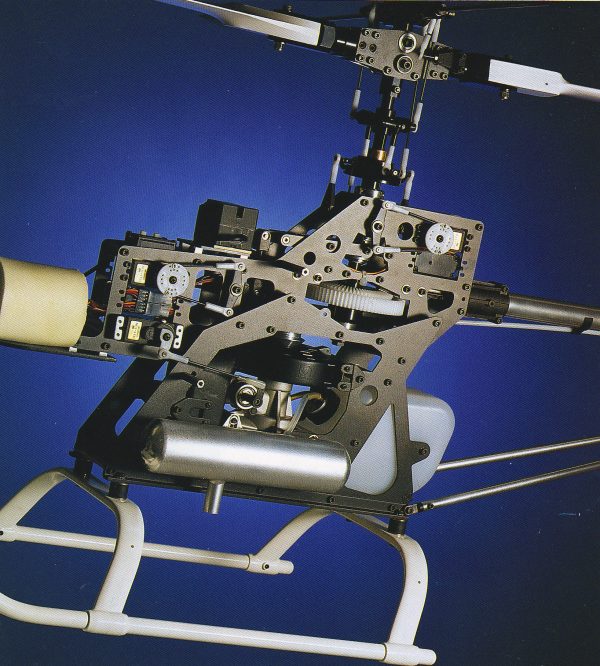

Kalt Omega-Pro Grand Prix (1992)




Specification:

 Full Length of Fuselage  1400 mm
 Rotorhead  Blacl-10 SII
 Main Rotor Dia  1560 mm
 Gear   9.78 : 1 : 5.52
 Engine   .60 cu  in (10 cc)
 Full Equipped Weight  4600-4700 g



Documents:

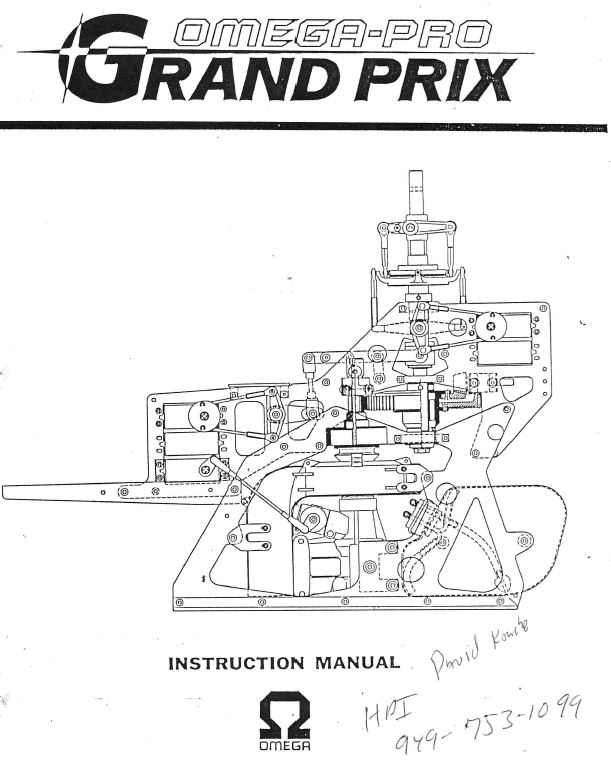

Manual Omega Pro Grand Prix







Kazuyuki Sensui, winner of the 1991FAI F3C World Championship held in Wangaretta, Australia with Aggressor Omega-Pro

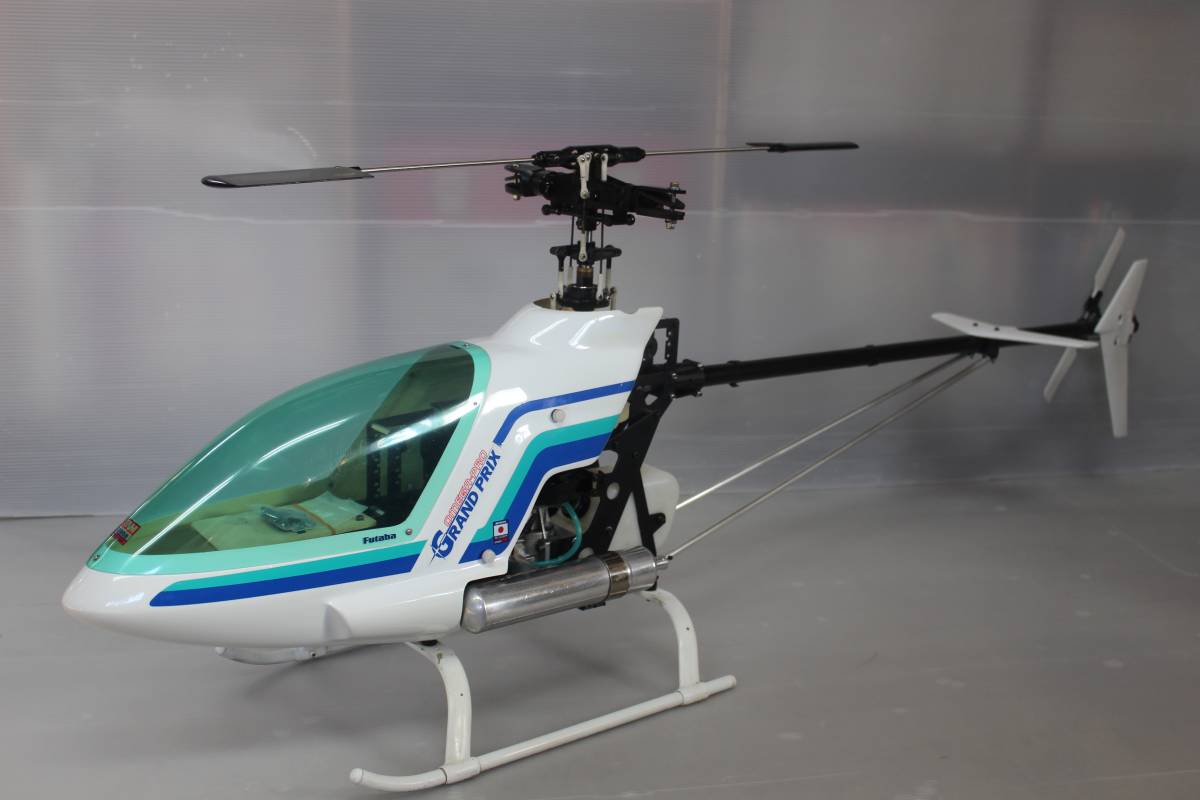

  • GP_005

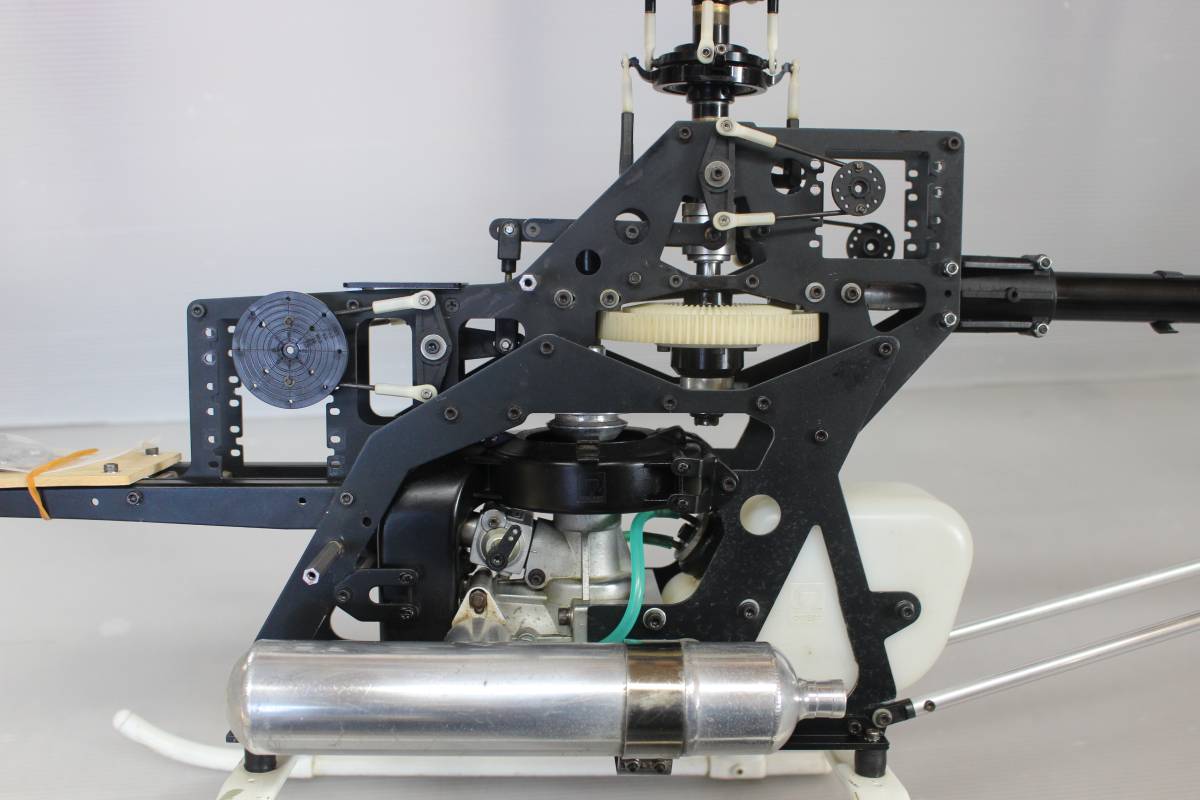

  • GP_010

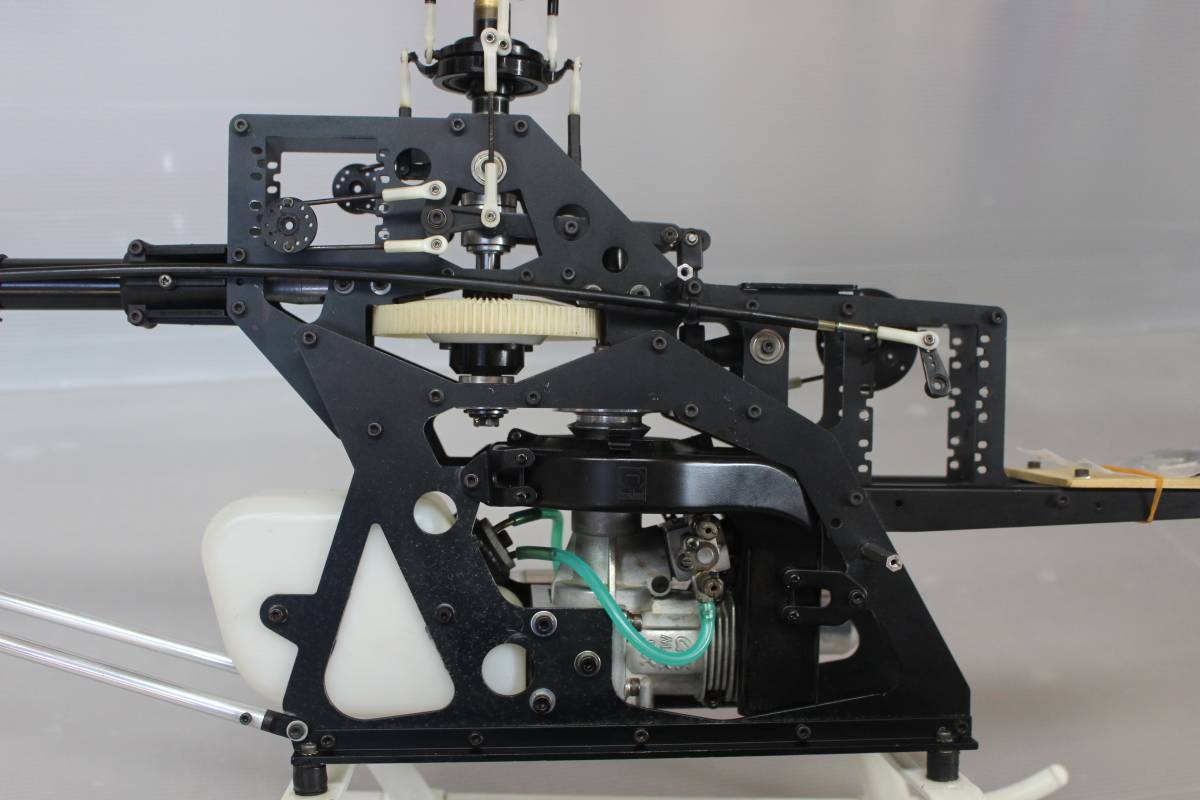

  • GP_015
  • GP_020

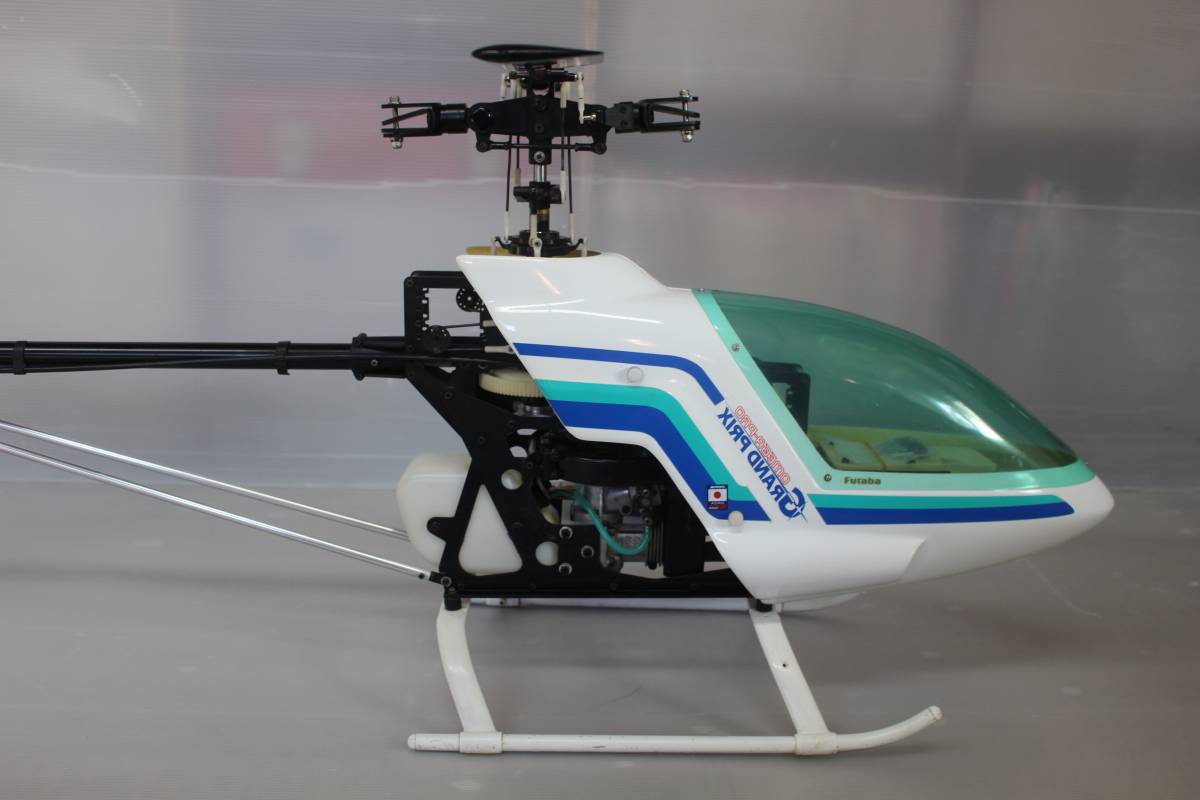

  • GP_025

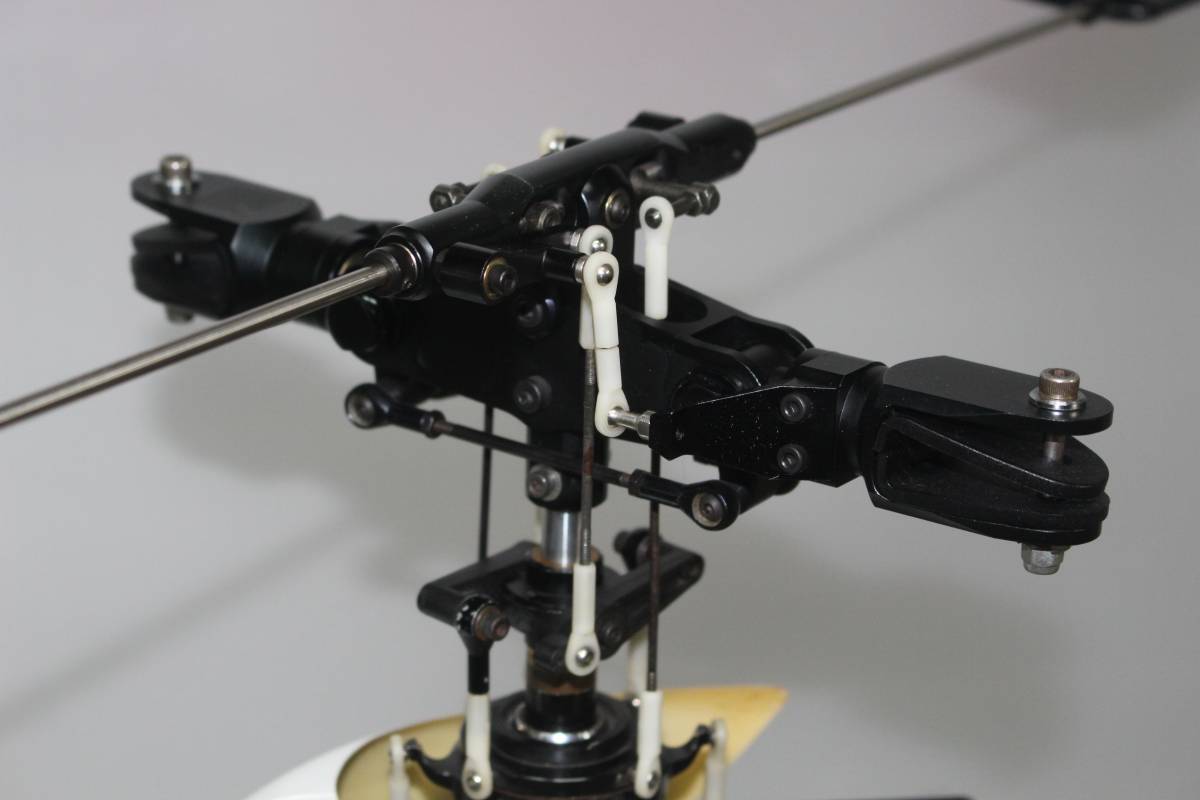

  • GP_030

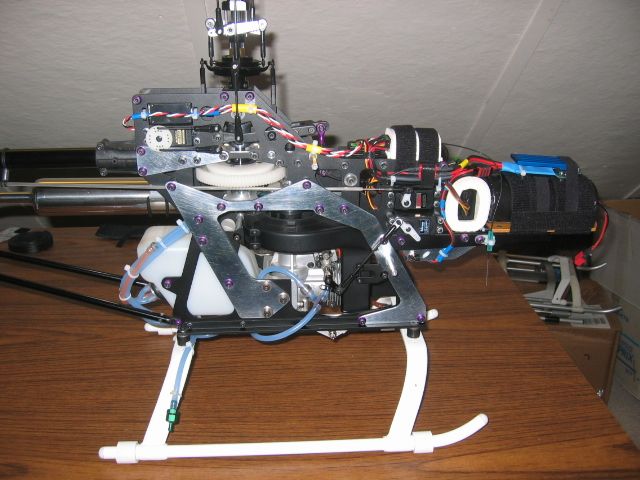

  • IMG_3785

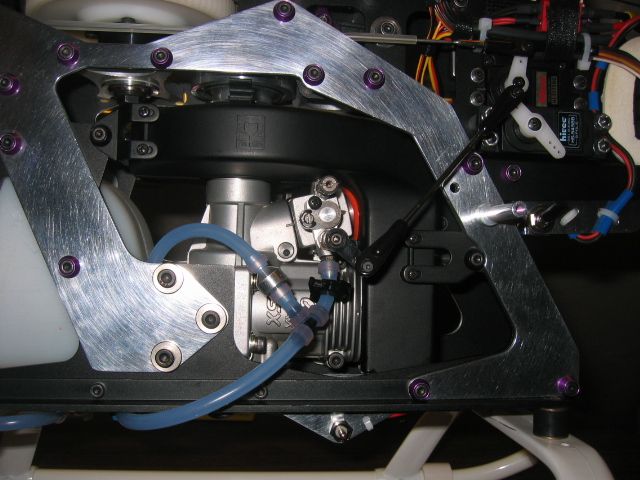

  • IMG_3788

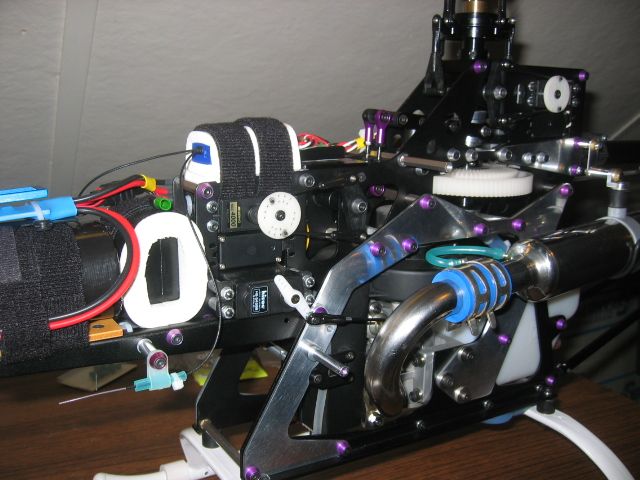

  • IMG_3790

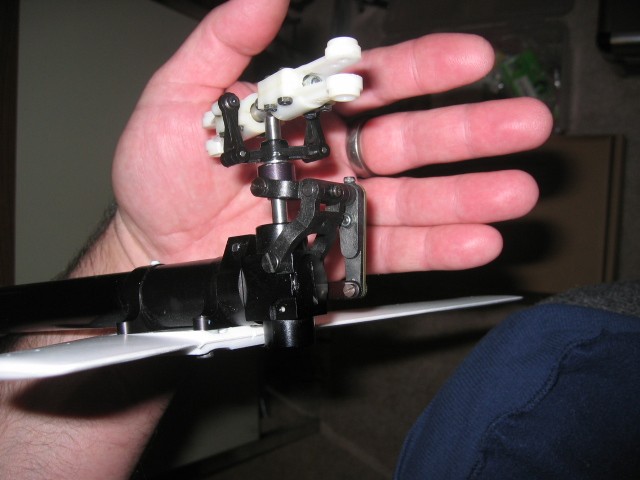

  • IMG_3798
  • IMG_3799

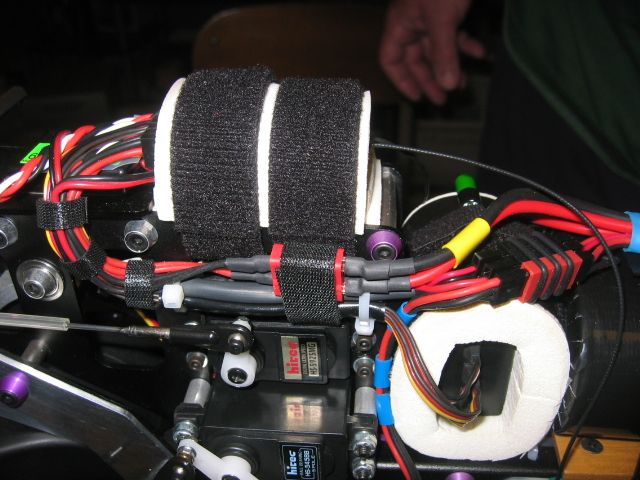

  • IMG_3804

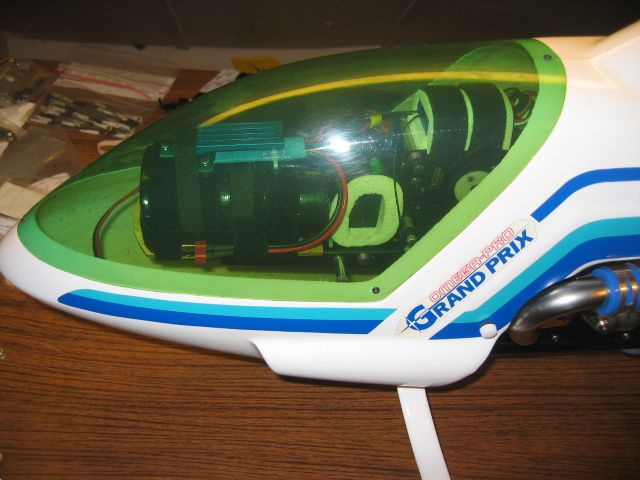

  • IMG_3814

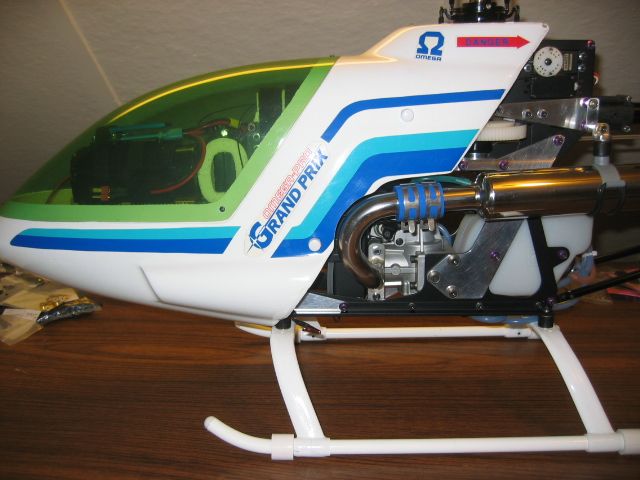

  • IMG_3815

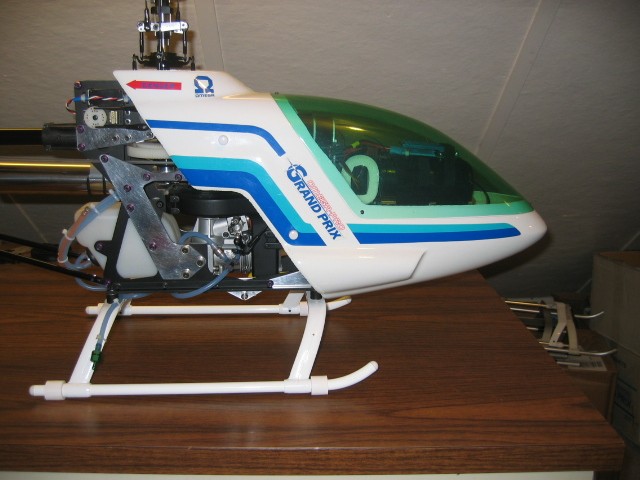

  • IMG_3821

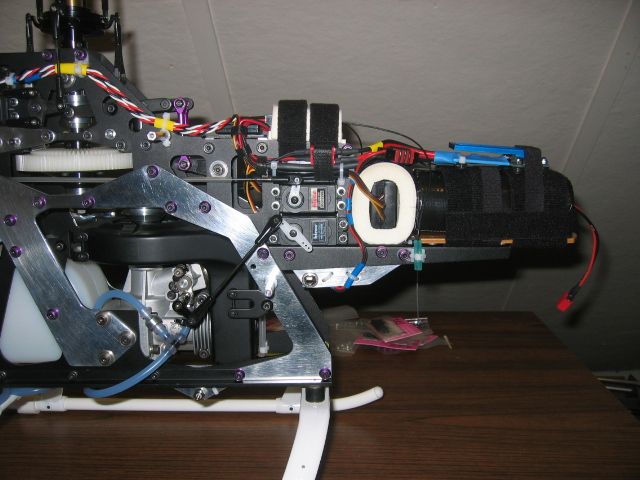

  • IMG_3822

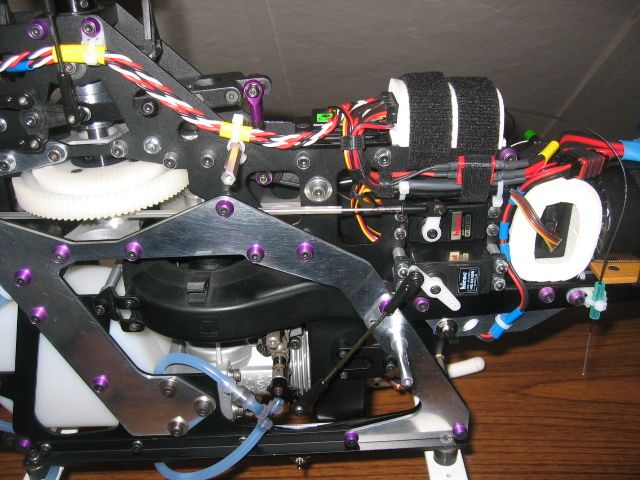

  • IMG_3825

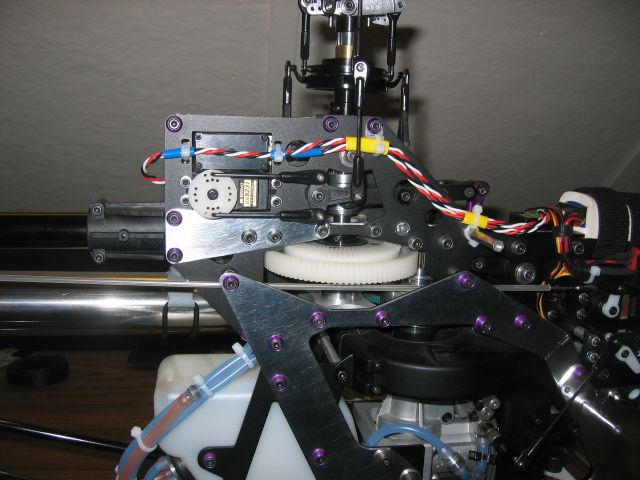

  • IMG_3828

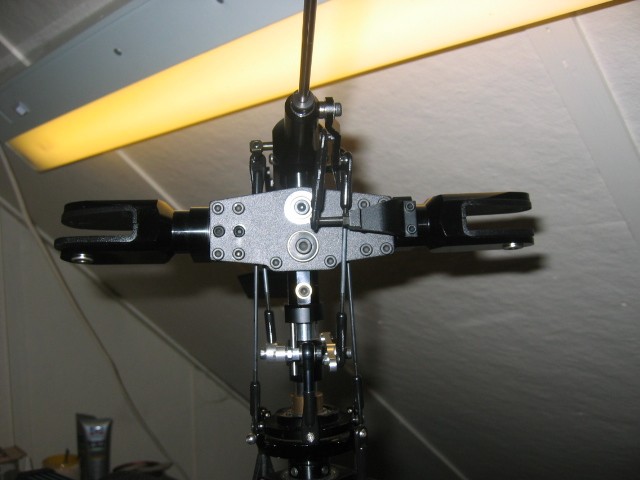

  • IMG_3835

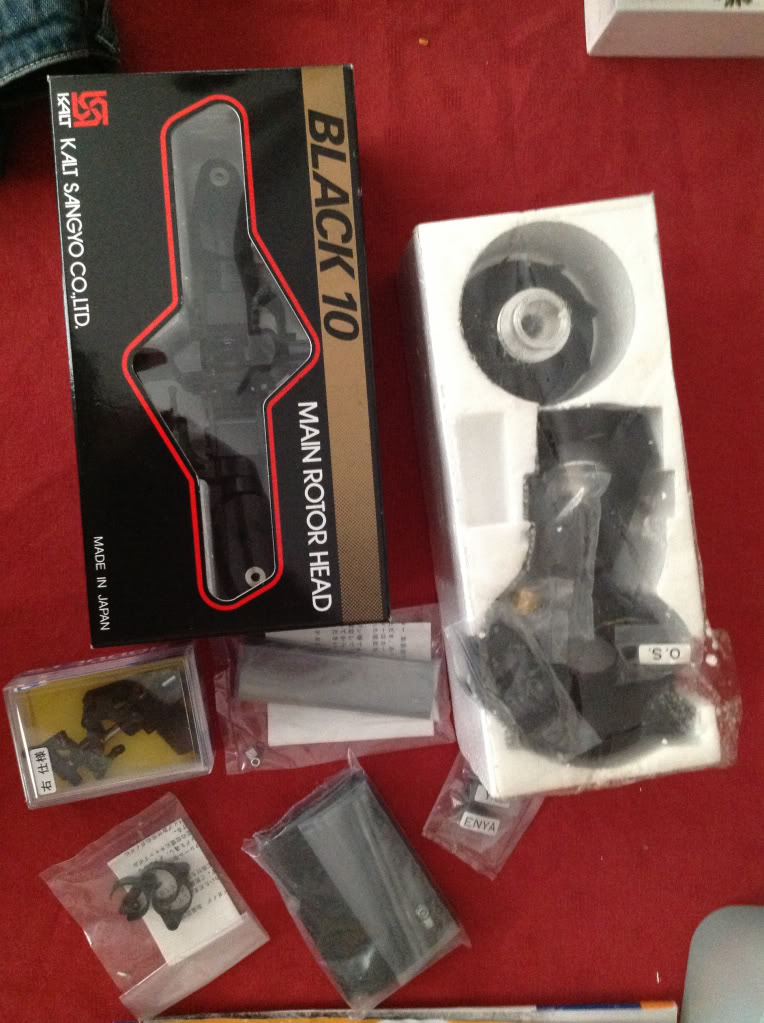

  • Omega Pro GP - 03

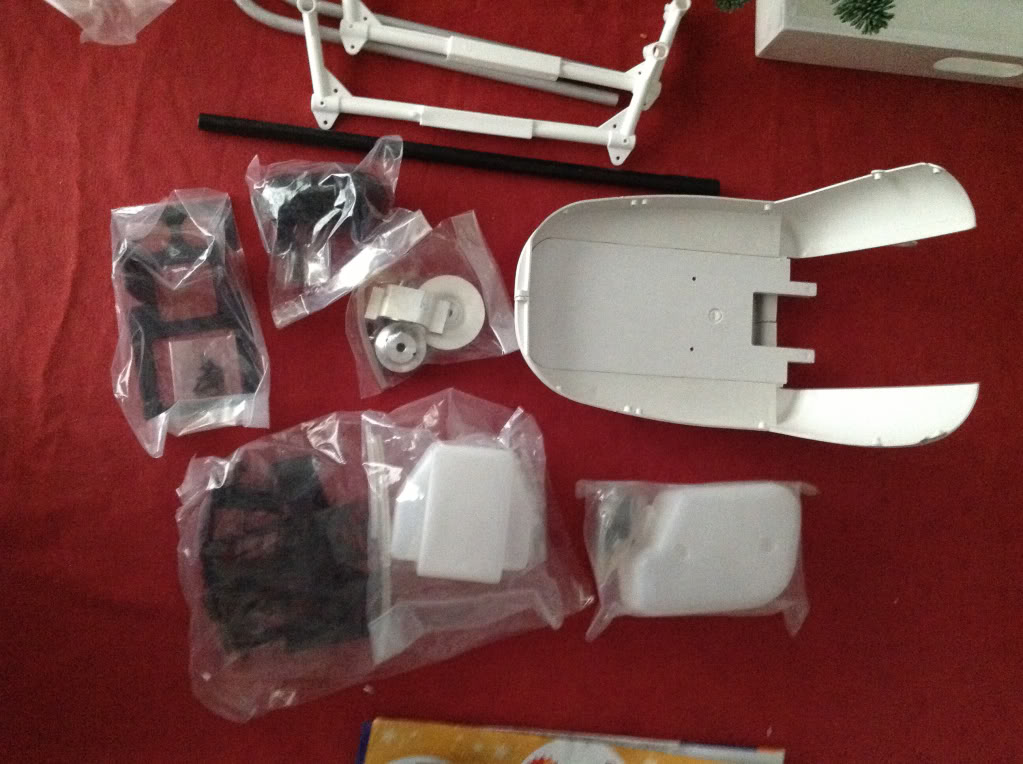

  • Omega Pro GP - 04

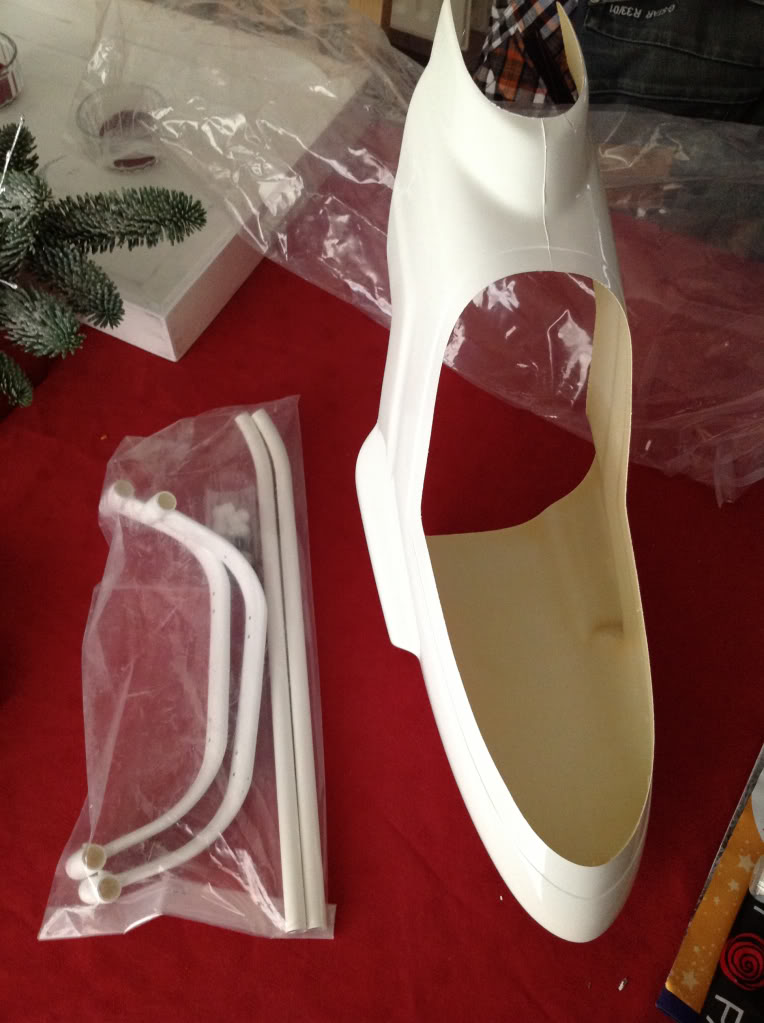

  • Omega Pro GP - 05

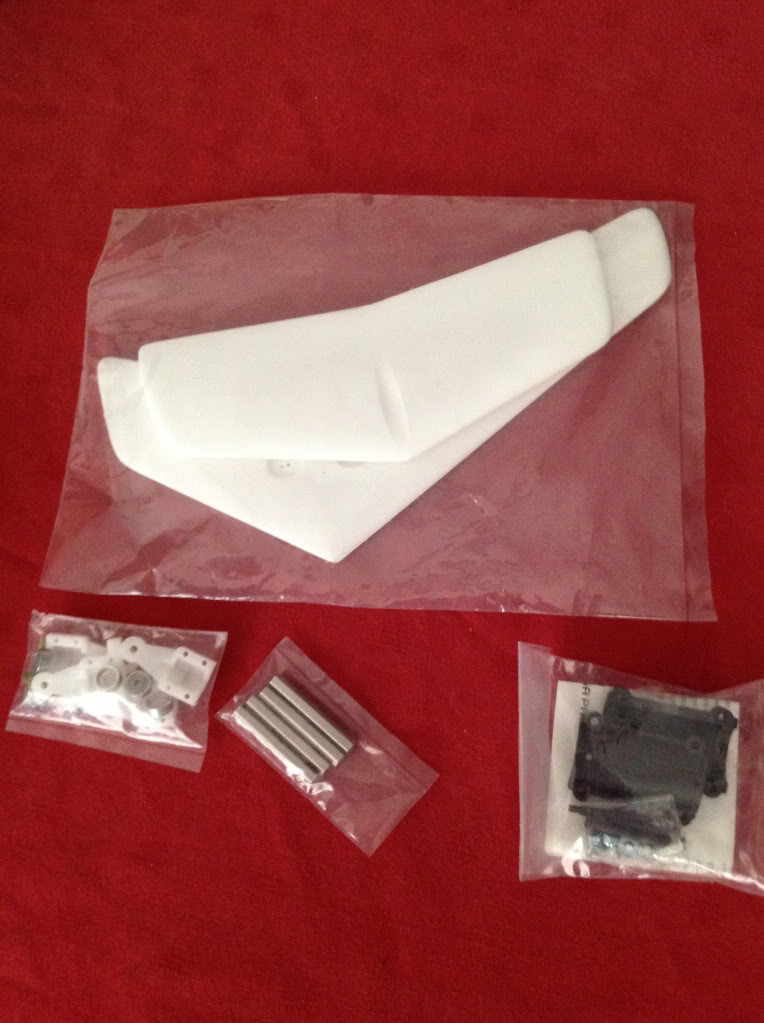

  • Omega Pro GP - 06
  • Omega Pro GP - 07

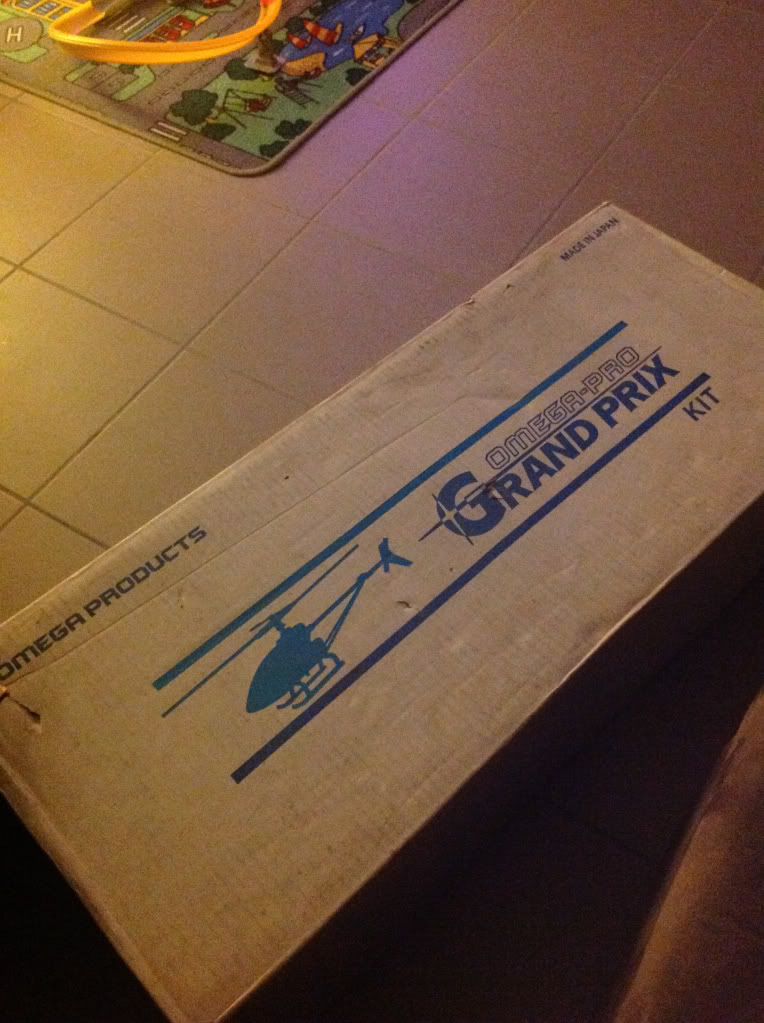

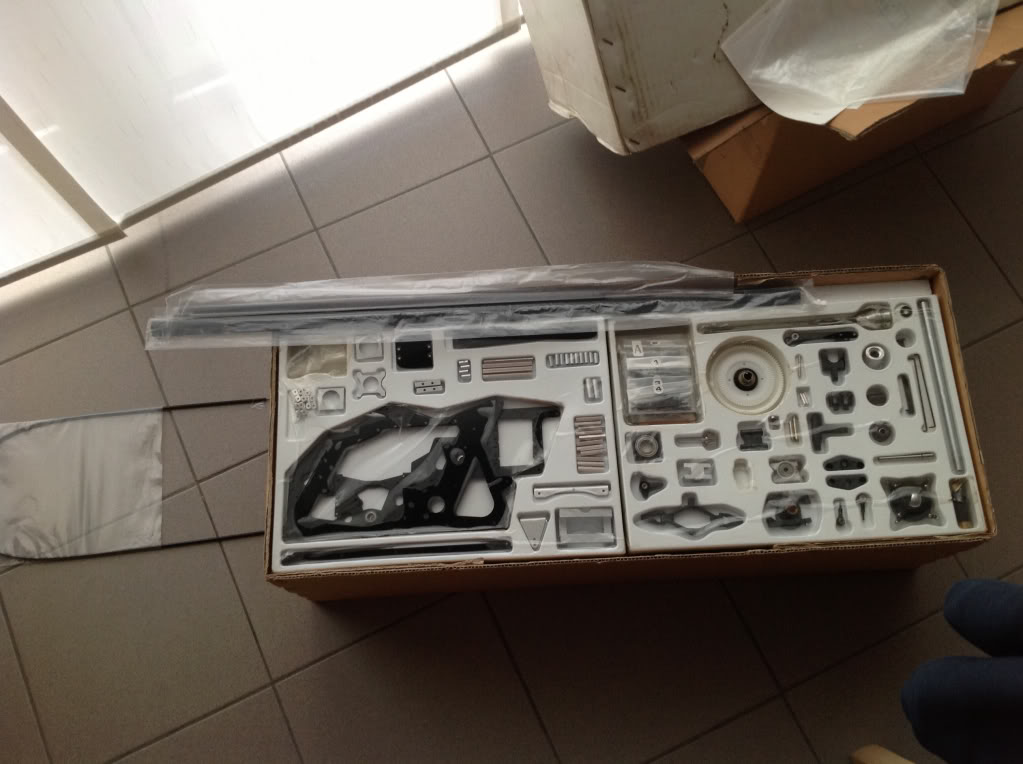

  • Omega pro GP - 01
  • Omega pro GP - 02
  • Picture_617

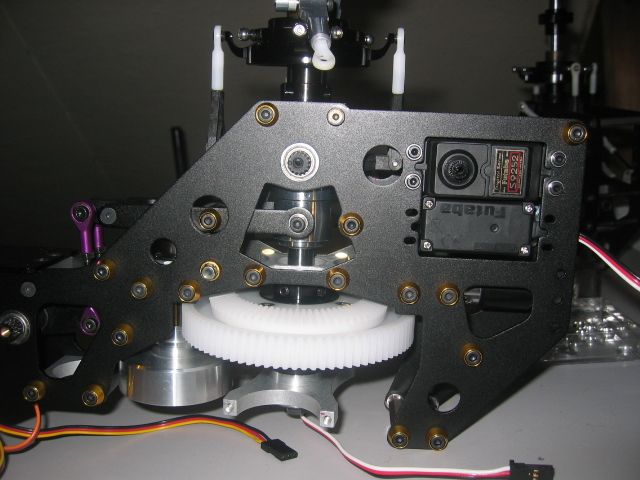

  • Picture_618

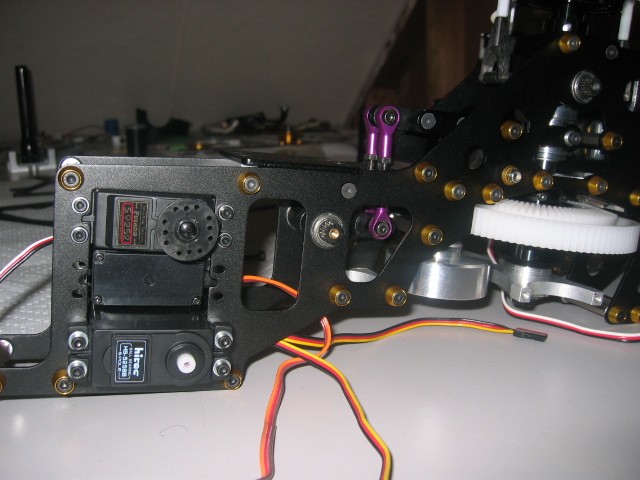

  • Picture_619

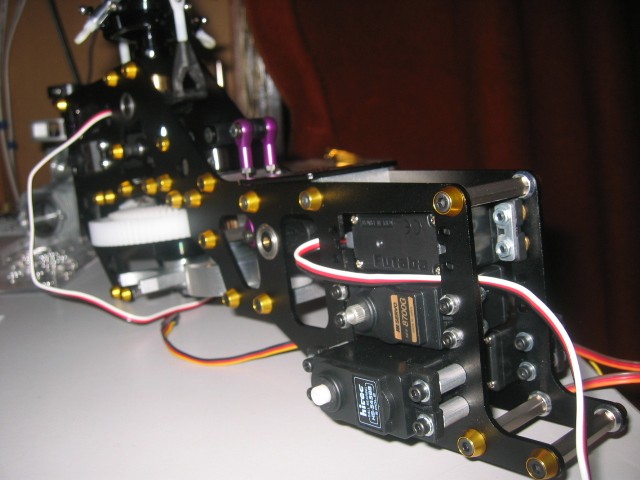

  • Picture_620

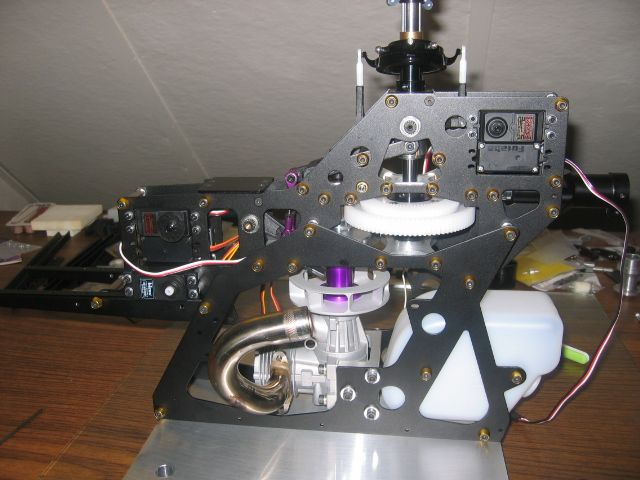

  • Picture_625

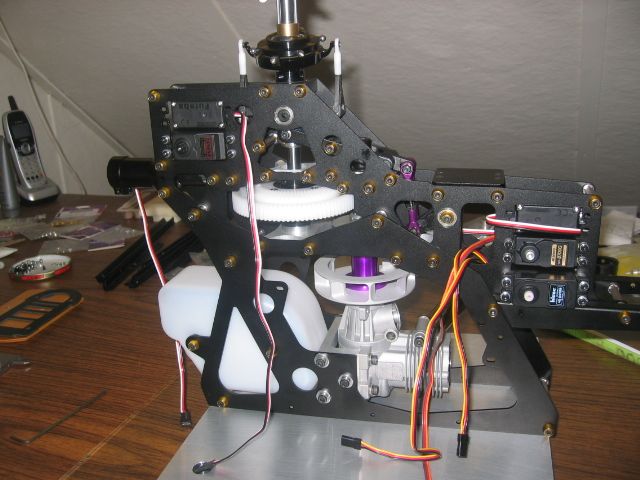

  • Picture_627

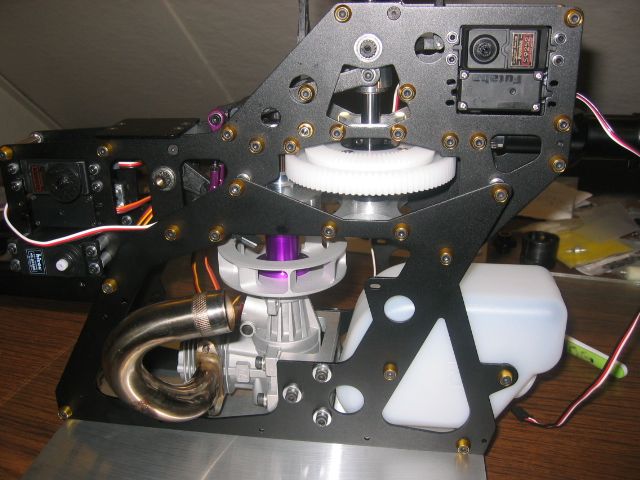

  • Picture_628

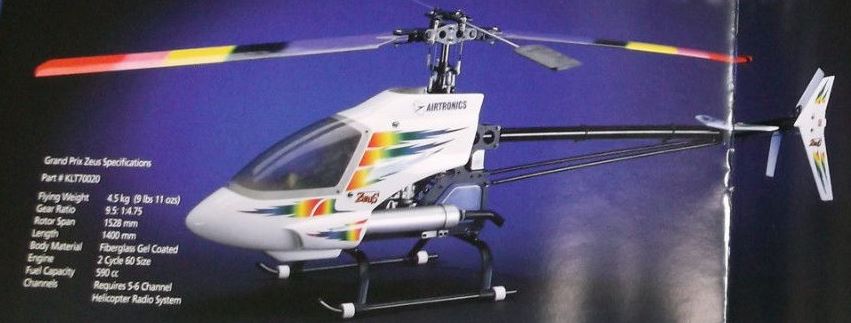

Kalt Omega-Pro Grand Prix Zeus


  Specification:

 Length  1400 mm
 Rotor Head  CP model specific
 Main Rotor Dia  1528 mm
 Engine  2 cycle 60 size
 Gear Ratio  9.5 : 1 : 4.75
 Weight  4500 g



Documents:

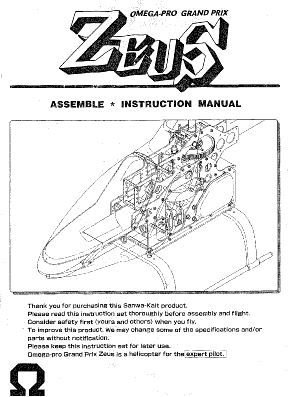

Manual Zeus

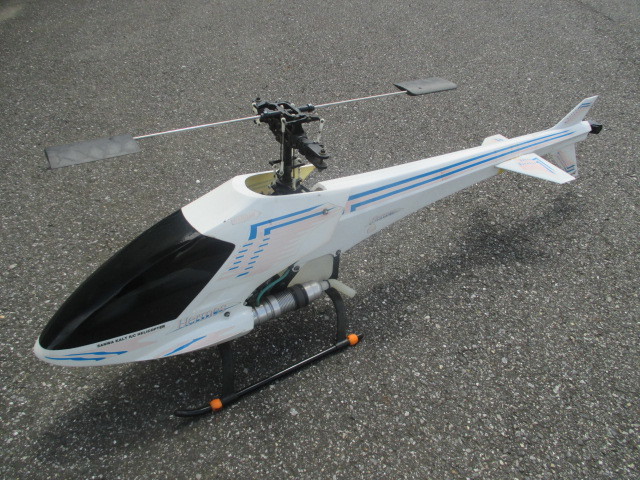

  • Kalt_Zeus_005

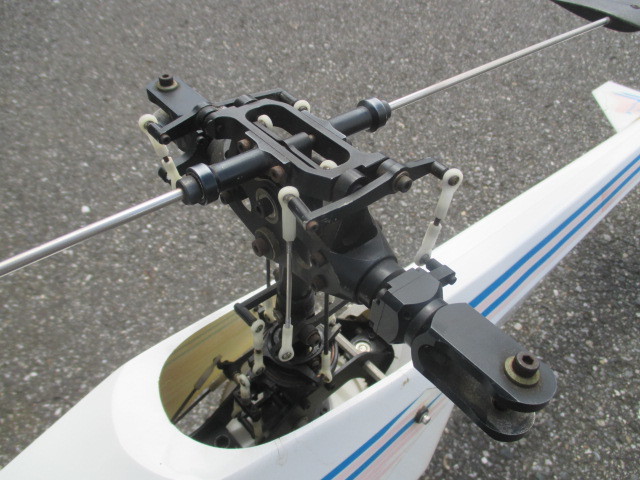

  • Kalt_Zeus_010

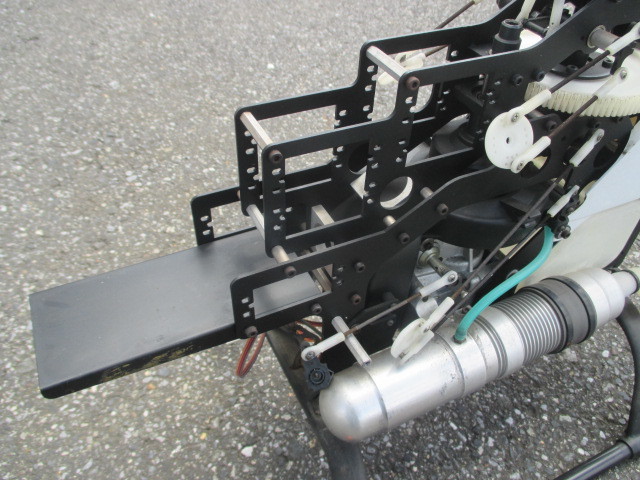

  • Kalt_Zeus_015

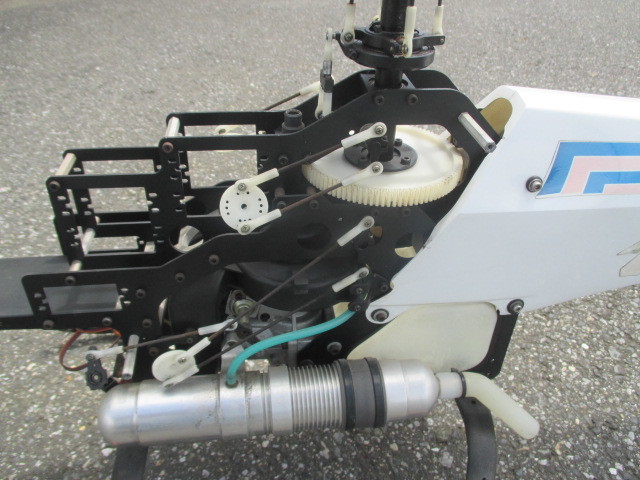

  • Kalt_Zeus_020
  • Kalt_Zeus_025

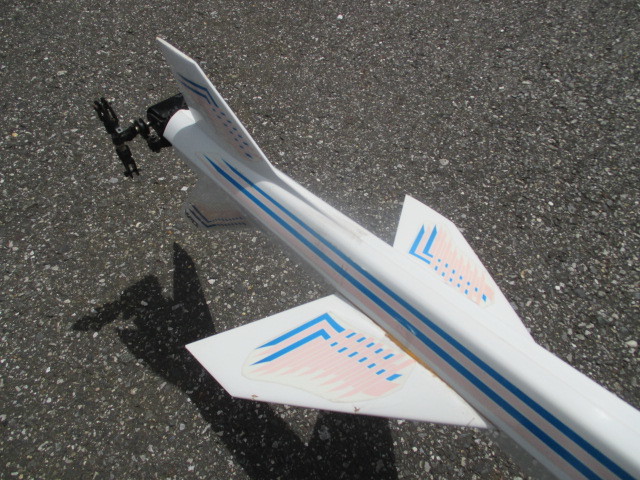

  • Kalt_Zeus_035

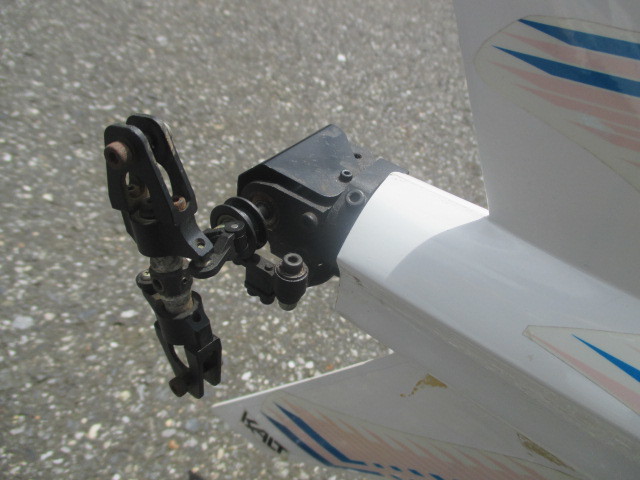

  • Kalt_Zeus_040
  • Kalt_Zeus_101

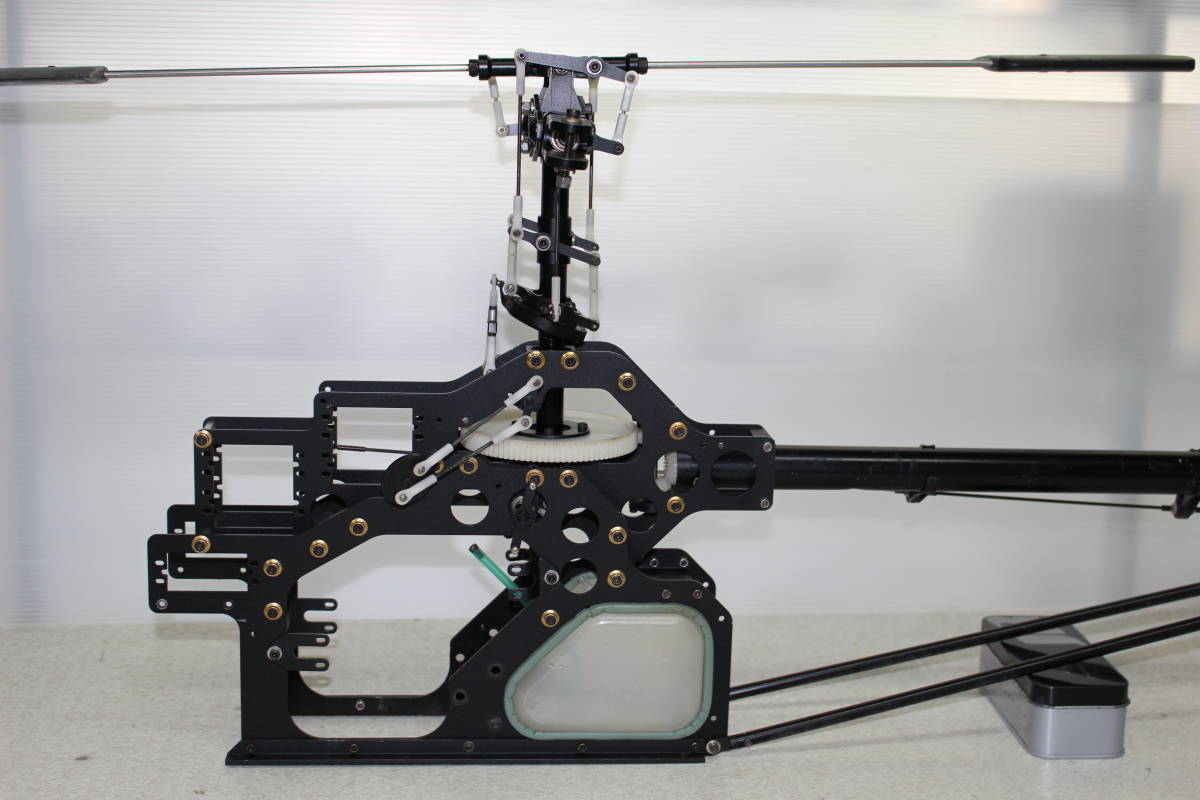

  • Kalt_Zeus_102
  • Kalt_Zeus_103

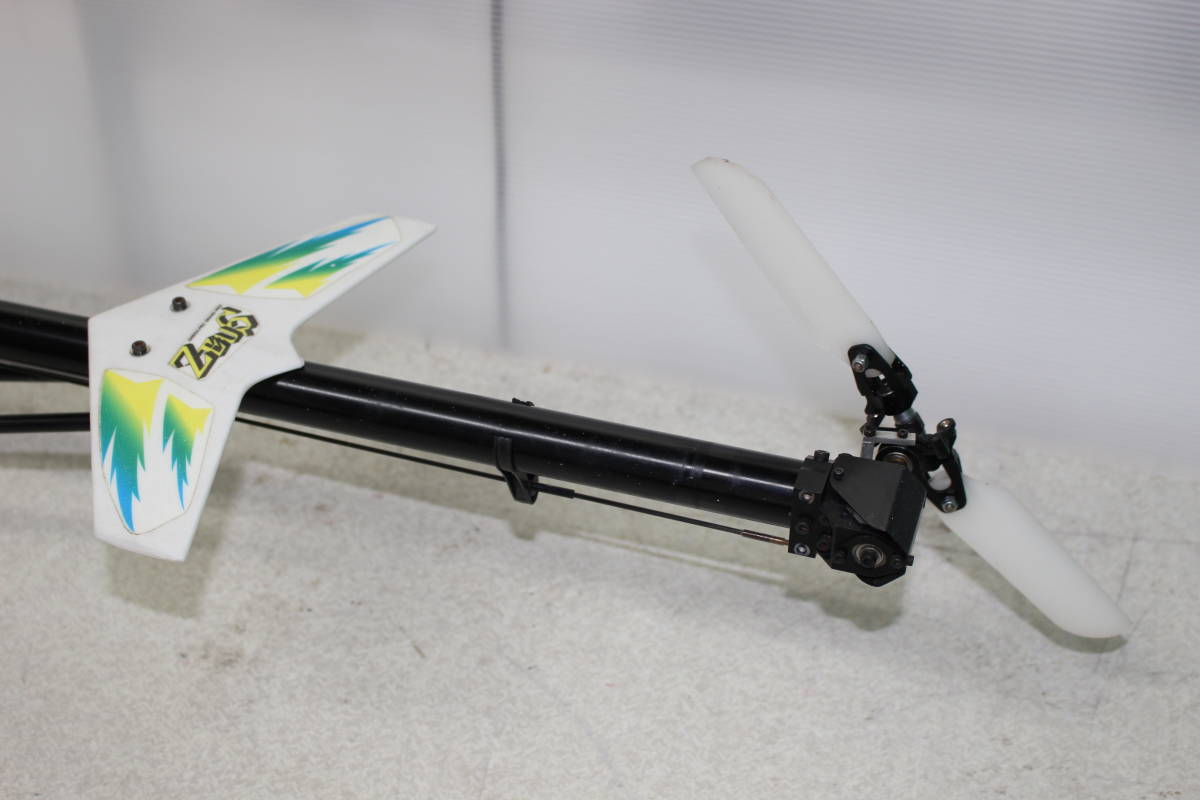

  • Kalt_Zeus_104

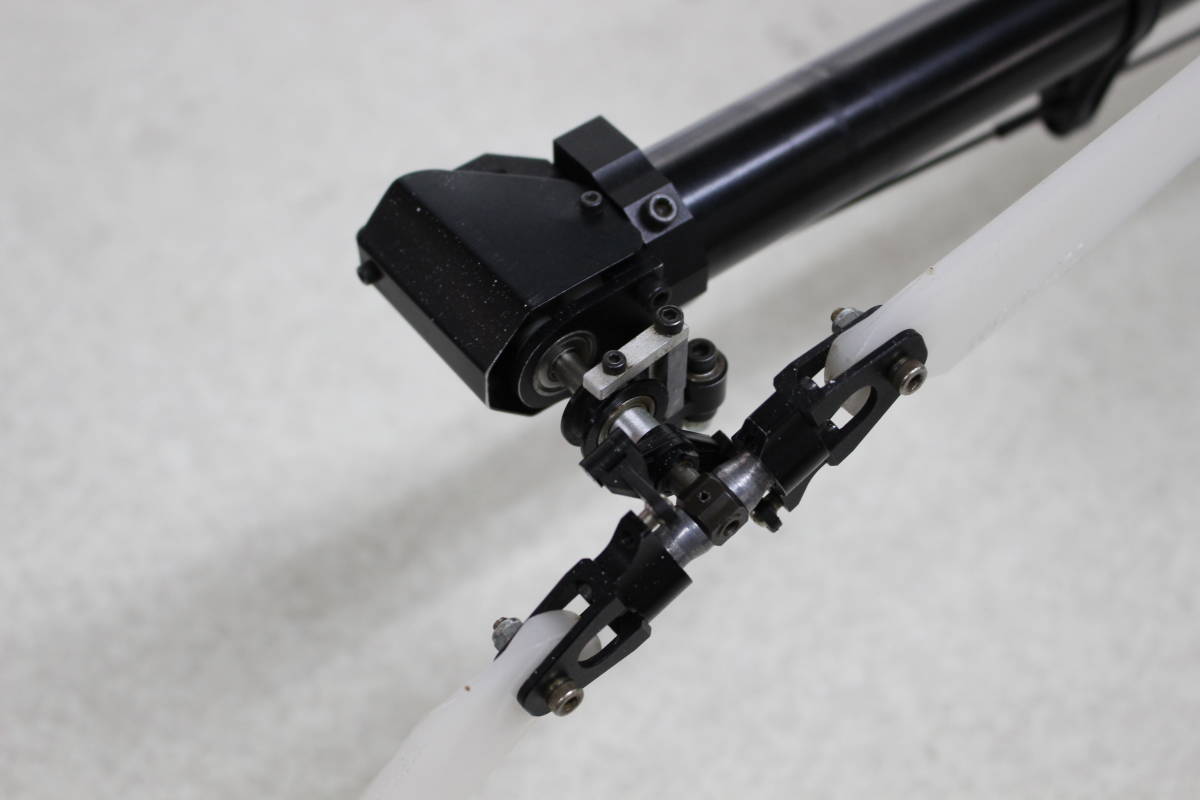

  • Kalt_Zeus_105

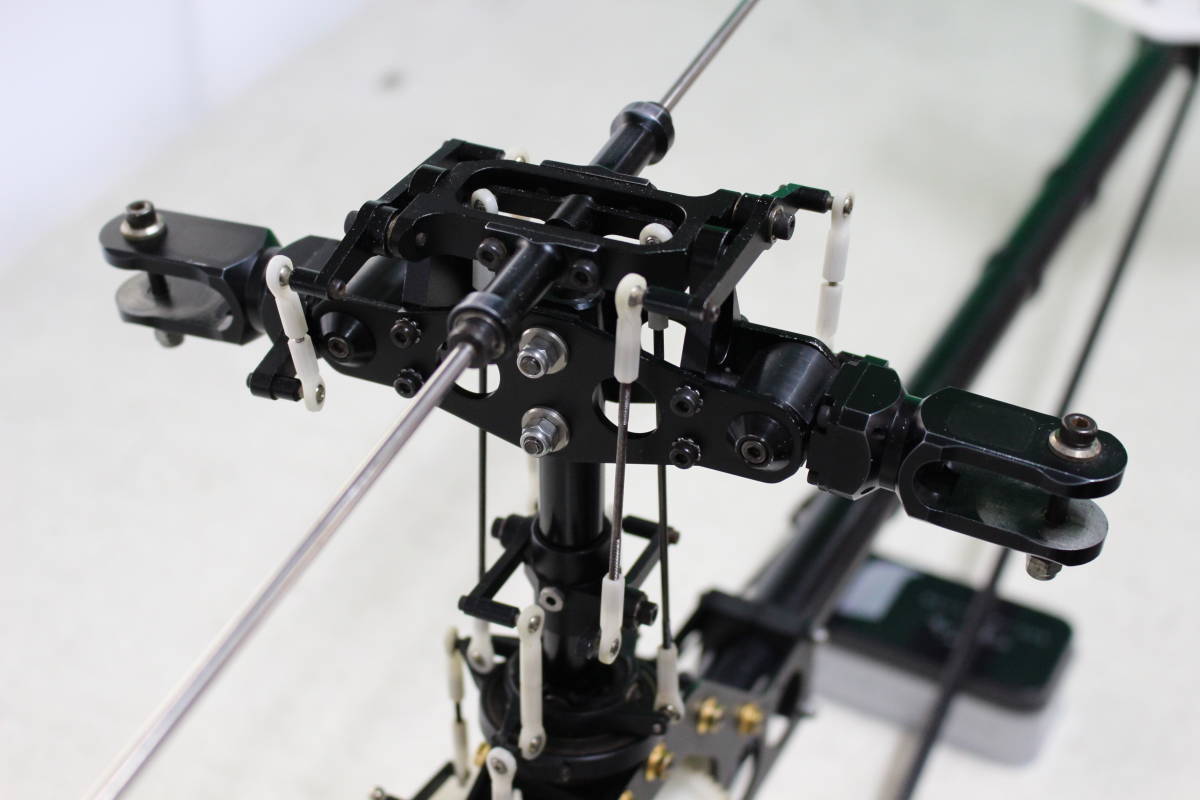

  • Kalt_Zeus_106

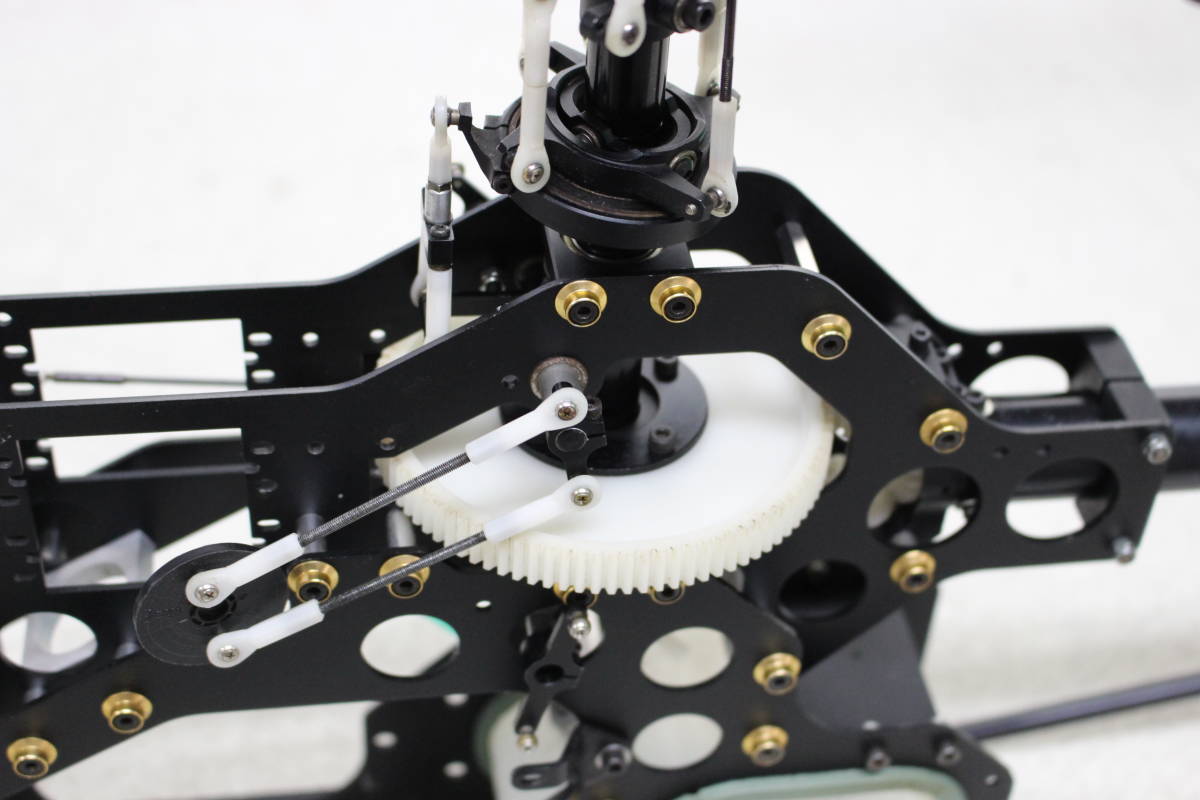

  • Kalt_Zeus_107

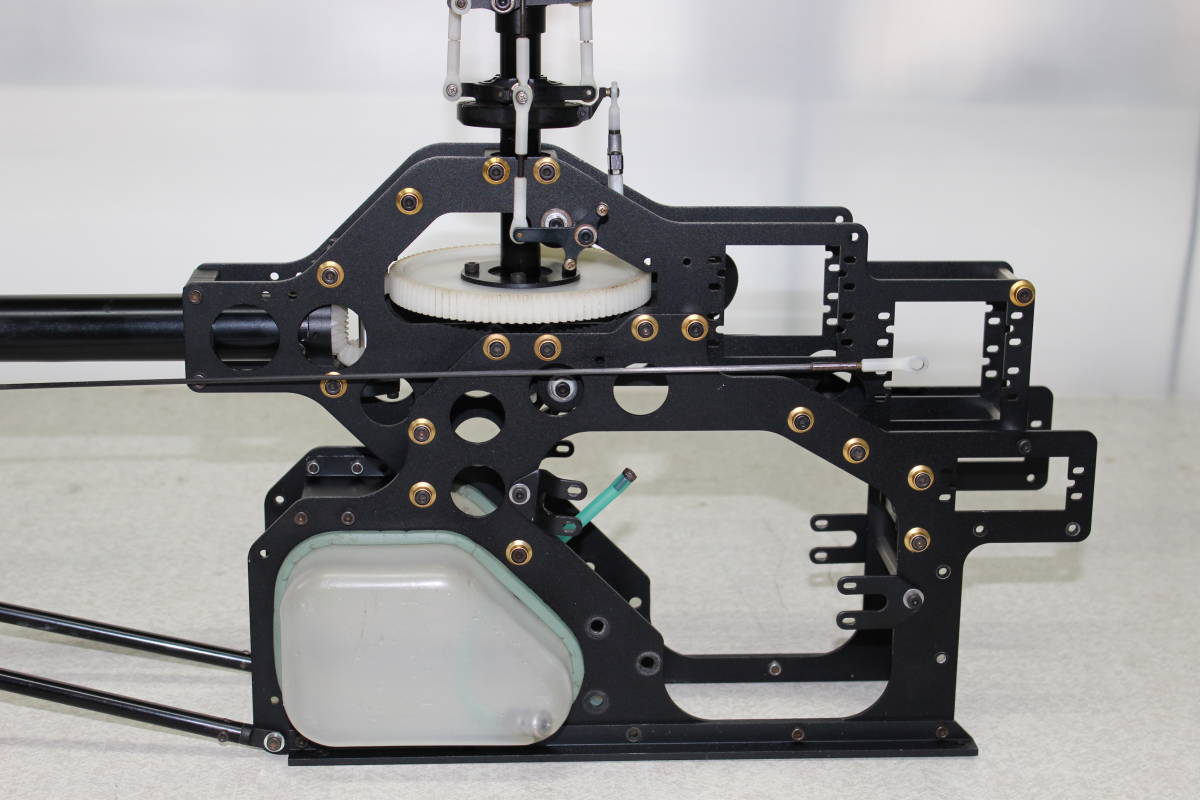

  • Kalt_Zeus_108

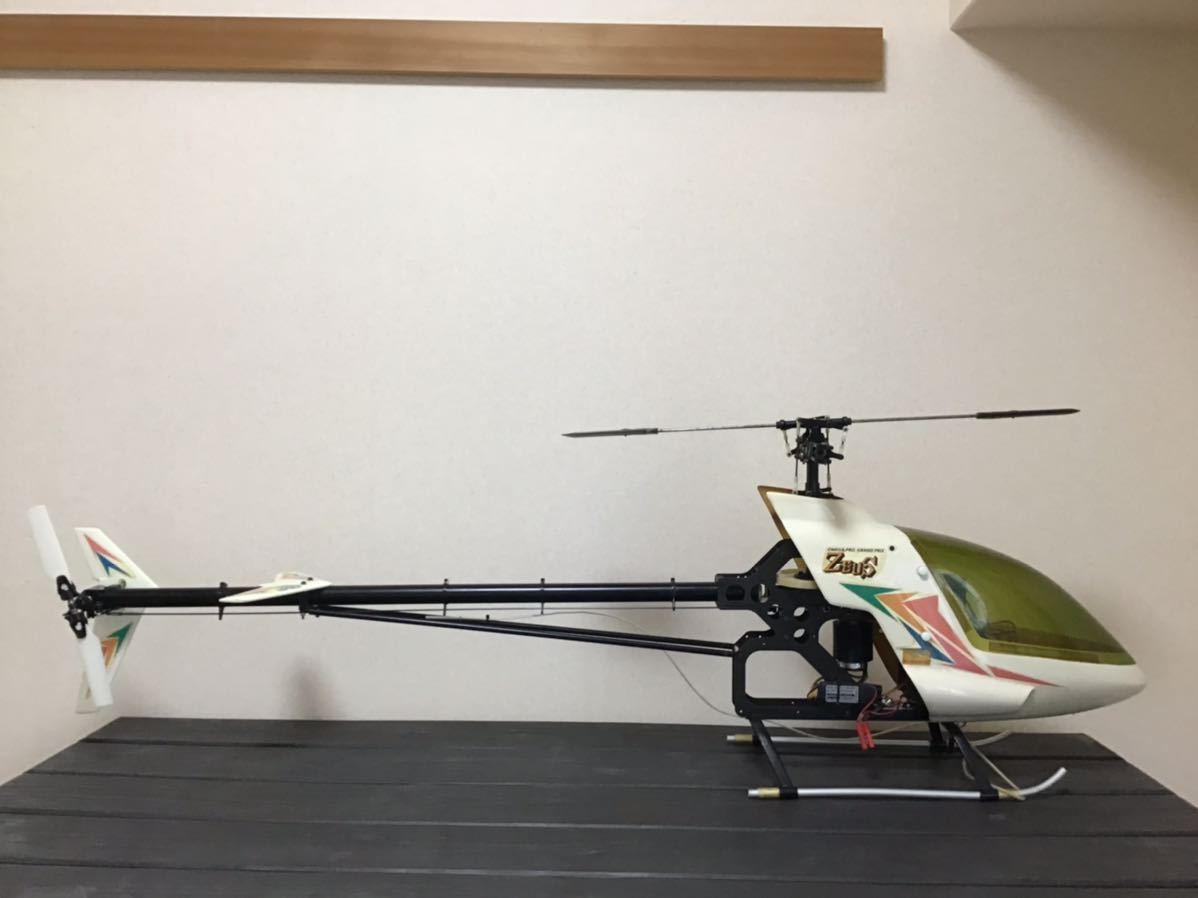

  • zeus_101

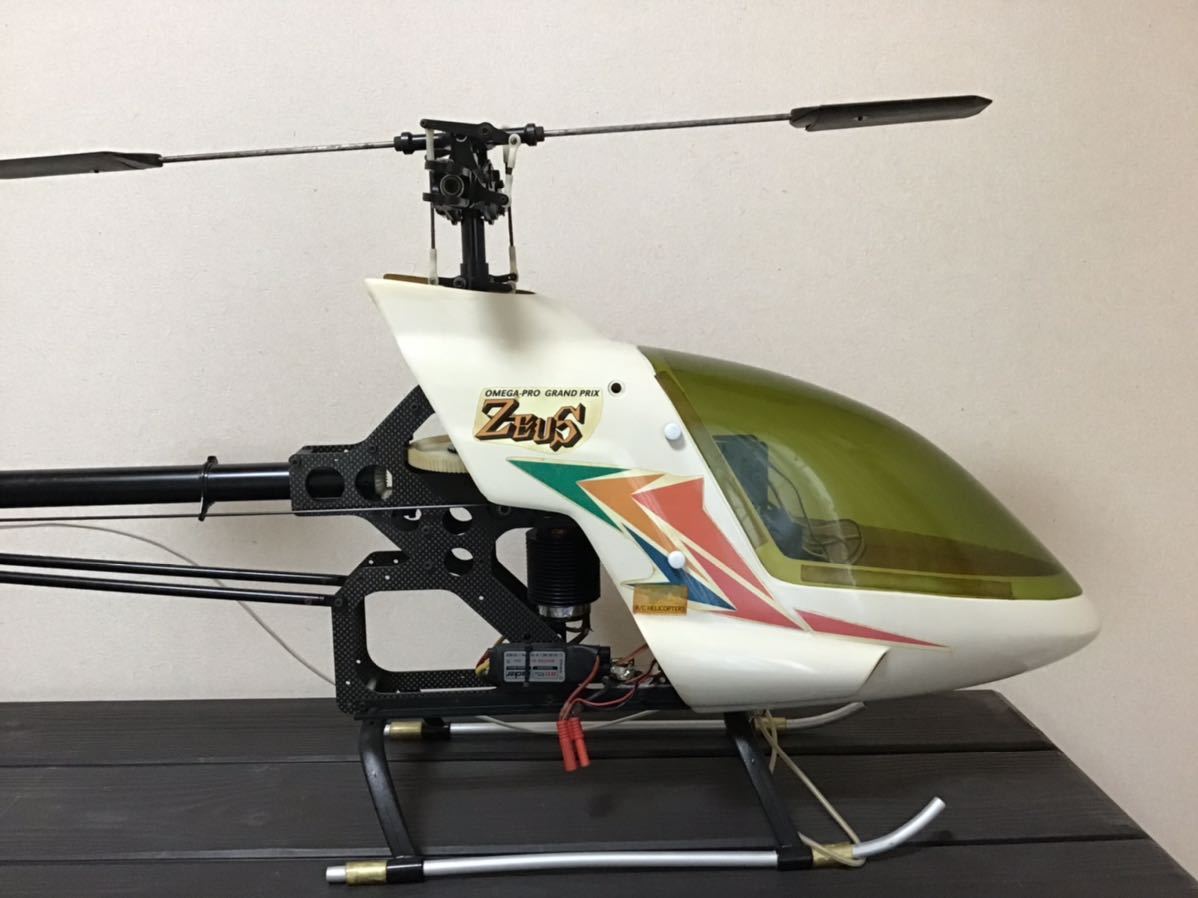

  • zeus_102
  • zeus_103

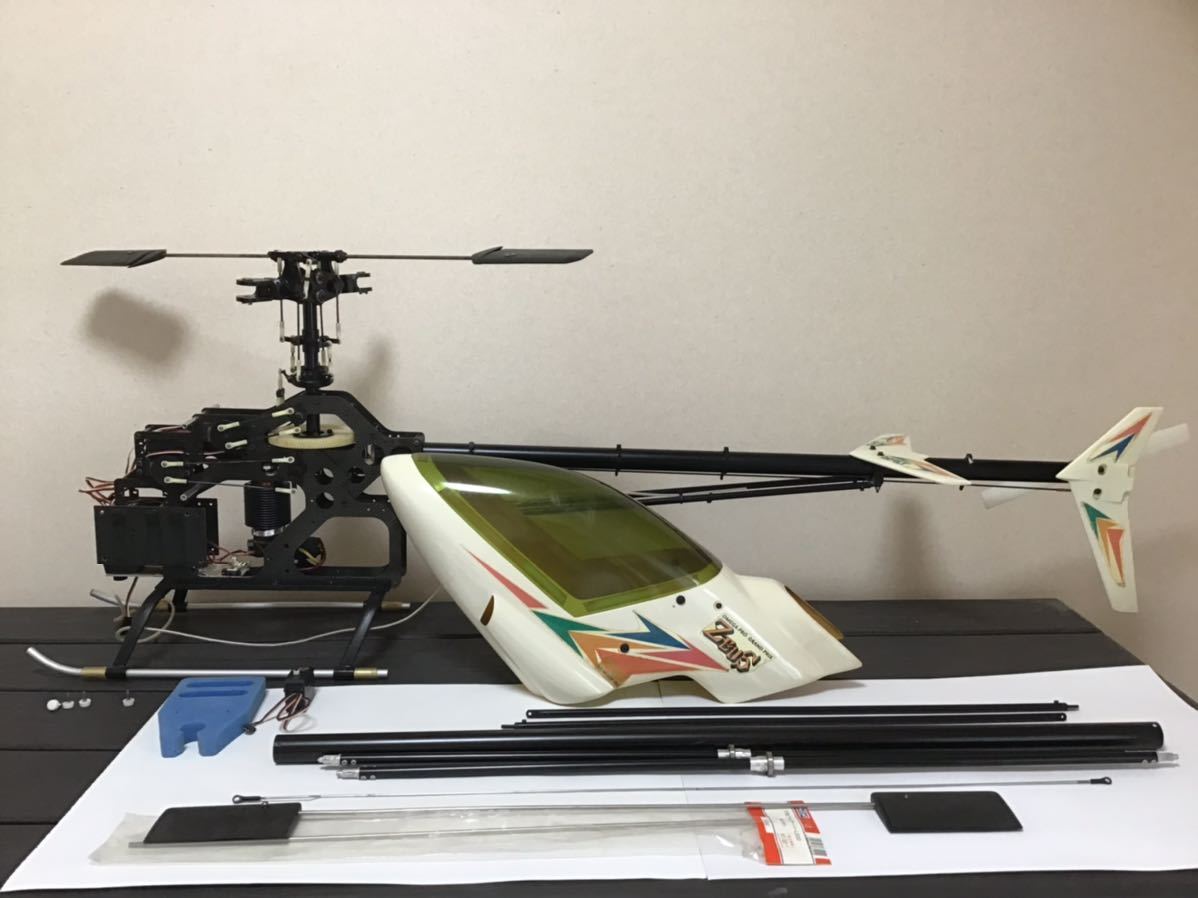

  • zeus_104

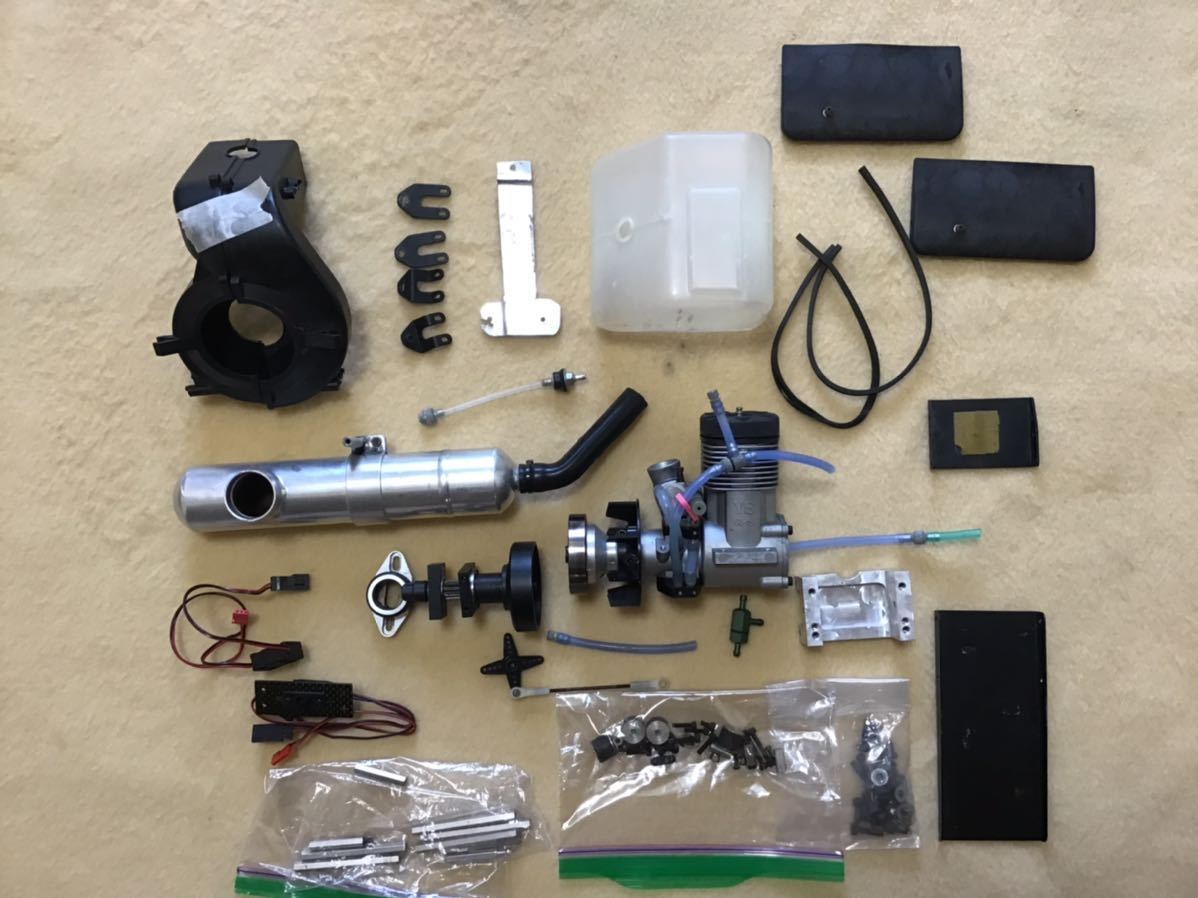

  • zeus_106
