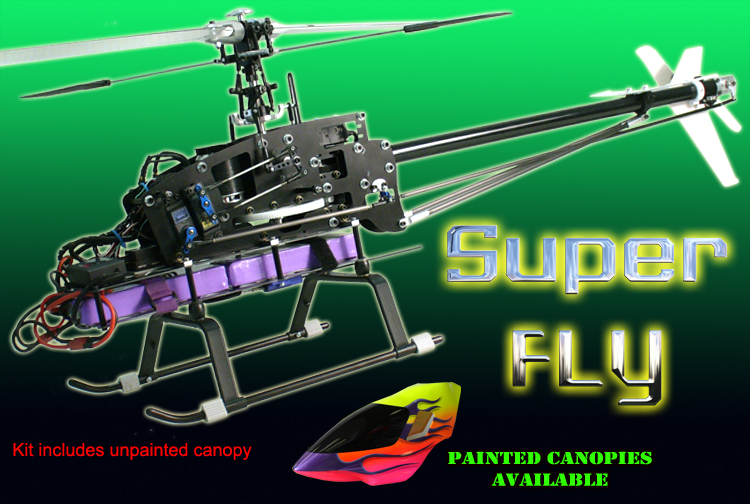

Quick Superfly (2007)
Quick Superfly, now classed as a '550' size machine.
Revised version of the '10' size line of electric models and following on from the Sweetie 530MM with same specifications as noted below and available in Pro Carbon and Sport G10 versions. Has the standard black and white canopy, adjustable battery compartment and could also be fitted with the option shaft drive system and CNC SE tail upgrade.
|
Specifications |
Length
|
49 in. w/ Canopy 43.5 in w/o Canopy
|
Height
|
12 in.
|
Full Equipped Weight
|
7lbs (3.2kg) |
Batteries
|
4S+4S= 8S (32.6V) for 4000mah
|
Motor
|
Quick Ray Power 3530/10 OEM
|
Motor KV
|
655 - 750 |
ESC
|
Phoenix Castle 45HV |
Blades
|
Quick 530 - 550mm |
Tail Blades
|
72 - 85mm
|
Frame Thickness
|
1.6 - 1.66 mm
|
Head Speed
|
1700 - 2400 |
Pinion
|
10 - 16 tooth |
Spindle
|
5 mm
|
Mainshaft
|
8 mm
|
Canopy
|
Fiberglass
|
Flying
|
Aerobatic to 3D |
Flight Time
|
According to MAH |
|
PRICE CHART |
Part Number
|
Heli Type
|
Combo/Kit
|
Price
|
QKE09S
|
Sport |
Kit Only |
$399.99 |
QKEC09S
|
Sport |
Combo |
$649.99 |
QKE09P
|
Pro |
Kit Only |
$474.99 |
QKEC09P
|
Pro |
Combo |
$724.99 |
Kit Prices are for kit only, Combo includes motor, main blades, ESC, and the kit. |
Shaft Drive Tail System add $150.00. |
|
Differences Between Sport and Pro Kit |
|
Sport |
Pro |
Frames
|
G-10 Fiberglass |
Carbon Fiber |
Head
|
Silver Anodized w/ plastic blade grips |
Fully Metal Head w/ Thrust Bearings |
Autorotation Hub
|
No |
Yes |
Boom Supports
|
Fiberglass |
Carbon |
|
Warning: No images in specified directory. Please check the directory!
Debug: specified directory - http://www.vrhc.co.uk/images/RC_Helicopters/USA/Quick Worldwide/Quick Superfly/gal1
Quick Superfly build manual - 2008 detailed manual with photo assembly for both Pro and Sport models.
Though superseded by the 6SD version (below) the Superfly was to remain on the web site as available.

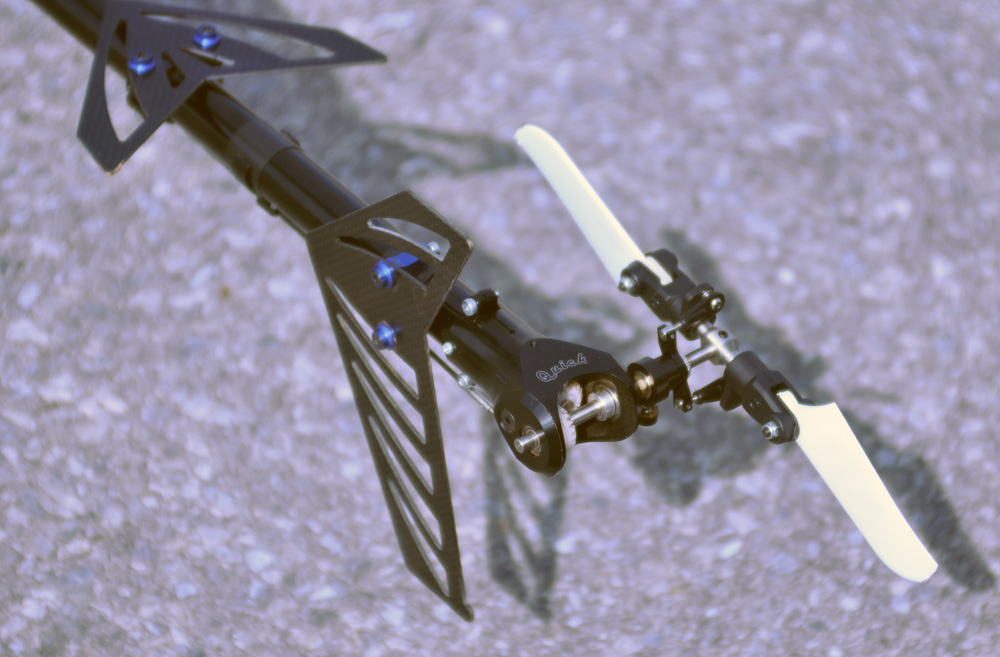

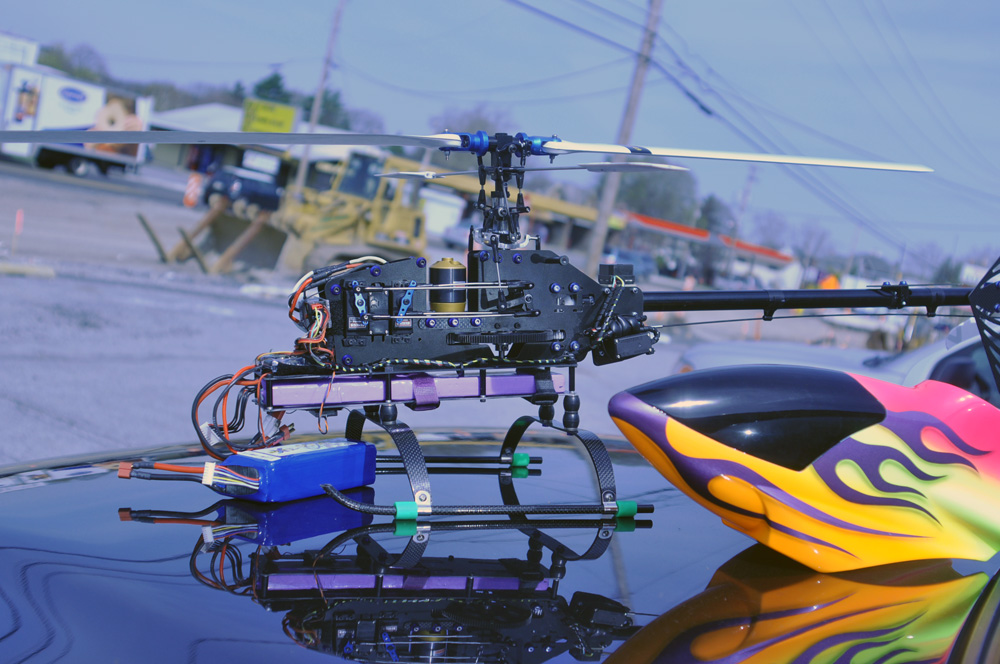

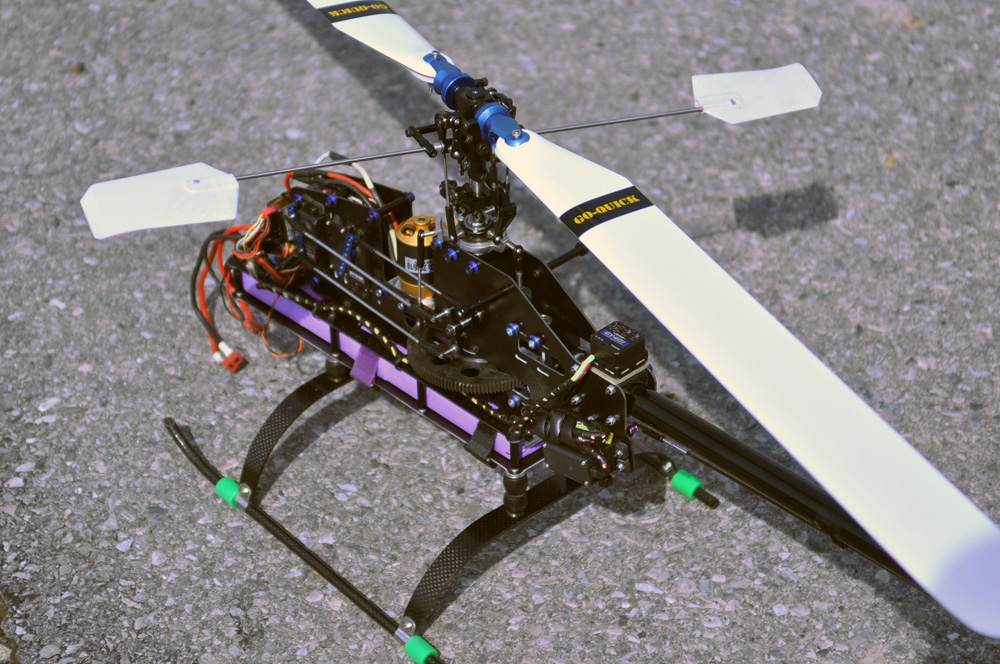

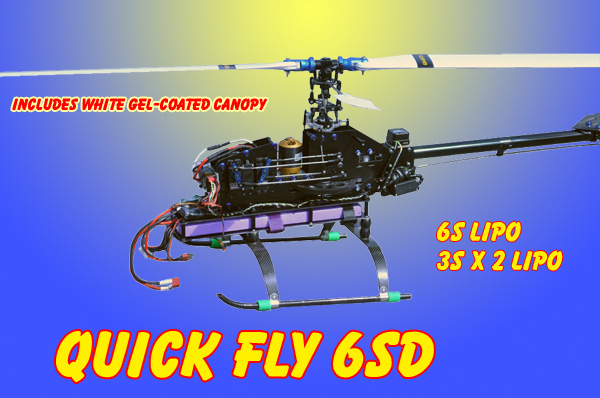

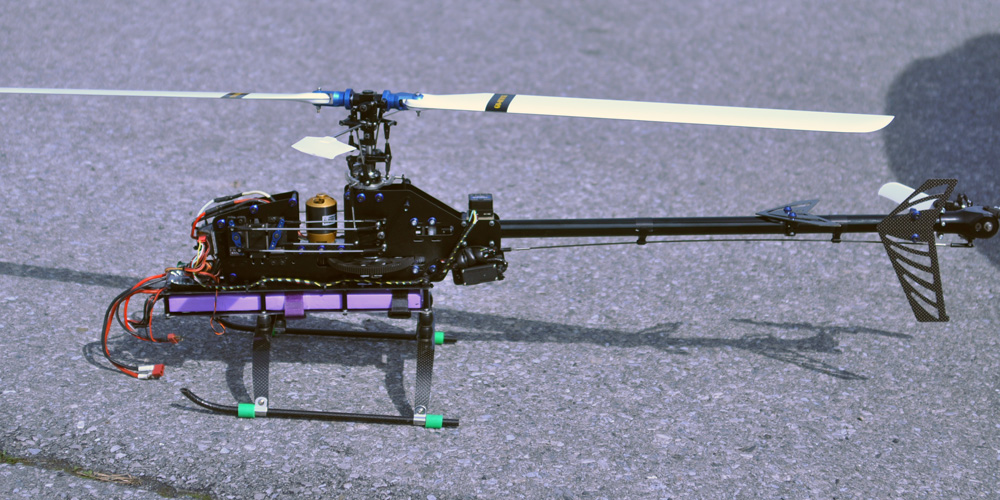

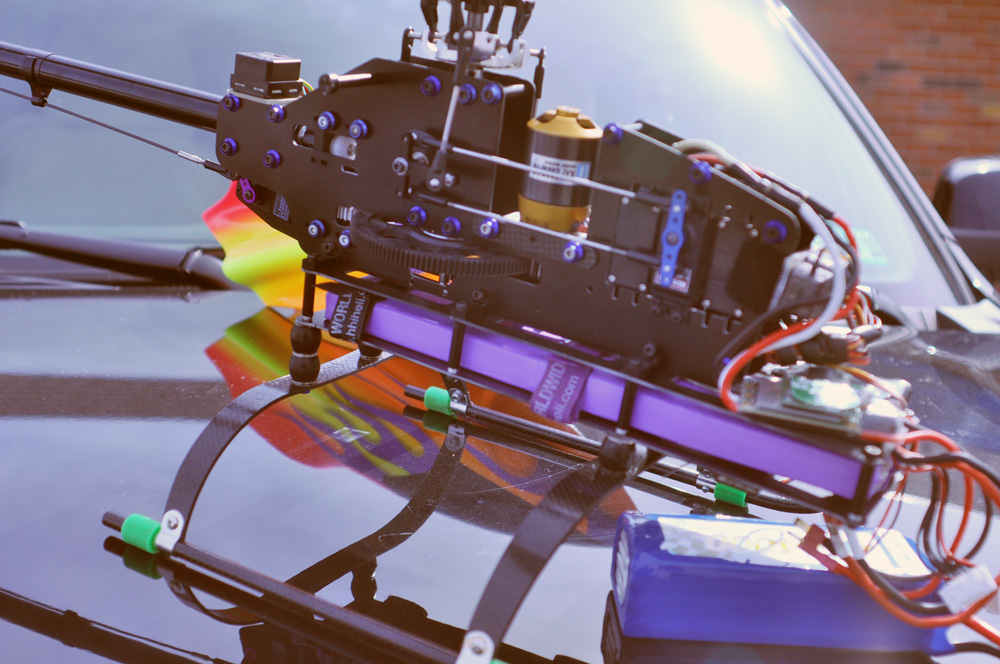

Quick Superfly 6SD (2010)
Revision of the Superfly for 2010 saw the power train specification reduce to 6S from 10S requirement and also included the shaft drive system; on top of this the price was reduced for the kit by $100. The additional standard options were also available plus the ability to upgrade to a triple bearing main shaft assembly.
Specifications
|
Length
|
37 in w/o canopy
|
Height
|
14 inches w/ stock LG
|
Motor
|
2826
|
ESC
|
ICE 80 Recommended
|
Gear Ratio
|
12-8:1 (depending on pinion)
|
Blades
|
Quick 475-515 mm
|
Tail Blades
|
72 mm
|
Frame Thickness
|
1.6 mm
|
Weight
|
5.1 Lbs
|
Spindle
|
6 mm
|
Mainshaft
|
8 mm
|
Canopy
|
Fiberglass
|
Flying
|
Beginner to 3D
|
|
PRICE CHART |
Part Number
|
Heli Type
|
Description
|
Price
|
QKE6SD-s
|
Sport
|
Standard Sport Kit
|
$299.99 |
QKE6SD-p
|
Pro
|
Standard Pro Carbon Kit
|
$399.99 |
This helicopter includes optional ADS Shaft Drive System
|
Differences Between Sport and Pro Kit
|
|
Sport
|
Pro
|
Frames
|
G-10 Fibreglass
|
Carbon Fibre
|
Head
|
Silver Anodized w/ plastic blade grips
|
Fully Metal Head w/ Thrust Bearings
|
Autorotation
|
Yes (Triple bearing)
|
Yes (Triple bearing)
|
Boom Supports
|
Fibreglass
|
Carbon
|
|
The model was to remain until QWW ceased trading.
