Quick Dominator

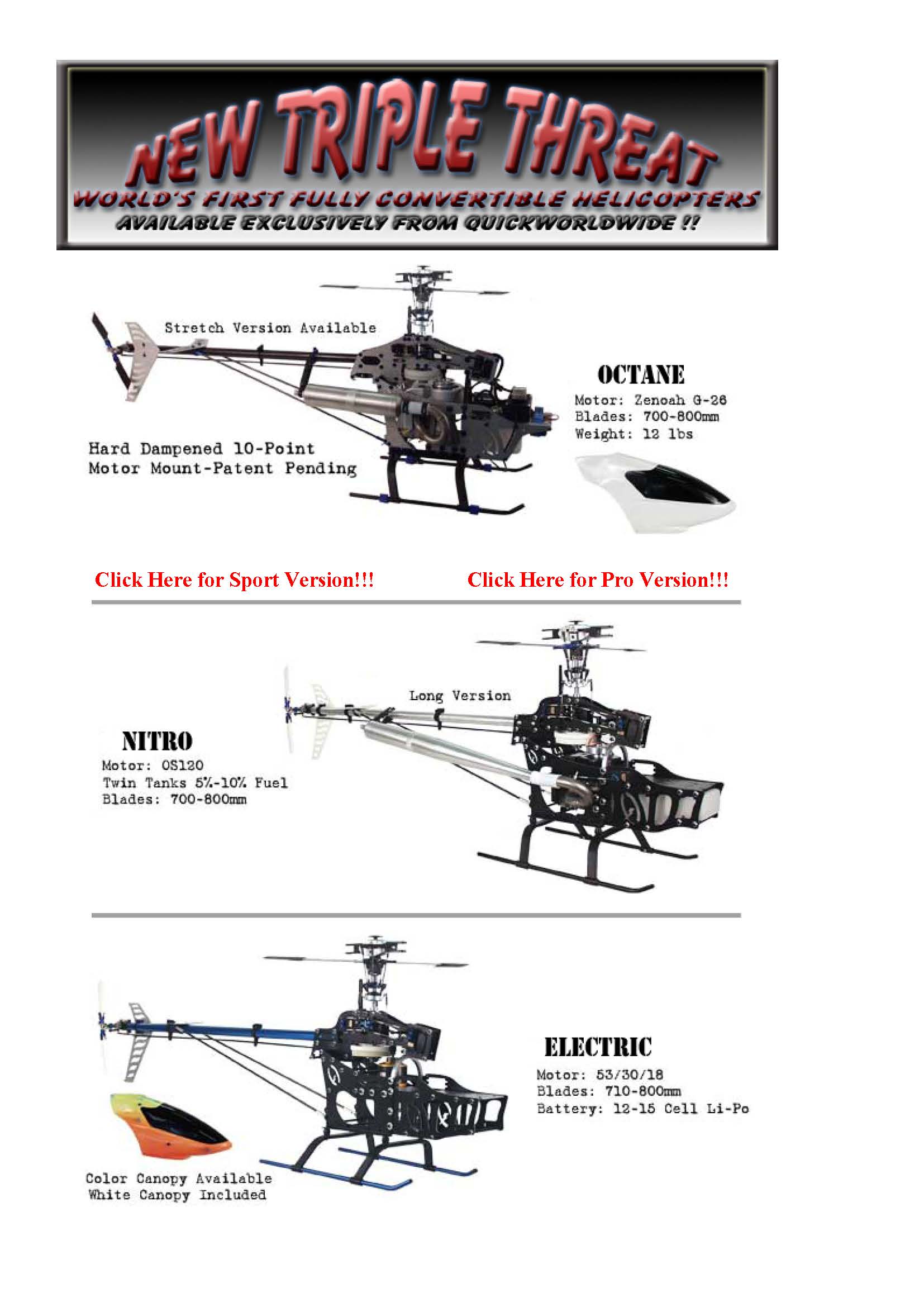

Early 2007 detailed triple Threat advert.

By late 2005 Quick had a number of large helicopters covering Nitro and petrol with a large electric powered helicopter in development.  Quick helicopters had always been of 'modular' design with a number of common components for the various models and versions so it was decided to combine their various 'big' helicopters to utilise this process.  So, Quick started promoting on their web site what they called "V.I.P." which by mid 2006 was also being advertised as the 'Triple Threat Helicopter'.

Late 2006 saw the introduction of the petrol and Nitro versions under the name of Dominator but not as yet with electric power.  However, by mid 2007 the marketing strategy had changed slightly and now the Dominator came under the renamed 'Triple Threat Series' because the electric version was not to follow the Dominator name but had instead been called the 'Mighty Quick'.

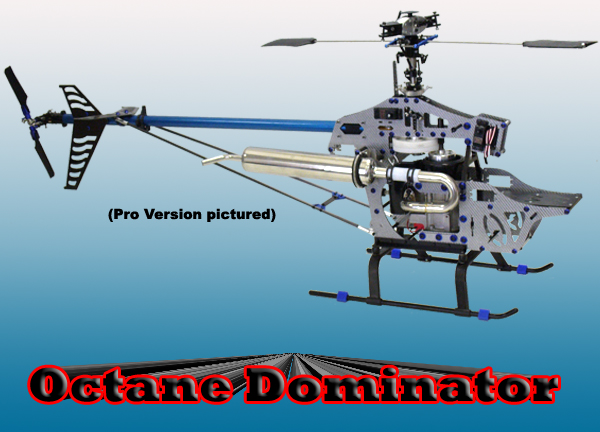

Quick Octane Dominator (2006)

Basically a repackage of the Gas Her model including the shaft drive option, photo details below.

Specifications
Length
w/ Canopy 50 3/8 in
w/o Canopy 44 in
Height
21.25 in
Full Equipped Weight
13 lbs
Muffler
Customer Choice
Motor
Zenoah G-26
Gyro
Customer Choice
Canopy
HHI8050 (60 Size)
Blades*
700-710mm
Tail Blades**
95mm (Wide Cord)
Frame Thickness
3mm
Head Speed
1650-1950 rpm
Pinion
11 or 12 Tooth
Spindle
Pro - Dual Spindle (8mm)
Sport - Single Spindle (8mm)
Mainshaft
10mm
Tail
Sport - Standard Sport Tail
Pro - Carbon Pro Tail



PRICE CHART
Part Number
Heli Type
Combo/Kit
Price
QKG26SPORT
Sport
Kit
$799.99
QKG26
Pro
Kit
$999.99
QKG26SSD
Sport
G10 Fiberglass Kit w/ Shaft Drive Tail
$949.99
QKG26PSD
Pro
Pro Carbon Kit w/ Shaft Drive Tail
$1049.99
Kit Prices are for kit only, Zenoah motor $299.99 additional, muffler system $249.99 additional.



Differences Between Sport and Pro Kit
  Sport Pro
Frames
G-10 Fiberglass Carbon Fiber
Head
Single Spindle Full Metal Head Dual Spindle Metal w/ Thrust Bearings
Autorotation Hub
Yes Yes
Boom Supports
Fiberglass Carbon




Quick Octane Dominator build manual  -  2006 detailed manual (Gas Her) with photo assembly for both Pro and Sport models.

May 2008 saw the model superseded by the Octane Bat 26cc V2 and removed from the web site though the Sport version still remained in the general price listings.



Quick Nitro Dominator (2006)

Basically a repackage of the Big Bertha 69 model however, now catalogued as the QK90 as although the initial recommended motor was the OS70, the actual range advertised was from 60 to 90 size engines.  Again had both Sport G10 and Pro Carbon versions with the standard fitment for these options.

Specifications
Length
49 in.
Height
19 in.
Full Equipped Weight
10.5 lbs
Muffler
Available Stock
Motor
OS 60/90Heli Ringed
Gyro
Futaba GY401
S9254 Servo
Canopy
Fiberglass
Blades
Quick 680 - 710mm Carbon*
Tail Blades
90 - 710mm
Frame Thickness
3 mm
Head Speed
1600 - 2000
Pinion
11
Spindle
8 mm
Mainshaft
10 mm



PRICE CHART
Part Number
Heli Type
Combo/Kit
Price

QK90S
Sport Kit Only $624.99
QKC90S
Sport Combo $1199.99 FG Blades
QK90P
Pro Kit Only $749.99
QKC90P
Pro Combo $1374.99 CF Blades



Differences Between Sport and Pro Kit
  Sport Pro
Frames
G-10 Fiberglass Carbon Fiber
Head
Silver Anodized Molded Blade Grips Fully Metal Head w/ Thurst Bearings
Autorotation Hub
Yes Yes
Boom Supports
Fiberglass Carbon




Quick Nitro Dominator build manual  -  2006 detailed manual (Big Bertha 69) with photo assembly for both Pro and Sport models.

In 2008 the nitro Dominator had been superseded by the Bat 70 and though removed from the web site still remained in the general price listing.

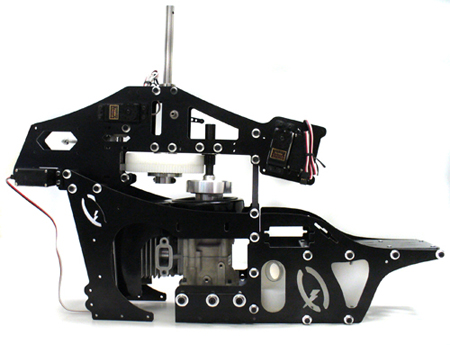

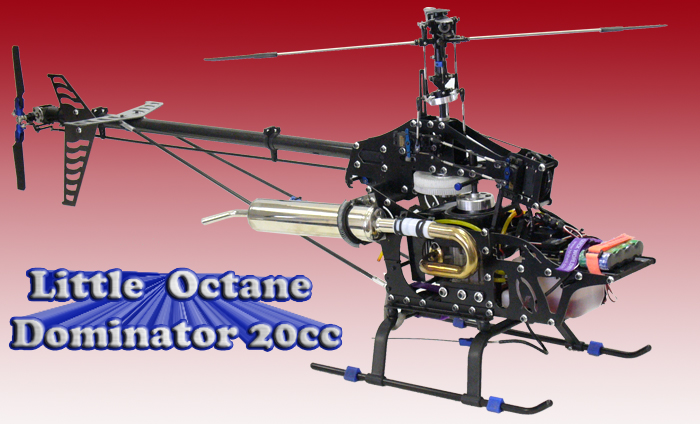

Quick Octane Dominator 20 (2007)



Revised and updated version of the 26cc Dominator to take the smaller 20cc engine; revised specification below including the shaft drive option.

PRICE CHART
Part Number
Heli Type
Combo/Kit
Price
QKG20S
Sport
G10 Fiberglass Kit
$649.99
QKG20P
Pro
Pro Carbon Kit
$799.99
QKG20SSD
Sport
G10 Fiberglass Kit w/ Shaft Drive Tail
$799.99
QKG20PSD
Pro
Pro Carbon Kit w/ Shaft Drive Tail
$949.99

Specifications
Length
51 in
Height
20 in
Full Equipped Weight
12 lbs
Muffler
Zimmerman
Motor
Zenoah 20cc
Blades*
640mm
Tail Blades**
95mm (Wide Cord)
Frame Thickness
2mm
Mainshaft
10mm
This new heli features:



-20CC Zenoah motor
-Our New Advanced Drive Systems
(patents pending)
-Full Customization Options
-Stainless Steel Linkage Rods
-Push Pull Mechanics
-Full Metal Head and Tail -Full Metal Bearing Blocks -CNC Machined Parts
Differences Between Sport and Pro Kit
  Sport Pro
Frames
G-10 Fiberglass Carbon Fiber
Tail
Standard Sport Tail Pro Se CNC Belt Drive Tail
Linkage
Stainless Steel Carbon
Boom Supports
Fiberglass Carbon

Quick Octane Dominator 20 manual  -  2007 detailed manual with photo assembly for both Pro and Sport models.

2008 special offer

May 2008 saw the model superseded by the 20cc version of the Octane Bat although it still remained on the web site until 2010.
