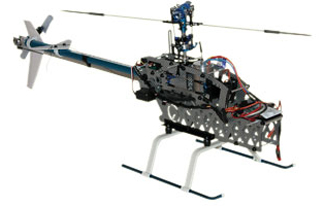

Quick Little Sweetie 10 (2005)
For 2005 the EP10 was brought up to date in order to match the 'look' and specifications of the other Quick electric helicopters; this was a fundamental redesign with a completely different frame layout with the basic layout common with the revised V2 version of the Sweet 16.
The model names also changed with the designation De-luxe and Standard being replaced with Pro and Sport so as to align the naming convention with the rest of the range; additionally, after introduction of the Sweetie 10 priced at Pro $400 and Sport $350, conversions kits were made available so that owners of the EP10 could upgrade to the equivalent Sweetie; costs for this were Pro at $160 and Sport $135.
Sport had G10 Fibreglass frames and boom, Silver anodized head with plastic main blade grips and NO autorotation capability; Pro had Carbon frames and boom supports, full metal head with thrust bearing plus autorotation. Both models came with a gel coated canopy.
Batteries
|
12 cell NiMH
15V 3300mAh |
4S4P Li-Po
16V 8800mAh |
Motor
|
Aveox 36/30/2 | Aveox 36/30/2 |
ESC
|
CC Phoenix 80 | CC Phoenix 80 |
Motor KV
|
~ 1500 rpm | ~ 1500 rpm |
Pinion
|
11-12 tooth | 11-12 tooth |
Blades
|
Quick 475 mm | Quick 475 mm |
Head Speed
|
~ 1700-1800 rpm | ~ 1750-1900 |
Flight Time
|
6-7 min | 18-22 min |
Flying
|
Aerobatic / 3D | 3D |
Quick Little Sweetie 10 manual - Build manual with details of both 10 and 16 size machines.

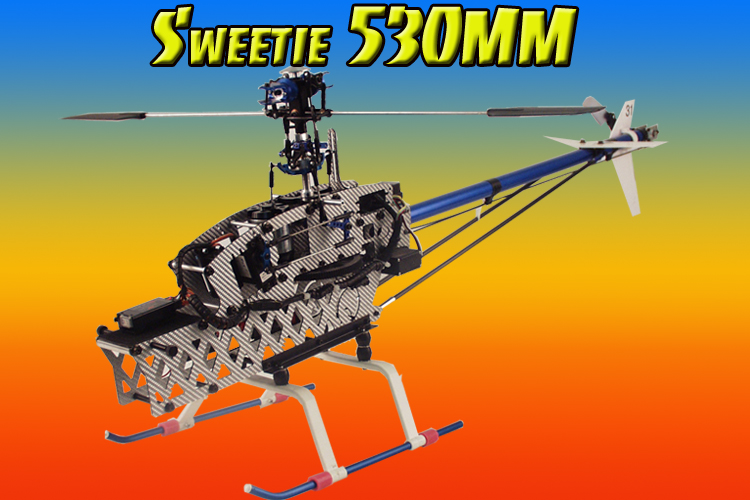

Quick Sweetie 530MM (2007)
Sweetie 530MM and package deal advert.
By 2007 electric models were generally being classified by general electric motor definitions i.e. 400 / 450 etc or by their recommended blade size i.e. 550 / 600 etc. To follow this same convention, Quick renamed their electric model the Sweetie 10 Sweetie 530MM.
Whilst the machine was the same the power train had been updated and now a 8S layout (twin 4S batteries) with revised motor and ESC was recommended.
PRICE CHART | ||||
---|---|---|---|---|
Part Number
|
Heli Type
|
Combo/Kit
|
Price
|
|
QKE10S
|
Sport | Kit Only | $349.99 | |
QKEC01
|
Sport | Combo | $599.99 | |
QKE10C
|
Pro | Kit Only | $399.99 | |
QKEC02
|
Pro | Combo | $699.99 |
Specifications | |
---|---|
Length
|
49 in. w/ Canopy
43.5 in w/o Canopy |
Height
|
12 in.
|
Full Equipped Weight
|
7lbs (3.2kg) |
Batteries
|
4S+4S= 8S (32.6V)
for 4000mah |
Motor
|
Quick Ray Power
3530/10 OEM |
Motor KV
|
655 - 750 |
ESC
|
Phoenix Castle 45HV |
Blades
|
Quick 530 - 550mm |
Tail Blades
|
72 - 85mm
|
Frame Thickness
|
1.6 - 1.66 mm
|
Head Speed
|
1700 - 2400 |
Pinion
|
10 - 16 tooth |
Spindle
|
5 mm
|
Mainshaft
|
8 mm
|
Canopy
|
Fiberglass
|
Flying
|
Aerobatic to 3D |
Flight Time
|
According to MAH |
Differences Between Sport and Pro Kit | ||
---|---|---|
Sport | Pro | |
Frames
|
G-10 Fiberglass | Carbon Fiber |
Head
|
Silver Anodized w/ plastic blade grips | Fully Metal Head w/ Thrust Bearings |
Autorotation Hub
|
No | Yes |
Boom Supports
|
Fiberglass | Carbon |
This model not to remain in the range long as later in the year it underwent another redesign to come out under the new name of the Quick Superfly.
