Schlüter Junior 50



  Specification:

 Length  1120 mm
 Width
 Height

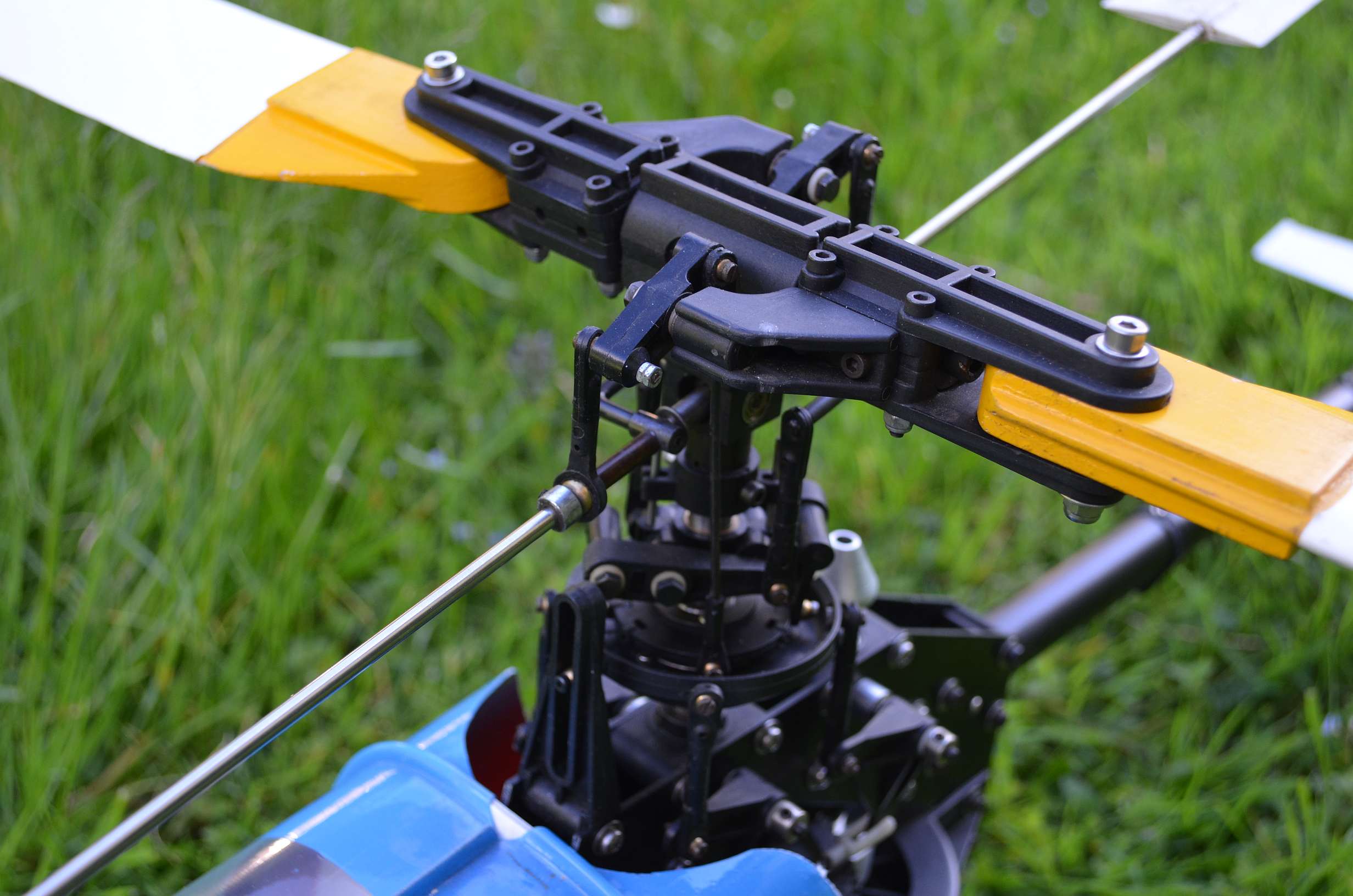

 Rotor Head  coll. head System 88
 Main Rotor Dia  1180 mm
 Tail Rotor Dia  225 mm
 Engine  .40 -.50 cu in  (6.5 - 8 cc)
 Gear Ratio
 Weight  3500 g



Documents:

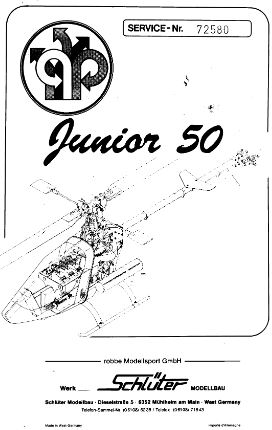

Junior 50 build manual

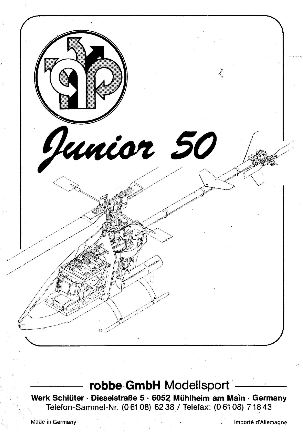

Junior 50 Bauanleitung(de)

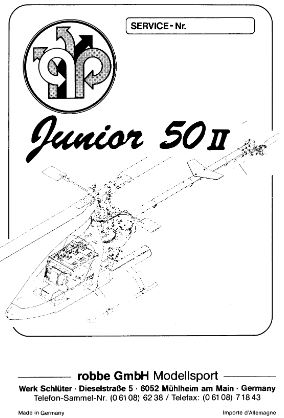

Junior 50 II build manual

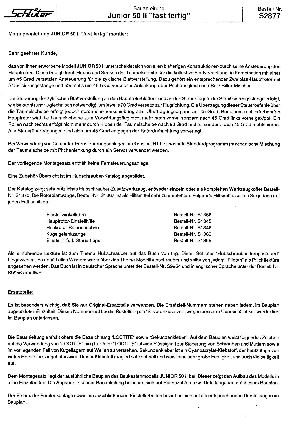

Junior 50 II FastFertig Anleitung (dt)

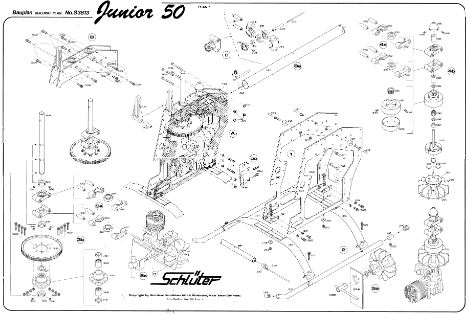

Junior 50 Exploded views

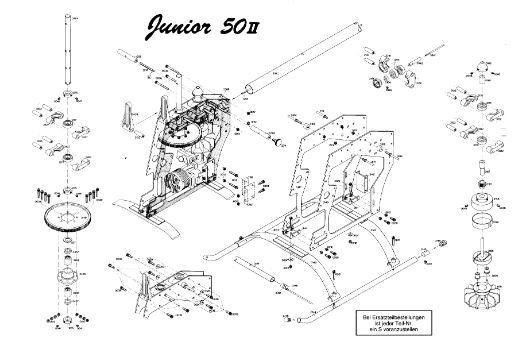

Junior 50 II Exploded views

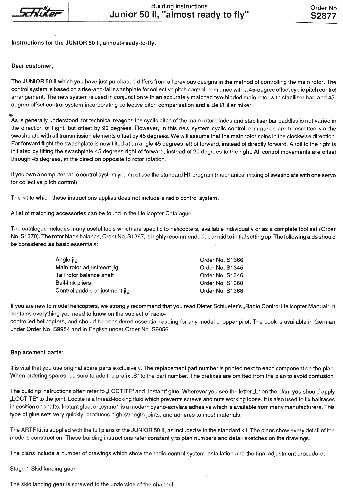

Junior 50 almost
ready to fly

One of the number of helicopters developed around the system 88 head.

Junior 50 Manual (fr/en/nl)

Junior 50 Stücklisten

 1992 Catalogue feature - Junior 50 II

    Decal sheet for Junior 50 II

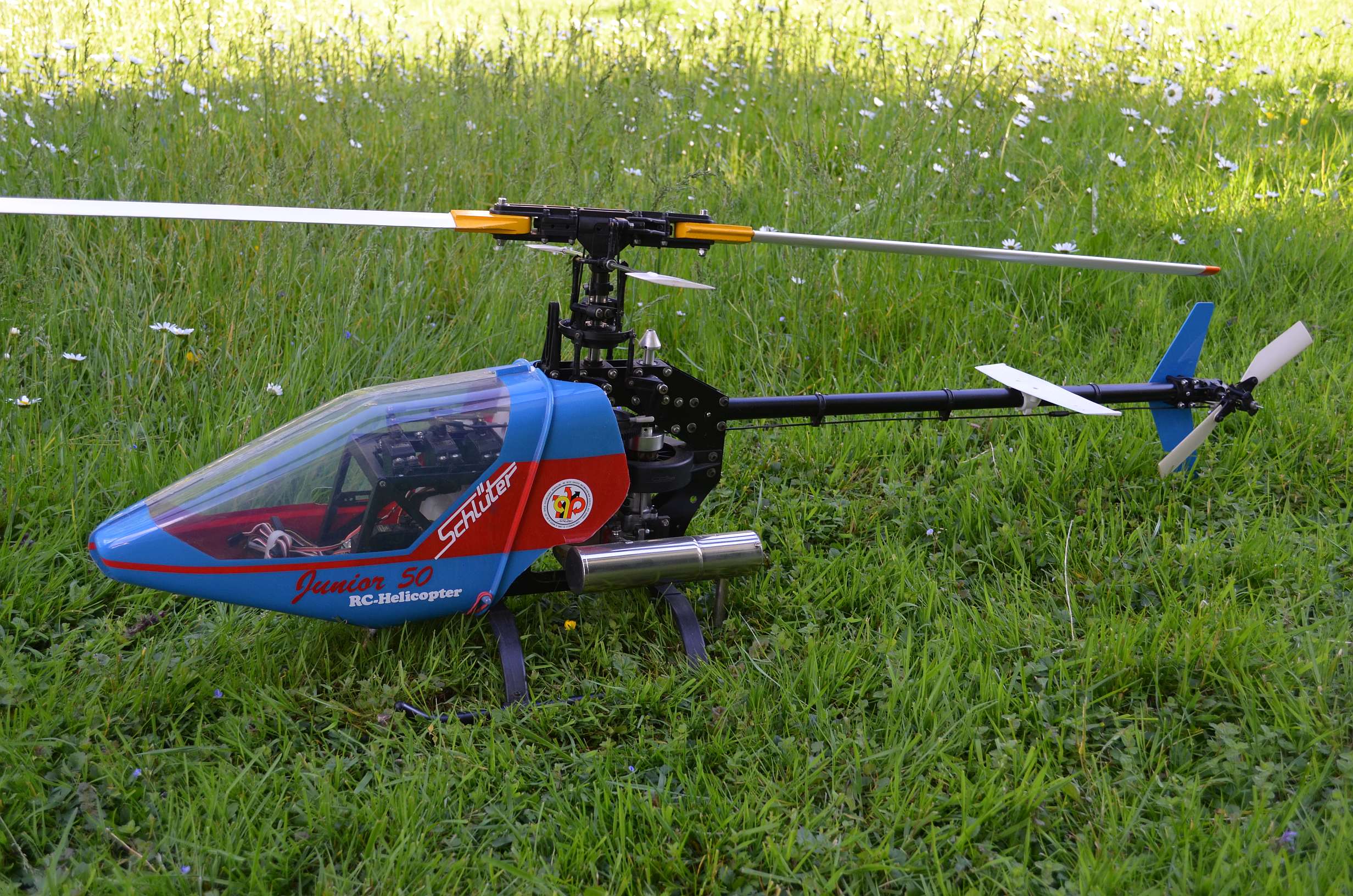

  • Junior000

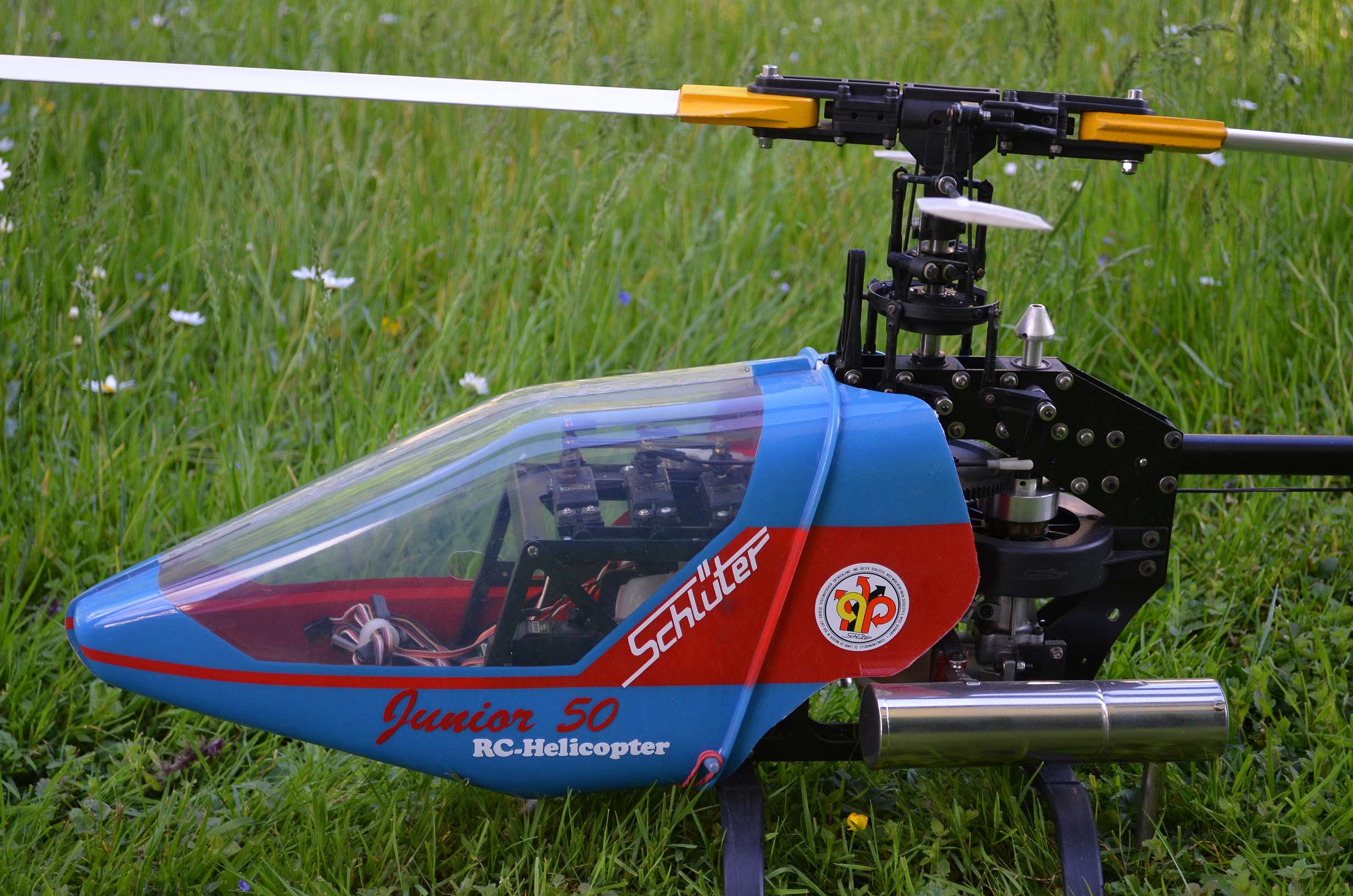

  • Junior001
  • Junior002
  • Junior003

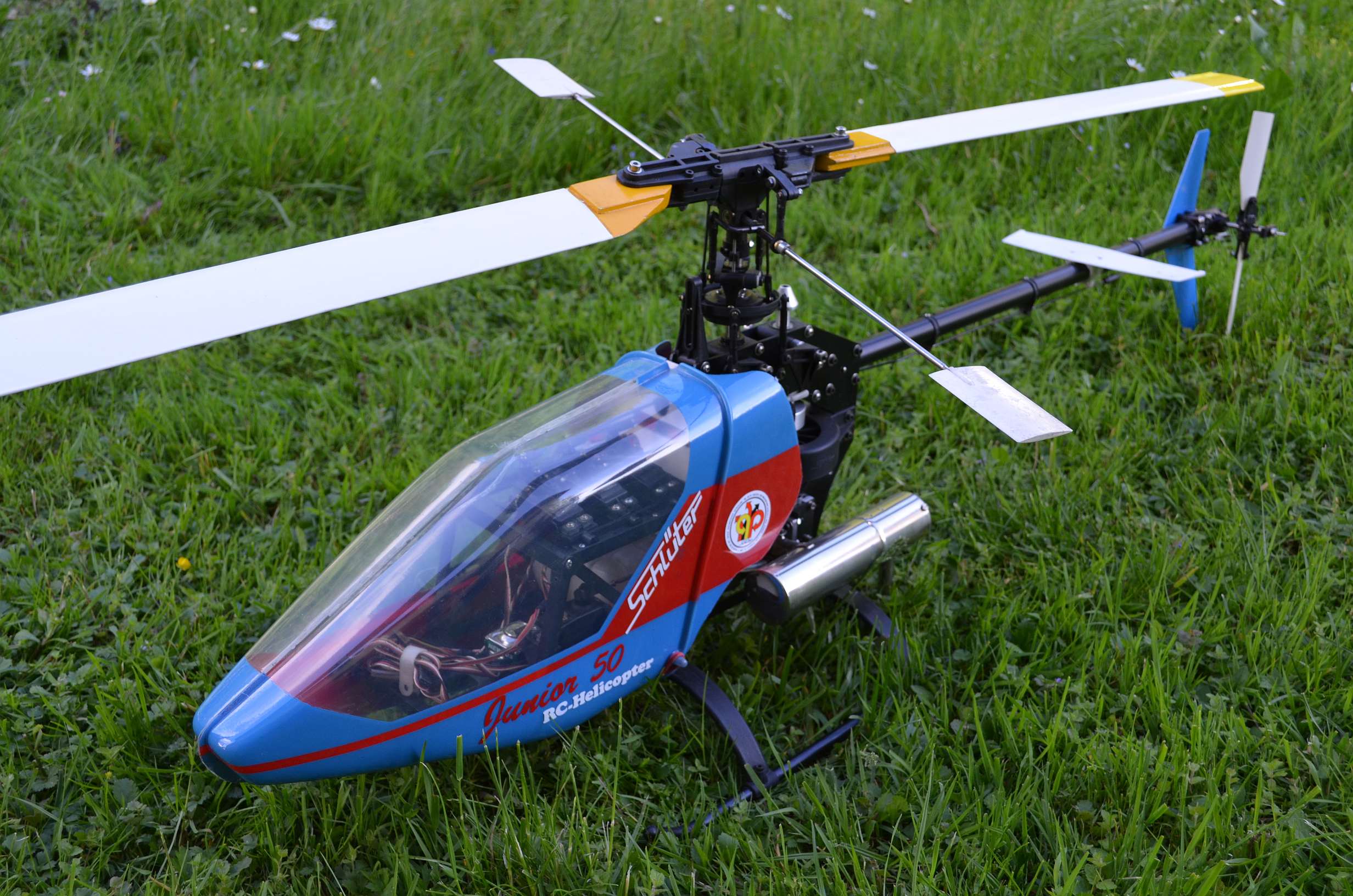

  • Junior004

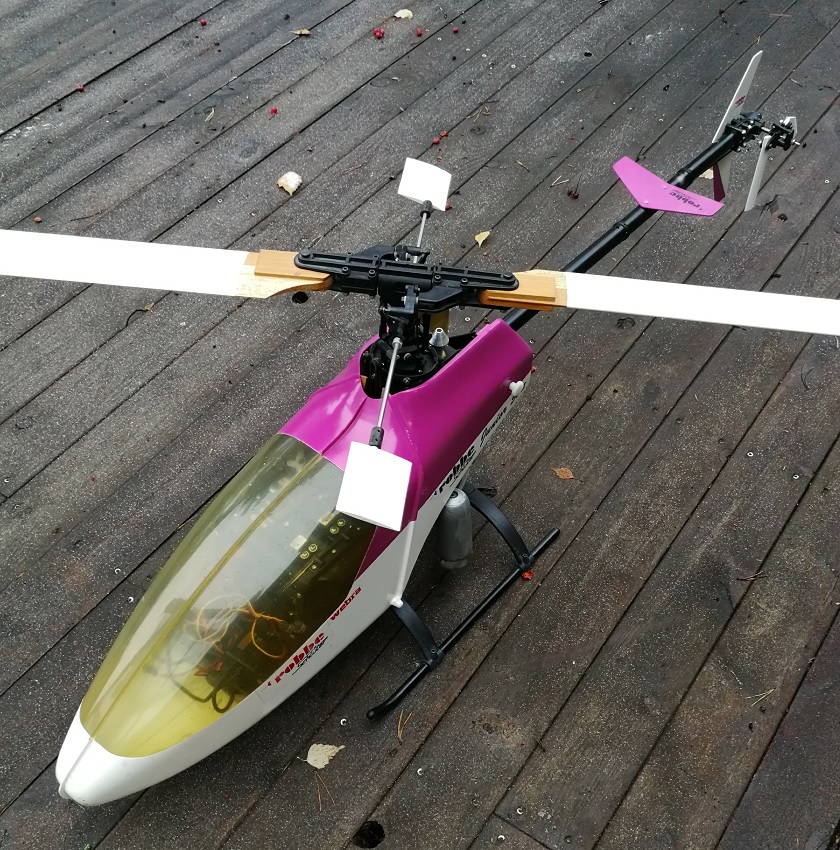

  • robbejunior2front

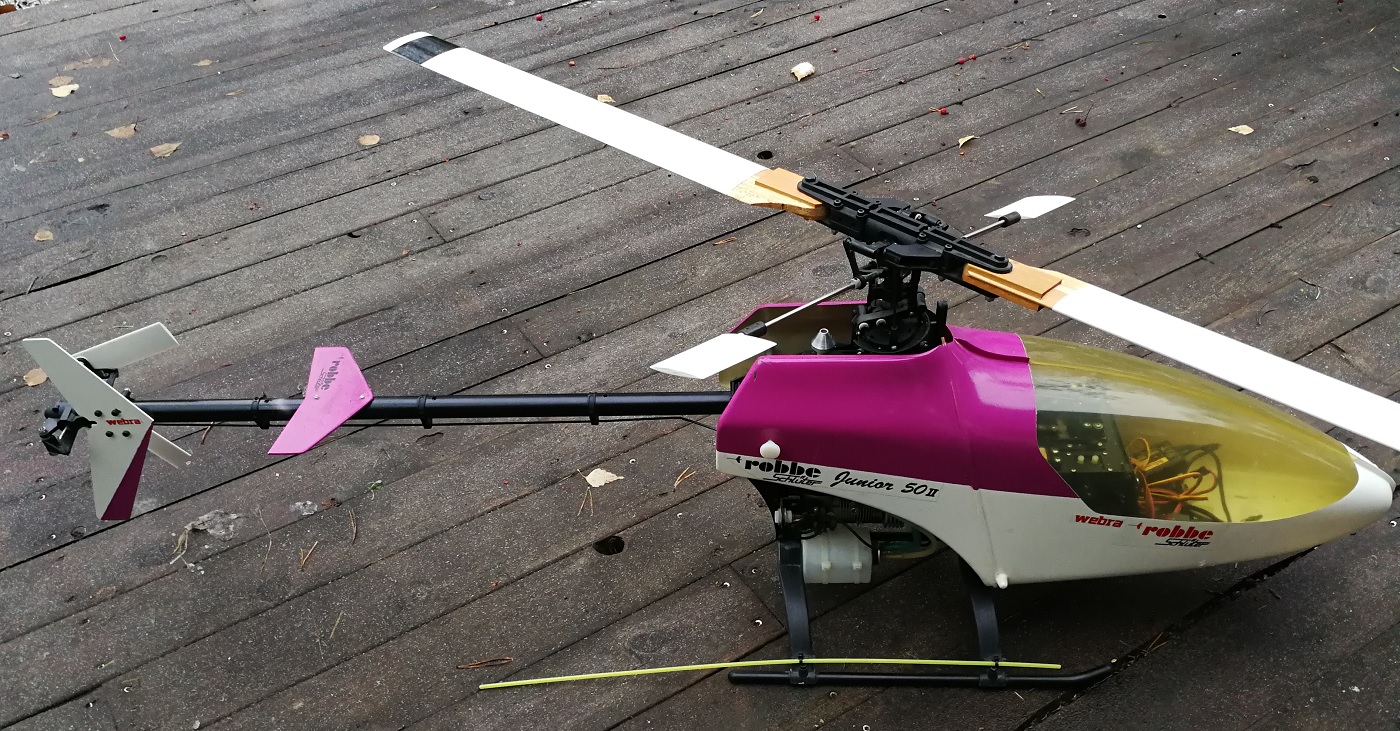

  • robbejunior2right
