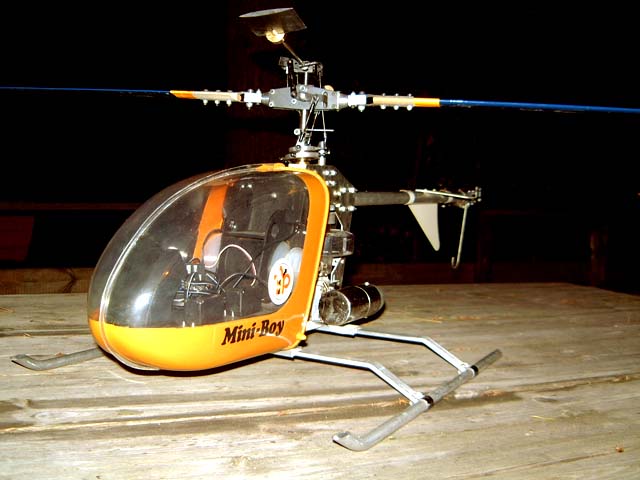

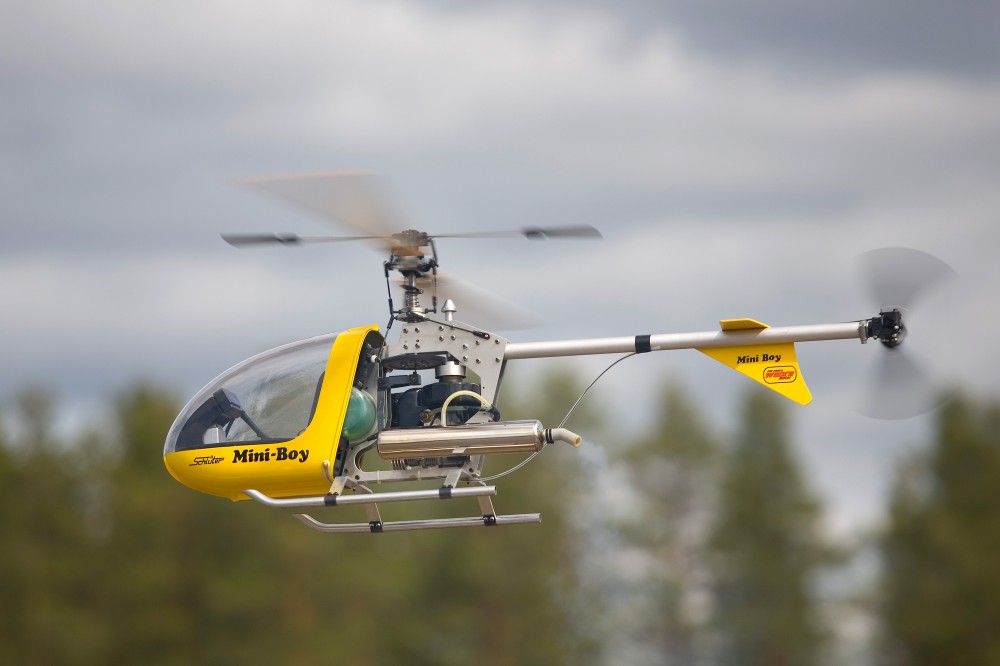

Mini-Boy (1982)



  Specification:

 Length  1320 mm
 Width   mm
 Height   mm
 Rotor Head  collective head
 Main Rotor Dia  1300 mm
 Tail Rotor Dia  270 mm
 Engine  .60 cu in  (10 cc)
 Gear Ratio
 Weight  4400 g



Documents:
Reports:

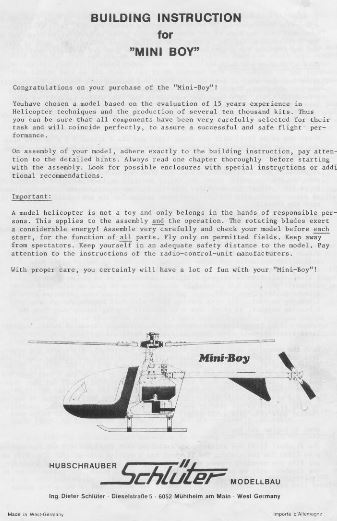

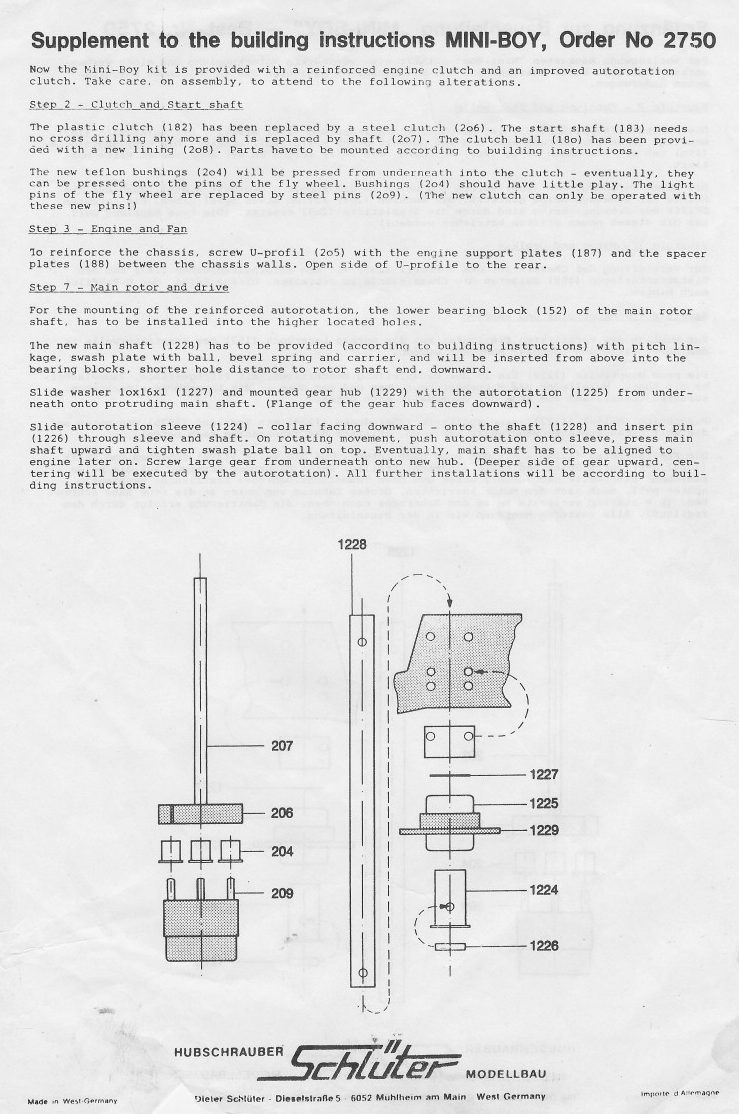

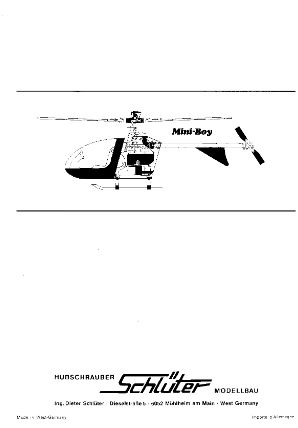

Mini-Boy instructions   build instructions.


Mini-Boy

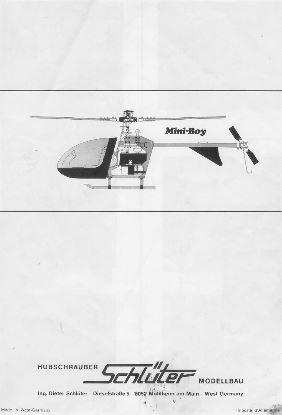

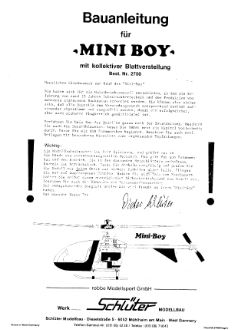

Bauanleitung (dt)

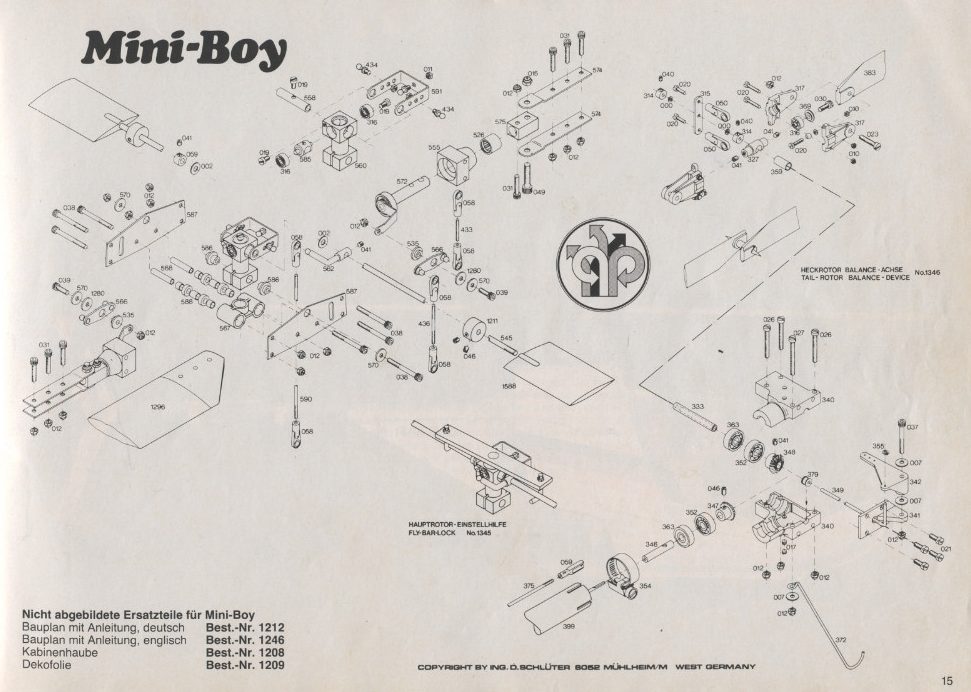

Mini-Boy Drawings
build drawings.


Mini-Boy

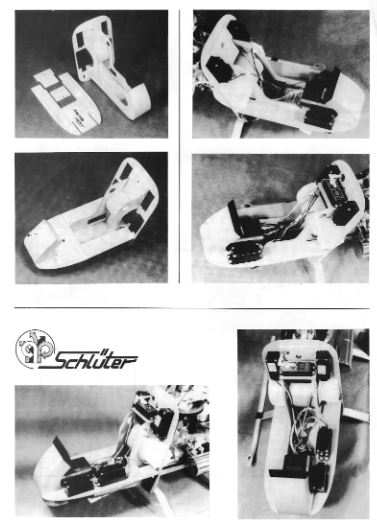

Baustufenphotos 1

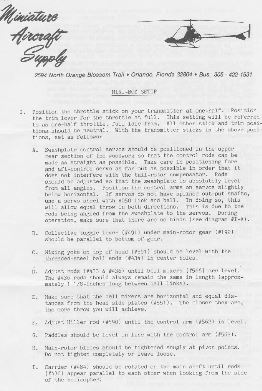

Mini-Boy Baustufenphotos 2 Mini-Boy USA Supplement



1982 introduction to UK.

Mini-Boy Revue  -  Build and flying review from Jan 1983 Radio Modeller.

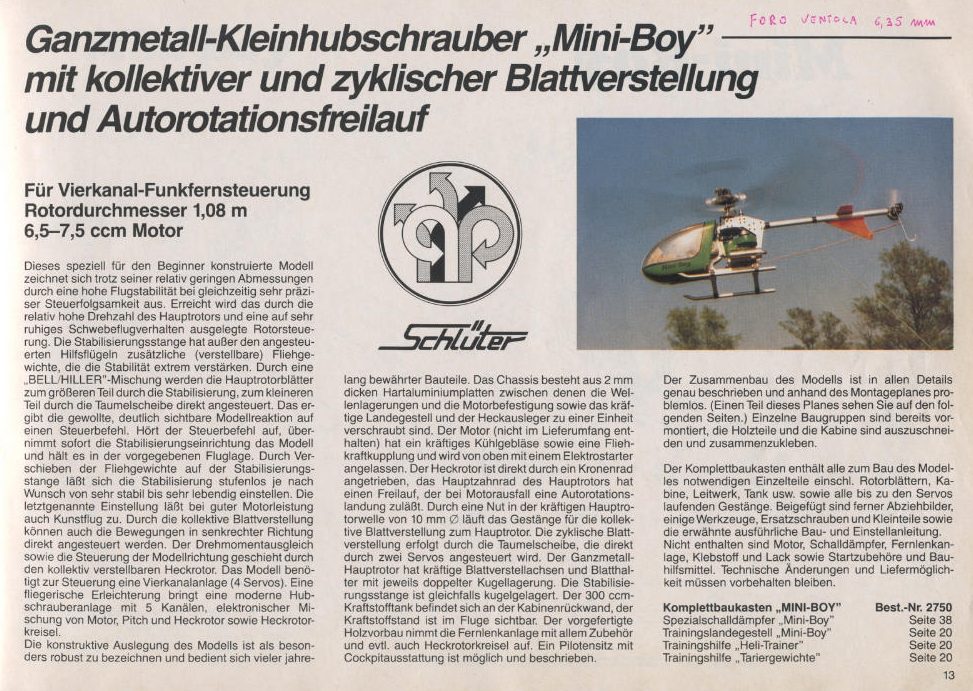

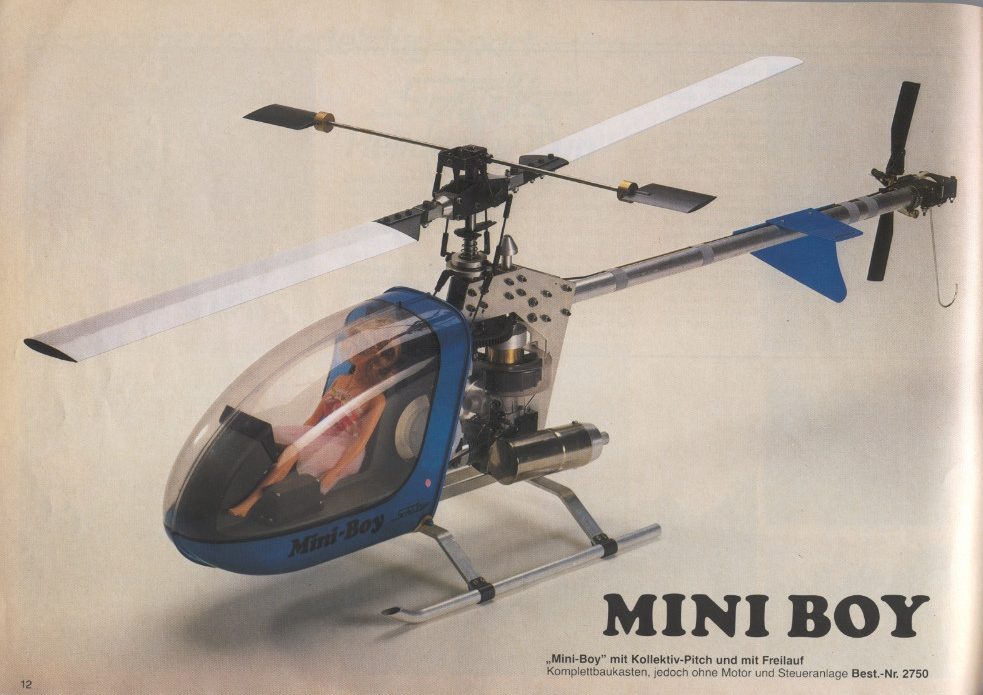

     1984 Catalogue details.

  Mini-Boy wood layout.

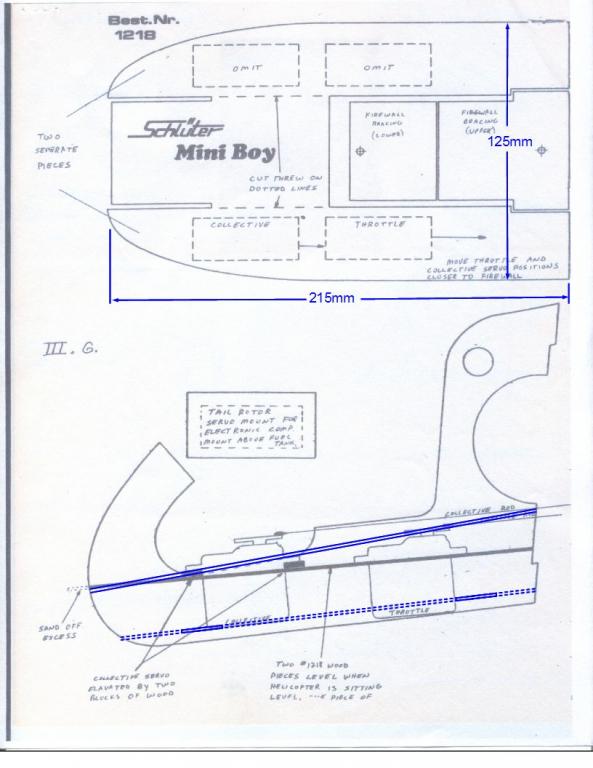

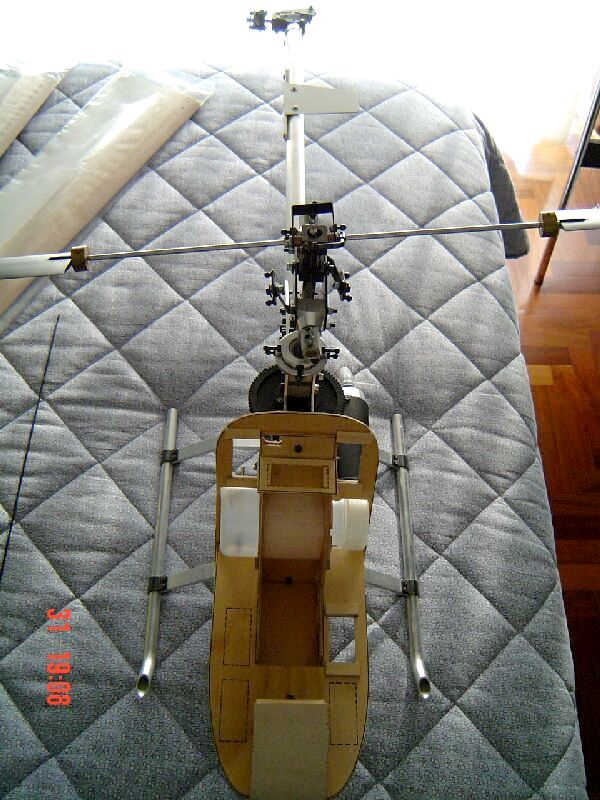

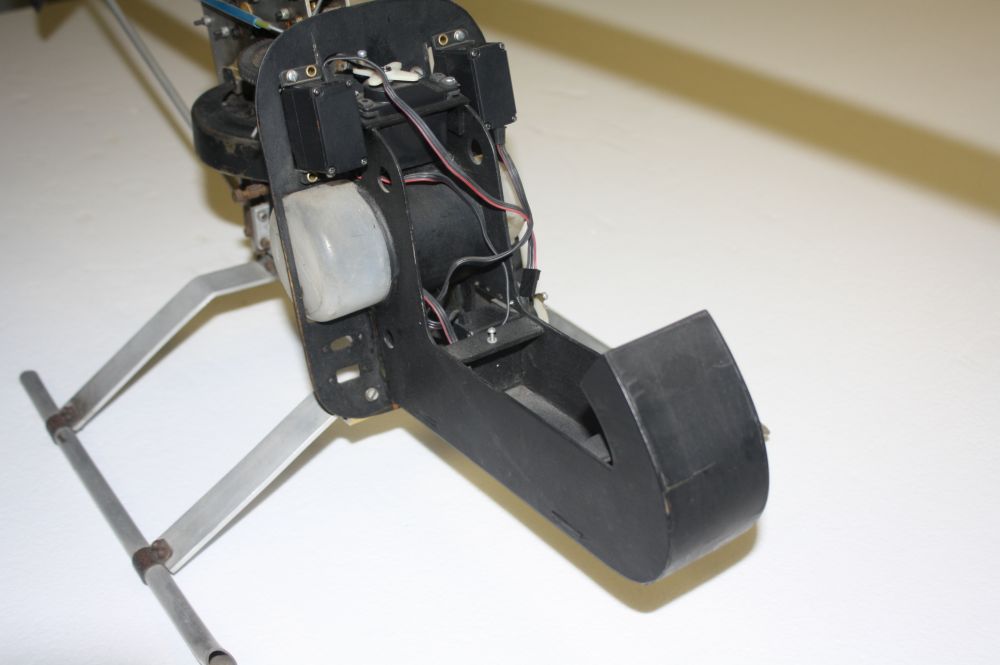

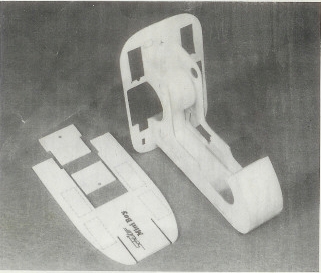

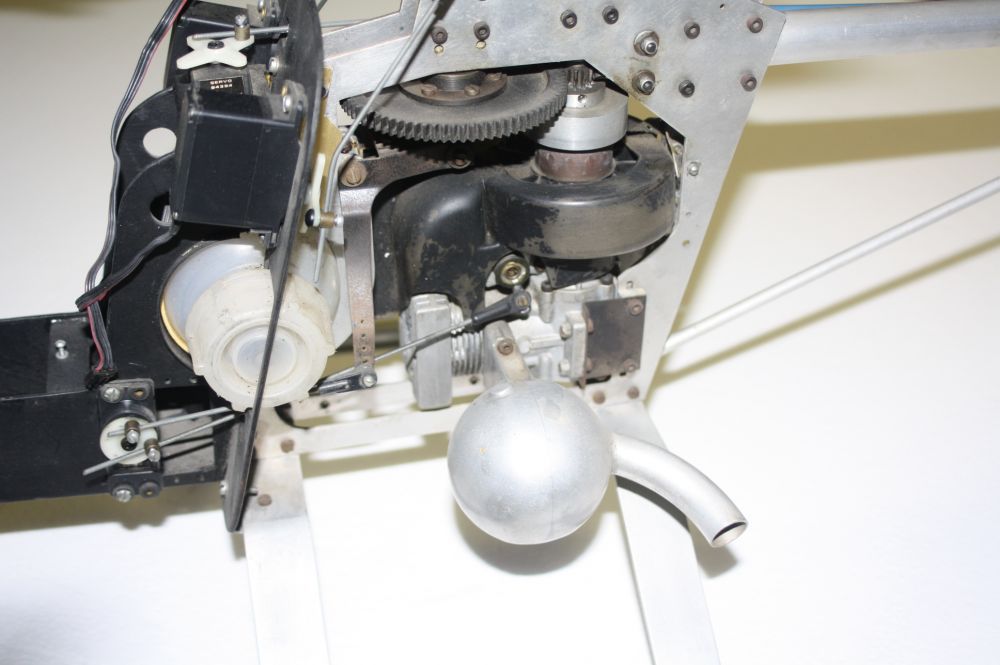

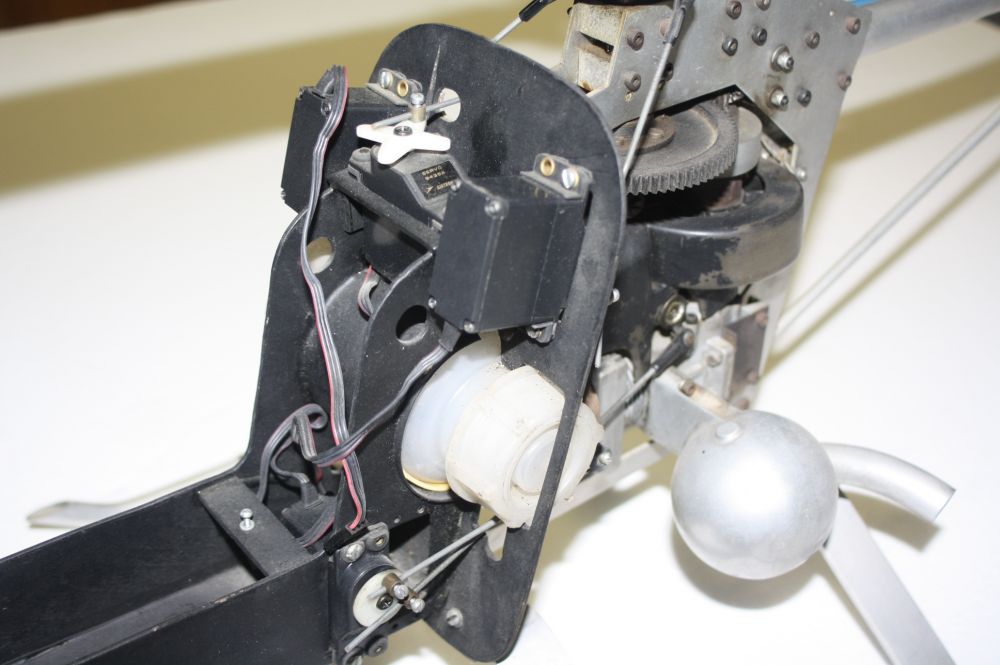

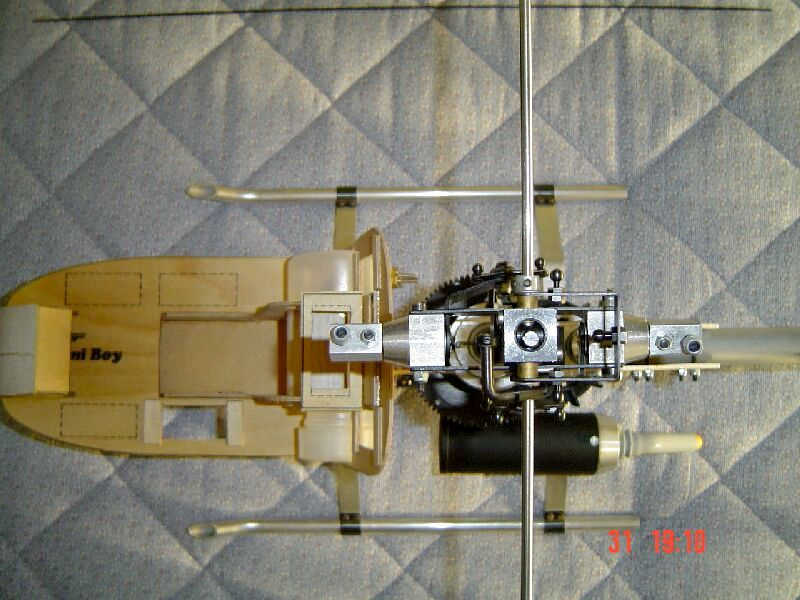

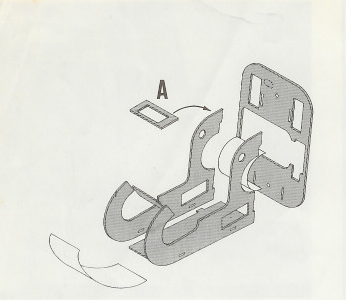

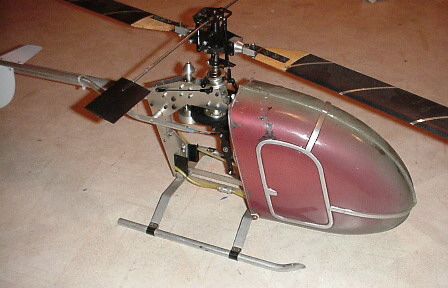

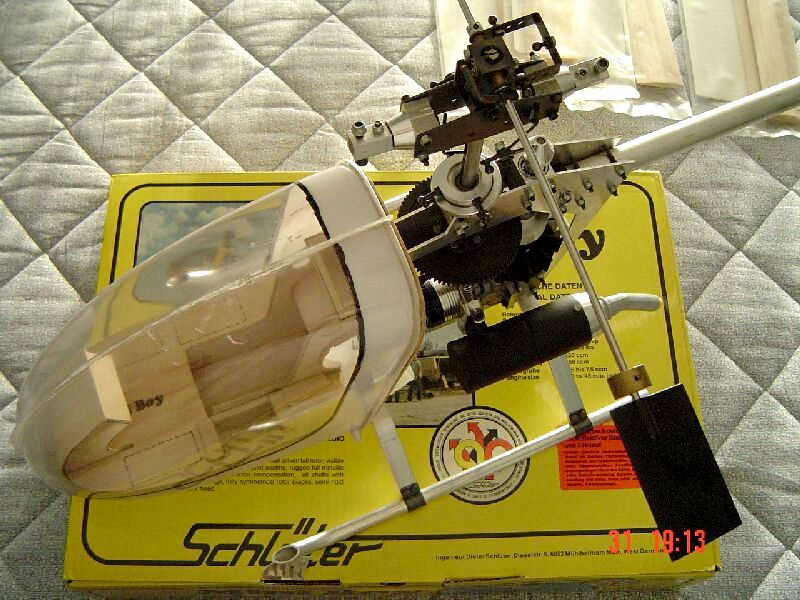

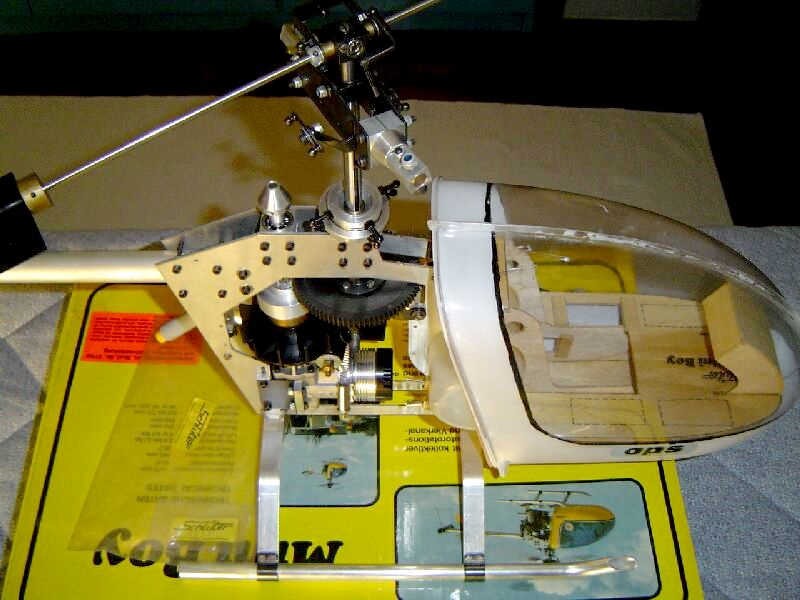

As you can see from the above montage there were two cabin layouts.  The first was the basic extension nose and as can be seen this used the combined throttle/ collective layout.  The second incorporated an additional floor plate that allowed the servo's to be positioned to give better linkage runs and also provided the extra room needed for a five servo installation with separate throttle and collective servo's.

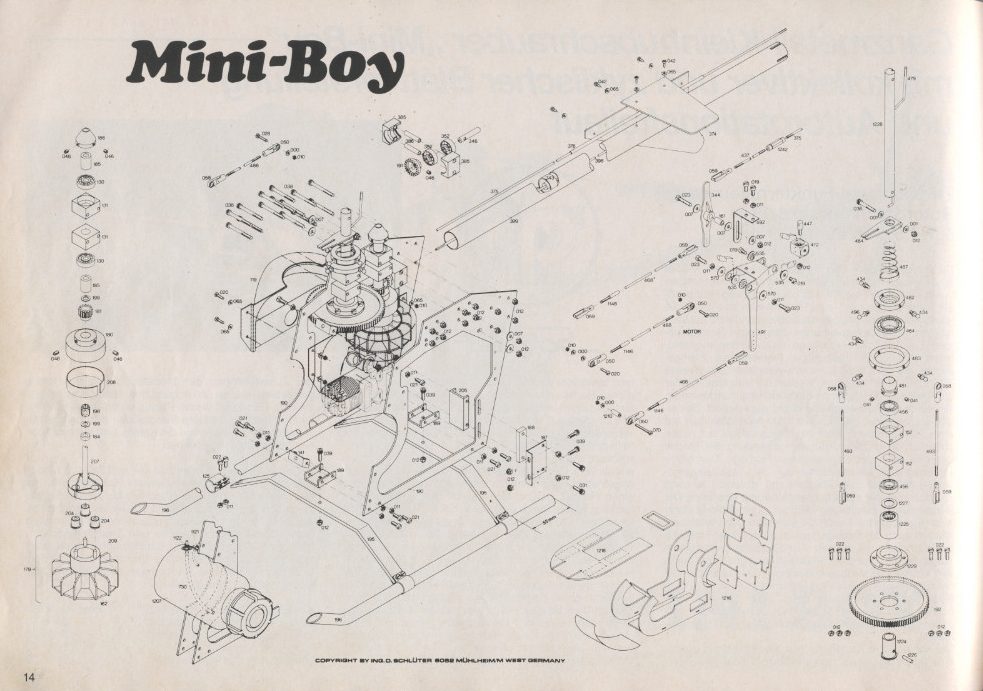

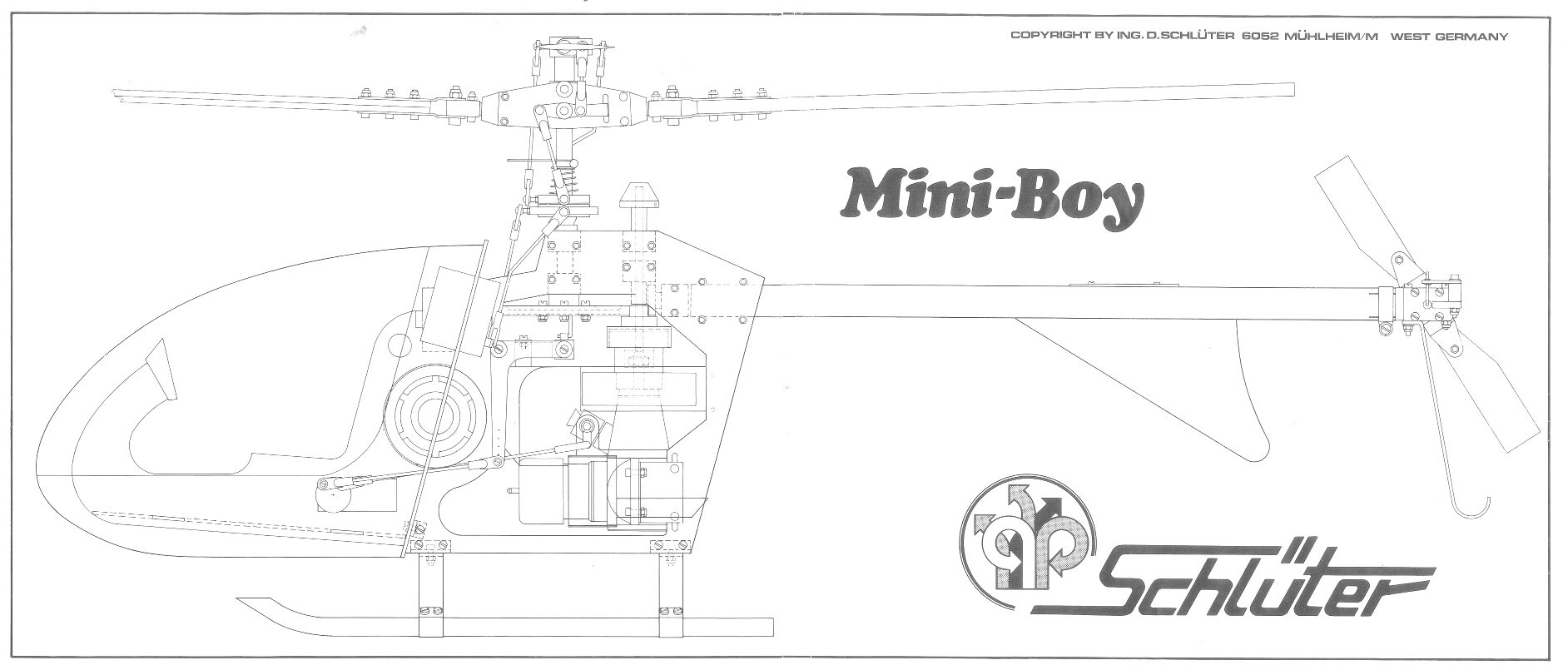

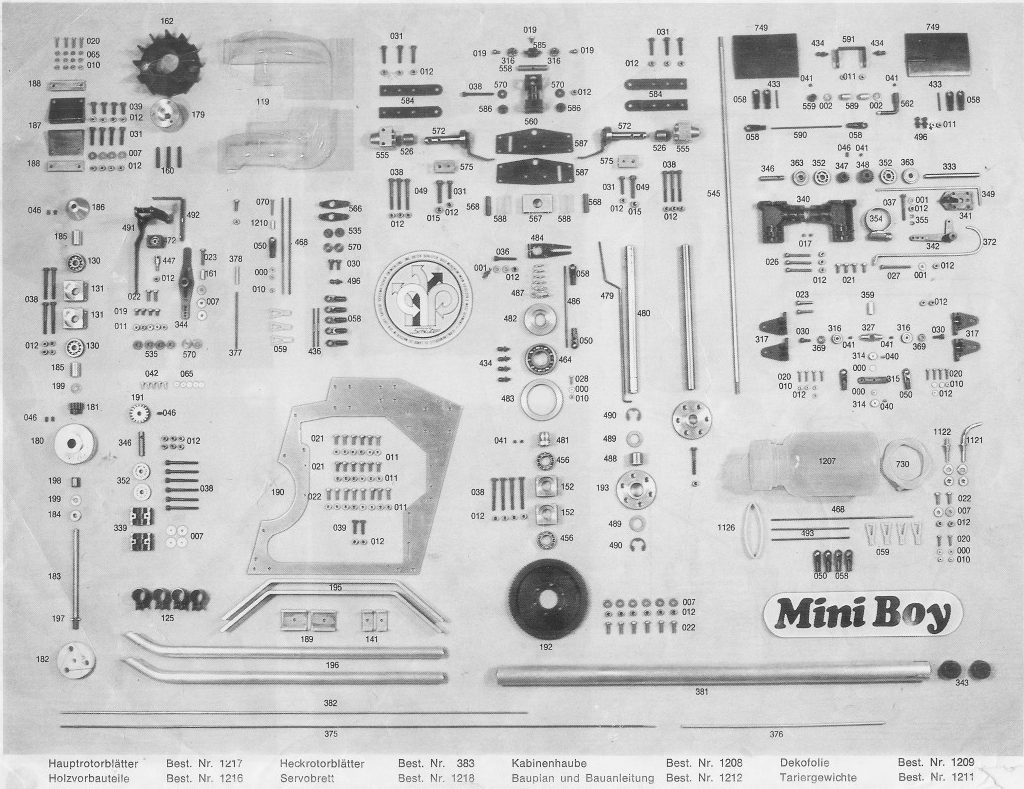

Parts Layout    Side view   Auto-rotation supplement

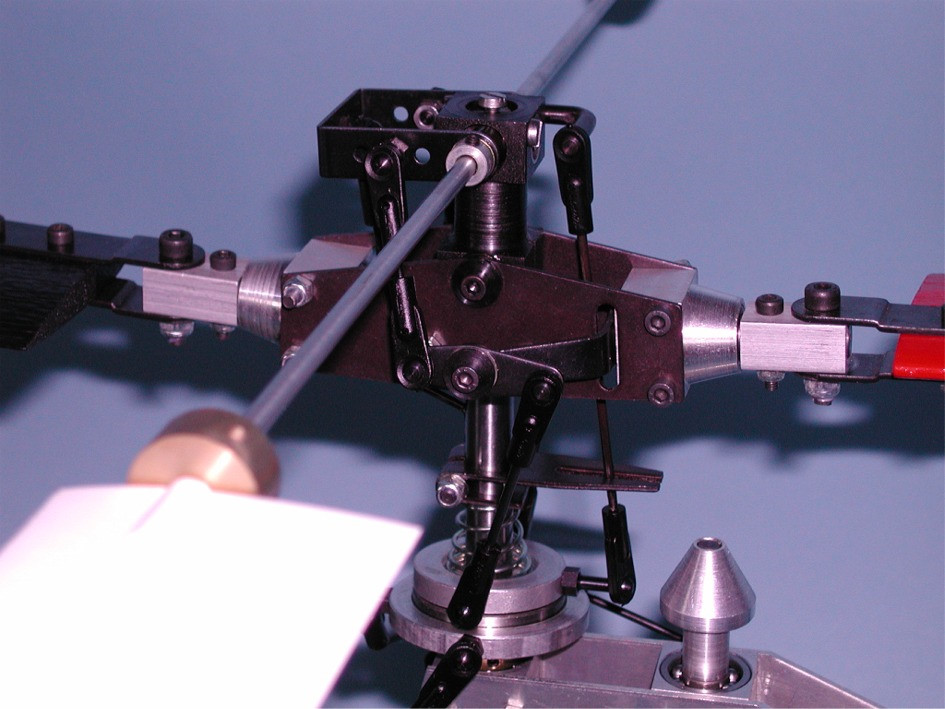

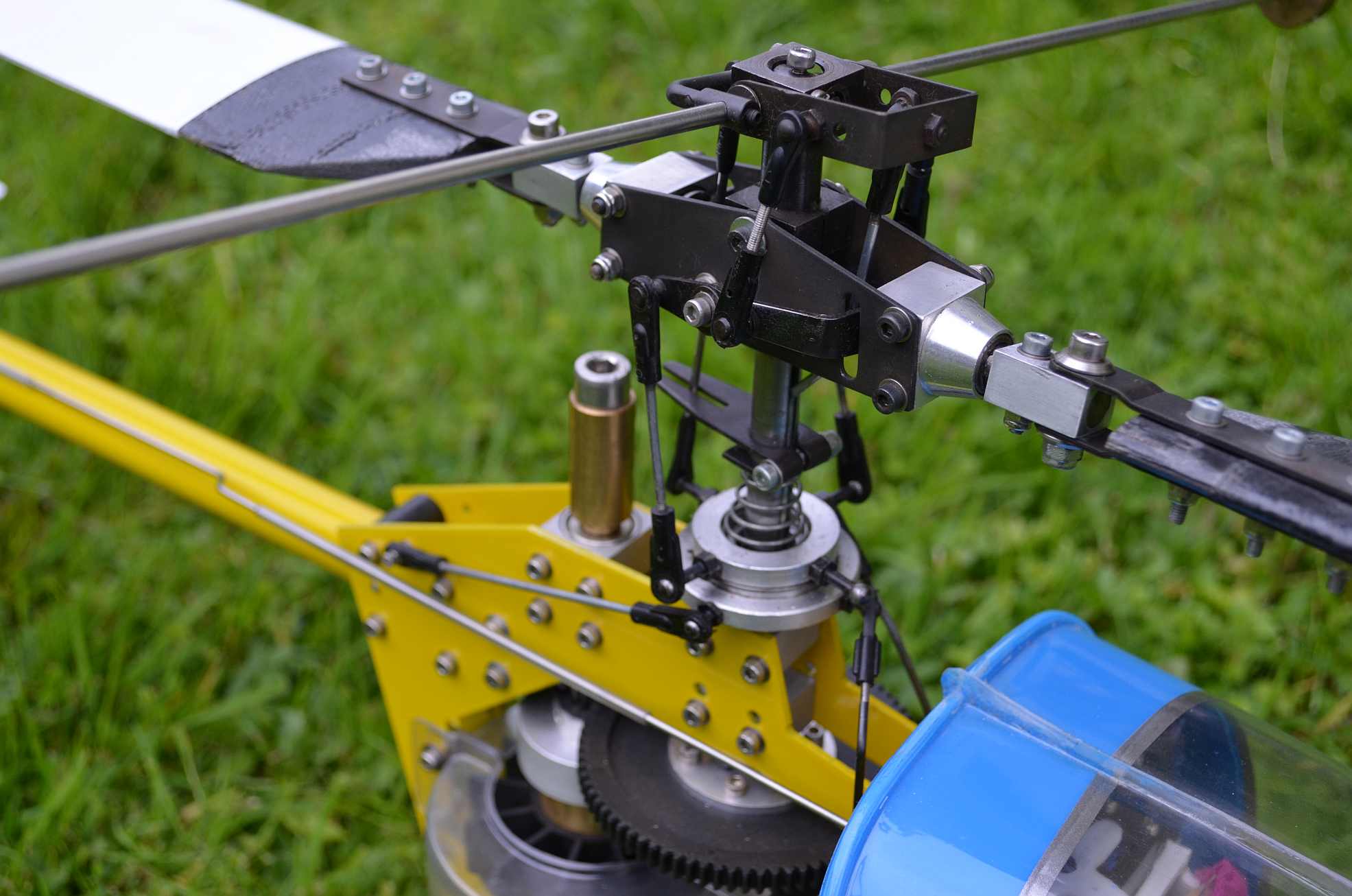

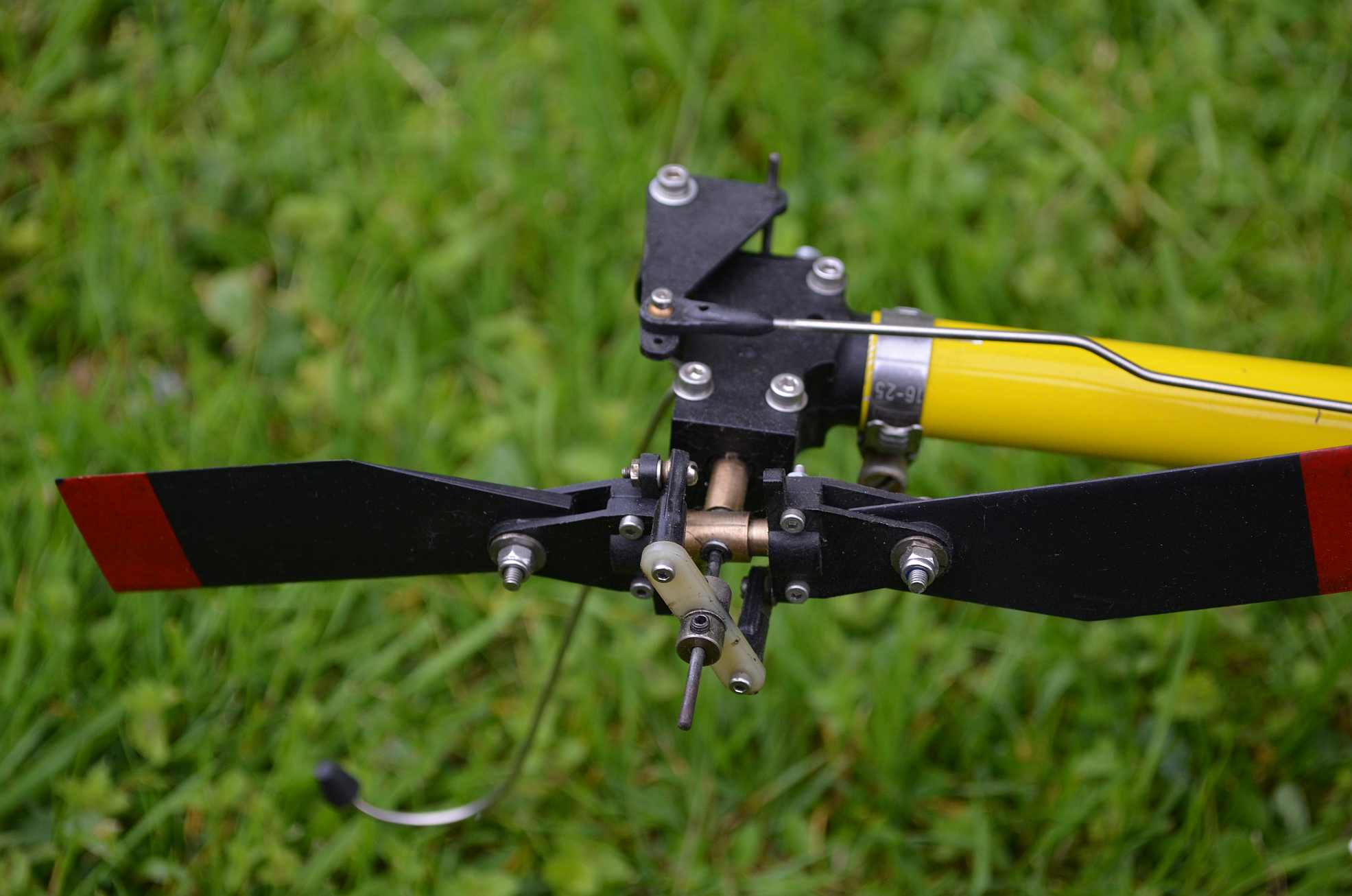

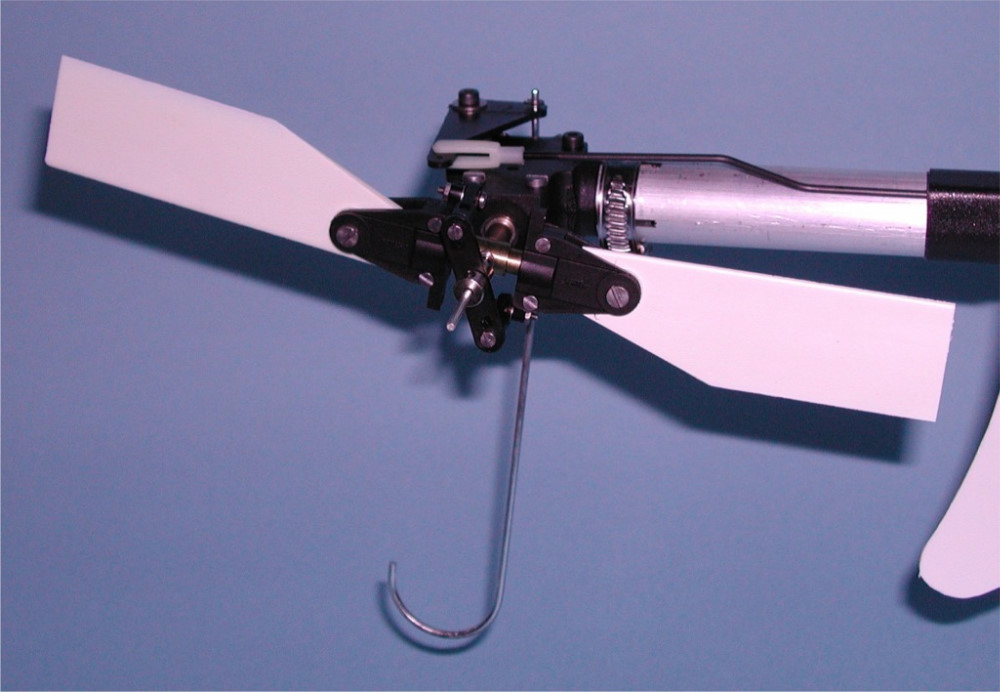

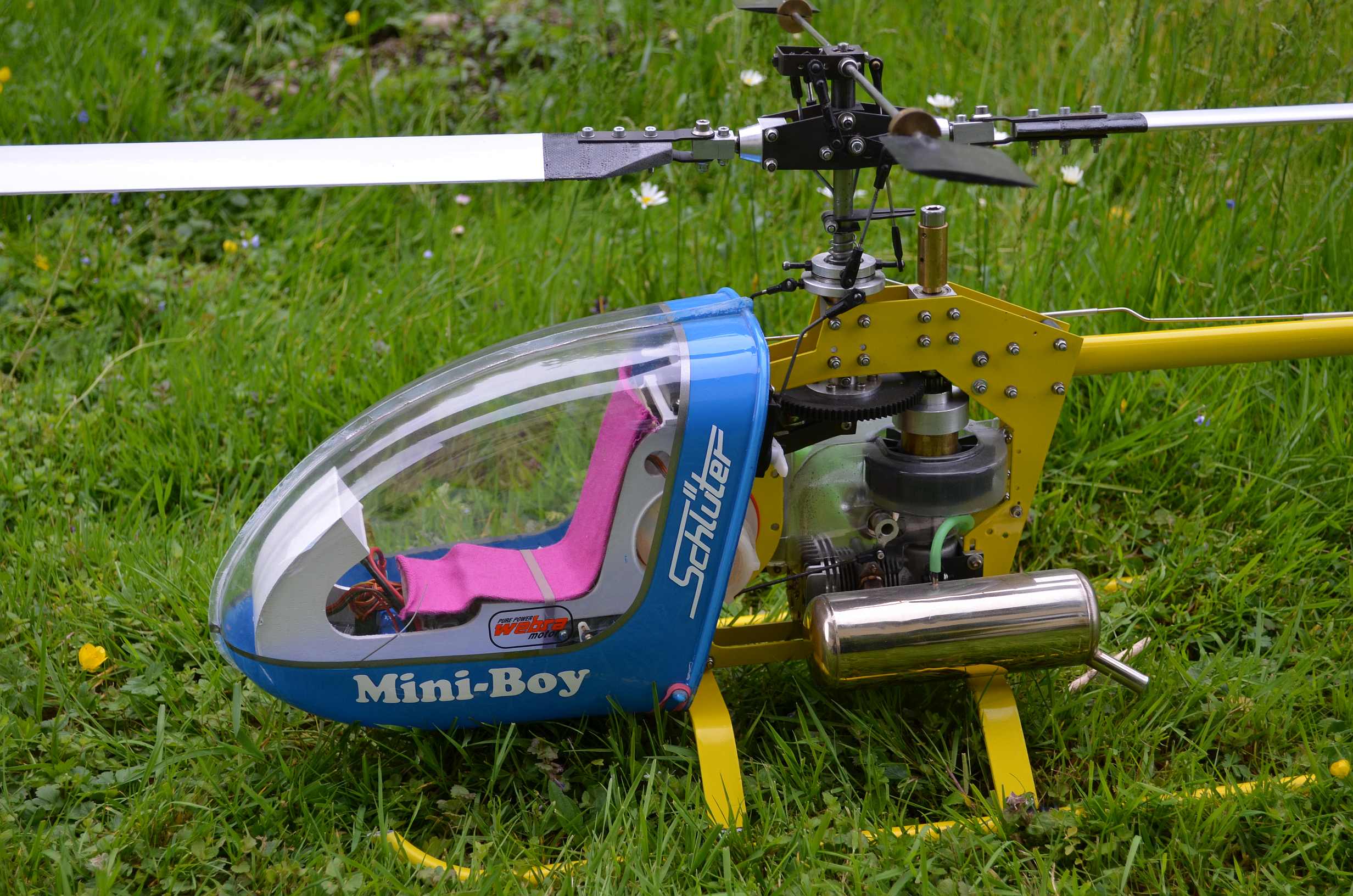

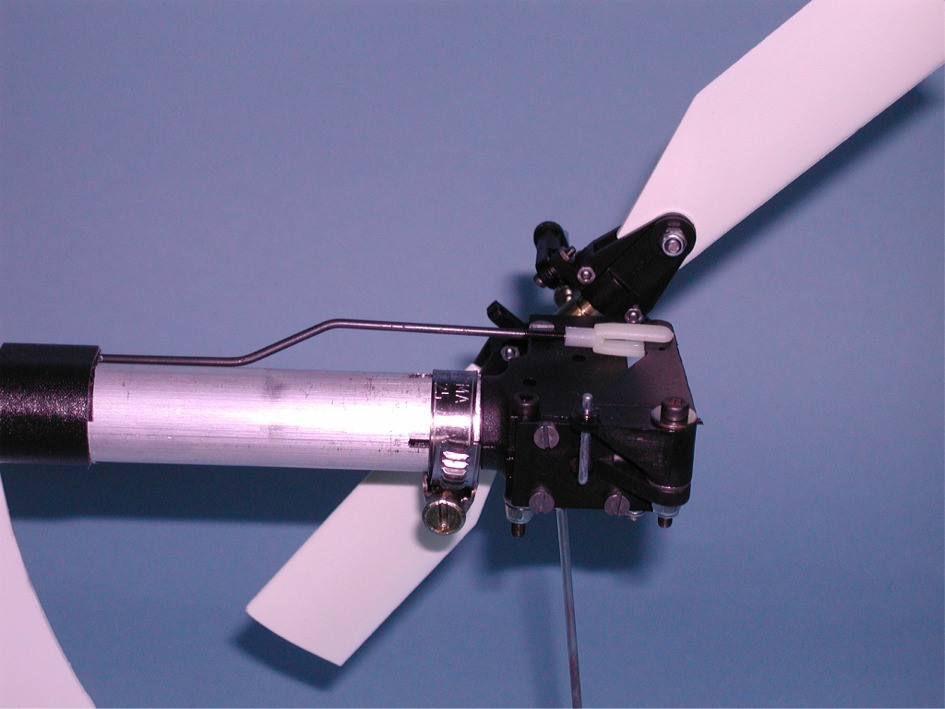

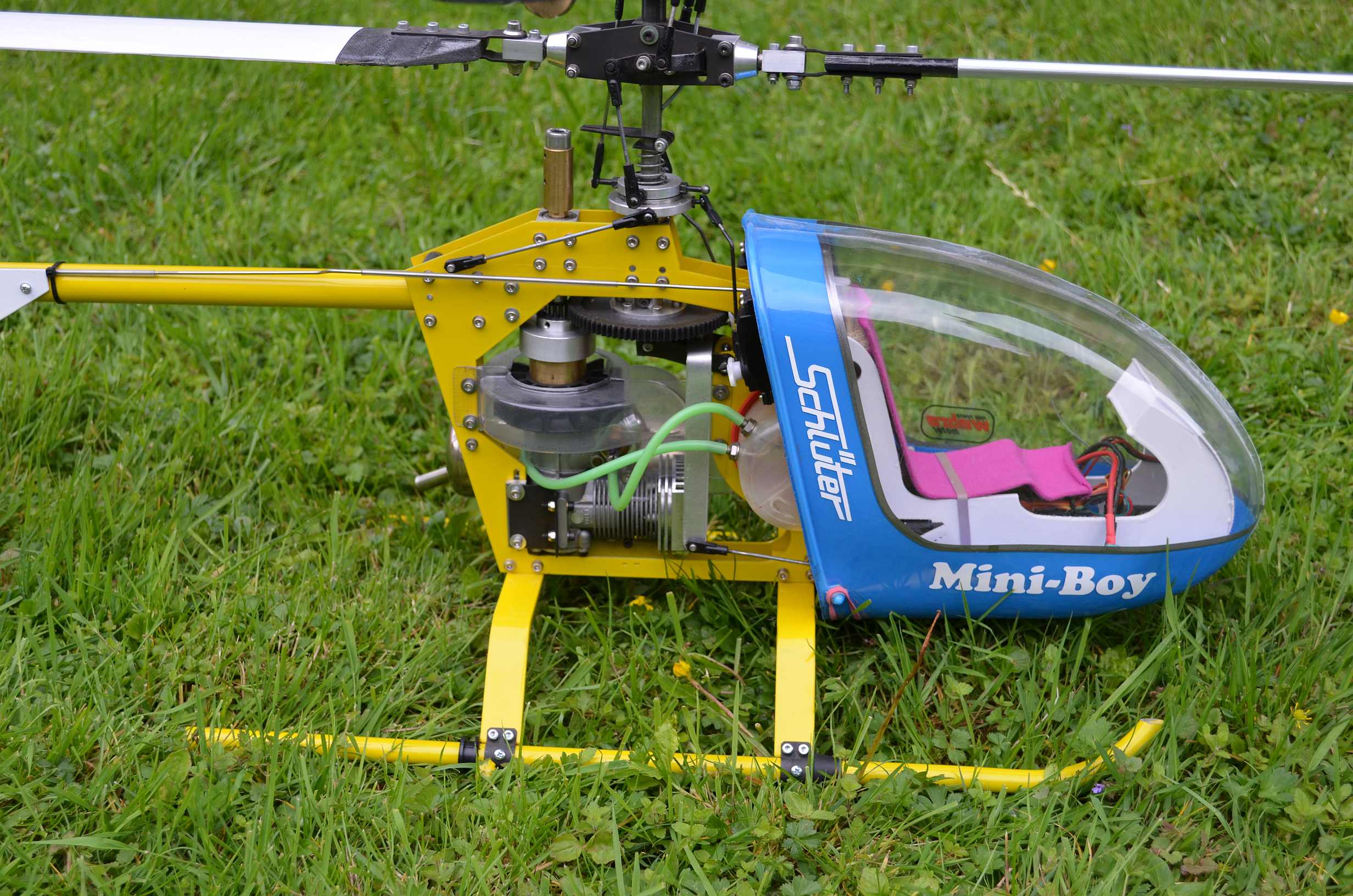

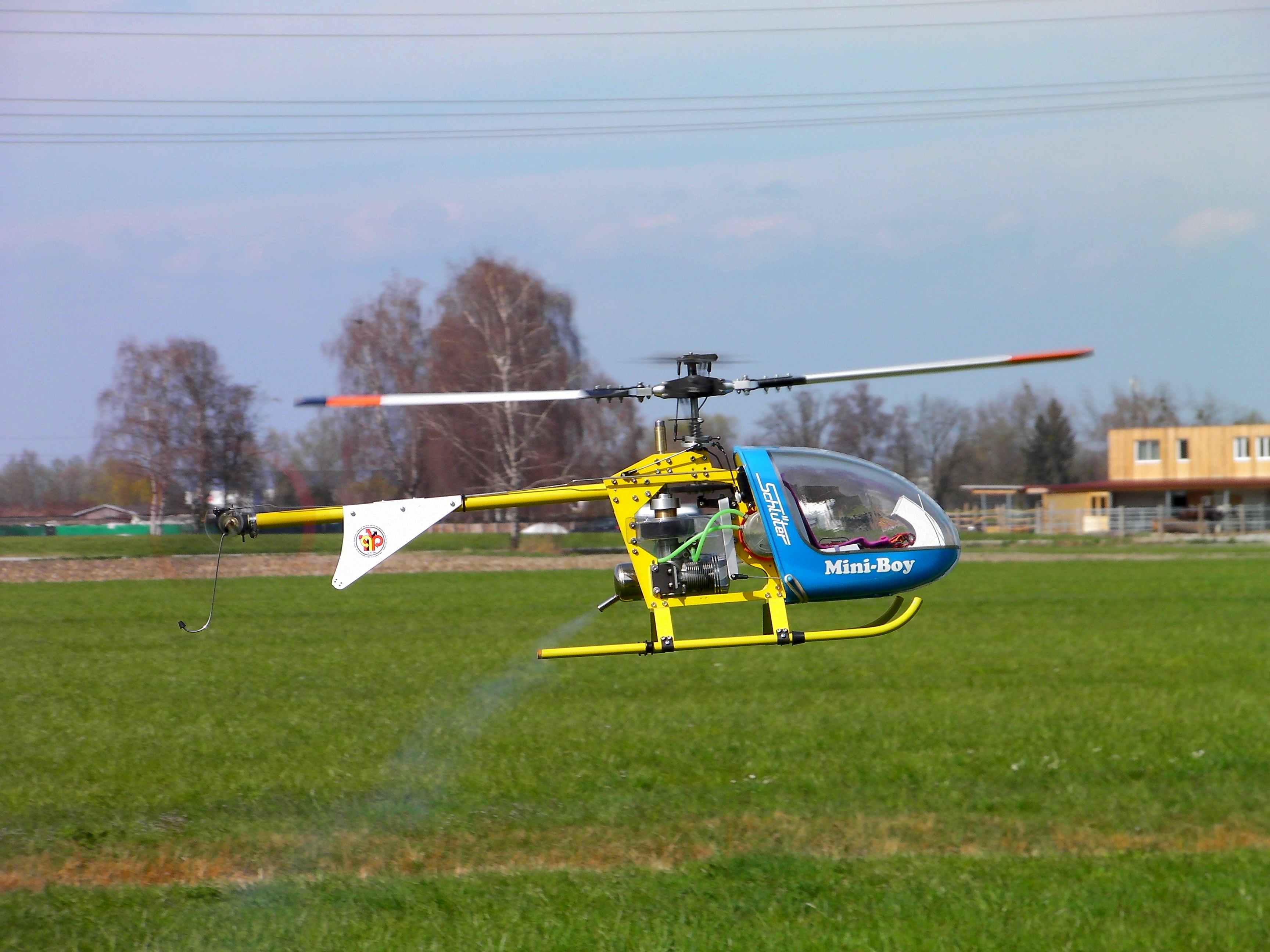

 Following on from the Super Heli-Baby as a 'Pod and Boom' trainer and basic sport model.  Looked very similar but incorporated a number of improvements, especially the blade mixer arms for the combined Bell/Hiller control system.

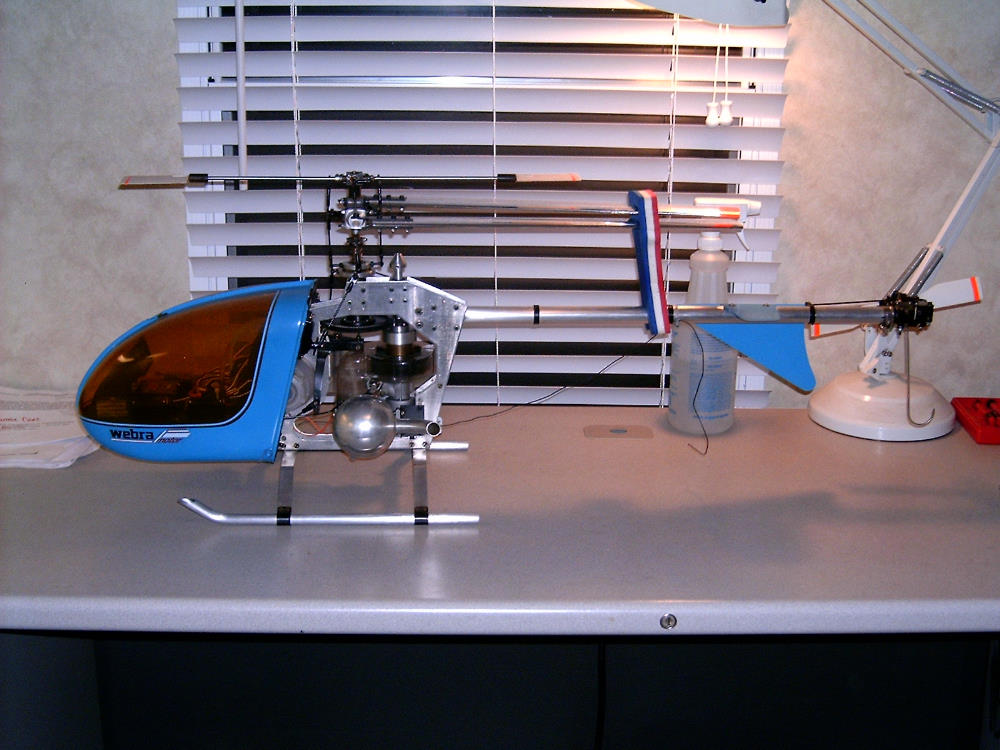

  • 011

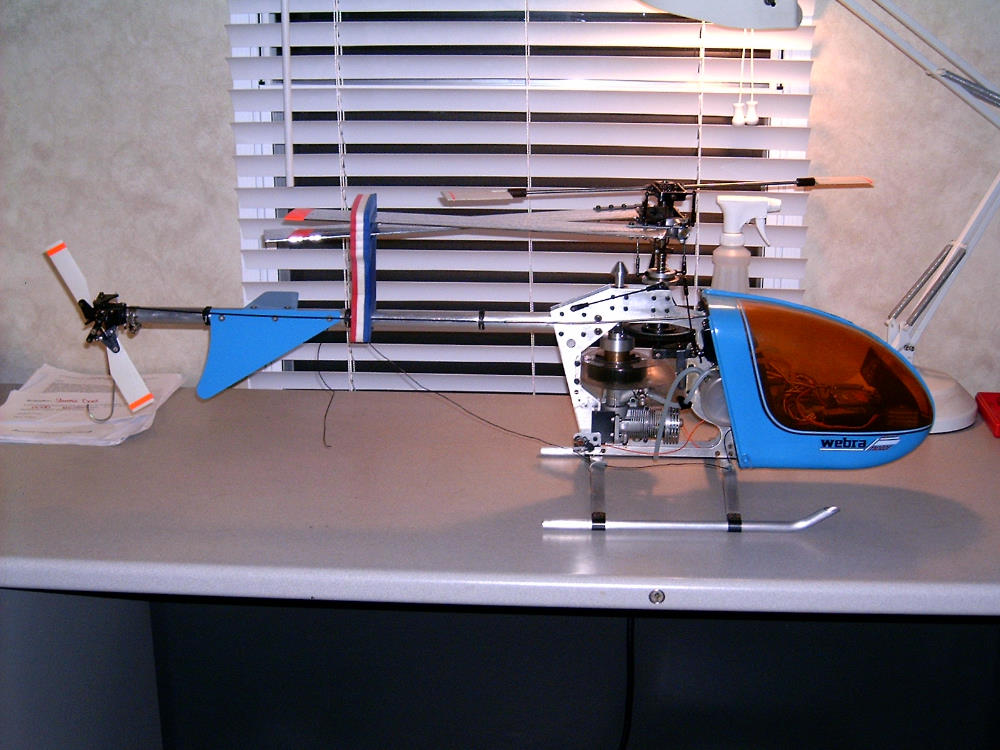

  • 012

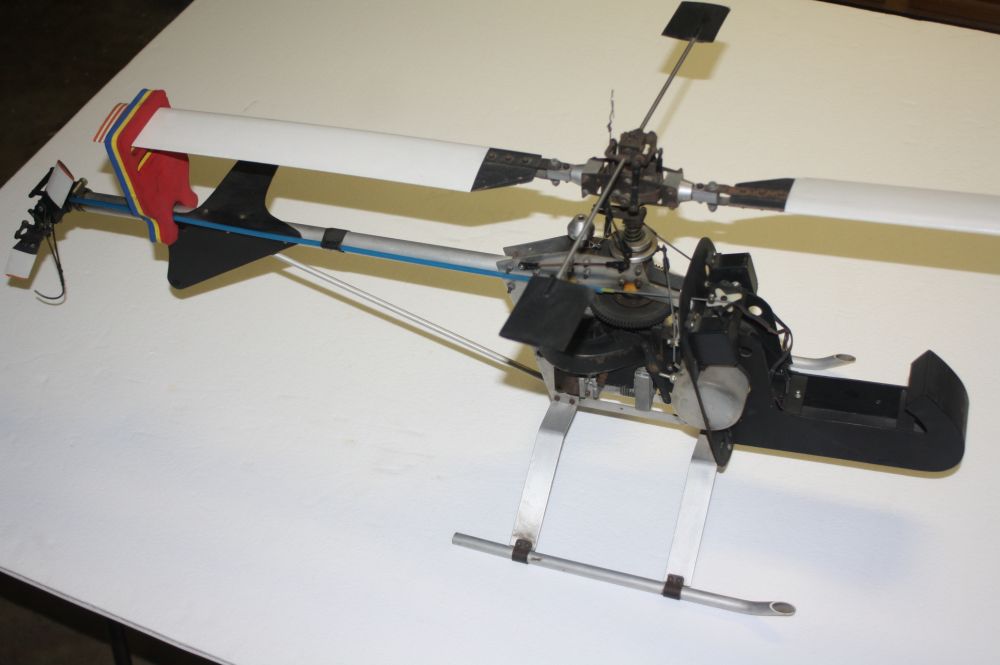

  • 2_8_11_001

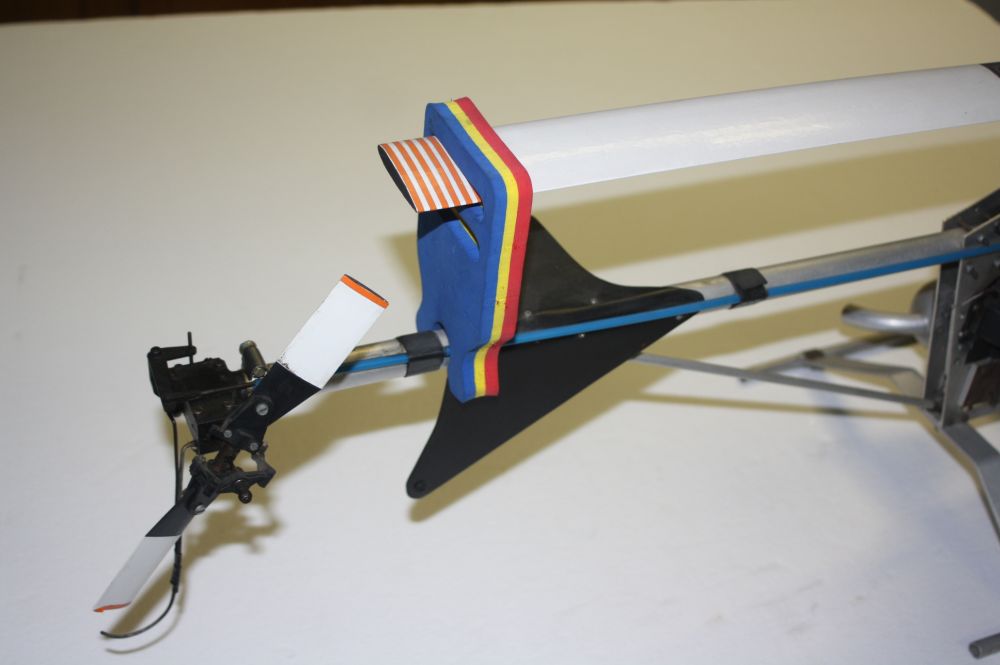

  • 2_8_11_003
  • 2_8_11_005

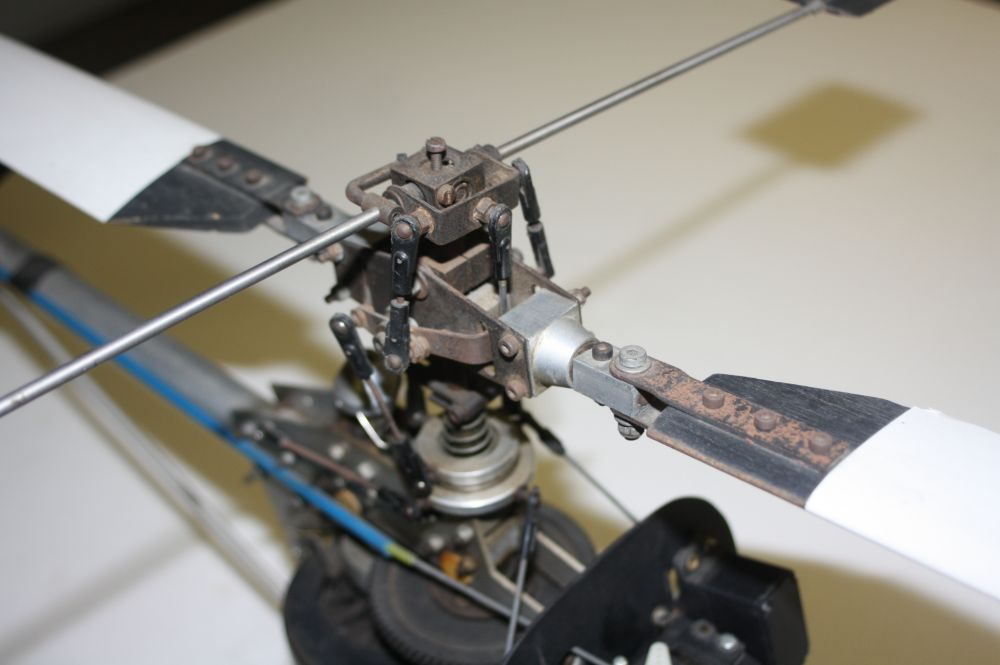

  • 2_8_11_006
  • 2_8_11_009
  • 2_8_11_010

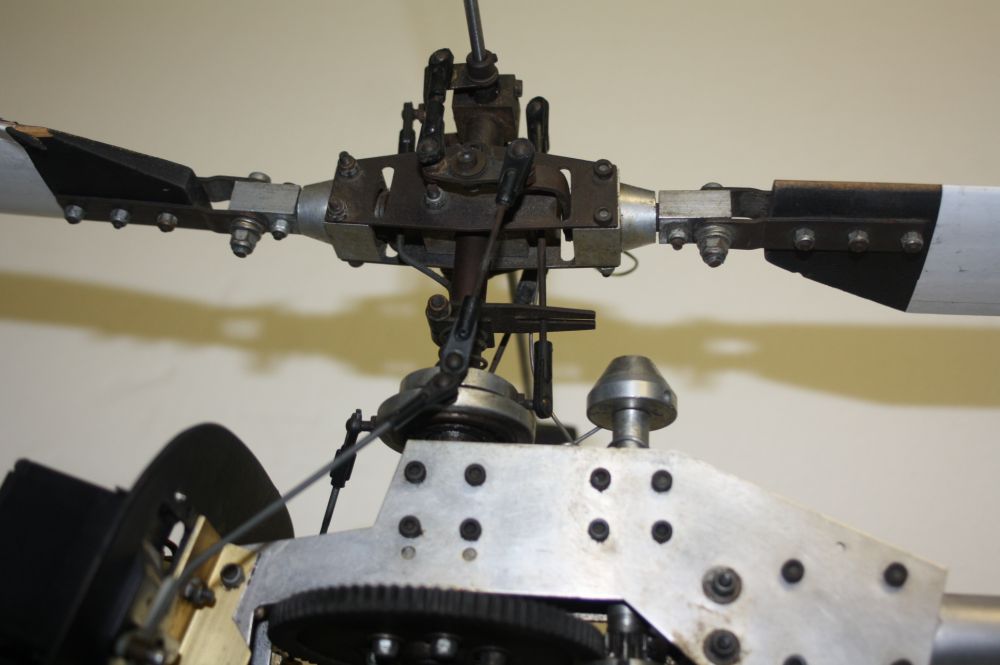

  • 2_8_11_013
  • 2_8_11_014

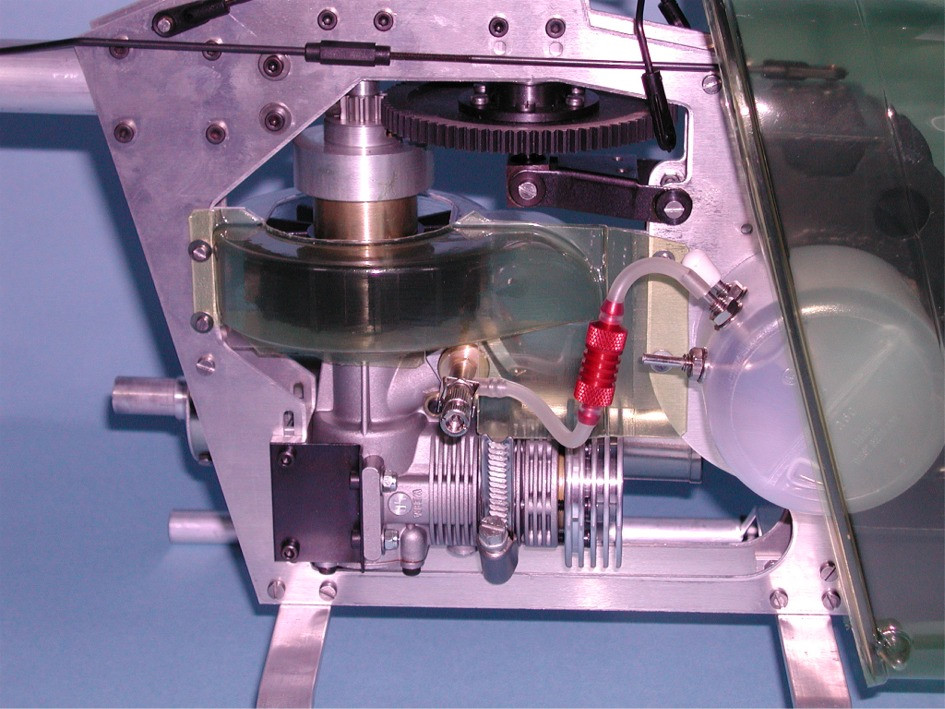

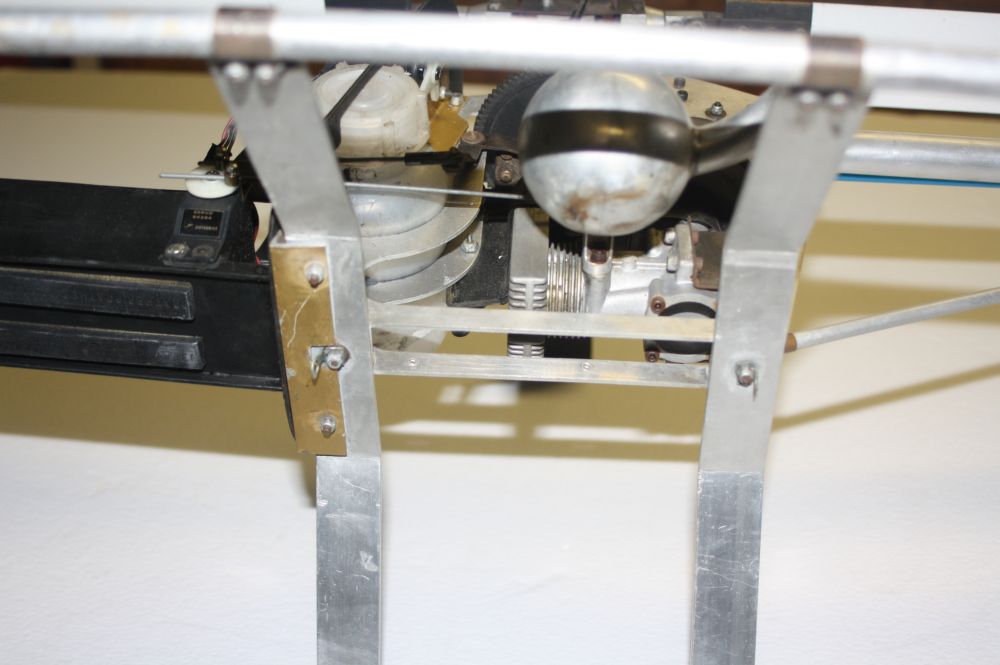

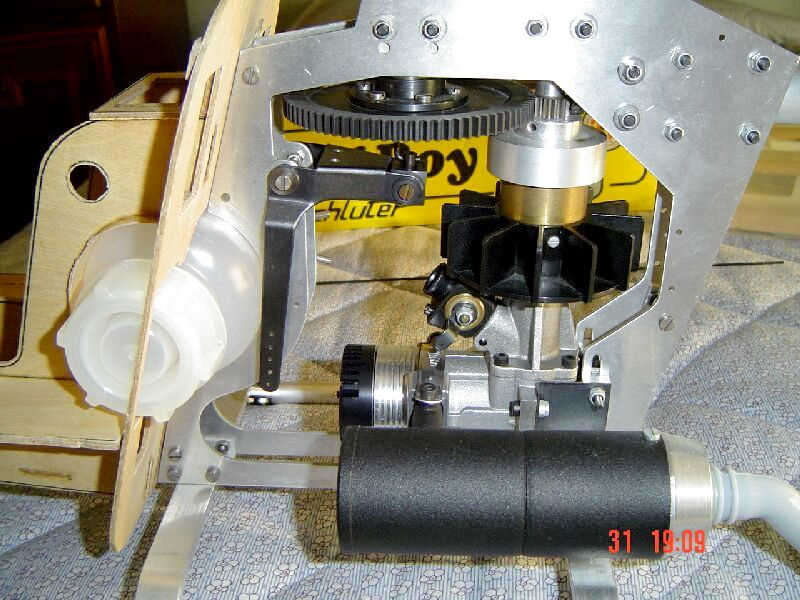

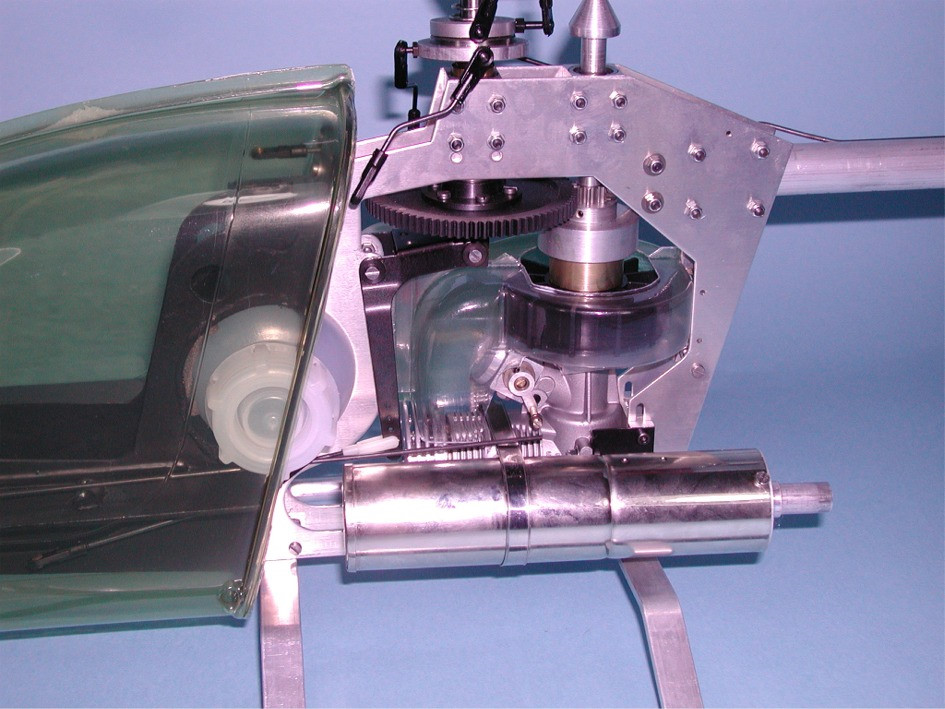

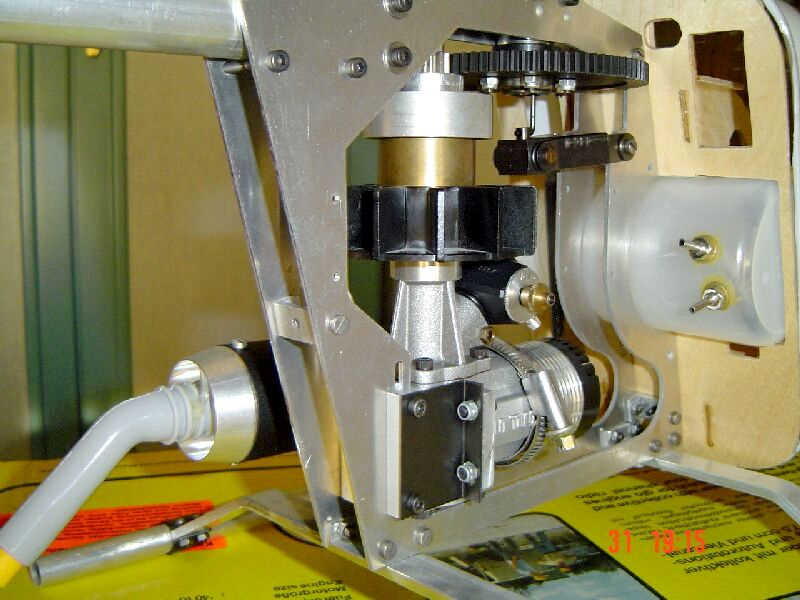

  • Mini-boy RH motor area
