Kavan JetRanger (1973)


Specification:

 Length   1450 mm / 57"
 Height   -
 Main Rotor Dia   1600 mm / 63 "
 Tail Rotor Diameter.   -
 Total Weight   4500 g / 10 Lbs
 Gear Ratio   -
 Engine   .60 cu in  (10 cc)



Documents:

JetRanger Manual

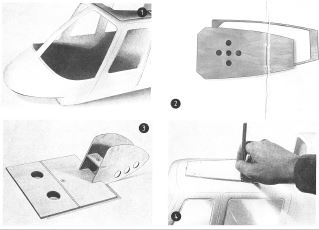

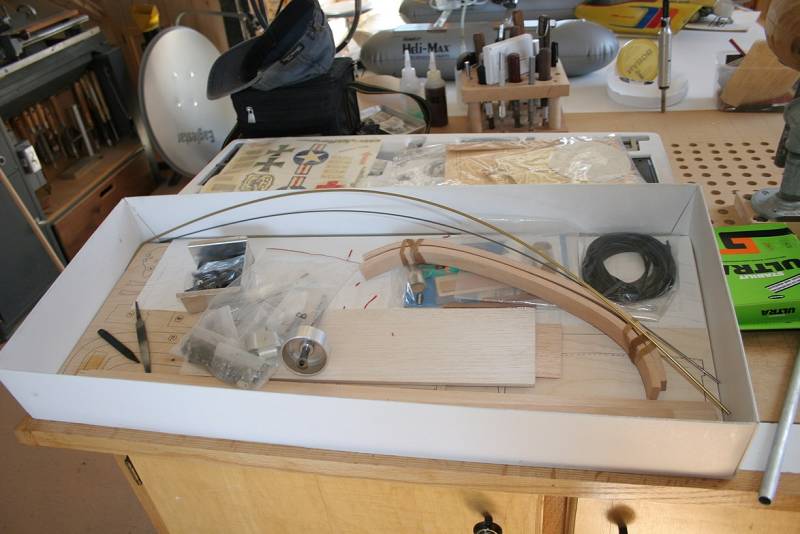

JetRanger Build Guide pictorial

JetRanger_Bau u. Fluganleitung (dt)

JetRanger_Bau u. Fluganleitung_v.2(dt)
  JetRanger Manual Addendum

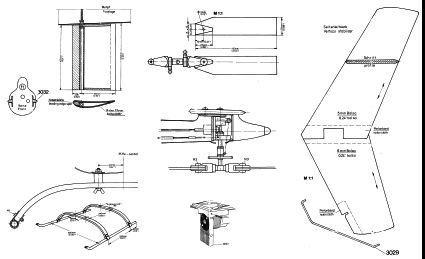

Drawings





Kavan approached FW Biesterfeld in 1971 with a view to developing and marketing his Radio Controlled Helicopter model and although Biesterfeld had a near functioning model Bell Huey, it was decided to provide a contrast to the Schlüter Cobra by kitting the most well know civilian helicopter; the Bell JetRanger  The prototype was displayed late in 1972 and subsequently marketed in 1973 being the first (commercially produced) model helicopter with collective pitch control.  The model was very near scale and was of very high quality materials.

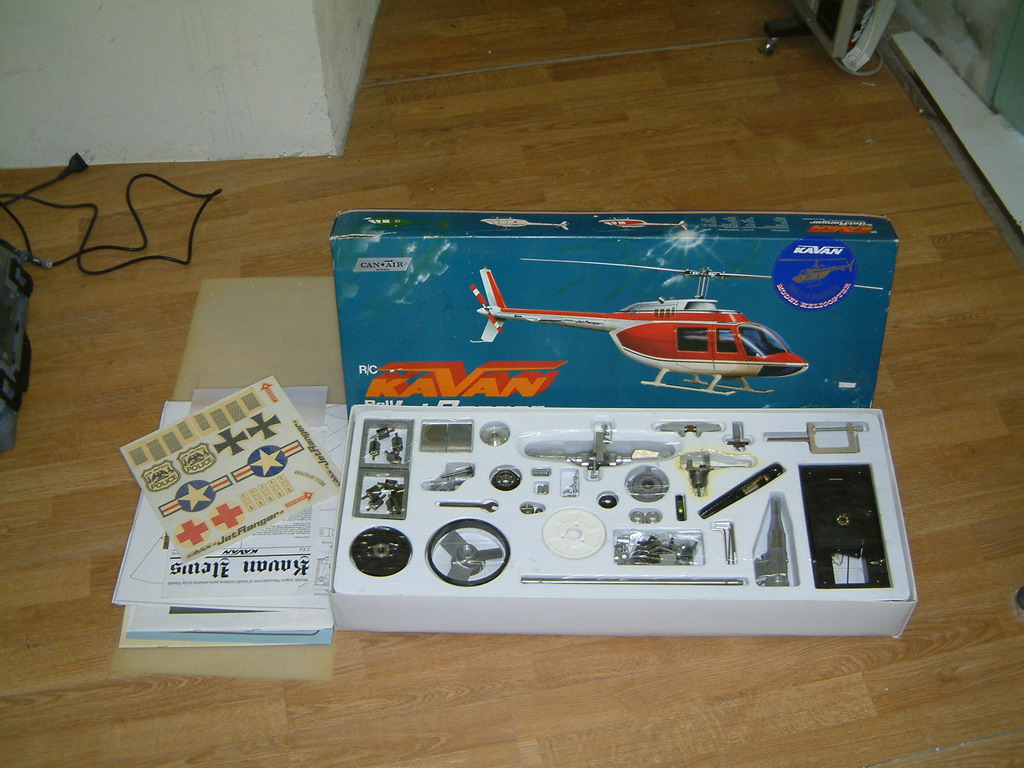

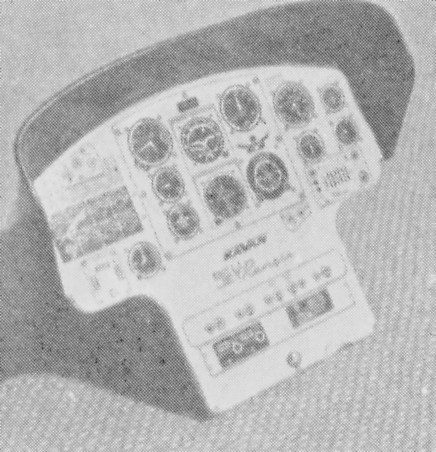

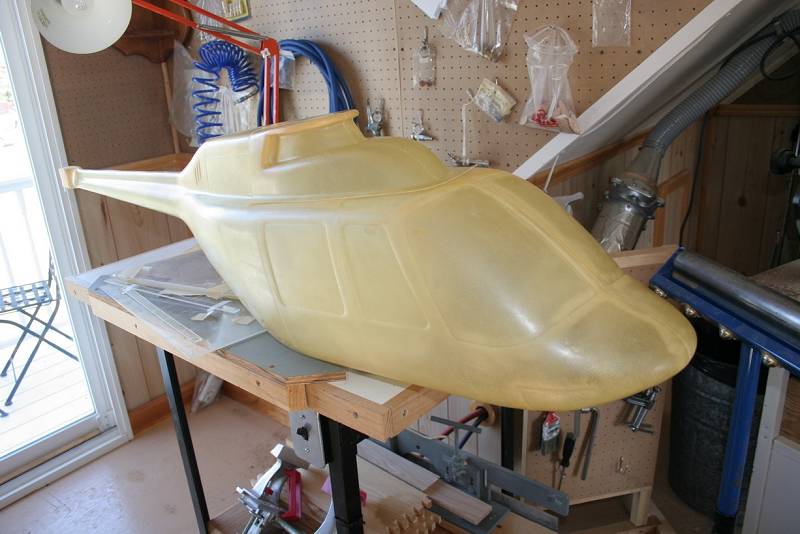

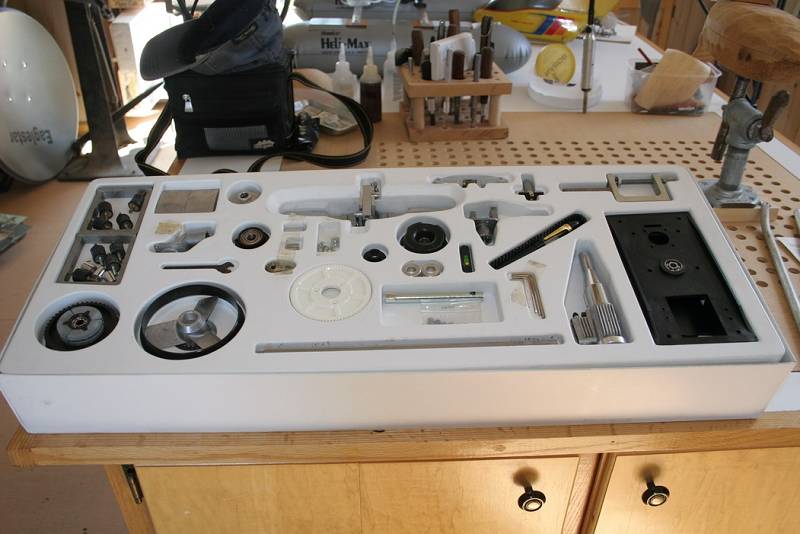

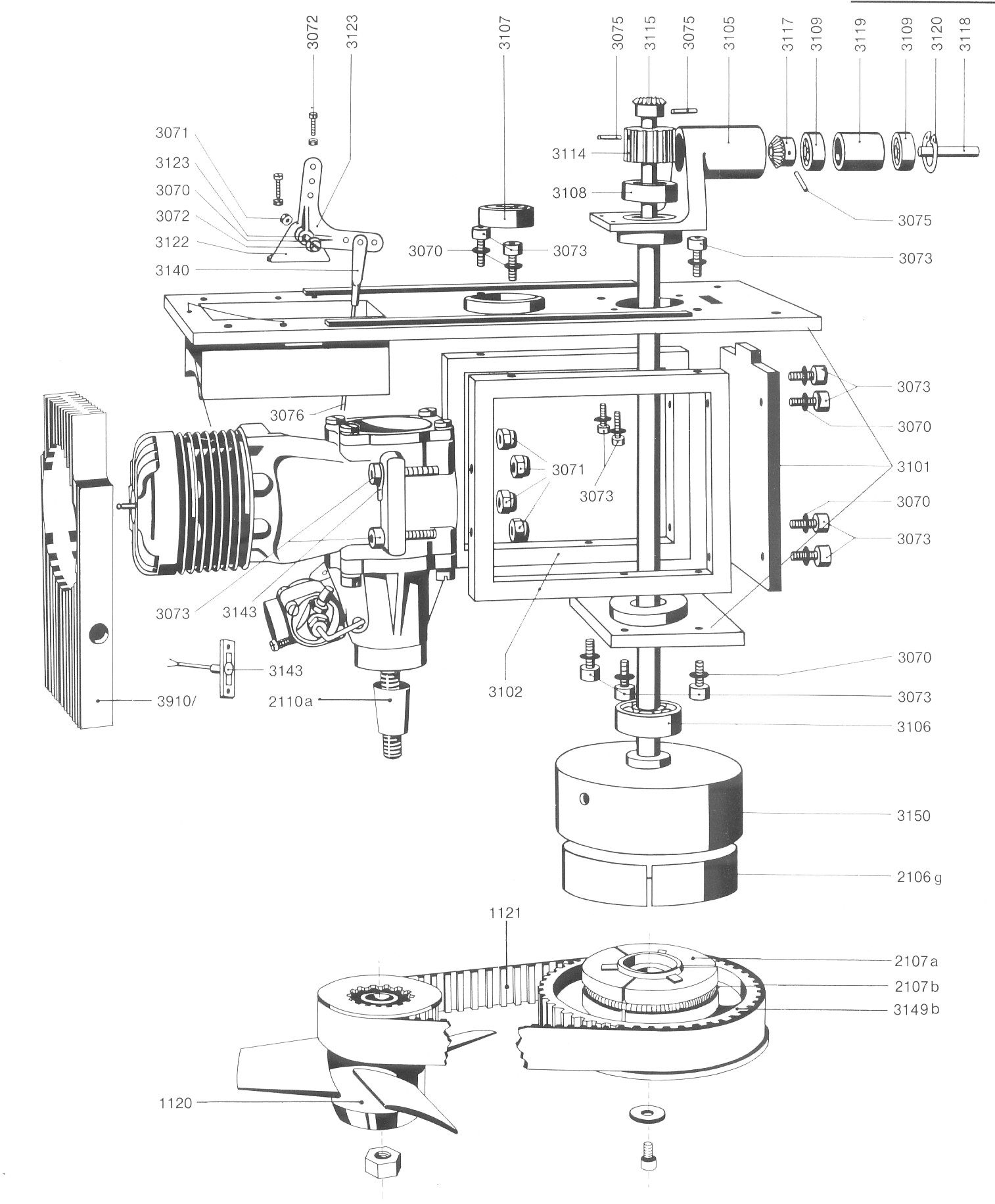

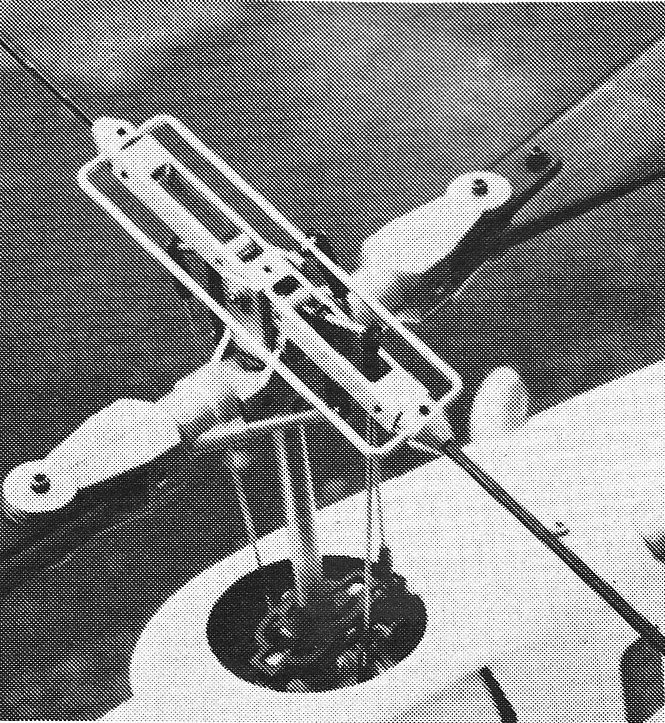

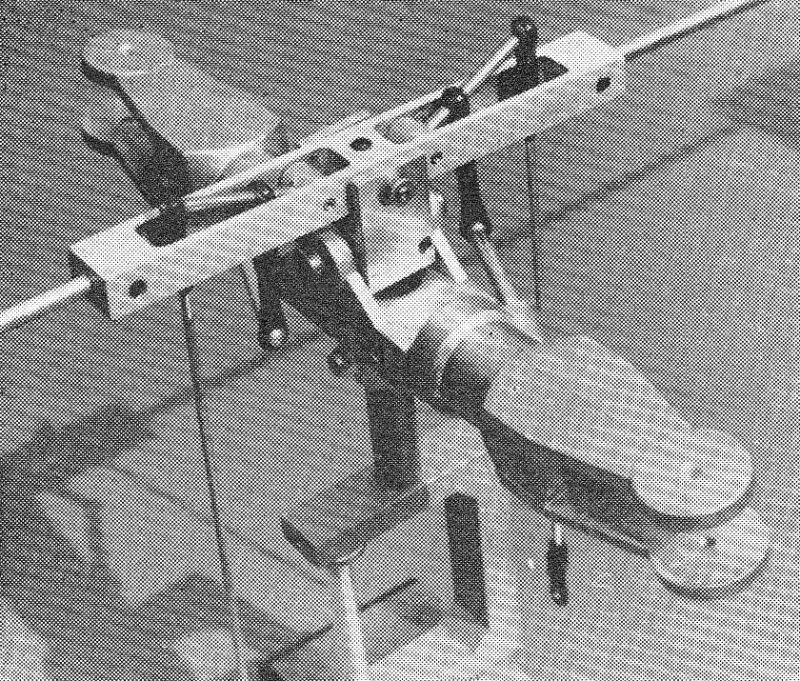

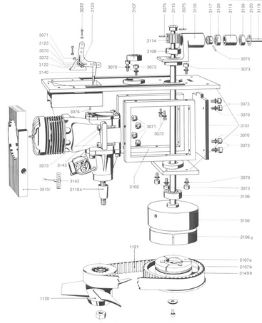

Initially the  Kavan JetRanger had collective pitch but with only 'Bell' control i.e. flybar with weights and NOT paddles.  This type of control provided a high level of stability for hovering and the model was not unduly disturbed by gusts etc.  This control system was faster than the Hiller only types and the inherent stability of the Bell system meant that when a control input was given, the Bell bar moved in opposition to the main rotor as it had a lower centrifugal mass; this opposite movement had the effect of reducing the actual cyclic throw at the main blades.  Unfortunately it could only cope with limited flight conditions and a number of test flyers lost control during high speed banked turns because of not having enough control authority (and probably positive pitch) to recover in time; especially if at a low altitude.  Another unusual feature of the model was that the top housing carried all the controls for the rotor head and was held in place by six screws which made removal for maintenance an extremely simple and quick procedure.  The engine unit was also a 'bolt in' pod and so maintenance on this area was quickly accessible after the top cover was removed.



Because of the problems experienced by the 'Bell' only stabilisation, production models incorporated paddles instead of weights which provided a measure of opposition to the defection on the Bell bar with cyclic input thus giving larger 'effective' control throws.  Whilst improving control over the original format it did not provide the full answer as the paddles themselves were not positively controlled.

  1973 Radio Modeller build review by Roy Yates of the Kavan JetRanger  -  Part 1 Build review  -  Part 2 build review  -  Part 3 flying review

Full technical description is given along with a comprehensive overview of all aspects of the build including techniques; so much so that it well compliments the supplied building instructions.  Interesting 'hands on' setting up technique; I have done that myself in the past but if anything goes wrong and well; you certainly have a 'tiger by the tail'....................

1973 saw the Kavan JetRanger win a lot of major contents however, when you consider the competition was fixed pitch helicopters or own designs then it was to be expected.

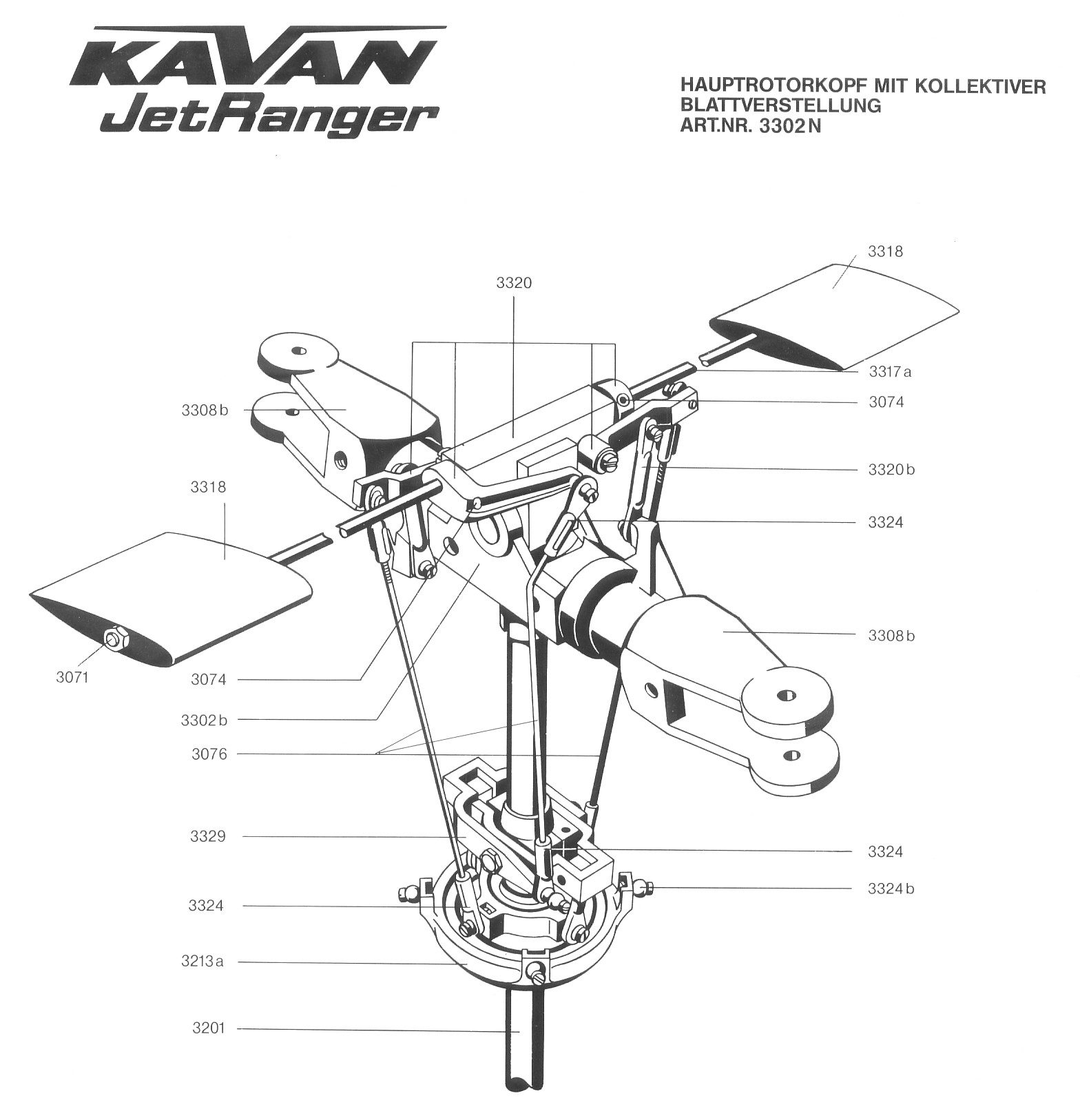

To provide a more effective control system the head assembly was later modified to include a flybar with Hiller control thus giving the combined Bell-Hiller mixing that was to become the 'norm' by the end of the decade.  Cyclic control was now much improved though the standard configuration still resulted in a reasonably 'tame' set up; given that it was collective pitch and gyro's were  generally fitted, it was probably for the best otherwise tail control would have been nigh on impossible.

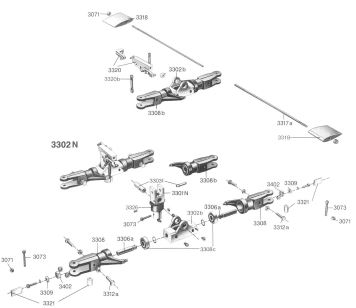

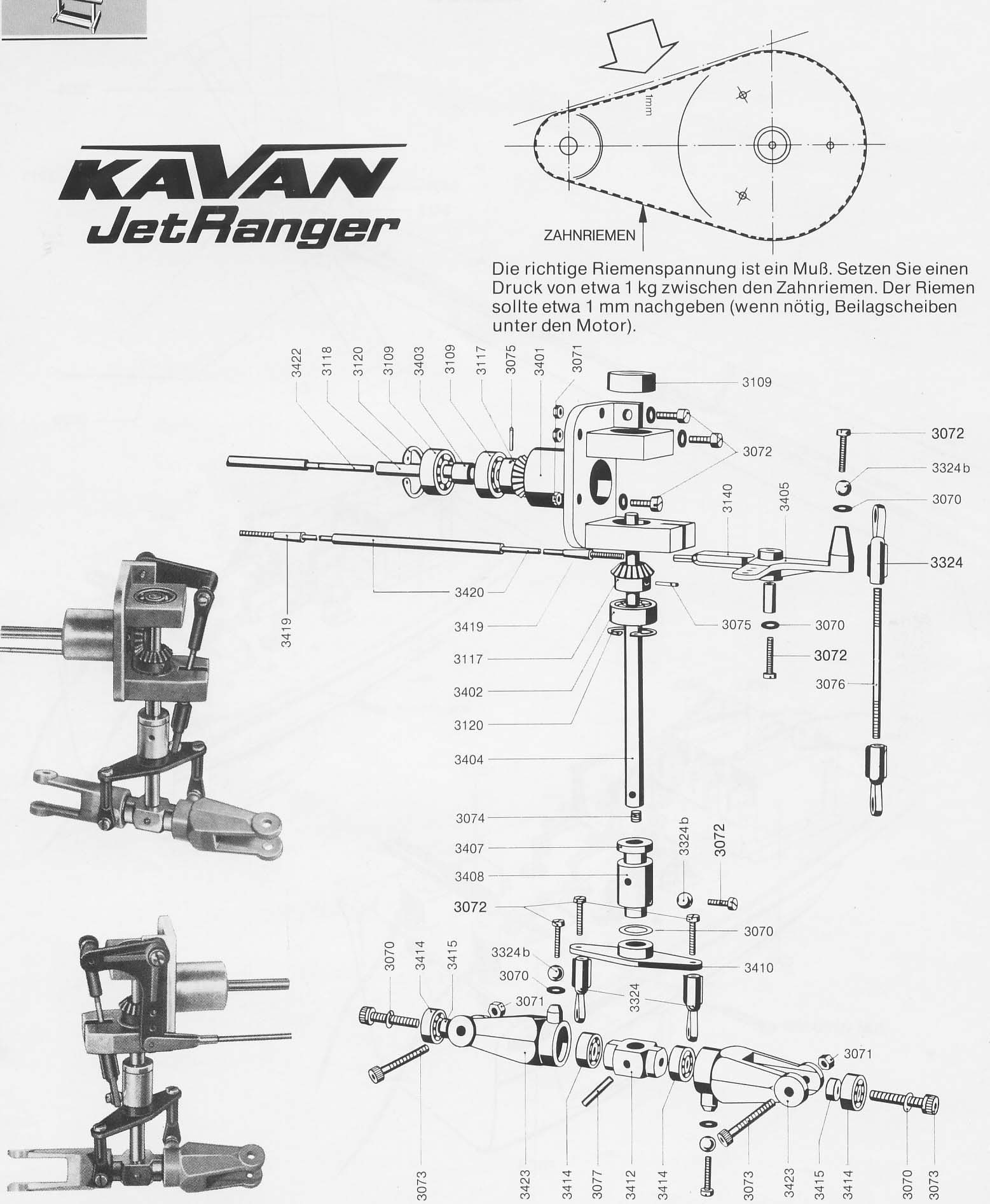

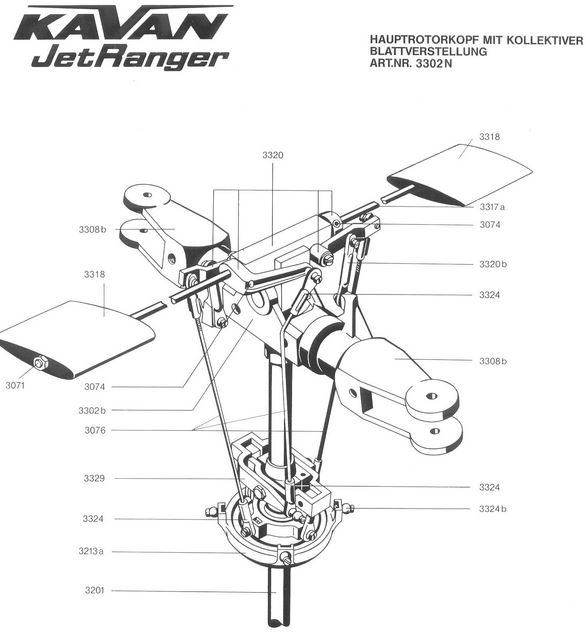

Original Hiller conversion & schematic     Original Hiller washout modification.

The first 'Hiller' modified versions introduced in 1973 did not use any form of 'washout' and so the paddles rotated when collective was adjusted; this type of control would be duplicated by Hirobo a couple of years later for the first two years of their RC helicopter production.  For efficiency the paddles could be set at 0-0 pitch either in the hover, or at circuit pitch setting depending on preference.  Later that same year a 'washout' version was introduced making this version head adjustable for more aggressive behaviour and the JetRanger in this configuration was aerobatic.  Initially though this washout unit was supplied as an addition and not provided with the basic kit; why, who knows, perhaps marketing ploy as the upgrade kit was provided free as long as the registration card was sent in.........

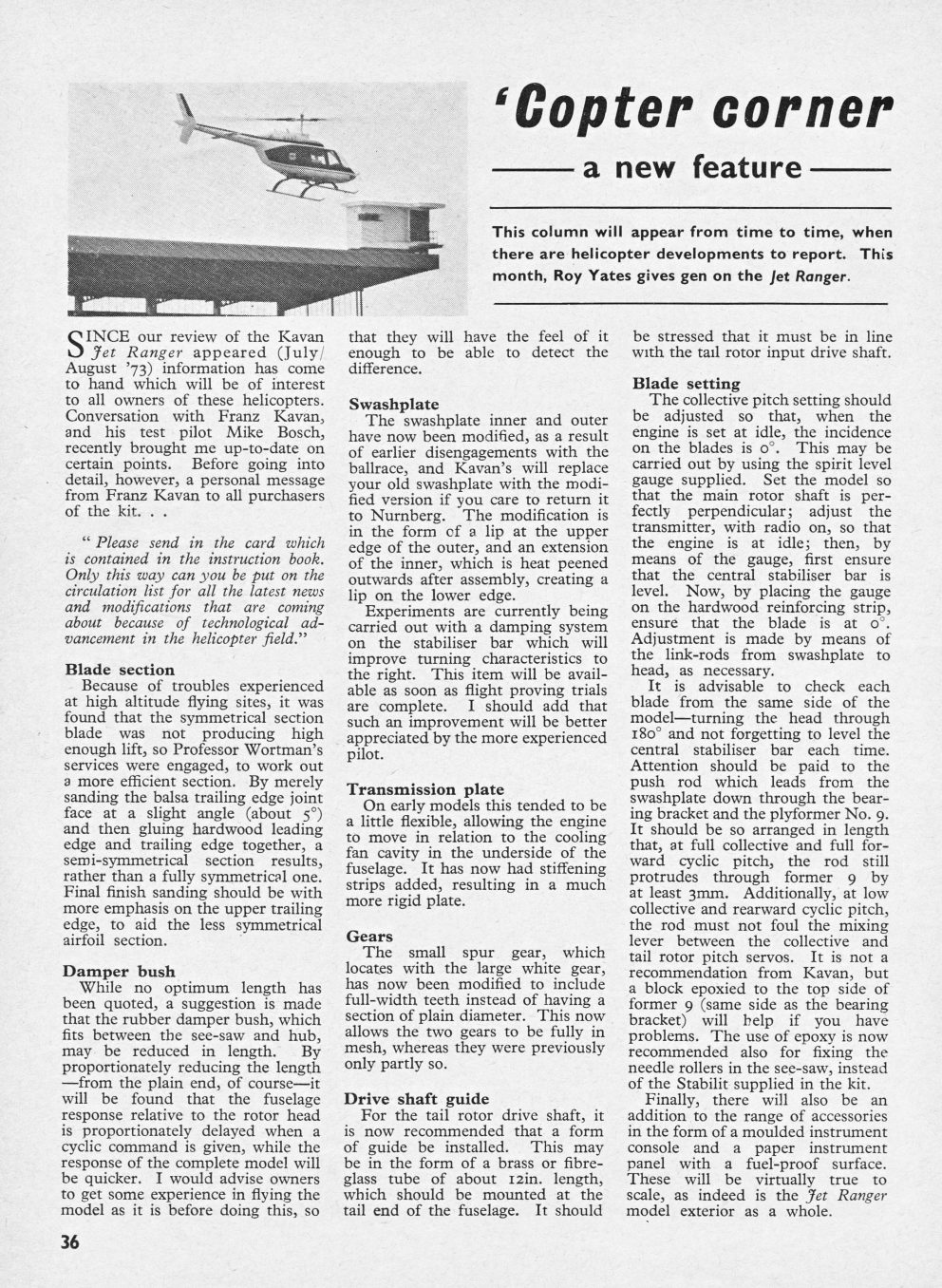

Kit improvements  -  Jan 1974 article on a number of modifications made to the kit in light of operating experience.

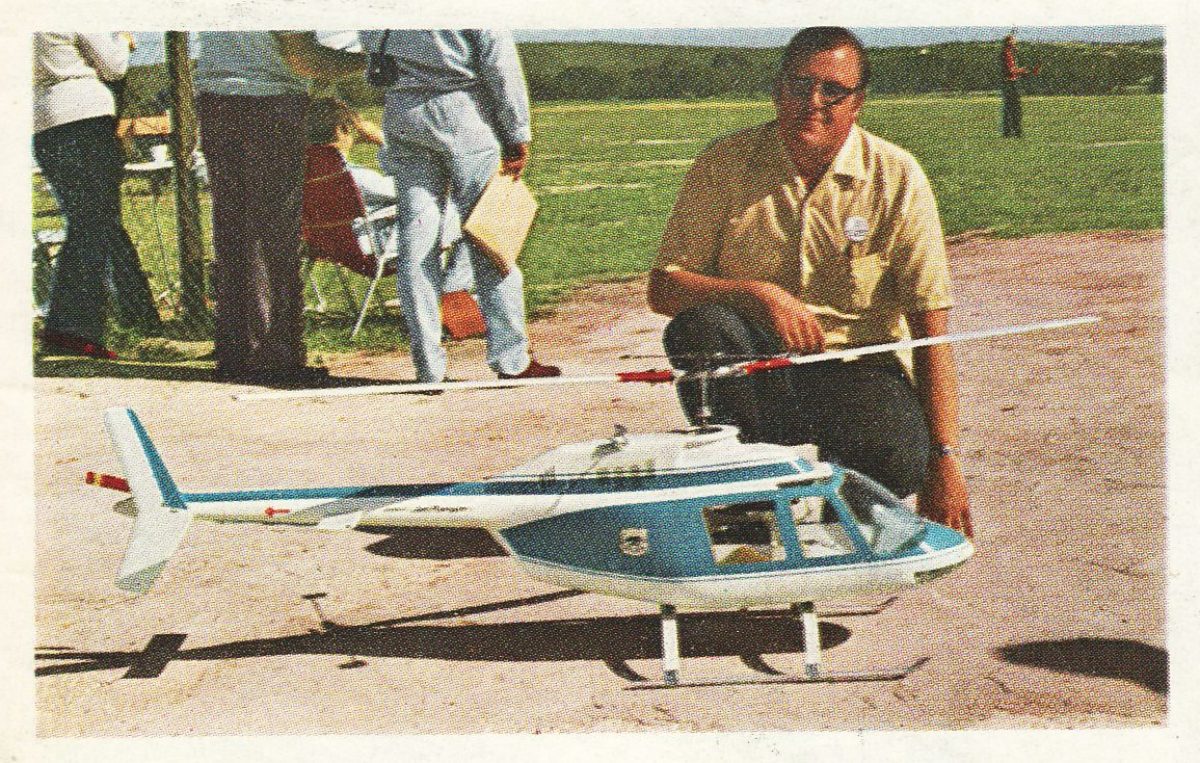

1974 photo, unknown pilot or location

Whilst other have claimed to have looped helicopters before this time the JetRanger was the first to perform a true round loop.  This manoeuvre could only be done with the facility to alter the main rotor blade pitch as zero, or negative pitch is required at the 'top' in order to prevent the manoeuvre from ending up as a figure '9'.  This was first demonstrated before an estimated crowd number of 25,000 early in 1974 by Mike Bosch.  During 1974 the JetRanger was also displayed carrying out a 'roll' which again required zero or negative pitch at the inverted stage in order to keep it reasonably straight and not lose height.

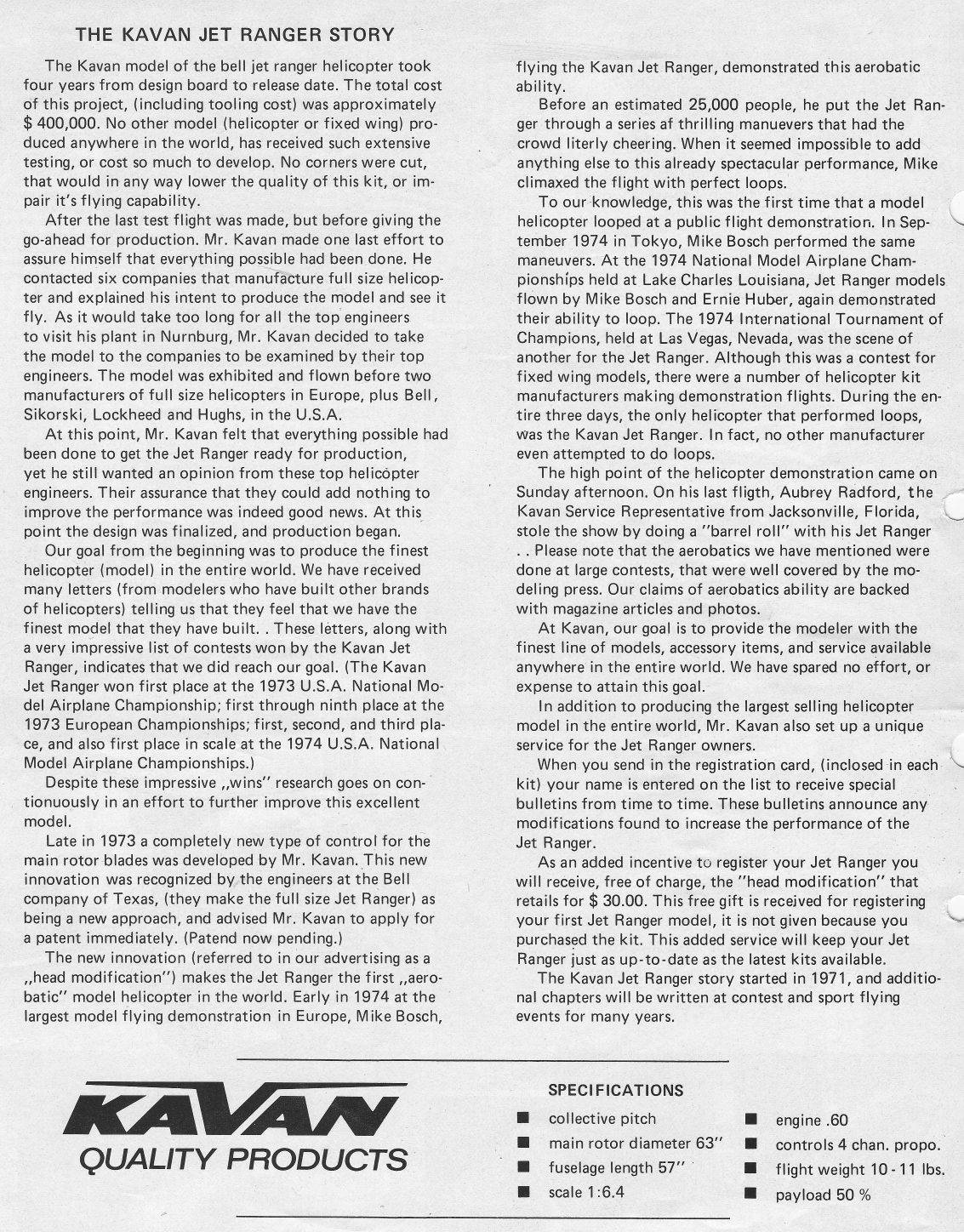

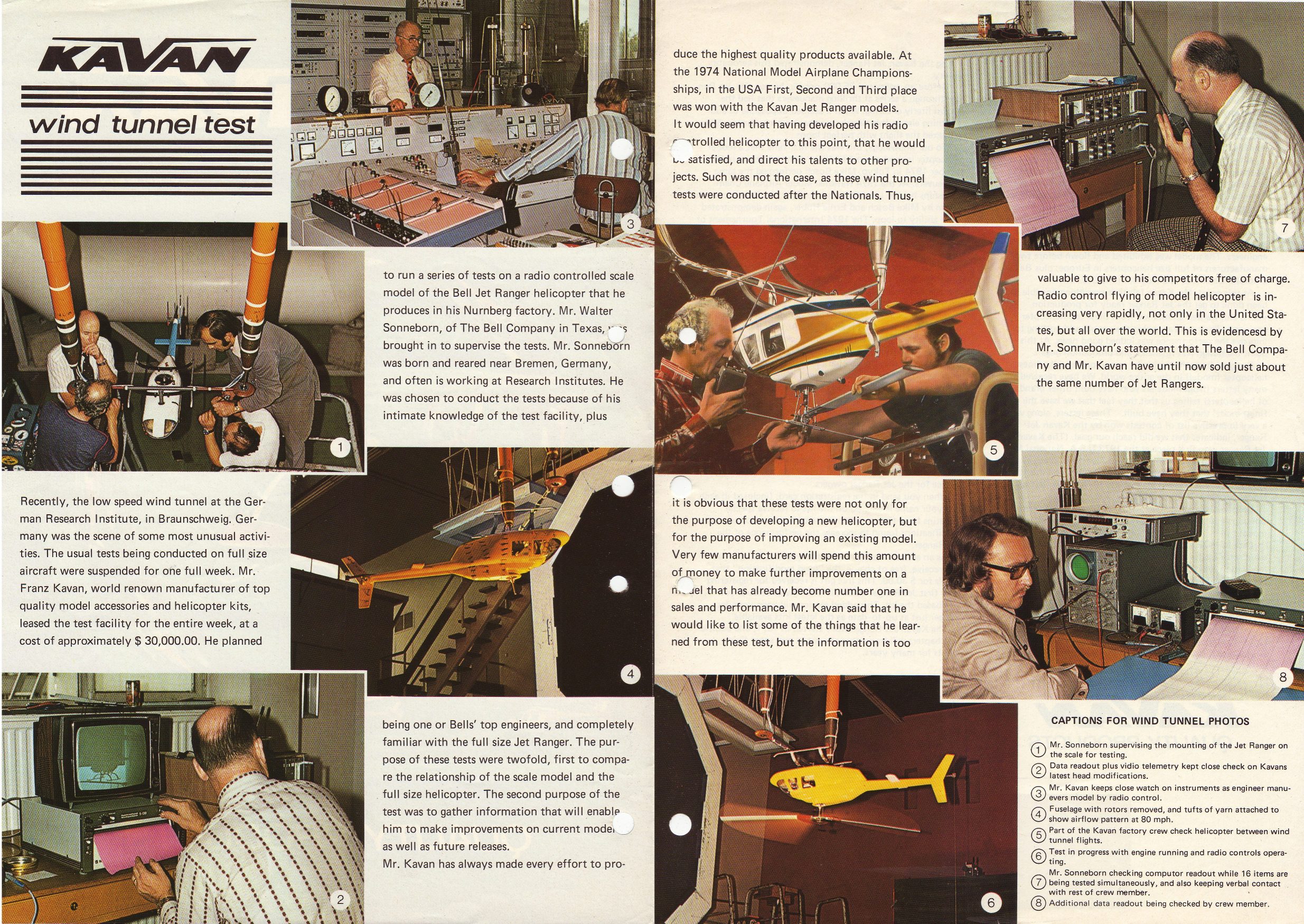

1974 advert featuring an article on the further development of the JetRanger using an very expensive test method; not normally done today never mind at the start of the hobby and shows how seriously Franz Kavan took the subject.  The 'history' page is useful though you have to take the initial statement 'with a pinch of salt'.  It might have only took two years to produce the JetRanger once Kavan came on the scene however, Biesterfeld had been working on his 'Huey' for a few years before that and this should also be included in the 'total' development timescale.

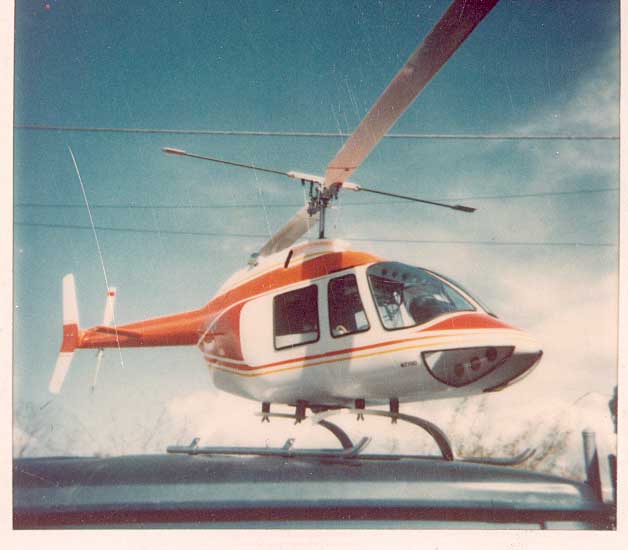

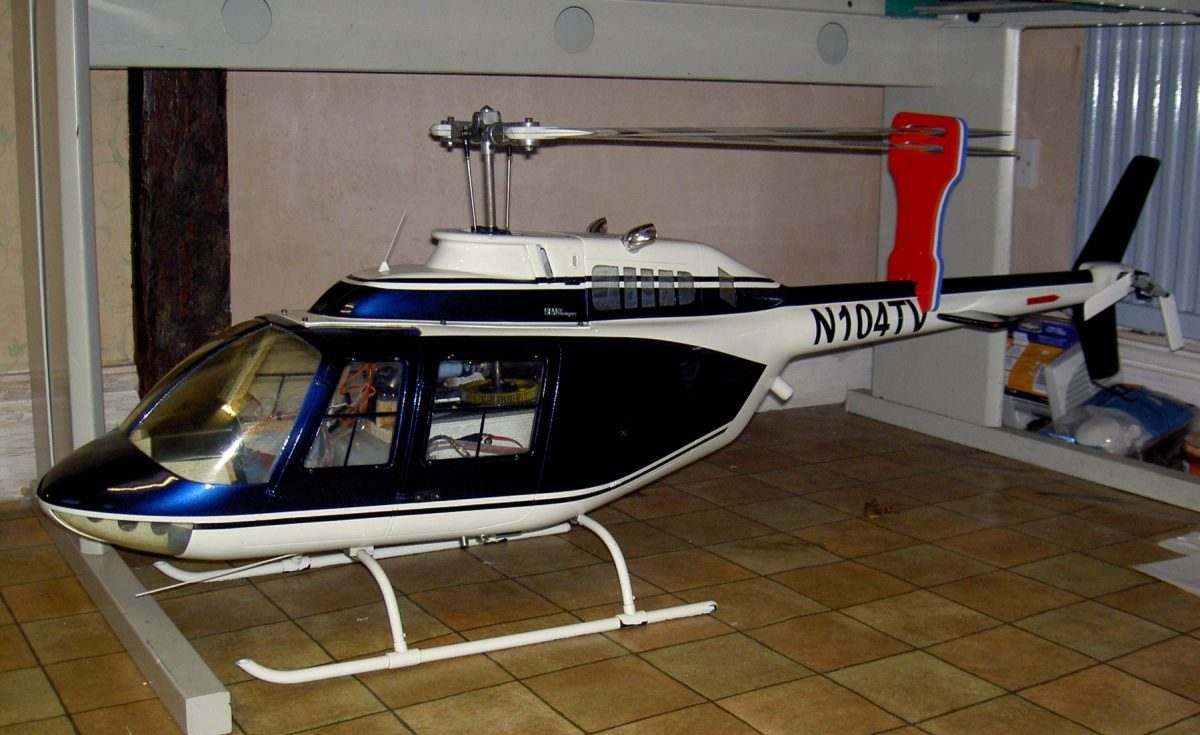

JetRanger of C Starck

In about 1975 after hovering 6,000 gallons of fuel and never getting into forward flight (myself) a gust of wind got me there un planned. After fighting with a heli 75' in the air, disorientation over road ability. Amazingly the crash didn't break but one windshield post and general overall dinged up my heli. I've looked at it now for 35 years and with the help of a 28 yr old lad, have learned how to get into and out of and enjoy scale heli flight. That being said, it's in the future again. The heli was at one time in forward flight by other than me. John Gorham flew it on a day he was demonstrating his heli-boy to the Denver crowd.

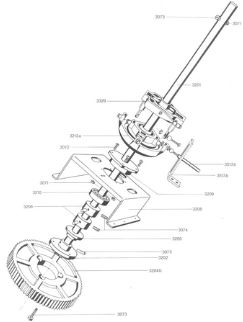

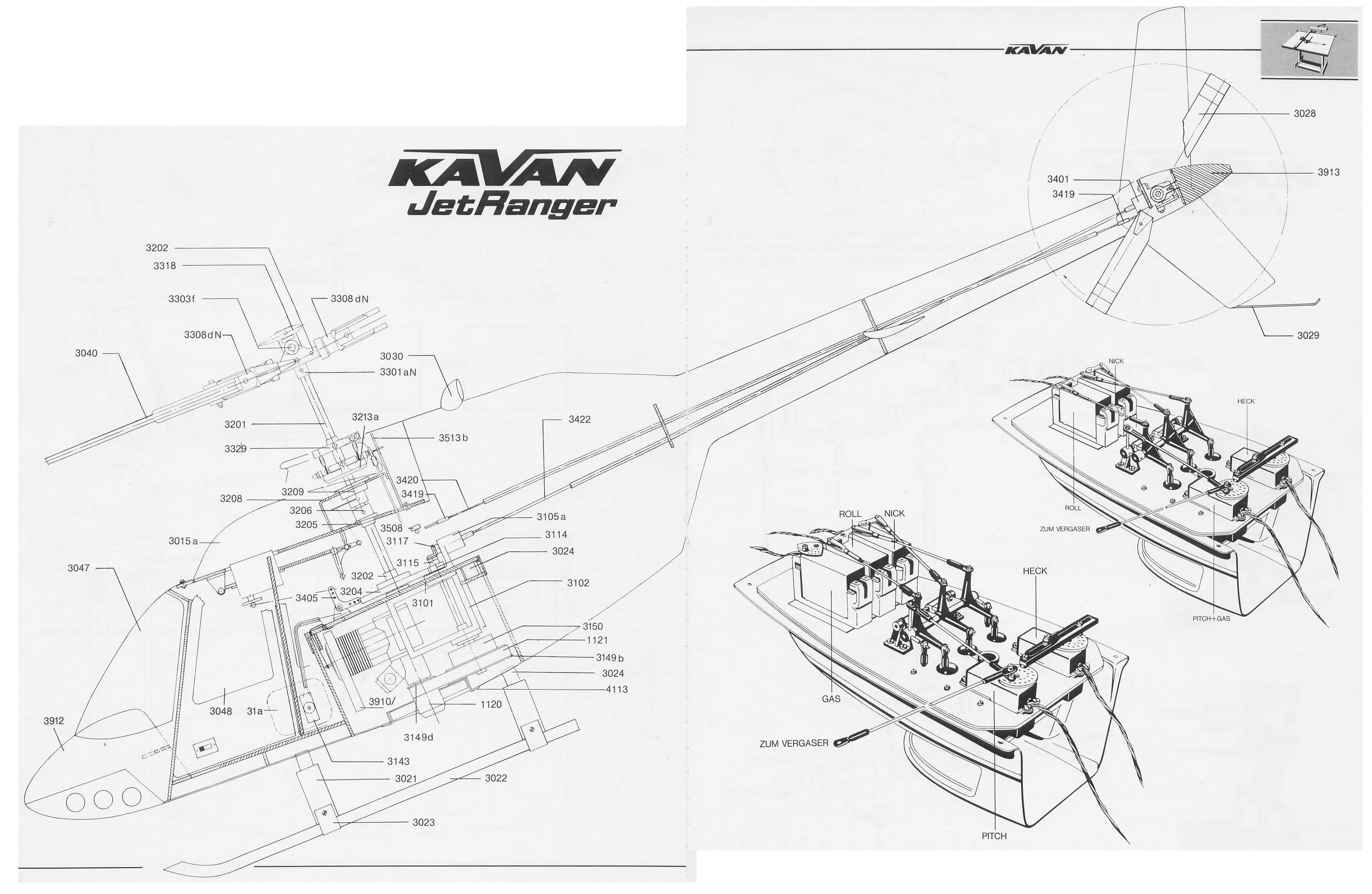

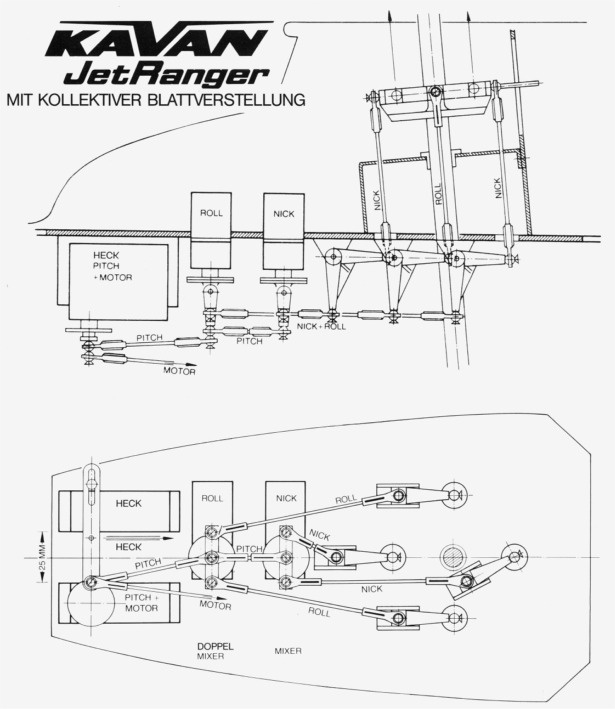

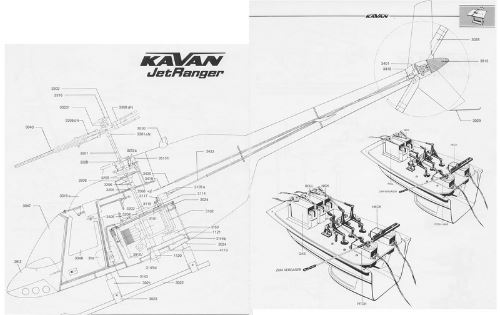

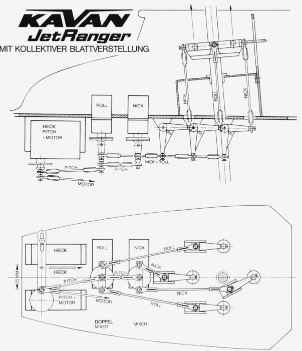

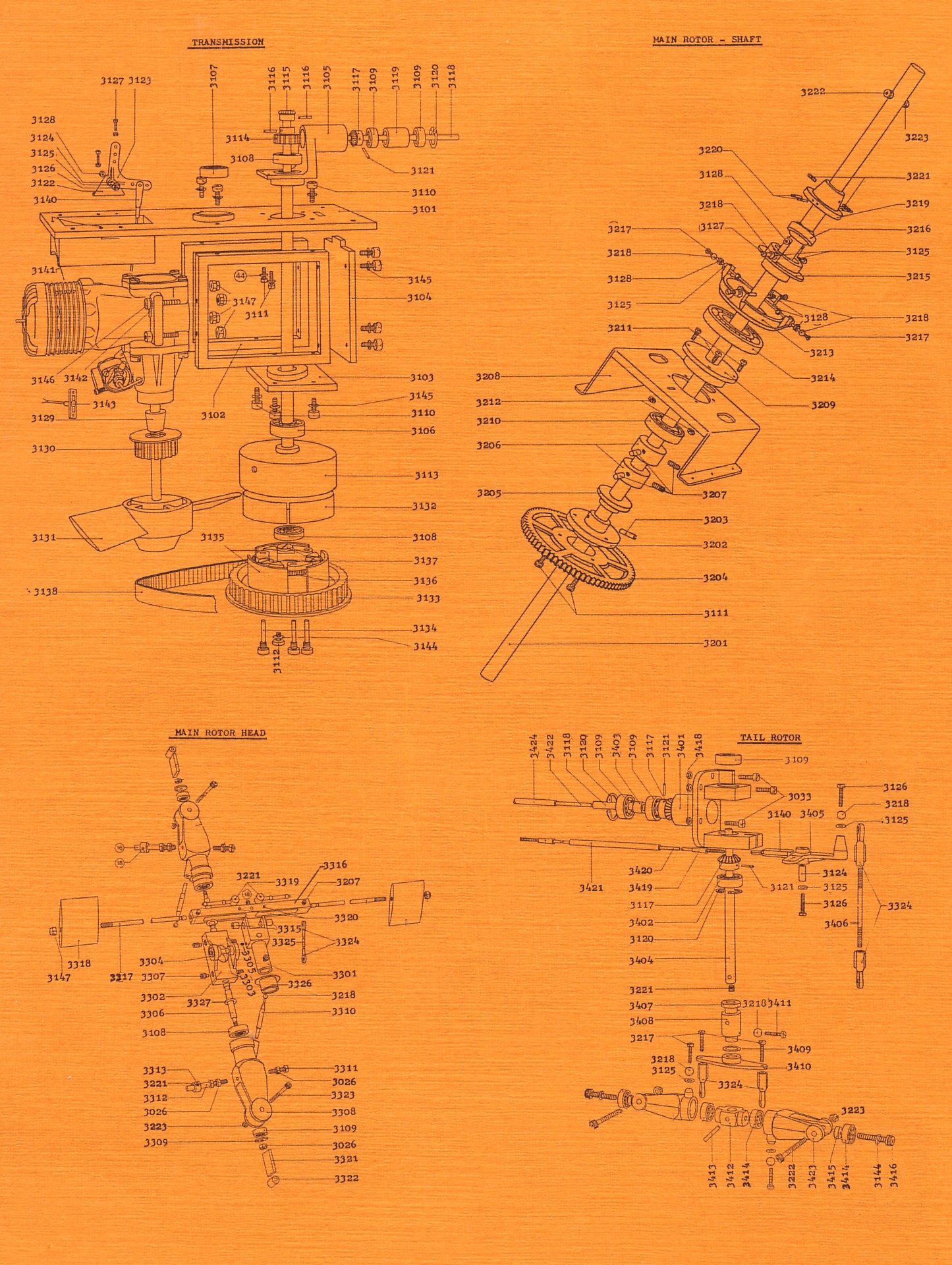

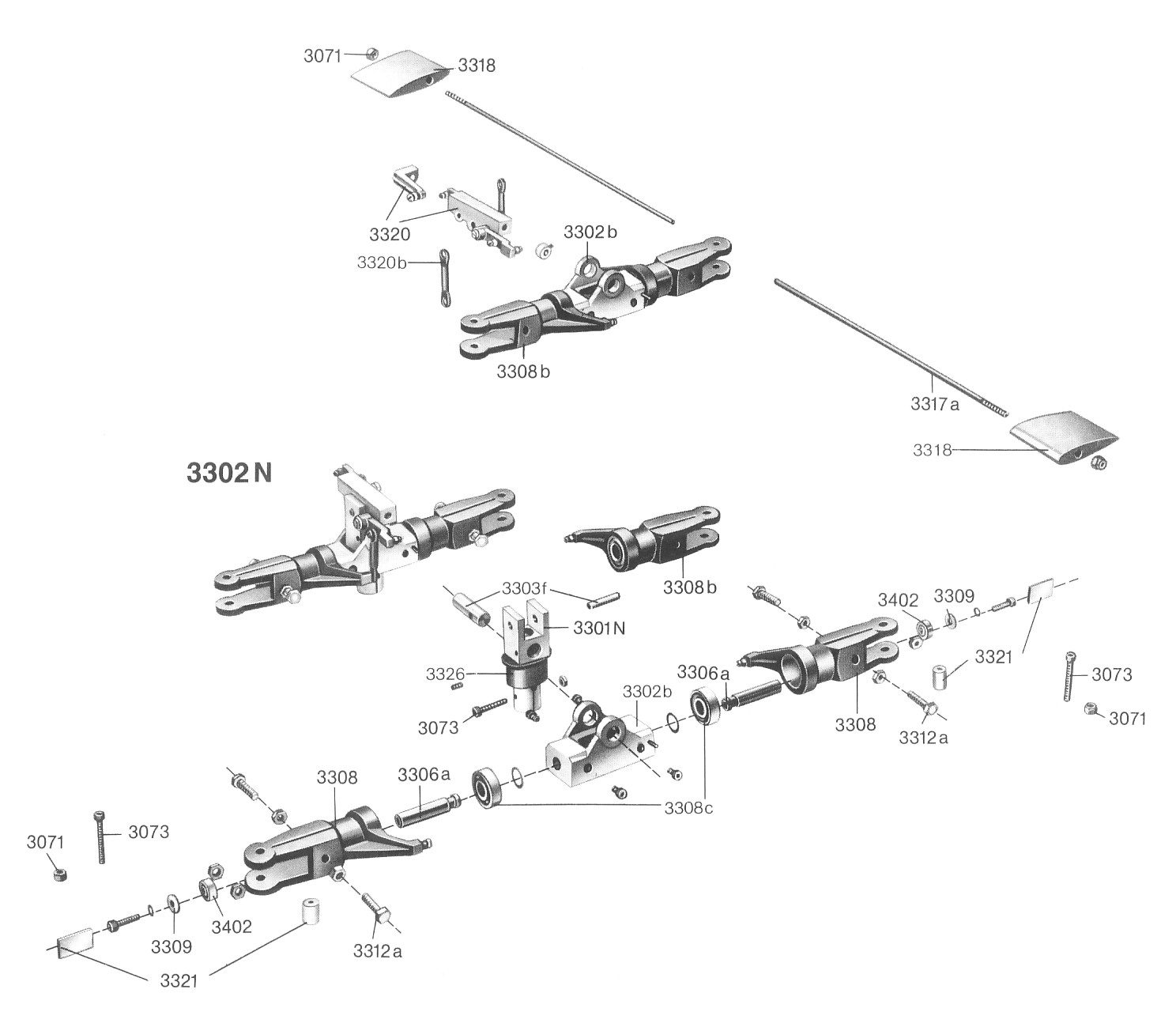

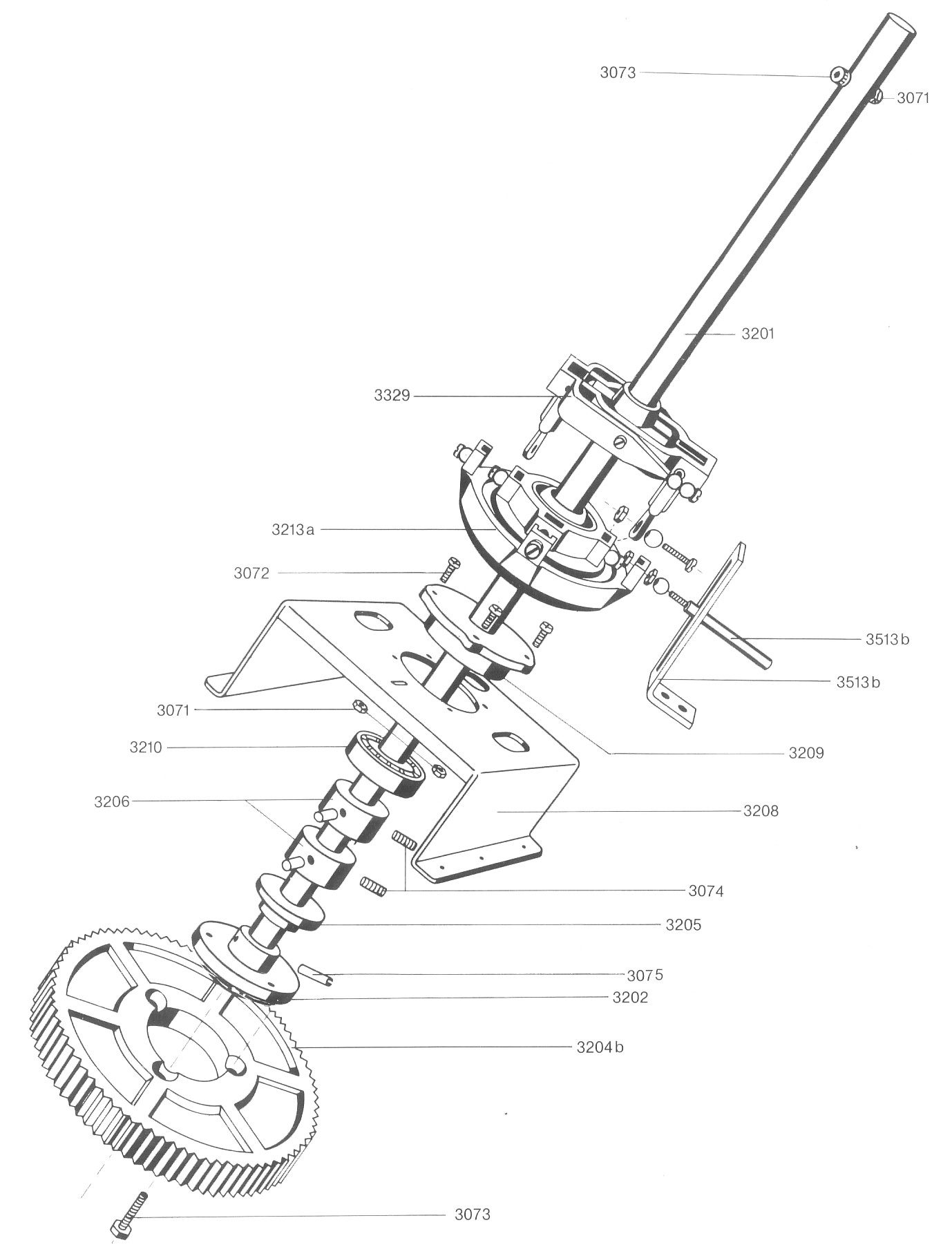

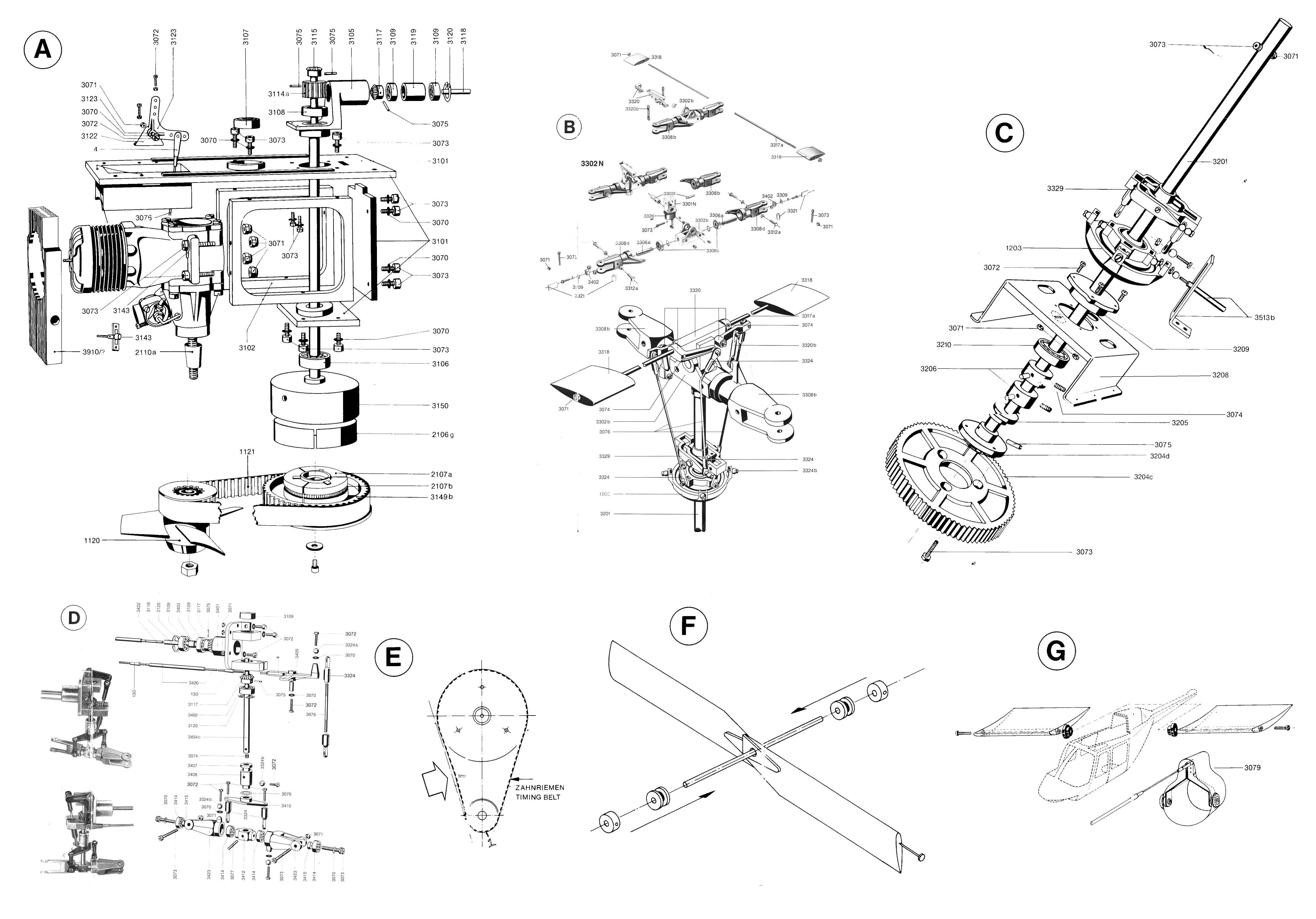

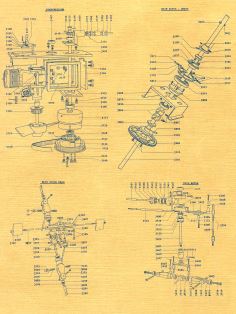

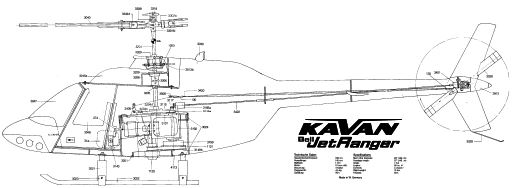

Various constructional views of the version 2 Bell/Hiller model.


76 Adverts.

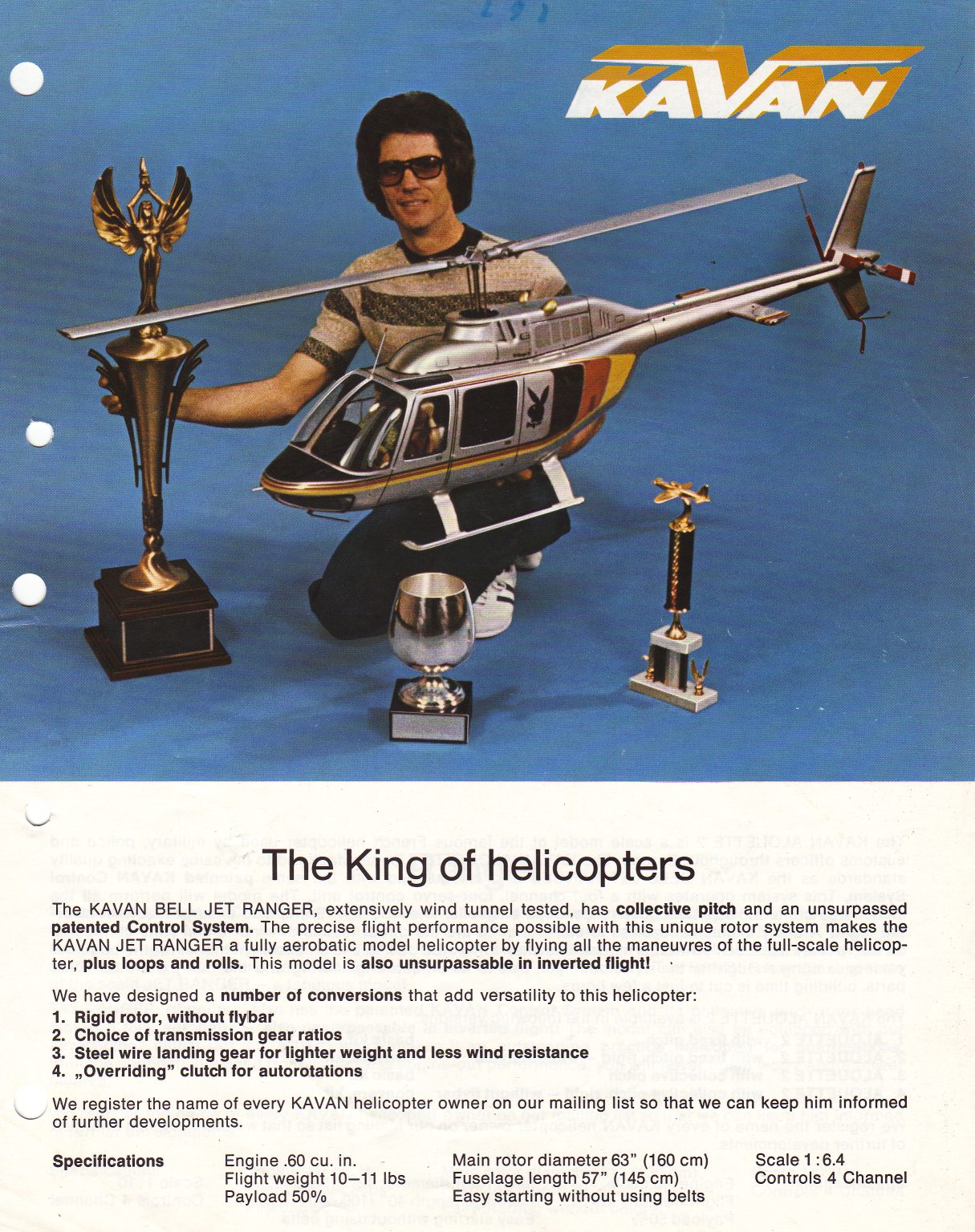

early 1980 advert - note they still used the original picture of the model with bell only stabilisation...!!!

1980 and Kavan introduced their freewheel autorotation clutch for the JetRanger thus allowing the model to stay competitive.

Helipad -  Kavan JetRanger review by John Heaton from Mar 1982.

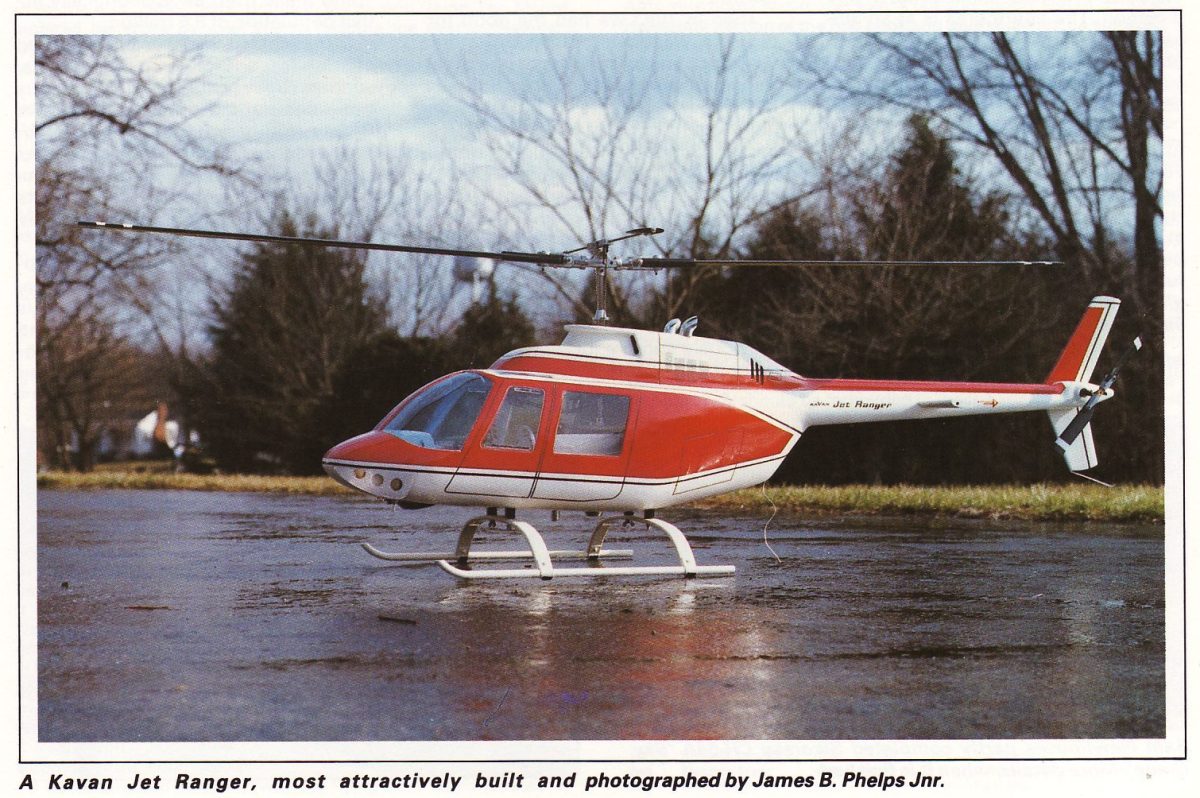

1984 magazine photo.

As can be seen even by the mid 80's the JetRanger was a viable model due in no small part to it still being considered one of the best scale fuselages.

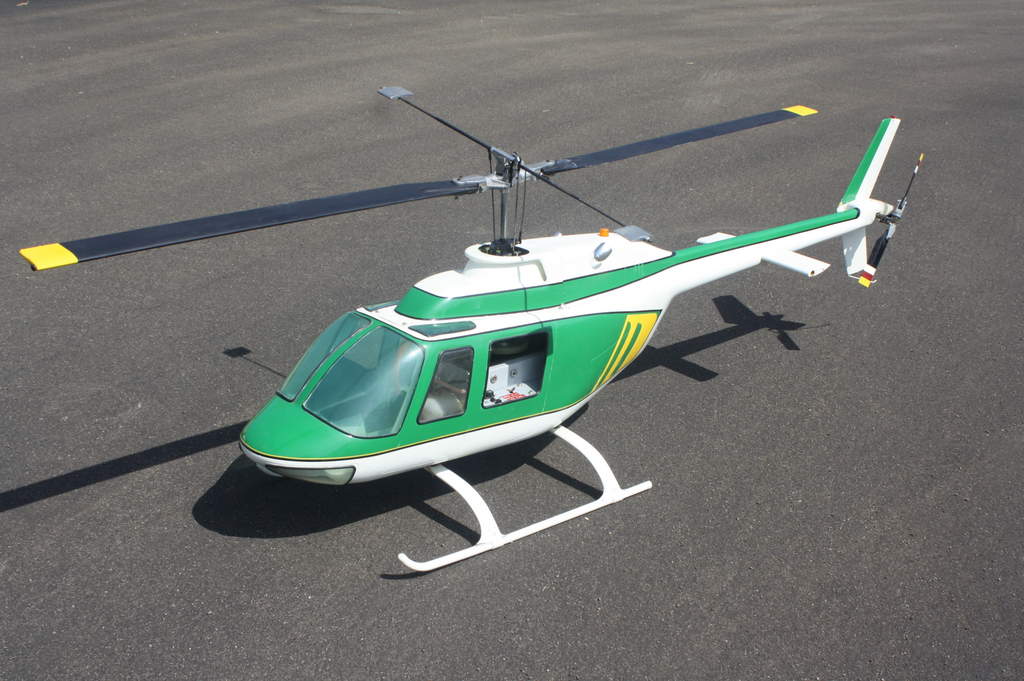

  • JetRanger Green 01

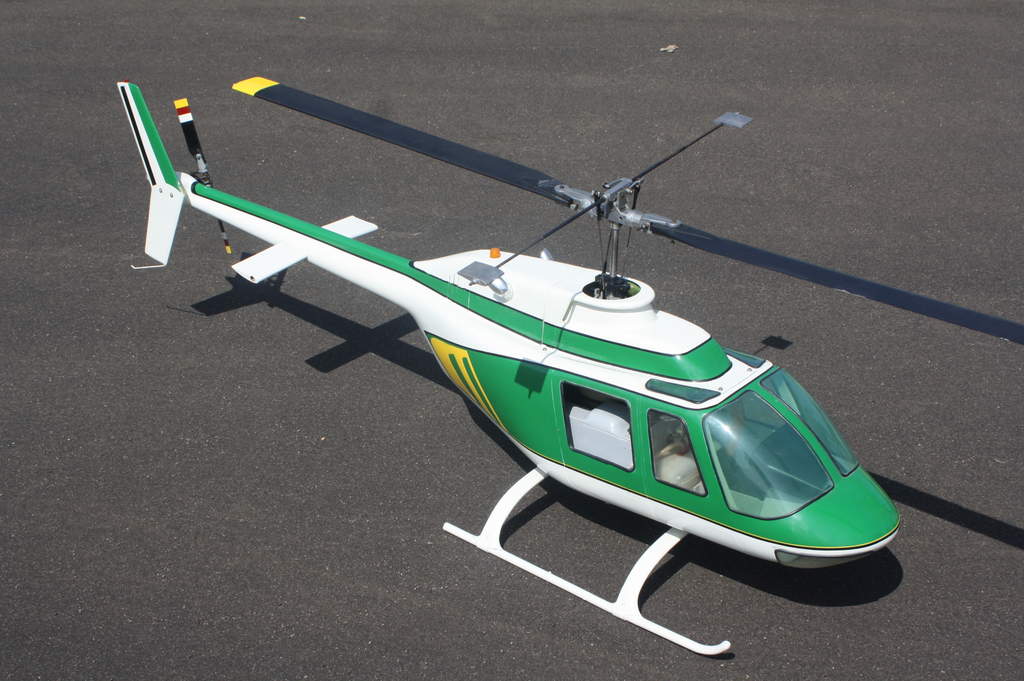

  • JetRanger Green 02

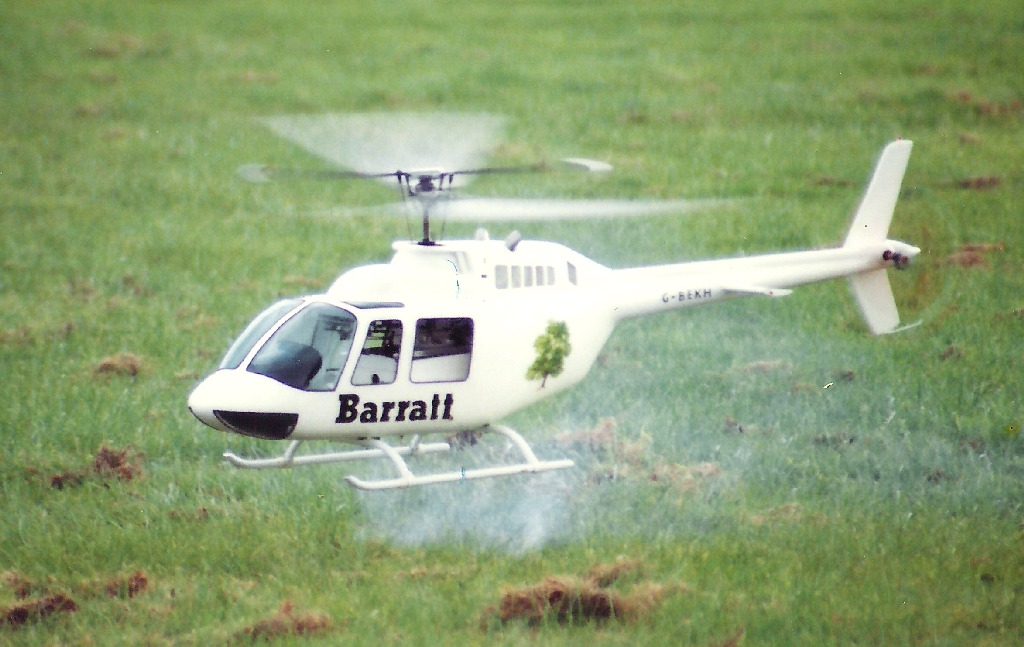

  • JetRanger-Barret

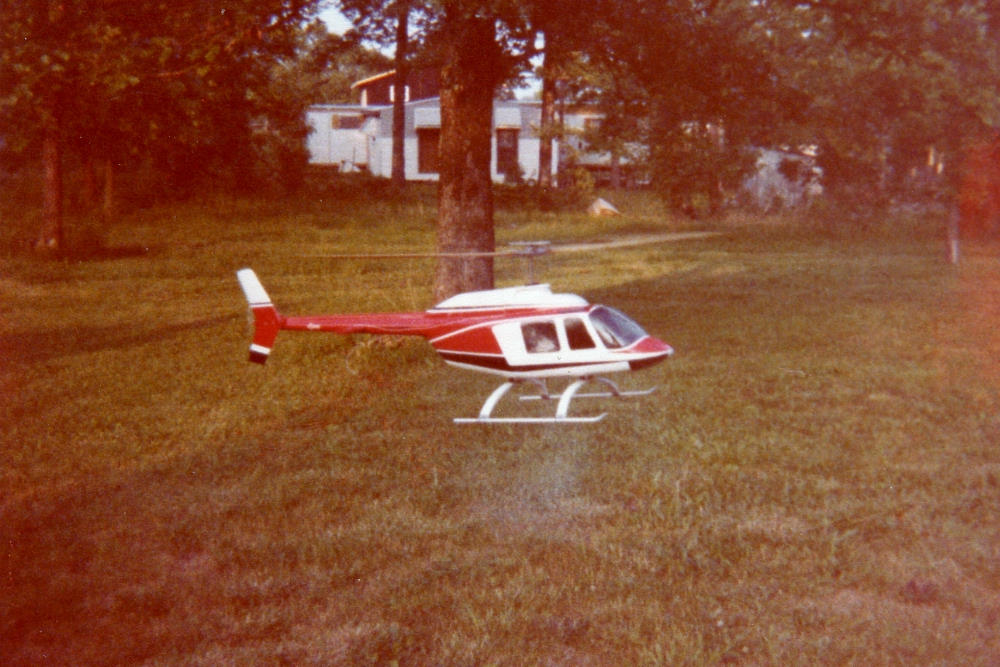

  • Kav JR no gyro

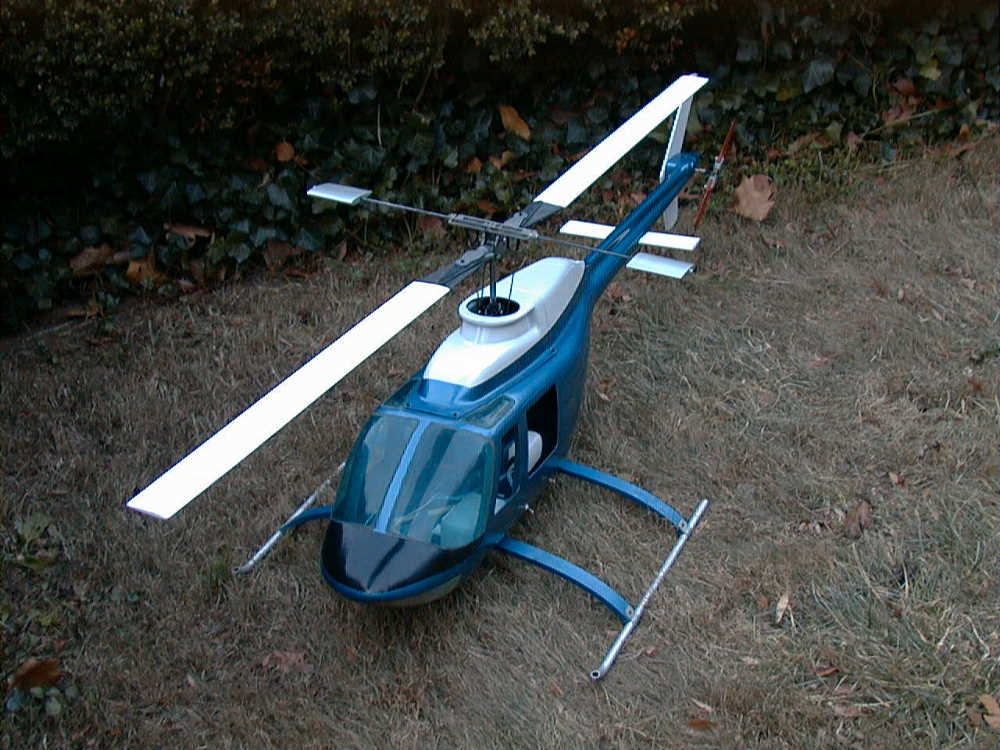

  • Kavan Jetranger early model

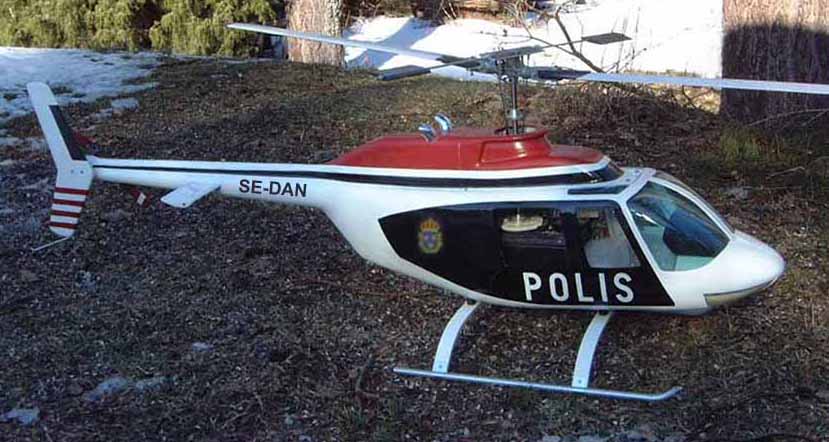

  • kavan polis JetRanger

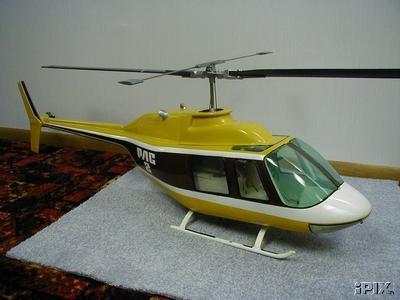

  • kavan

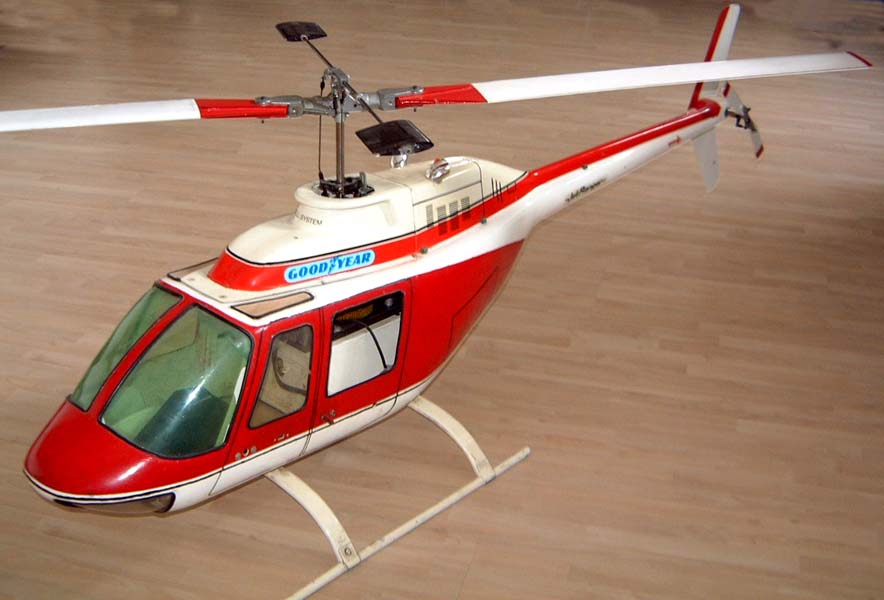

  • kavanjetranger

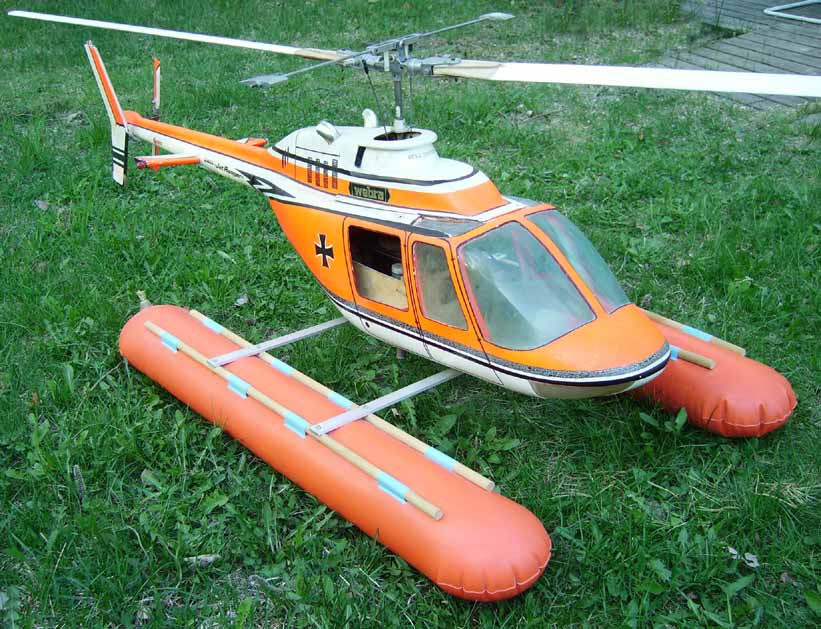

  • kavanjetranger5

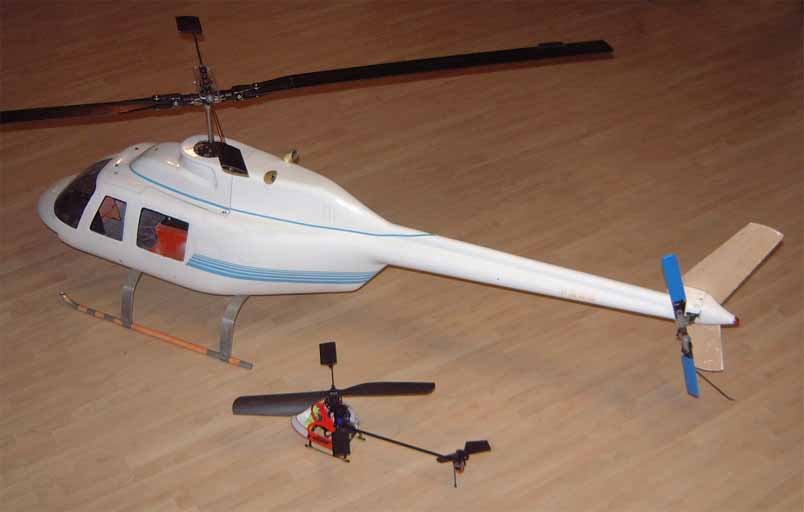

  • kavanjetrangerccpm

Last pictures shows what can happen when a JetRanger tips over.... As the top cover was very substantial due to locating the servo's and linkages etc as a unit, in a mishap it stays intact and just rips up the fuselage beneath it.

Kavan JetRanger Flybarless (1979)

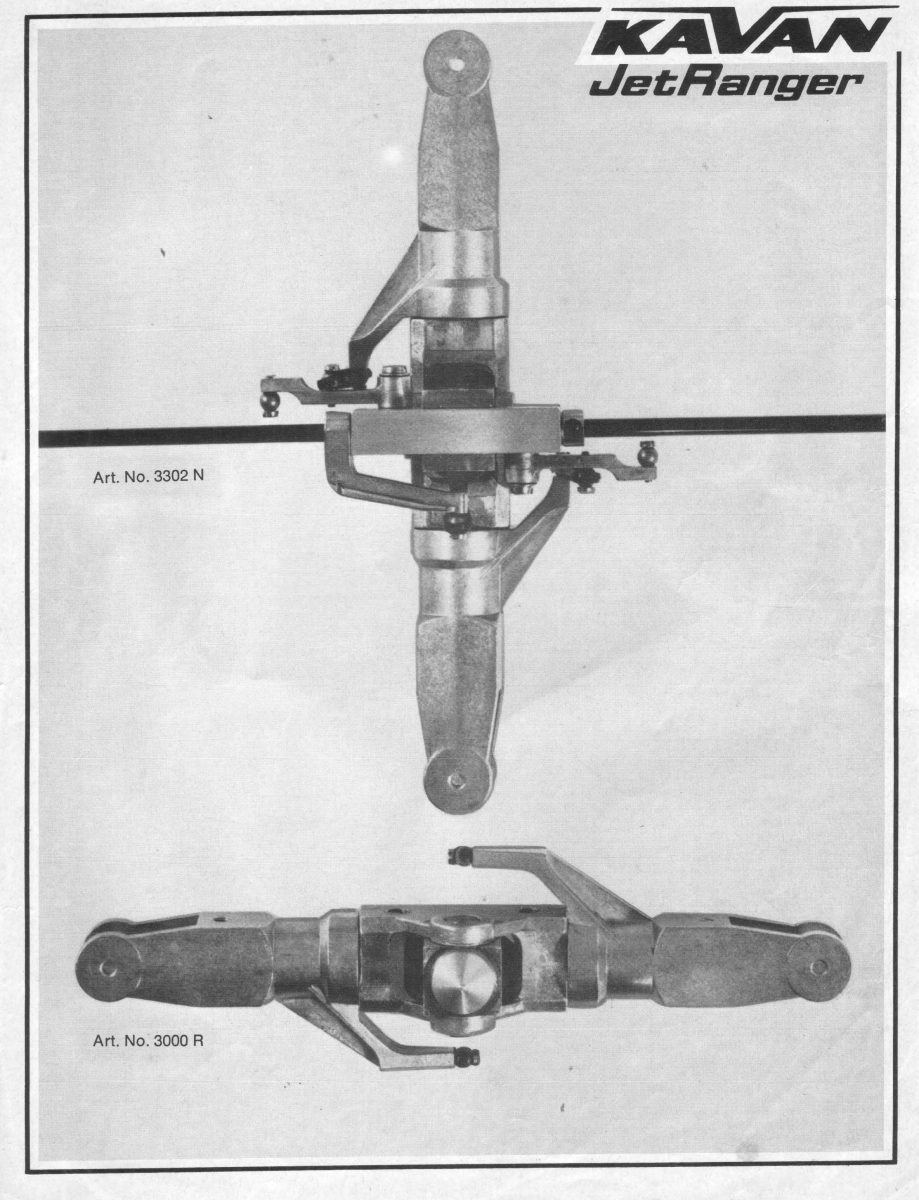

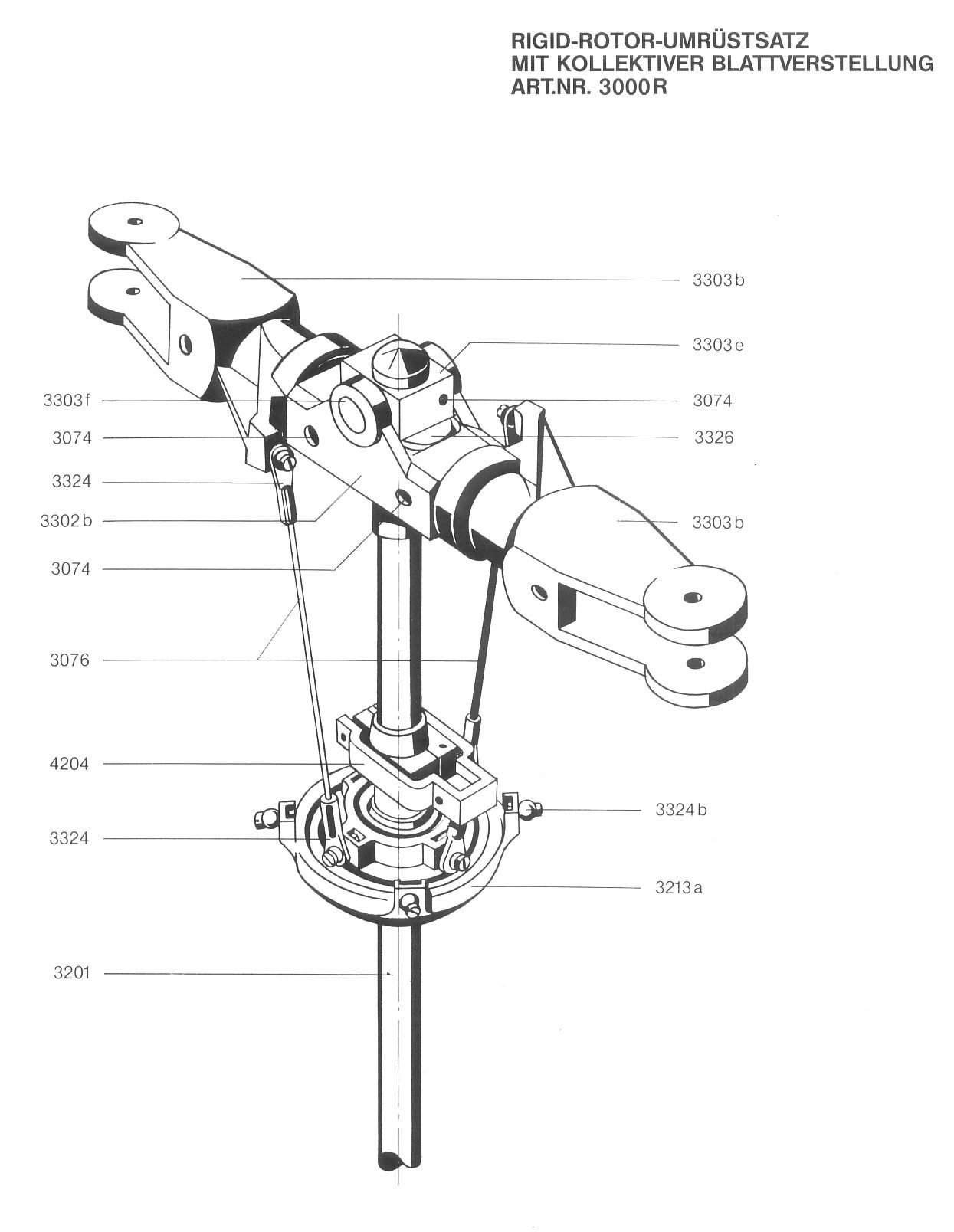

FBL head.

In 1979 the JetRanger was also made available as a rigid rotor (Flybarless) model as well as in the 'standard' flybar form; only goes to show as even 30 years later (prior to the FBL electronic 'revolution') they were considered difficult to fly.

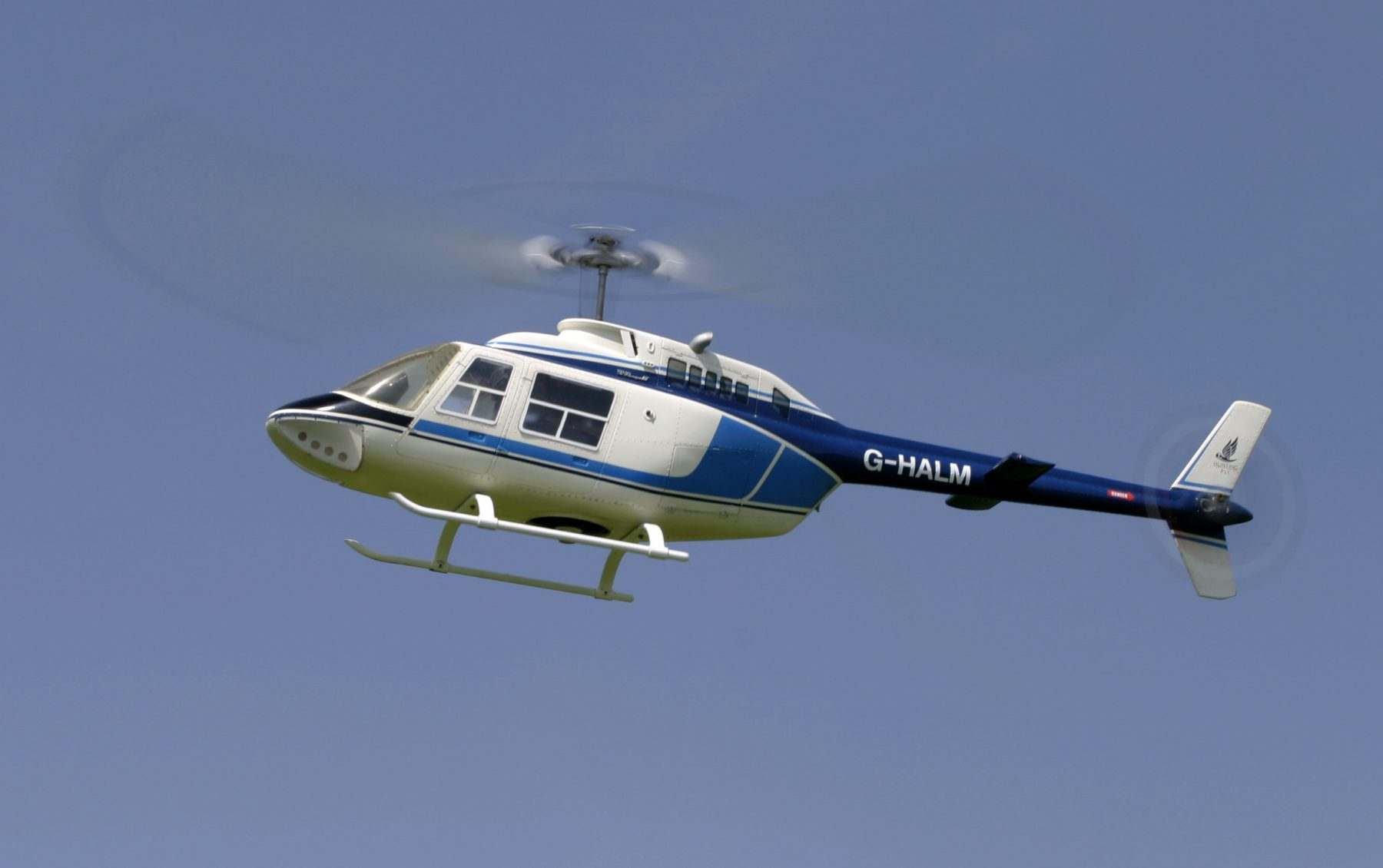

(Flybar) - Ken Gale   (Flybarless) -

1980 and Kavan introduced their freewheel autorotation clutch for the JetRanger thus allowing the model to stay competitive.

  1978???

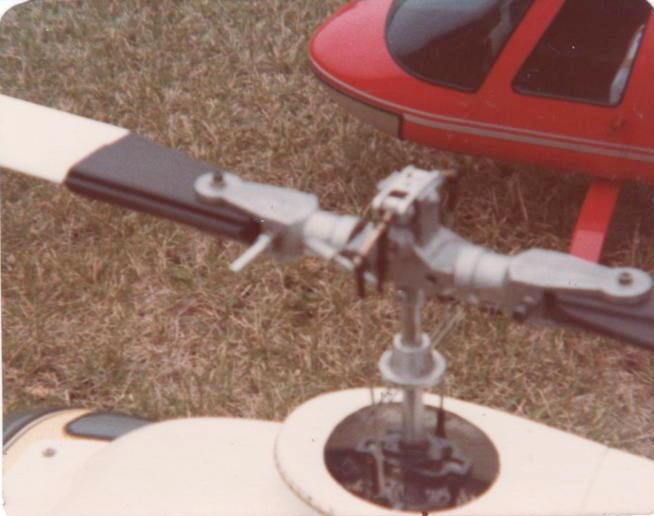

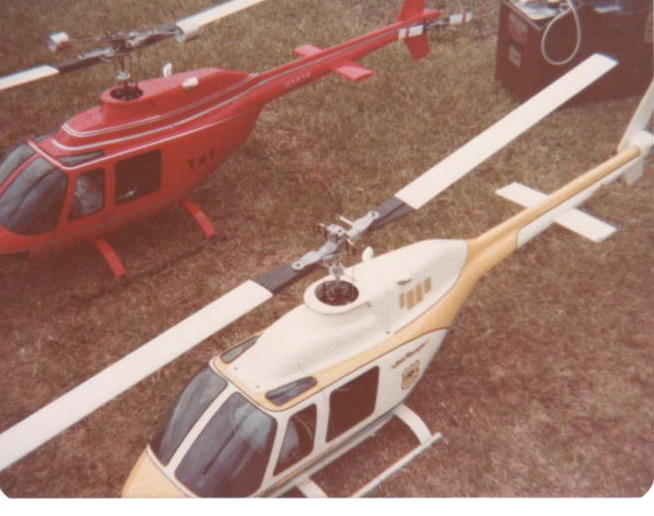

Notes for these pictures would indicate the year as 1978 for this Kavan JetRanger Flybarless model; flybar carrier has been removed and a fixed block fitted in order to attach the original mixer arms so as to retain the collective movement, home design as the official version did not come out until later and used a completely different looking rotor head.
