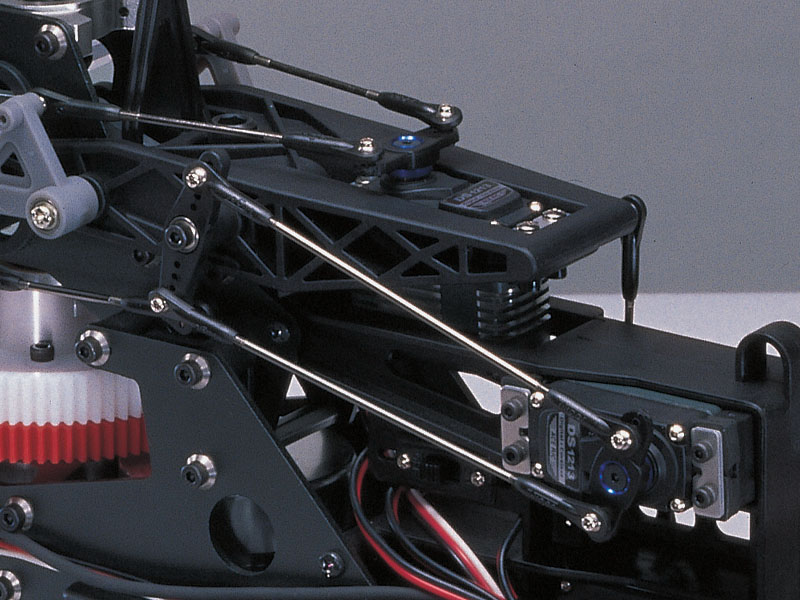

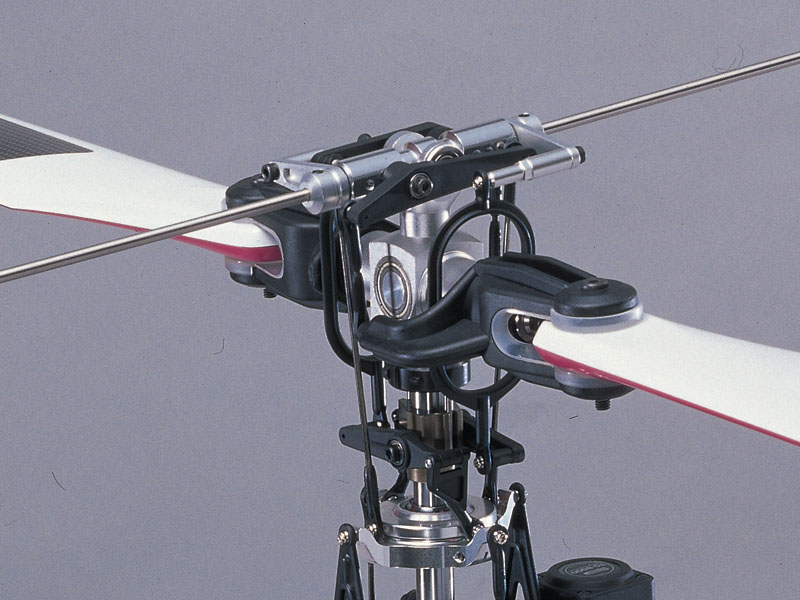

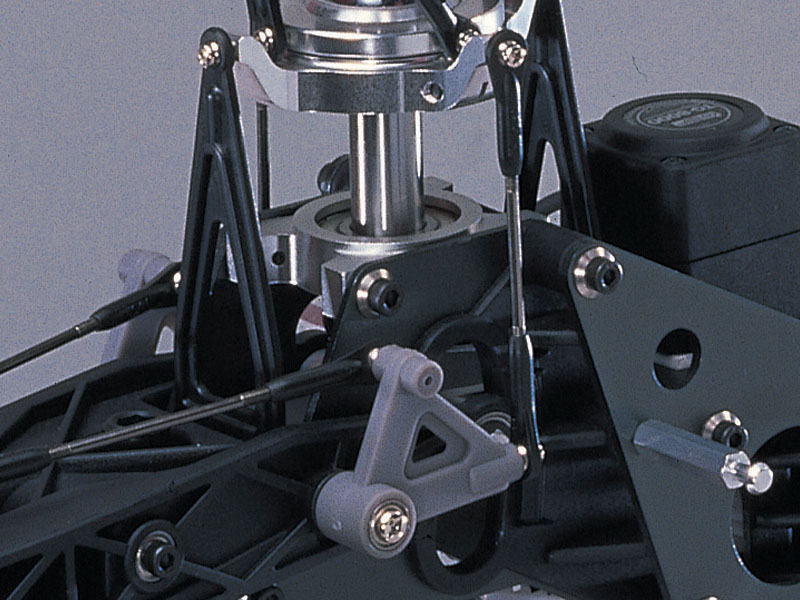

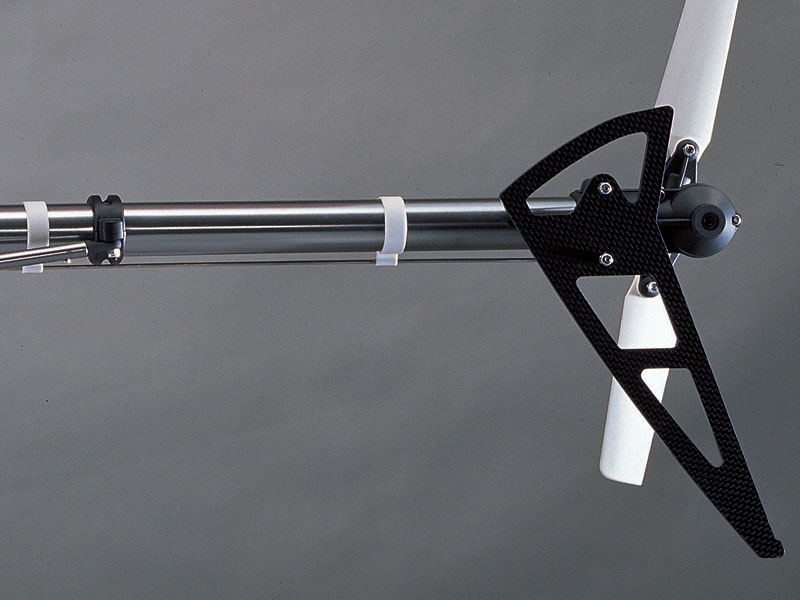

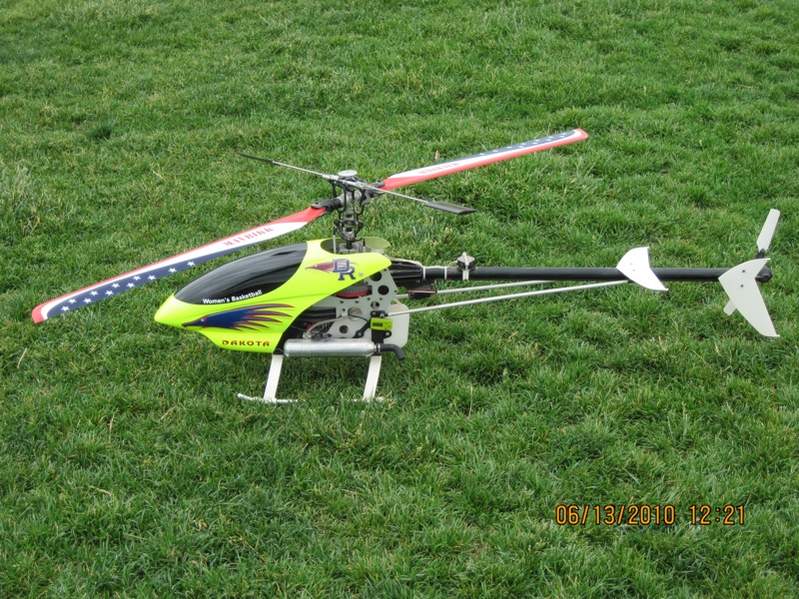

Thunder Tiger- Raptor 90
 |
Specification:
| Full Length of Fuselage(mm / in.) |
(1410mm)55 1/2" |
| Full Width of Fuselage(mm / in.) |
(190mm)7 1/2" |
| Total Height(mm / in.) |
(476mm)18 1/3" |
| Main Rotor Dia(mm / in.) |
(1605mm)63 1/4" |
| Tail Rotor Dia(mm / in.) |
(260mm)10 1/4" |
| Gear Ratio |
8.27:1:4.65 |
| Full Equipped Weight(g/ lbs.) |
(4800g)10.58 lbs |
|
| Documents: |
Raptor 90 Manual |
 Raptor 90 3D Manual |

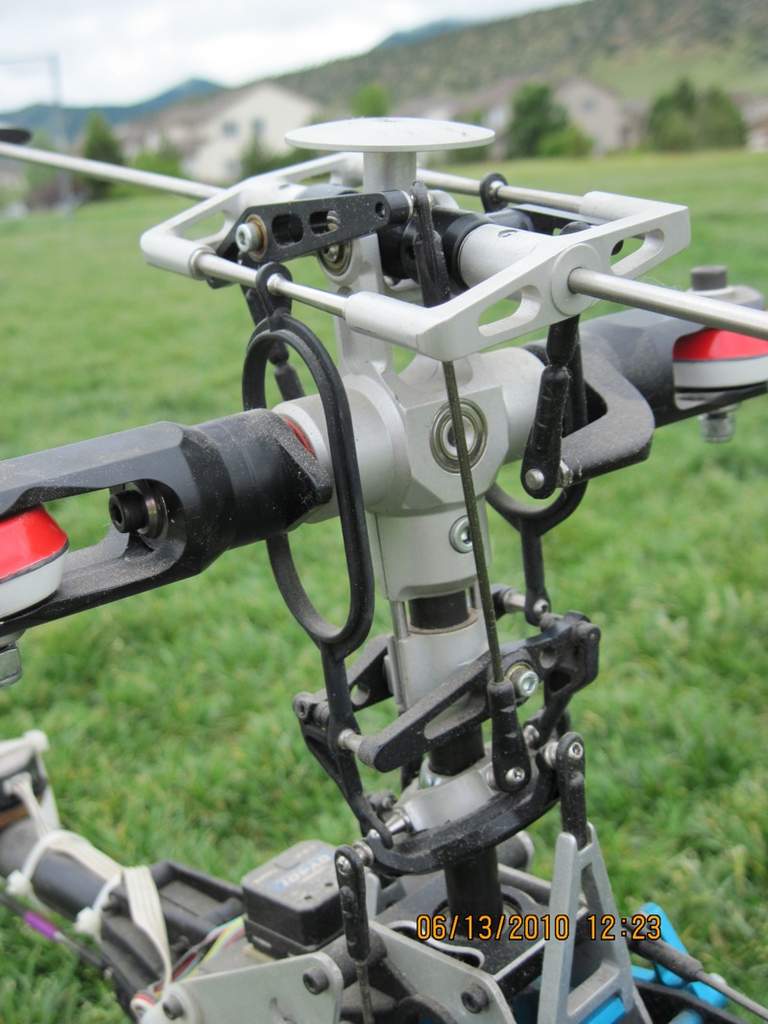

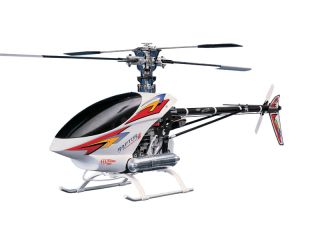

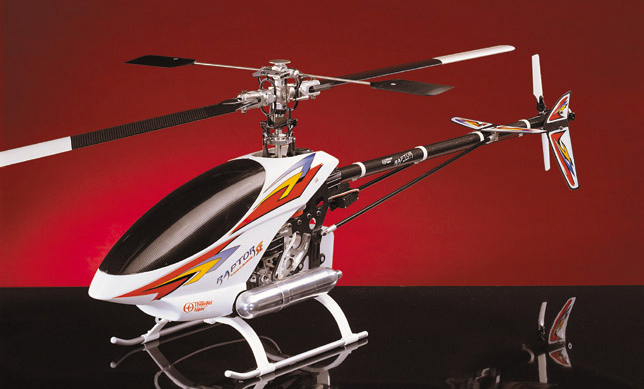

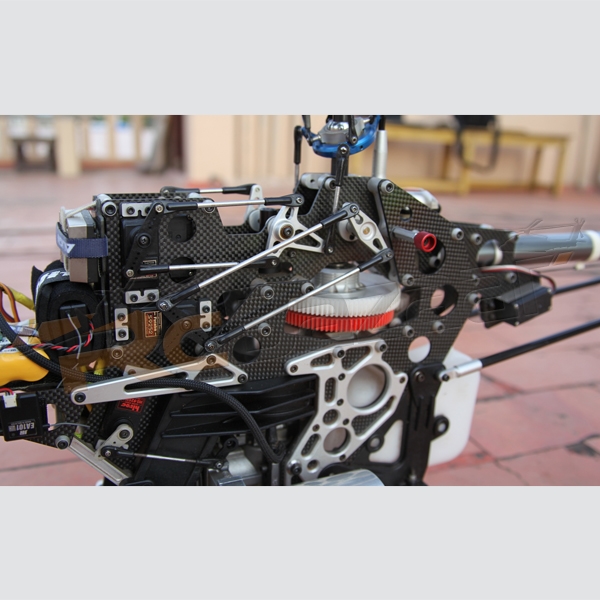

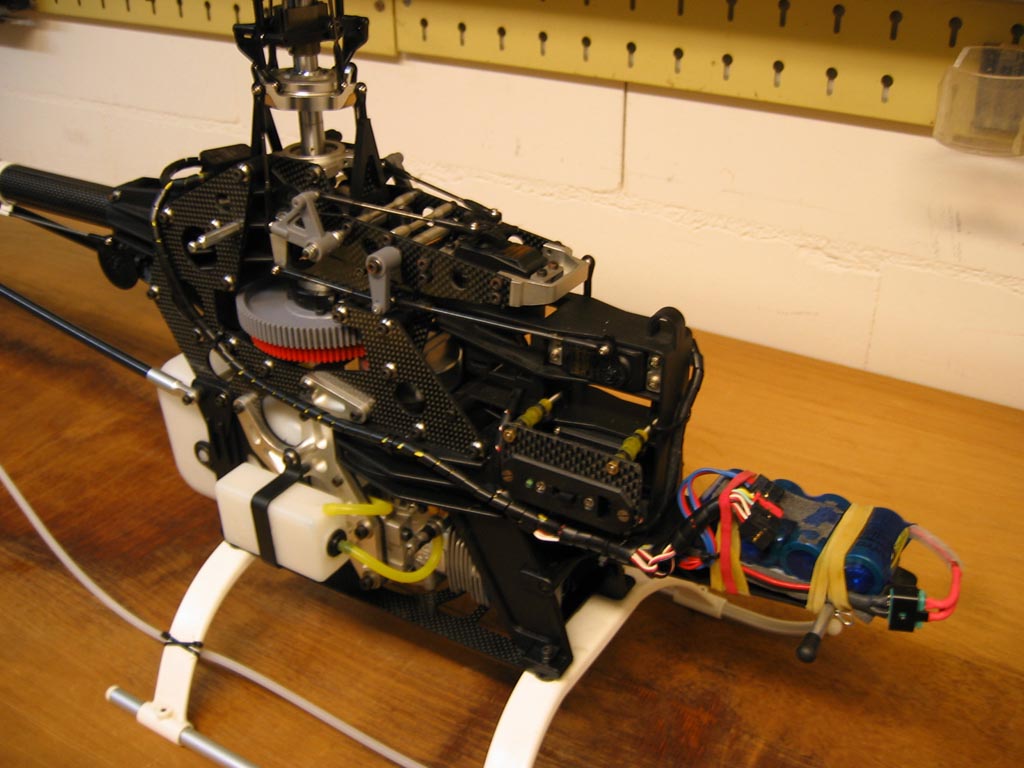

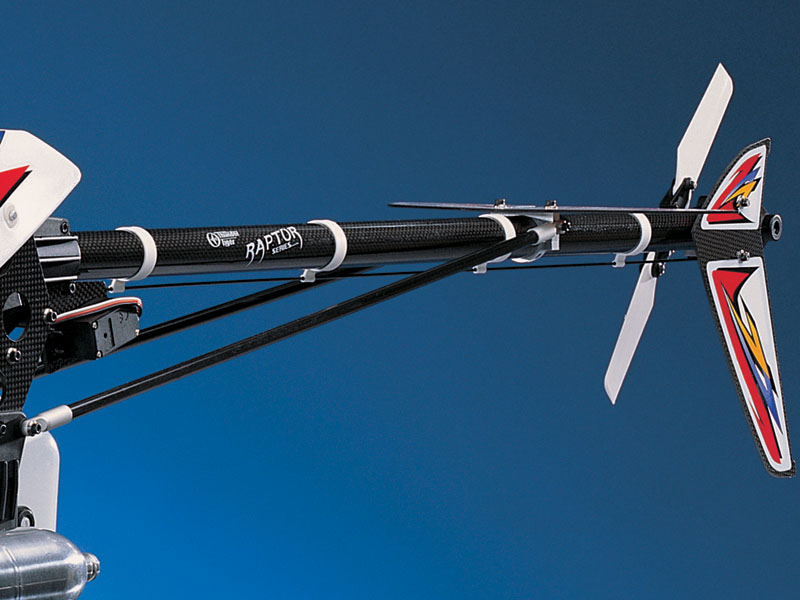

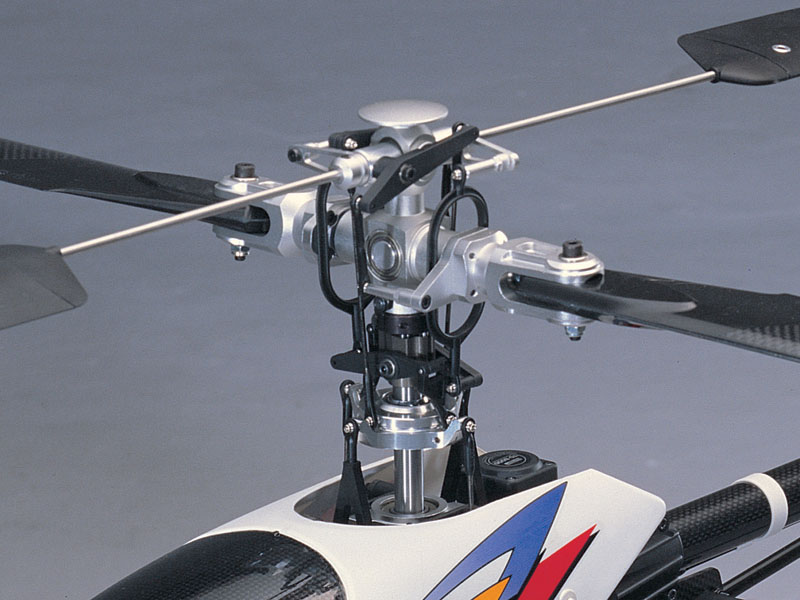

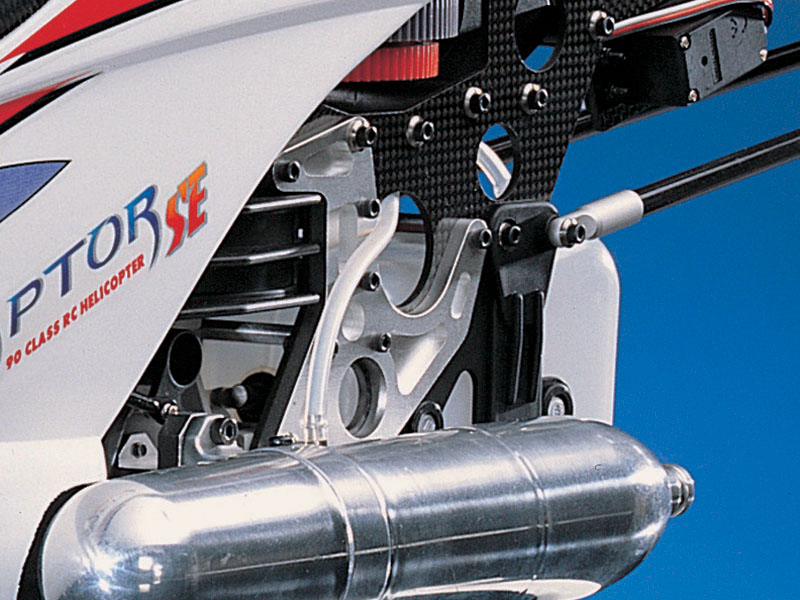

Thunder Tiger- Raptor 90 SE
 |
Specification:
| Full Length of Fuselage(mm / in.) |
(1410mm)55.51" |
| Full Width of Fuselage(mm / in.) |
(190mm)7.48" |
| Total Height(mm / in.) |
(476mm)18.74" |
| Main Rotor Dia(mm / in.) |
(1605mm)63.19" |
| Tail Rotor Dia(mm / in.) |
(260mm)10.24" |
| Gear Ratio |
8.45:1:4.65 |
| Full Equipped Weight(g/ lbs.) |
(4900g)10.8 lbs |
|
| Documents: |

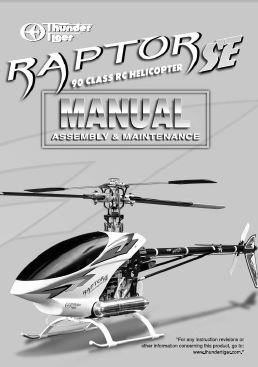

Raptor 90 SE Manual |
|

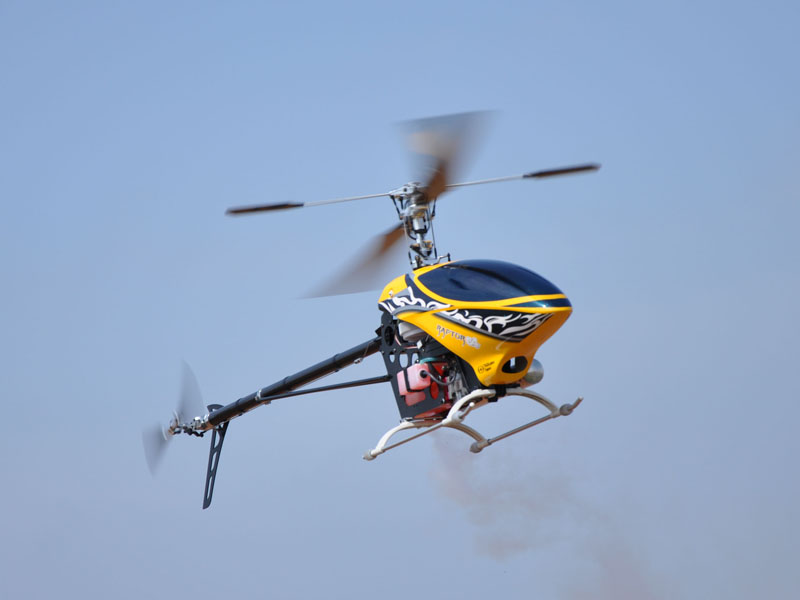

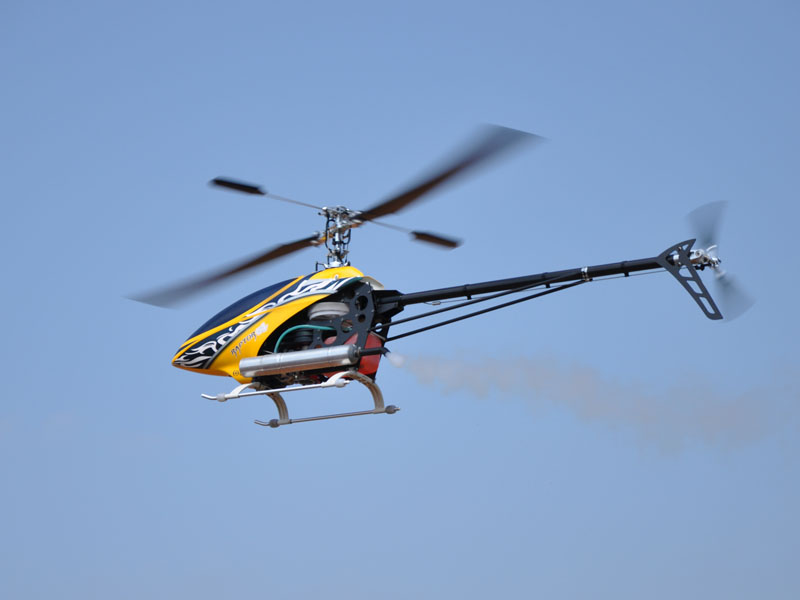

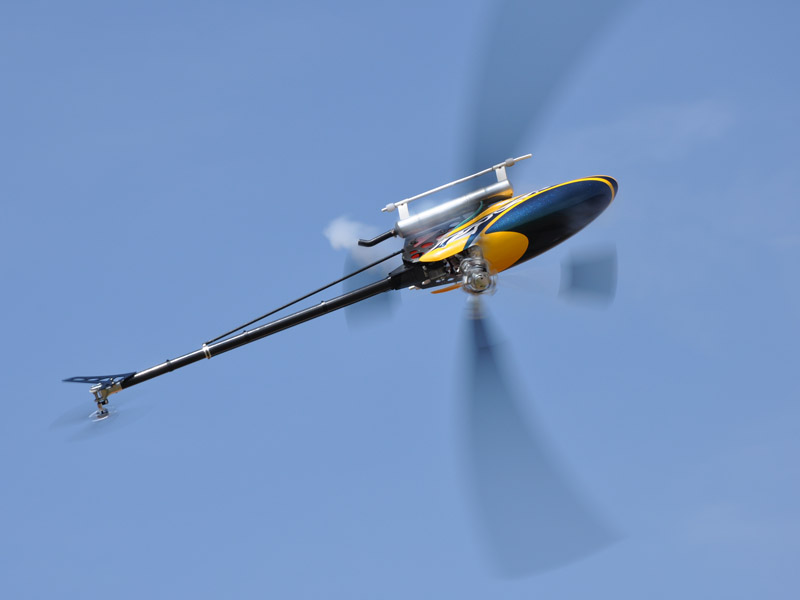

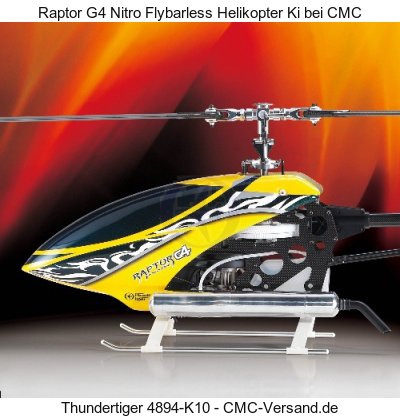

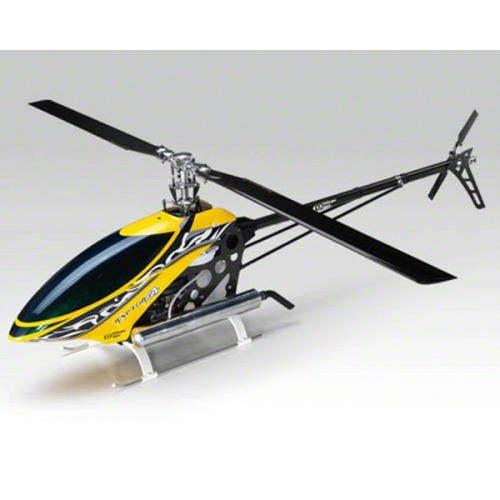

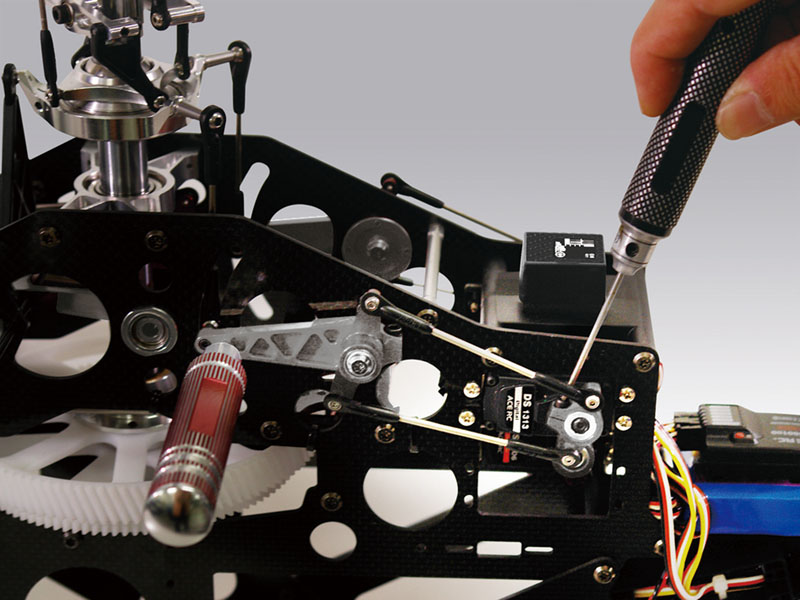

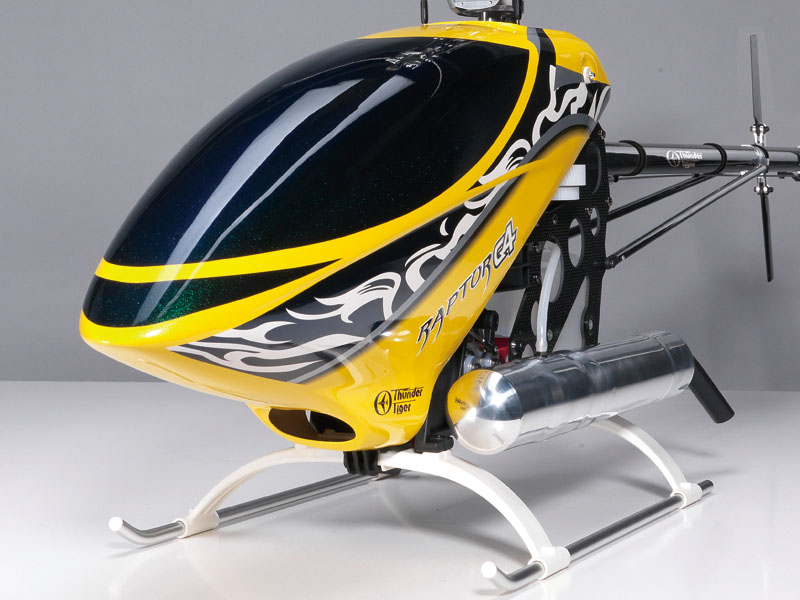

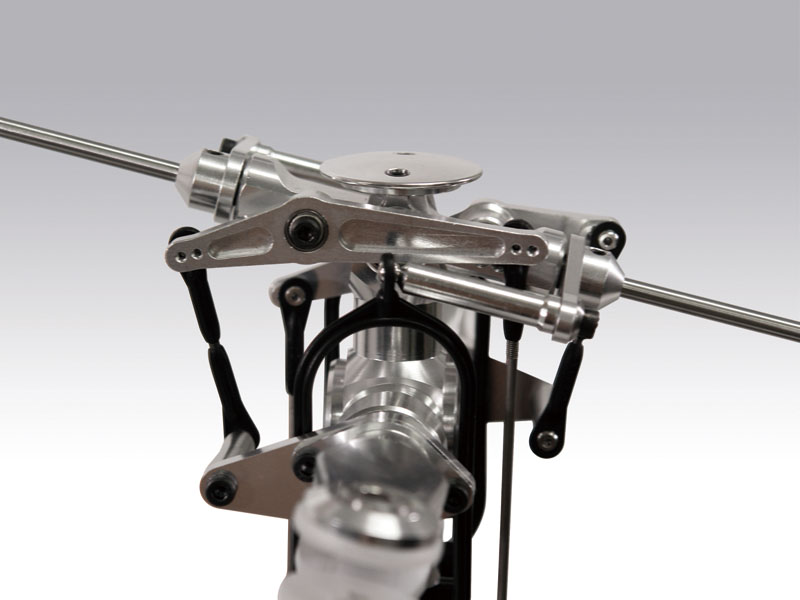

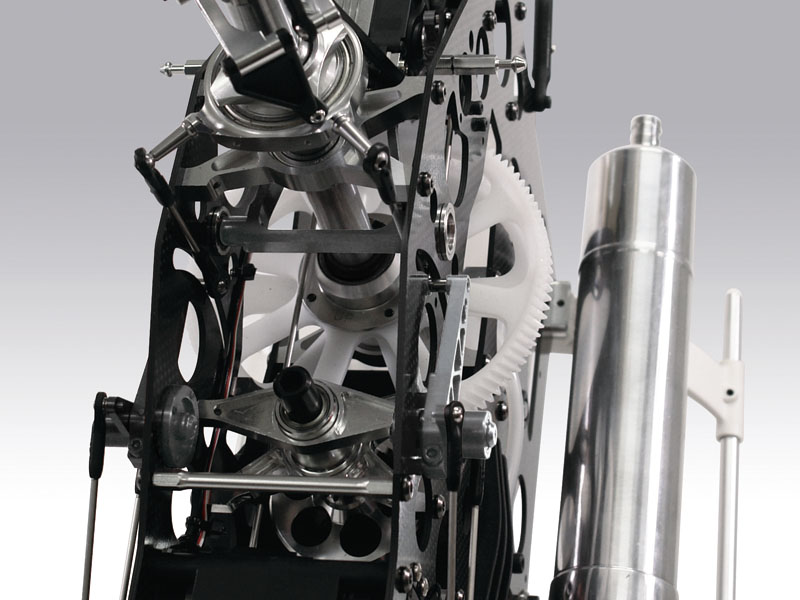

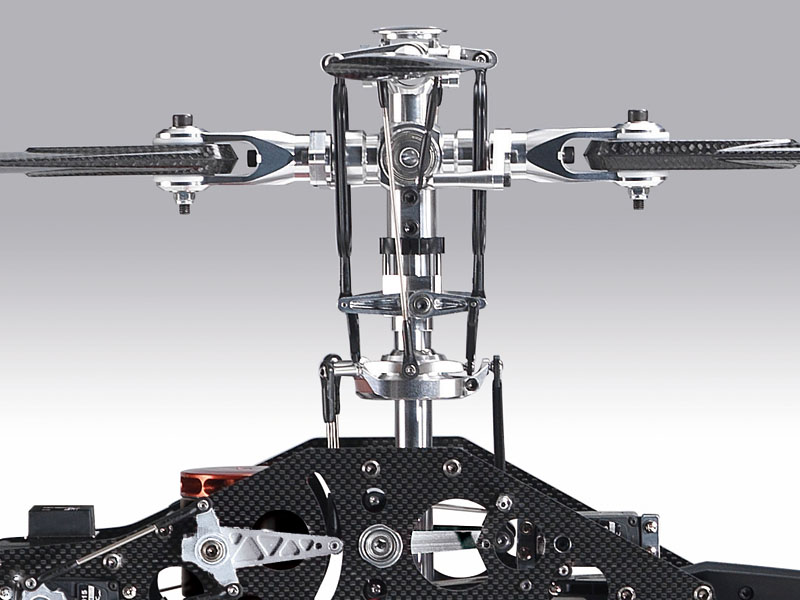

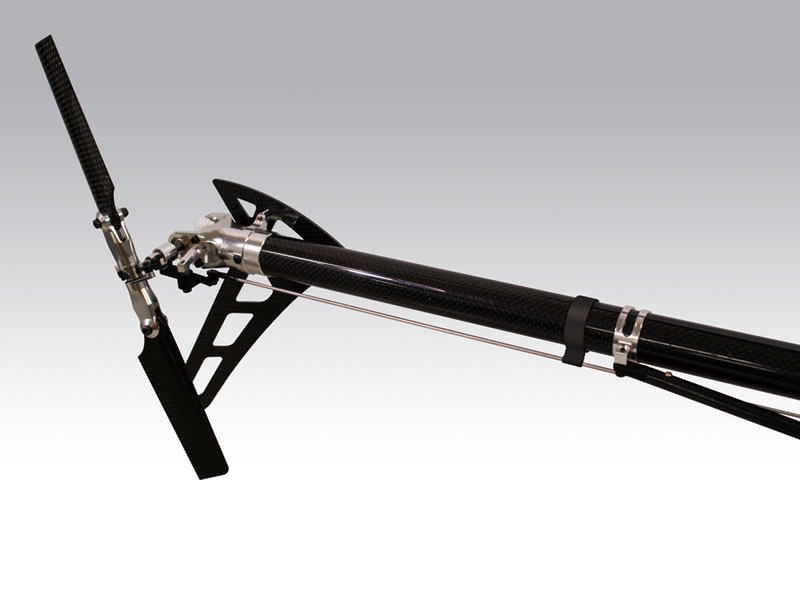

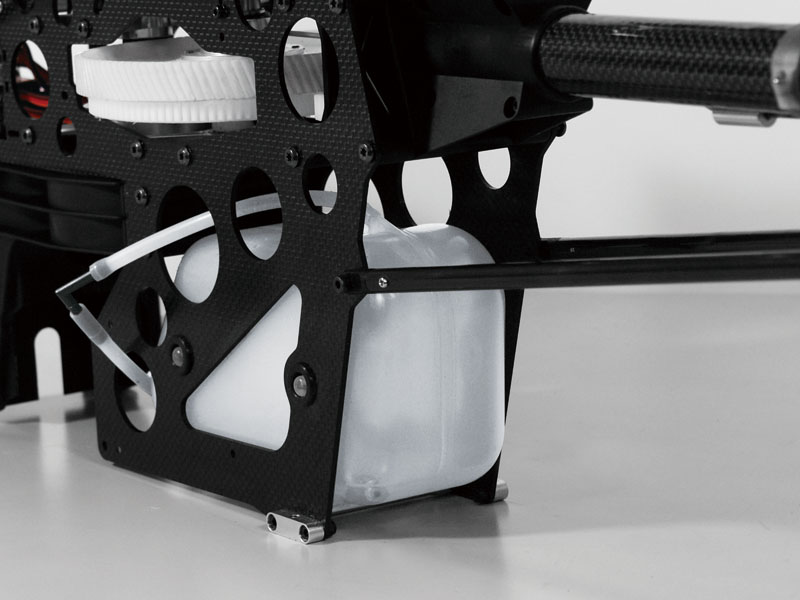

Thunder Tiger- Raptor 90 G4
 |
Specification:
| Full Length of Fuselage(mm / in.) |
1.367mm (53.8") |
| Full Width of Fuselage(mm / in.) |
221mm(8.7") |
| Total Height(mm / in.) |
462mm (1.82") |
| Main Rotor Dia(mm / in.) |
690~720mm/(27.2~28.3")/1.584~1.644mm(62.4~64.7" |
| Tail Rotor Dia(mm / in.) |
105mm(4.1")/280mm(11.0")as standard |
| Gear Ratio |
1:7.92:4.67 (fixed ratio) |
| Full Equipped Weight(g/ lbs.) |
4,400-gram(9.70Ibs) |
|
| Documents: |
Raptor 90 G4 Manual |
|
