Hirobo Lama SA-315B - S-30 (1991)



Specification:

 Full Length of Fuselage   1200 mm
 Height   430 mm
 Main Rotor Dia   1240 mm
 Tail Rotor Dia   215 mm
 Engine  .30 - 0.47 cu in
 Full Equipped Weight   3300 g


Documents:

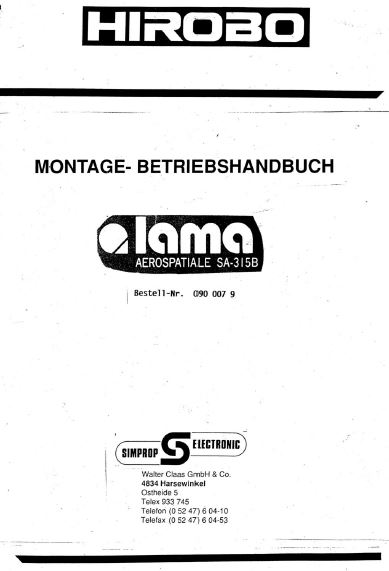

Montagehandbuch

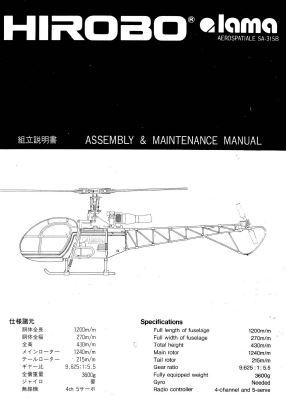

Manual





SA315 Lama (30) Parts List  -  1991 listing with cross references (No rotor head details)

SA315 Lama (30) build manual  -  for FZ2 rotor head model.

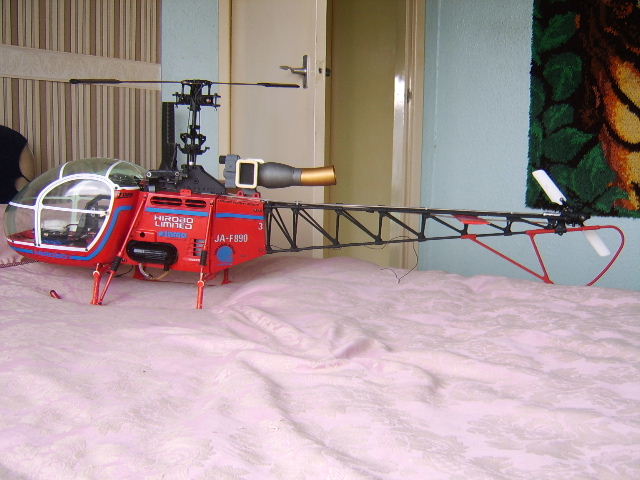

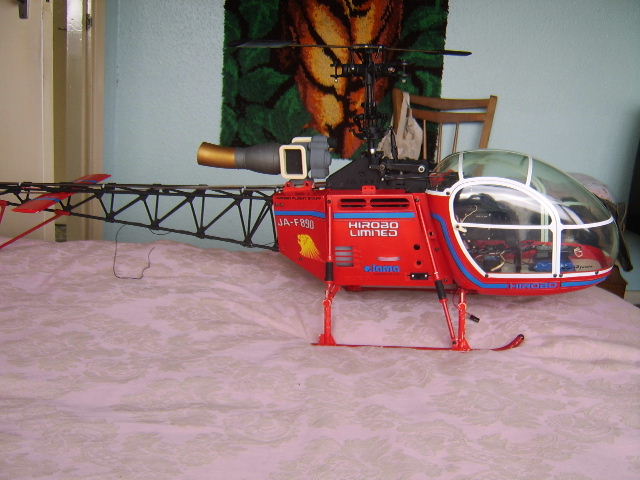

Introduced as a practical size scale model utilising plastic parts thus giving it a respectable 'scale' look.  Modified 'Shuttle' scale mechanics S-30 were used and it was fitted with an upgraded NS rotor head.



To enhance the scale appearance a three blade could be supplied as an upgrade.

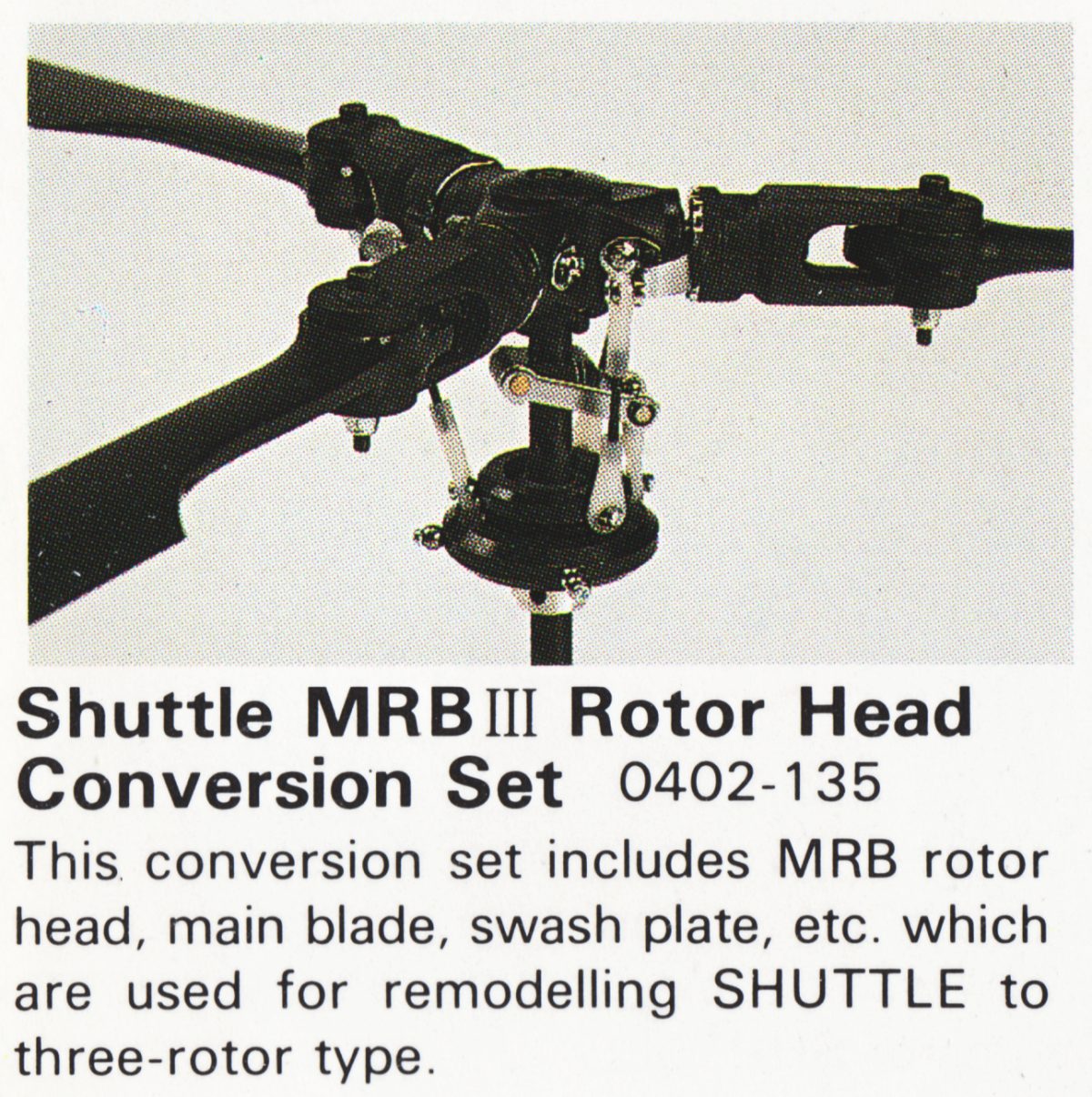

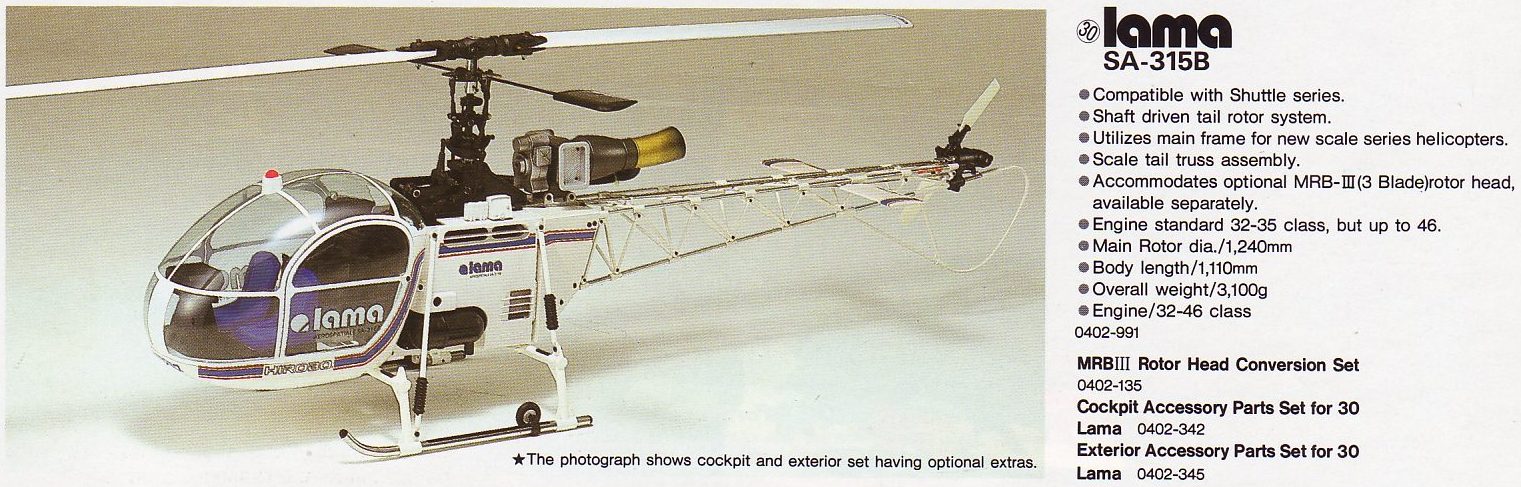

  MRB3 rotor (1992)

In 1995, in line with the shuttle the Lama was supplied with the FZ2 rotor head.

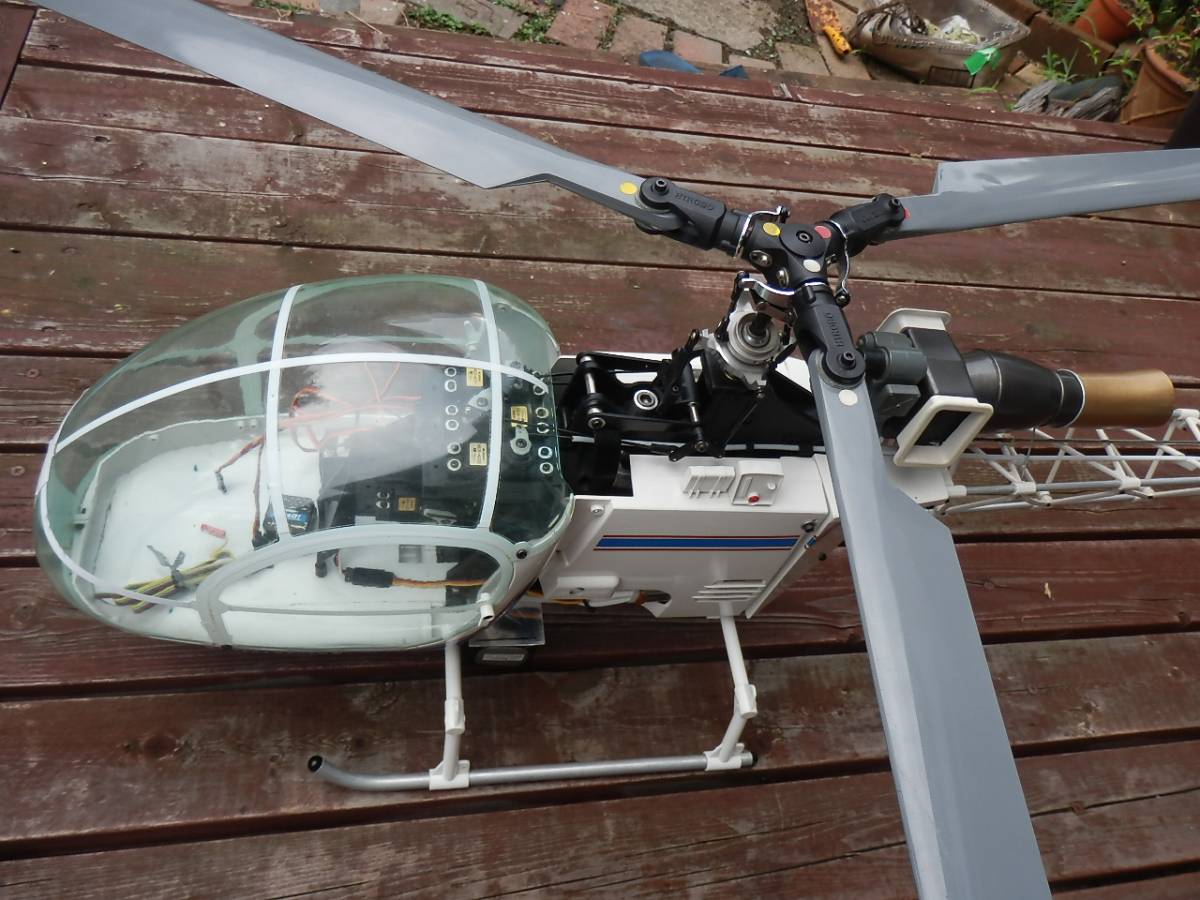

  FZ2 rotor head (1995).

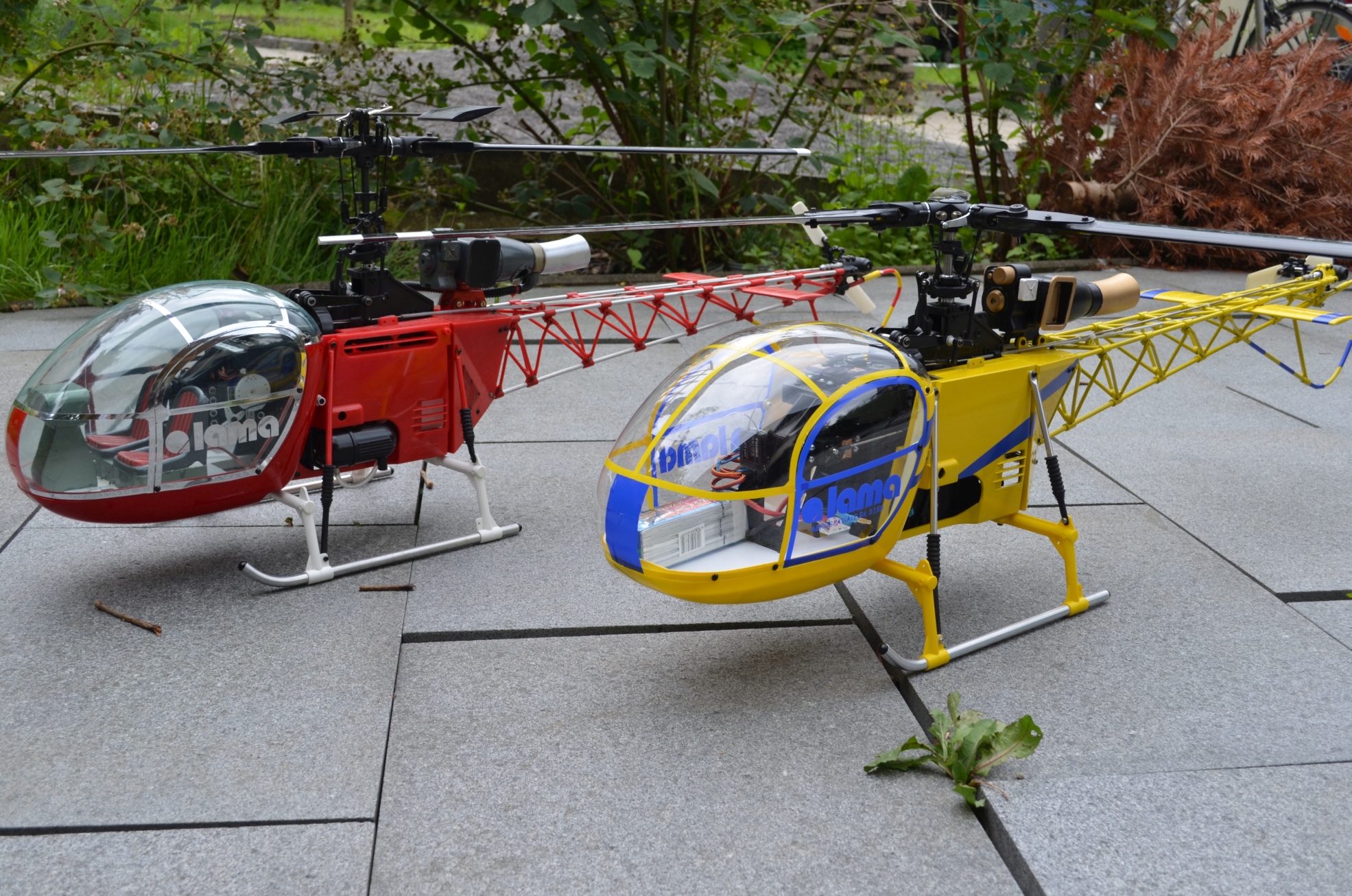

  • DSC_1958

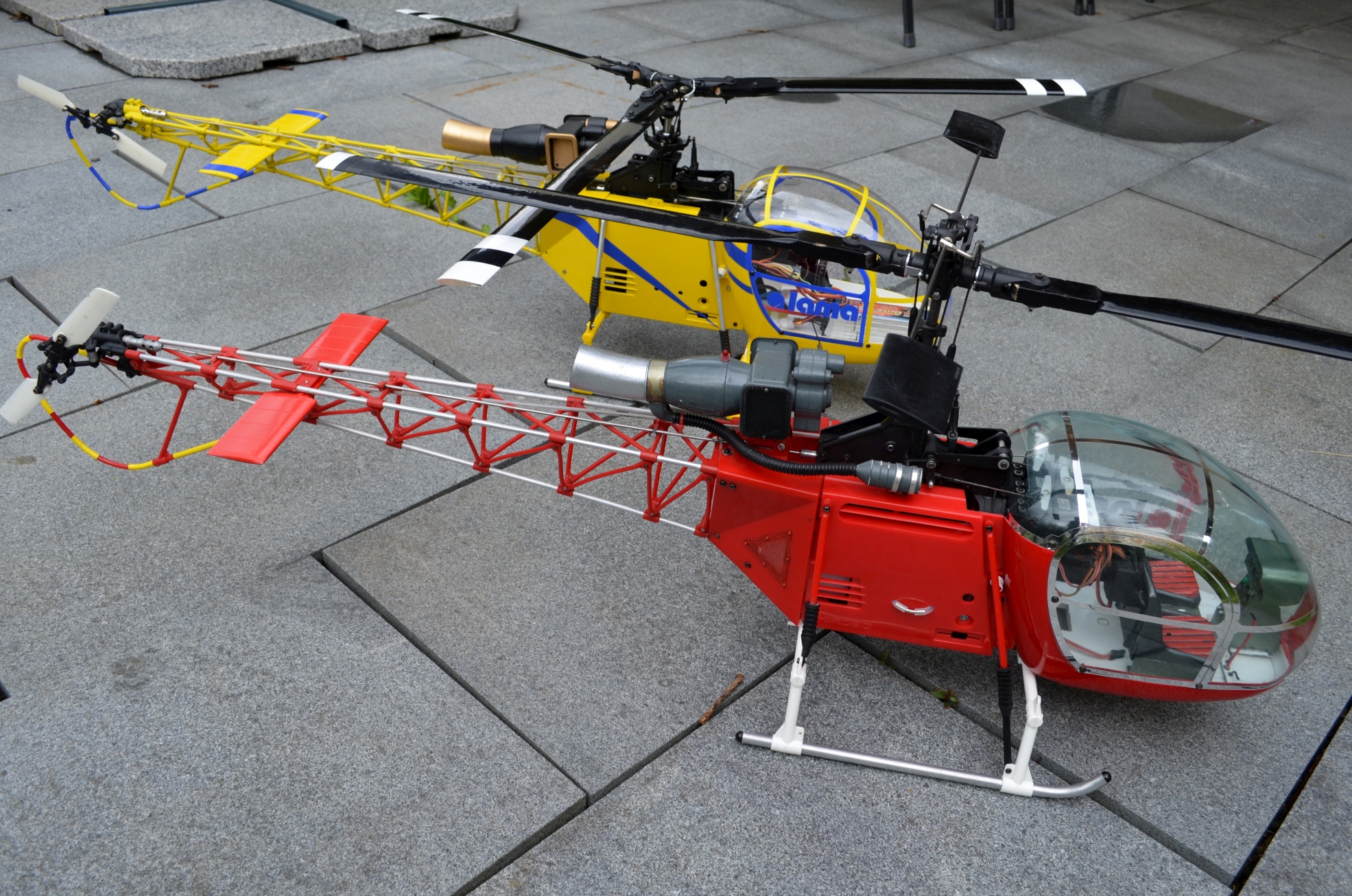

  • DSC_1962
  • Hirobo_Lama_105
  • Hirobo_Lama_110
  • Hirobo_Lama_120
  • Hirobo_Lama_125
  • Hirobo_Lama_130
  • Hirobo_Lama_135
  • Hirobo_Lama_140
  • Hirobo_Lama_145
  • Hirobo_Lama_150
  • Hirobo_Lama_155

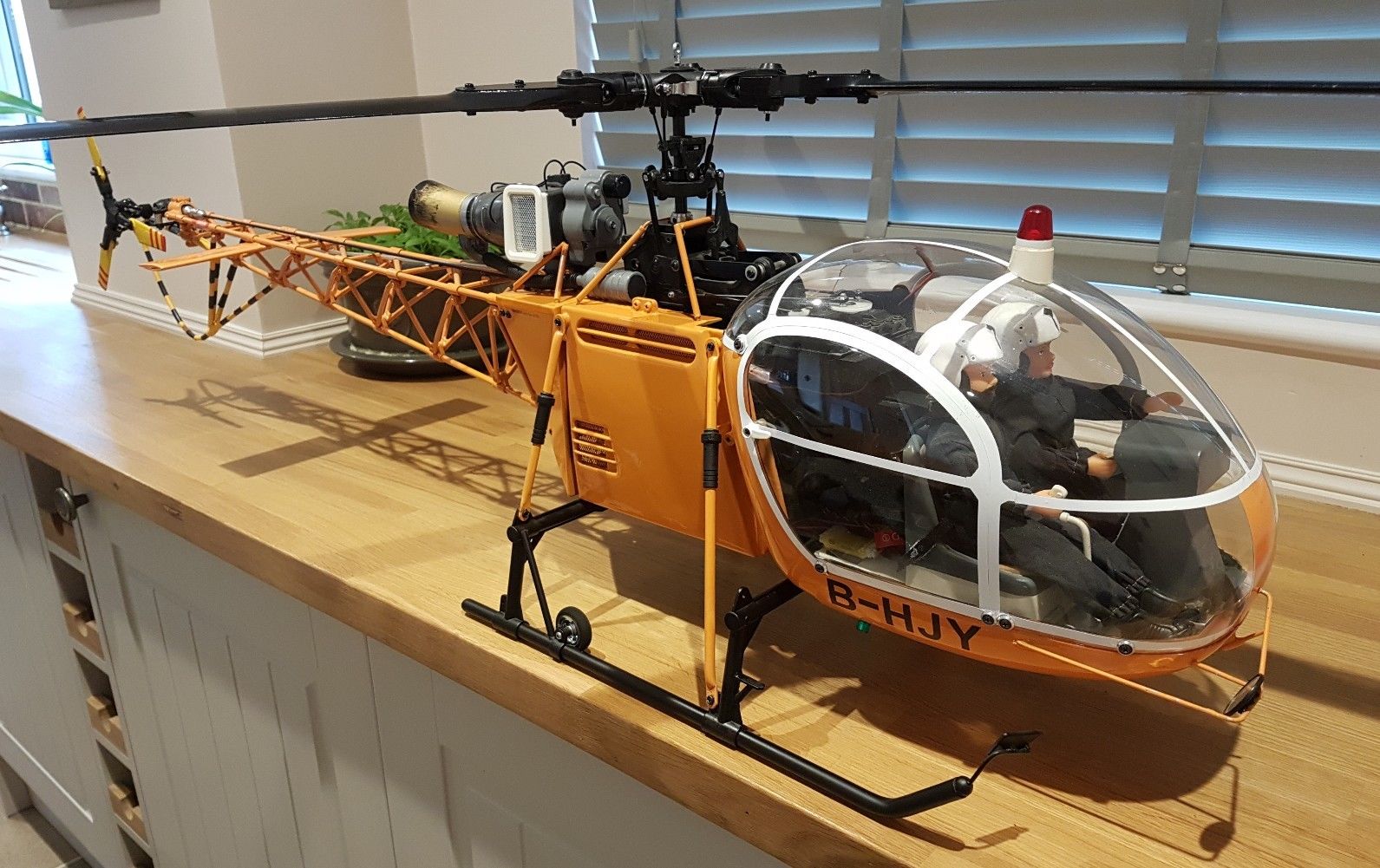

  • Lama_005
  • Lama_010
  • Lama_015
  • Lama_020

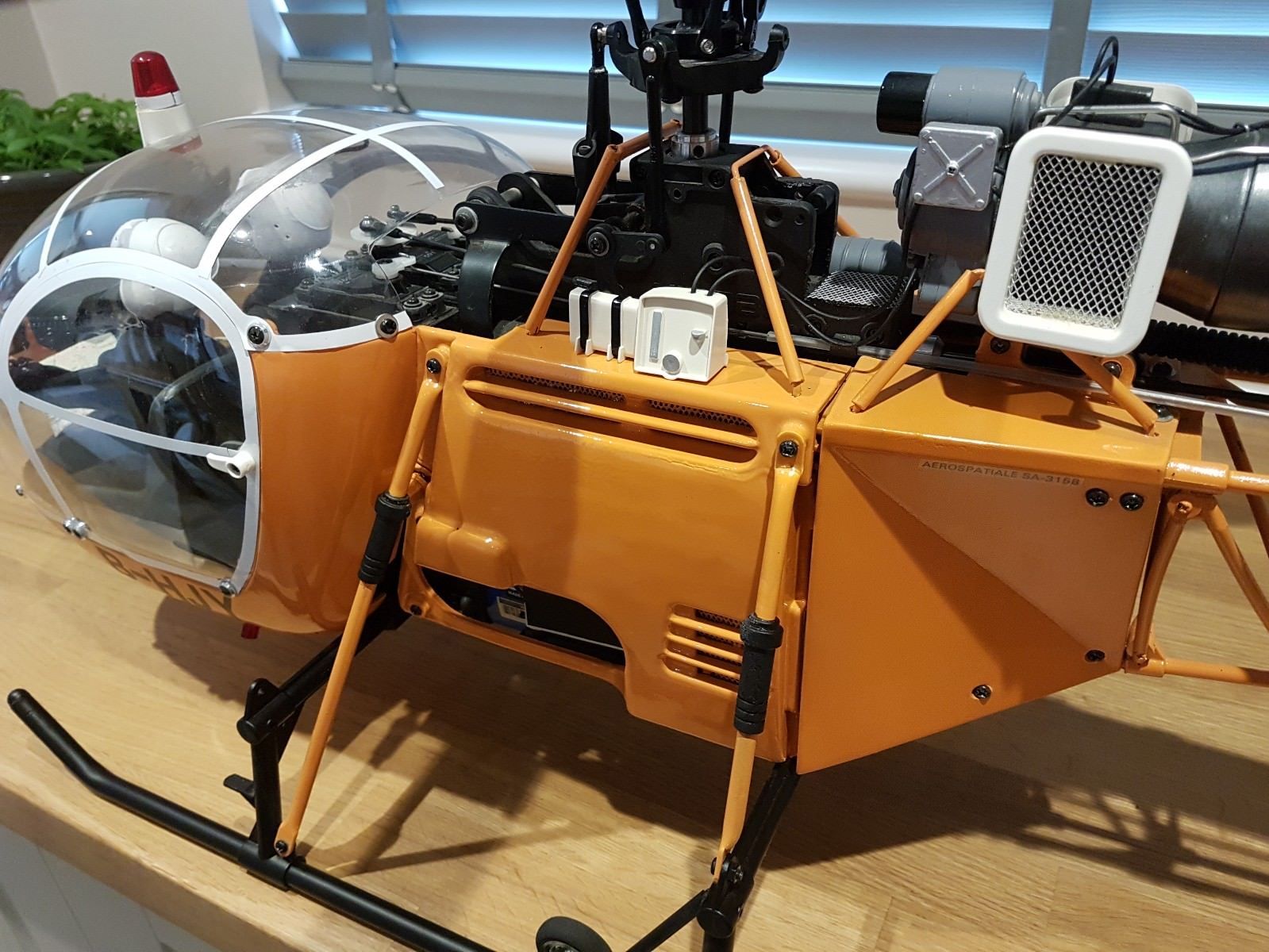

  • Lama_030
  • Lama_035
  • Lama_040
  • Lama_045

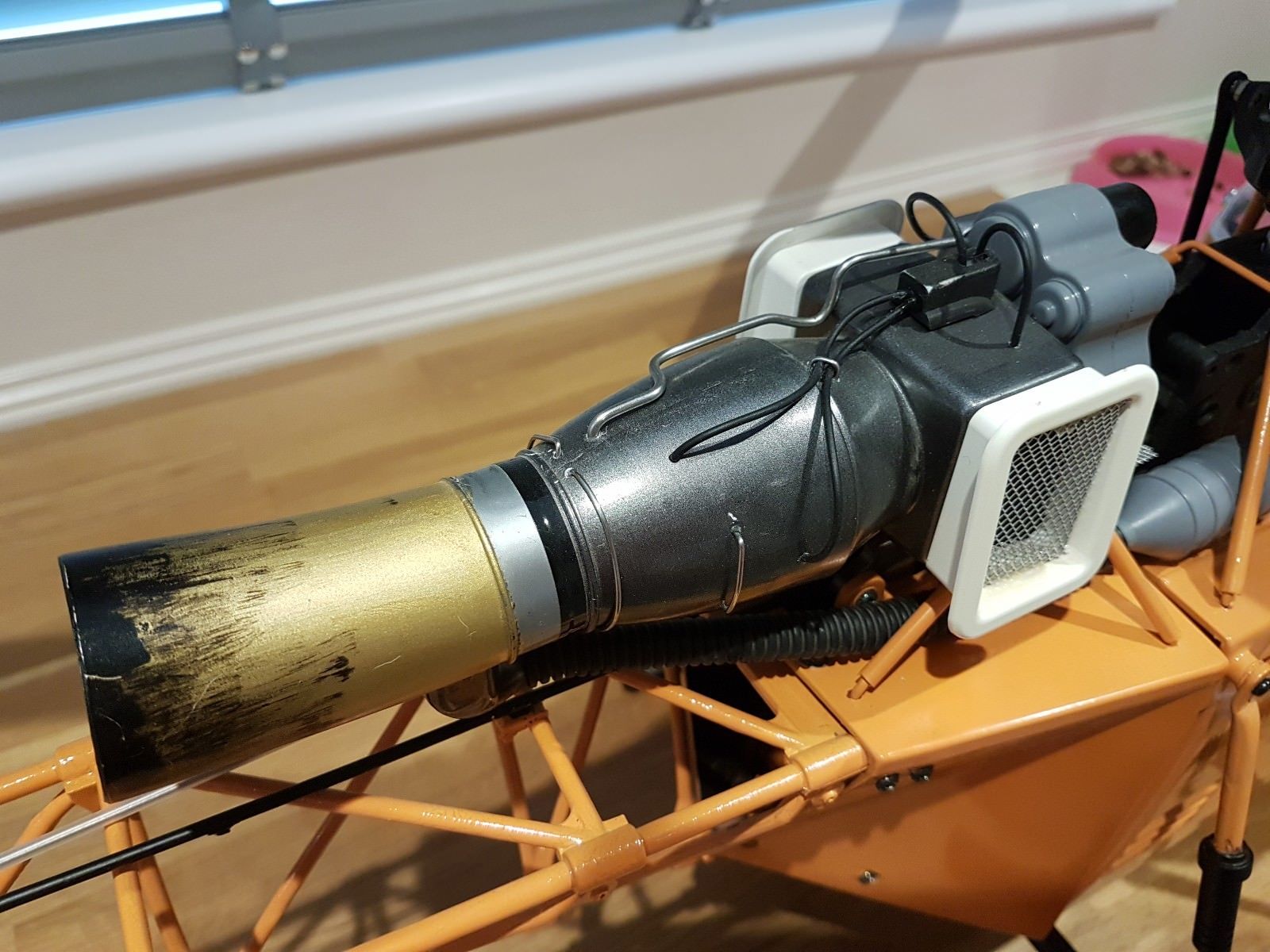

  • Lama_050
  • Lama_055
  • Lama_0694
  • Lama_0699
  • Lama_070
  • Lama_0700
  • Lama_072
  • Lama_074

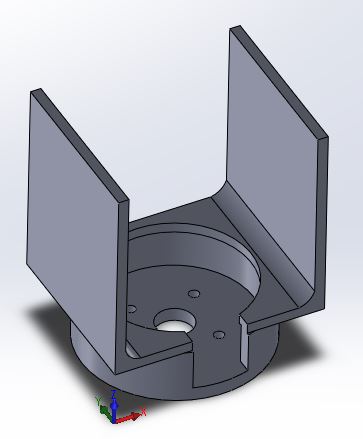

 STL- file for making the motor frame with a 3D printer
