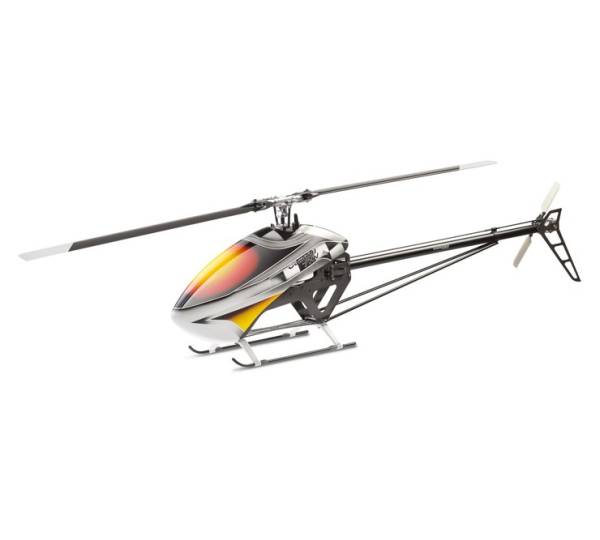

Compass 7HV Ultimate



  Specification:

 Length  1372 mm
 Height  403 mm
 Main Rotor Dia.  1560 mm
 Blades  690 - 710
 Engine  brushless outrunner
 Gear Ratio  9.77:1:4.8
 Weight  4300 - 5100 g


Documents:

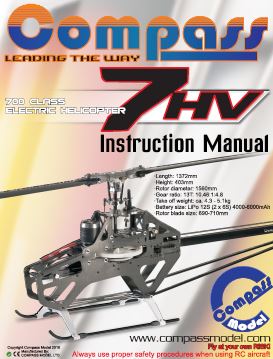

Manual V1

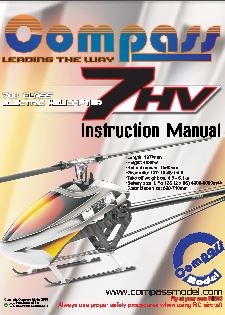

Manual_Partslist_V3
Partslist v2
Partlist v3

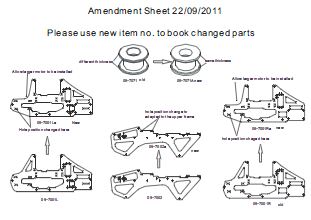

7HV chassis

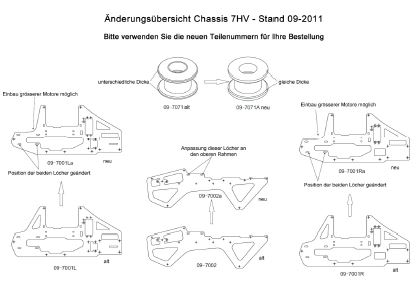

7HV chassis (de)

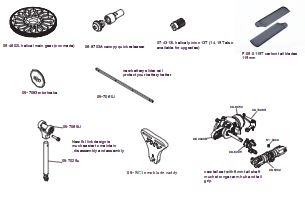

tail partlist

 Courtesy global-helis.de



  • 7HV_005
  • 7HV_010
  • 7HV_015
  • 7HV_020
  • 7HV_025
