X-Cell Gas Graphite  (1993-1997)(1998) Mod.1005







Specification:

  Over-All Length  54.0" (1371.6mm)
  Over-All Height   17.5" (444.5mm)
 Main Rotor Dia  60.6" (1540mm)
 Tail Rotor Diameter.  12.0" (340.8mm)
  Total Weight   Approx. 11.75 Pounds
 Gear Ratio   6.43 to 1
 Engine Zenoah G230PUH1 (Gas)
 Standard Blades.  690.0mm
 Collective Pitch Range  20 - 22 Degrees



Documents:

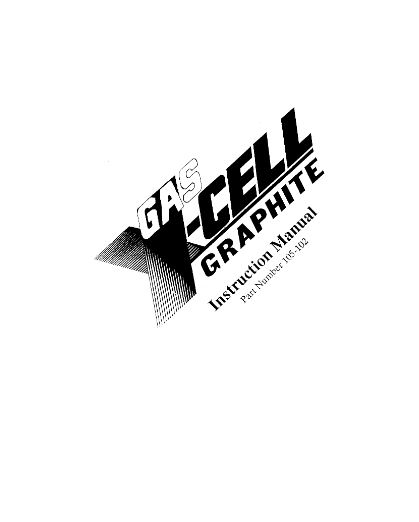

XCell Gas Manual

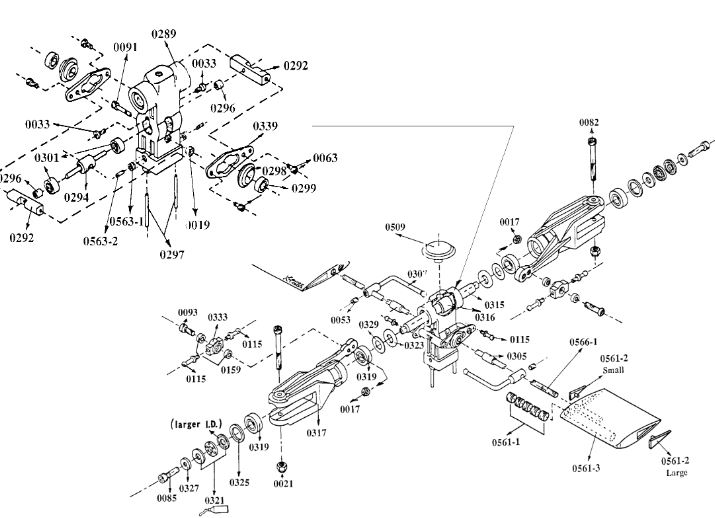

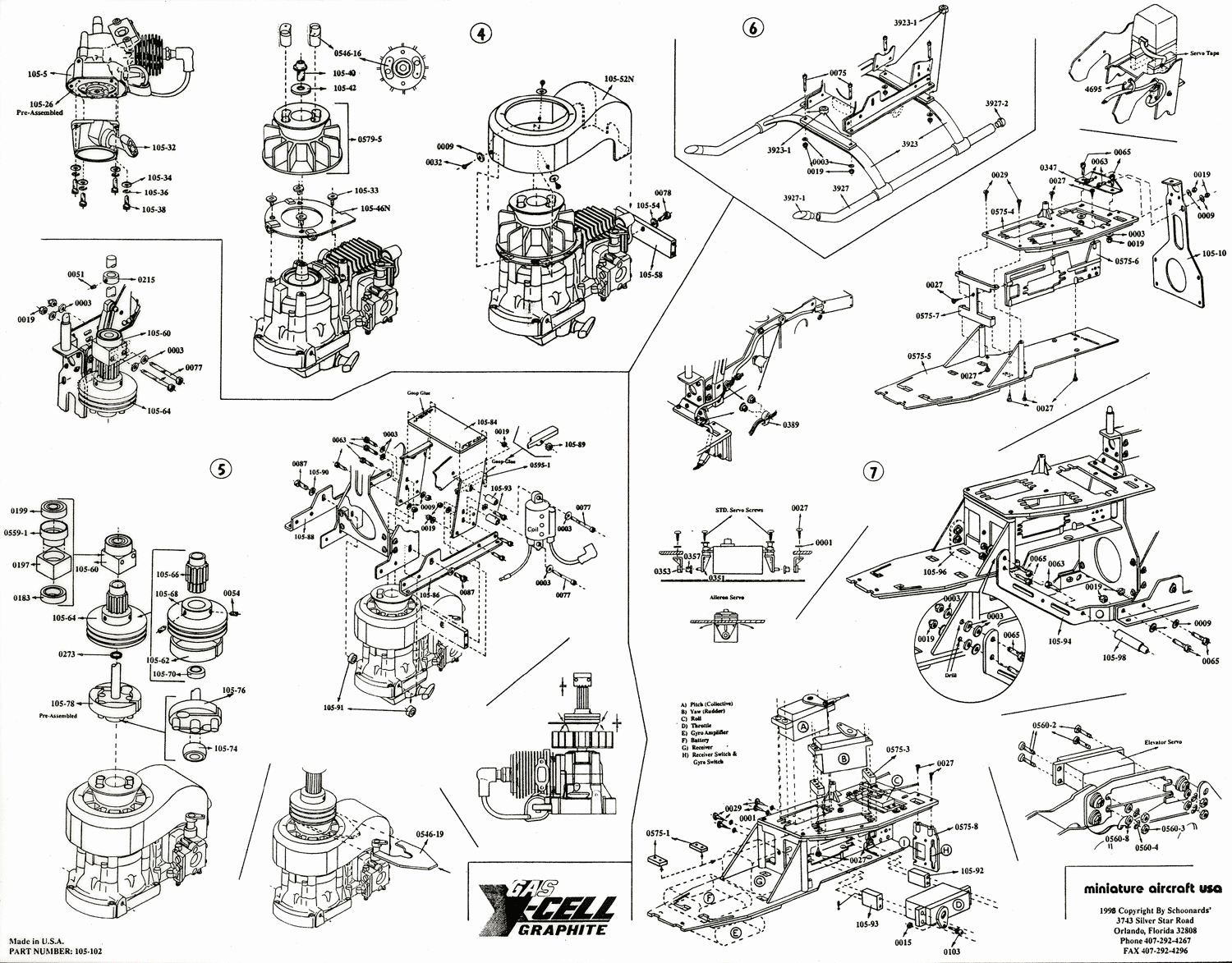

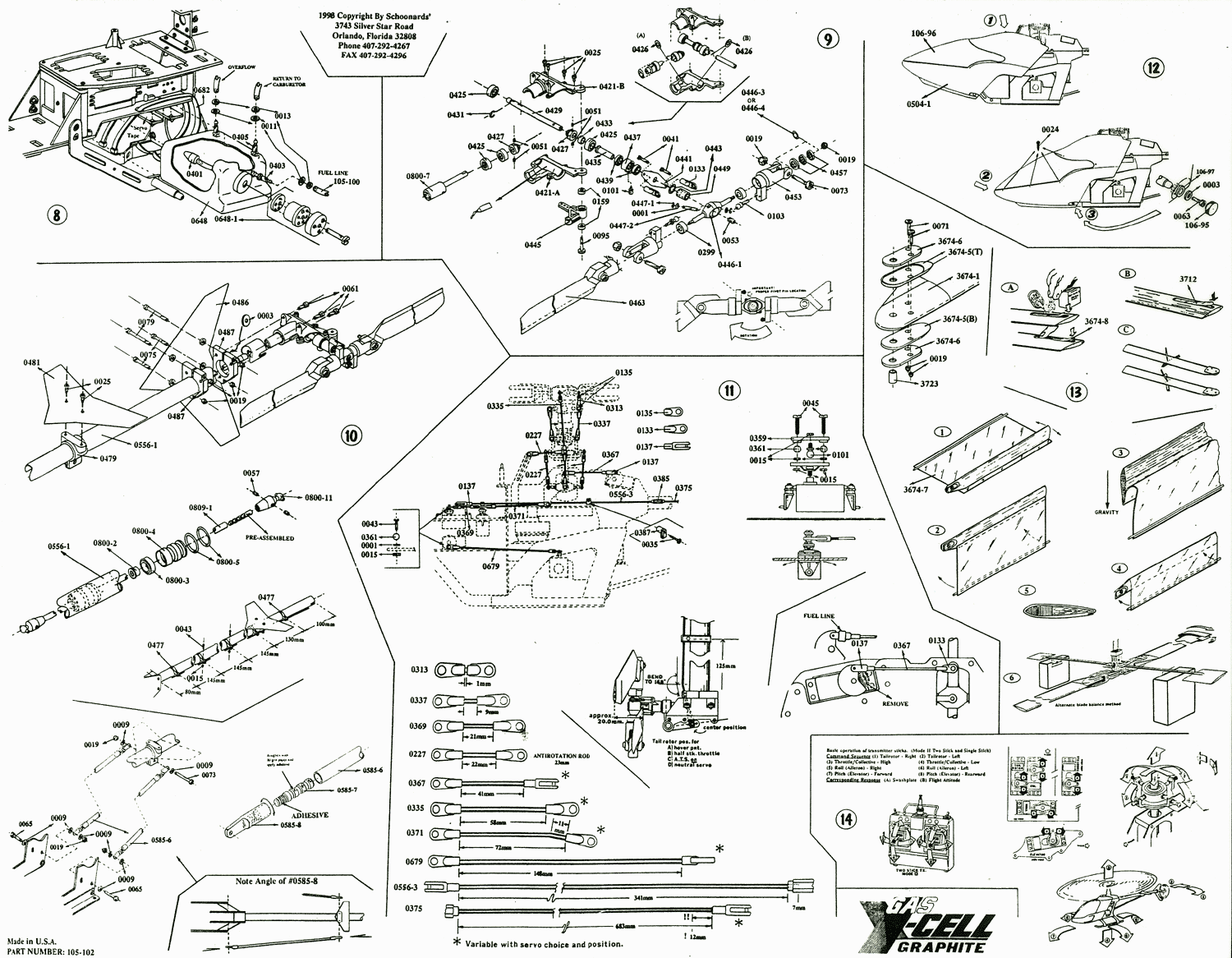

1005 drawings





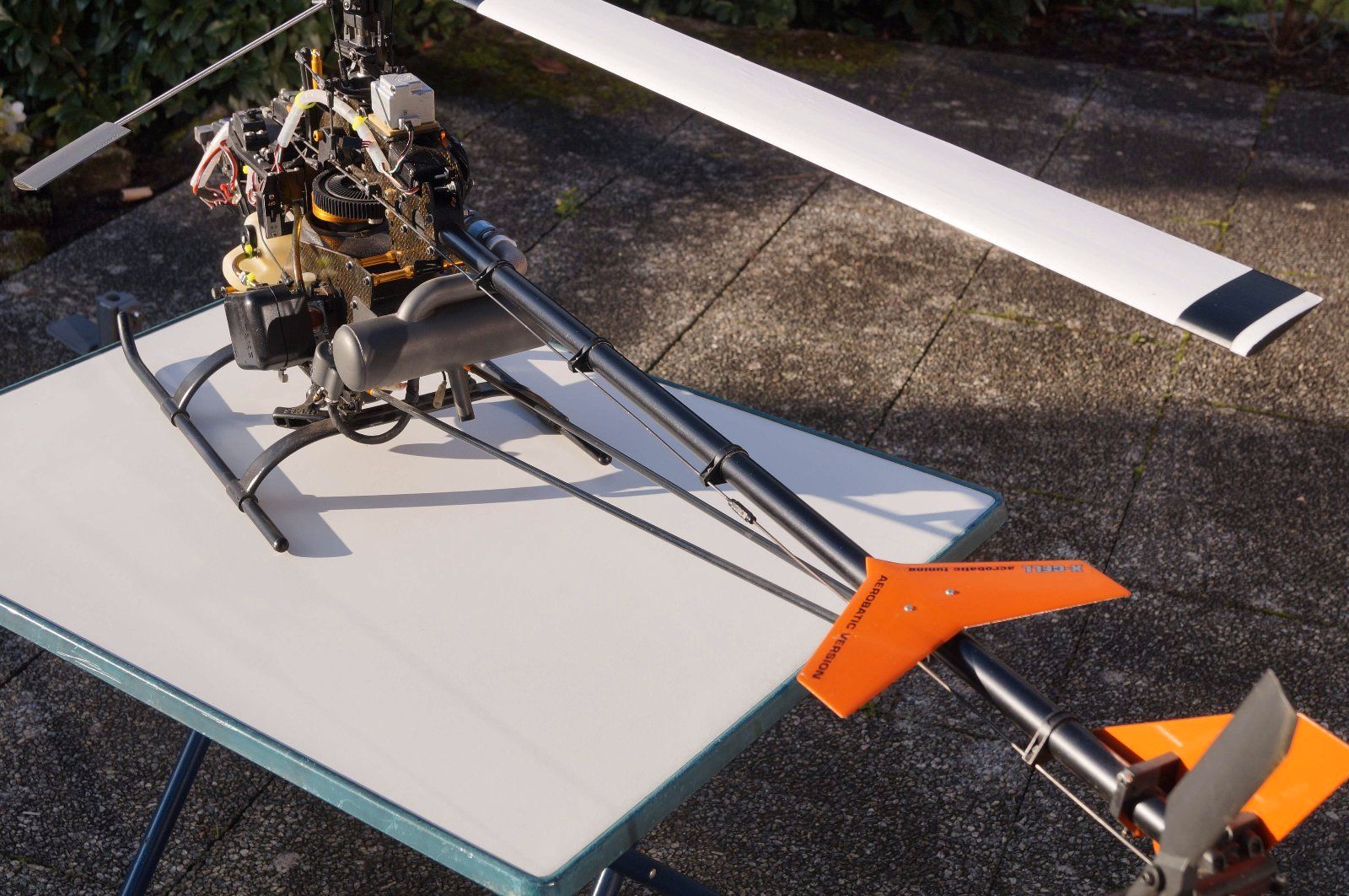

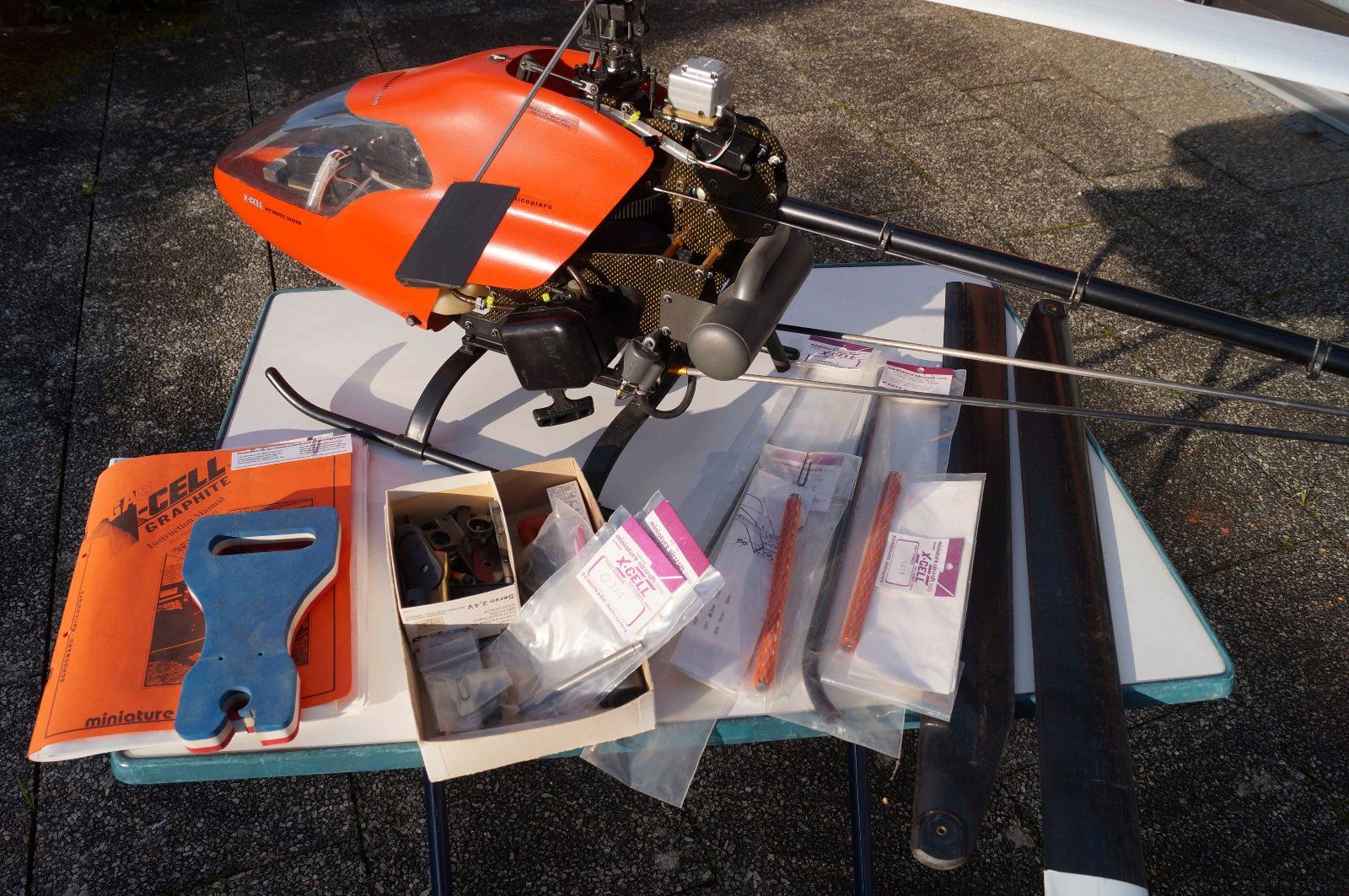

The X-Cell Gas Graphite is designed as a reliable, high performance, economical gas helicopter. The kit comes complete
with a special high performance Zenoah 23cc engine (choke, air
filter, muffler, ignition system and pull starter included) coupled with C.N.C. Machined carbon-fiber framework produce performance never before seen in a gas powered helicopter. The pull starter and on-board ignition frees you of the hassle of carrying glo/starter batteries and starter.  The efficiency and convenience of the gas/oil fuel mixture dramatically reduces your flying expenses. Aerobatic performance is similar to that of the
X-CELL .60, executing FAI or hot dog maneuvers (including inverted flight) with ease.

X-Cell  Gas Graphite (1993 - 1997)

Stacked Graphite Frames , Plastic servo tray , Front mount rudder servo
Uniball clutch , Large top bearing clutch drum , Two bearing clutch bearing block
Plastic fan , Plastic head block , Plastic blade grips , XL Pro paddles
Trailing link swashplate anti-rotation , No main shaft thrust bearings
Non ball bearing plastic elev swing arm , Front tray gyro mount
Head button , Non ball bearing aileron tray mount , Non push/pull collective
Non push/pull elevator , Dual carbon fiber boom support  , Non driven tail
Torque tube tail drive system , Wire tail pushrod , Standard tail gear box
No HD front transmission , No front transmission alignment tool
1 radial 1 thrust tail blade bearing , Fiber glass canopy ,
Molded plastic tail fins , Standard horizontal fin clamp
31.5" aluminum tail boom
X-Cell Gas Graphite ( 1998)

Stacked Graphite Frames , Plastic servo tray , Front mount rudder servo
Uniball clutch , Large top bearing clutch drum , Two bearing clutch bearing block
Aluminum fan , Plastic head block , Plastic blade grips
XL Pro paddles , Trailing link swashplate anti-rotation , No main shaft thrust bearings
Non ball bearing plastic elev swing arm , Front tray gyro mount
Head button , Non ball bearing aileron tray mount , Non push/pull collective
Non push/pull elevator , Dual carbon fiber boom support  , Non driven tail
Torque tube tail drive system , Wire tail pushrod , Standard tail gear box
No HD front transmission , Front trans alignment tool included
1 radial 1 thrust tail blade bearing , Fiber glass canopy , Molded plastic tail fins
Standard horizontal fin clamp , 31.5" aluminum tail boom

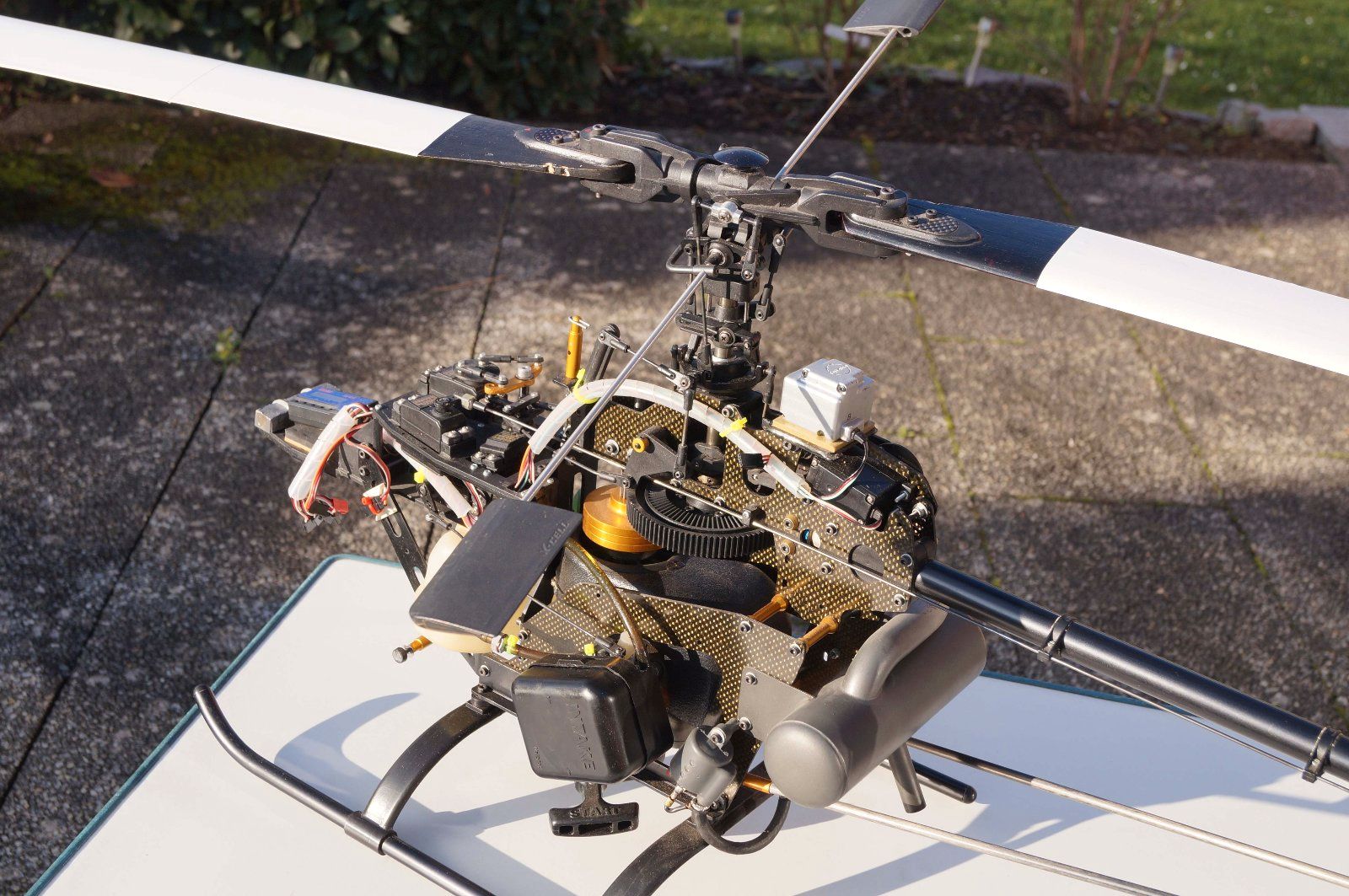

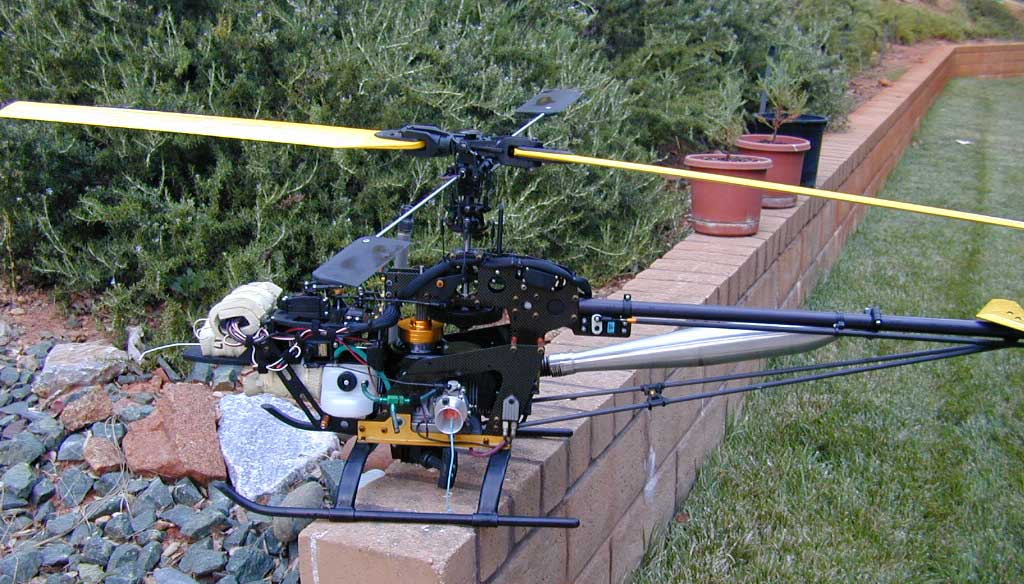

  • gasser1

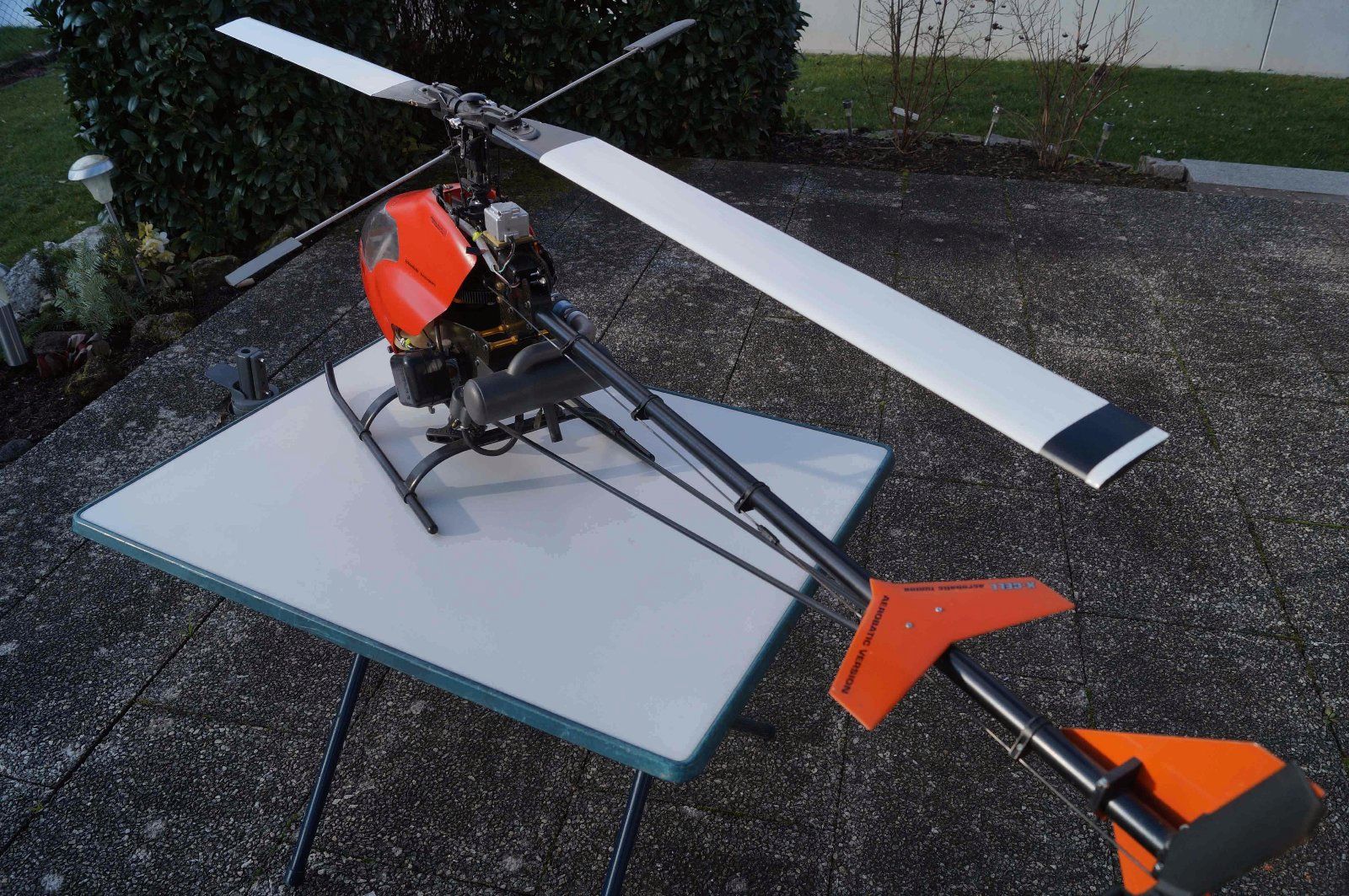

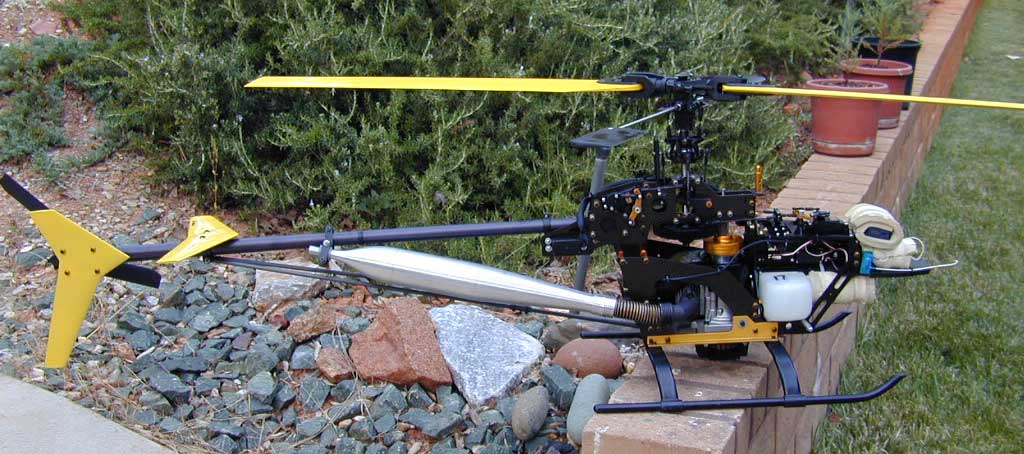

  • gasser2

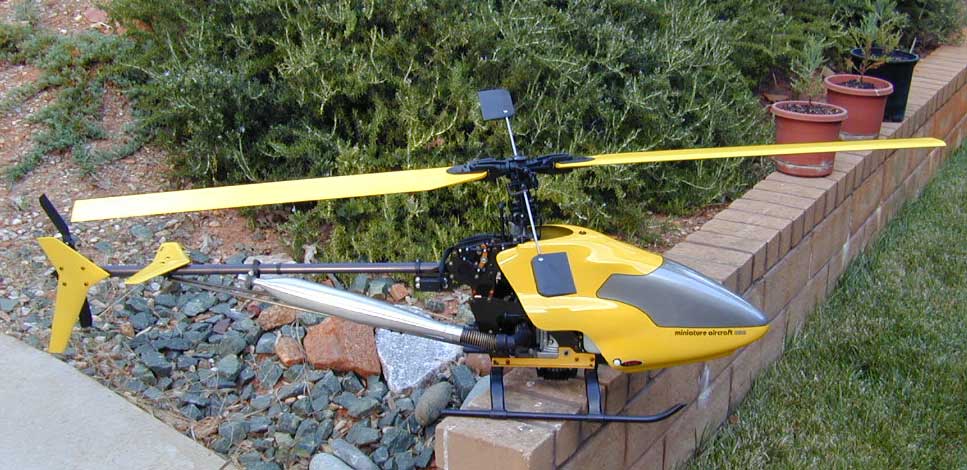

  • gasser3


 X-Cell Gas Graphite  (1999-) Mod.1005







Specification:

  Over-All Length  54.0" (1371.6mm)
  Over-All Height   17.5" (444.5mm)
 Main Rotor Dia  60.6" (1540mm)
 Tail Rotor Diameter.  12.0" (340.8mm)
  Total Weight   Approx. 11.75 Pounds
 Gear Ratio   6.43 to 1
 Engine Zenoah G230PUH1 (Gas)
 Standard Blades.  690.0mm
 Collective Pitch Range  20 - 22 Degrees



Documents:


X-Cell Gas Graphite  (1999 - Later)

Stacked Graphite Frames , Plastic servo tray , Front mount rudder servo
Uniball clutch , Large top bearing clutch drum
Triple bearing clutch bearing block , Aluminum fan
Plastic head block , Plastic blade grips , 3D paddles
Trailing link  swashplate anti-rotation , No main shaft thrust bearing
Front tray  gyro mount , Head button , Dual Carbon fiber boom supports
Non driven tail , 99 Spec Torque tube tail drive system , Wire tail pushrod
Carbon/Nylon tail gear box , HD front transmission , Front trans alignment tool included
1 radial 1 thrust tail blade bearing , Fiber glass canopy , Molded plastic tail fins
Wide grip horizontal fin clamp , 31.5" aluminum tail boom

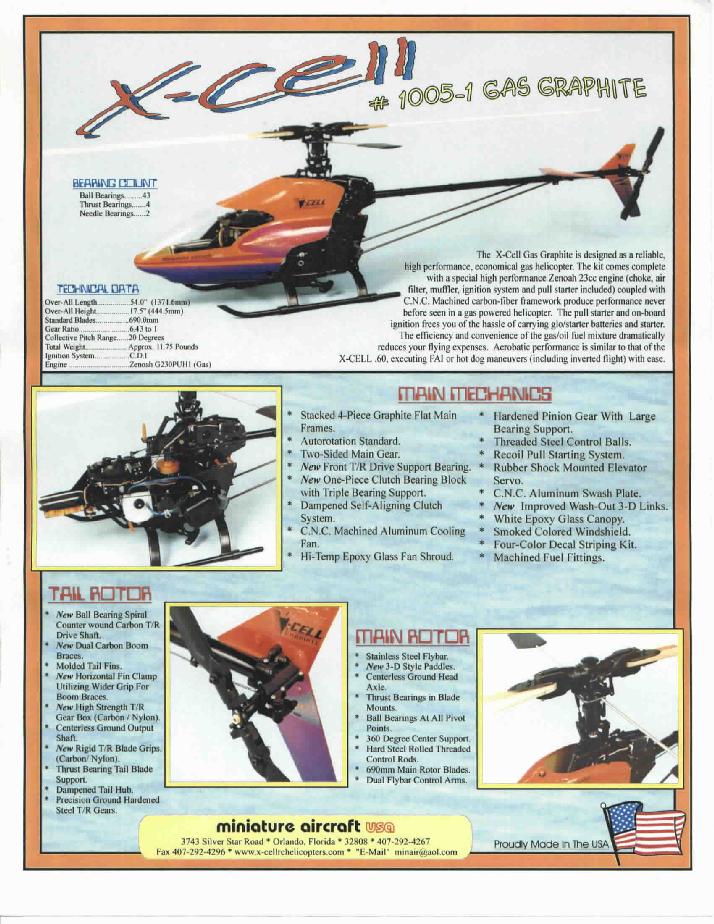

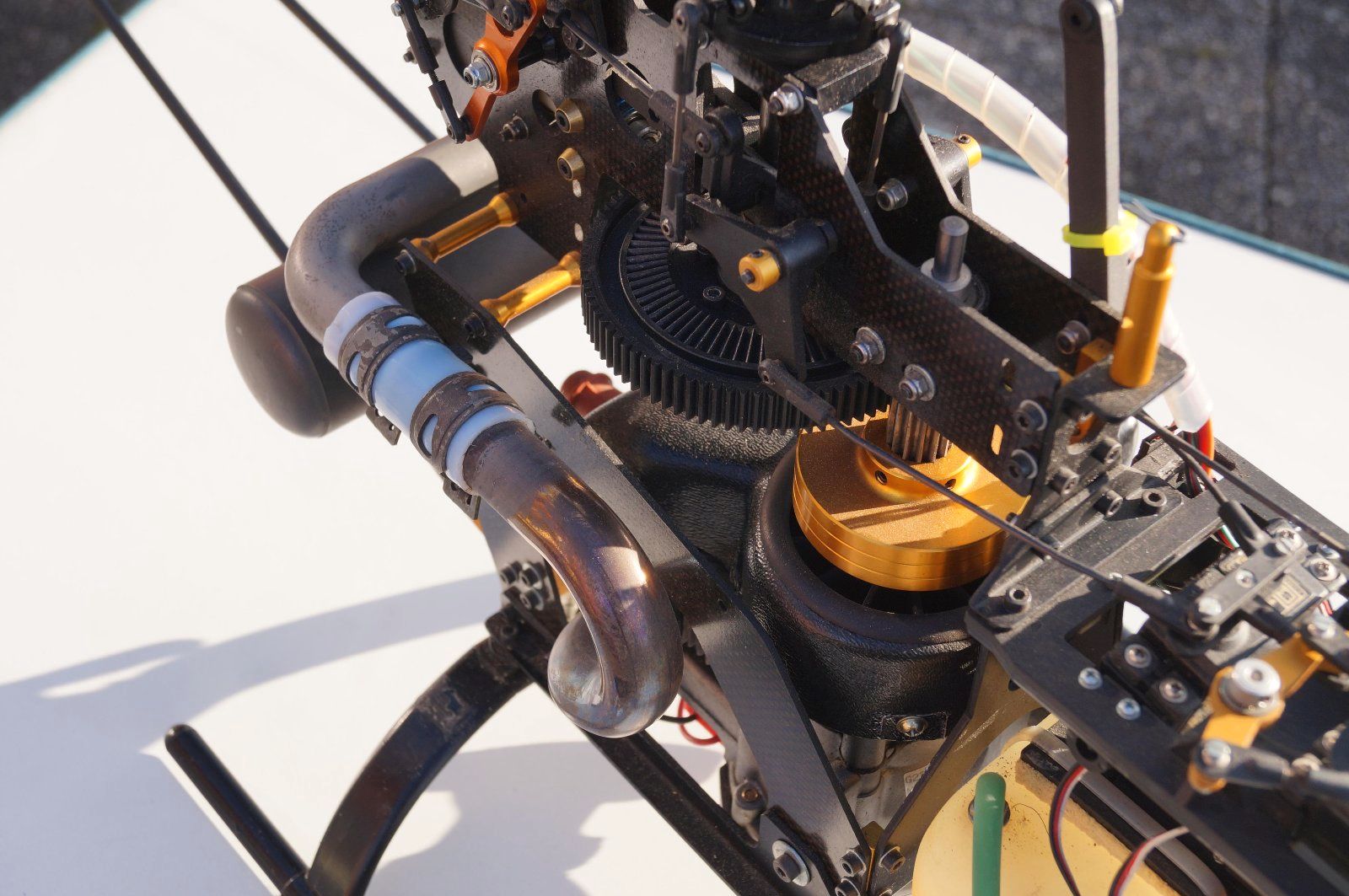

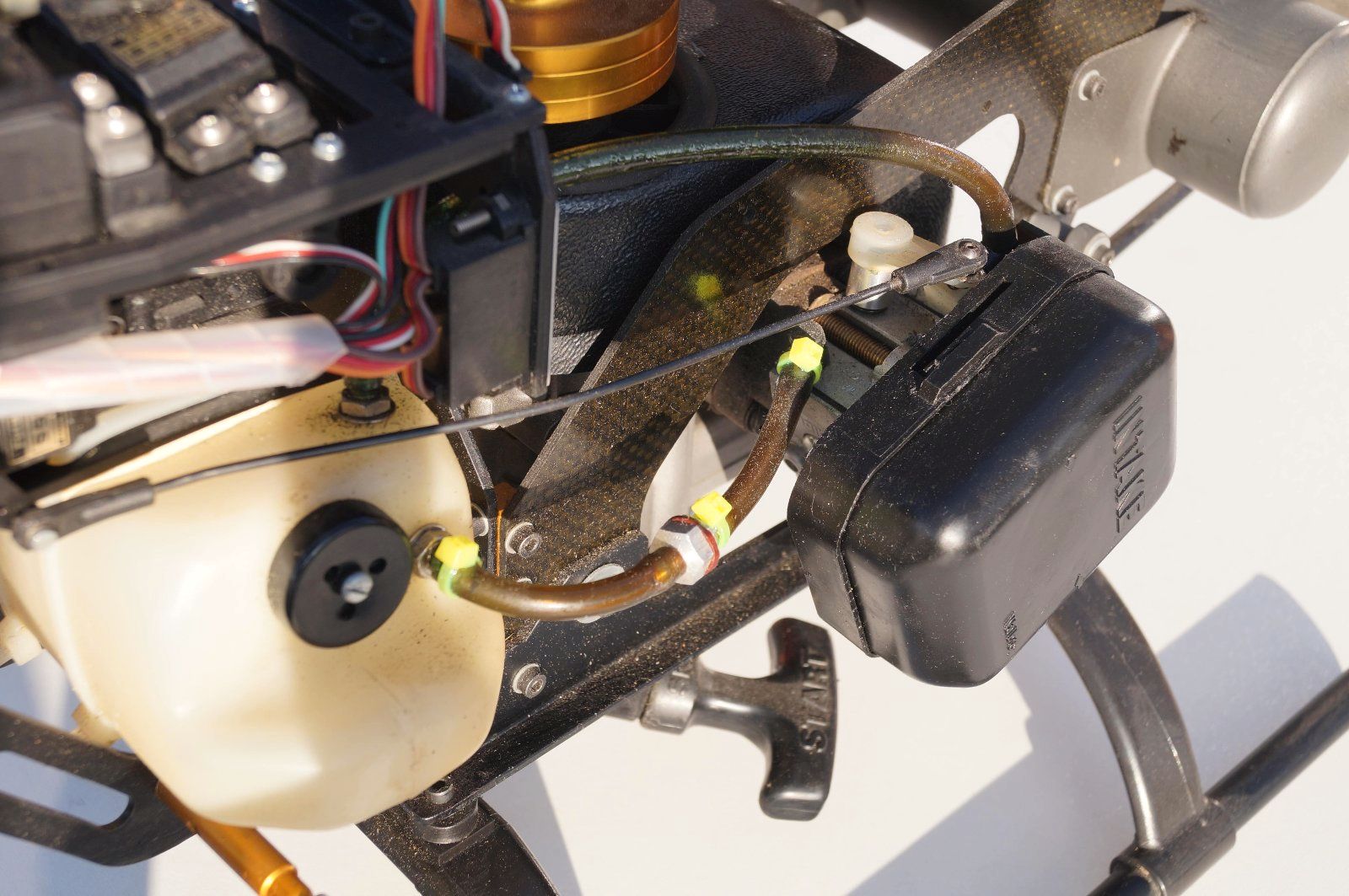

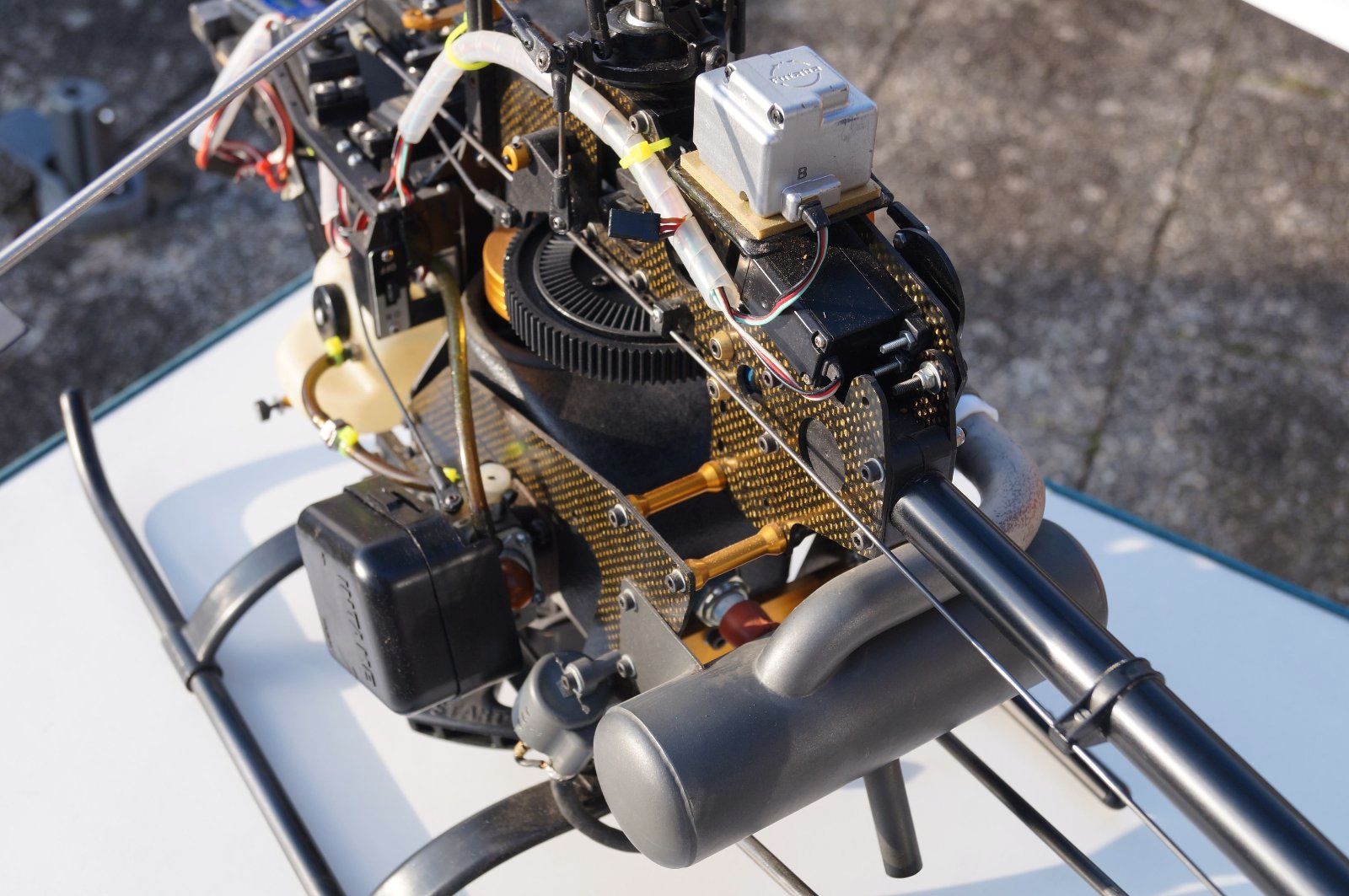

1005-1 GAS GRAPHITE MAIN MECHANICS - Features:

Stacked 4-Piece Graphite Flat Main Frames.
Autorotation Standard.
Two-Sided Main Gear.
New Front T/R Drive Support Bearing.
New One-Piece Clutch Bearing Block with Triple Bearing Support.
Dampened Self-Aligning Clutch System.
C.N.C. Machined Aluminum Cooling Fan.
Hi-Temp Epoxy Glass Fan Shroud.
Hardened Pinion Gear With Large Bearing Support.
Threaded Steel Control Balls.
Recoil Pull Starting System.
Rubber Shock Mounted Elevator Servo.
C.N.C. Aluminum Swash Plate.
New Improved Wash-Out 3-D Links.
White Epoxy Glass Canopy.
Smoked Colored Windshield.
Four-Color Decal Striping Kit.
Machined Fuel Fittings.

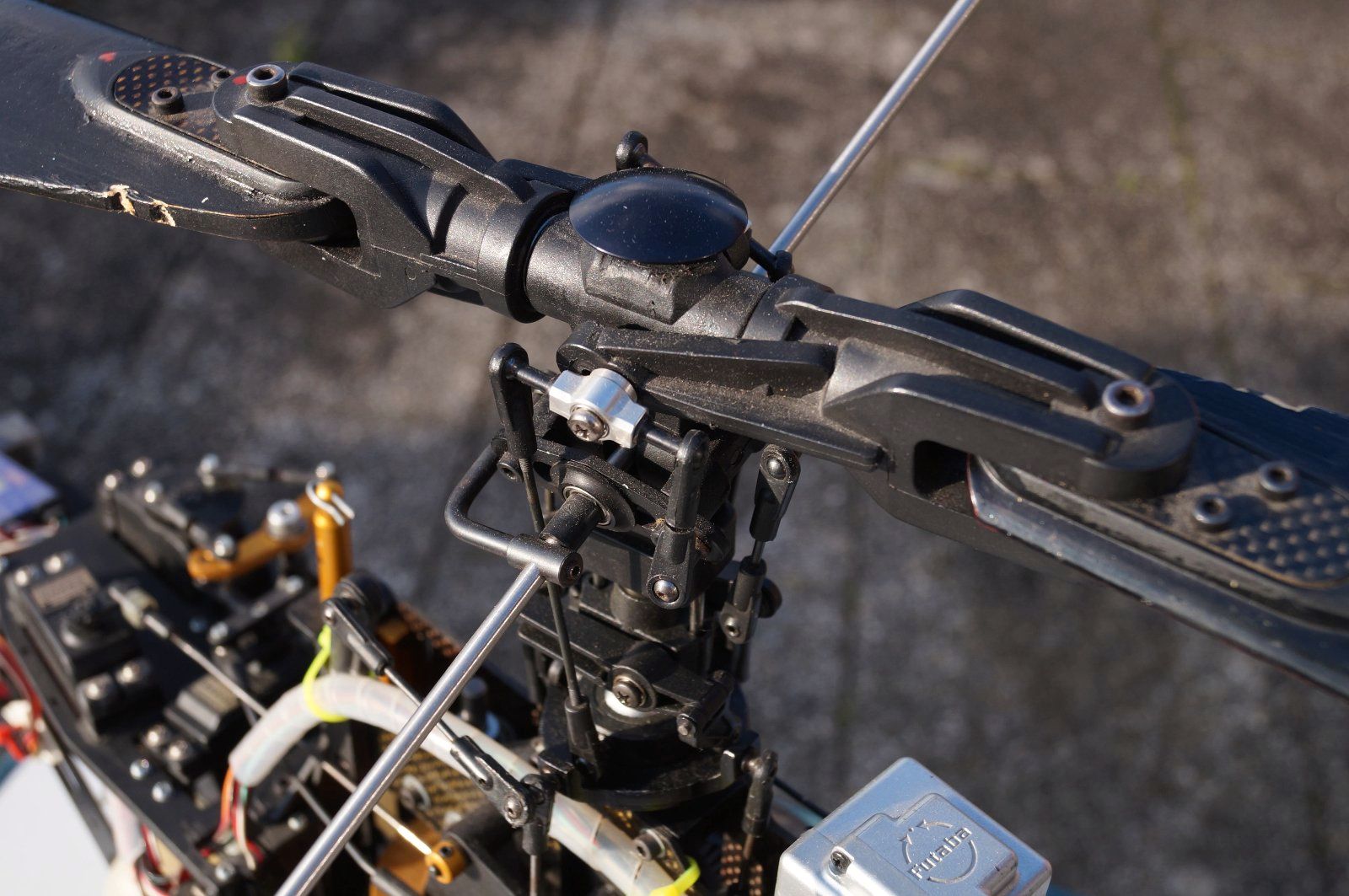

1005-1 GAS GRAPHITE MAIN ROTOR - Features:

Stainless Steel Flybar.
New 3-D Style Paddles.
Centerless Ground Head Axle.
Thrust Bearings in Blade Mounts.
Ball Bearings At All Pivot Points.
360 Degree Center Support.
Hard Steel Rolled Threaded Control Rods.
690mm Main Rotor Blades.
Dual Flybar Control Arms.

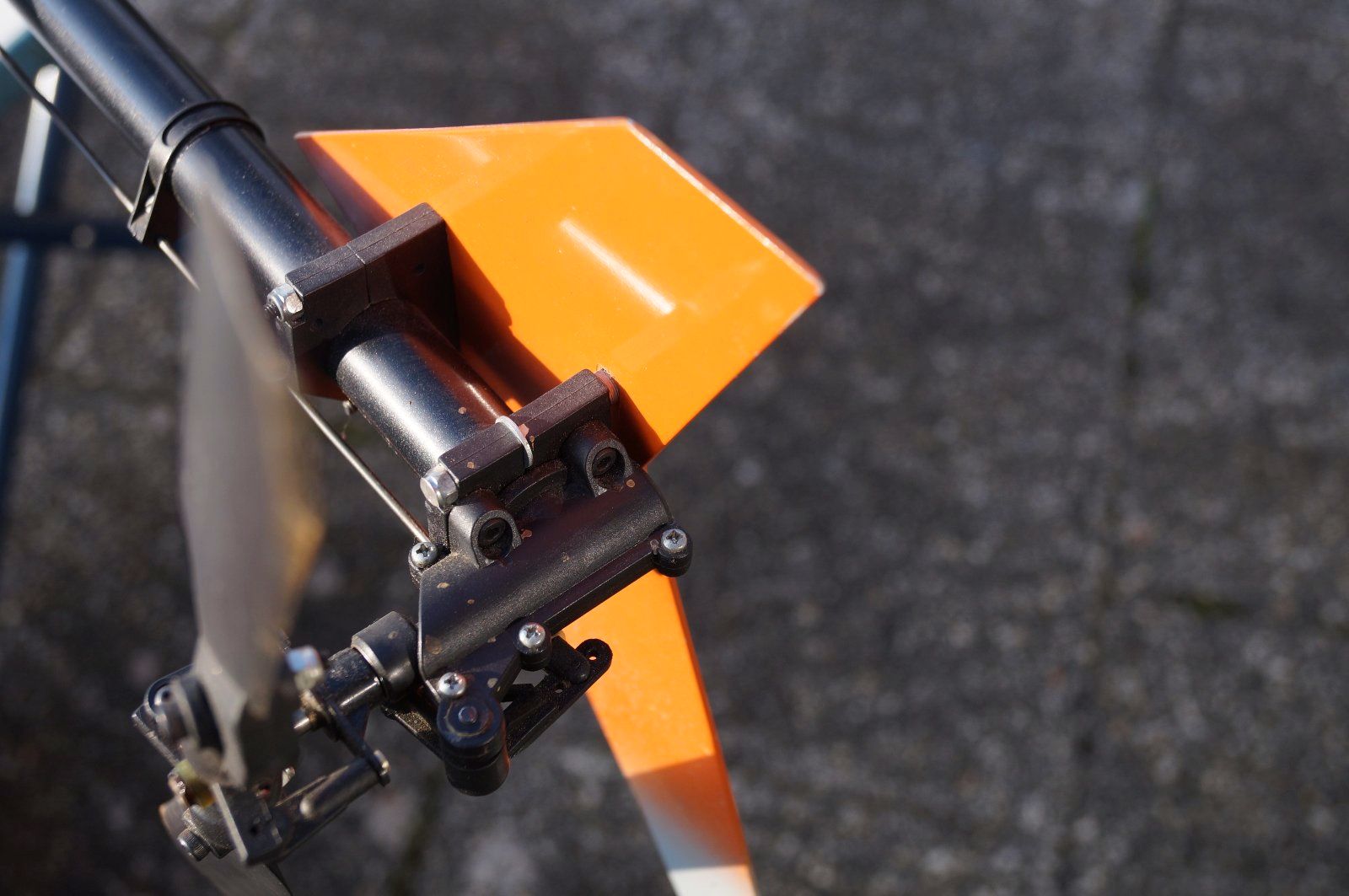

1005-1 GAS GRAPHITE TAIL ROTOR - Features:

New Ball Bearing Spiral Counter wound Carbon T/R Drive Shaft.
New Dual Carbon Boom Braces.
Molded Tail Fins.
New Horizontal Fin Clamp Utilizing Wider Grip For Boom Braces.
New High Strength T/R Gear Box (Carbon / Nylon).
Centerless Ground Output Shaft.
New Rigid T/R Blade Grips (Carbon/ Nylon).
Thrust Bearing Tail Blade Support.
Dampened Tail Hub.
Precision Ground Hardened Steel T/R Gears.

Optional Features for XCell Gas Graphite

part number description details
0232 High Speed Tail Drive Front Gear Replaces #0231 16tooth bevel gear
0504 Sport Canopy - Epoxy Glass Requires #0575 plastic radio tray
0508 Ball Bearing Aileron Mixing For Plastic Aileron Servo Cradle
0533 Easy Off Flybar Weights Do not require flybar paddle removal
0536 Adjustable Roll Bellcranks 2 bellcranks - (Fury requires additional bellcrank - order 1-#0536-1,2-#106-02,1-#0101)
0537 Pro Wash-Out Mixer Arm Kit
0538 Pro Adjustable Bell Mixers Five mixing ratios
0540 Main Shaft Thrust Bearing Kit
0547 Speed Up T/R Gears Requires Use of lightweight T/R blades
0551 Slipper - Adjustable Drag T/R Drive For non-stepped mainshaft
0561 Pro Adjustable CG Paddles 15-30gm variable weight using brass inserts
0561-5 Pro-2 FAI Paddles variable 24-45gm. CG corrected
0571 Machined Washout Hub
0579-5 CNC Machined Aluminum Fan
0596 Adjustable Roll Servo Control Arm Order 0596F for Futaba and 0596J for JR servos
0597 Machined Bearing Spacer kit for Plastic Bellcranks
0818 Rudder Graphite Rear Servo Mount
0819 Machined push/pull Elevator Arm
0823 Machined Upper Thrust Bearing Block with Anti-Rotation
0825 Machined Elevator Bellcrank Requires #0826
0826 Machined Aluminum Elevator Swingarm
0832 Heavy Duty Front T/R Transmission kit
0844 Aluminum Head Block Included in #0848
0846 Stainless Steel Head Axle
0848 Pro CNC All Metal Rotorhead
0850 CNC Angled Flybar Control Arm Kit
0854-1 Machined Aluminum one piece Aileron Servo Cradle
0855 Graphite '99 Servo Tray
0856 Aluminum CT Radio Conversion Tray
0859 Machined Pro T/R Bellcrank and Pitch Slider Requires #0422 or #0861 T/R Housing
0860 Aluminum T/R Grips
0861 Machined Aluminum T/R Gear Box Housing
0866 Split Gear Constant Drive (Order #0866 - 9:1, #0866-1 - 9.3:1, #0866-2 - 9.5:1)
0883 Linear Servo Link Kit (Order #0883 for JR and #0883-1 for Futaba Servos)
