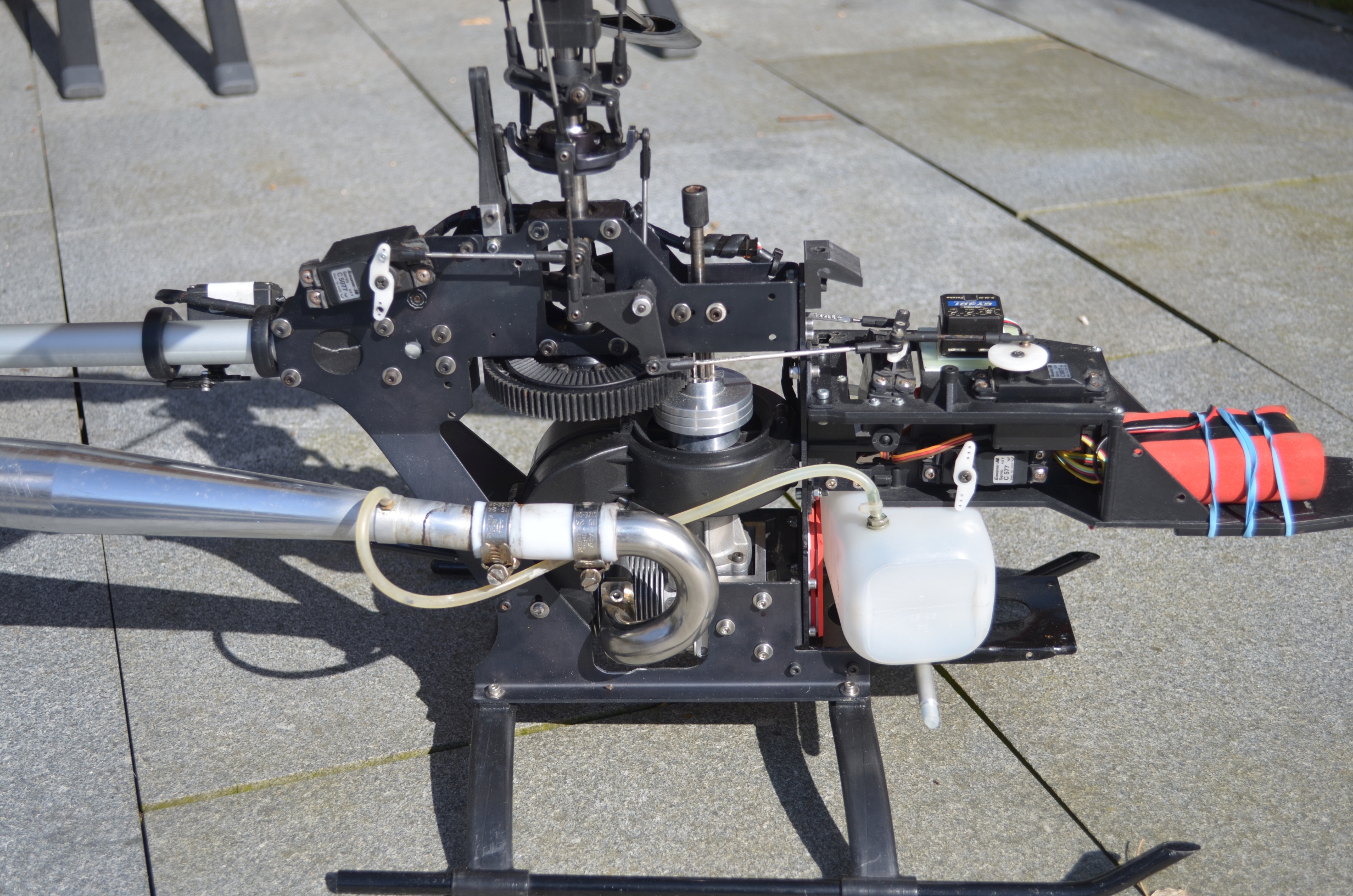

X-Cell 50/60 (#1000/1001/1003)

		Specification:   50 60   Length  1270 mm  1346 mm   Height   412 mm  412 mm  Main Rotor Dia  1245 mm  1455 mm  Tail Rotor Dia.  262 mm  302 mm  Total Weight  3600 g  4530 g  Gear Ratio  9:1:4.37  9:1:437  Engine  .50 - 8.3cc  .60 - 10cc  Coll. Pitch Range  20°  20°
Documents:

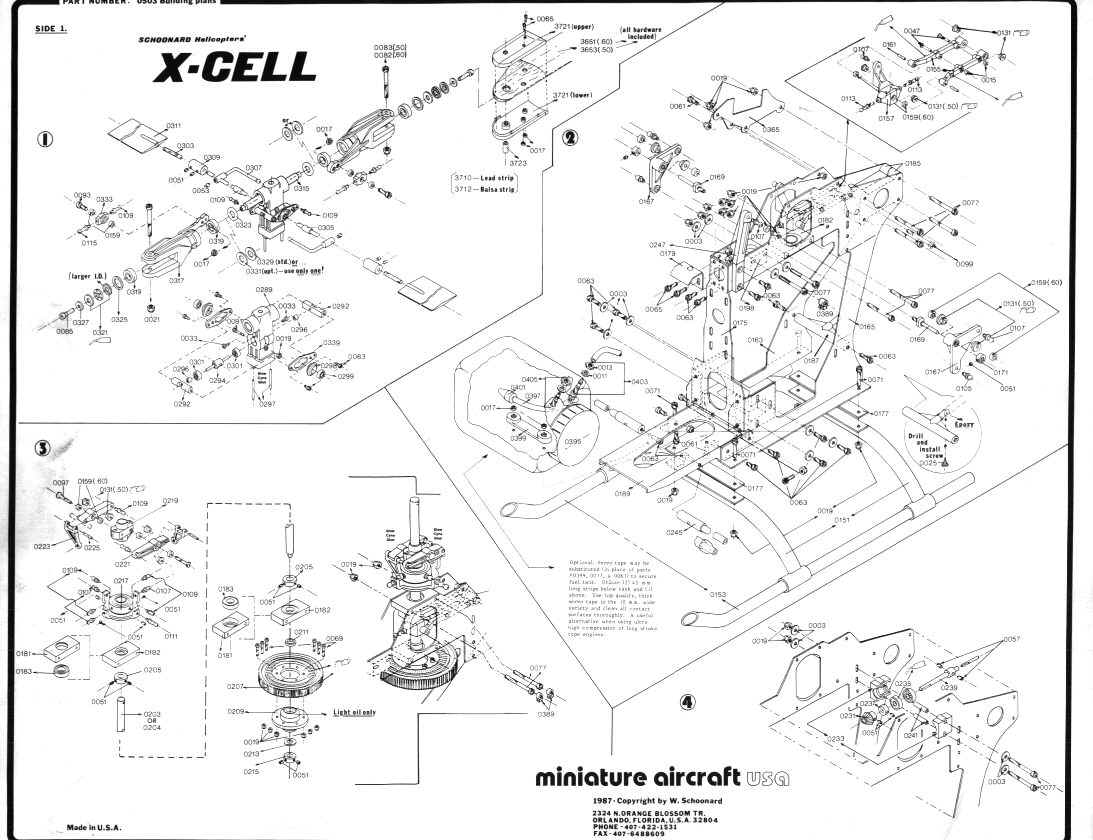

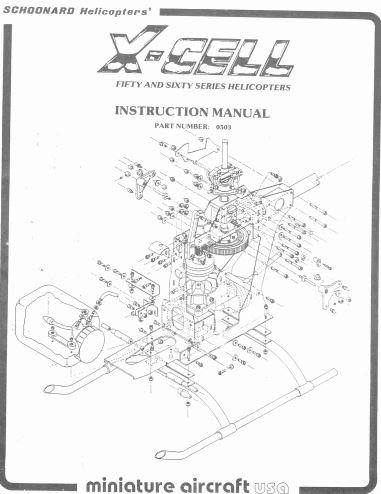

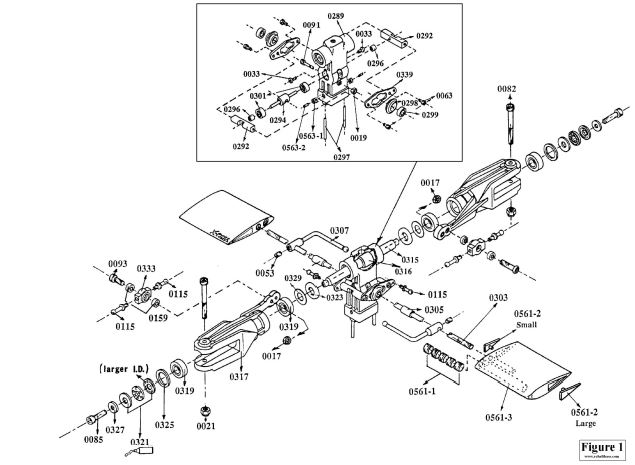

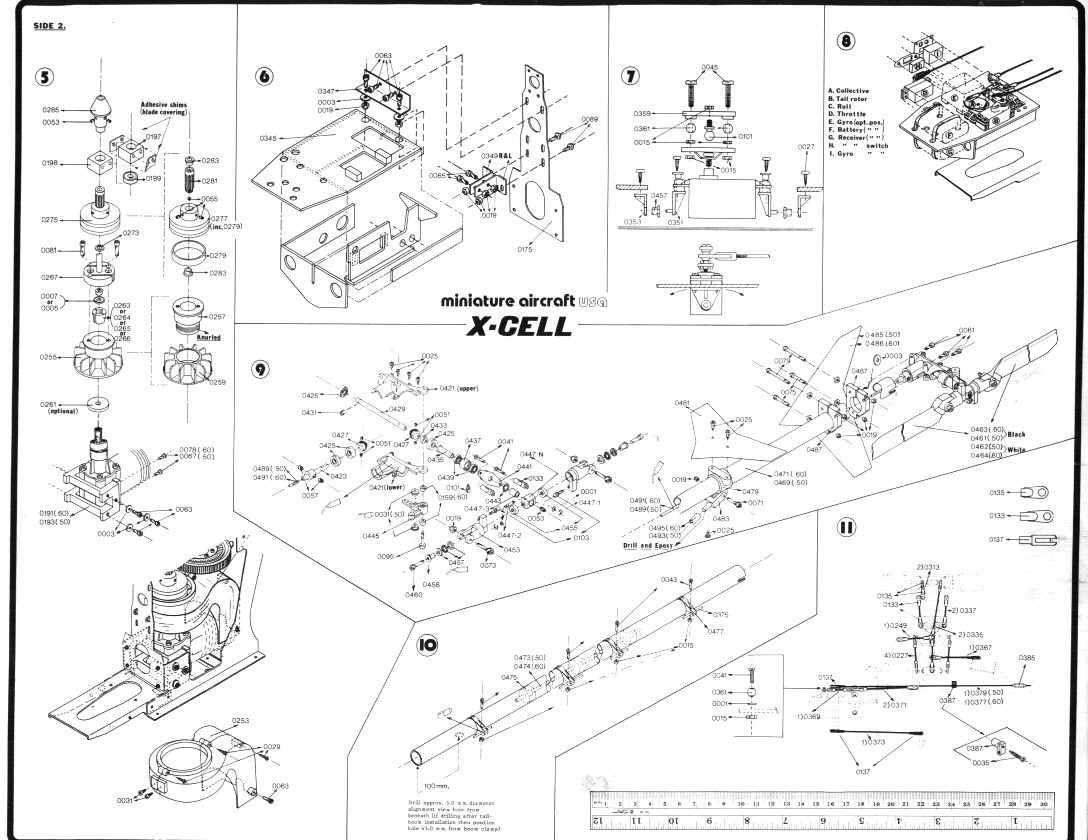

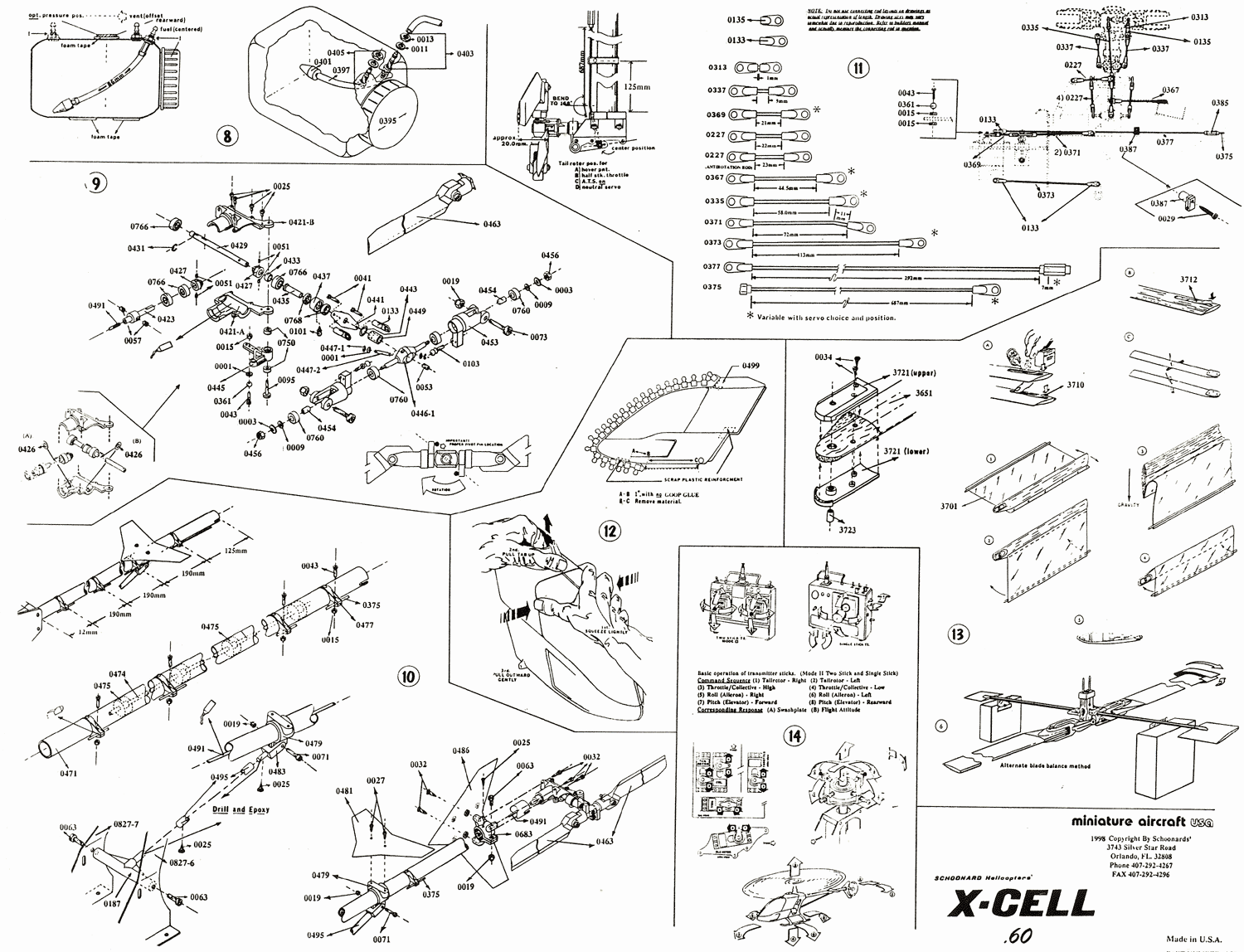

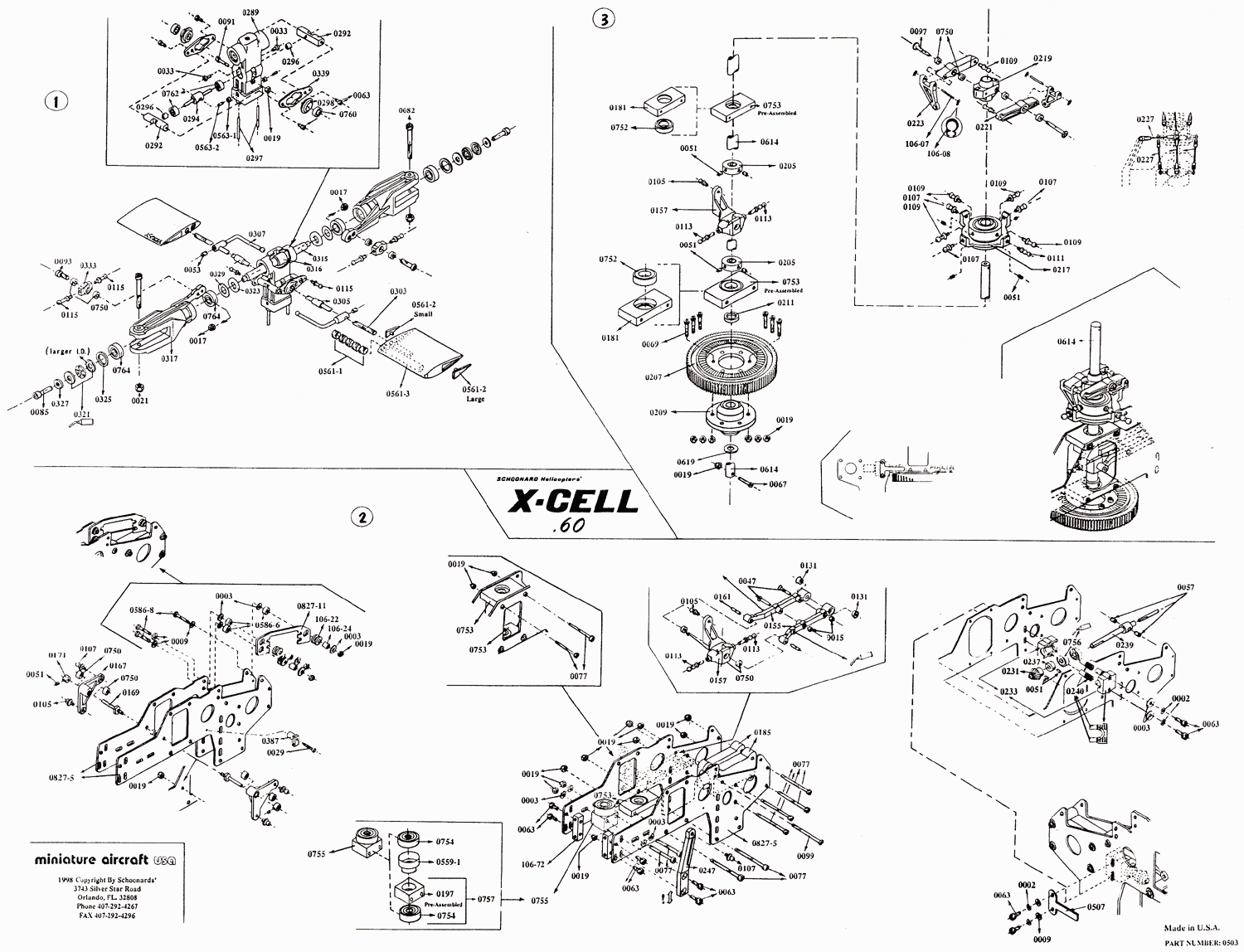

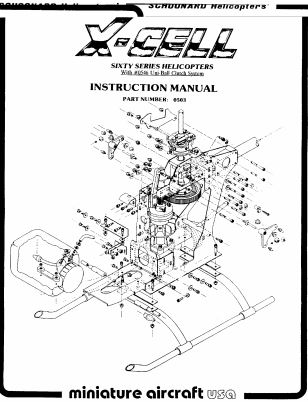

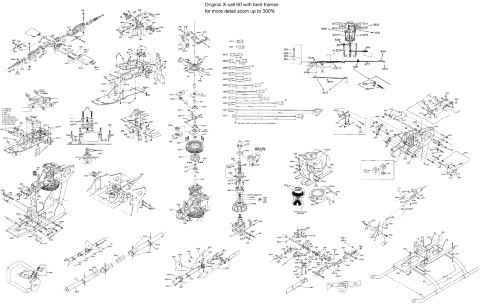

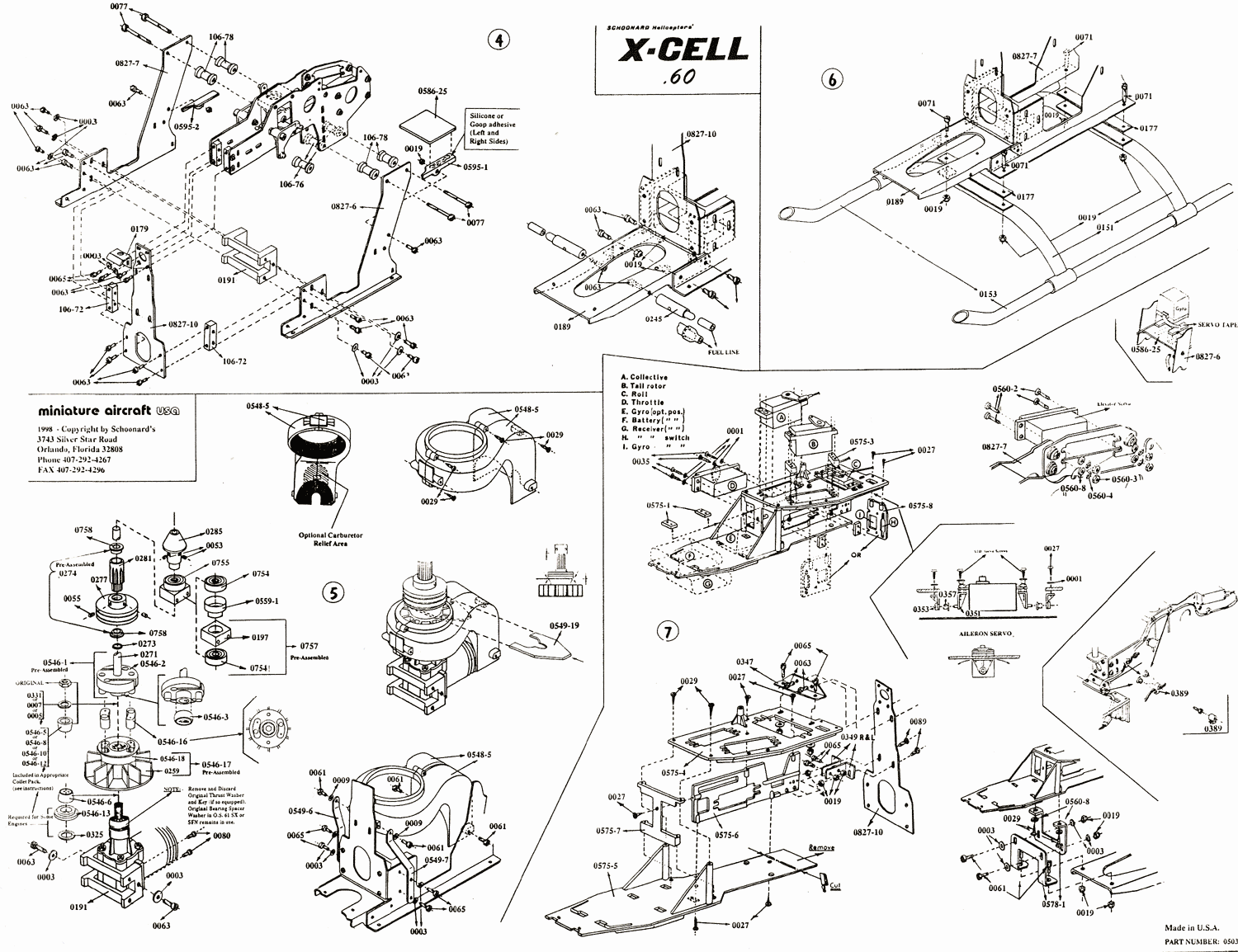

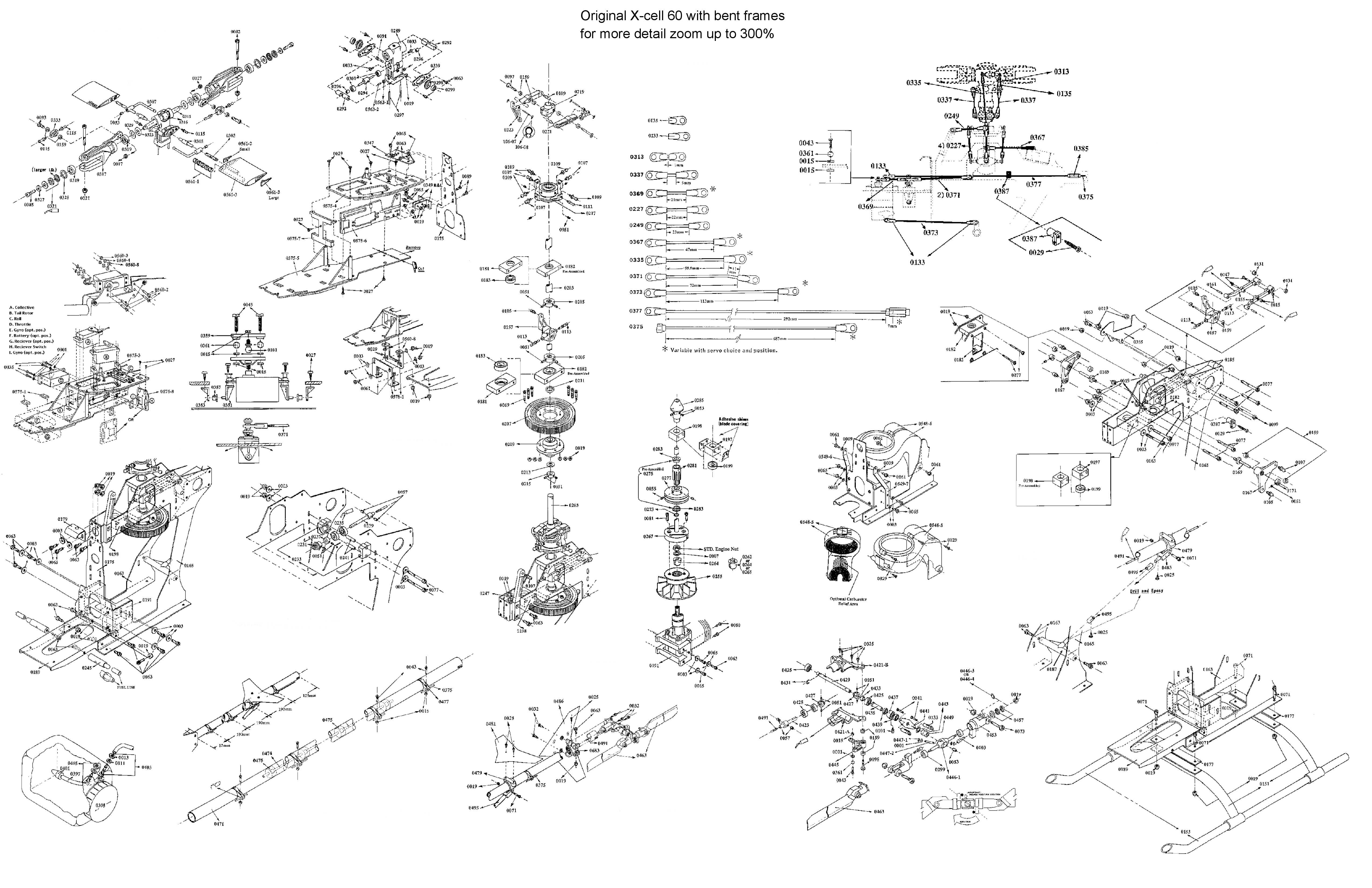

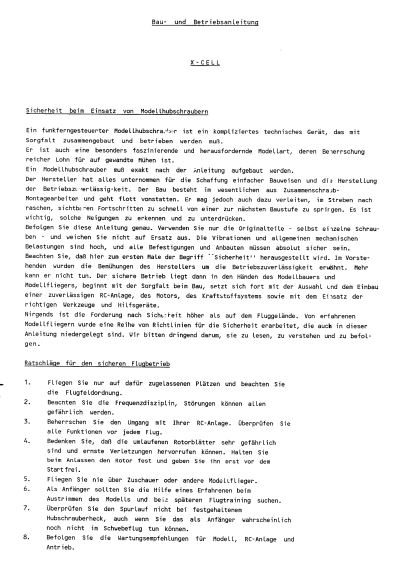

Manual X-Cell 50/60  Manual X-Cell 60   Bau-Betriebsanleitung		Mod.1001 Drawings

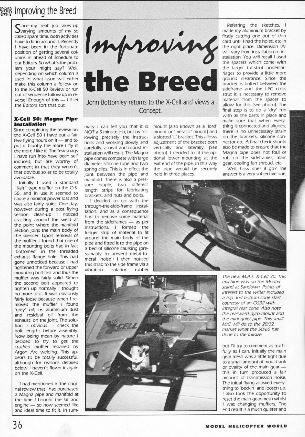

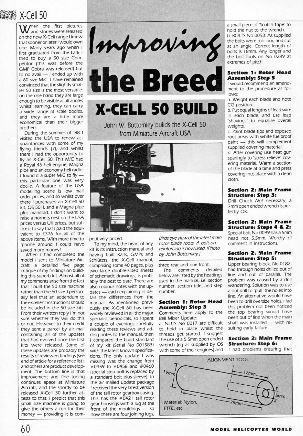

	decal XCell 50/60 XCell (45MB)	X-Cell 50 build review	X-Cell 50 review update

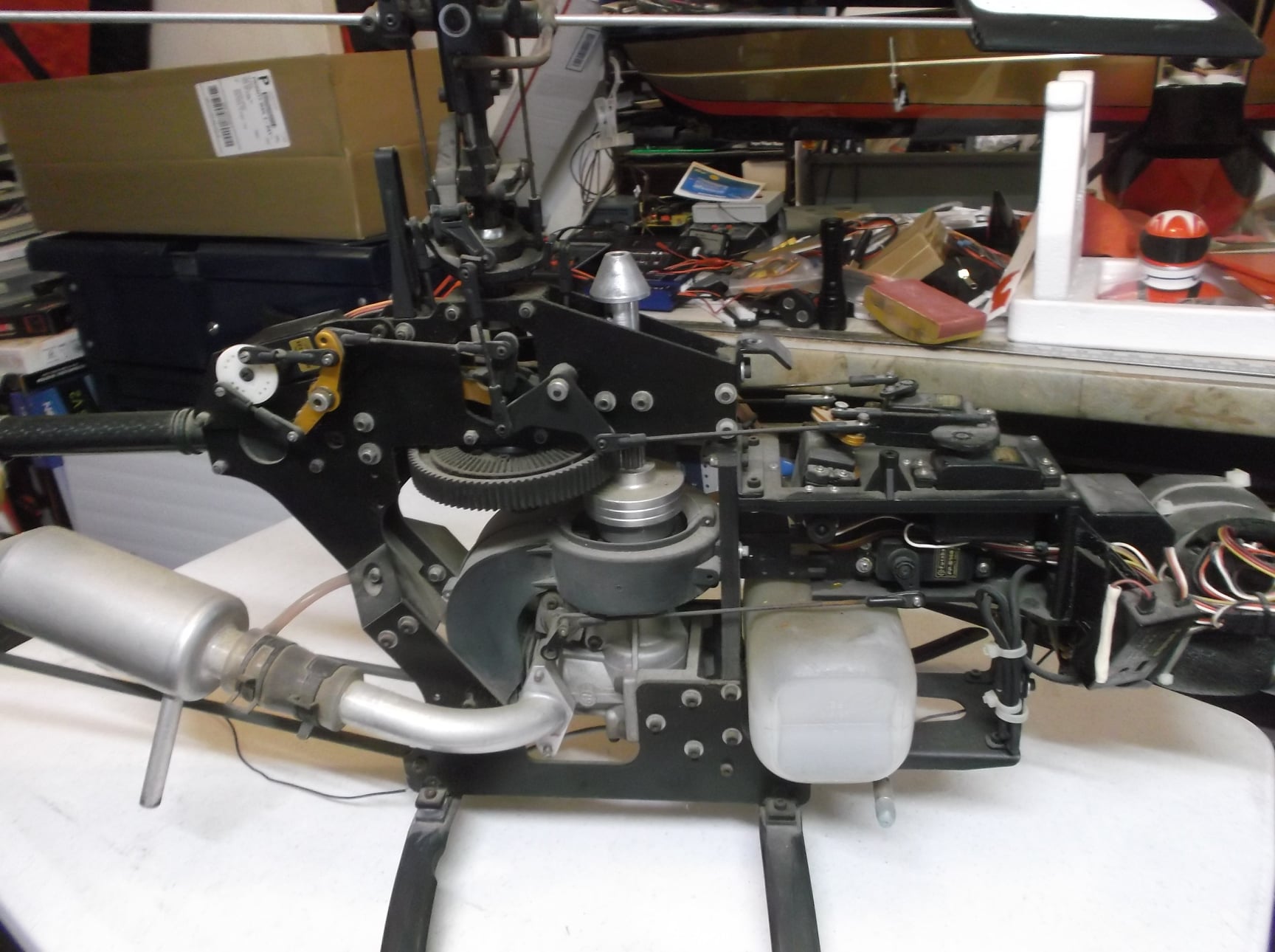

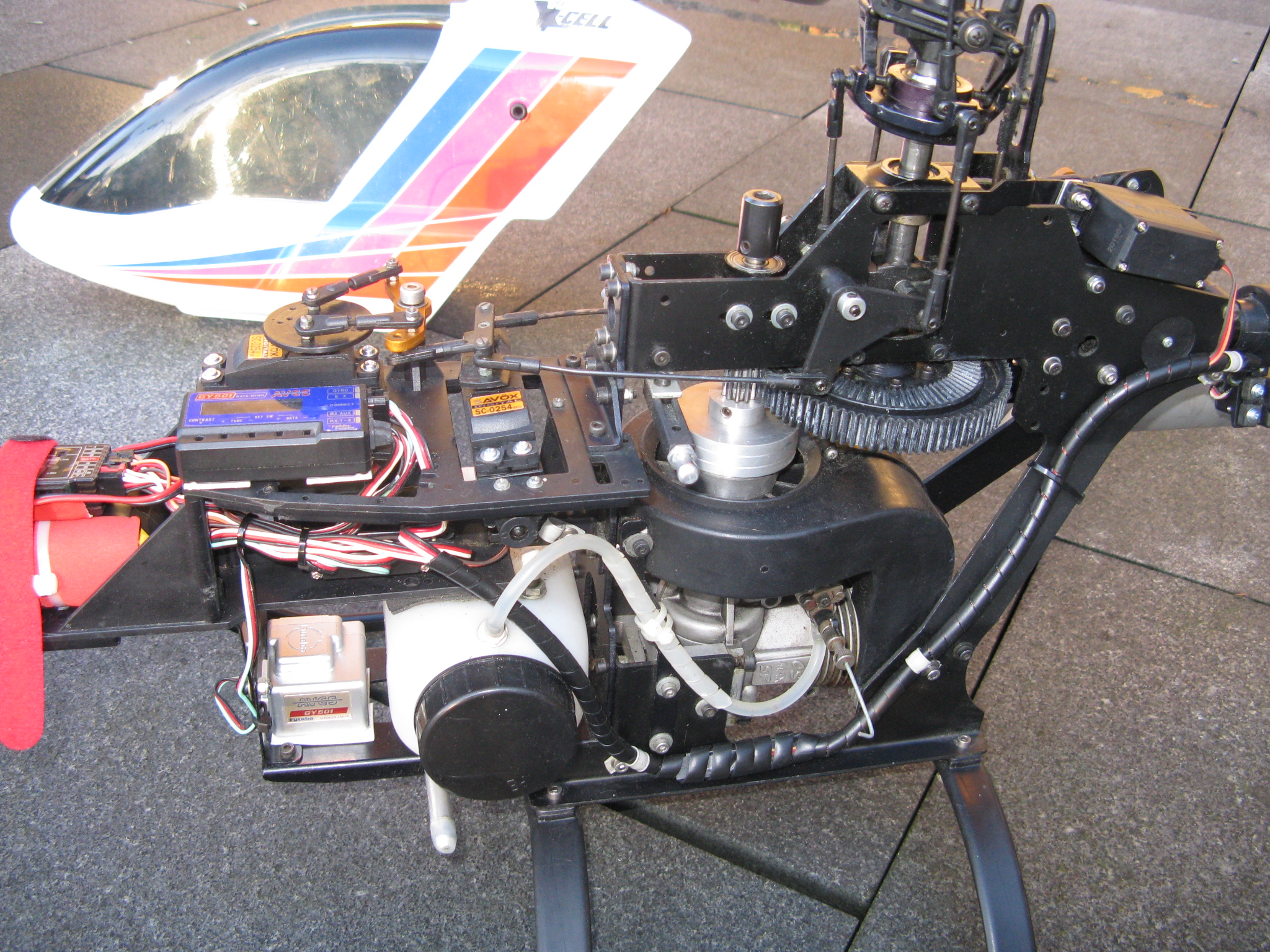

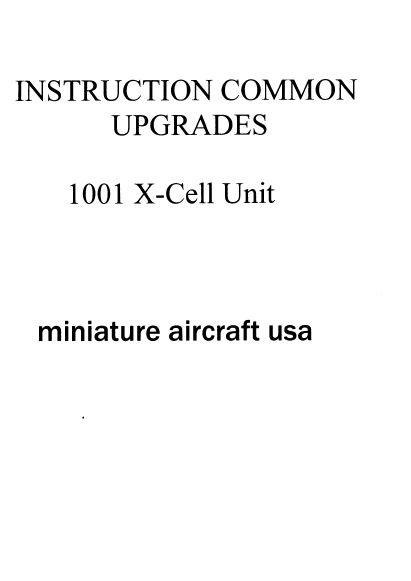

X-Cell 50 (1987) Mod.1000        X-Cell 60 (1987) Mod.1001   Instruction comman upgrades X-Cell 1001 X-CELL 60 (1987 - 1993) Bent Aluminum Frames Wood Servo Tray Bolt to hub clutch (Non-uniball) Standard silver clutch drum Plastic head block Side arm trailing link anti-rotation No main shaft thrust bearings Non ball bearing plastic elev swing arm Gyro mounts on servo tray Head button not included Non ball bearing aileron tray mount No push/pull collective No push/pull elevator Aluminum single boom support Wire tail drive system 1 radial 1 thrust tail blade bearings Plastic canopy Standard plastic fin Used 30" tail boom - 660 main blades X-Cell 60 (1993 - 1998) Bent Aluminum Frames Plastic Servo Tray Uniball clutchStandard silver clutch drum Plastic head block Side arm trailing link anti-rotation No main shaft thrust bearings Non ball bearing plastic elev swing arm Gyro mounts on servo tray Head button not included Non ball bearing aileron tray mount No push/pull collective No push/pull elevator Aluminum single boom support Wire tail drive system 1 radial 1 thrust tail blade bearings Plastic canopy Standard plastic fin Used 30" tail boom - 660 main blades

X-Cell 1002 Quick Silver

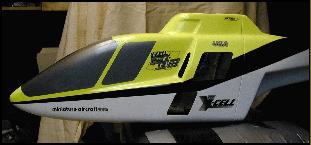

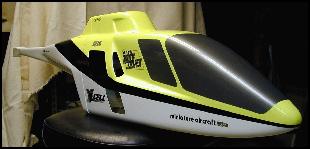

The 2500 quicksilver fuselage. Photo's courtesy Paul Papandrea, Piscataway, NJ

The 1002 X-Cell 60 Quick Silver kit was a 1001 X-Cell 60 kit combined with the 2500 Quick Silver fuselage. The 1002 kit was shown in the 1990 X-Cell catalogue but does not appear in my 1996 catalogue. The 2500 fuselage kit is still shown in the current catalogue.

The kit was designed around the bent frame 60 using a  30" tail boom format.
Made of epoxy construction, no bulkheads. Came white epoxy primed. Added about 8 ounces to the total weight.

Additional notes:
The bent frame version of the 1001 was also available in a "white frame" version #1001W . This version included White main frames, tail boom, boom supports, strut supports, elevator plate, struts & skids.

When the "white frame" version of the 1001was first released (circa 1990) it was called a #1005. (Not to be confused with the later 1005 X-Cell Gas graphite
