The original X-Cell swash plate anti rotation device consisted of an arm bolted to the upper side frames with a link trailing back to the swash plate. This method injected a small amount of swash plate rotation as the collective was increased or decreased.

To correct this X-Cell introduced the slotted  anti-rotation guide which mounted behind the swash plate.  Three versions of this style were produced.

The stamped aluminum unit which came with a bracket to mount it to any X-Cell.

The CNC unit which bolted to the rear of the upper bearing block. This unit required the machined upper thrust-bearing block.

A molded unit (not shown) which sat between the upper frames, behind the swash plate. This unit required that two holes be drilled in the frames for mounting.

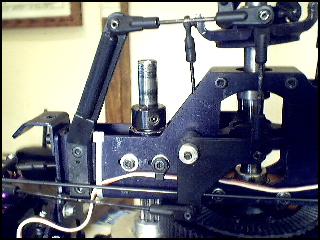

Original arm with trailing link

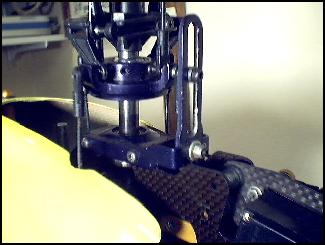

Machined bracket

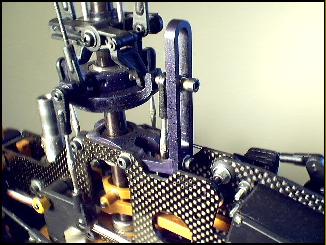

Stamped metal bracket
