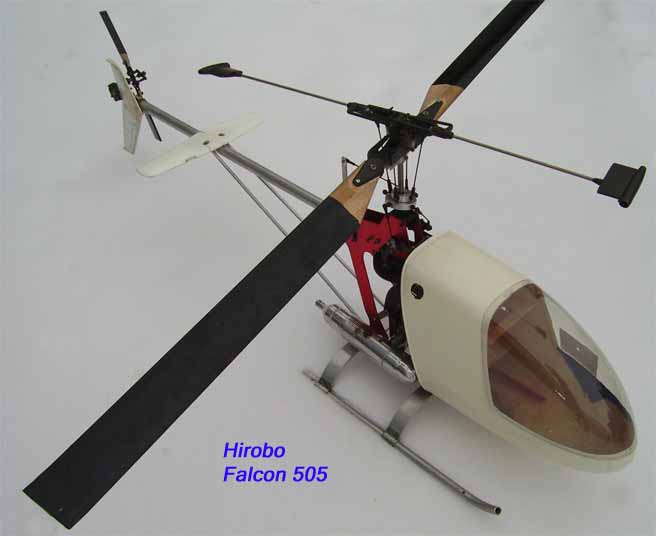

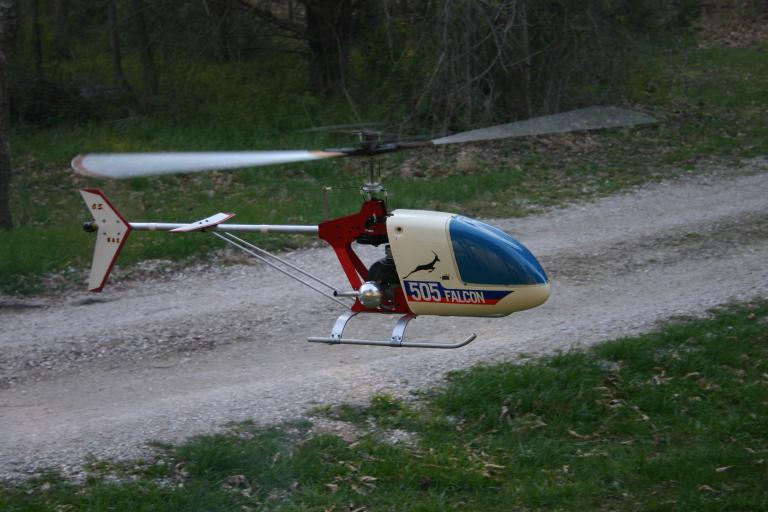

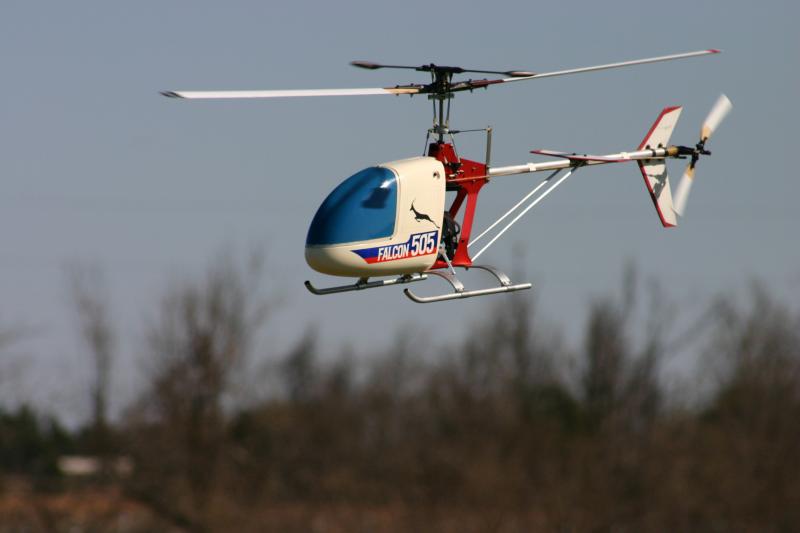

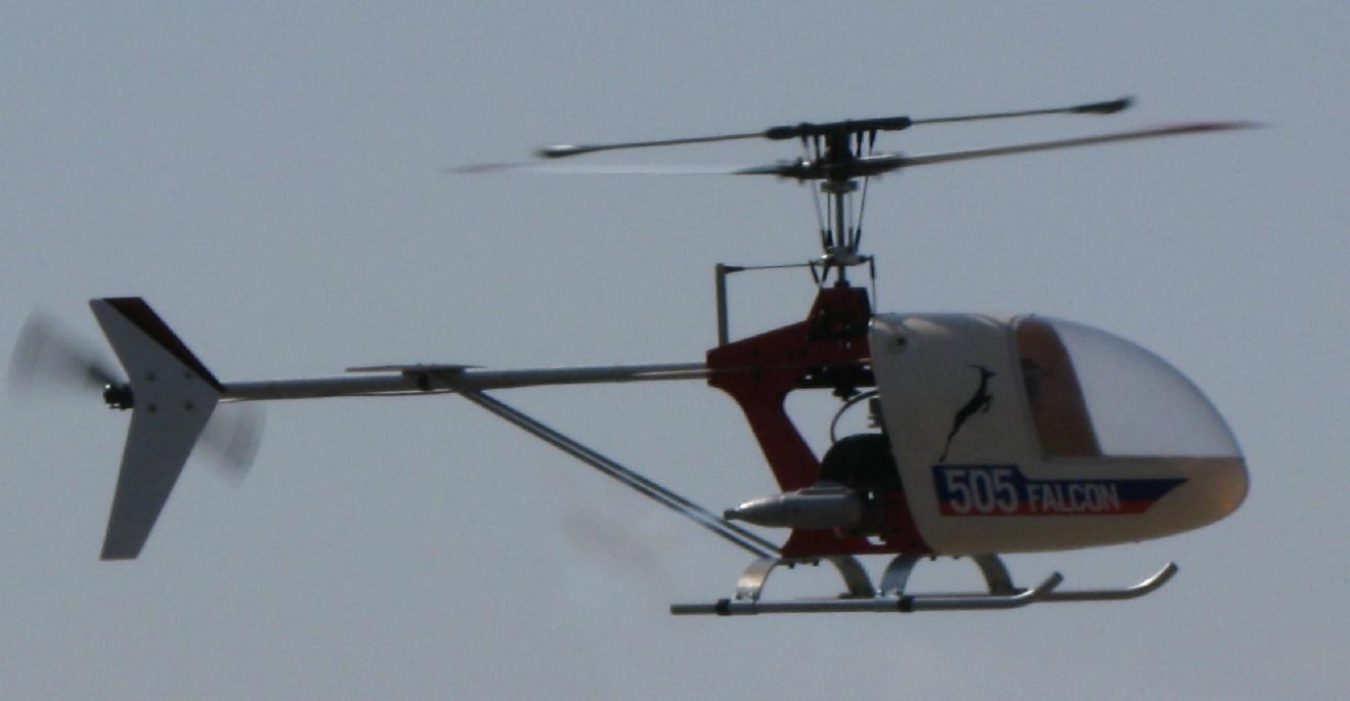

Hirobo Falcon 505 (1980)

			Specification:    Full Length of Fuselage  1190 mm  Rotorhead  Hirobo  Main Rotor Dia  1340 mm  Tail Rotor Dia  280 mm  Engine  0.45, 7ccm  Full Equipped Weight  3500 g
Documents:

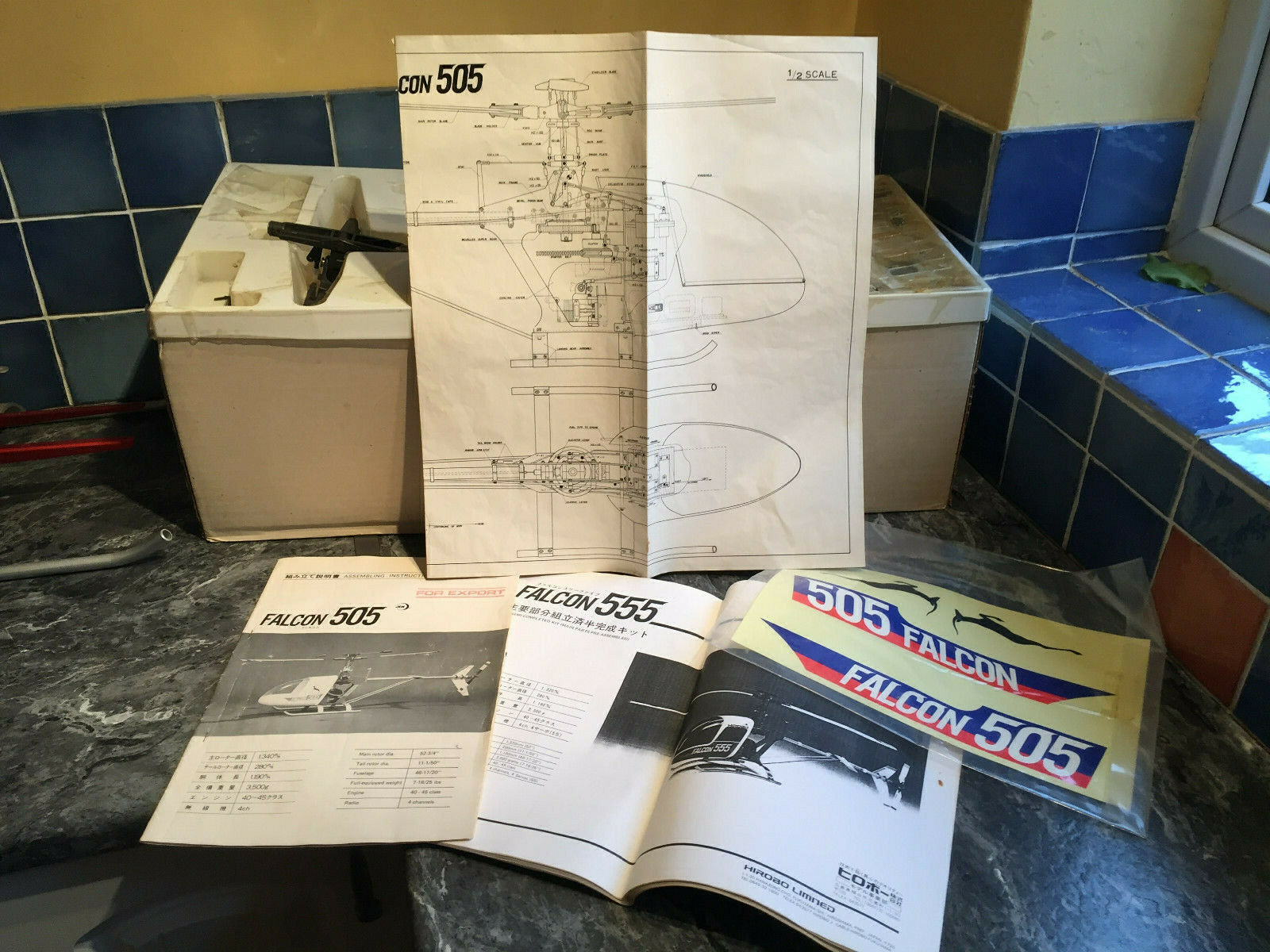

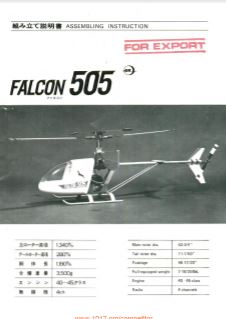

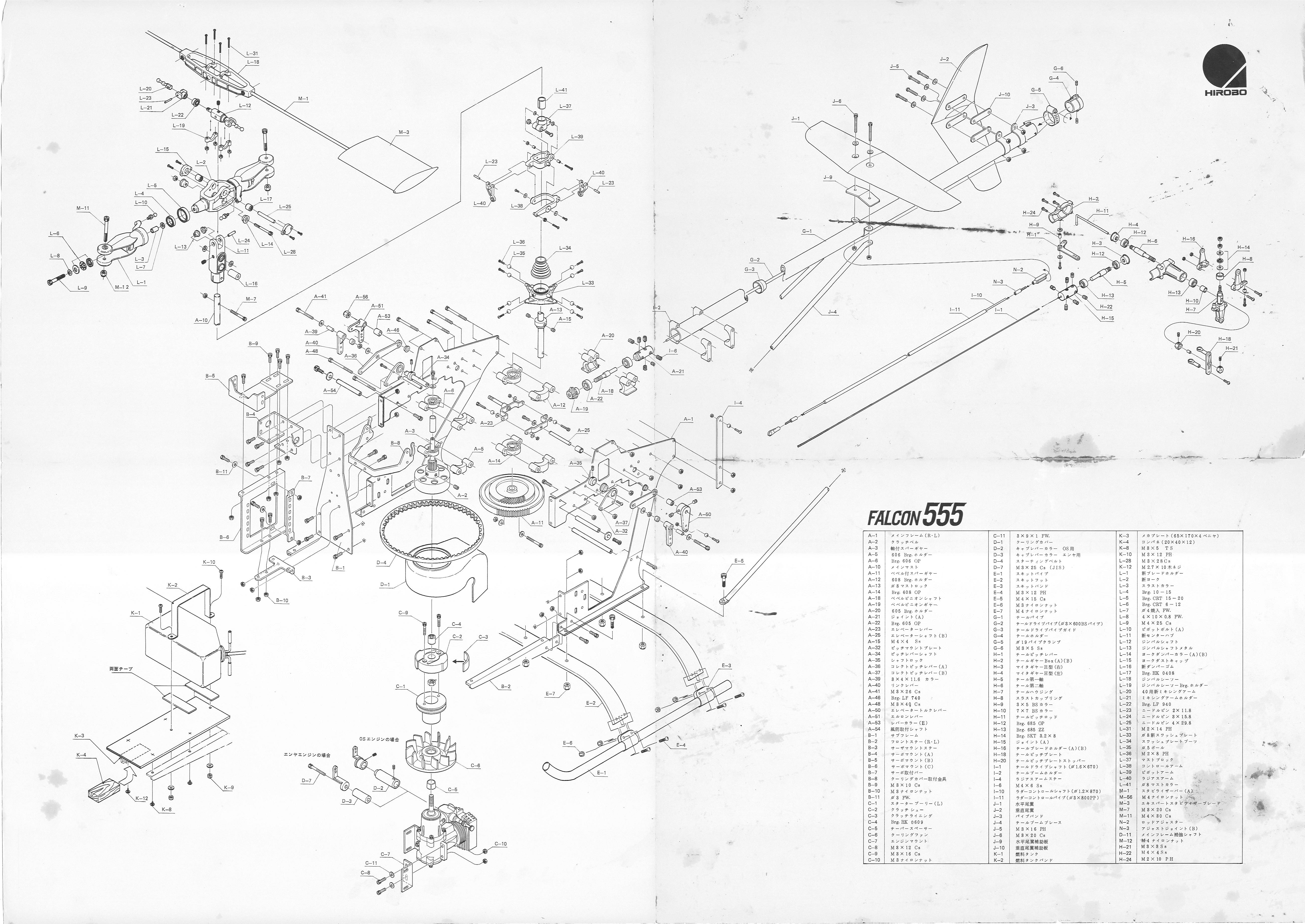

Falcon 505 build manual	Falcon 505s build manual	Falcon 555 Build manual	Falcon 505 exploded view	Falcon 555 exploded View

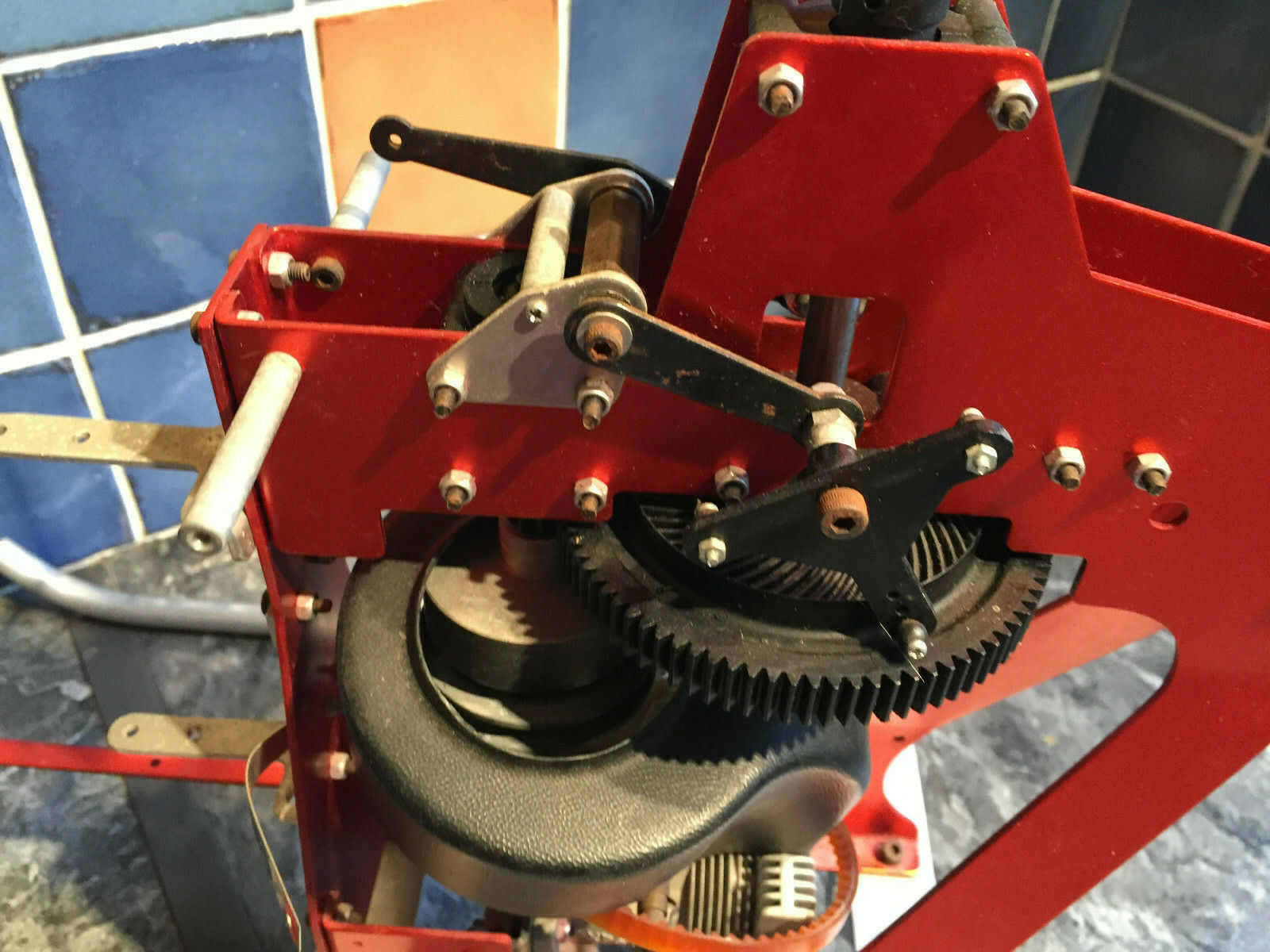

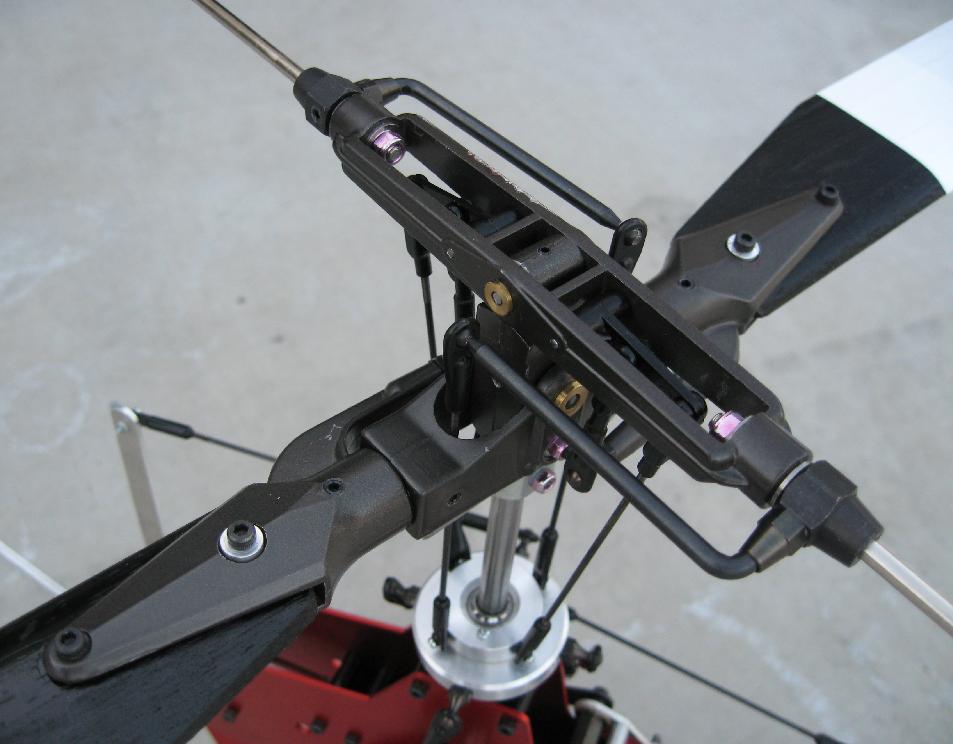

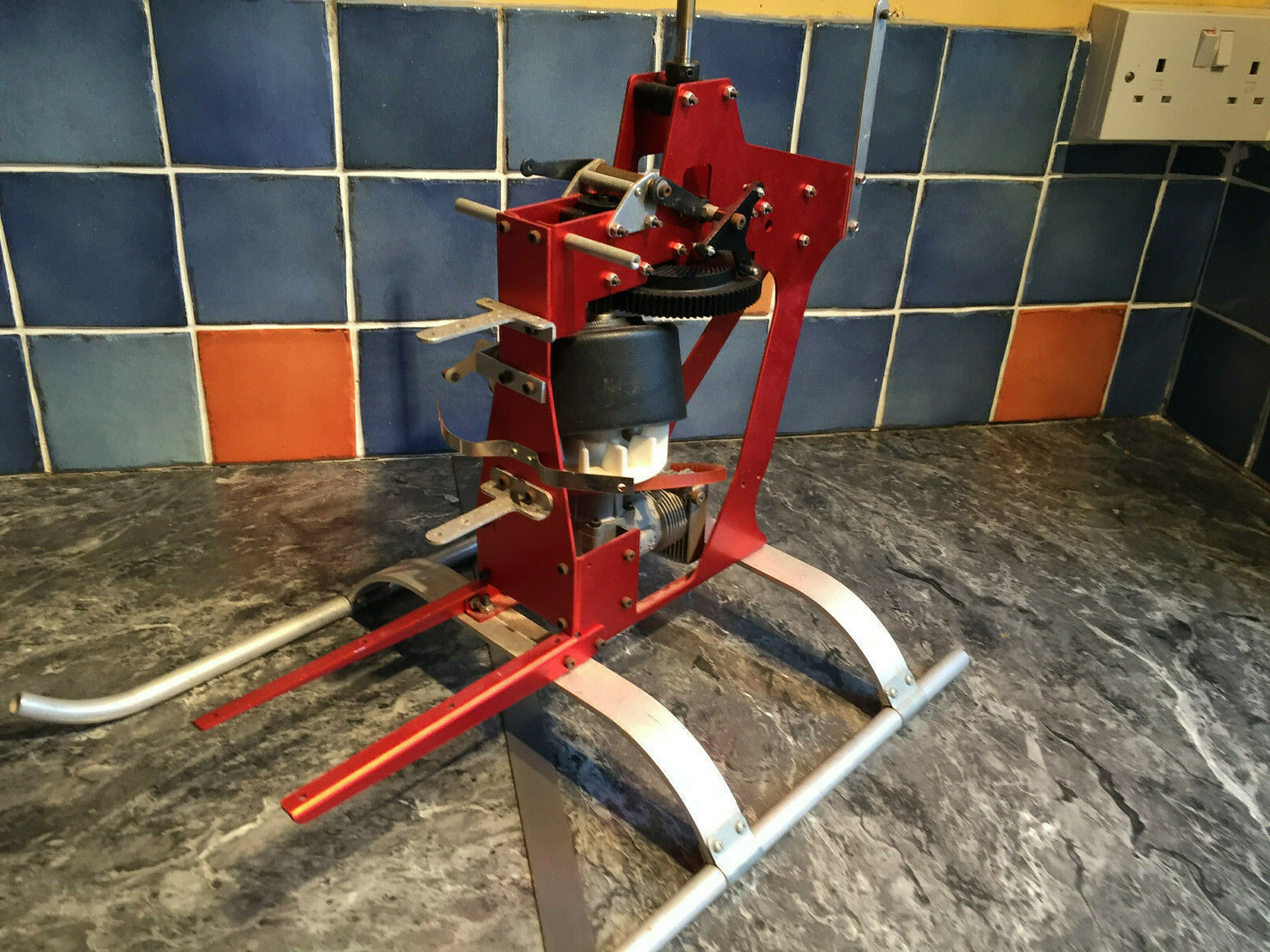

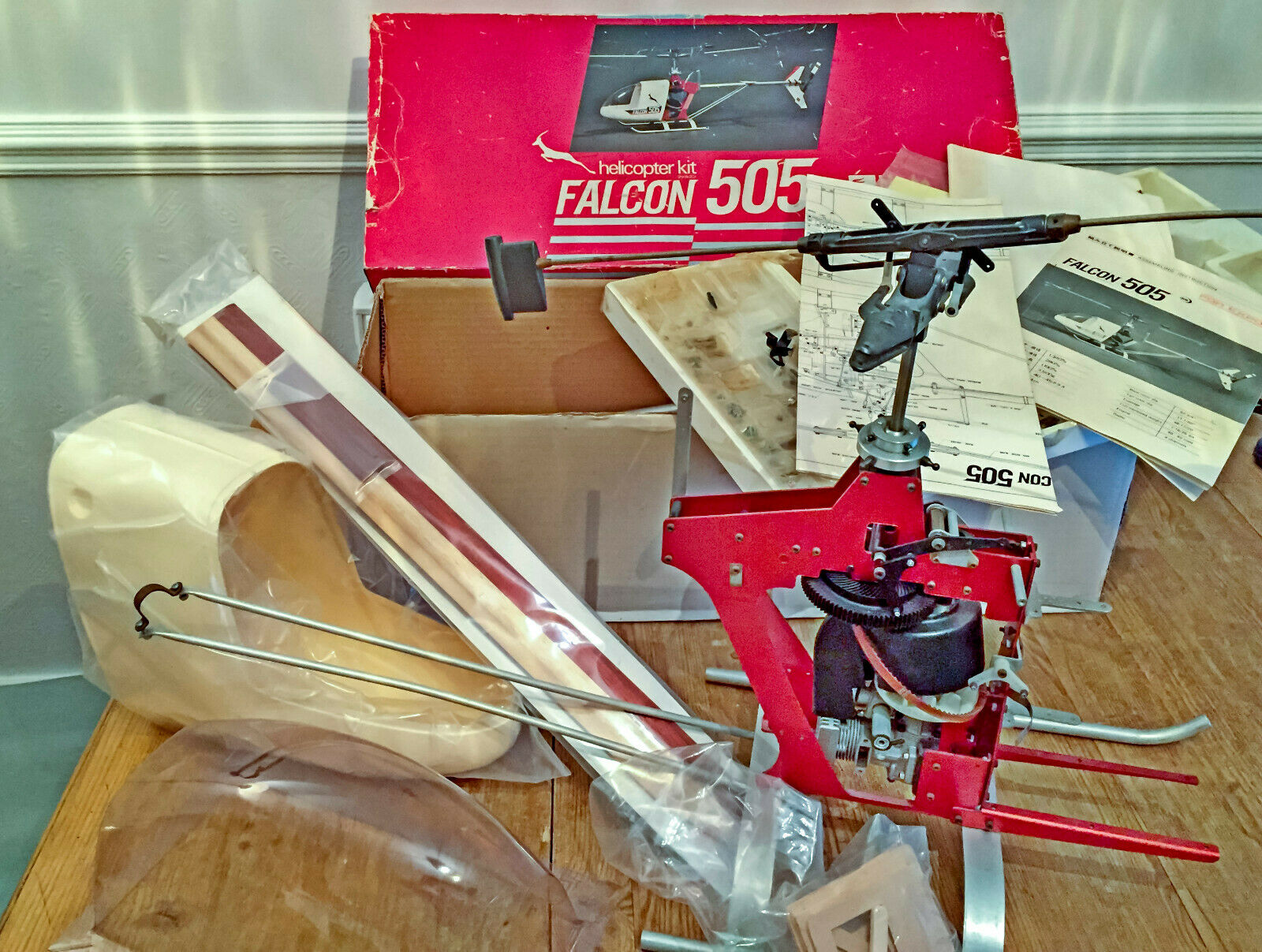

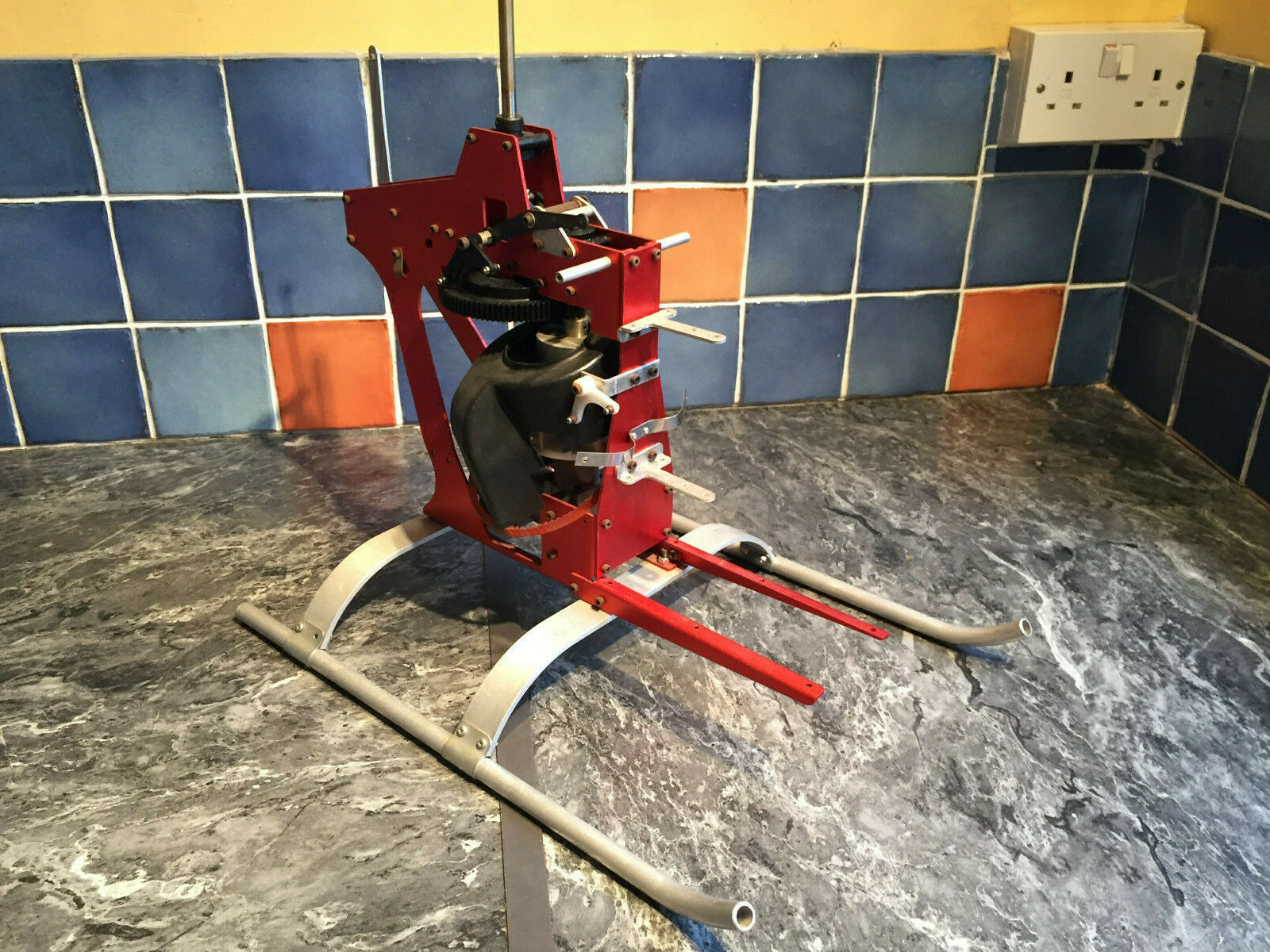

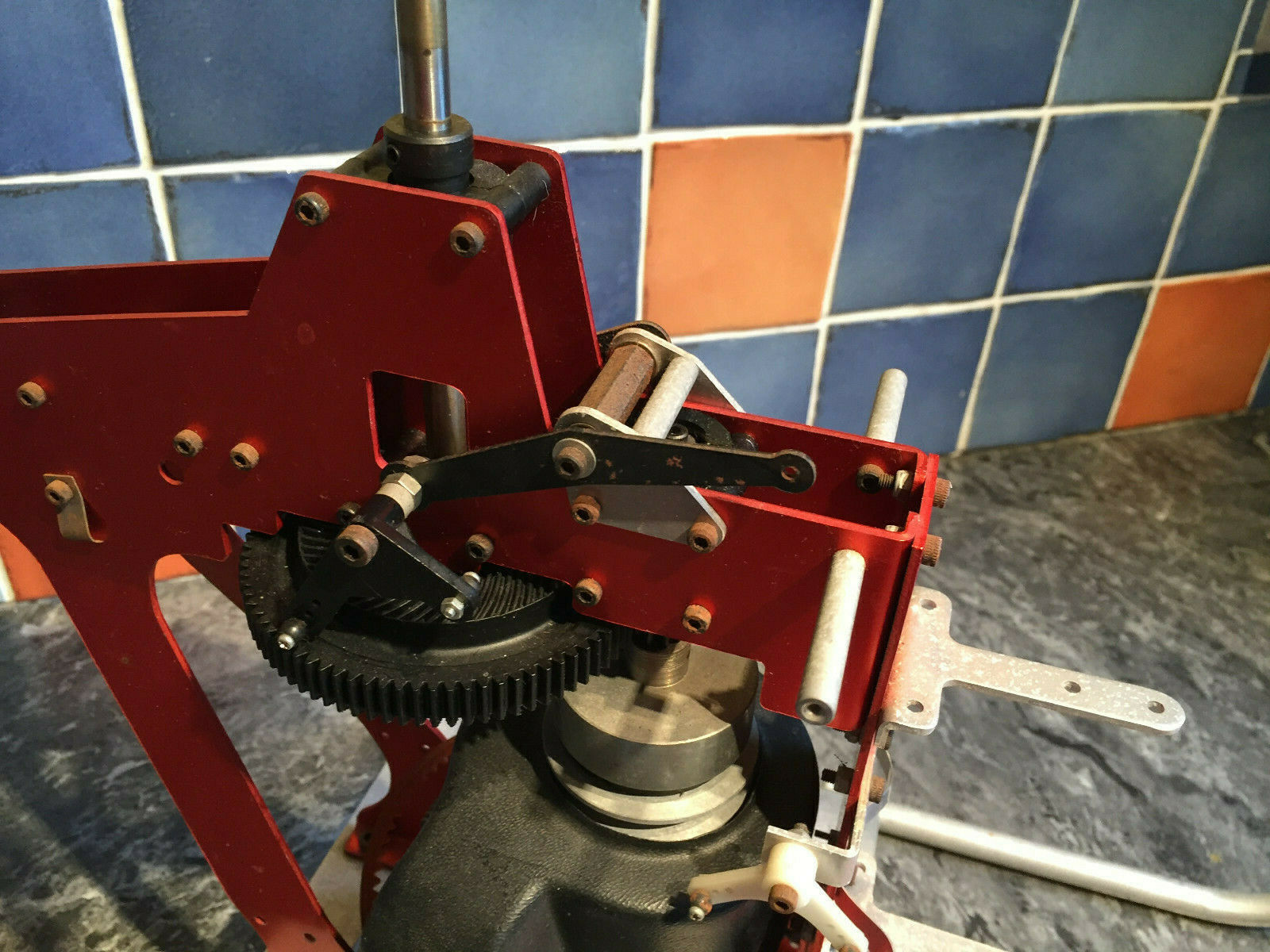

Pod and boom general purpose helicopter for 40-50 size engines.  Reverted back to the layout of the original Falcon head as the 'collective de-coupler' had proved to be unsuccessful.  Came with red anodised frame and 'gunmetal' coloured head components.  Engine mounting was better than the earlier models but the lower frame section could still crack as it was not very substantial.  The 'plastic' clutch could also give trouble if not treated with respect on running up the rotor head.

HGK 45 engine recommended for the Falcon 50

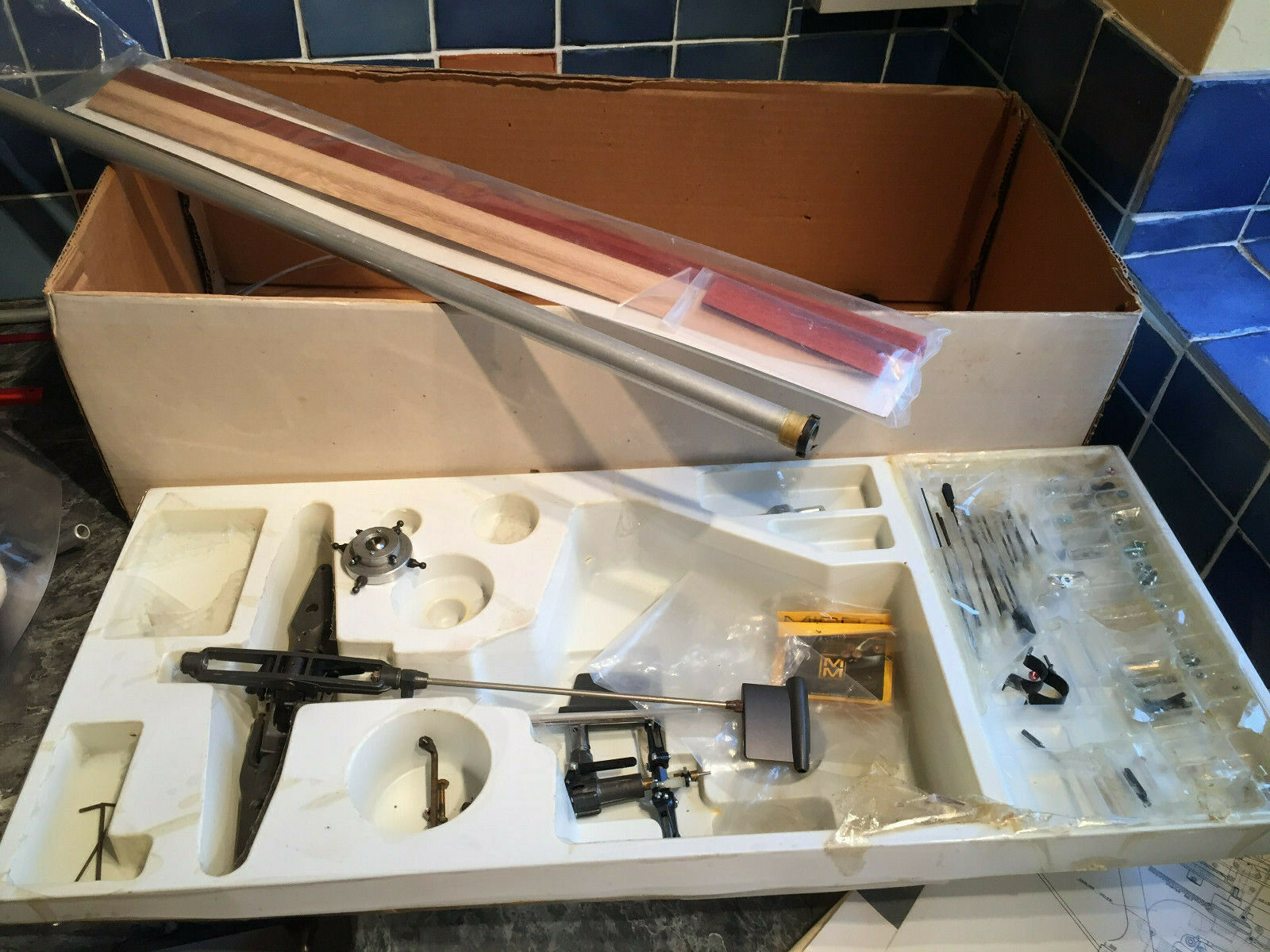

Falcon 505 wood parts

Falcon 505 canopy stickers

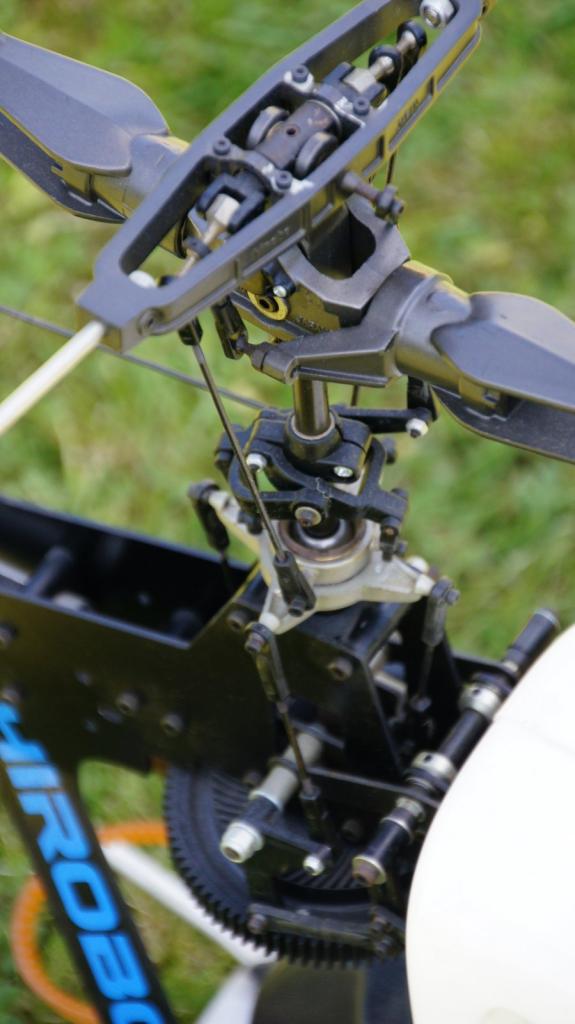

Upgrade version of the 505 with the newer see-saw type head.

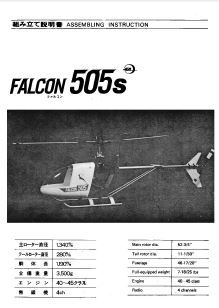

Falcon 505s build manual  -  Construction manual but without exploded view (combined with 505 and 707).

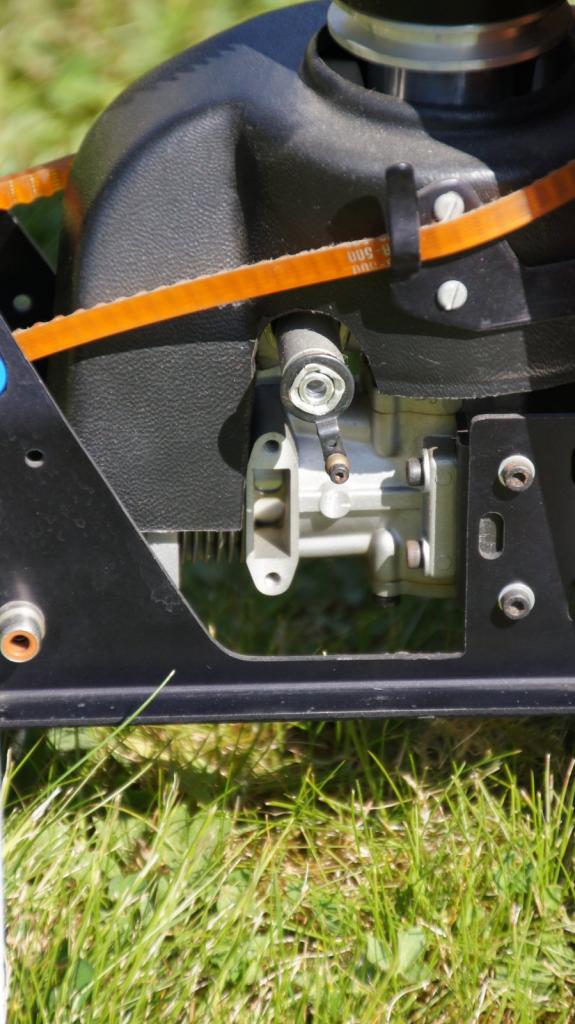

Upgrades for 1983 included a belt holder to stop it from getting caught in the clutch flywheel and metal servo mounts to replace the original wooden mount.

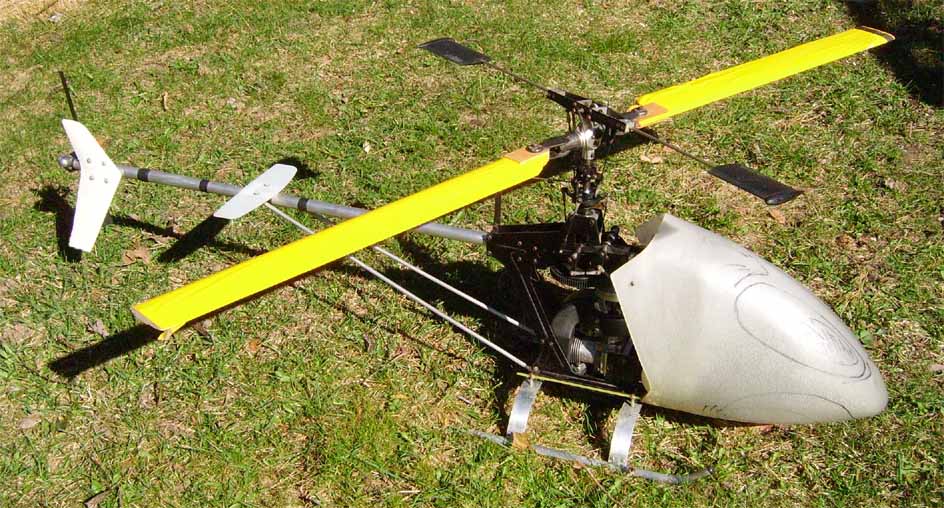

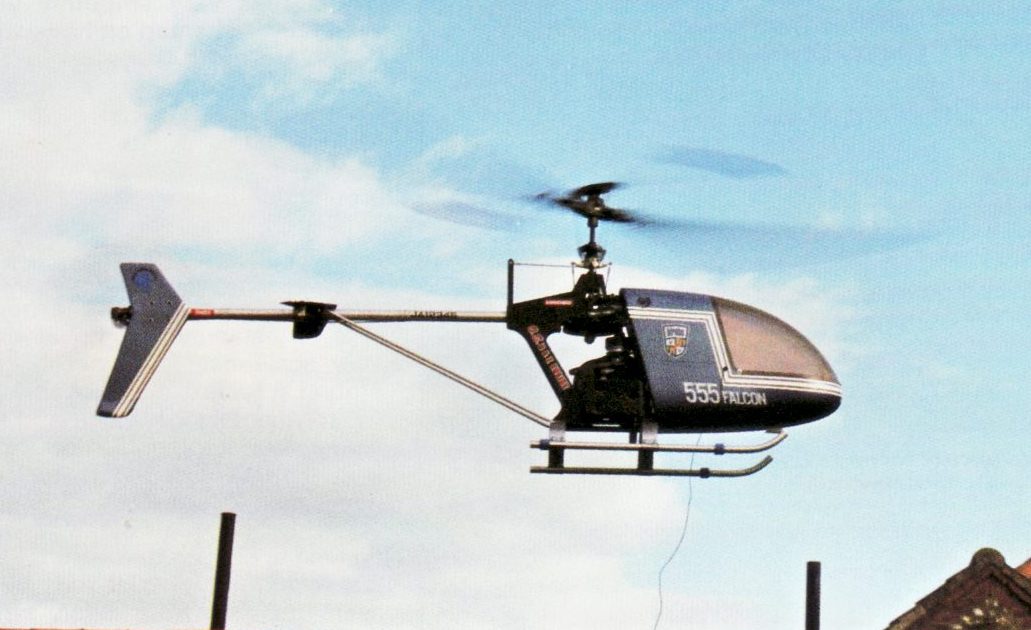

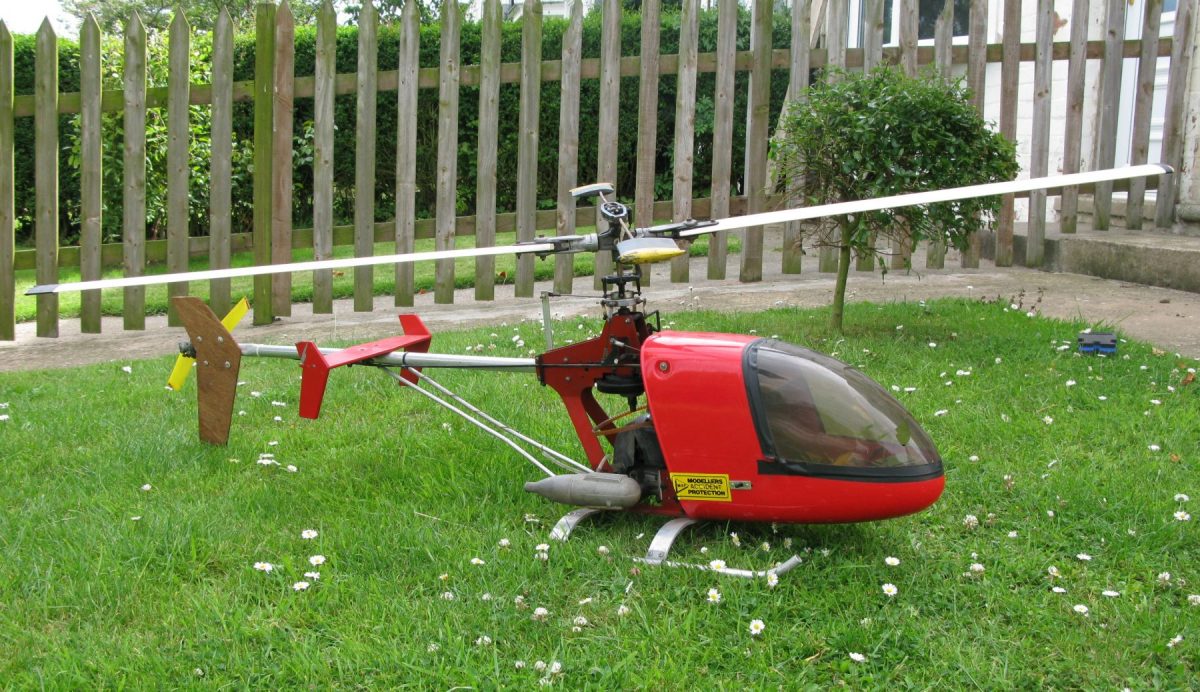

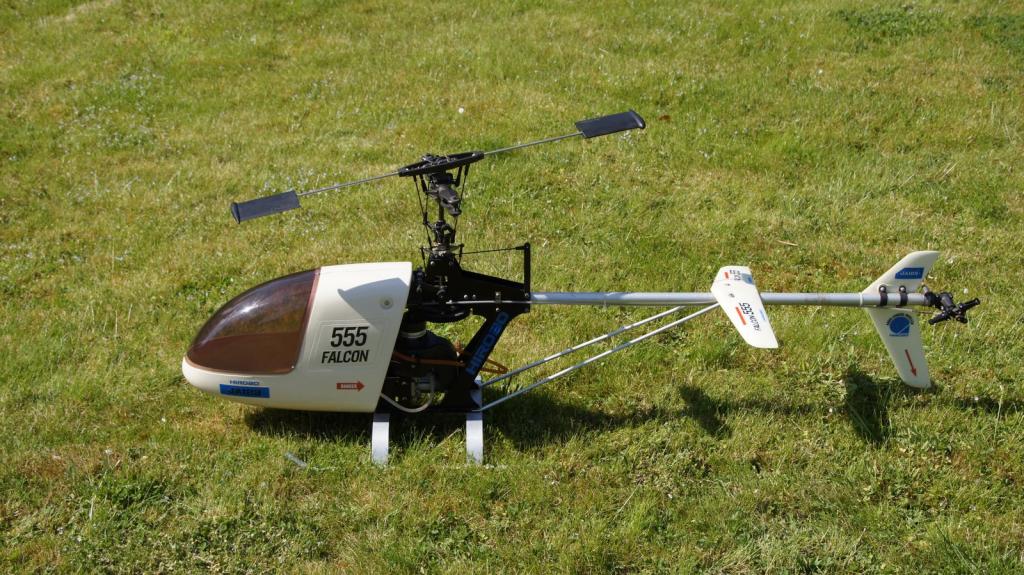

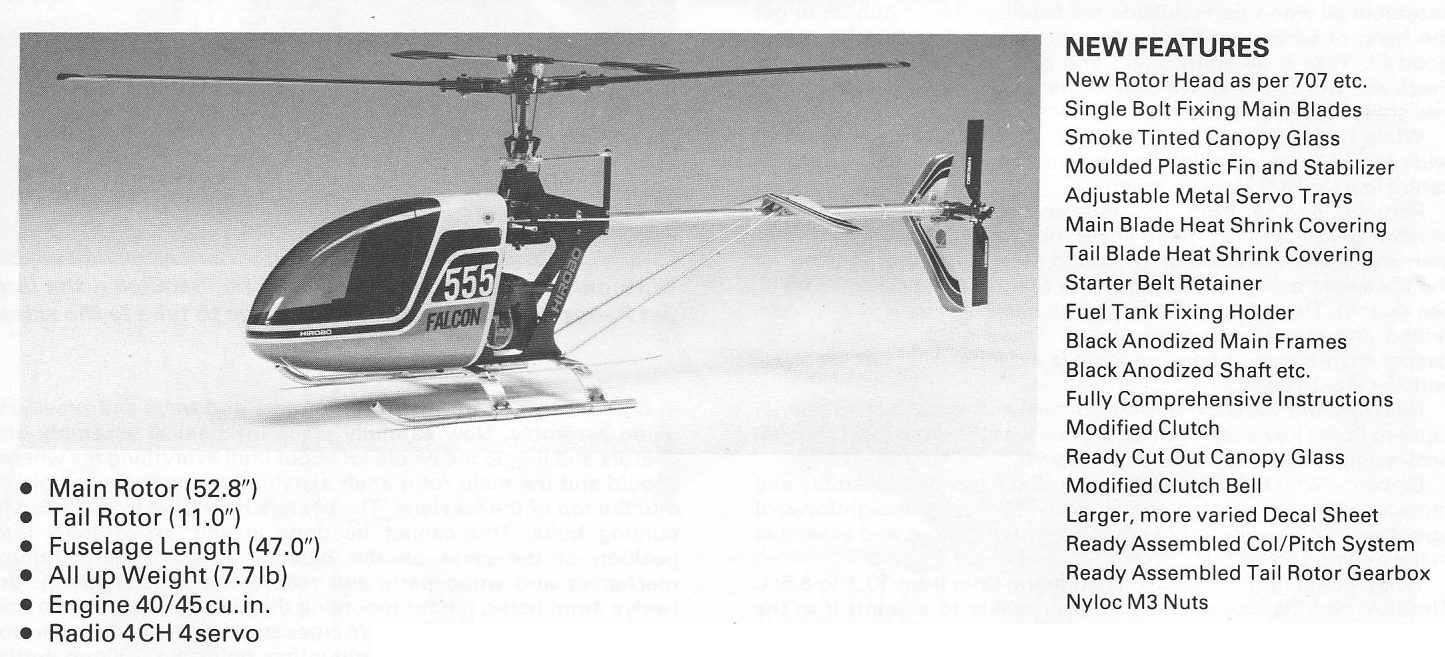

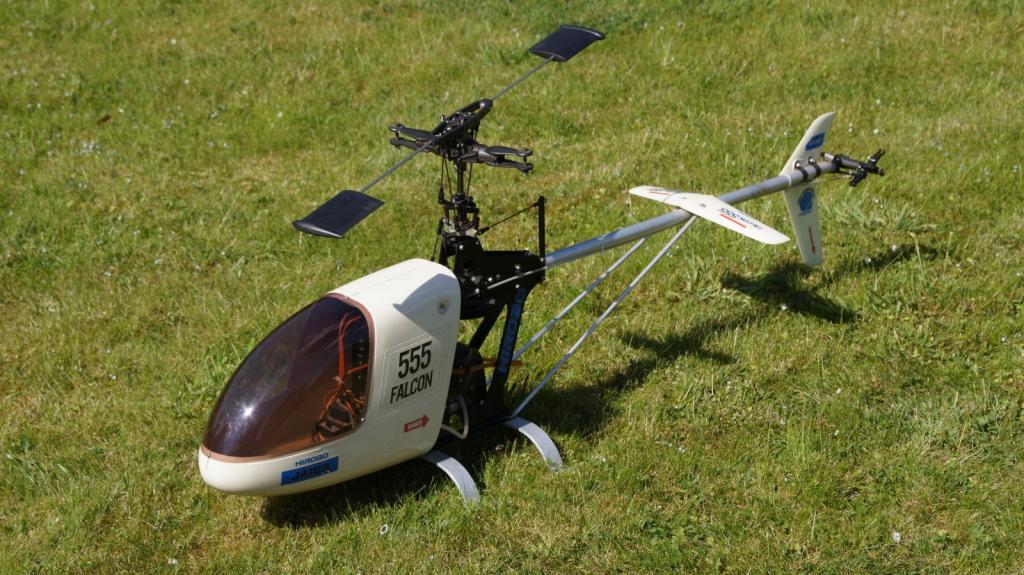

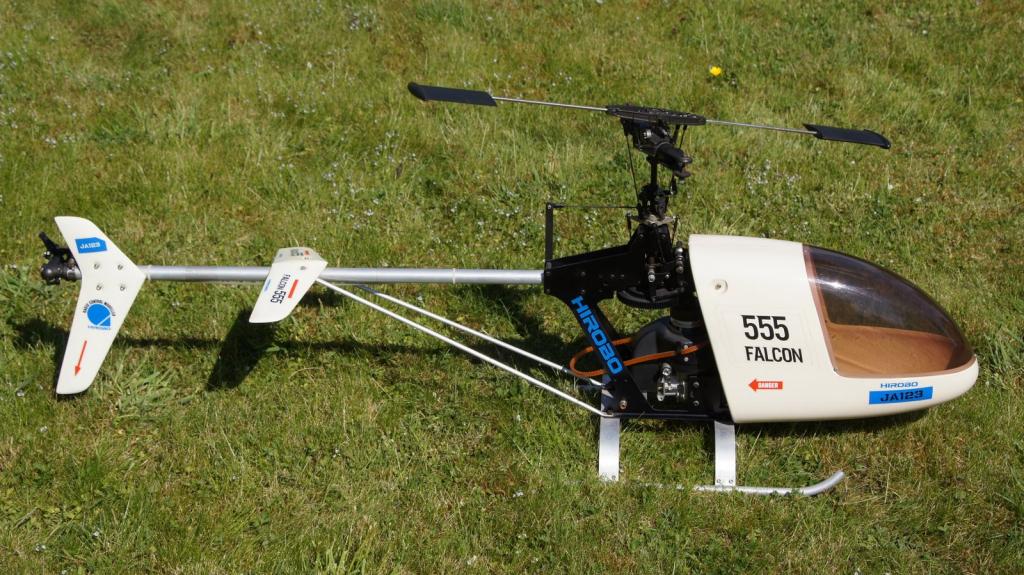

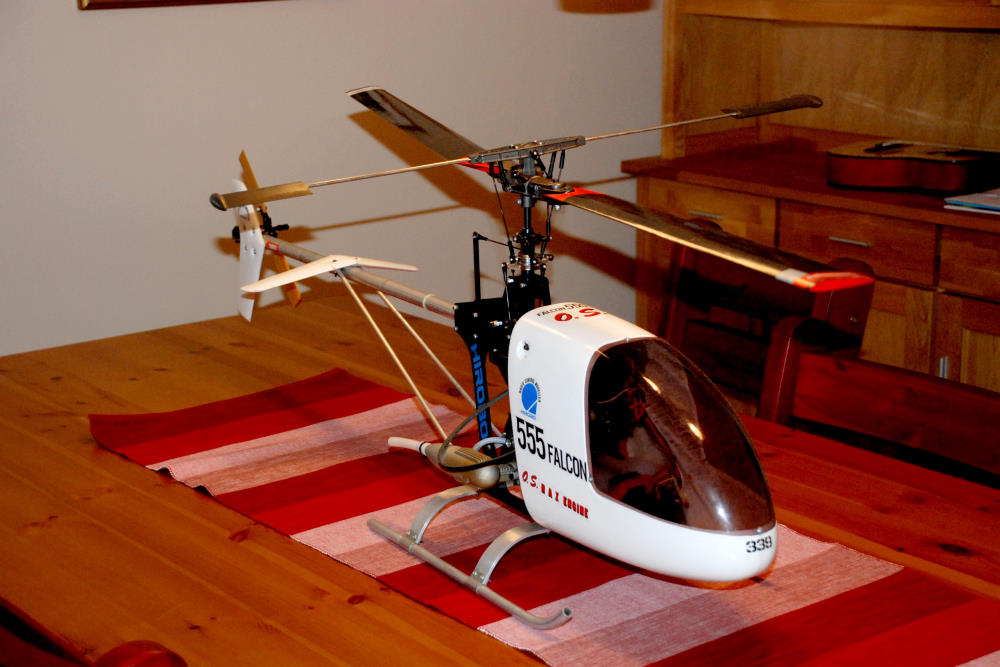

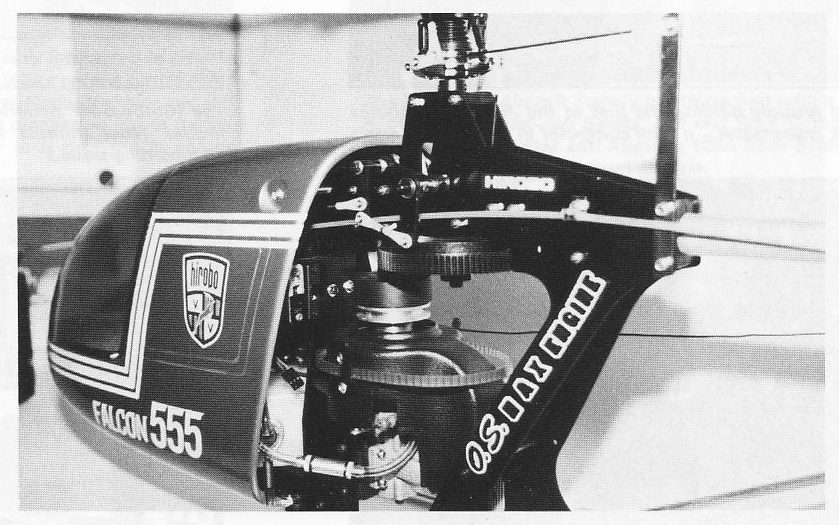

Hirobo Falcon 555 (1983)

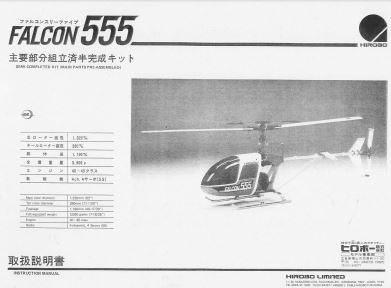

   Falcon 555 Build manual

  -  Complements the exploded views.

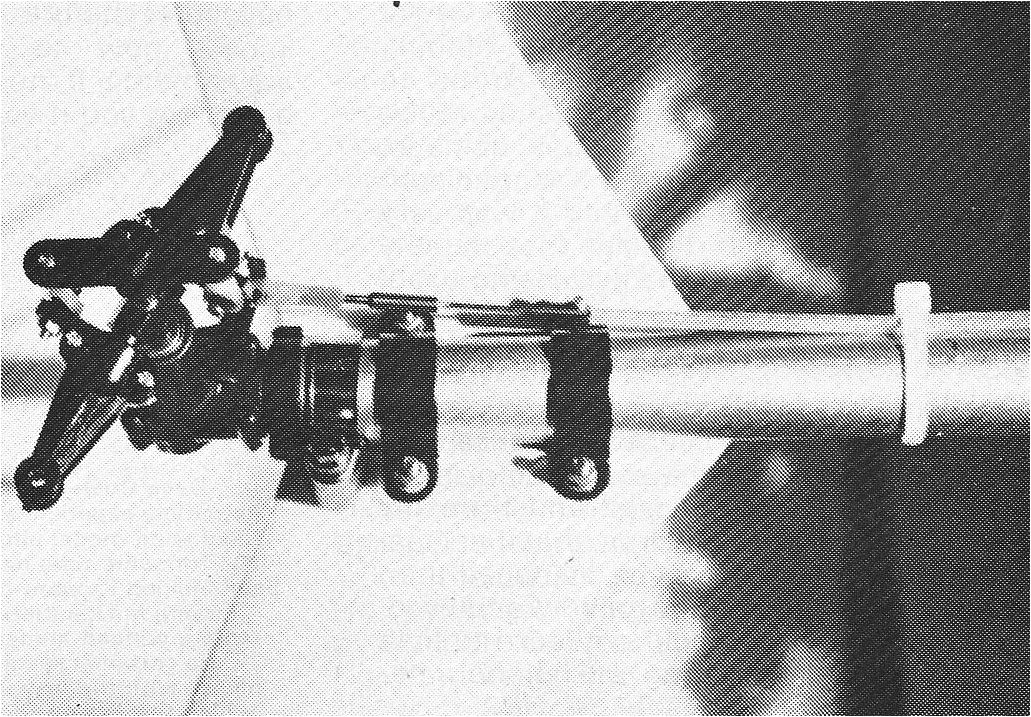

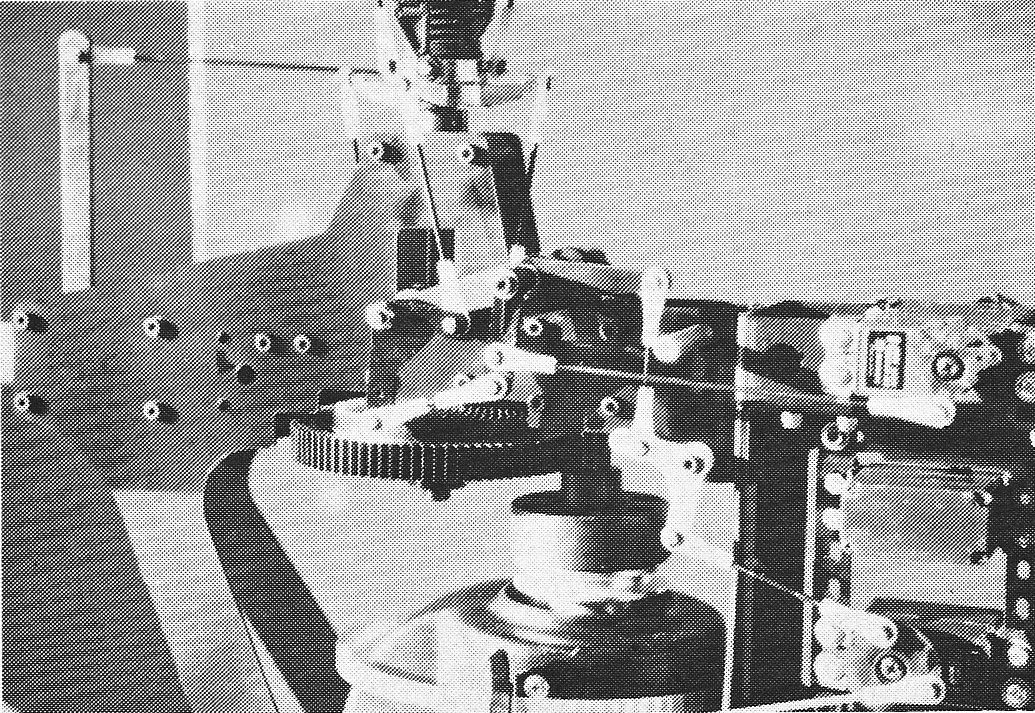

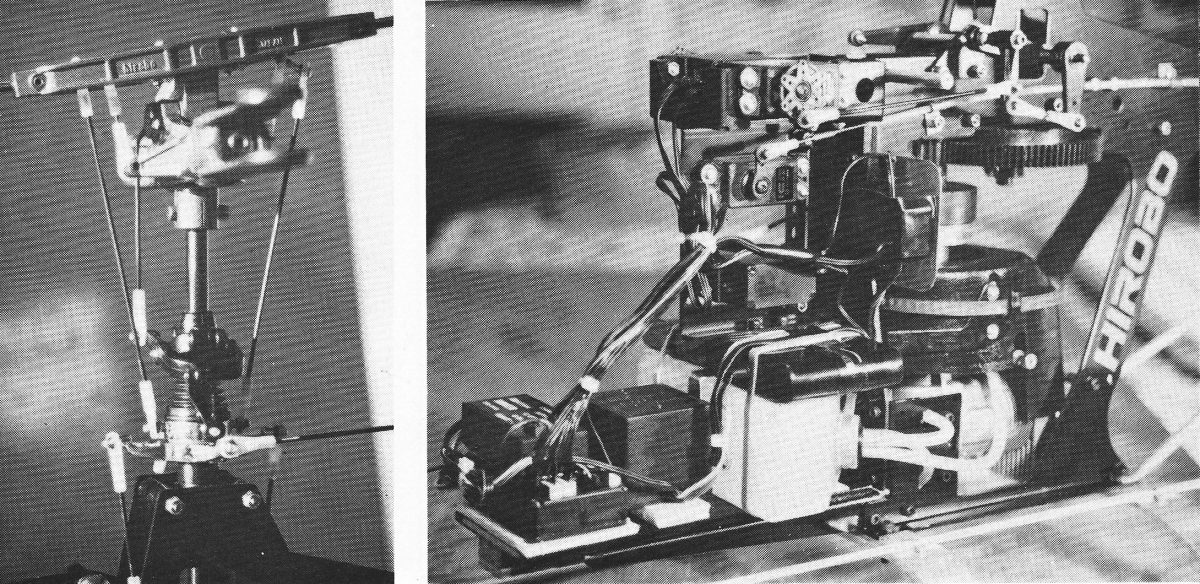

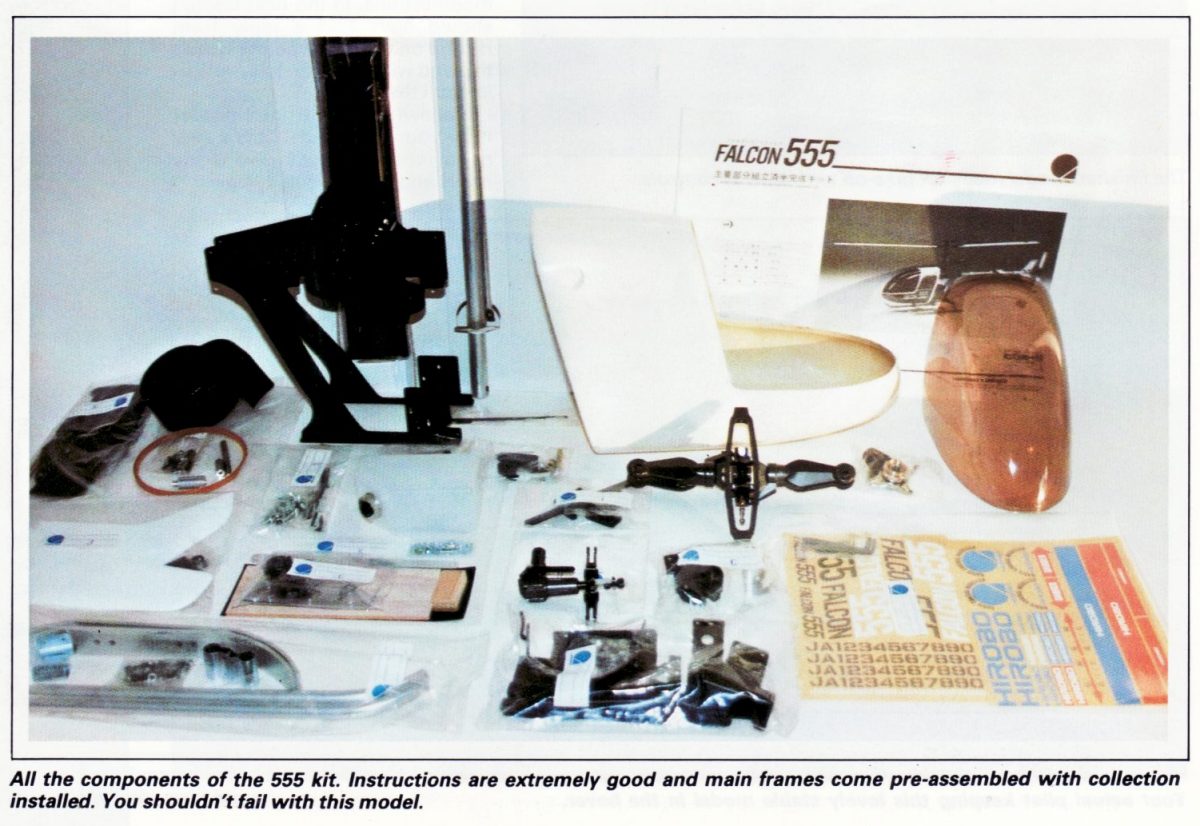

Falcon 555 review  -  1984 build review from a BRCHA newsletter.

Falcon 555 review  -  1984 build and flying review by Dave Rowell from Radio Modeller.
