Hirobo Falcon 707 (1980)


Specification:


 Full Length of Fuselage  1340 mm
 Rotorhead  Hirobo scale
 Main Rotor Dia  1453 mm
 Tail Rotor Dia  280 mm
 Engine .50 - .60 cu in  (8.0 - 10 cc)
 Full Equipped Weight  3700 g



Documents:


 Facon 707 Manual

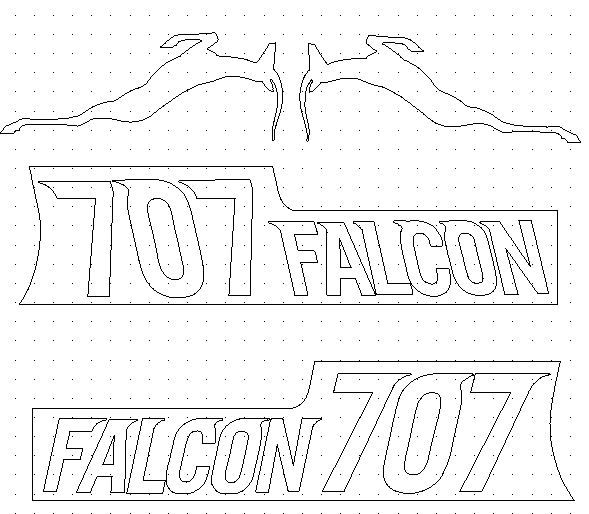

 Falcon 707 decal (dwg)




A larger version of the 505 incorporating the newer See-saw head with a cast in coning angle, 50-60 size engine, autorotation and a very distinctive feature being the canopy; unfortunately with a 50 size engine they proved to be somewhat underpowered.



Hirobo Falcon 707S (1982)

Upgraded version of the 707 for a 60 size engine and now performed much better than the basic 707.

Upgrades for 1983 included a belt holder to stop it from getting caught in the clutch flywheel and metal servo mounts to replace the original wooden mount.

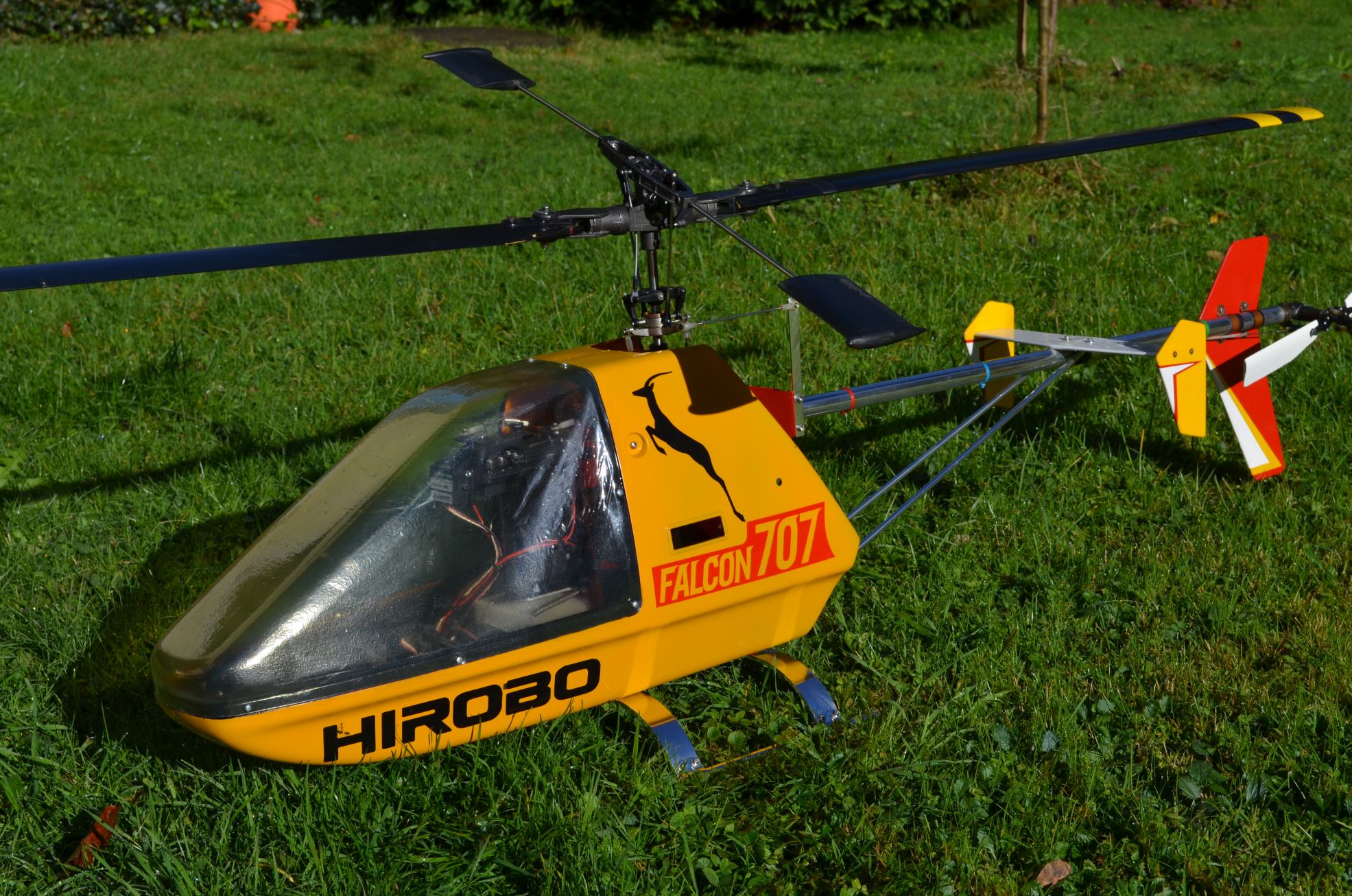

  • Falcon707_1

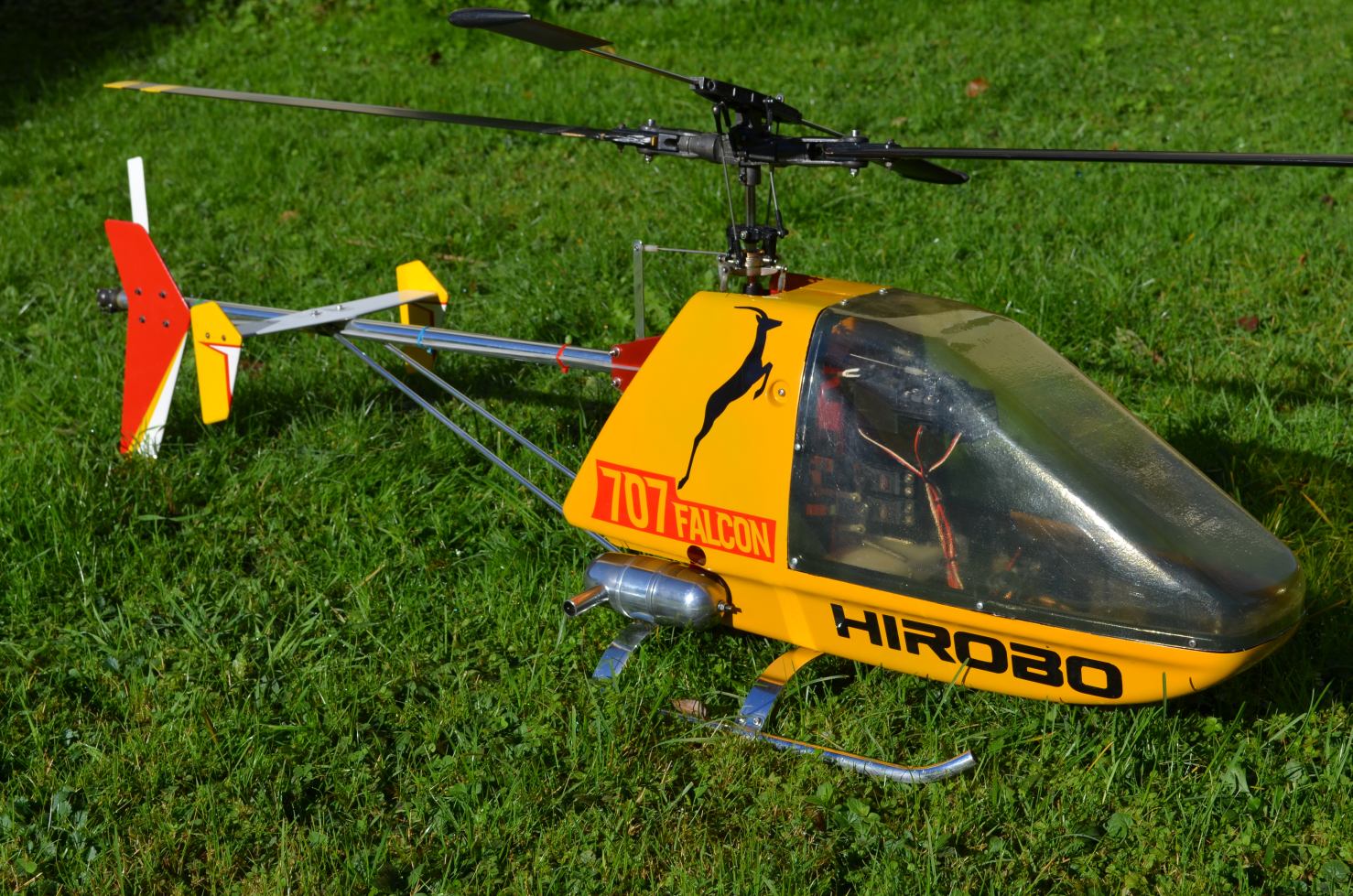

  • Falcon707_2

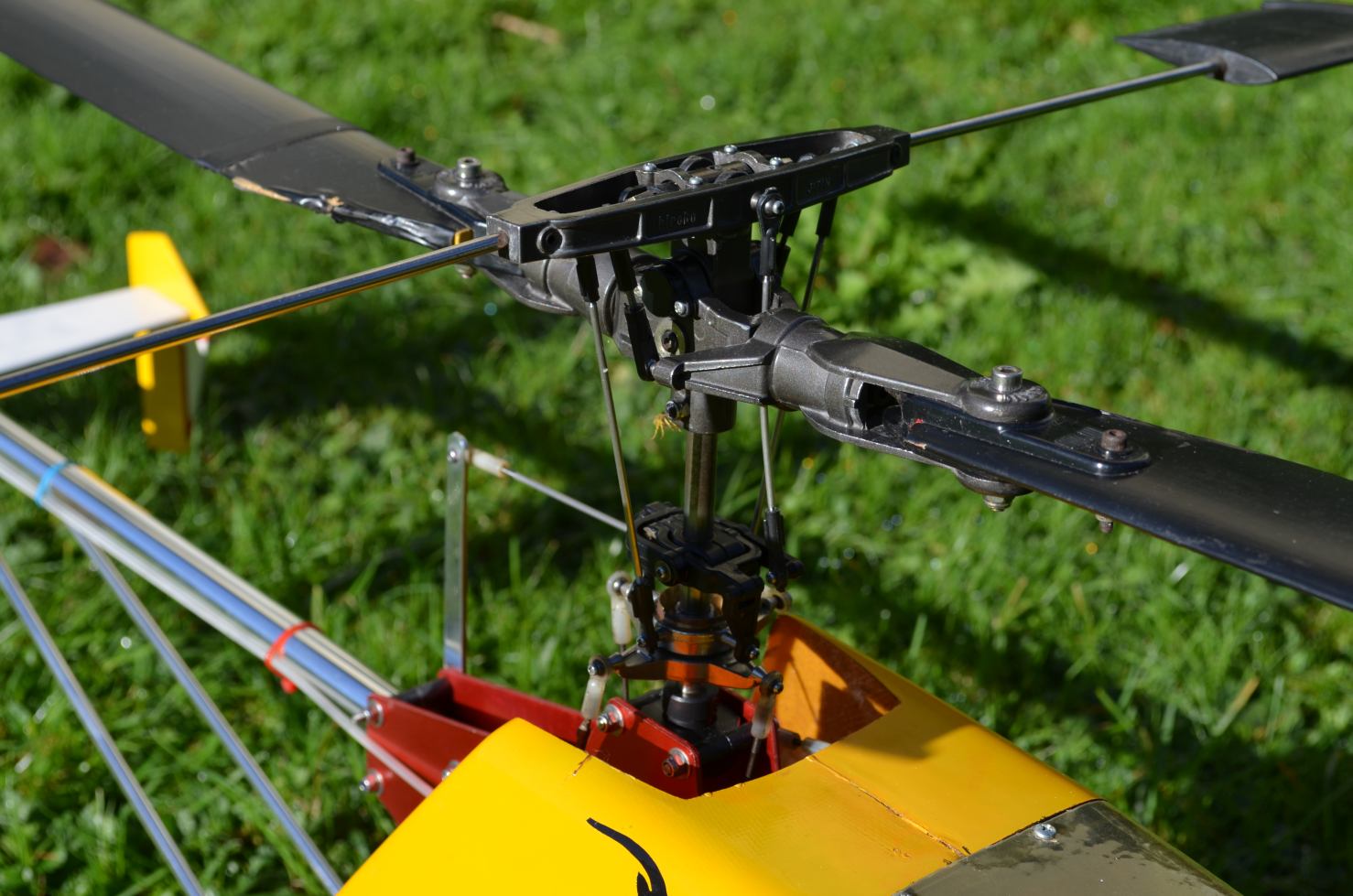

  • Falcon707_3

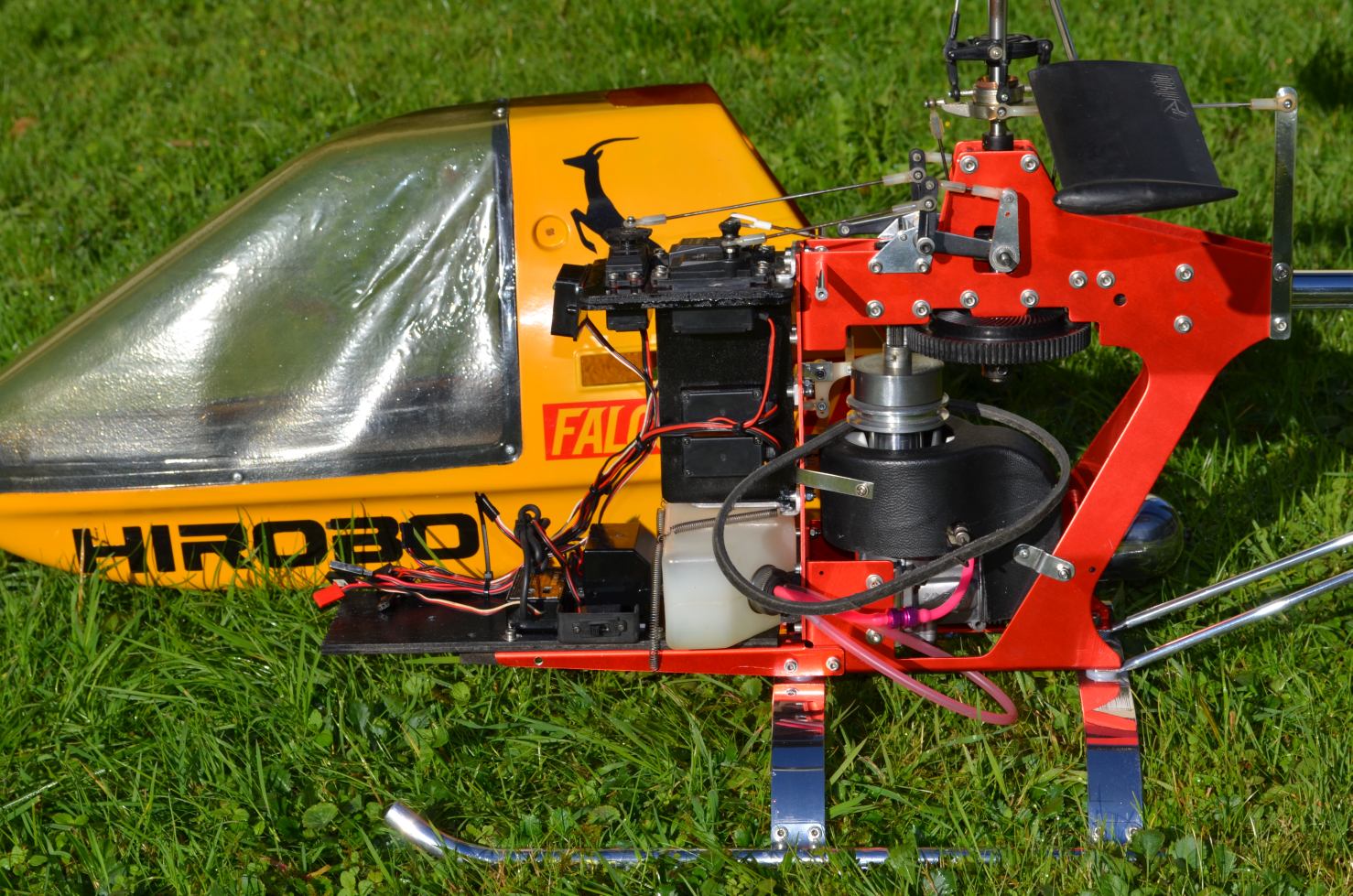

  • Falcon707_4

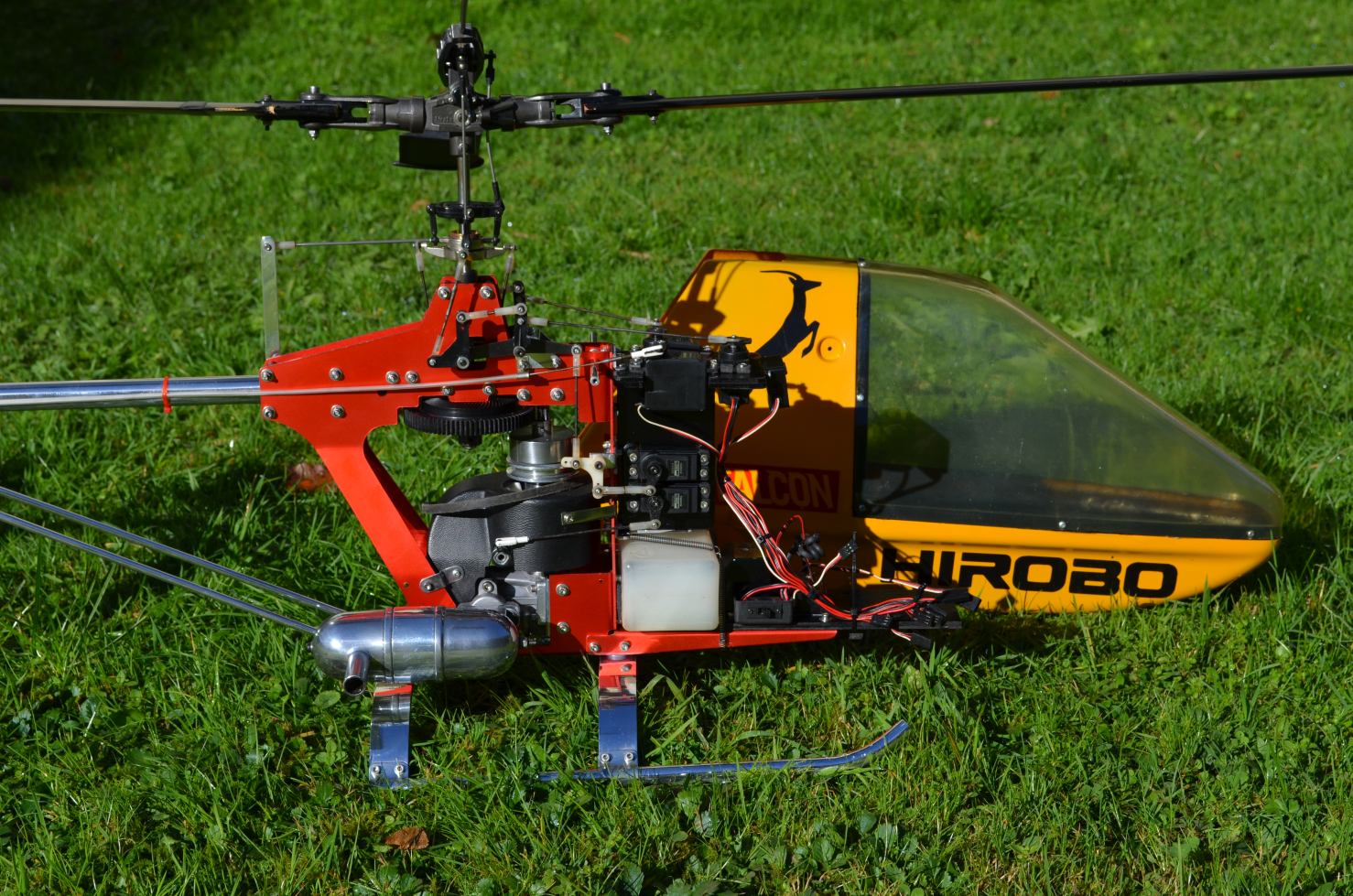

  • Falcon707_5

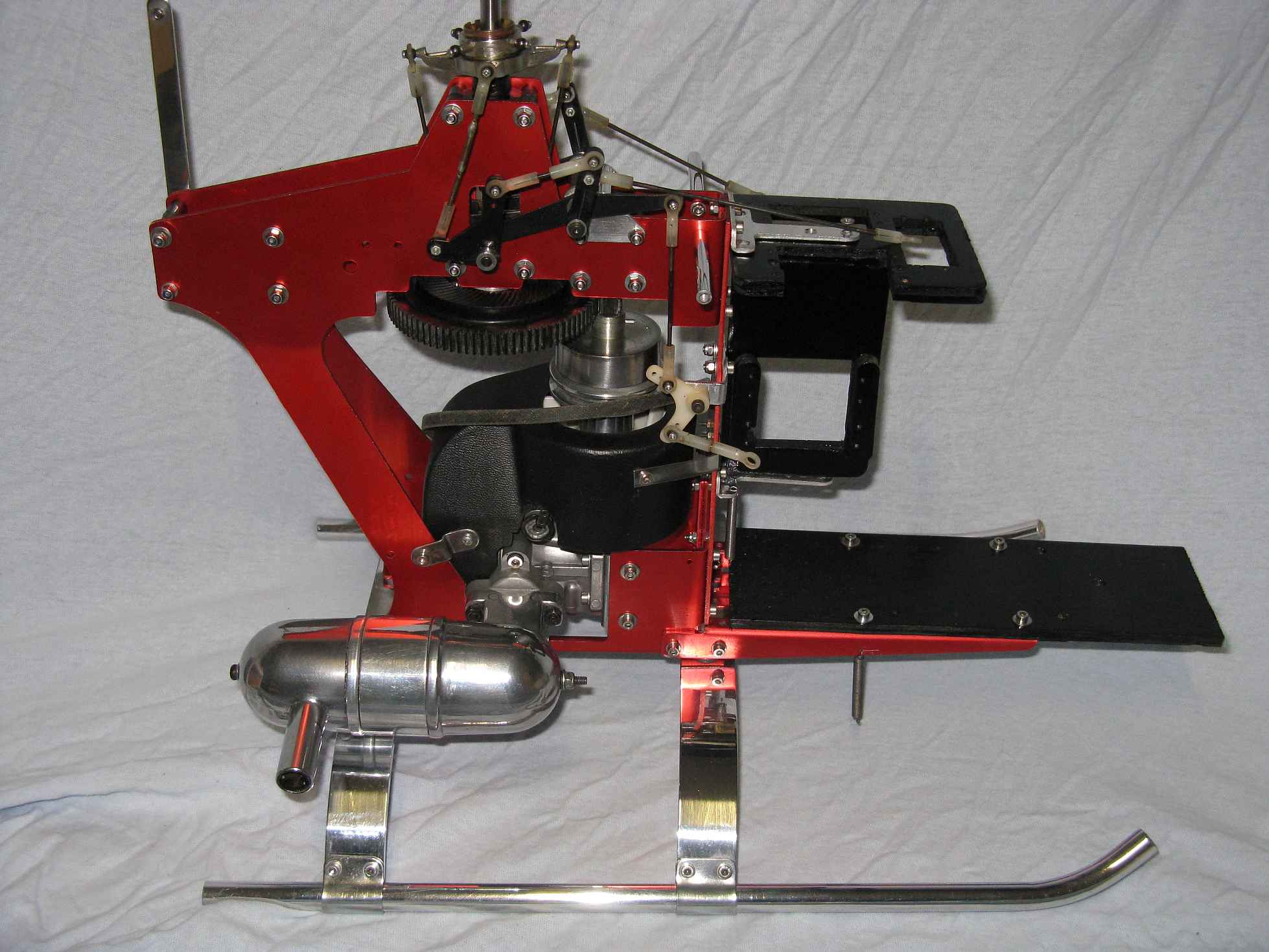

  • Falcon707_6

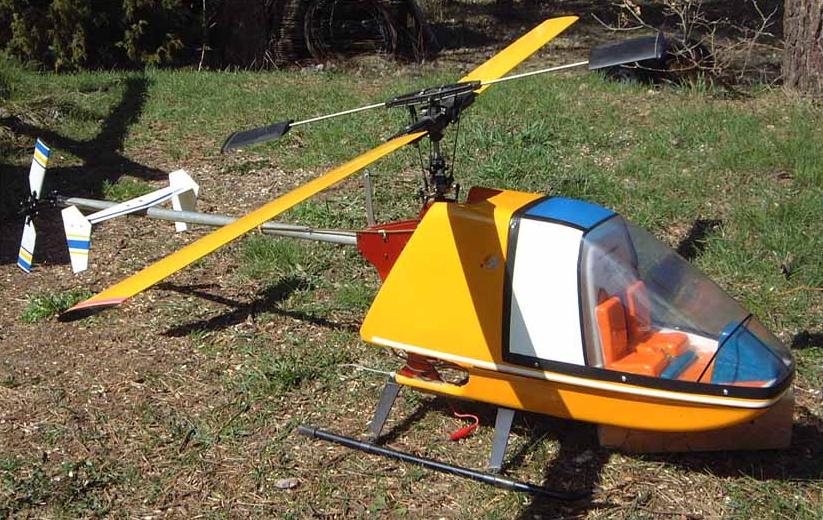

  • Hirobo_falcon_707yellow
