MA - Miniature Aircraft
X-Cell 50 (1987) Mod.1000
X-Cell 50 build review - 1989 -
Courtesy Model Helicopter World -
www.modelheliworld.com
X-Cell 50 review update - 1989 -
Courtesy Model Helicopter World -
www.modelheliworld.com
X-Cell 60 (1987) Mod.1001
X-CELL 60 (1987 - 1993)
Bent Aluminum Frames
Wood Servo Tray
Bolt to hub clutch (Non-uniball)
Standard silver clutch drum
Plastic head block
Side arm trailing link anti-rotation
No main shaft thrust bearings
Non ball bearing plastic elev swing arm
Gyro mounts on servo tray
Head button not included
Non ball bearing aileron tray mount
No push/pull collective
No push/pull elevator
Aluminum single boom support
Wire tail drive system
1 radial 1 thrust tail blade bearings
Plastic canopy
Standard plastic fin
Used 30" tail boom - 660 main blades |
X-Cell 60 (1993 -
1998)
Bent Aluminum Frames
Plastic Servo Tray
Uniball clutchStandard silver clutch drum
Plastic head block
Side arm trailing link anti-rotation
No main shaft thrust bearings
Non ball bearing plastic elev swing arm
Gyro mounts on servo tray
Head button not included
Non ball bearing aileron tray mount
No push/pull collective
No push/pull elevator
Aluminum single boom support
Wire tail drive system
1 radial 1 thrust tail blade bearings
Plastic canopy
Standard plastic fin
Used 30" tail boom - 660 main blades
|

X-Cell 30 (1989) Mod.1008

Instruction Manual 30/40
Series
X-Cell 40 (1989) Mod.1009

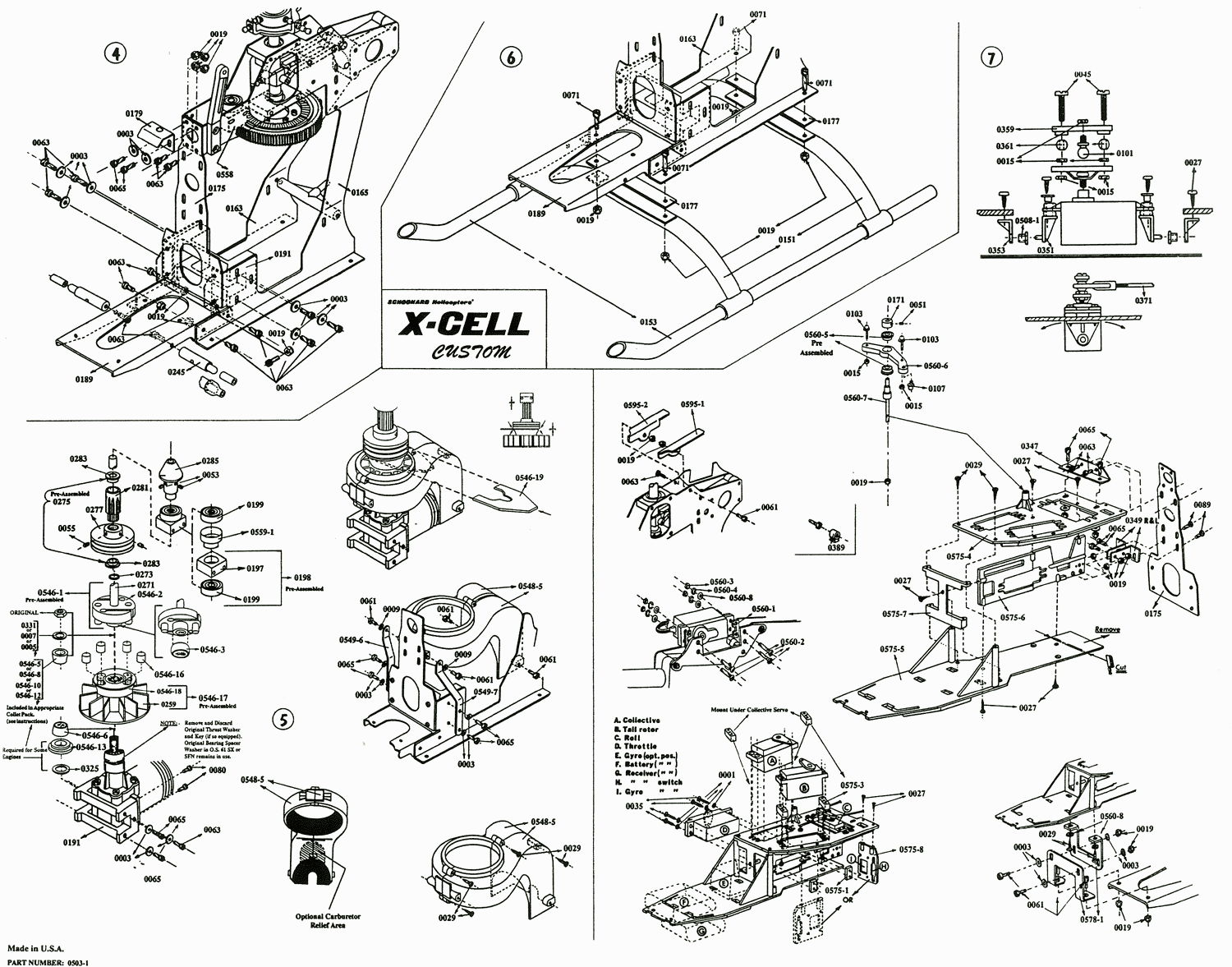

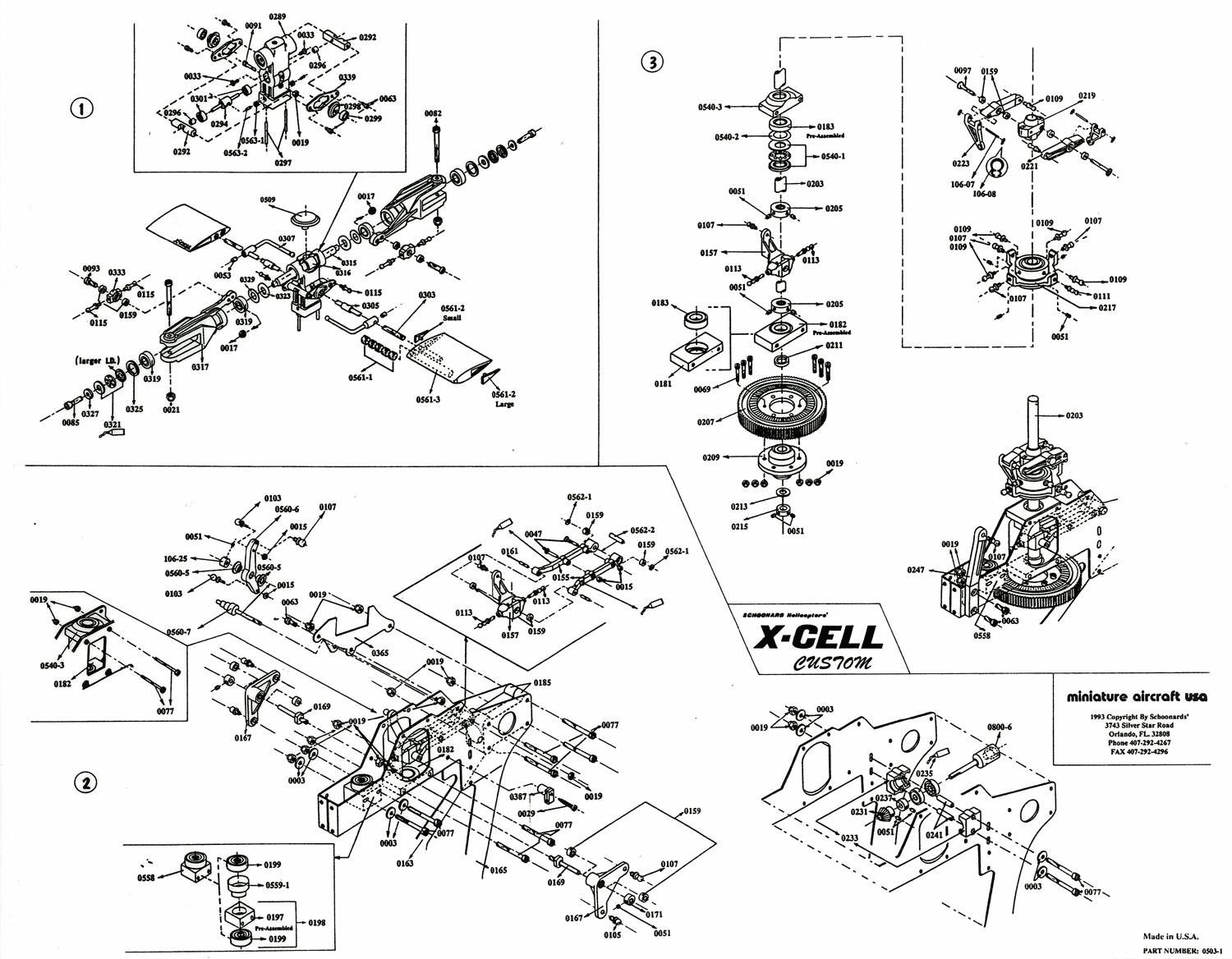

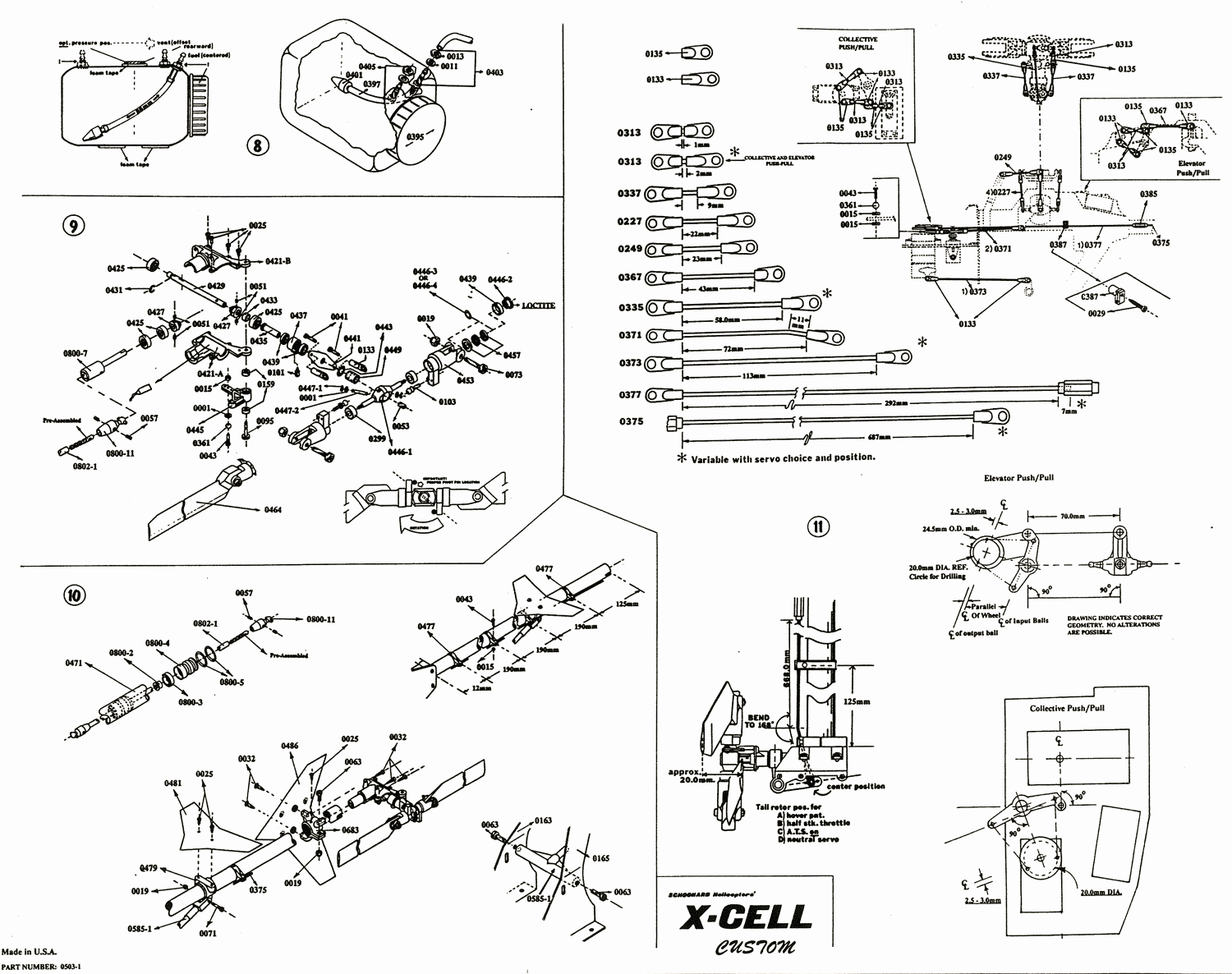

X-Cell Custom 60 (1993) Mod.1003

X-Cell
60 Custom ( Pre1993)
Bent Aluminum Frames
Wood Servo Tray
Front mount rudder servo
Bolt to hub clutch (Non-uniball)
Standard silver clutch drum
Plastic head block
Plastic canopy
30" tail boom |
Bent Aluminium
Frames
Plastic Servo Tray
Front mount rudder servo
Uniball clutch
Standard silver clutch drum
Plastic head block
Side arm trailing link anti-rotation
Main Shaft thrust brearing
Ball bearing plastic elev. swing arm
Rear Gyro mounts, top of rear frame Head button
Ball bearing aileron tray mount
Ball Bearing Push/pull collective and elevator
Carbon fiber singel boom support
Torque tube tail drive system
Standard front transmission
2 radial 1 thrust tail blade bearing
Plastic canopy
Standard plastic fins
30" tail boom - 660 main blades |
Stacked
Aluminium Frames
Plastic Servo Tray
Front mount rudder servo
Uniball clutch
Standard silver clutch drum
Plastic head block
Side arm trailing link anti-rotation
Main Shaft thrust brearing
Ball bearing aluminium elev. swing arm
Rear Gyro mounts, between lower frames Head button
Ball bearing aileron tray mount
Ball Bearing Push/pull collective and elevator
Carbon fiber singel boom support
Torque tube tail drive system
HD front transmission
Standard front transmission
2 radial 1 thrust tail blade bearing
Fiber glass canopy
Standard plastic fins
30" tail boom - 680 main blades |
X-Cell 60 CT (1998) Mod.1003

Stacked Aluminum Frames
Aluminum SE type servo tray
Rear mount rudder servo
Uniball clutch
Gold large bearing clutch drum
Pro II head block
Machined rear swashplate anti-rotation
Main shaft thrust bearings
Ball bearing aluminum elev swing arm
Front tray gyro mount
Head button
Ball bearing aileron tray mount
Ball bearing push/pull collective
Ball bearing push/pull elevator
Carbon fiber dual boom support
Split gear tail drive
99 Spec Torque tube tail drive system
HD front transmission
1 radial 1 thrust tail blade bearing
Fiber glass canopy
3D tail fins
31.5" tail boom - 690 main blades
X-Cell ST (1998) Mod.1001
X-Cell Sport Trainer
Explosion view:

Stacked Aluminum Frames
Plastic Servo Tray
Uniball clutch
Standard silver clutch drum
Plastic head block
Side arm trailing link anti-rotation
No main shaft thrust bearings
Ball bearing plastic elev swing arm
Rear gyro mount
Head button not included (2)
Non Ball bearing aileron tray mount
Ball bearing push/pull collective
Ball bearing push/pull elevator
Dual graphite boom support
Torque tube drive
1 radial 1 thrust tail blade bearing
Plastic canopy
Standard plastic fin
Used 31.5" tail boom - 690 main blades
X-Cell SE (1999) Mod.1004

X-Cell 60 SE 99
Spec. ( 1999 - 2002)
Stacked Graphite Frames , SE type graphite servo tray
Rear mount rudder servo , Uniball clutch
Gold large bearing clutch drum , Aluminum fan
Pro II head block , Pro II aluminum blade grips
Machined rear swashplate anti-rotation, Upper main shaft thrust bearings
One piece aluminum elev swing arm , Front tray gyro mount,
Head button , Ball bearing aileron tray mount , Ball bearing push/pull
collective
Ball bearing push/pull elevator , Metal end CF dual boom support
Split gear tail drive , 99 Spec torque tube tail drive system , Carbon tail
pushrod
Carbon/nylon tail gear box , HD front transmission , 2 radial 1 thrust tail
blade bearing
Fiber glass canopy , Gel coated solid graphite tail fins
31.5" graphite tail boom
X-Cell 30 (2000) Mod.1008

X-Cell 1002 Quick Silver

The 2500 quicksilver
fuselage. Photo's courtesy Paul Papandrea, Piscataway, NJ
The 1002 X-Cell 60 Quick
Silver kit was a 1001 X-Cell 60 kit combined with the 2500 Quick Silver fuselage.
The 1002 kit was shown in the 1990 X-Cell catalogue but does not appear in my
1996 catalogue. The 2500 fuselage kit is still shown in the current catalogue.
The kit was designed around the bent frame 60 using a 30" tail boom format.
Made of epoxy construction, no bulkheads. Came white epoxy primed. Added about 8
ounces to the total weight.
Additional notes:
The bent frame version of
the 1001 was also available in a "white frame" version #1001W . This version
included White main frames, tail boom, boom supports, strut supports, elevator
plate, struts & skids.
When the "white frame" version of the 1001was first released (circa 1990) it was
called a #1005. (Not to be confused with the later 1005 X-Cell Gas graphite
|
