MA - Miniature Aircraft

X-Cell Graphite 60 (1994) Mod.1004

X-Cell 60 Graphite (1994 - 1997)
Stacked Graphite Frames, Plastic Servo Tray
Front mount rudder servo Uniball clutch
Standard silver clutch drum, Plastic fan
Plastic head block, Plastic blade grips
Stamped aluminum rear anti-rotation, Upper main shaft thrust bearings
Ball bearing aluminum elev swing arm , Rear Gyro mounts, lower frames
Head button , Ball bearing aileron tray mount
Ball bearing push/pull collective , Ball bearing push/pull elevator
Metal end CF dual boom support , Slipper clutch driven tail
Torque tube tail drive system , Wire tail pushrod
Standard tail gear box , Standard front transmission
2 radial 1 thrust tail blade bearing , Fiber glass canopy
Standard plastic fin , 31.5" graphite tail boom

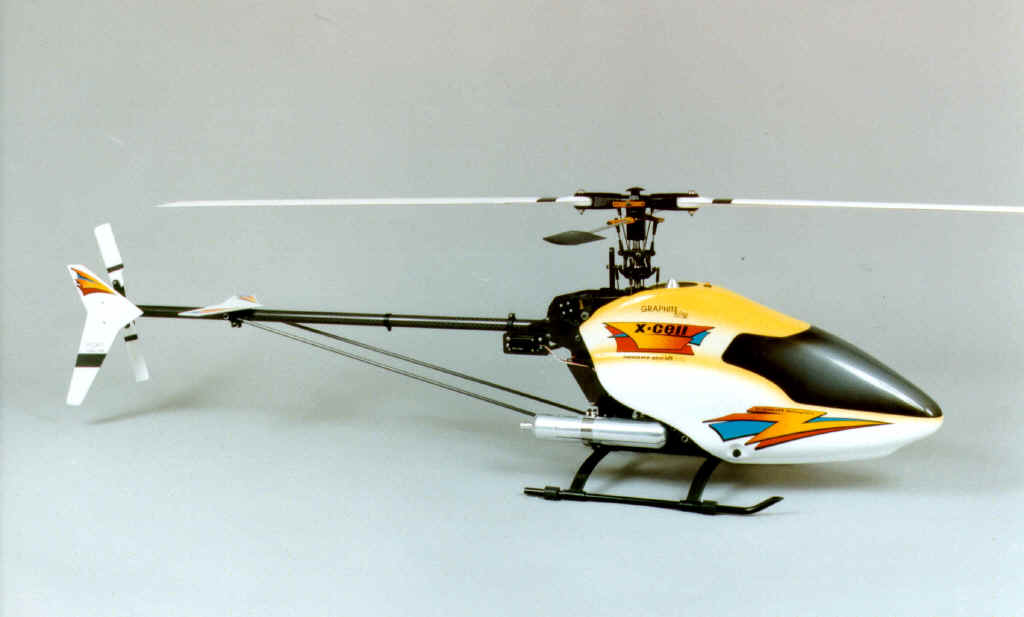

X-Cell Graphite 60 SE (1998) Mod.1004

Instruction Manual Graphite 60 SE

X-Cell 60 Graphite SE ( 1998)
 Stacked Graphite Frames , Plastic servo tray
Rear mount rudder servo , Uniball clutch
Standard silver clutch drum , Aluminum fan
Pro II head block , Pro II aluminum blade grips
Machined rear swashplate anti-rotation, Upper main shaft thrust bearings
Ball bearing aluminum elev swing arm , Rear Gyro mounts, lower frames
Head button , Ball bearing aileron tray mount , Ball bearing push/pull collective
Ball bearing push/pull elevator , Metal end CF dual boom support
Slipper clutch driven tail , Torque tube tail drive system ,Wire tail pushrod
Standard tail gear box , HD front transmission , 2 radial 1 thrust tail blade bearing
Fiber glass canopy , Gel coated solid graphite tail fins
31.5" graphite tail boom

X-Cell Gas Graphite  (1993) Mod.1005


X-Cell  Gas Graphite (1993 - 1997
Stacked Graphite Frames , Plastic servo tray , Front mount rudder servo
Uniball clutch , Large top bearing clutch drum , Two bearing clutch bearing block
Plastic fan , Plastic head block , Plastic blade grips , XL Pro paddles
Trailing link swashplate anti-rotation , No main shaft thrust bearings
Non ball bearing plastic elev swing arm , Front tray gyro mount
Head button , Non ball bearing aileron tray mount , Non push/pull collective
Non push/pull elevator , Dual carbon fiber boom support  , Non driven tail
Torque tube tail drive system , Wire tail pushrod , Standard tail gear box
No HD front transmission , No front transmission alignment tool
1 radial 1 thrust tail blade bearing , Fiber glass canopy ,
Molded plastic tail fins , Standard horizontal fin clamp
31.5" aluminum tail boom



X-Cell Gas Graphite ( 1998)
Stacked Graphite Frames , Plastic servo tray , Front mount rudder servo
Uniball clutch , Large top bearing clutch drum , Two bearing clutch bearing block
Aluminum fan , Plastic head block , Plastic blade grips
XL Pro paddles , Trailing link swashplate anti-rotation , No main shaft thrust bearings
Non ball bearing plastic elev swing arm , Front tray gyro mount
Head button , Non ball bearing aileron tray mount , Non push/pull collective
Non push/pull elevator , Dual carbon fiber boom support  , Non driven tail
Torque tube tail drive system , Wire tail pushrod , Standard tail gear box
No HD front transmission , Front trans alignment tool included
1 radial 1 thrust tail blade bearing , Fiber glass canopy , Molded plastic tail fins
Standard horizontal fin clamp , 31.5" aluminum tail boom


X-Cell Gas Graphite  (1999 - Later)
Stacked Graphite Frames , Plastic servo tray , Front mount rudder servo
Uniball clutch , Large top bearing clutch drum
Triple bearing clutch bearing block , Aluminum fan
Plastic head block , Plastic blade grips , 3D paddles
Trailing link  swashplate anti-rotation , No main shaft thrust bearing
Front tray  gyro mount , Head button , Dual Carbon fiber boom supports
Non driven tail , 99 Spec Torque tube tail drive system , Wire tail pushrod
Carbon/Nylon tail gear box , HD front transmission , Front trans alignment tool included
1 radial 1 thrust tail blade bearing , Fiber glass canopy , Molded plastic tail fins
Wide grip horizontal fin clamp , 31.5" aluminum tail boom

X-Cell 46 Graphite (1995) Mod.1010

X-Cell 60 Graphite SE 4 Stroke (1998) Mod.1012
