Robbe Moskito




Specification:

 Length   1100 mm
 Height   420 mm
 Main Rotor Dia   1200 mm
 Tail Rotor Diameter.   225 mm
 Total Weight   3120 g
 Gear Ratio   7.7:1:4
 Engine   6.5 - 8 ccm
Documents:

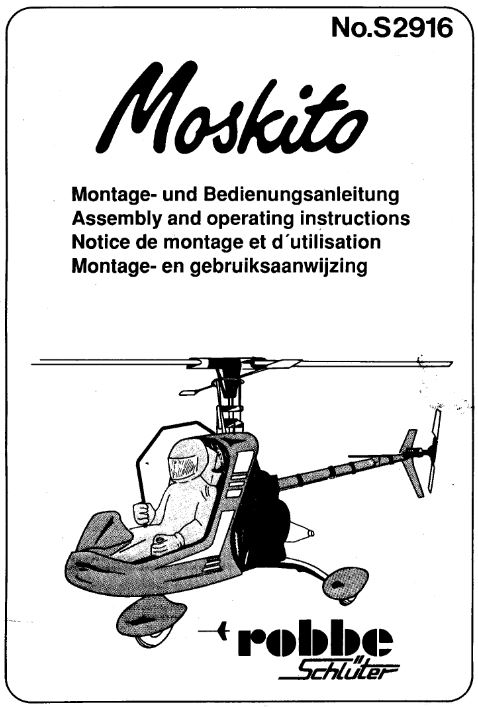

Moskito Manual



Documents:

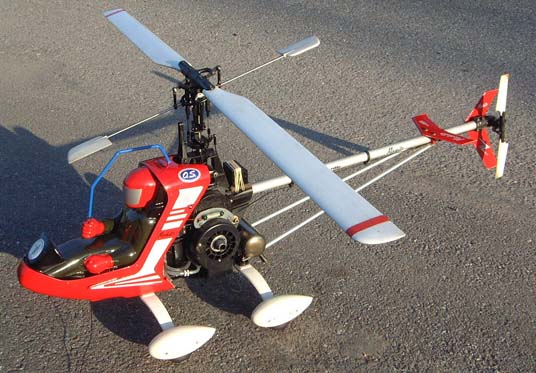

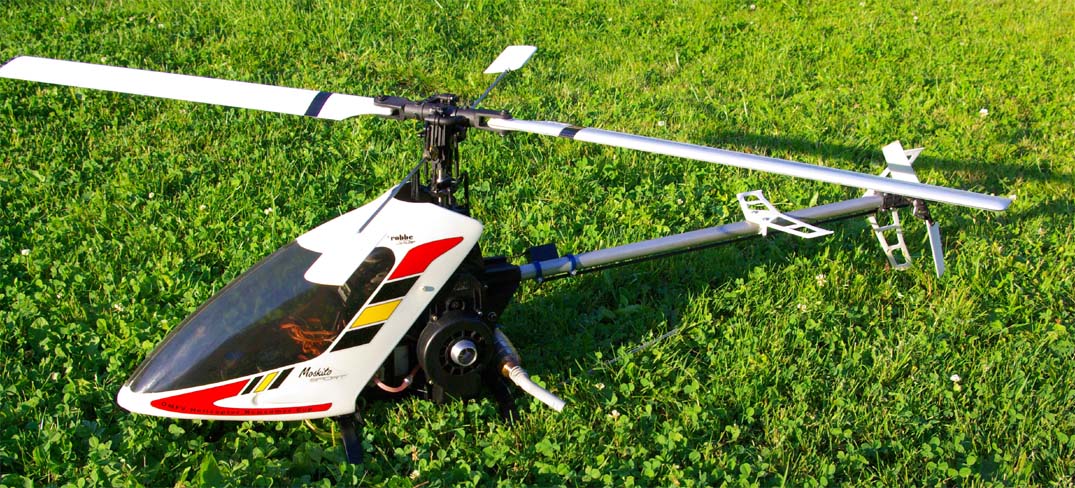

Basic trainer introduced in the mid nineties and the original model was kitted out with a pilot and canopy plus a tricycle 'aeroplane' type wheeled undercarriage.  Whilst this did allow 'run on' type landings it was very prone, in the hands of learners, to tip over sideways.  As can be seen on the photo, the owner fitted a pair of rear undercarriage legs to get the best of both worlds.  Following on was an upgrade to a 'normal' skid type undercarriage which was much more popular.

http://www.moskitomuseum.at.  German site run by Robert Windbichler (remember to run your translator!!!).



Moskito Basic Kit review  -  Review by Dave Day

Moskito build manual  - Trainer model with tricycle undercarriage.

Moskito exploded view  -  Plan S3860 - Trainer model with tricycle undercarriage.

Moskito Basic exploded view  -  Trainer model with standard type skids.

Moskito Expert exploded view  -  Plan S2955 - Upgrade model.

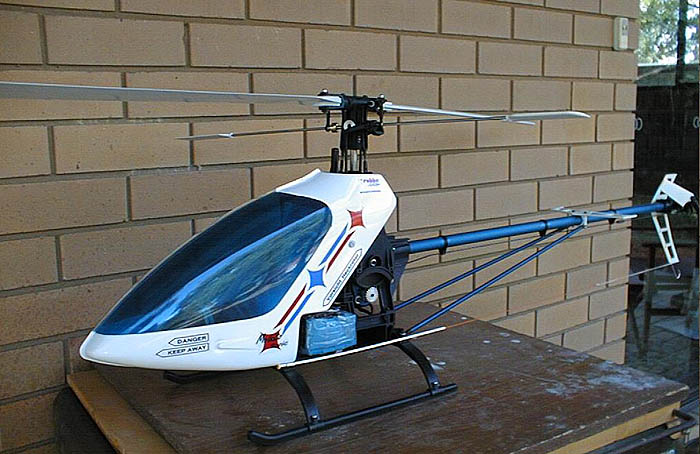

Sonic

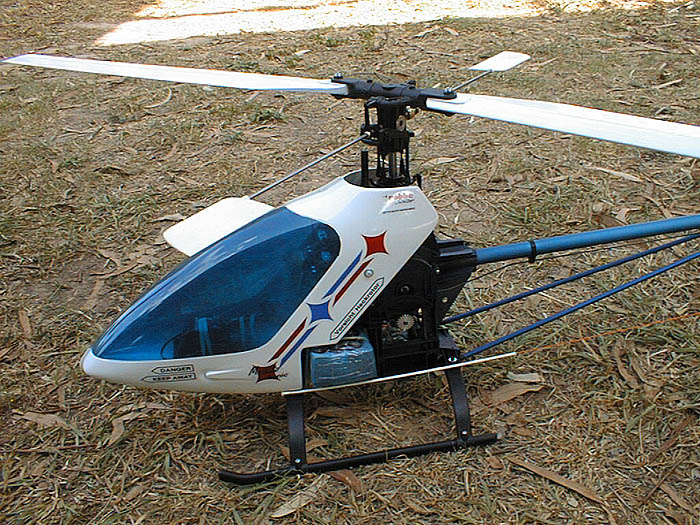

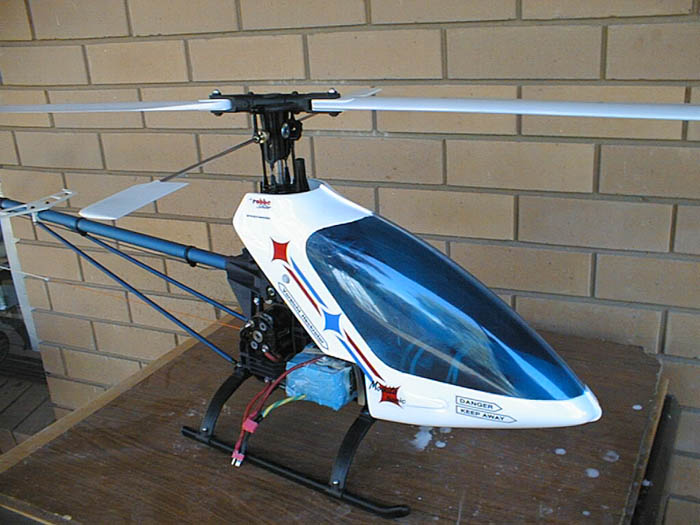

Moskito Sonic exploded view  -  Plan S3001 - Electric motor version.

Moskito XXL exploded view  -  Plan S3002 - Larger version for more powerful engines.

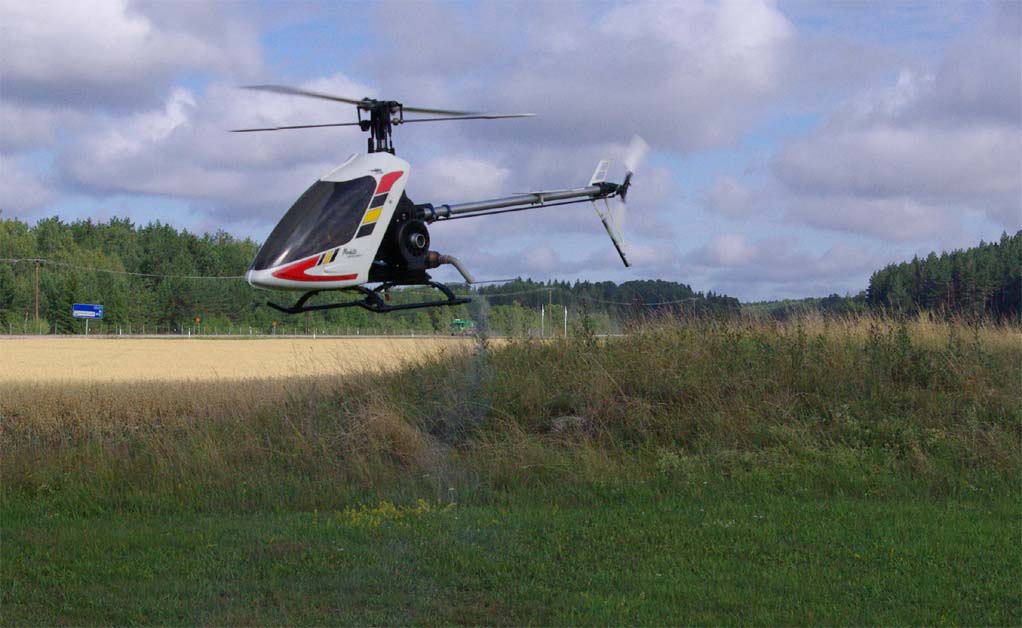

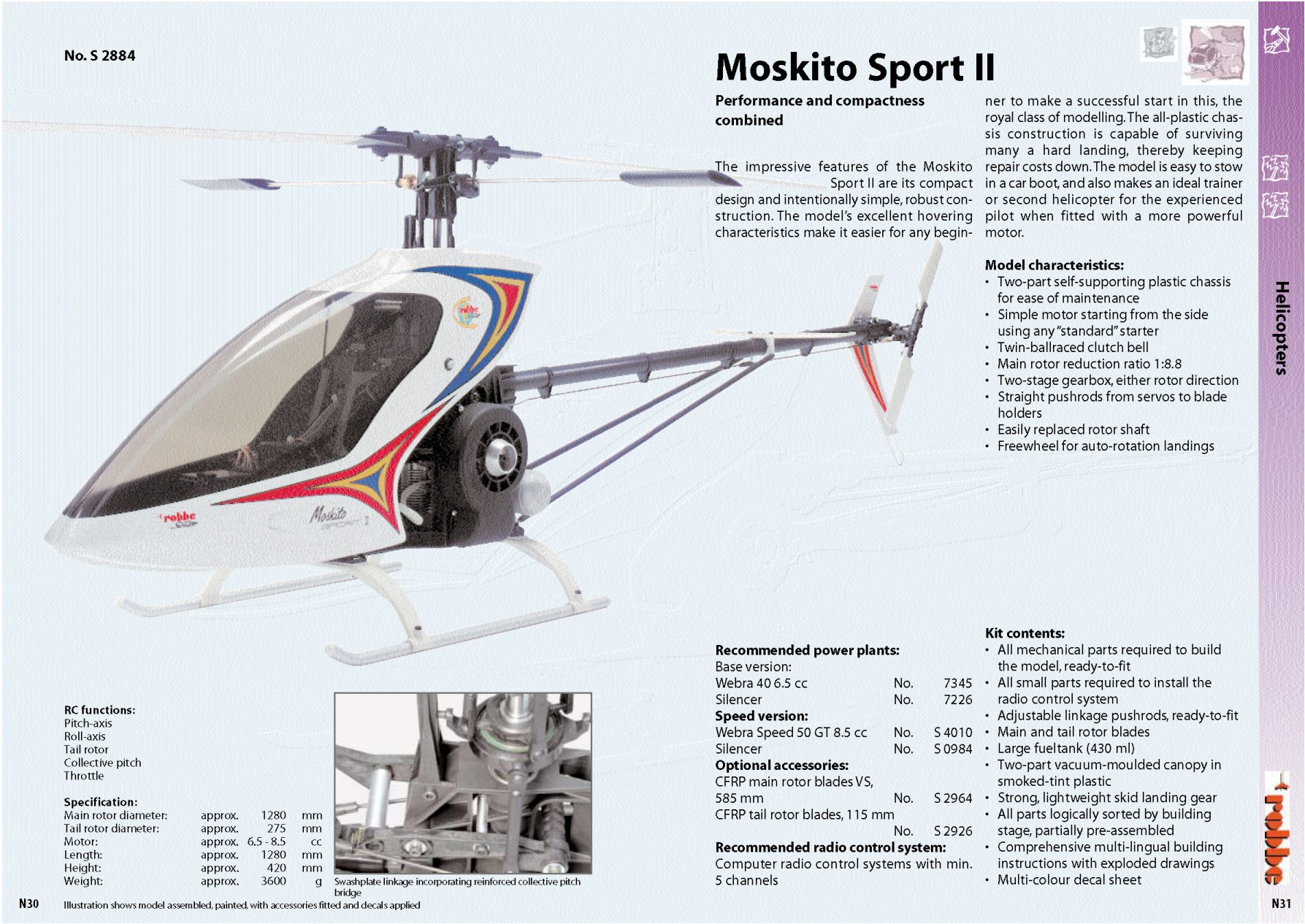

Moskito Sport 2 - Later version with more sporty canopy.

Moskito Sport 2 build manual  -

Two scale bodies were produced for the Moskito being the Robinson R22 and the Hughes 300.

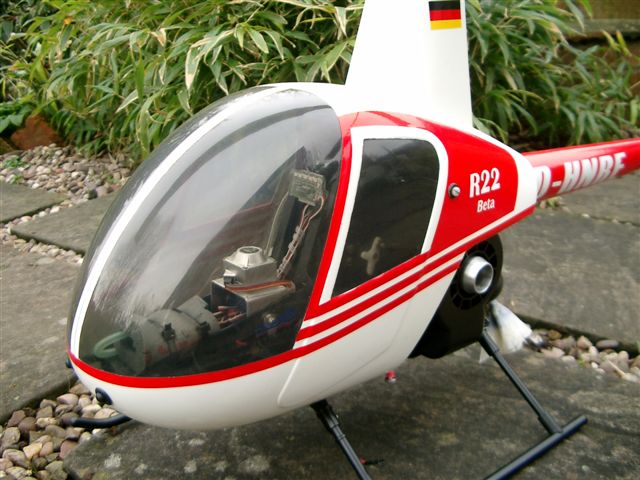

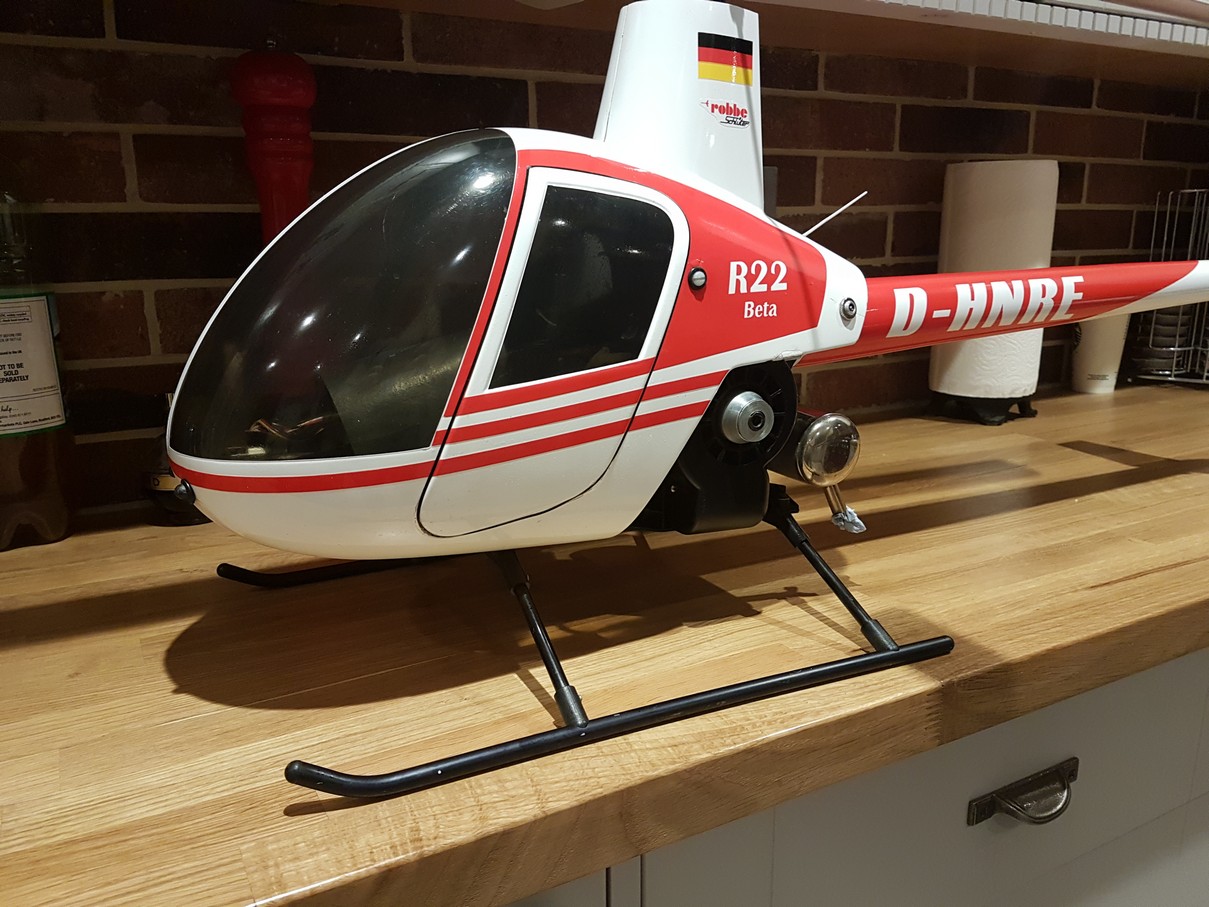

Robbe Robinson R22

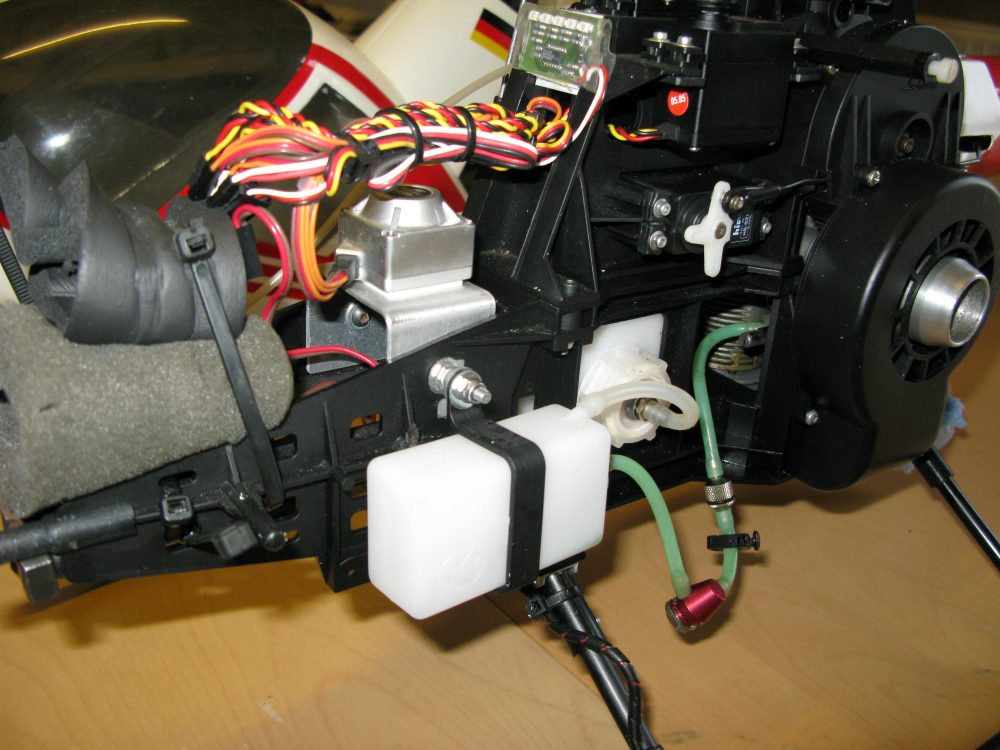

  • IMG_0835

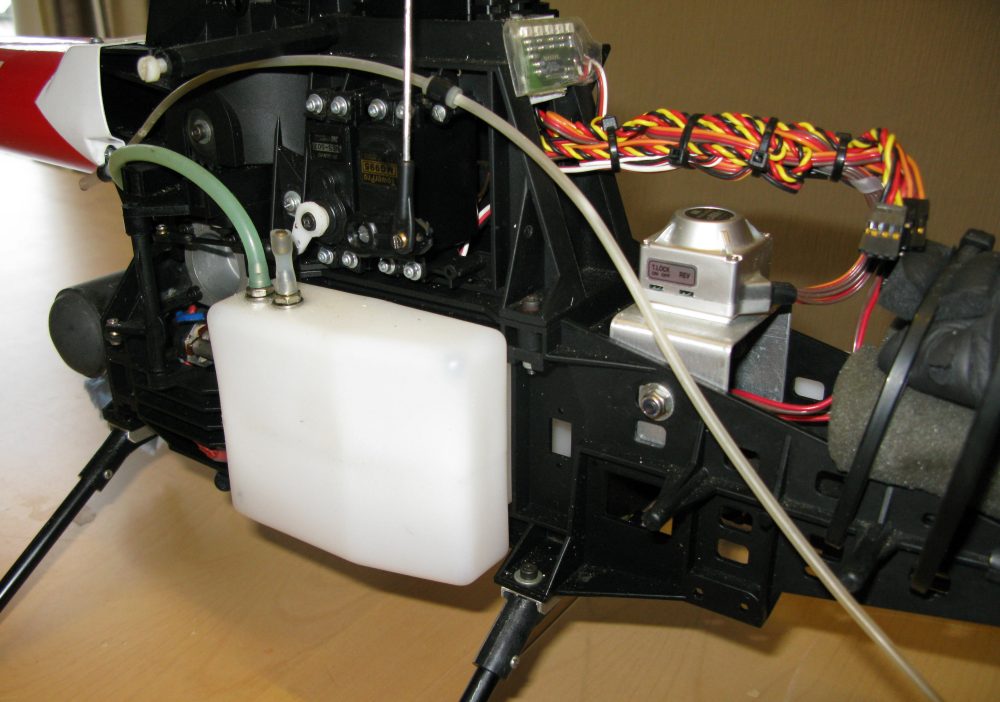

  • IMG_0836

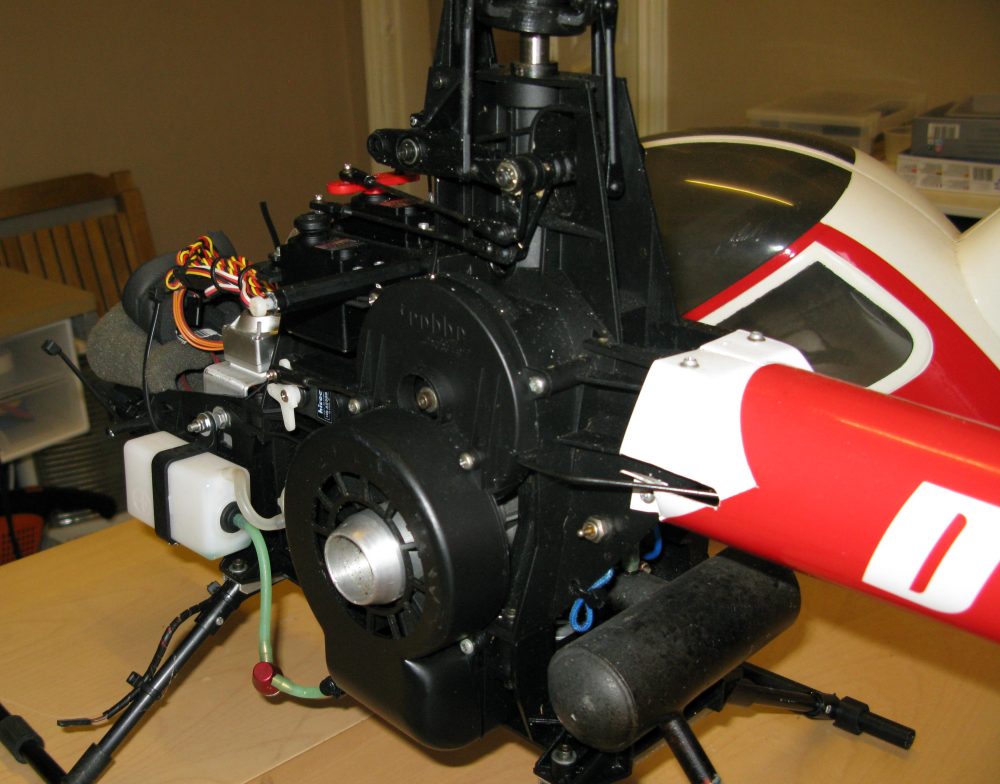

  • IMG_0842

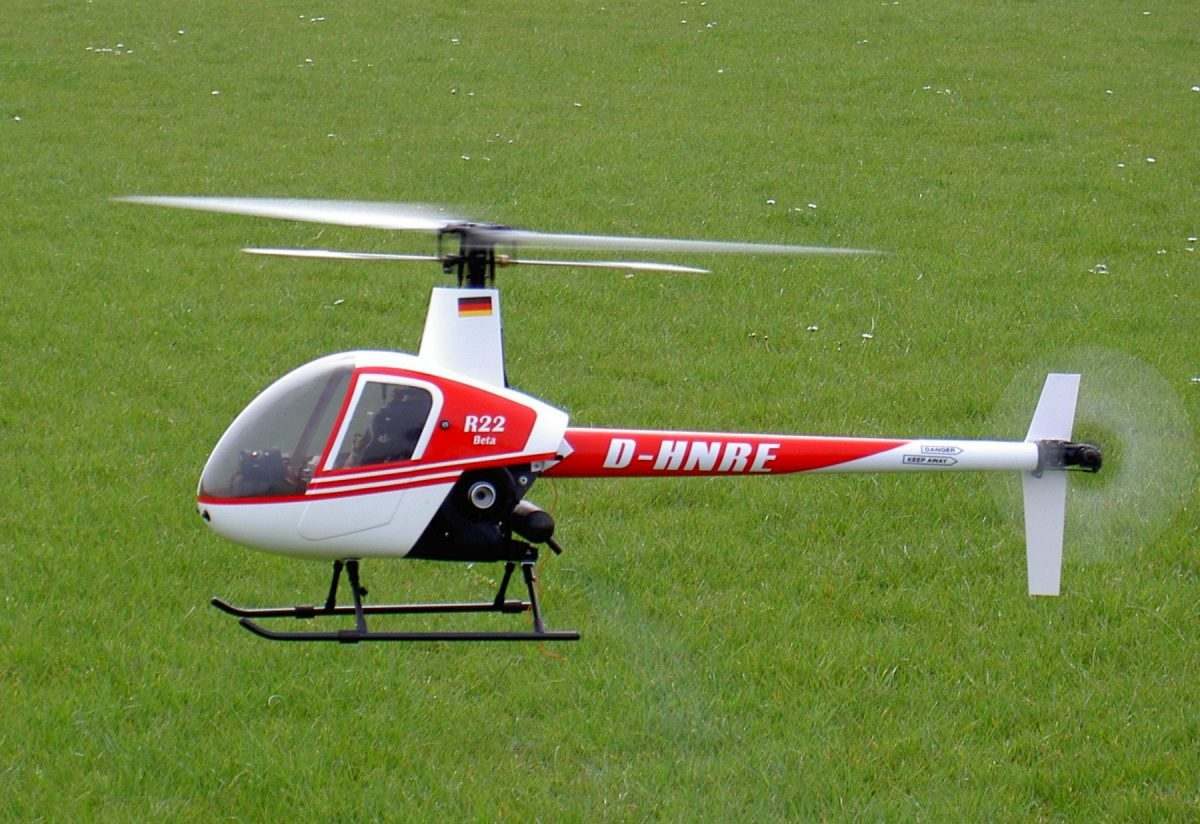

  • R22 - 2007-04 - LH hover

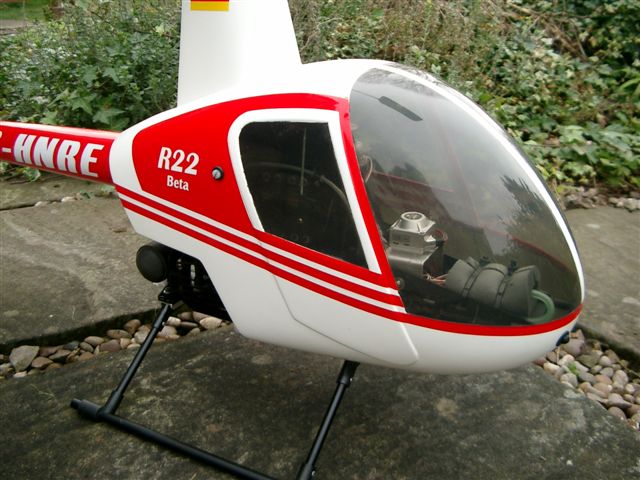

  • R22-1

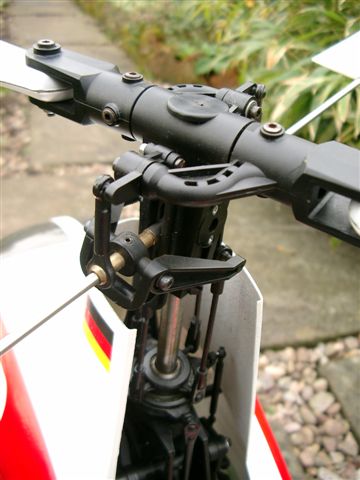

  • R22-2

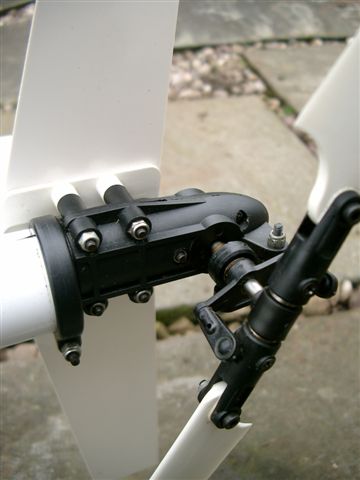

  • R22-3

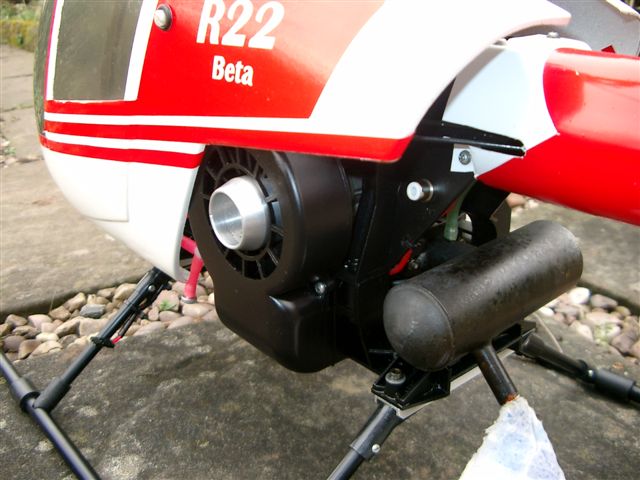

  • R22-4
  • R22-5

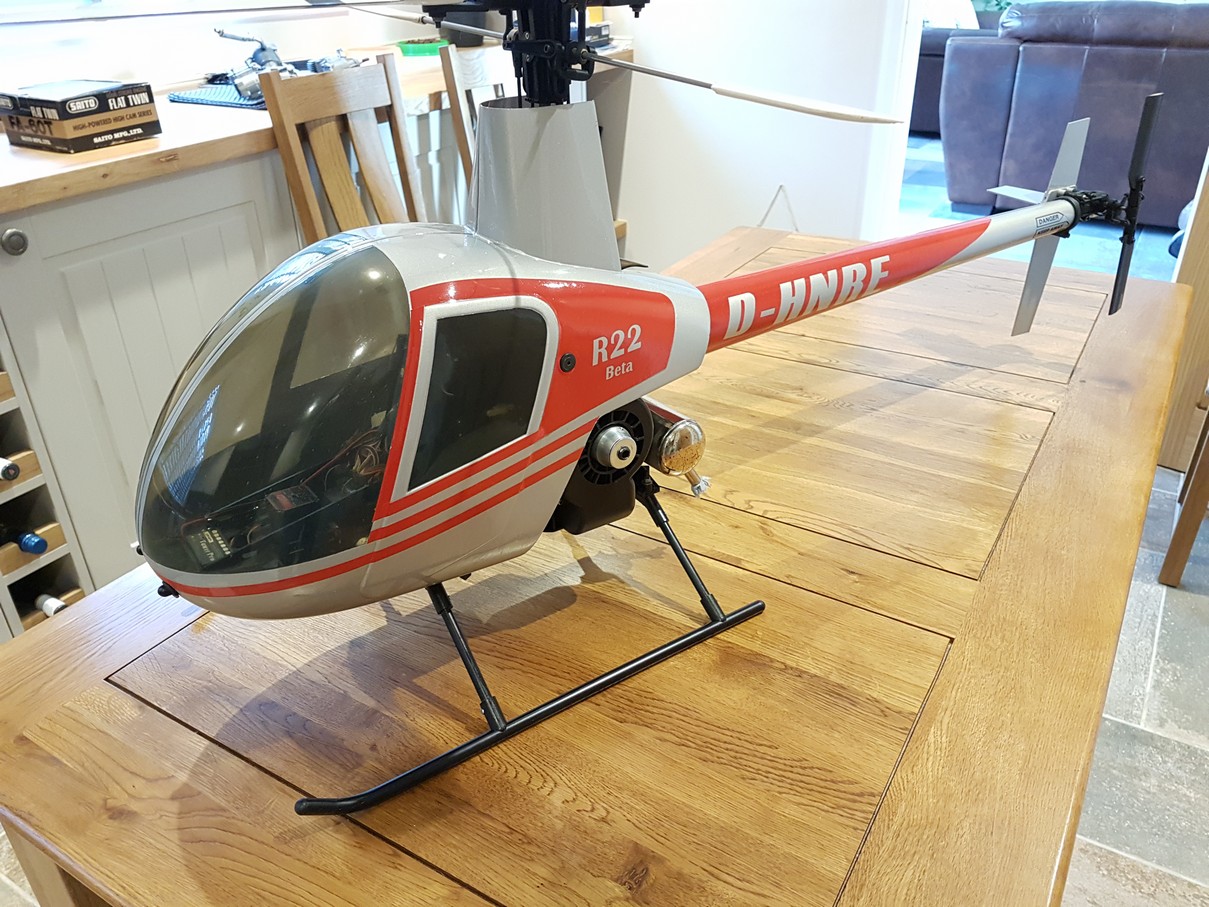

  • Robbe_R22_005

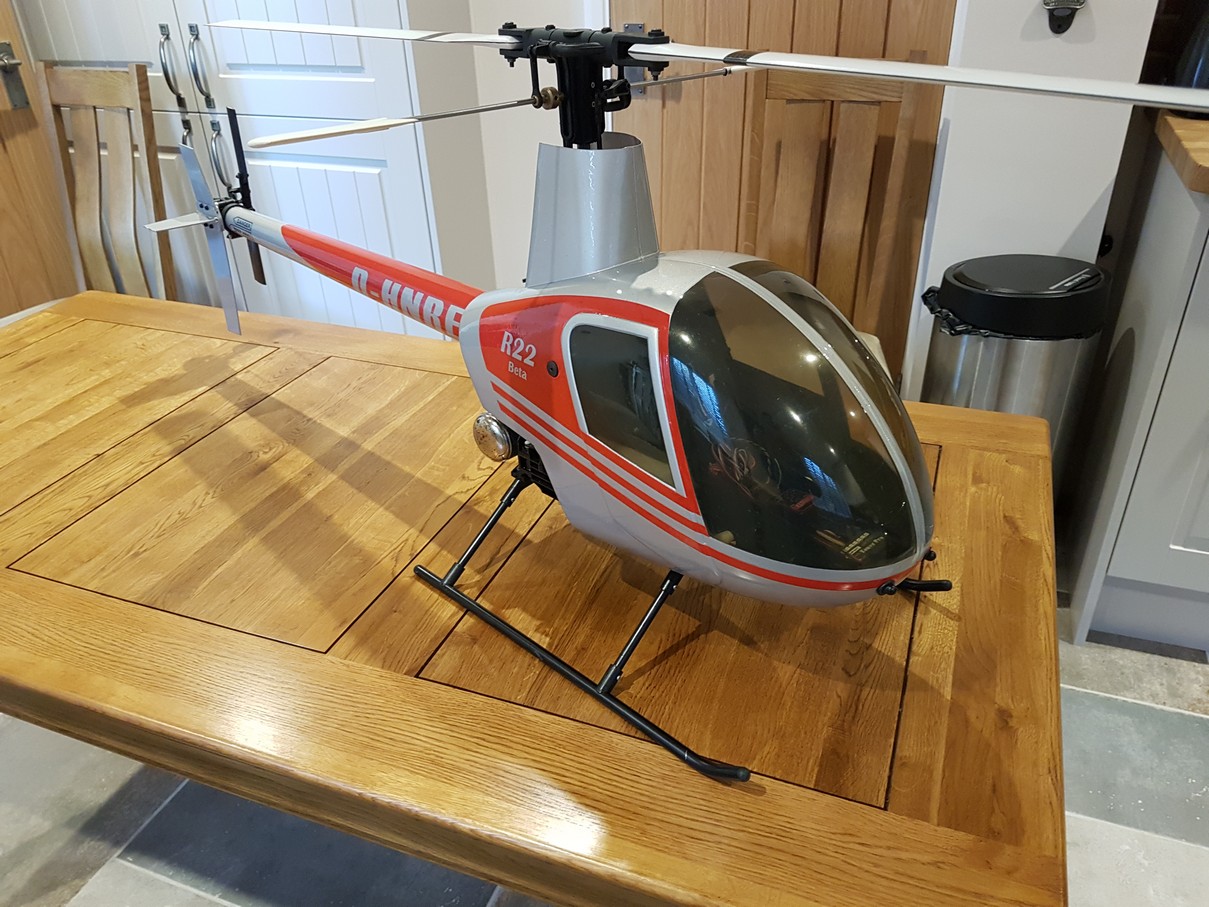

  • Robbe_R22_010

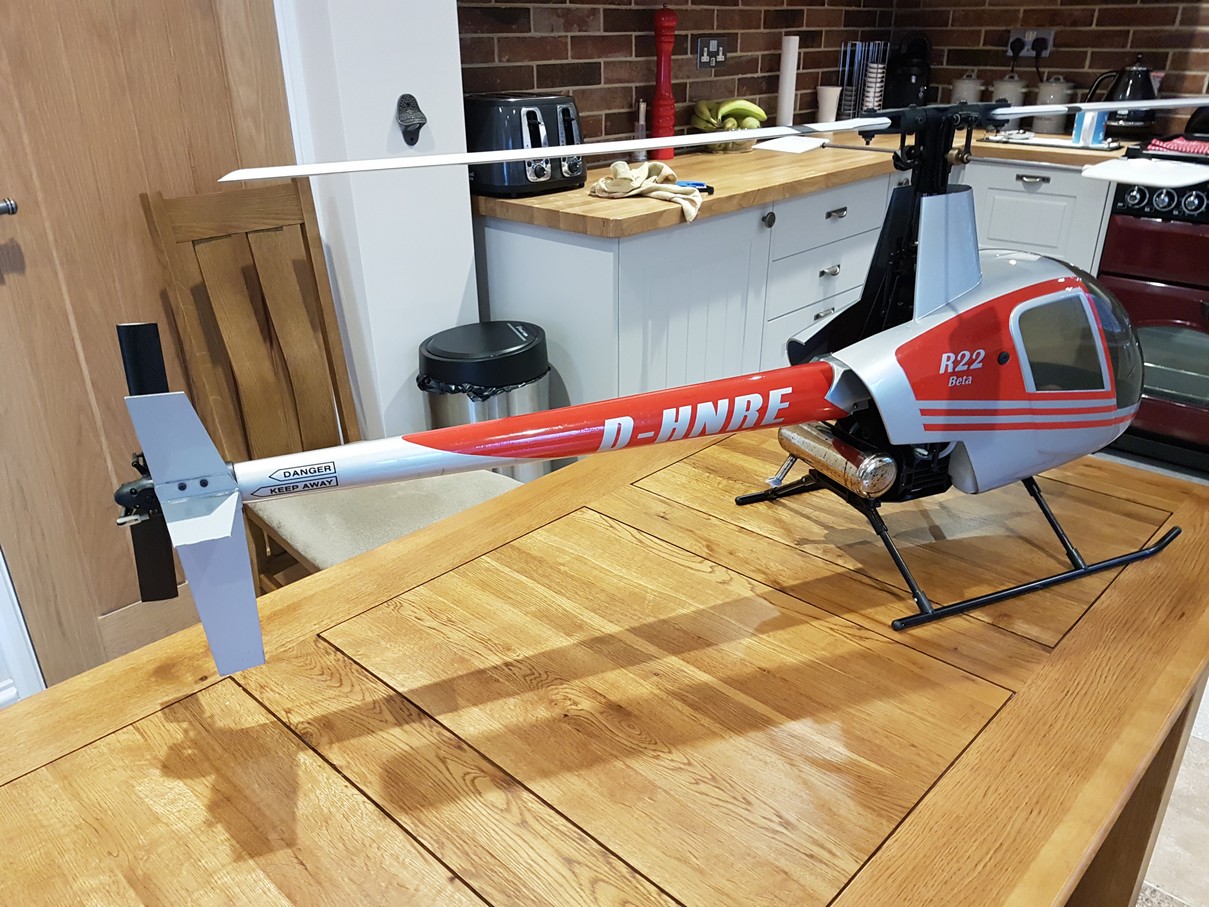

  • Robbe_R22_015

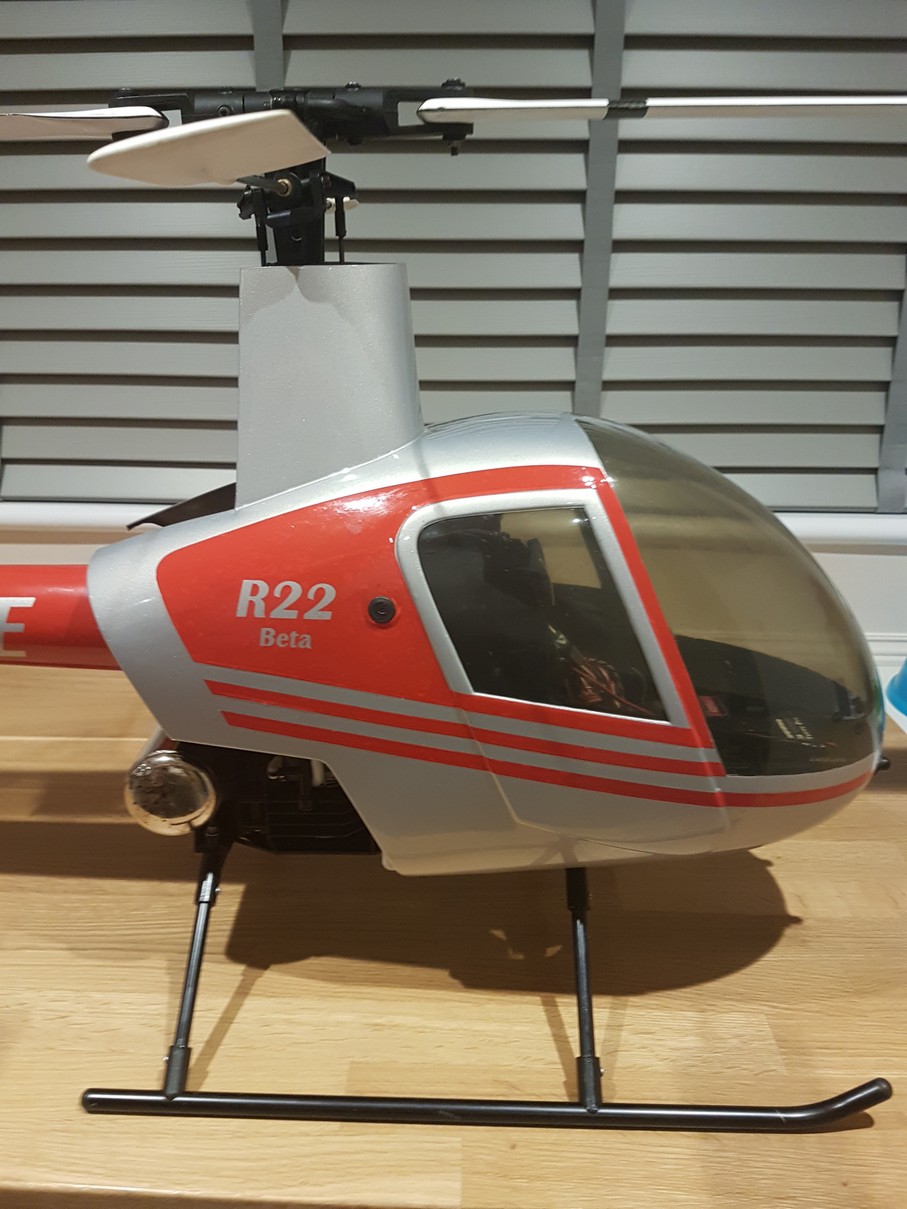

  • Robbe_R22_025
  • Robbe_R22_030

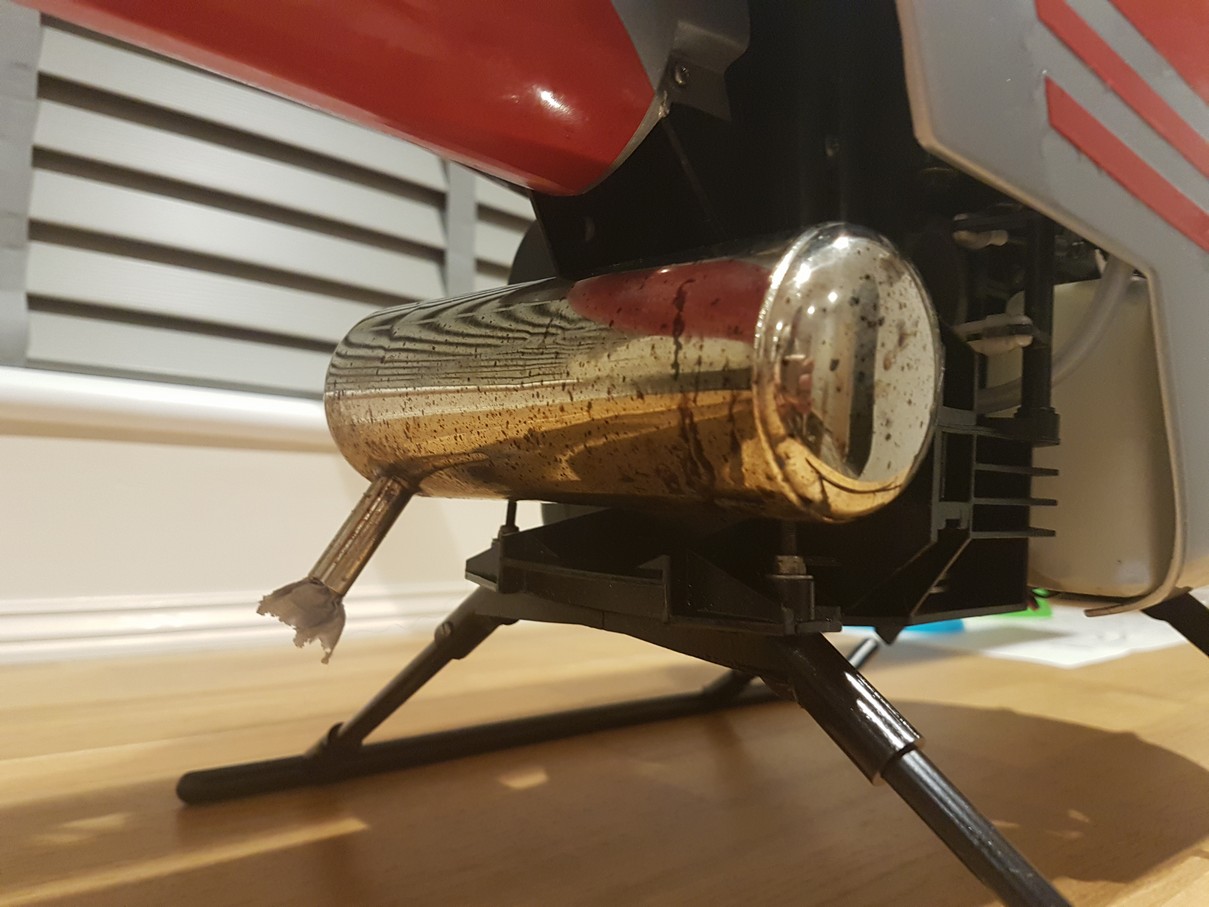

  • Robbe_R22_035

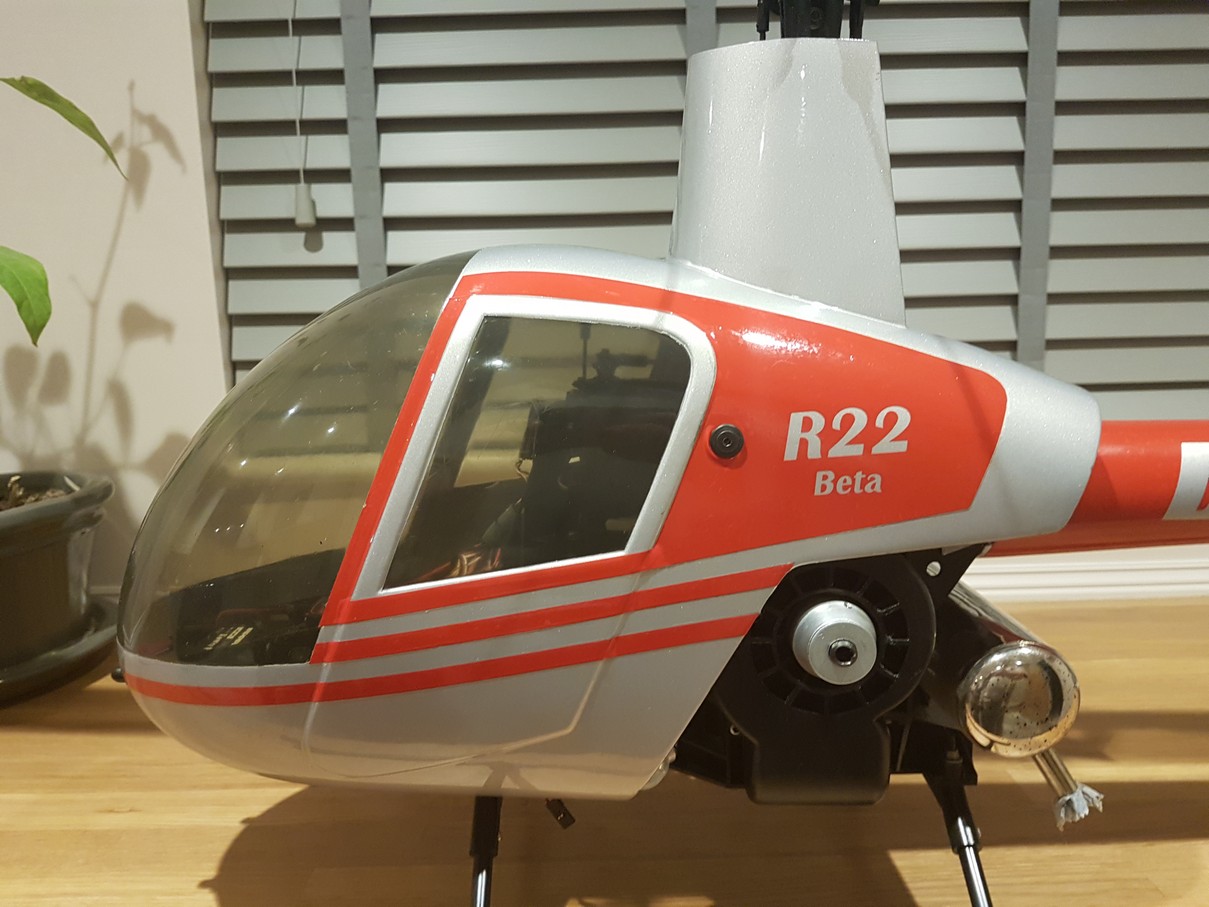

  • Robbe_R22_040

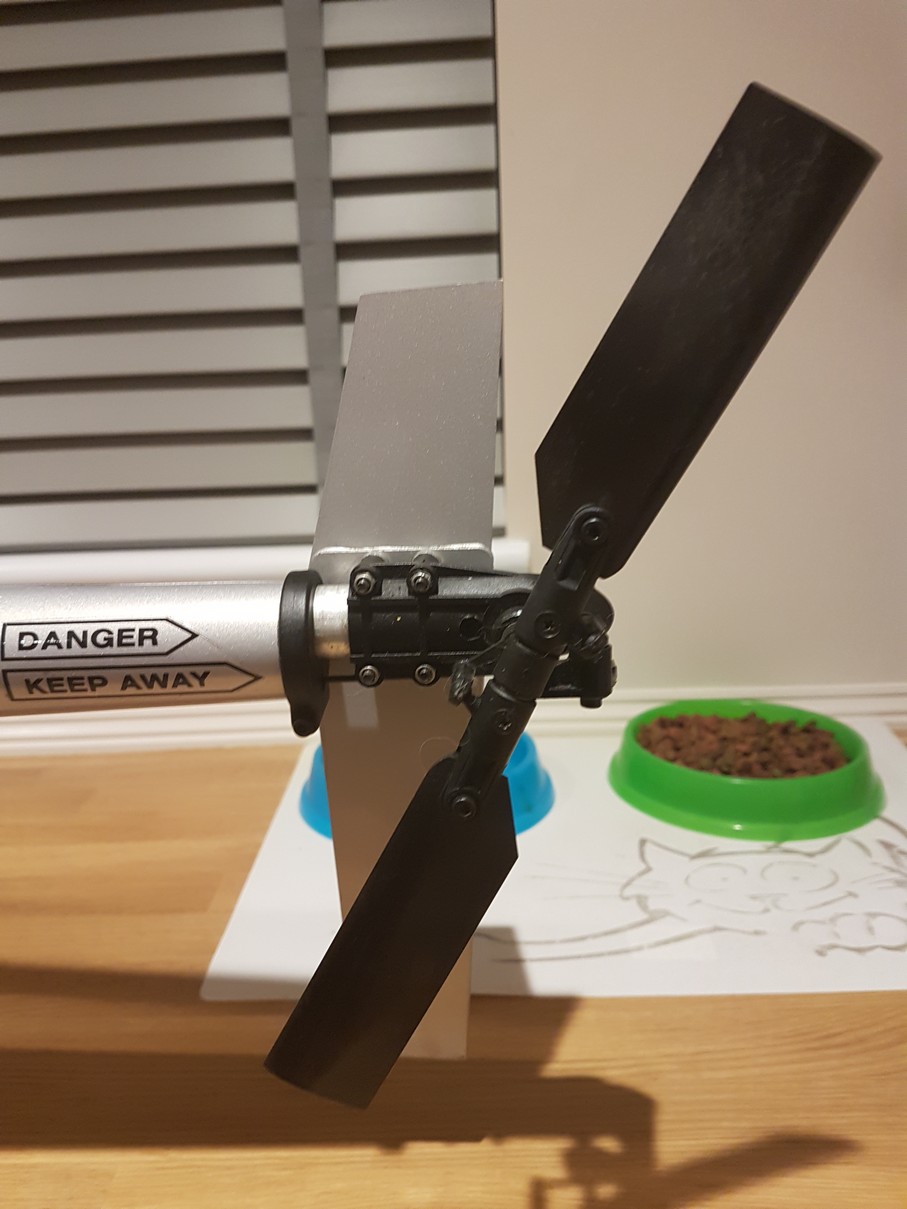

  • Robbe_R22_045
  • Robbe_R22_050
  • Robbe_R22_060


Has the flight characteristics of a trainer which is ideal as an R22 is in reality quite a low performance full size helicopter.  Excellent on a nice calm evening though if pushed can get up to quite a turn of speed such that slowing it down especially at low height can be quite interesting. Though seemingly tall, a low mounted engine, wide undercarriage, benign control responses with bodywork and colours providing good orientation responses; it makes an excellent learner.
