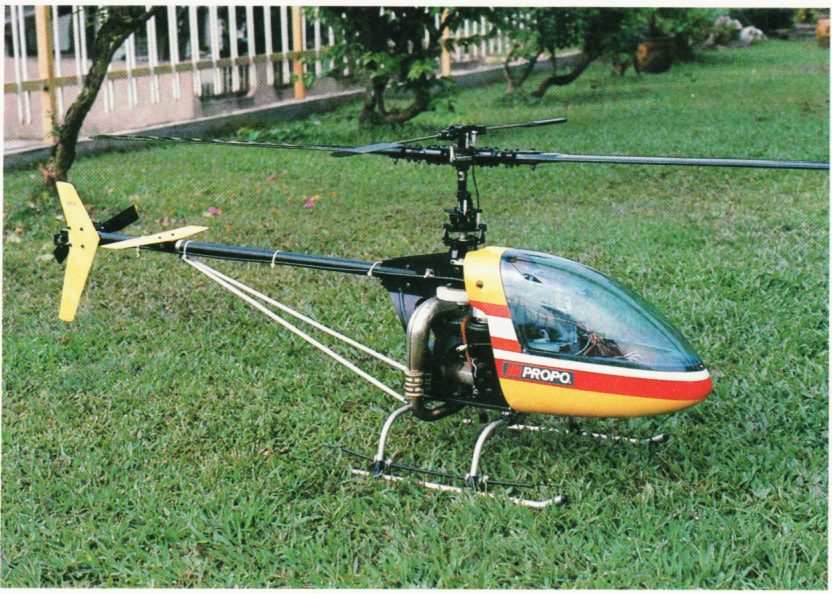

Kalt 60 Baron (1983)

  Specification:

   60_Baron
 Length  1345 mm
 Rotor Head  any Kalt CP
 Main Rotor Dia  1540-1560 mm
 Engine  .60 cu in  (10.0 cc)
 Gear Ratio   10 : 1 : 5.4
 Weight  4600 - 4800 g



Documents:

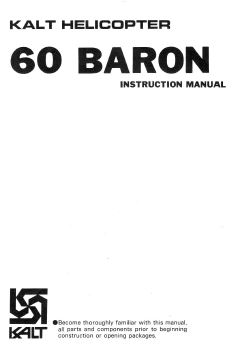

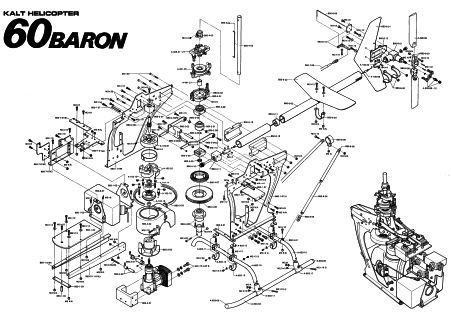

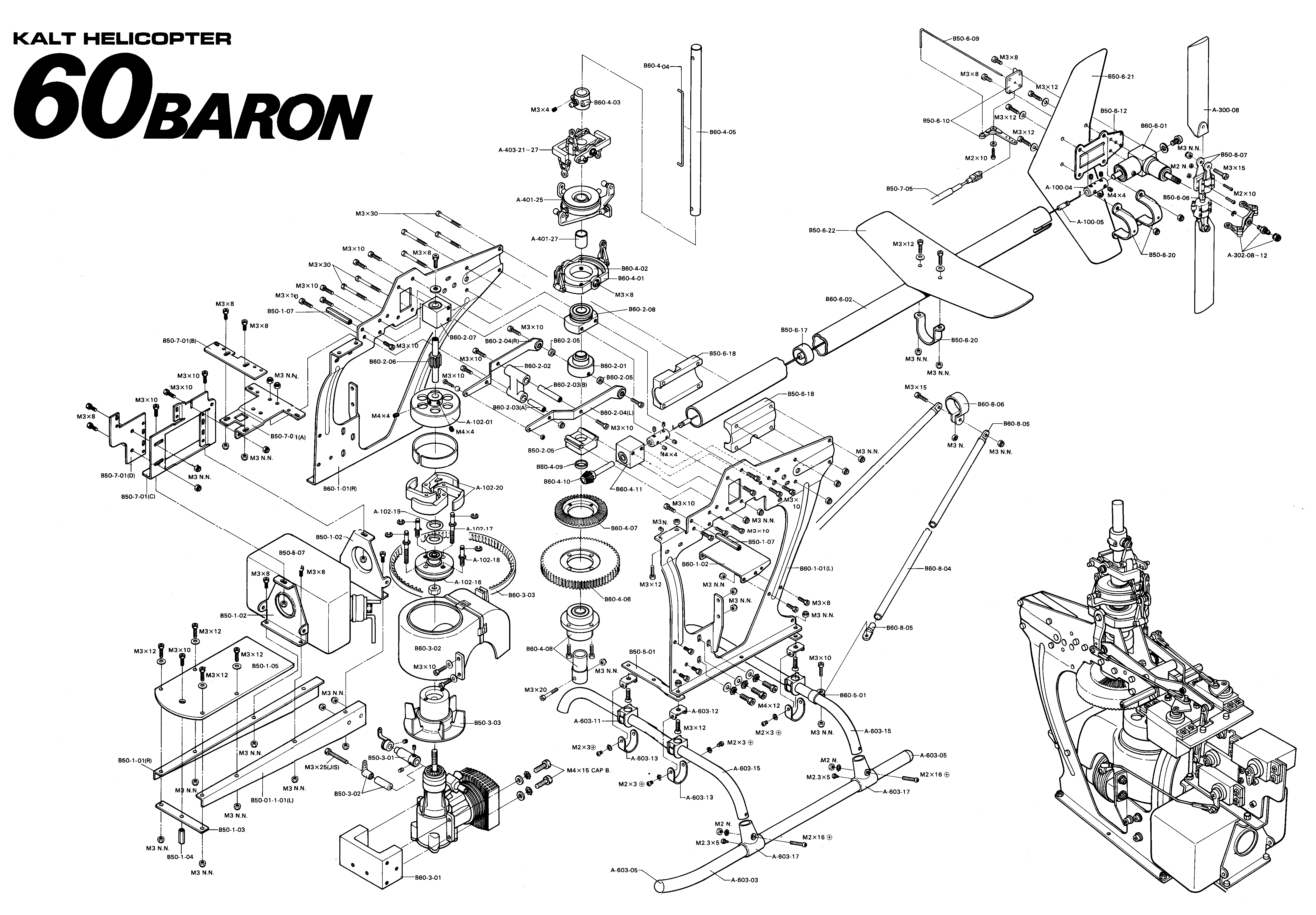

60_Baron instr. manual
Basic manual for helicopter without the head assembly.




60_Baron EX supplement  -  Additional information for use with 60_Baron manual.

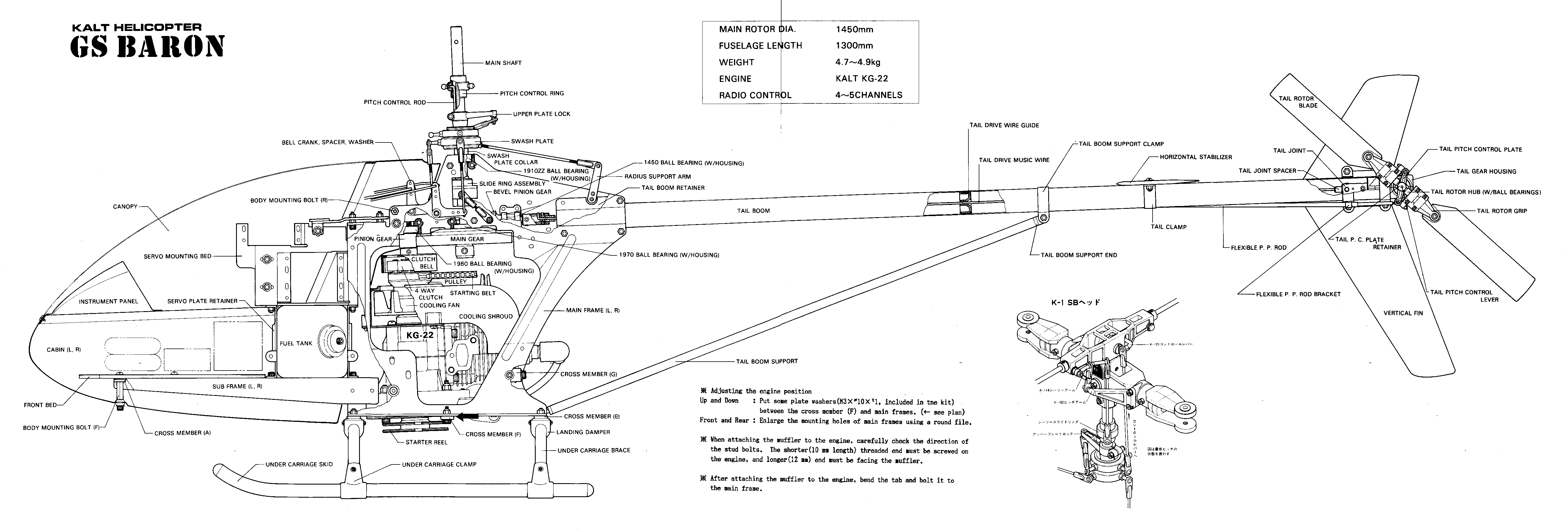

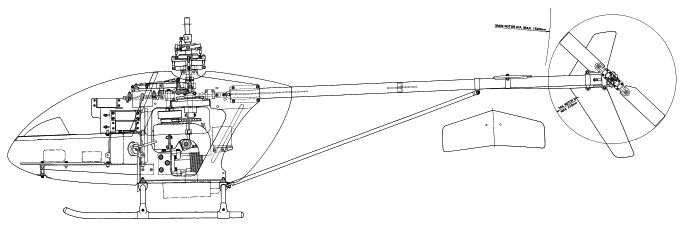

60 baron left side view  -  Side view showing general layout.

Reports

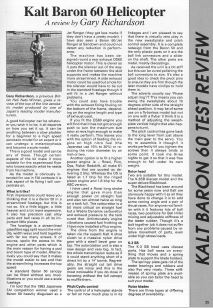

Kalt 60_Baron - August 1984 review by Gary Richardson from Radio Controlled helicopters

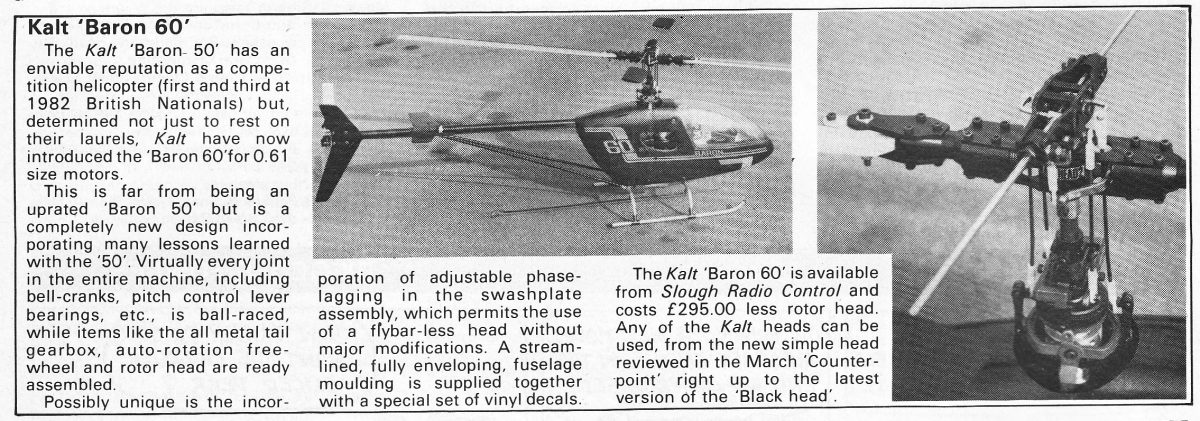

Kalt 60 baron release info May 1983.

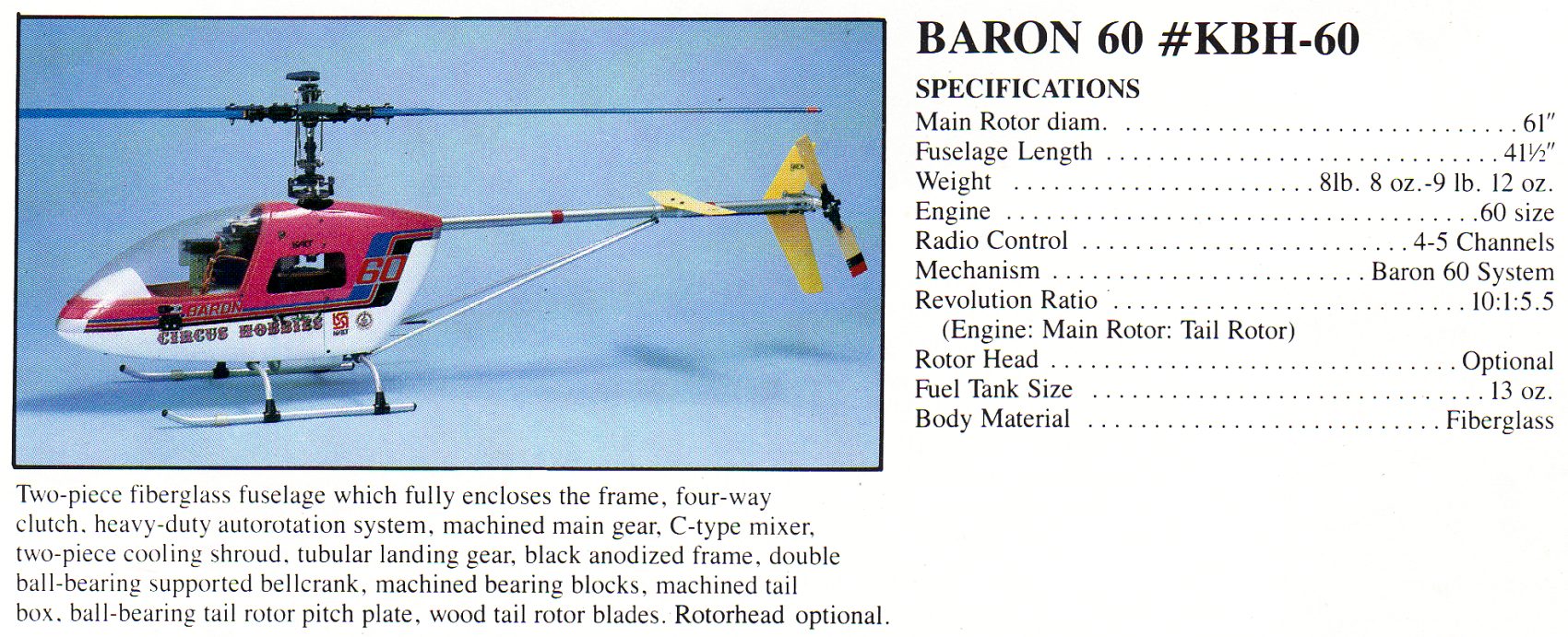

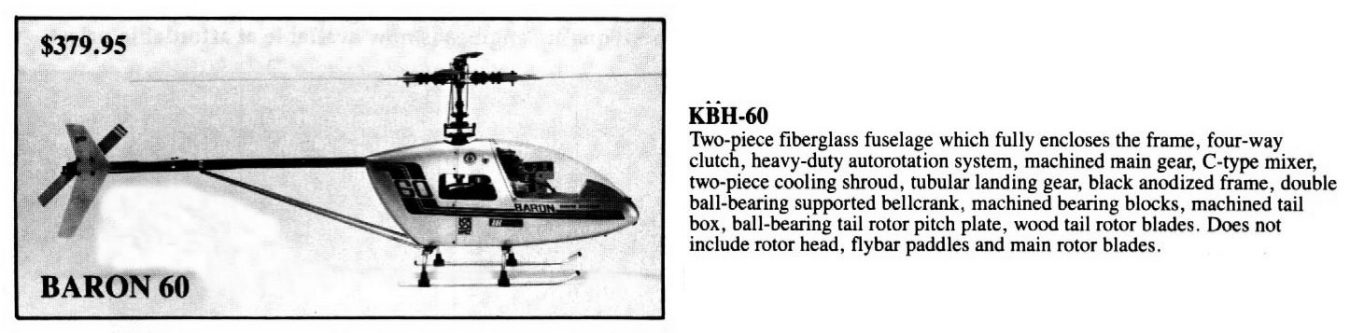

1985 Circus Hobbies catalogue

Upgraded 50 baron for FAI style flying.

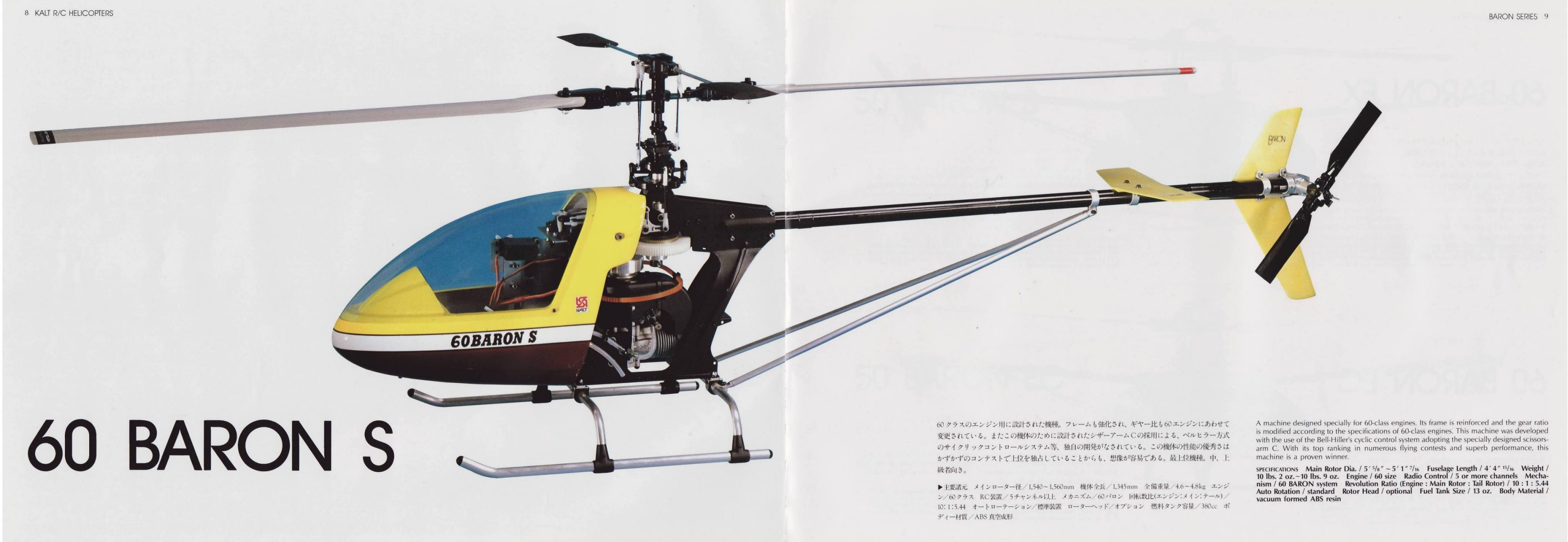

Kalt 60_Baron S (1986)



The 60_Baron S was the standard sport version and as per Kalt policy the head was supplied as a separate order and could be of any specification depending upon requirement.

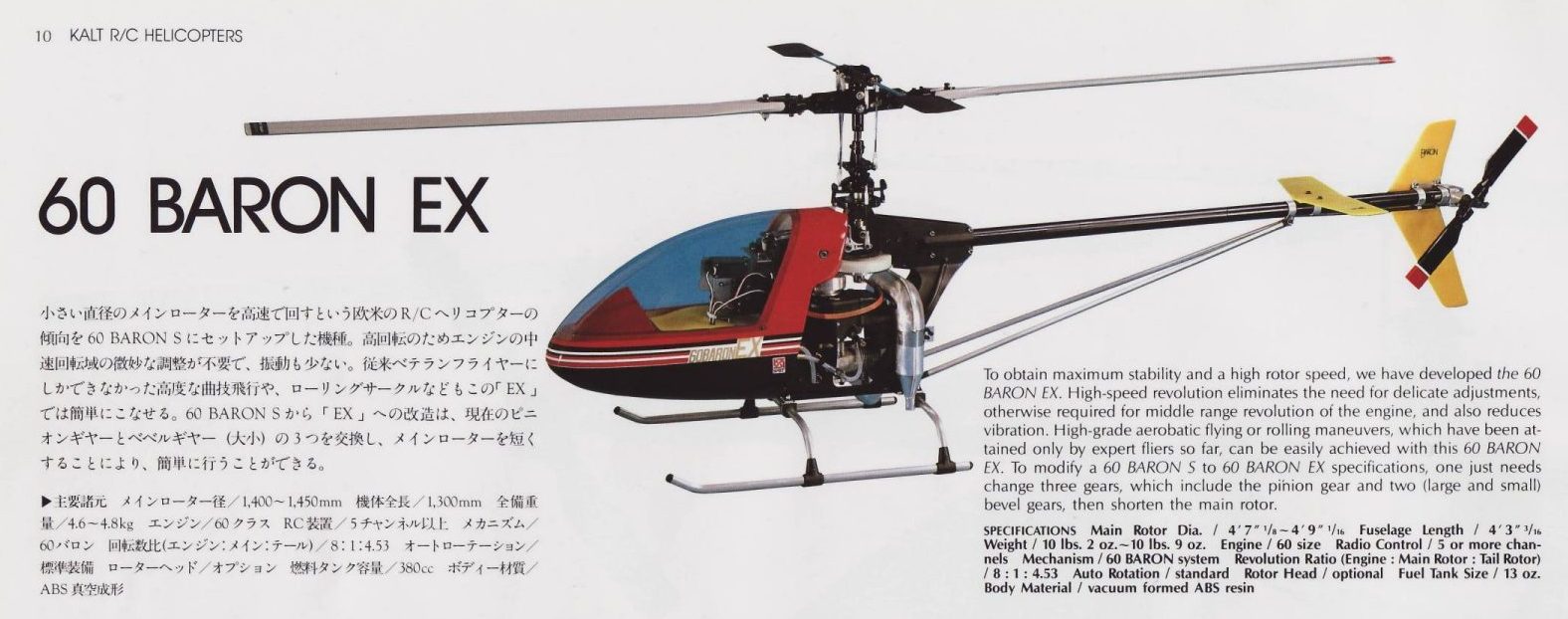

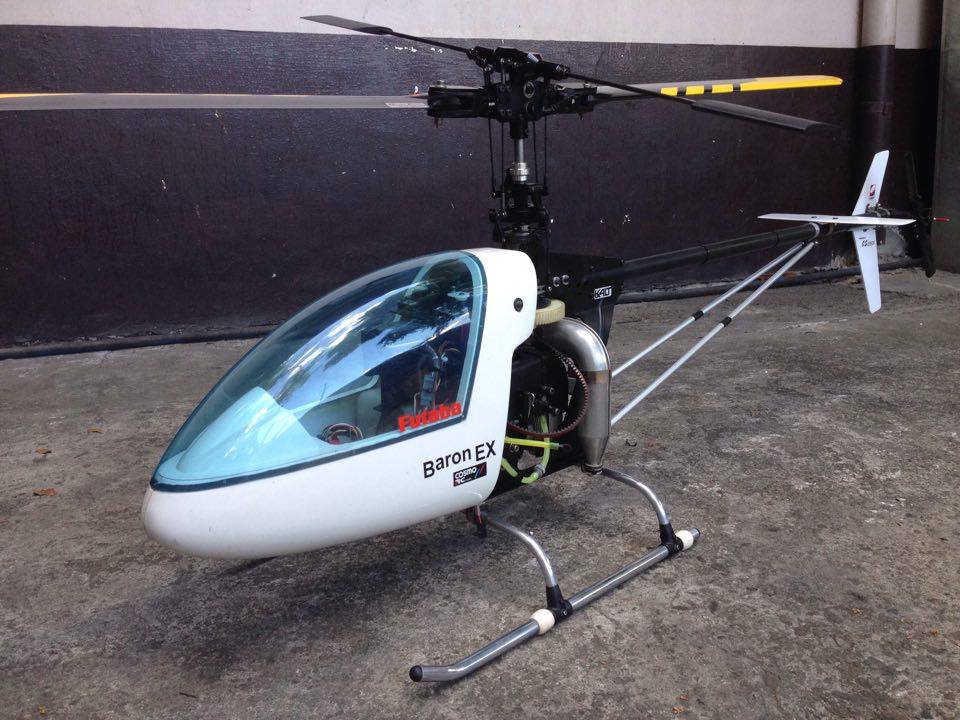

Kalt 60_Baron EX (1986)

EX version operated at a higher head speed by changing the reduction ratios and utilising smaller blades, also required a high specification head.  Indications of pricing suggest that this model was supplied with all the options including the high specification head as 'standard'.

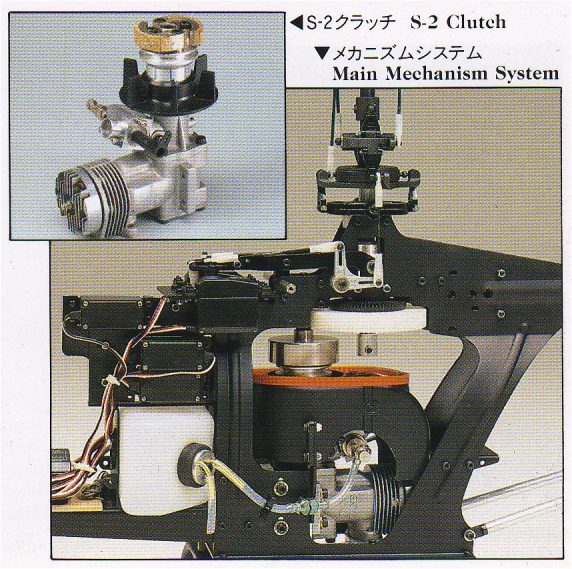

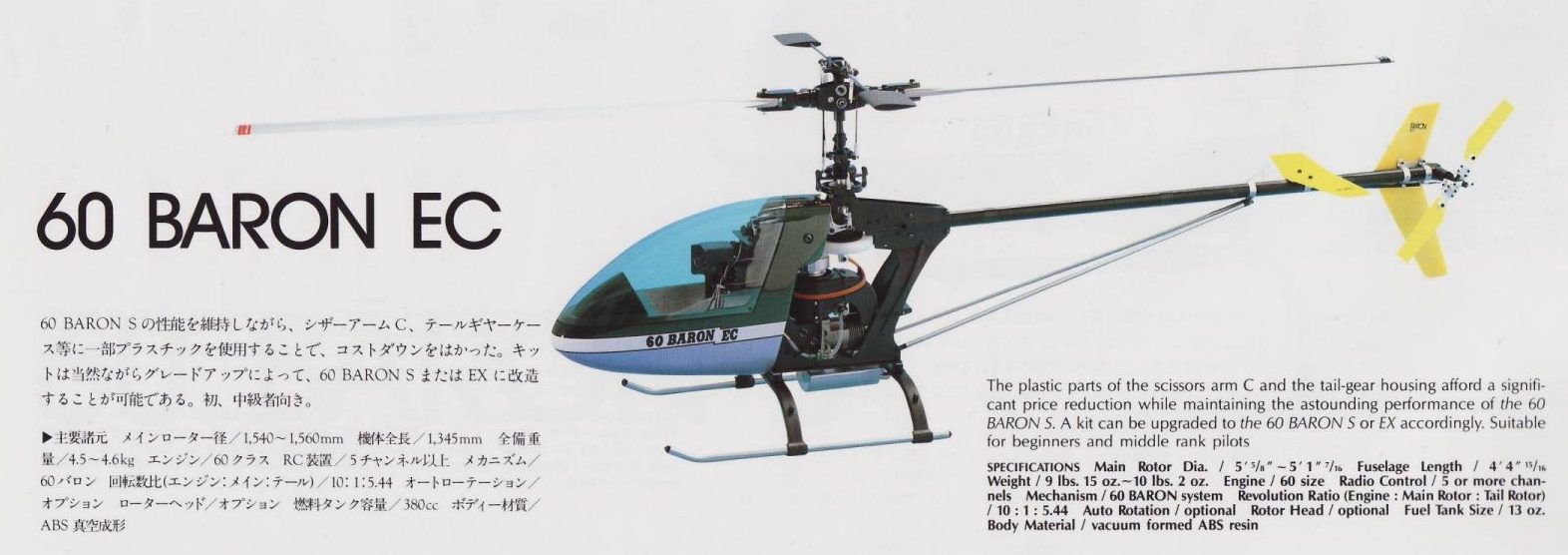

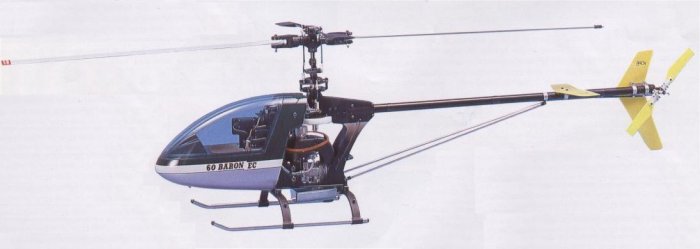

Kalt 60_Baron EC (1986)

EC was the budget version of the 60 S using a number of 'plastic' components with autorotation optional in order to reduce cost.
