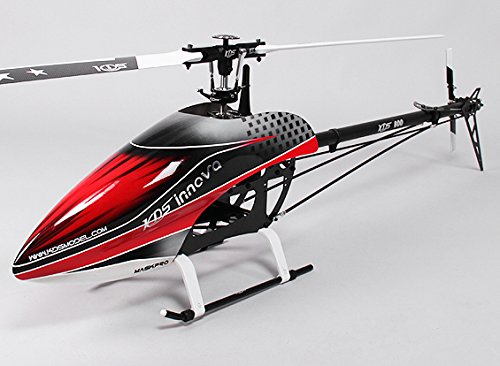

KDS Innova 600





Specification:

  Length  1280 mm
  Height  385 mm
 Main Blade length
 600 mm
 Tail Blade length
 95 mm
 Total Weight  2250 g
 Gear Ratio  9.6: 1: 4.6
 Engine 500-530KV brushless Outrunner

Documents:


Manual Innova 600

  • High strength aluminum parts with sand blasting anodising procedure features elegant appearance.
  • Brand new flybarless main rotor head. The configuration of main rotor holder and the holder arm is disconnect-type.
    Easy to assemble or disassemble them and change the rotor head to flybar version.
  • Upper motor mount design which is good for heat dissipation.
  • Simple and effective tail boom stiffener design.
  • Three-ply main shaft mount enable main shaft to work more smoothly.
  • Helicopter frame with front and rear strengthening aluminum plate enhances the strength of frame.
  • 3K carbon fiber helicopter body features simple construction and high strength.
  • High compatibility of parts among KDS INNVOA helicopters series.
  • Comes with high quality handmade painting fiber canopy.

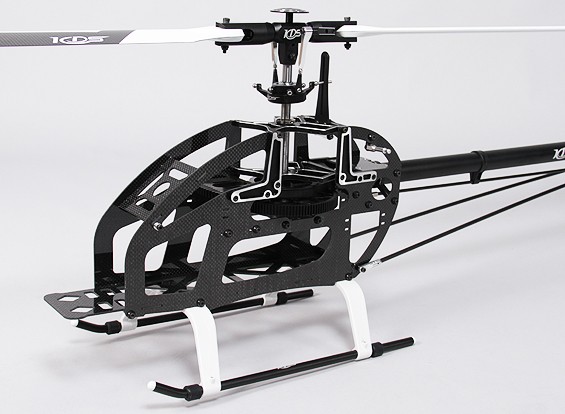

  • Innova_600_105

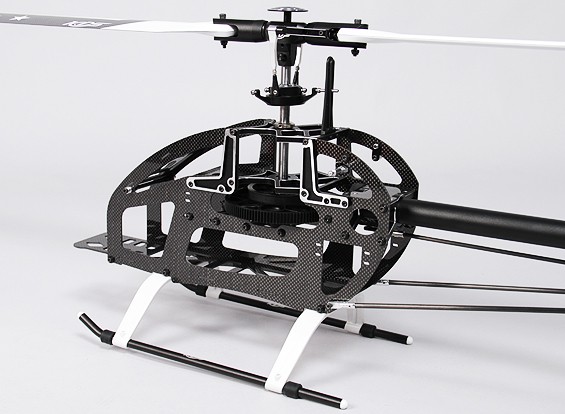

  • Innova_600_106

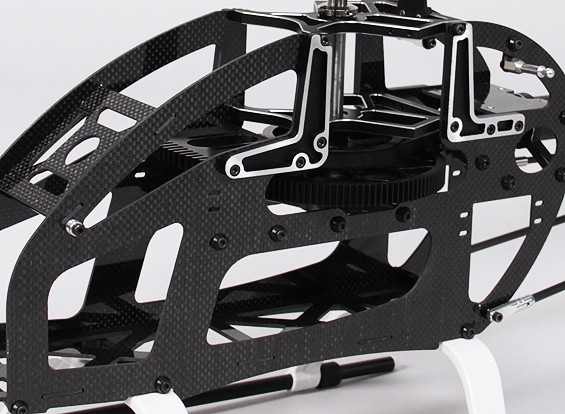

  • Innova_600_107

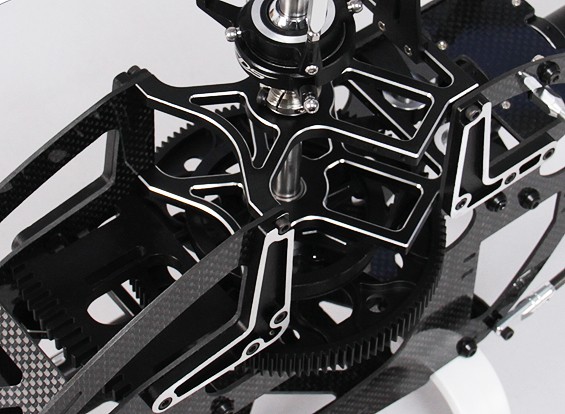

  • Innova_600_108

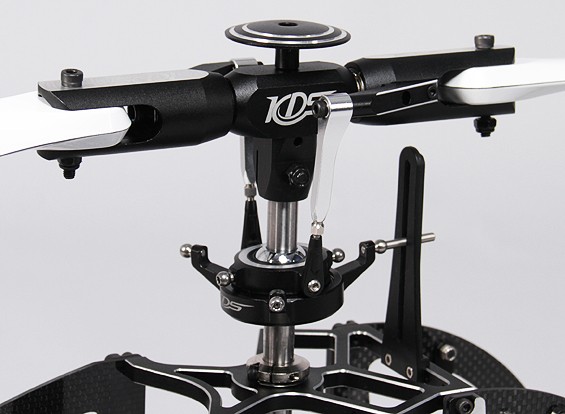

  • Innova_600_109

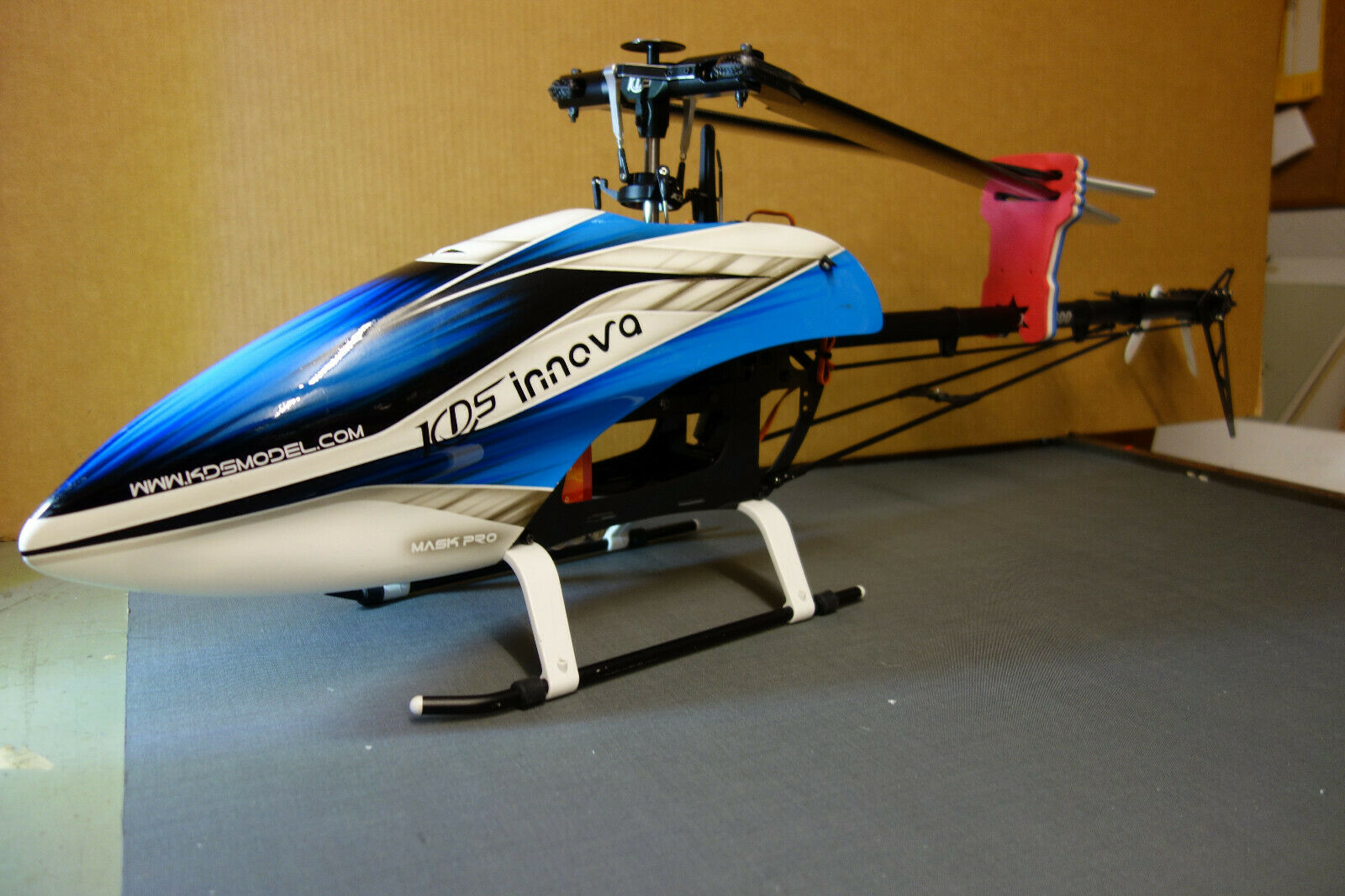

  • KDS_Innova600_005

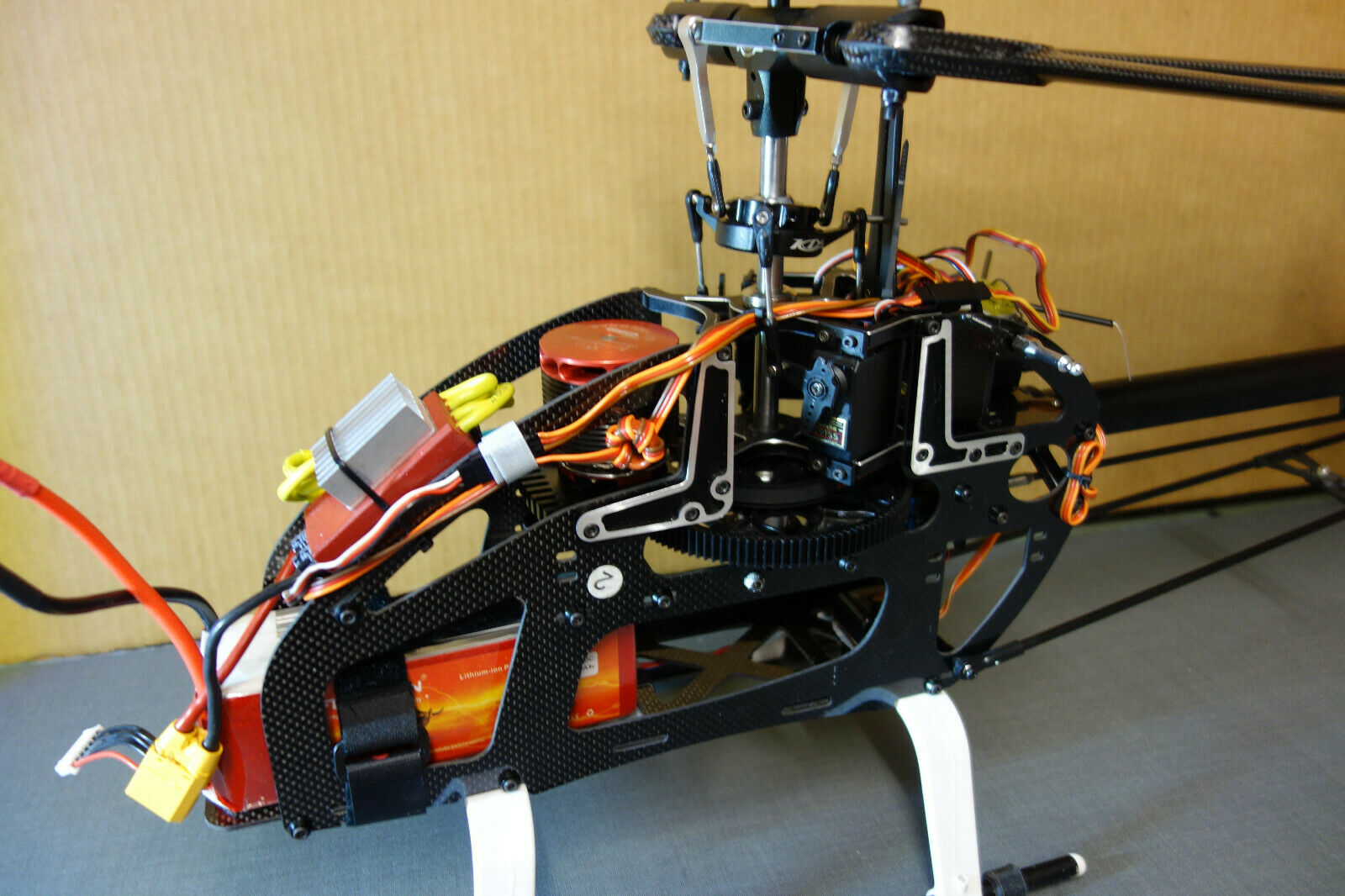

  • KDS_Innova600_010

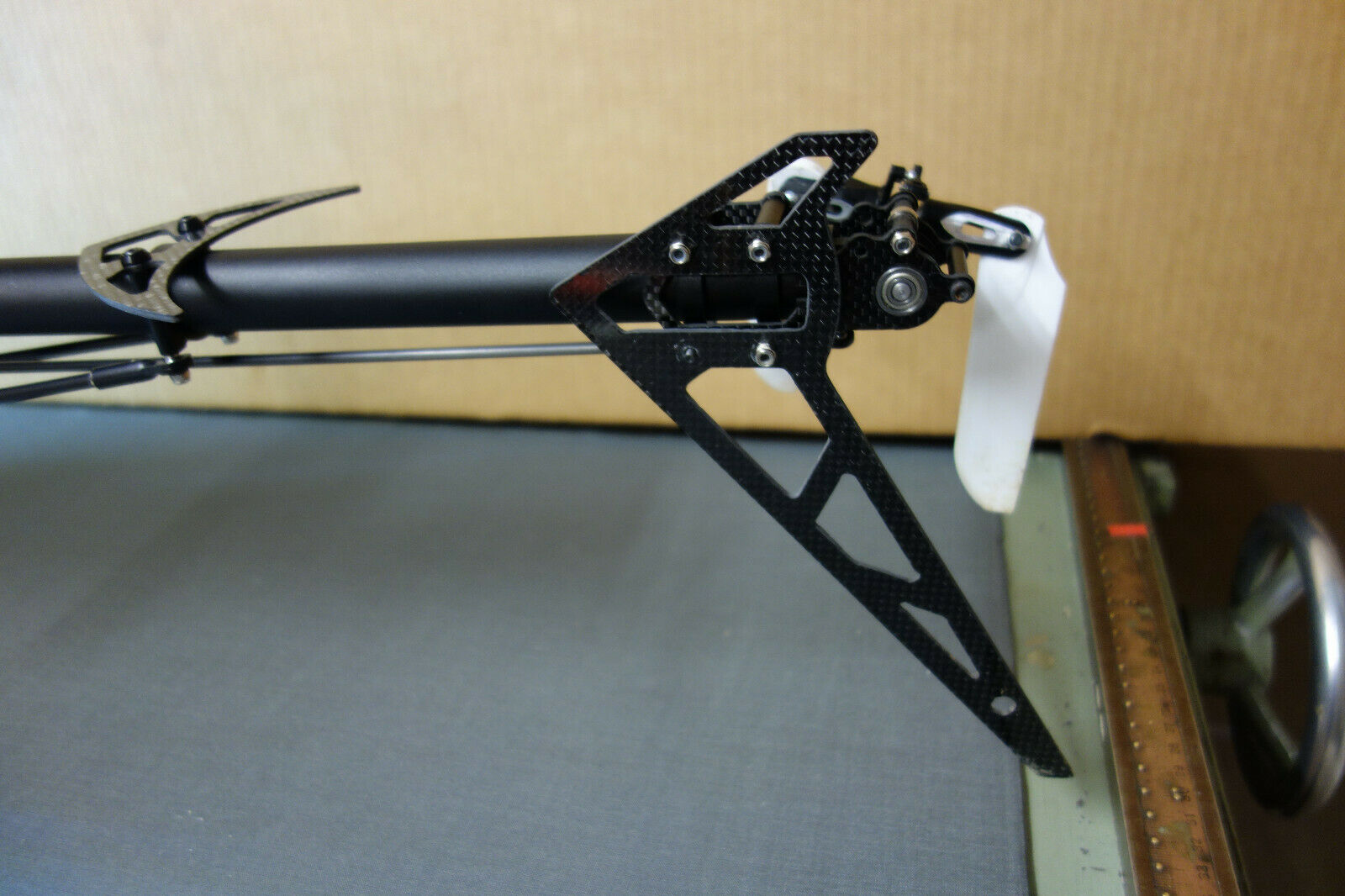

  • KDS_Innova600_015
