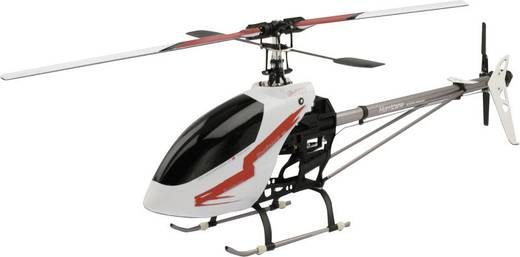

Gaui Hurricane 425

  Specification:

 Length  415 mm
 Height  310 mm
 Blades  425 mm
 Main Rotor  965 mm
 Tail Rotor  217 mm
 Engine  KV 1400
 Gear Ratio
 Weight  1375 g



Documents:

Manual Hurricane 425


Hollow main mast, precision CNC anodized aluminum swash plate and guide, CF servo plates are all included in kit.
Can be easily and economicaly converted to 550 size with the with blade and tail boom conversion set. Multi-stage gear
reduction system provides more gear ratio options for different power system and main blades. Newly designed 8mm
one-way gear shaft provides high-efficiency power transfer. Push-pull linkages on CCPM mechanism limits any play for sharp
control response. Dupont plastic and fibreglass composite main frame. Fully equipped ball bearings (43 bearings).
Seesaw head with Bell-Hiller system. Belt driven tail rotor. Extensive CNC upgrade parts and option parts available.



  • Gaui_425_001
  • Gaui_425_005

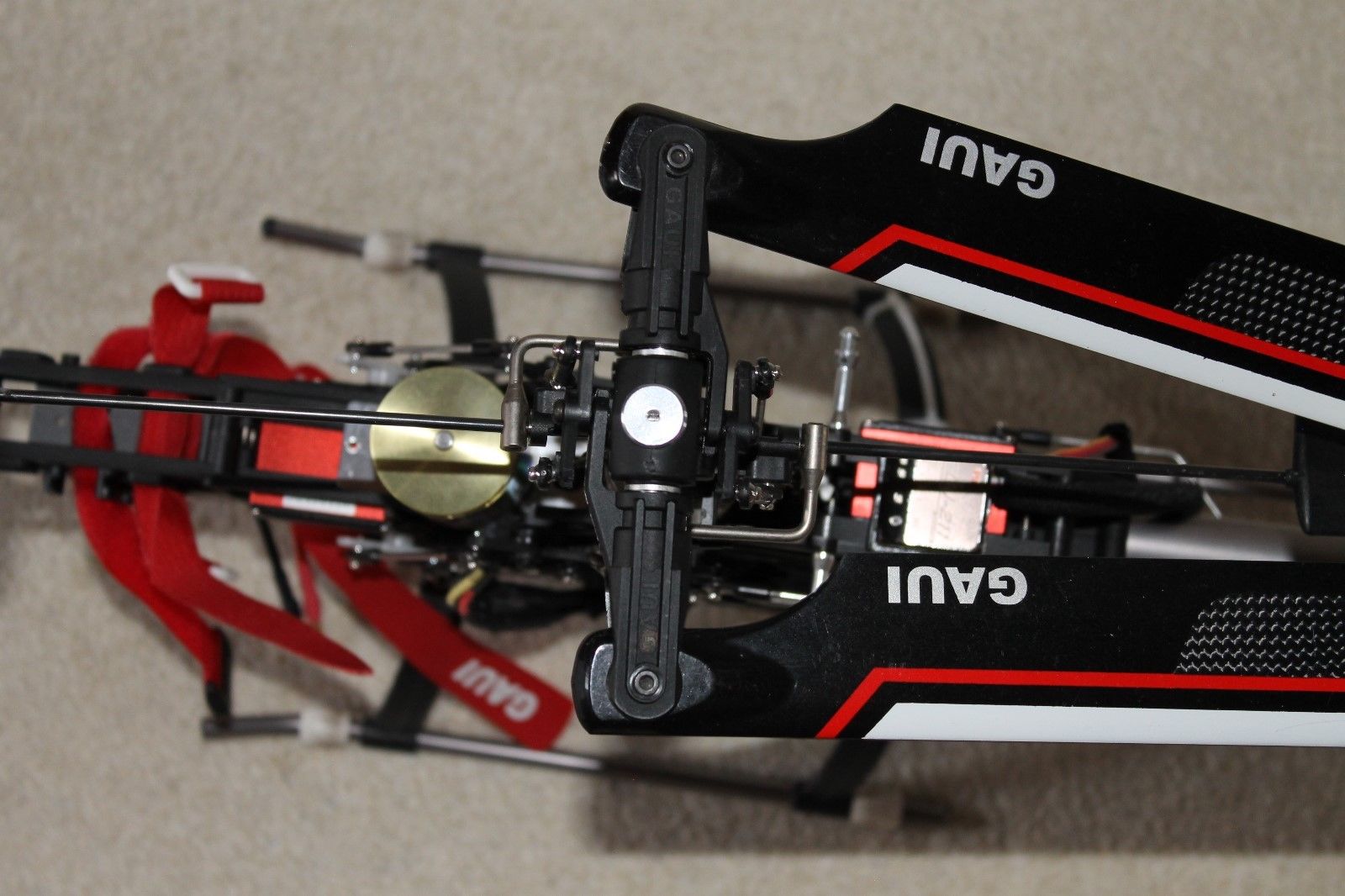

  • Gaui_425_006

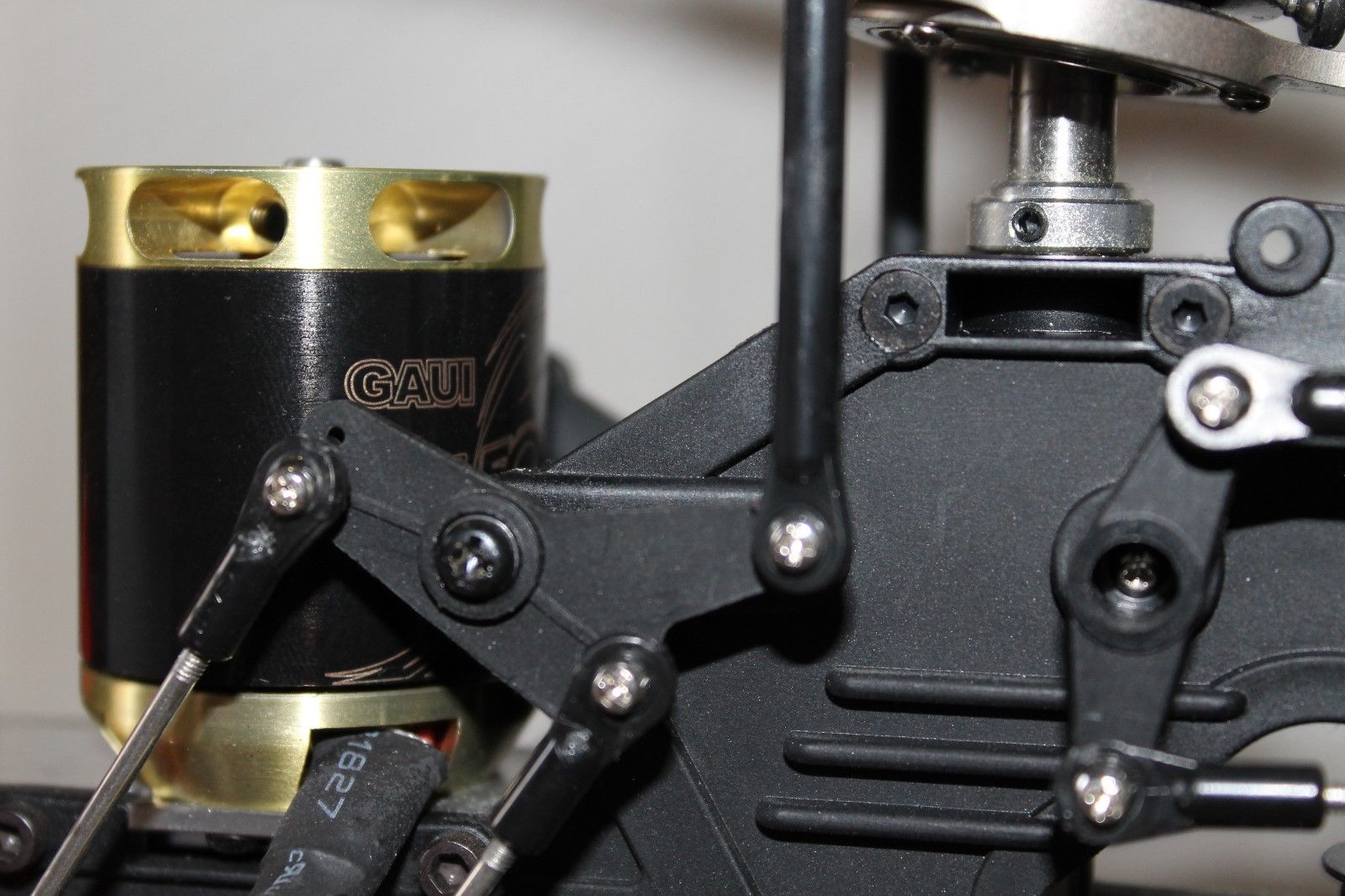

  • Gaui_425_007

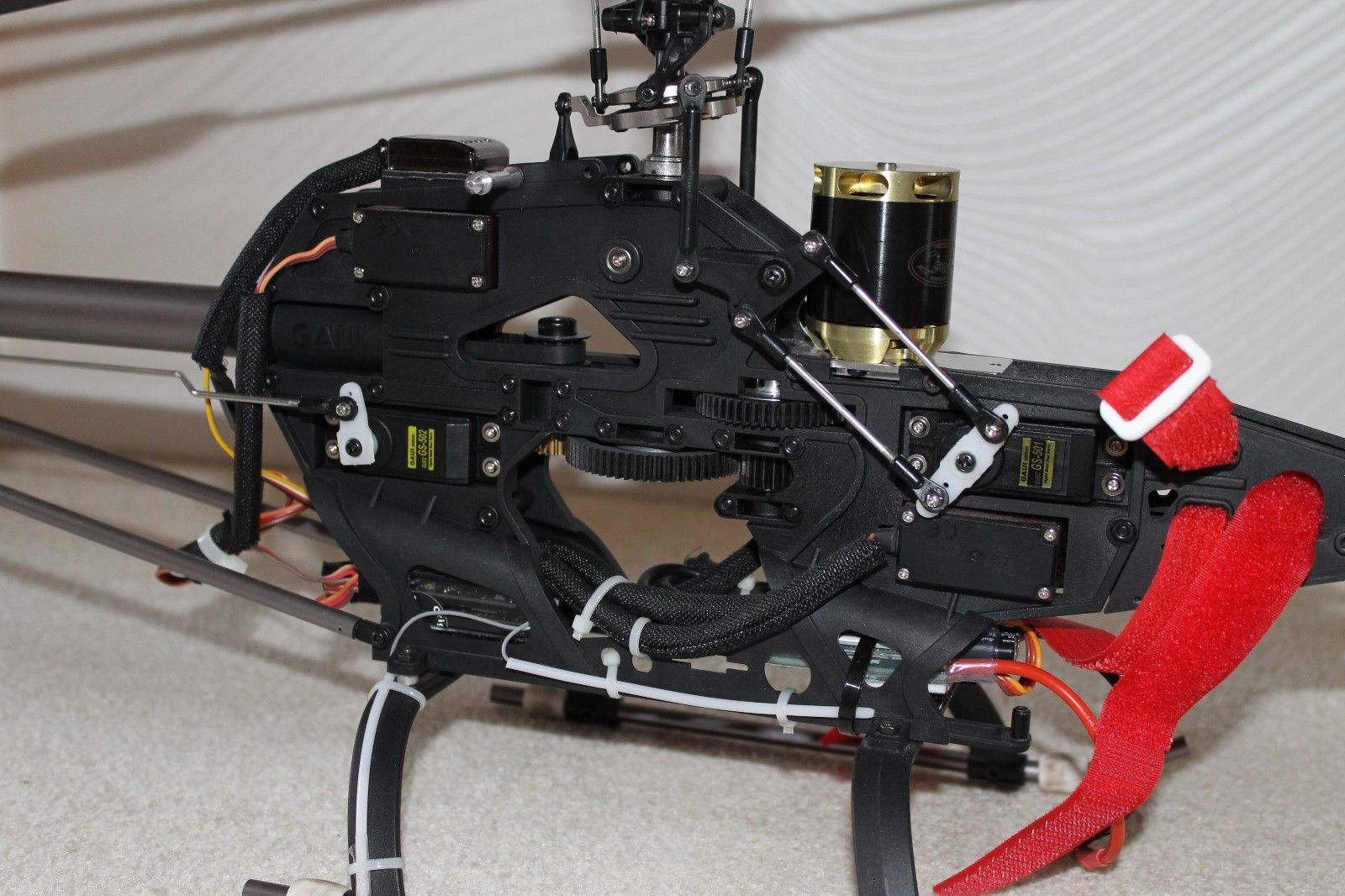

  • Gaui_425_008

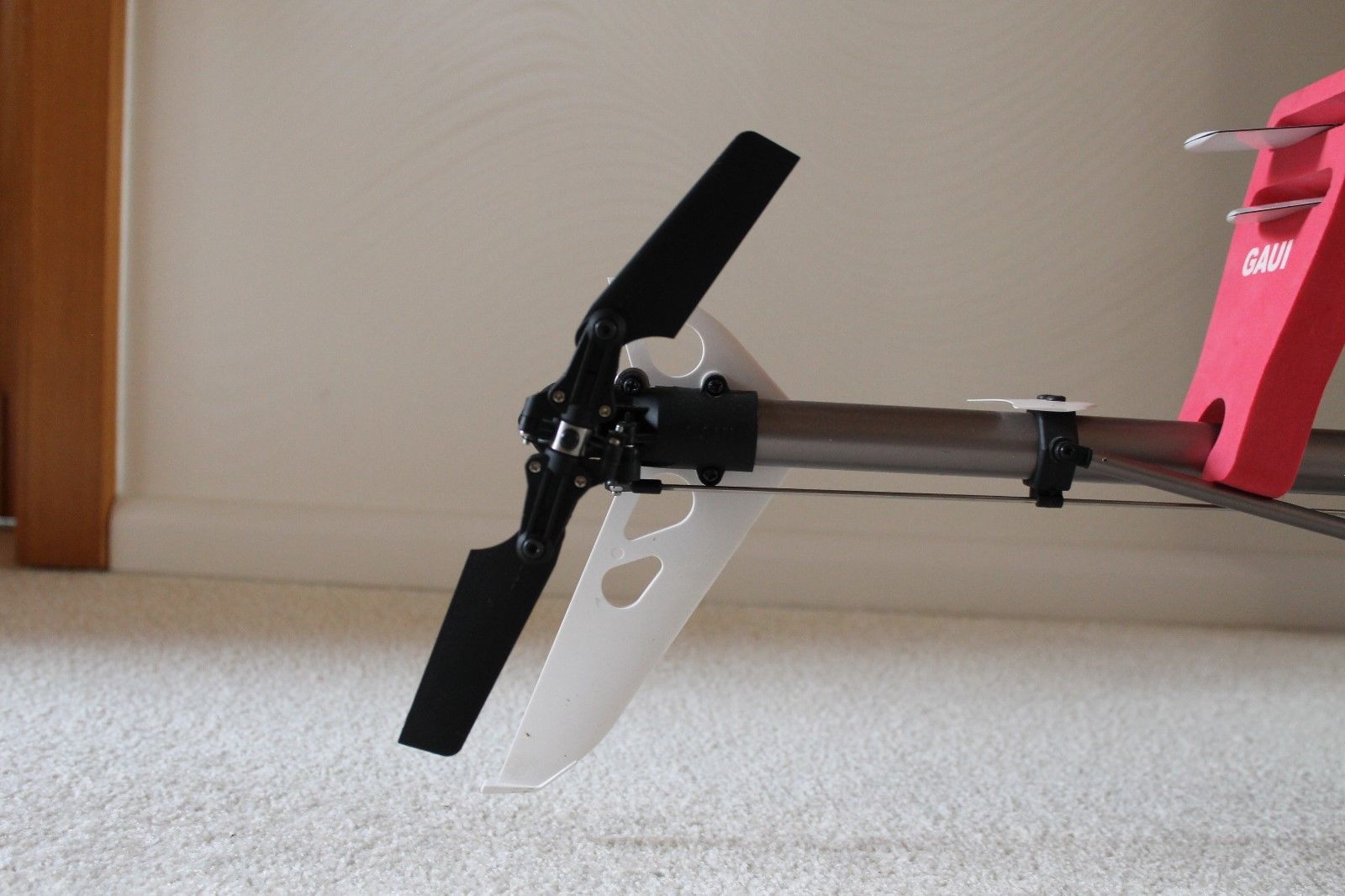

  • Gaui_425_009
  • Gaui_425_010
