Hirobo Mini-Star 025 (1981)




1983 advert

Specification:


 Full Length of Fuselage  870 mm
 Rotorhead  fix Pitch
 Main Rotor Dia  900 mm
 Tail Rotor Dia  200 mm
 Engine  OS25 / ENYA25
 Full Equipped Weight  2100 g



Documents:

Mini-Star build manual

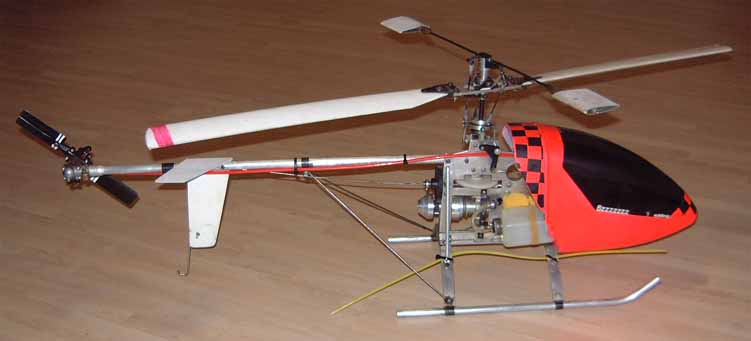

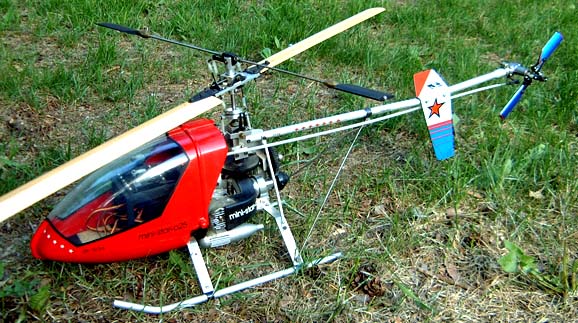

Hirobo first started out with large scale helicopters followed by the '40' size Falcon trainer range then in 1981 produced a smaller '25' size trainer in order to appeal to a larger market and provide a reduced cost entry into RC Helicopter flying.  The Mini-Star would appear to have been a 'clone' of the GMP Cricket being produced less than a year after a GMP Cricket had been sent to Hirobo for evaluation (which itself was a 'clone' of the MM Lark).  Had the unusual feature of a slightly 'bent' upwards tail boom that raised the tail rotor a little higher thereby reducing tail strikes.  Fixed pitch with Bell-Hiller control system.

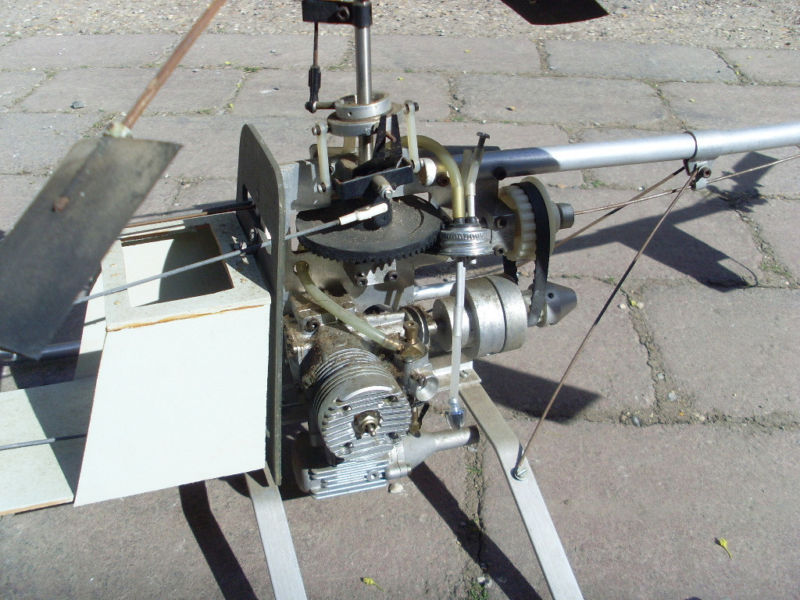

  • Mini-Star - 01

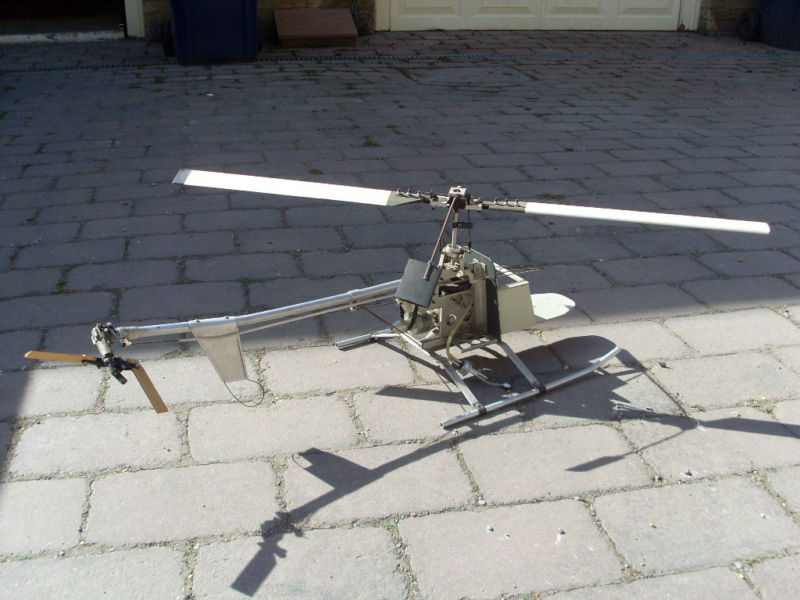

  • Mini-Star - 02

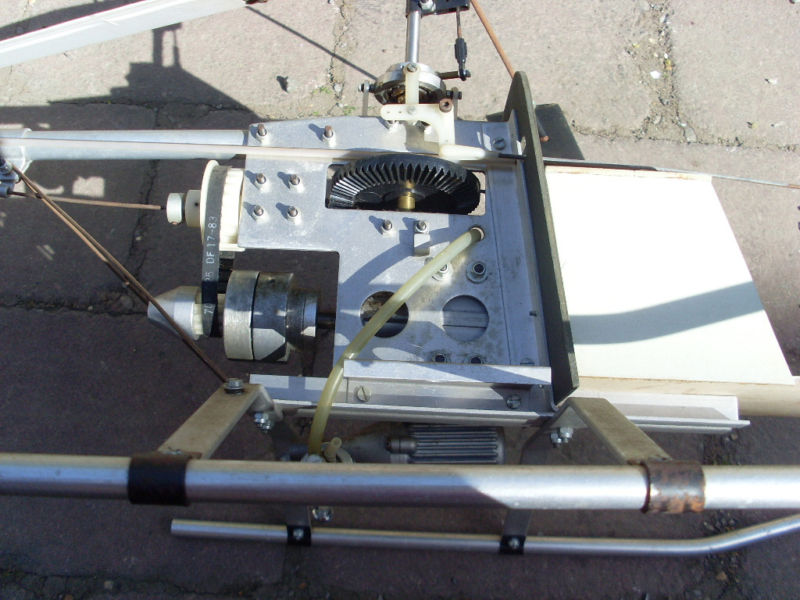

  • Mini-Star - 03

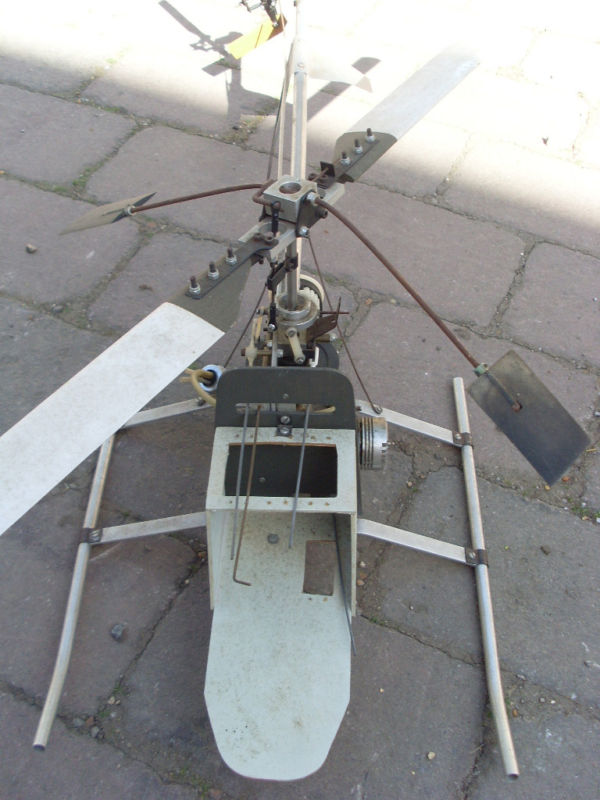

  • Mini-Star - 04

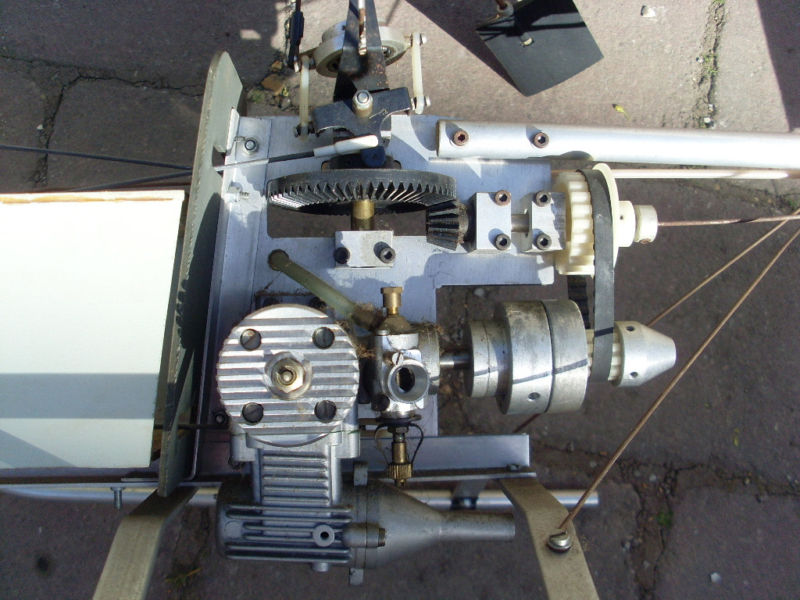

  • Mini-Star - 05

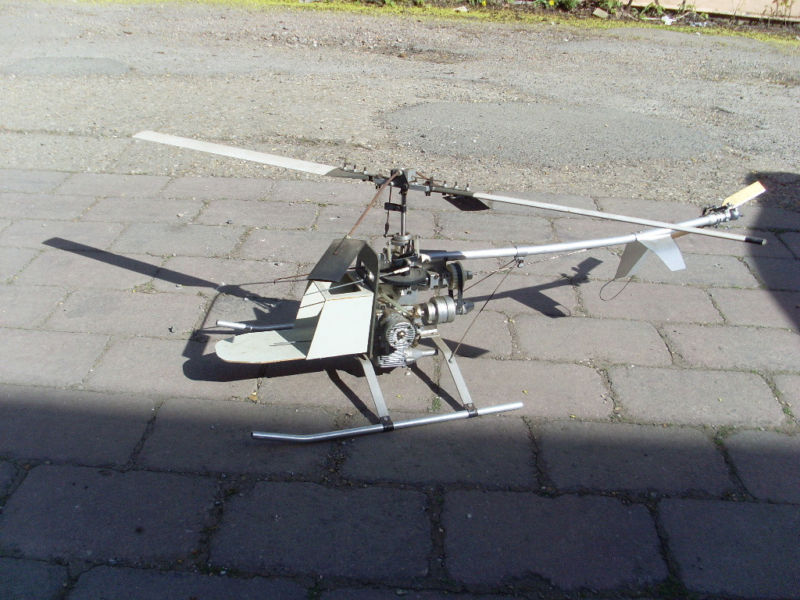

  • Mini-Star - 07

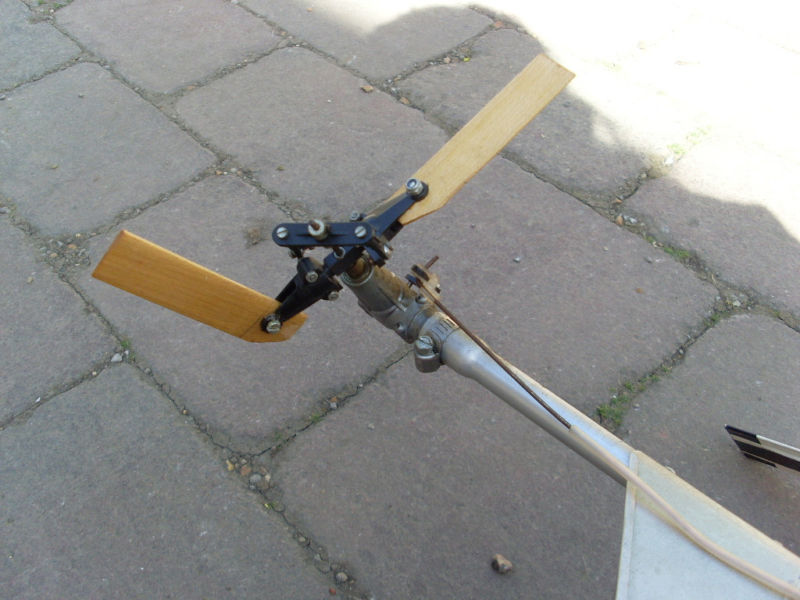

  • Mini-Star - 08

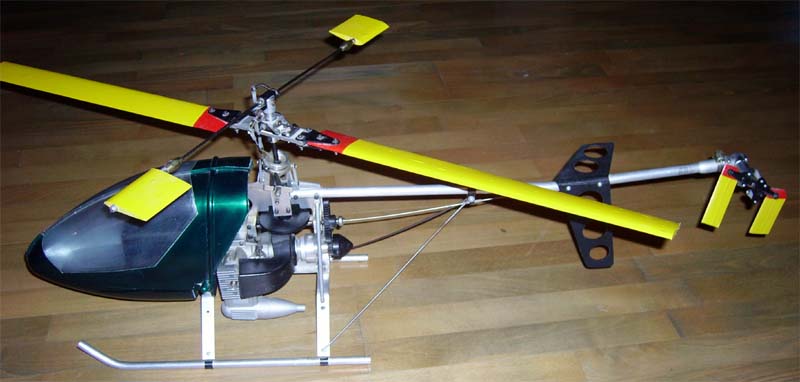

 In later years when spares were not easy to find, the booms were replaced with more readily available 'straight' alternatives.

Hirobo Mini-Star Hughes 300

1983 advert

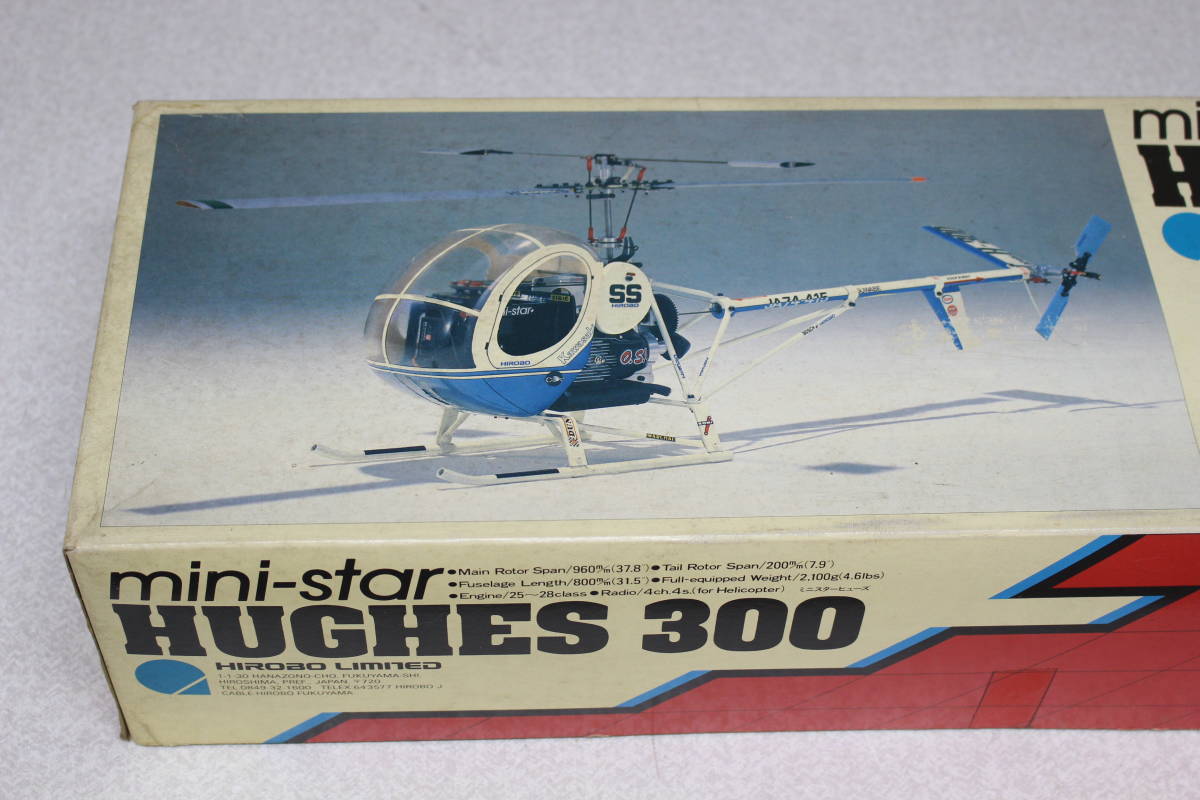

  • Hughes_300_005

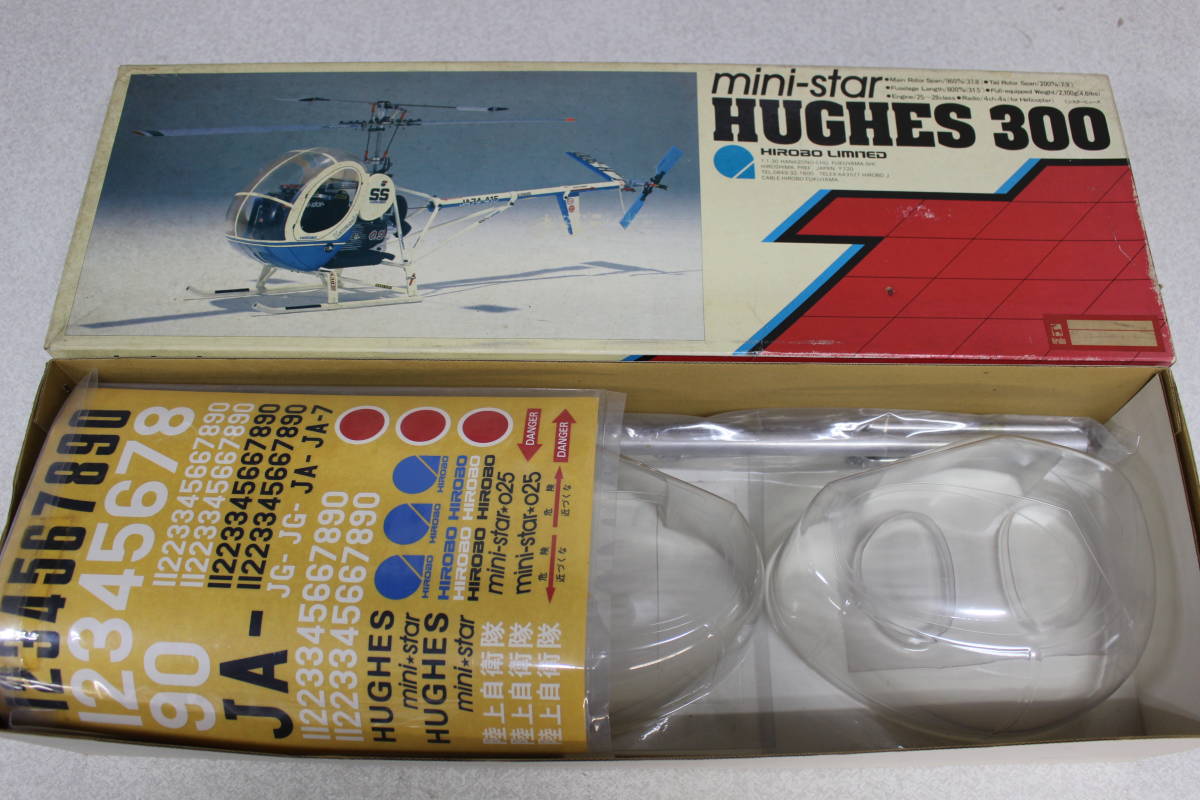

  • Hughes_300_010
  • Hughes_300_015

There was even a reasonable scale kit of the Hughes 300 based on mini-Star mechanics.

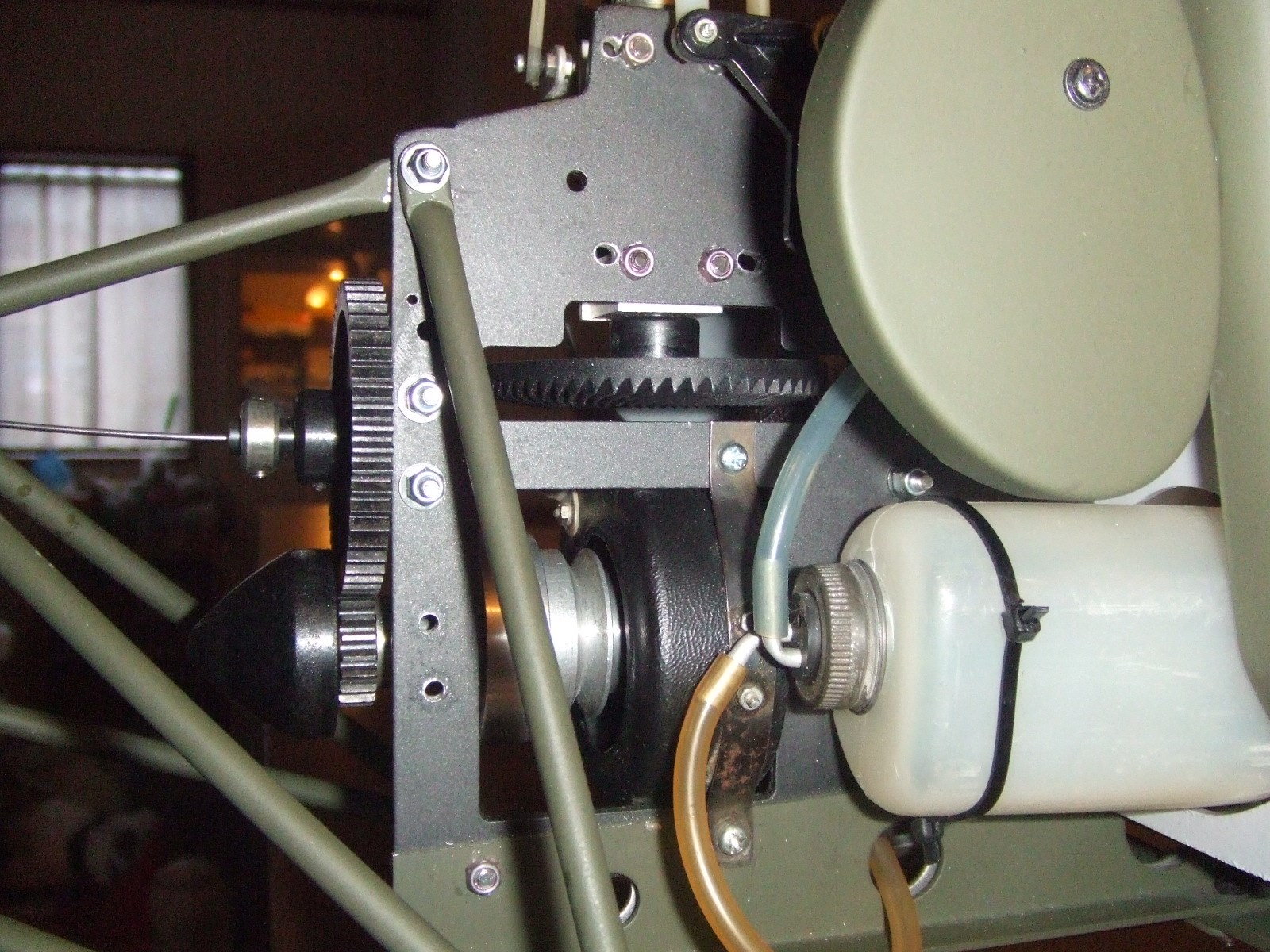

  • Ministar_Hughes_300_0016

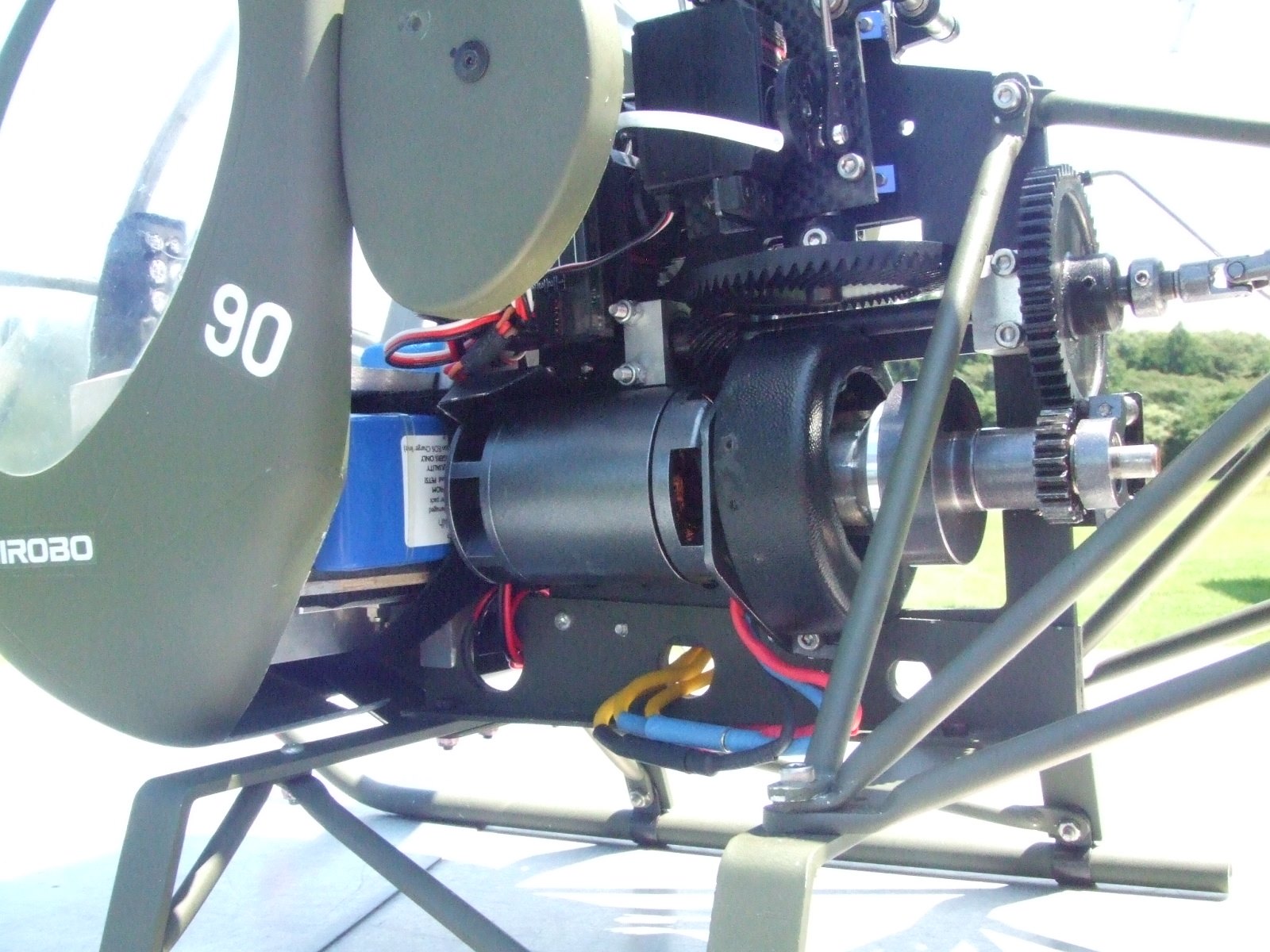

  • Ministar_Hughes_300_005

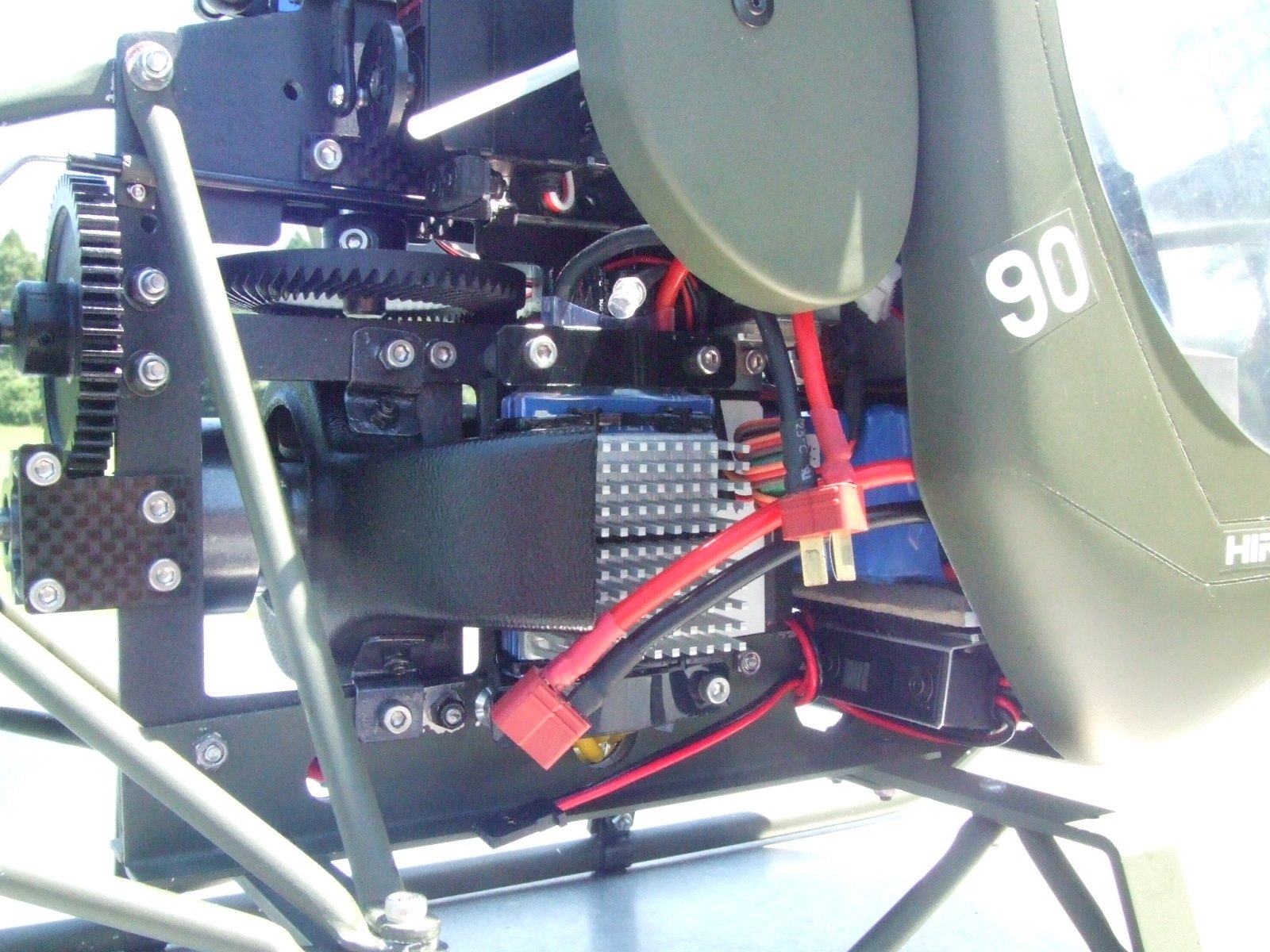

  • Ministar_Hughes_300_006

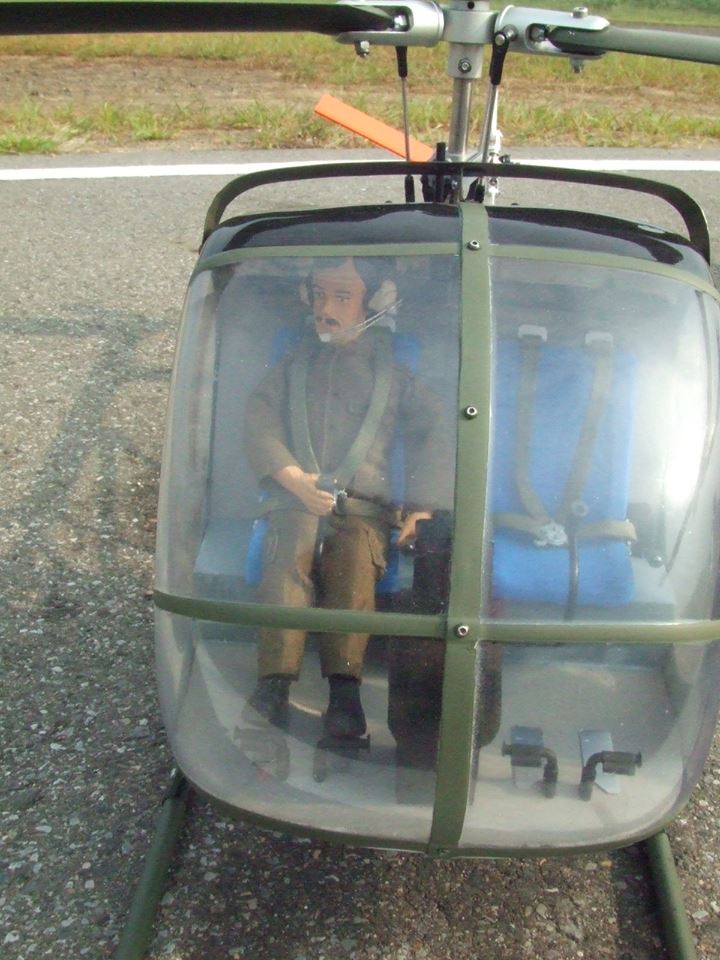

  • Ministar_Hughes_300_007

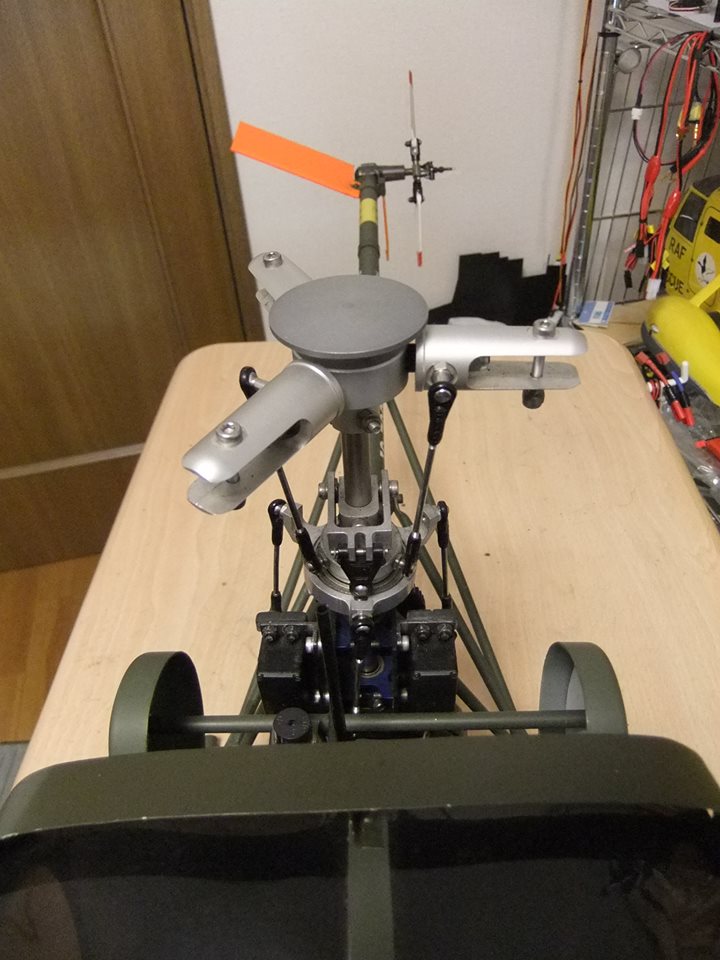

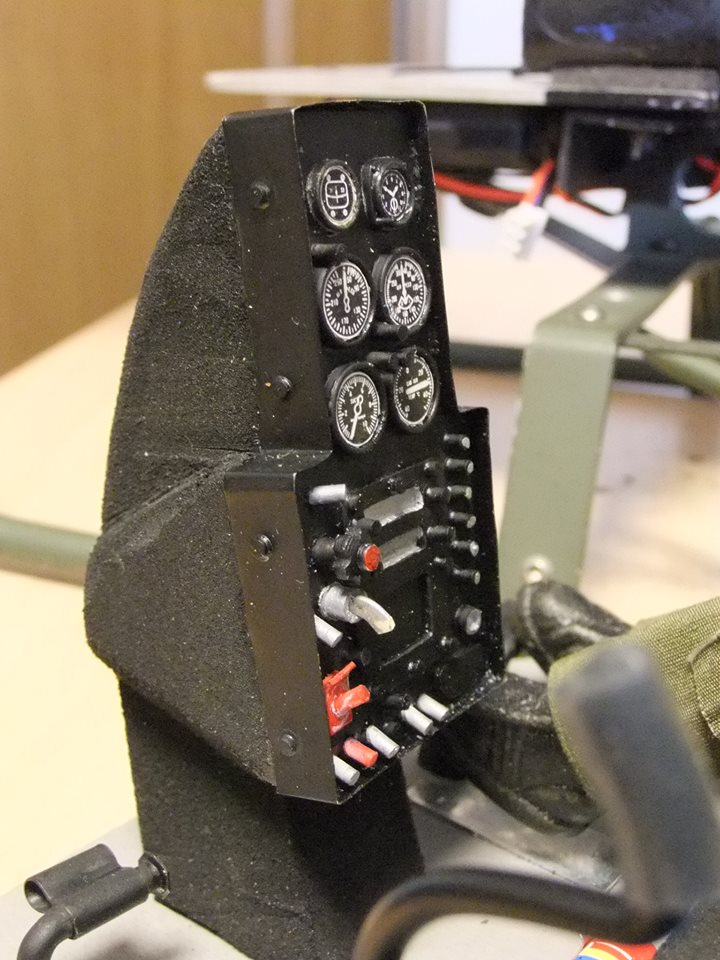

  • Ministar_Hughes_300_008
  • Ministar_Hughes_300_009

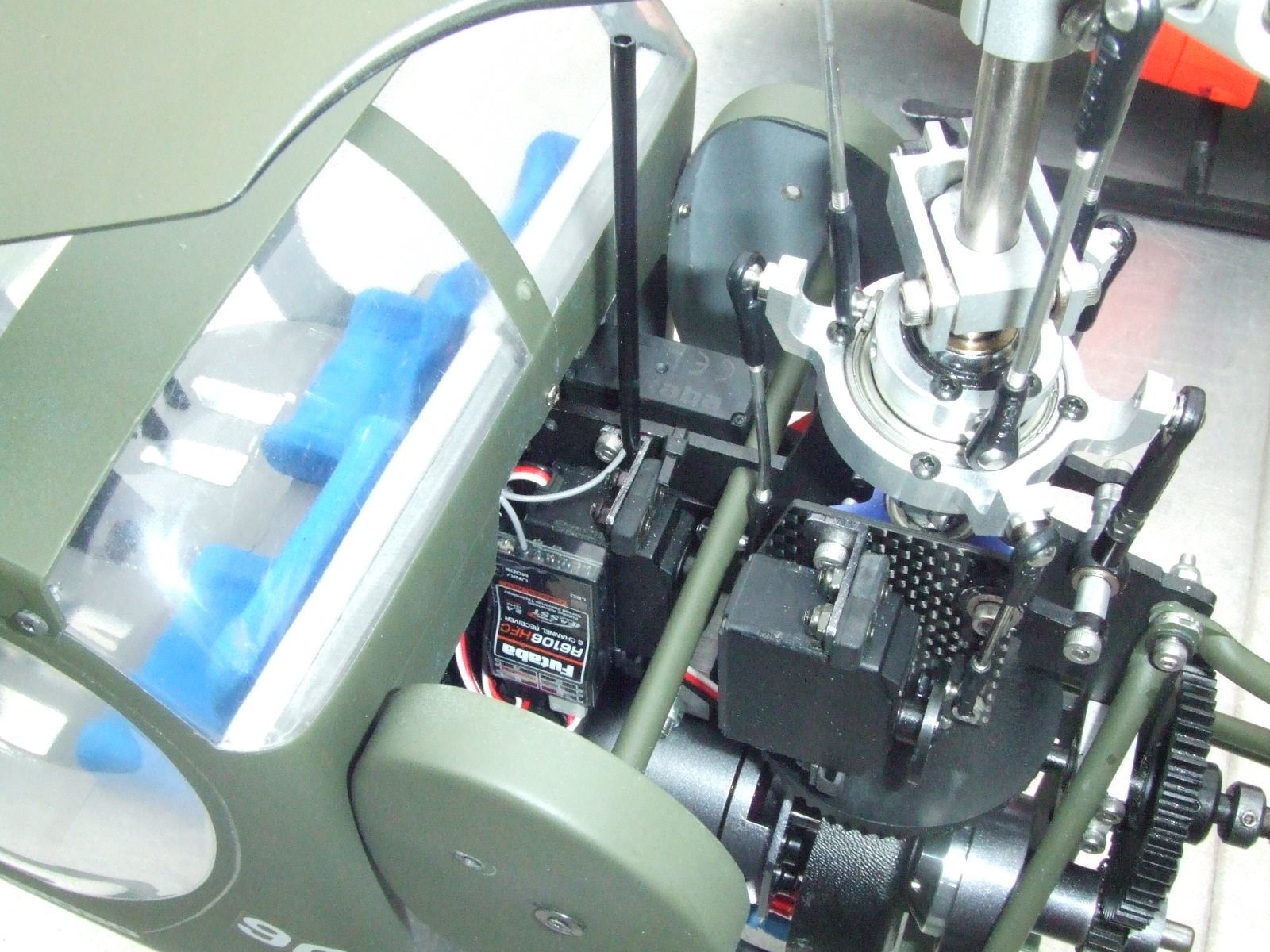

  • Ministar_Hughes_300_010

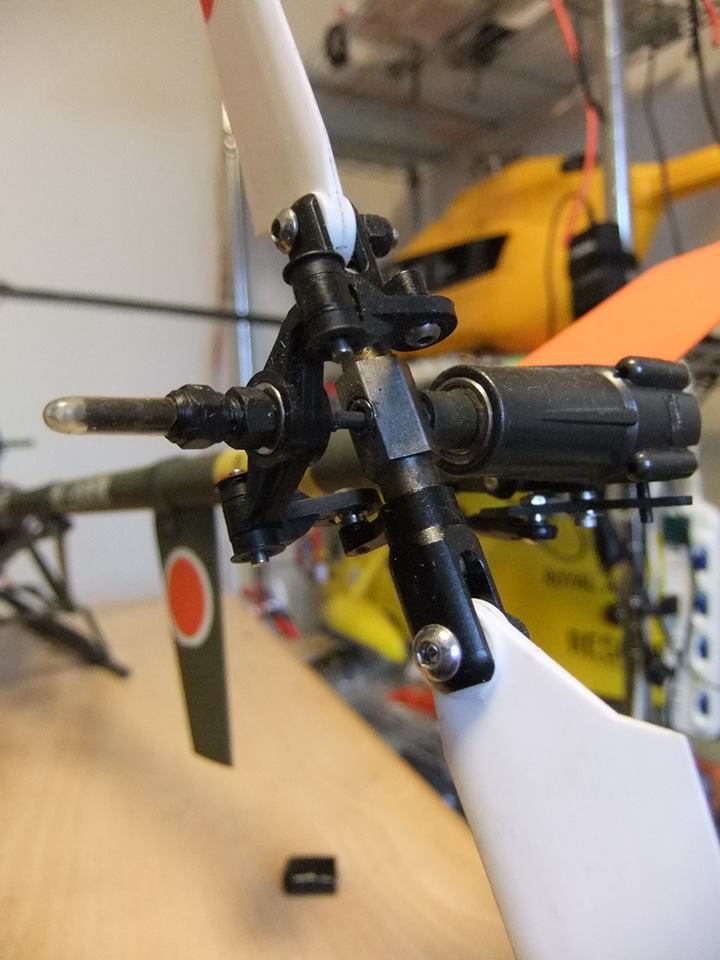

  • Ministar_Hughes_300_011

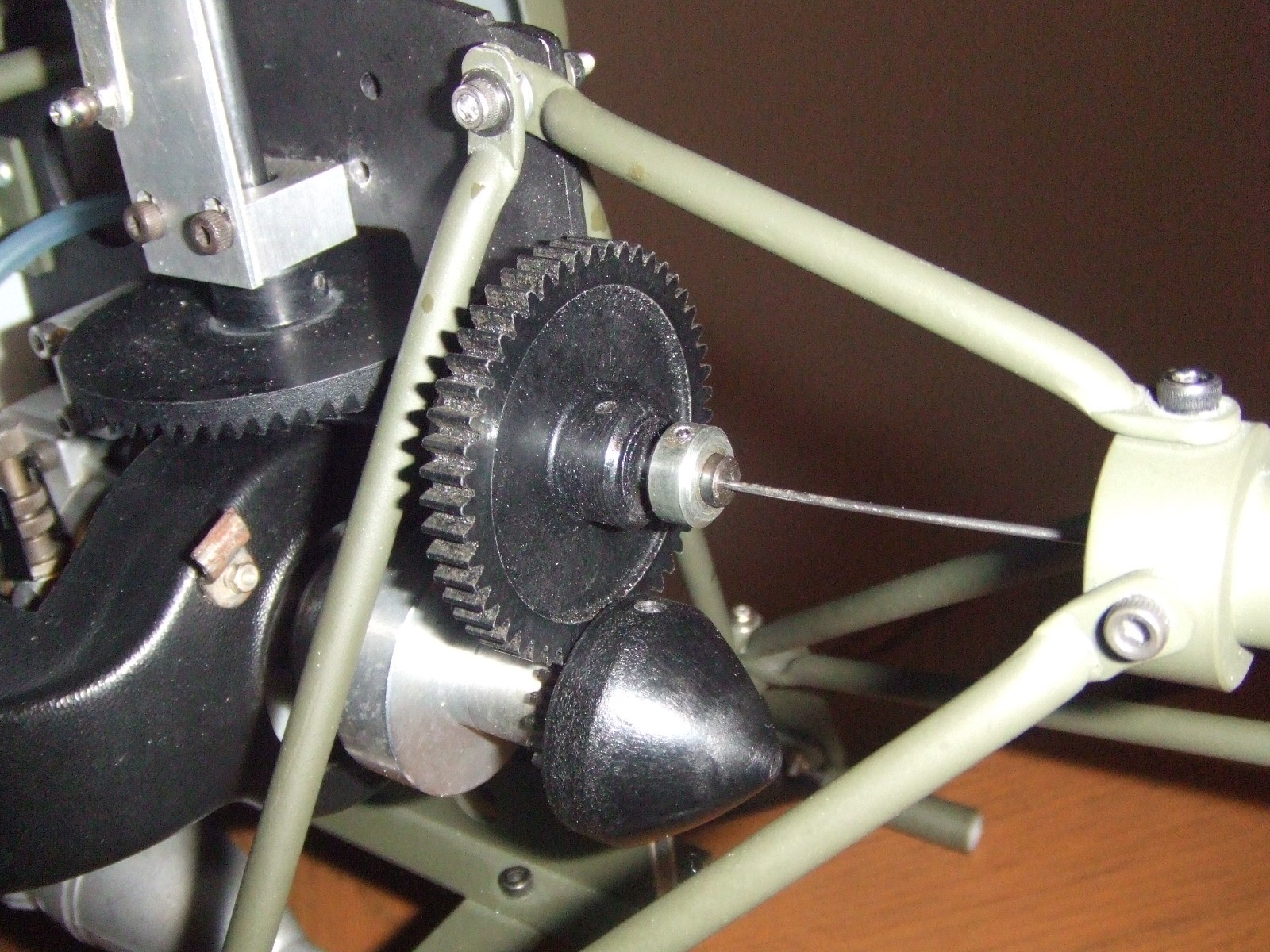

  • Ministar_Hughes_300_012

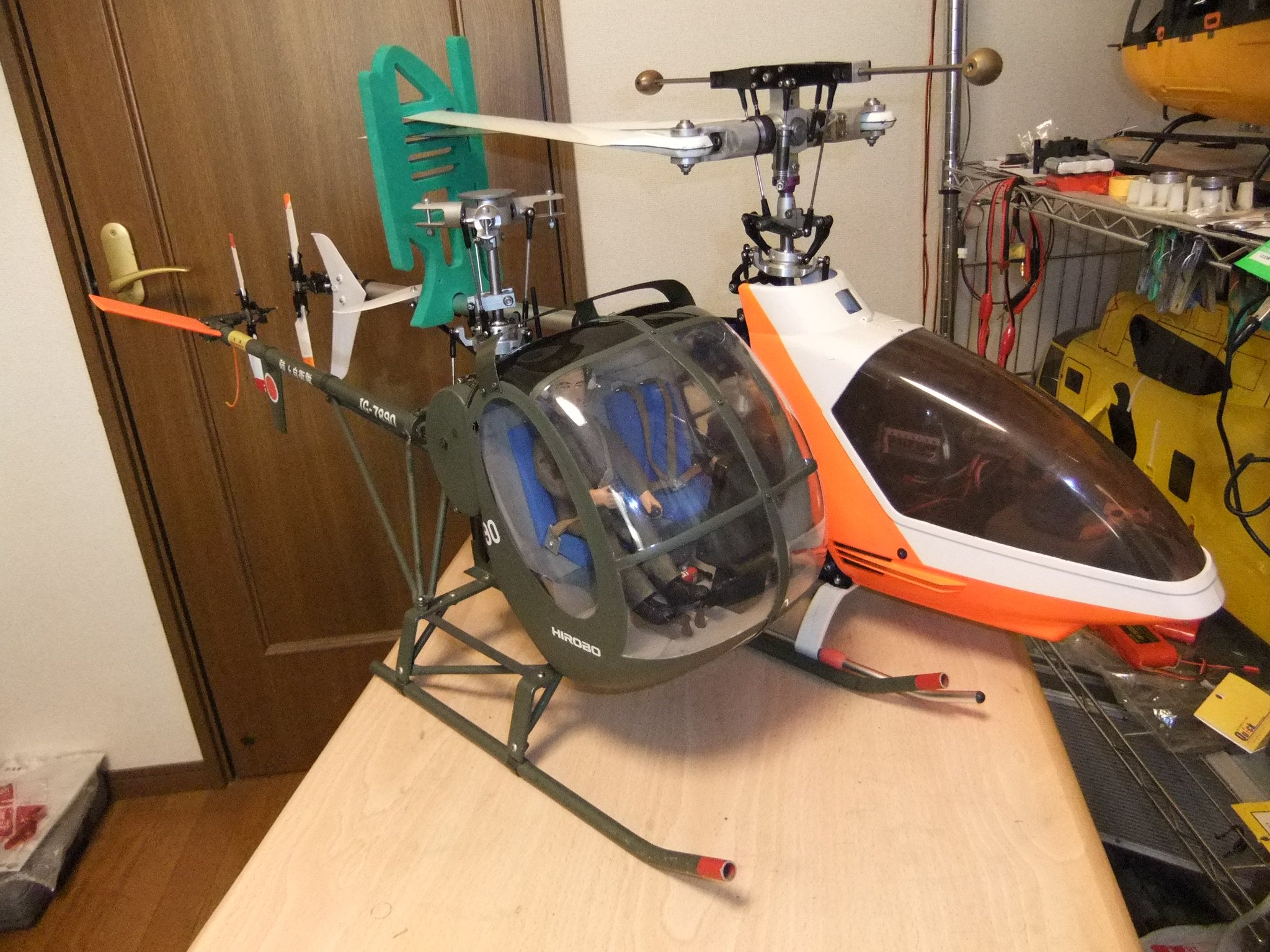

  • Ministar_Hughes_300_013

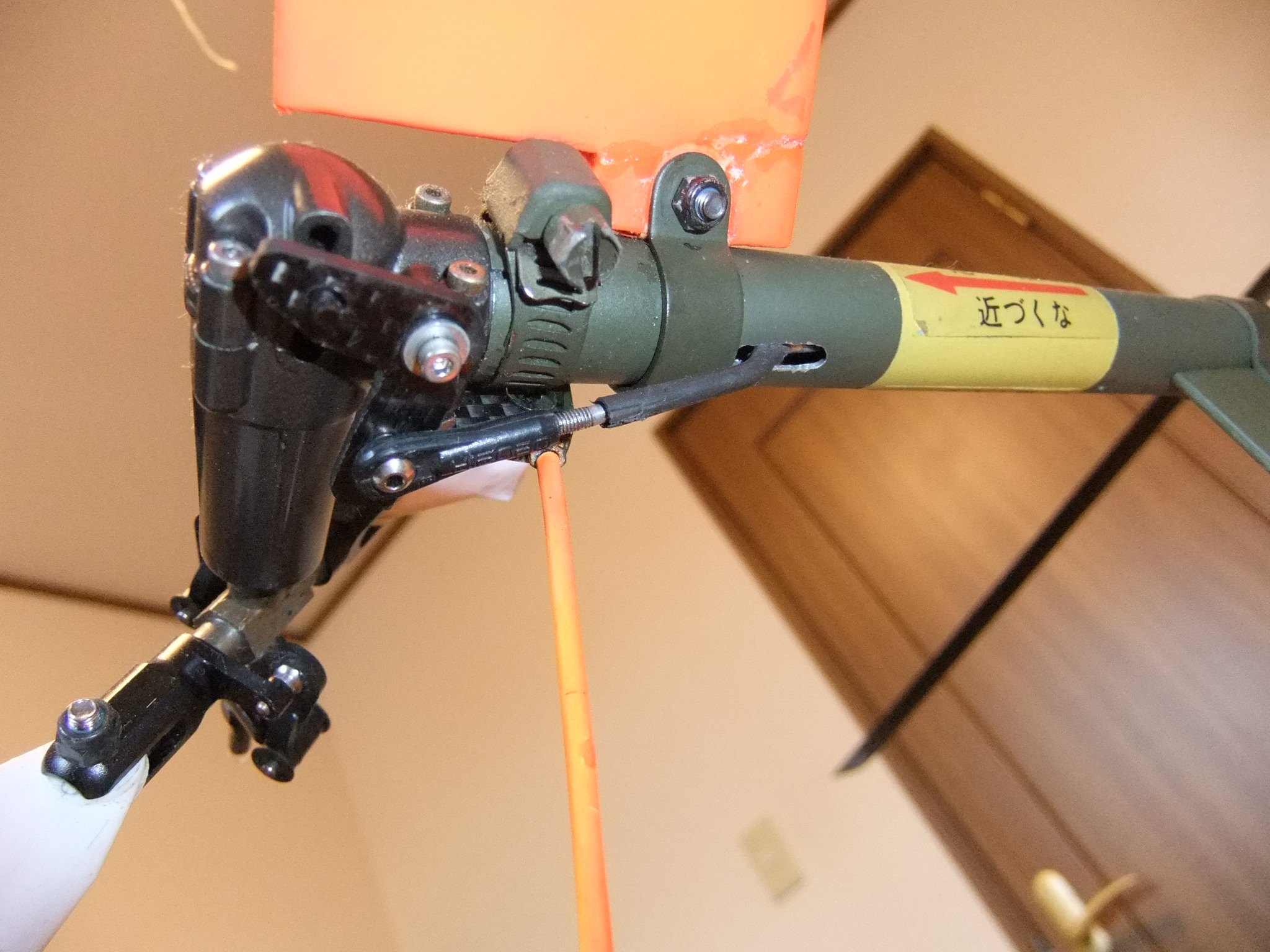

  • Ministar_Hughes_300_014

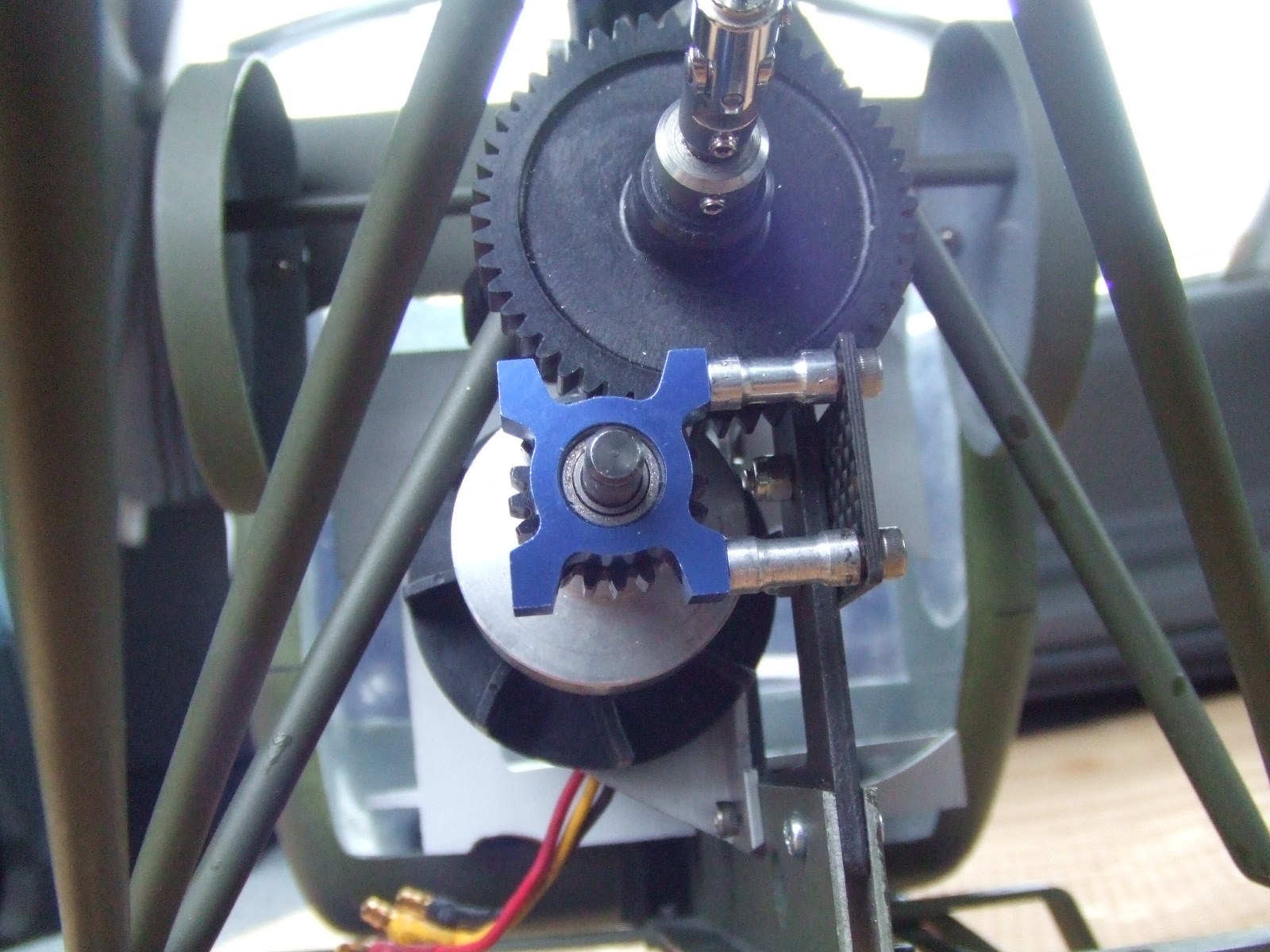

  • Ministar_Hughes_300_015

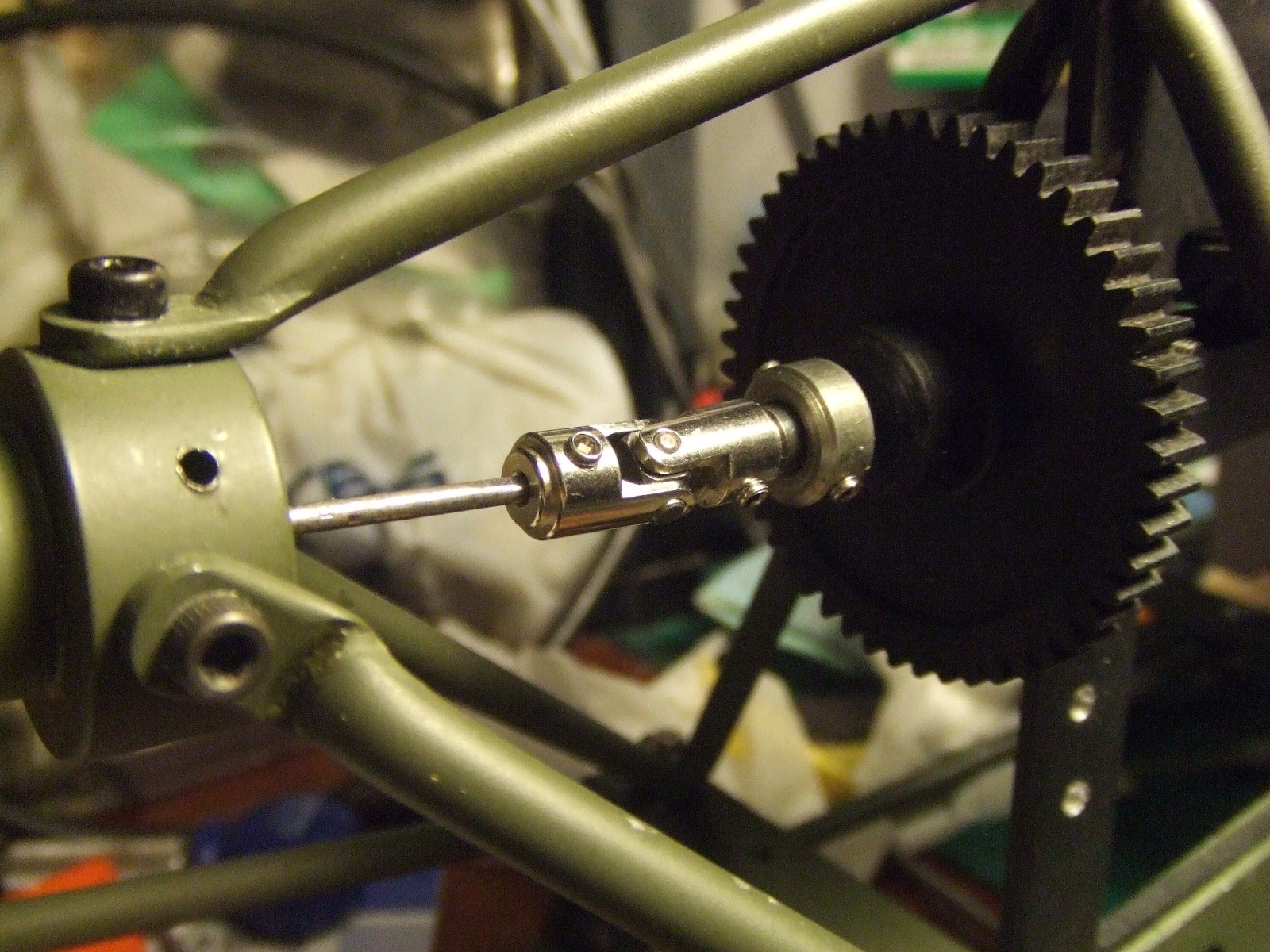

  • Ministar_Hughes_300_017

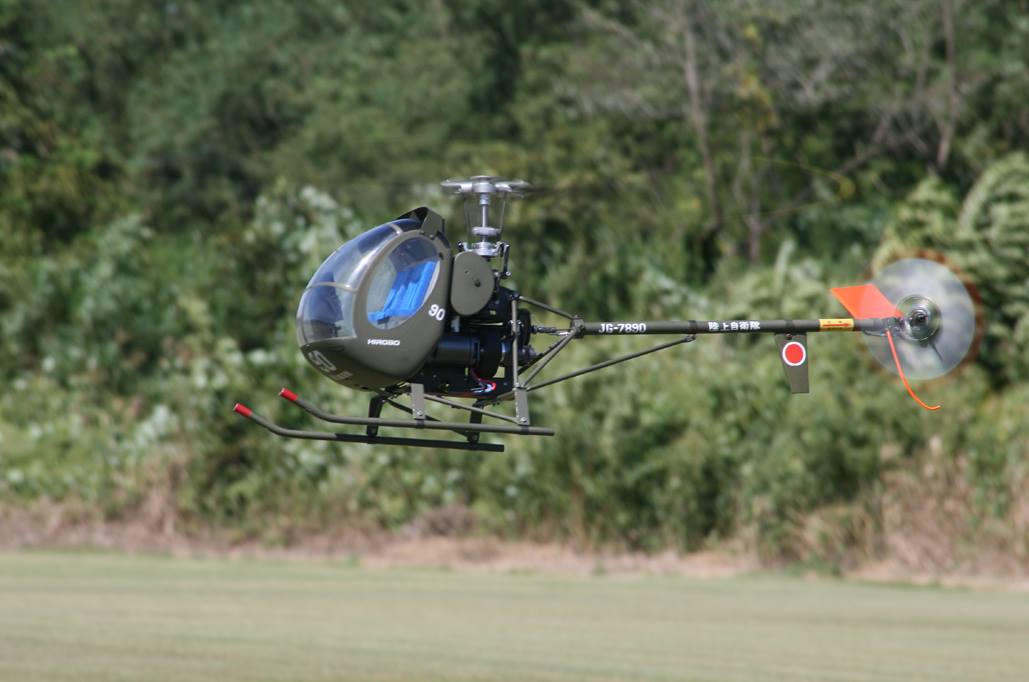

  • Ministar_Hughes_300_018

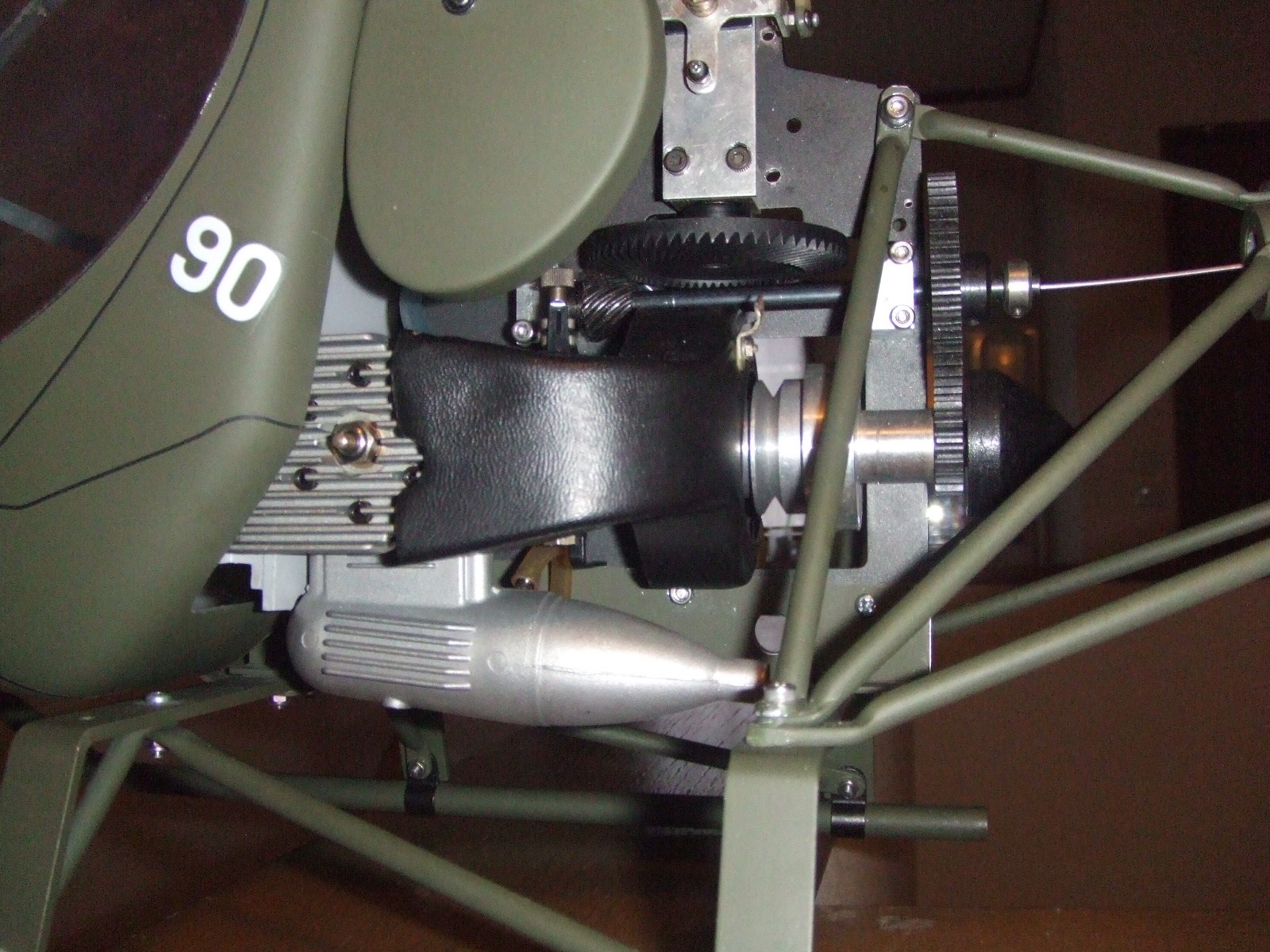

  • Ministar_Hughes_300_019

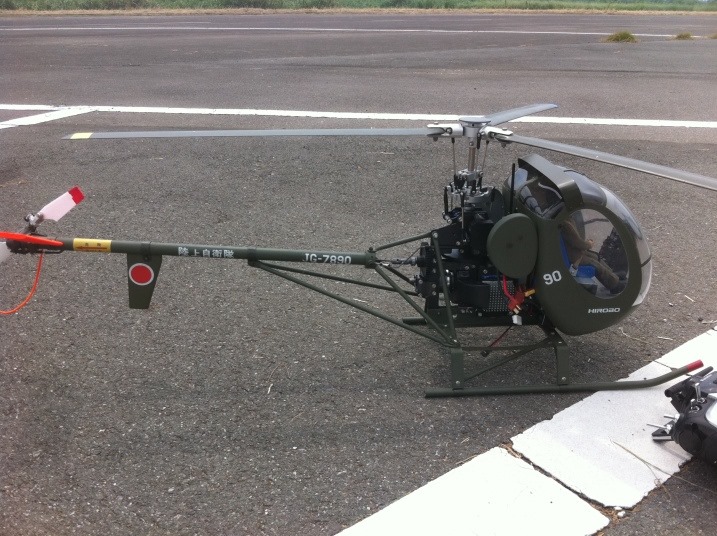

  • Ministar_Hughes_300_020

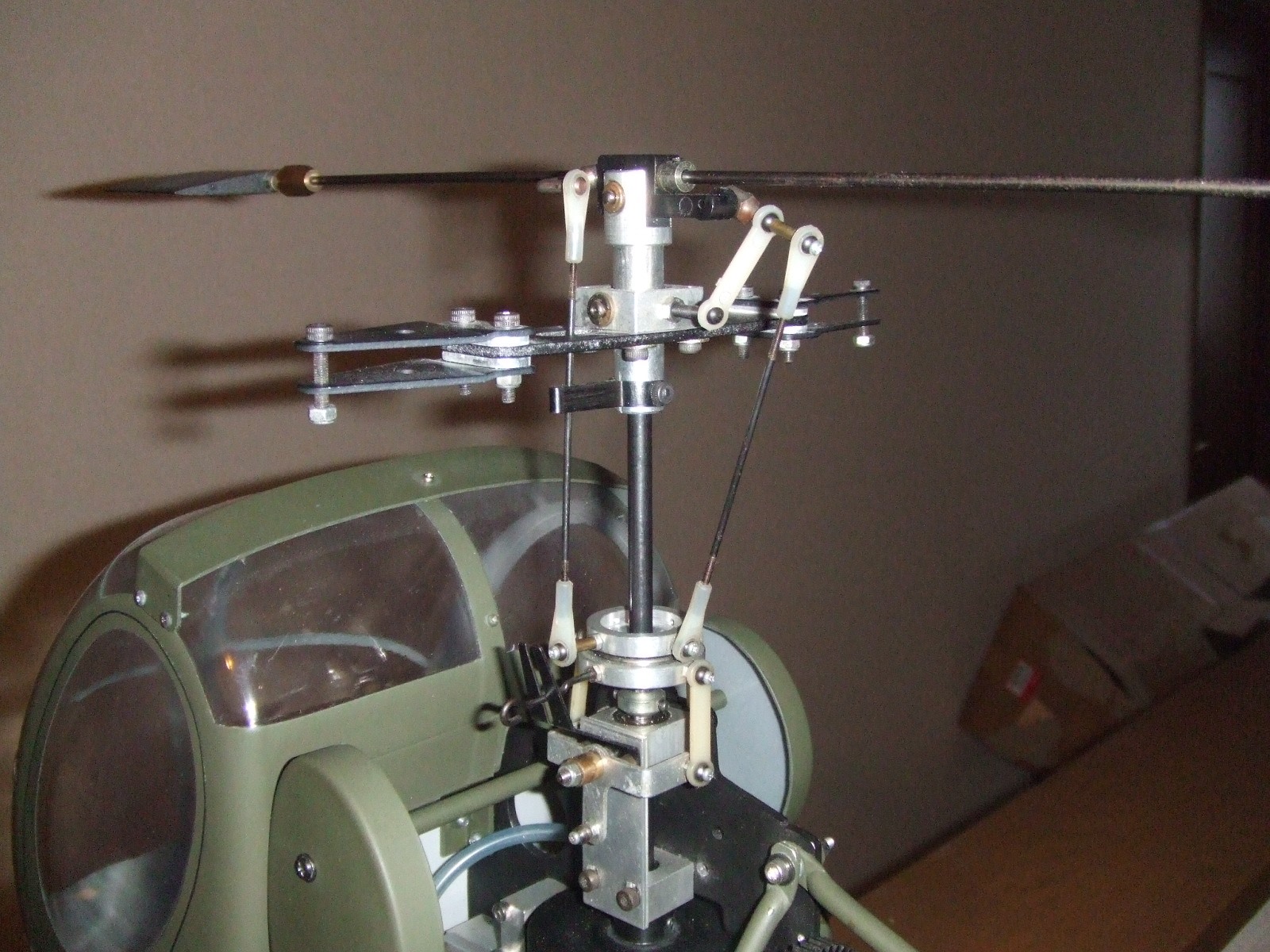

  • Ministar_Hughes_300_021

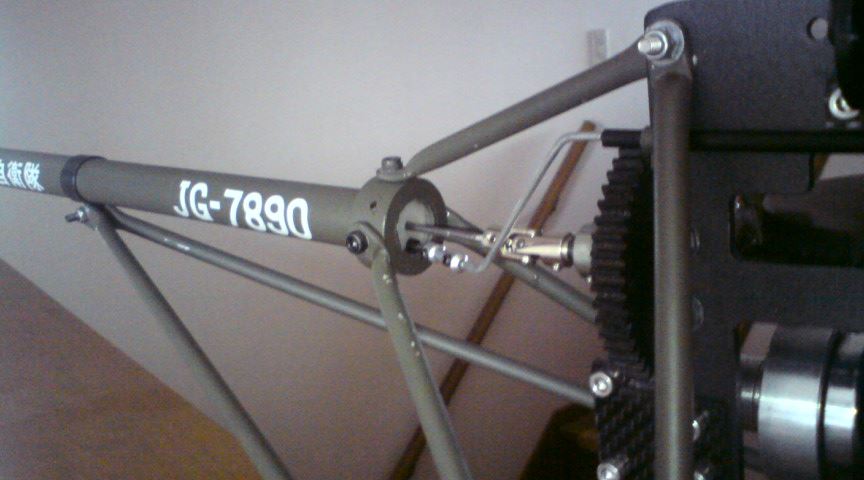

  • Ministar_Hughes_300_022

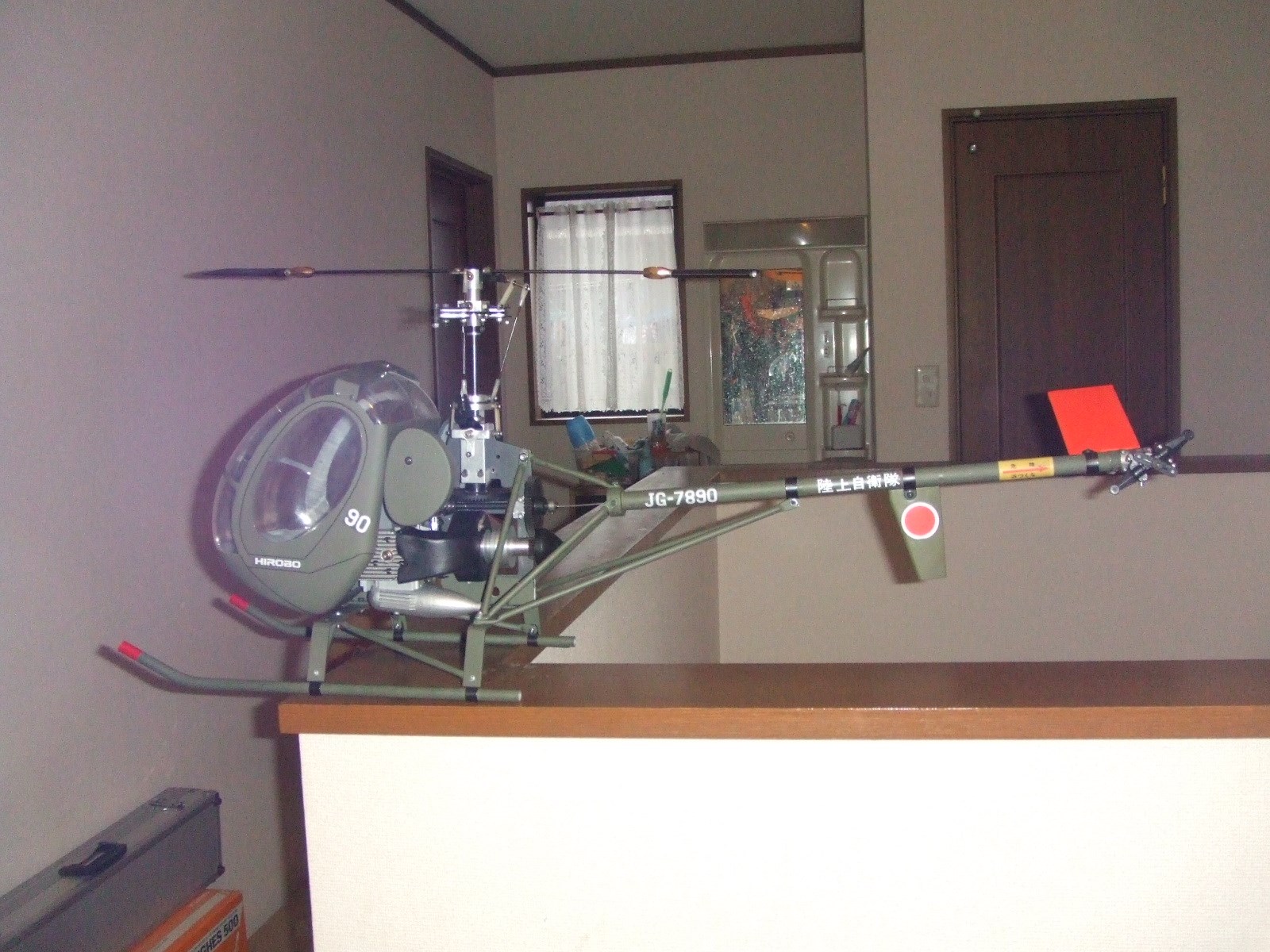

  • Ministar_Hughes_300_023
  • Ministar_Hughes_300_024


Hirobo Mini-Star Hughes 500 / JetRanger

The mini-star proved to be very popular though not so much in the UK as the MM Lark and Heli-Baby were much cheaper with better spares support however, it was followed by a couple of scale 'hang on' bodies.
