GMP - Cobra(1984)

		Specification:  Length   1120 mm / 44 "  Height   460 mm / 18 "  Main Rotor Dia   1270 mm / 50 "  Tail Rotor Diameter.   -  Total Weight   3500 g / 7 - 8 Lbs  Gear Ratio   -  Engine   .60 cu in  (10 cc)
Documents:
Cobra Manual

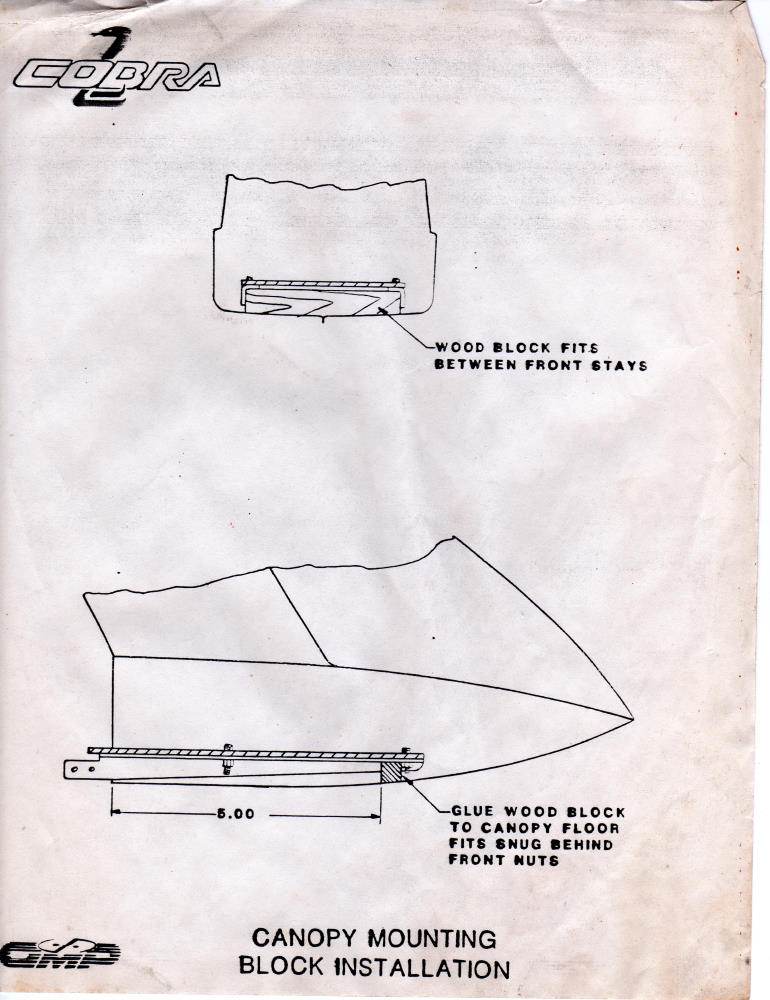

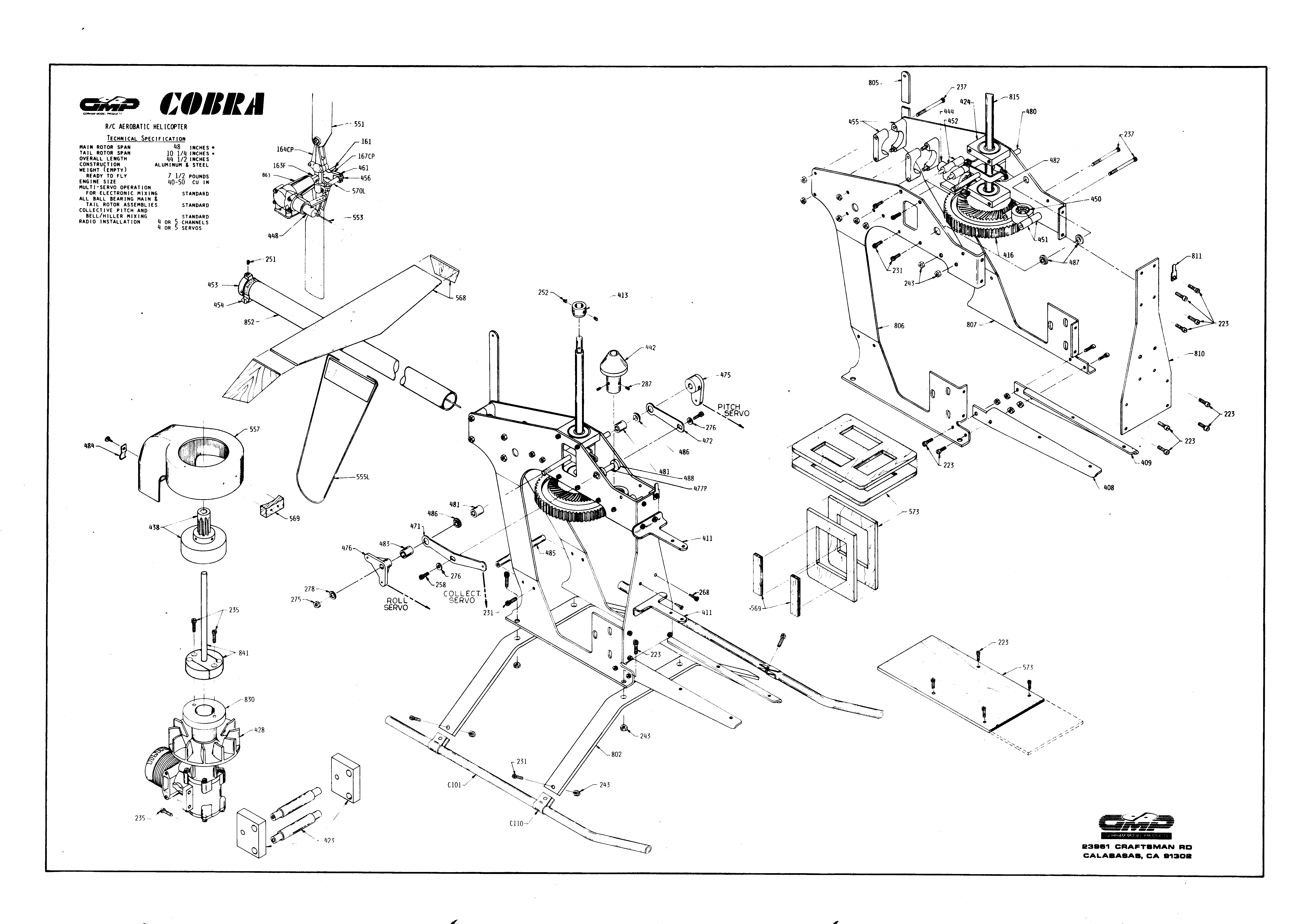

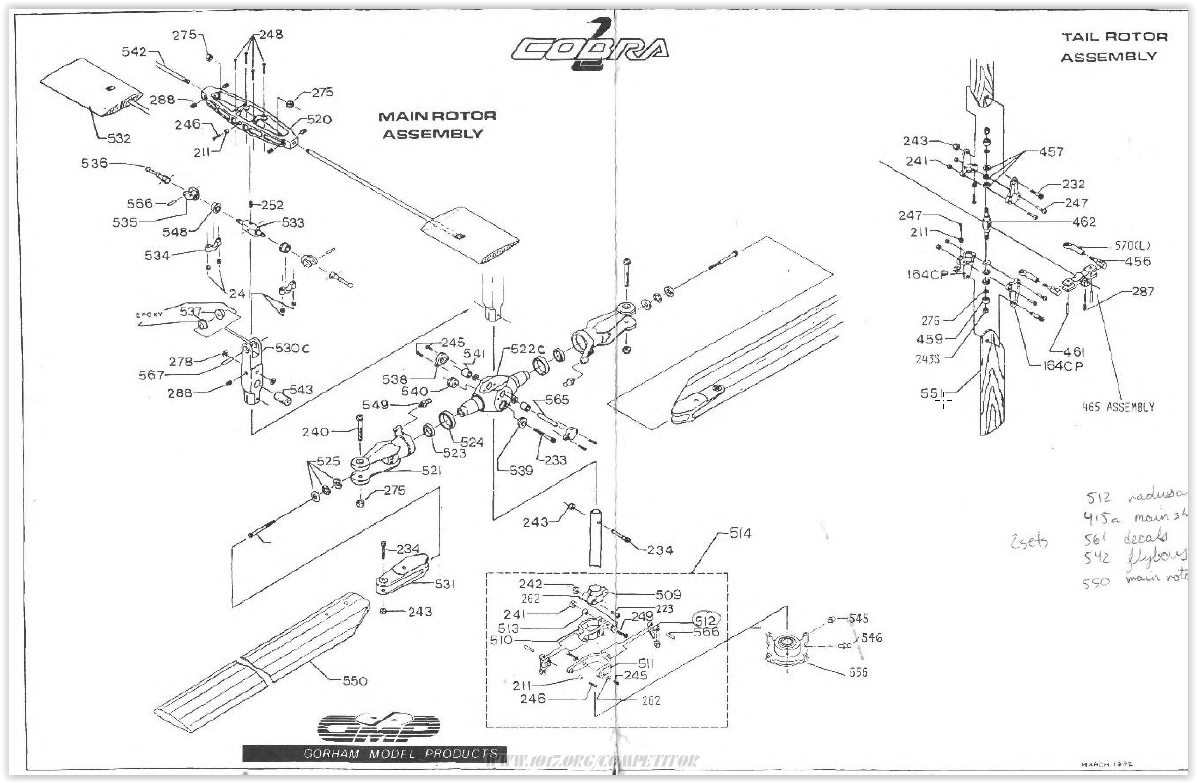

Drawings:

   Corvet (prototype) 1984 Toledo show.

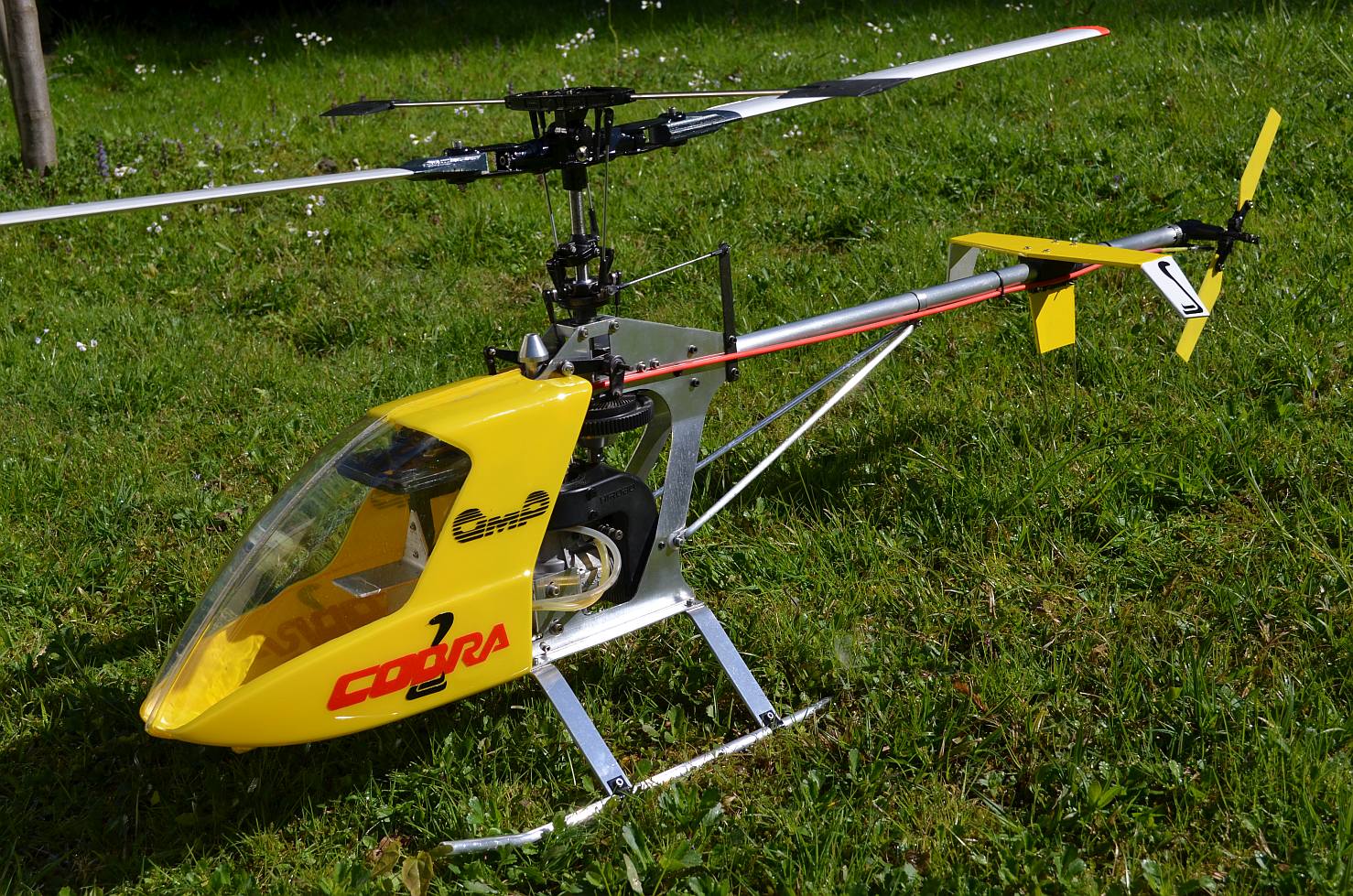

Pod and boom aerobatic helicopter for 40 to 50 size engines based on the Hirobo 555; originally the prototype was given the name Corvet but changed to Cobra for its official release in 1984.

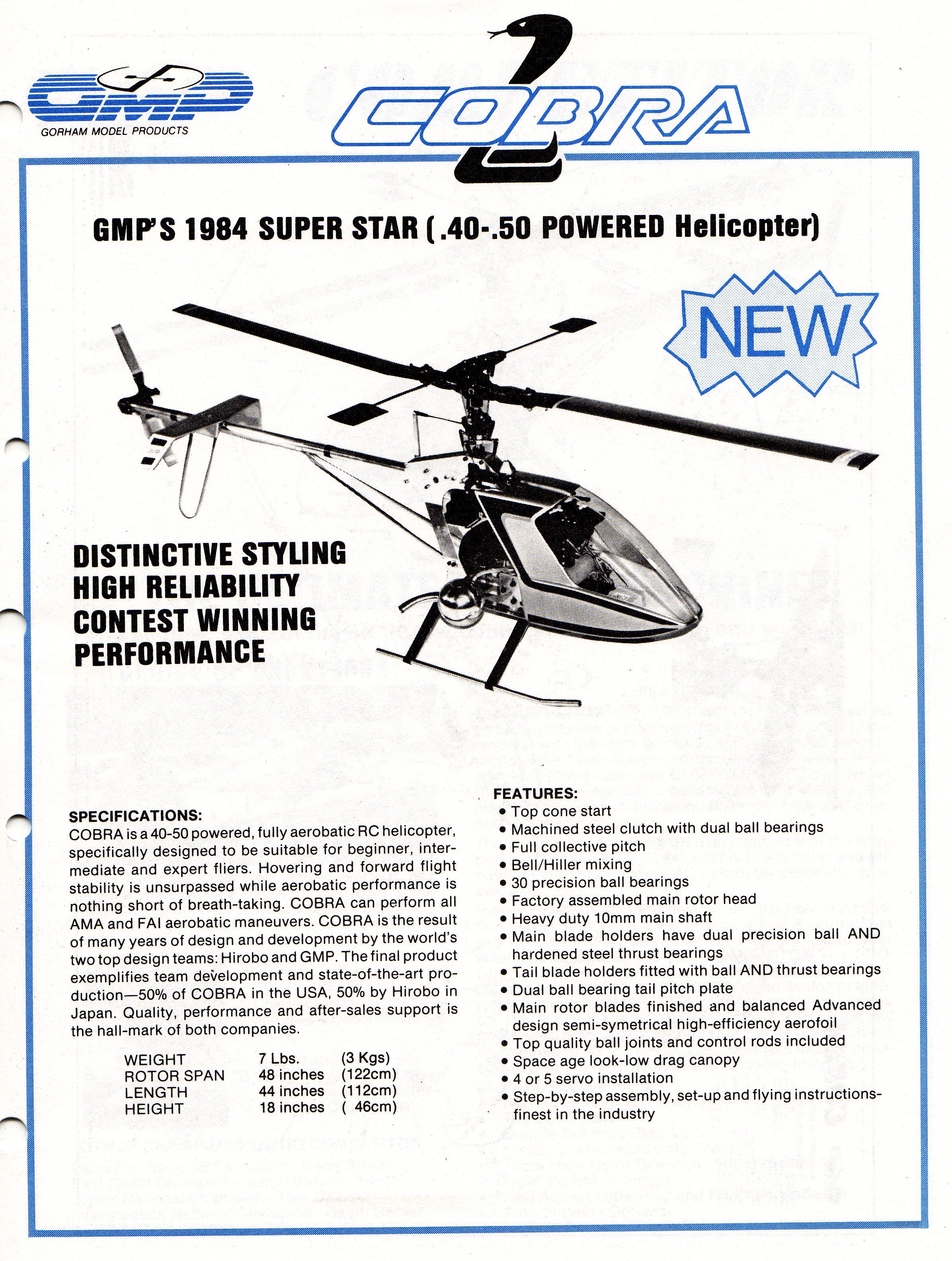

Specifications

advert 1985

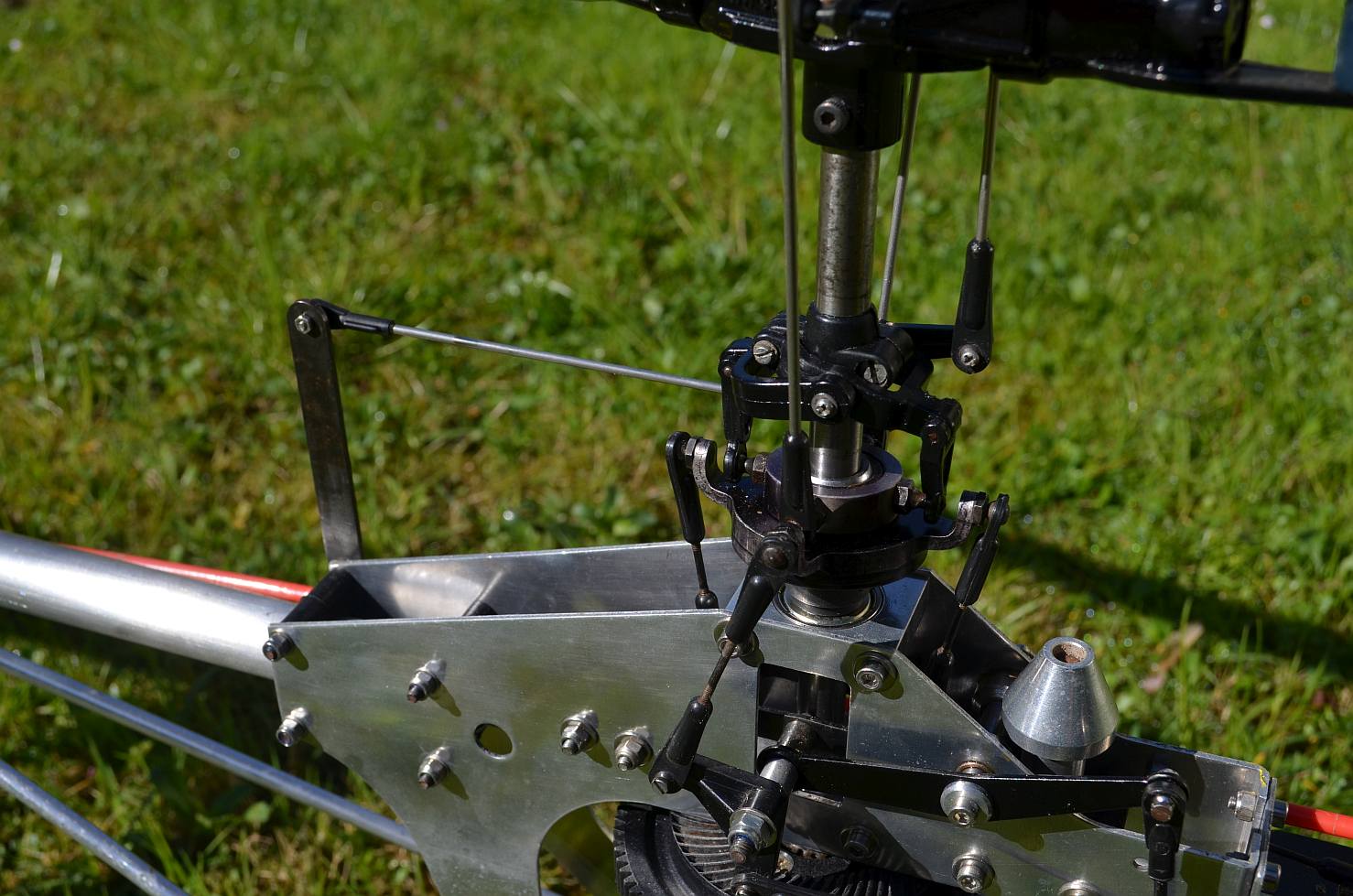

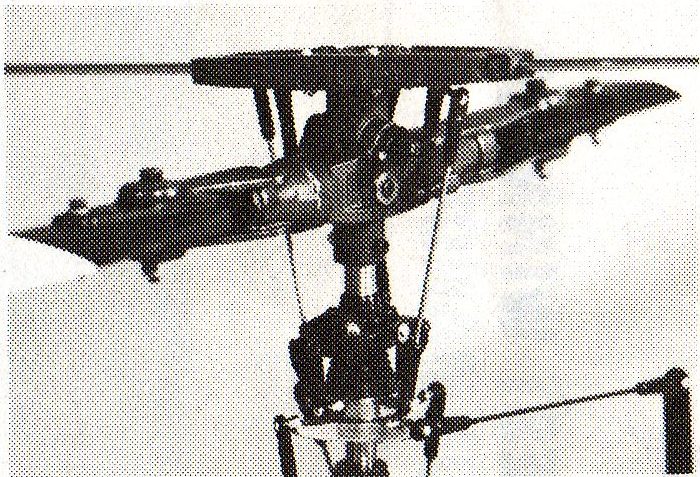

Cobra rotor head

Cobra review  -  1984 review by Nigel Ashwood from Radio Controlled helicopters.

Cobra review  -  1985 review by Stuart Kay from Field and Bench

Cobra review  -  RCM build review

Cobra review  -  1988 detailed build and flying review by Jim Davey courtesy Model Helicopter World

GMP King Cobra

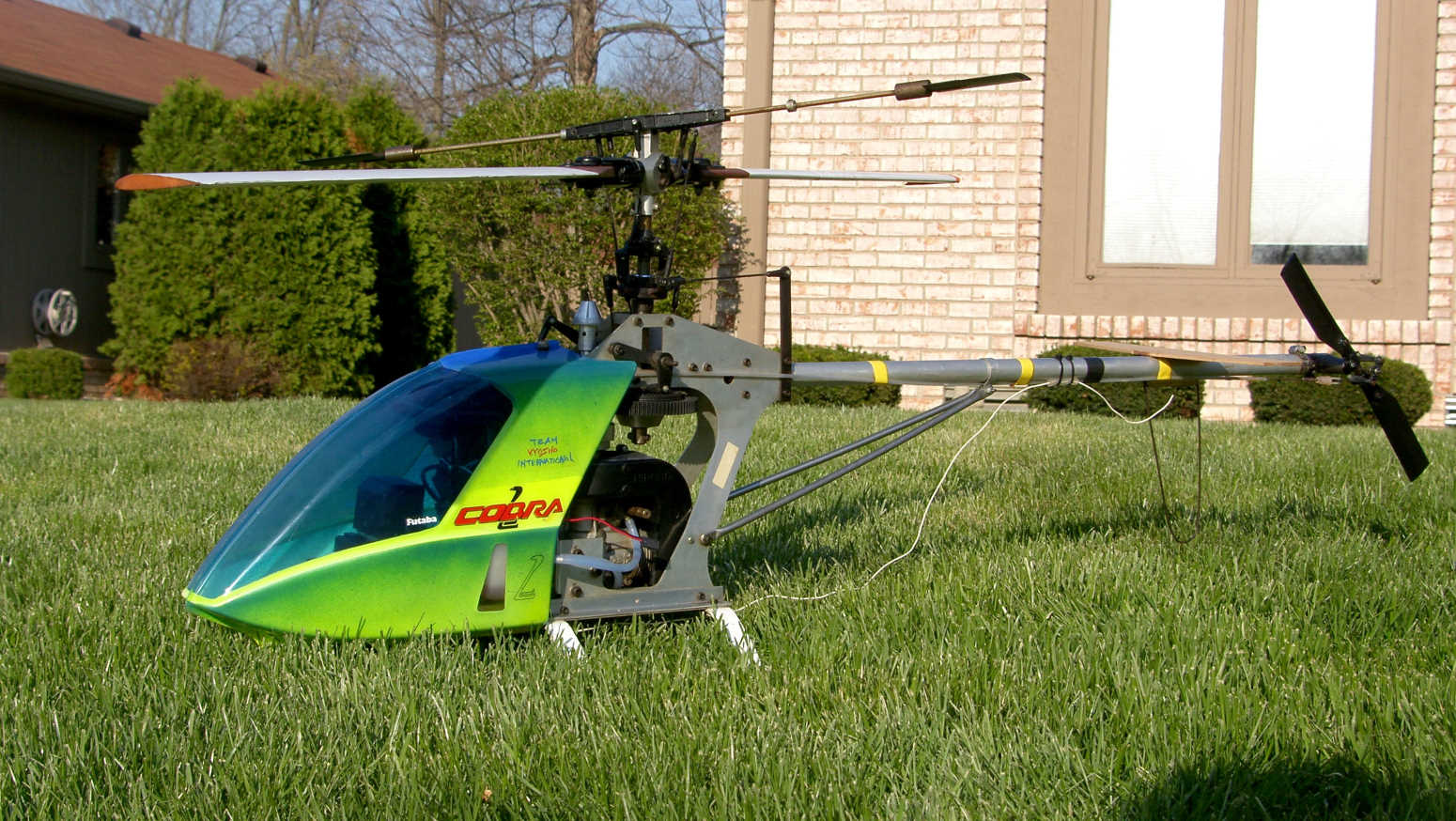

Development of the standard Cobra with the upgraded Pro-head (with no coning angle) and initial kits had natural aluminium side frames however, later model had black parts.  Most pivot points were upgraded with bearings instead of the plain bushes of the standard Cobra and the engine mount was made to suit a sixty size engine.  Tail boom and fins were the same as the competitor.

GMP Cobra-Legend

Conversion kits
