ROBBE Futura Trainer / Gold

 Specification:

 Main Rotor Dia  1490 mm
 Tail Rotor Dia  288 mm
 Full Length  1540 mm
 Total Height  450 mm
 Engine  10 ccm
 Gear Ratio  1:8,89 to 1:10
  Trainer 1,8 m
 Main Rotor Dia  1800 mm
 Full Length  1670 mm


Documents:

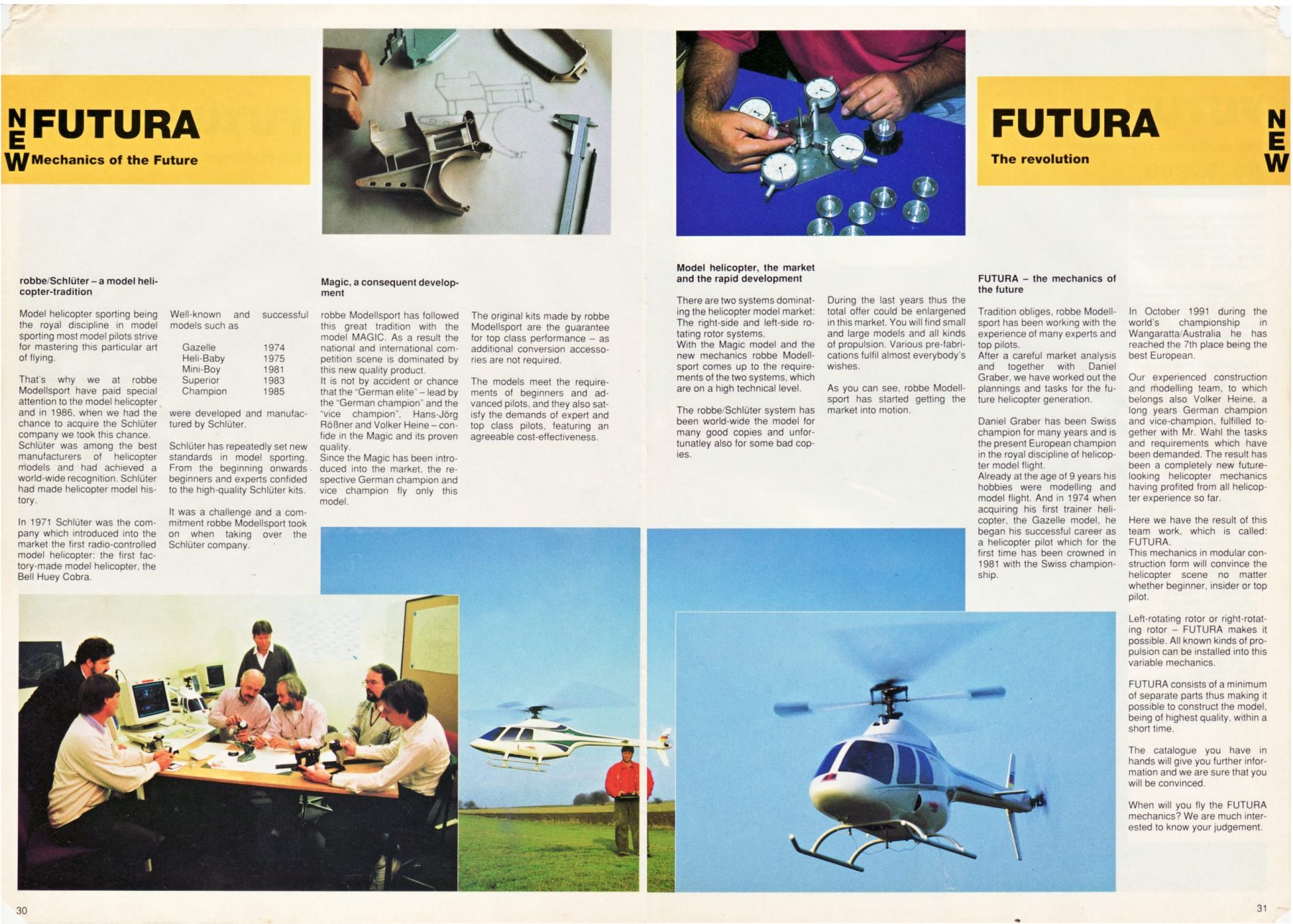

 The  contest mechanic was designed to be mounted in fuselages such  as F3C fuselages.
 It was designed with the european champion Daniele Graber, to be used for F3C witout restrictions.

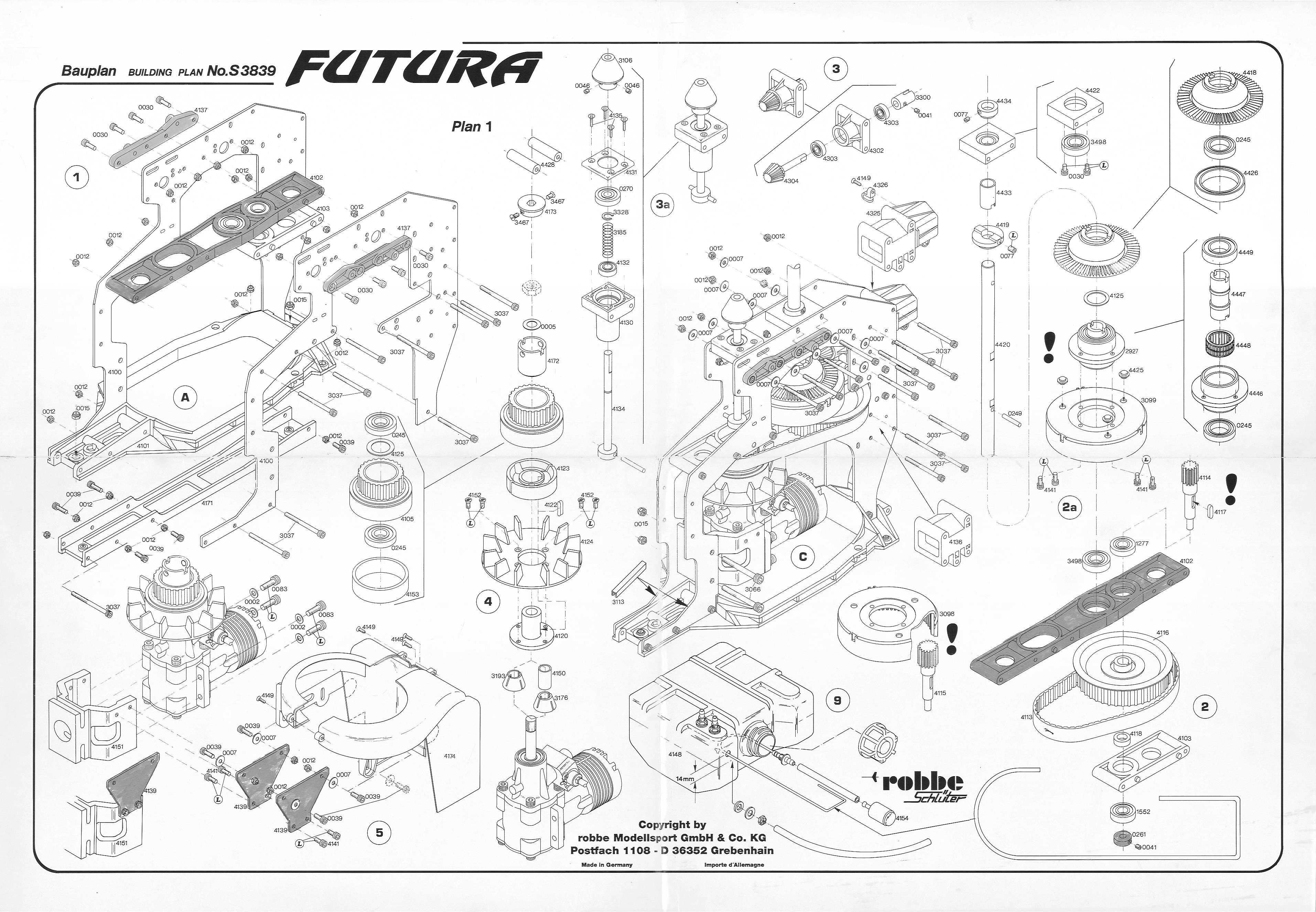

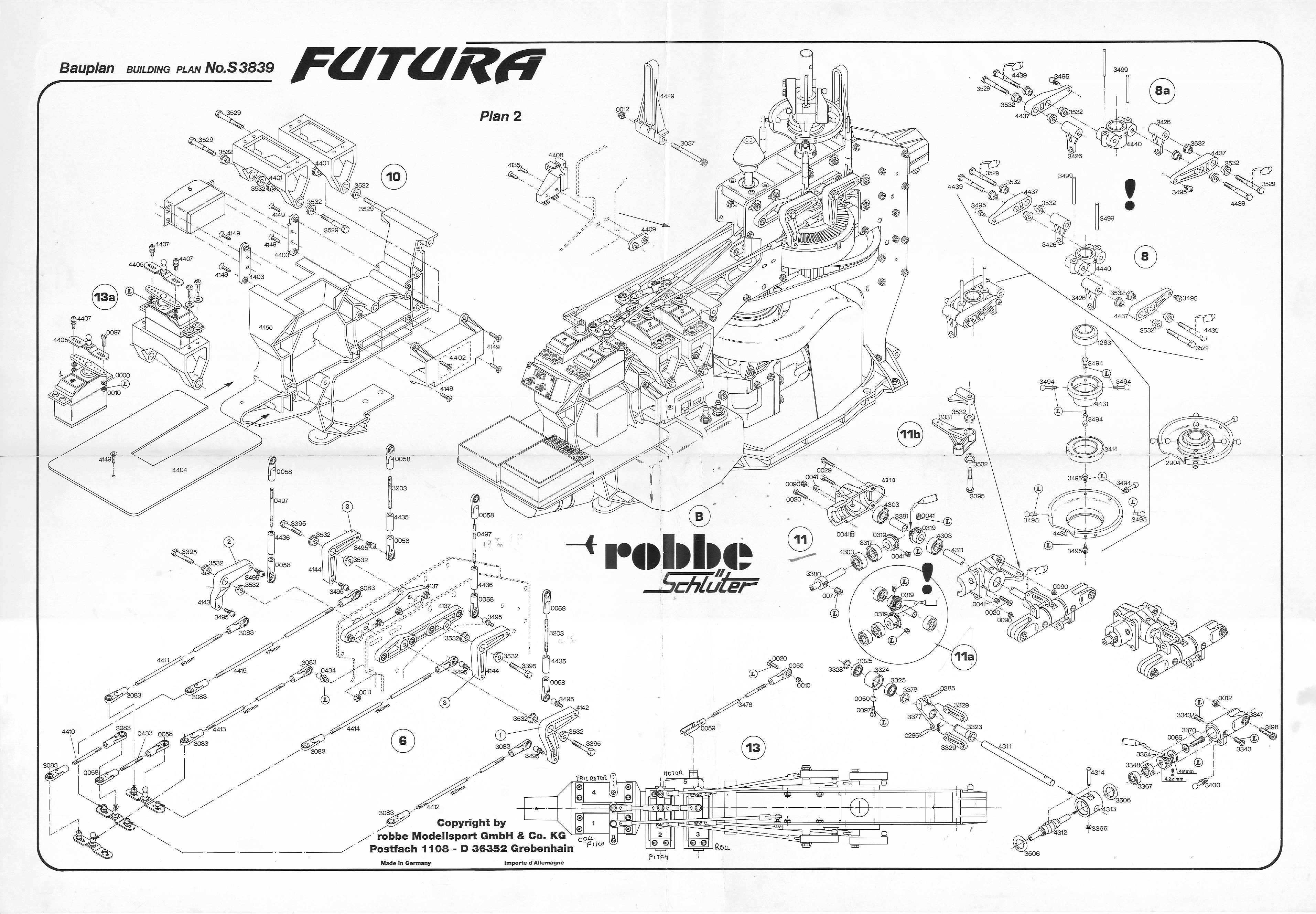

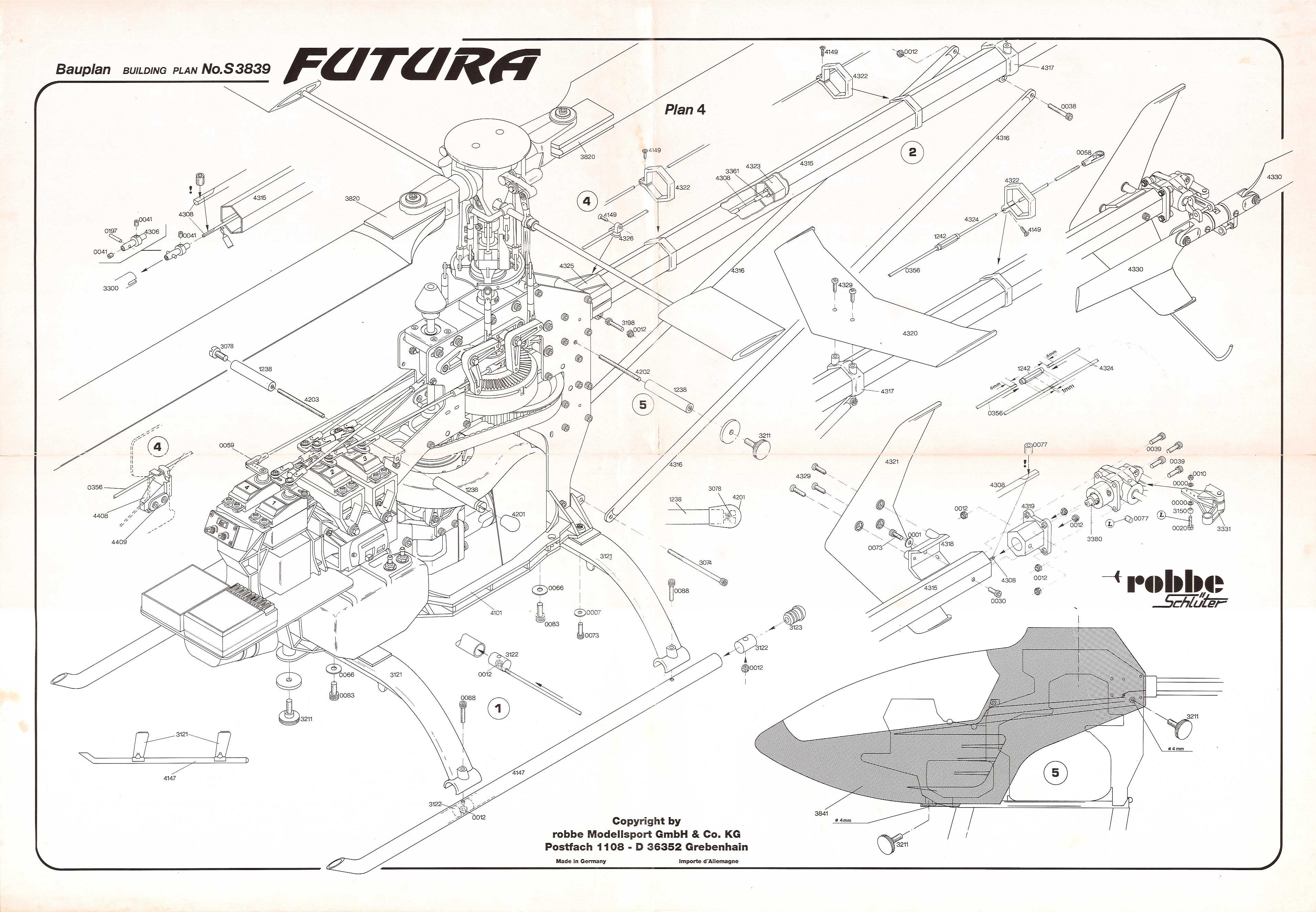

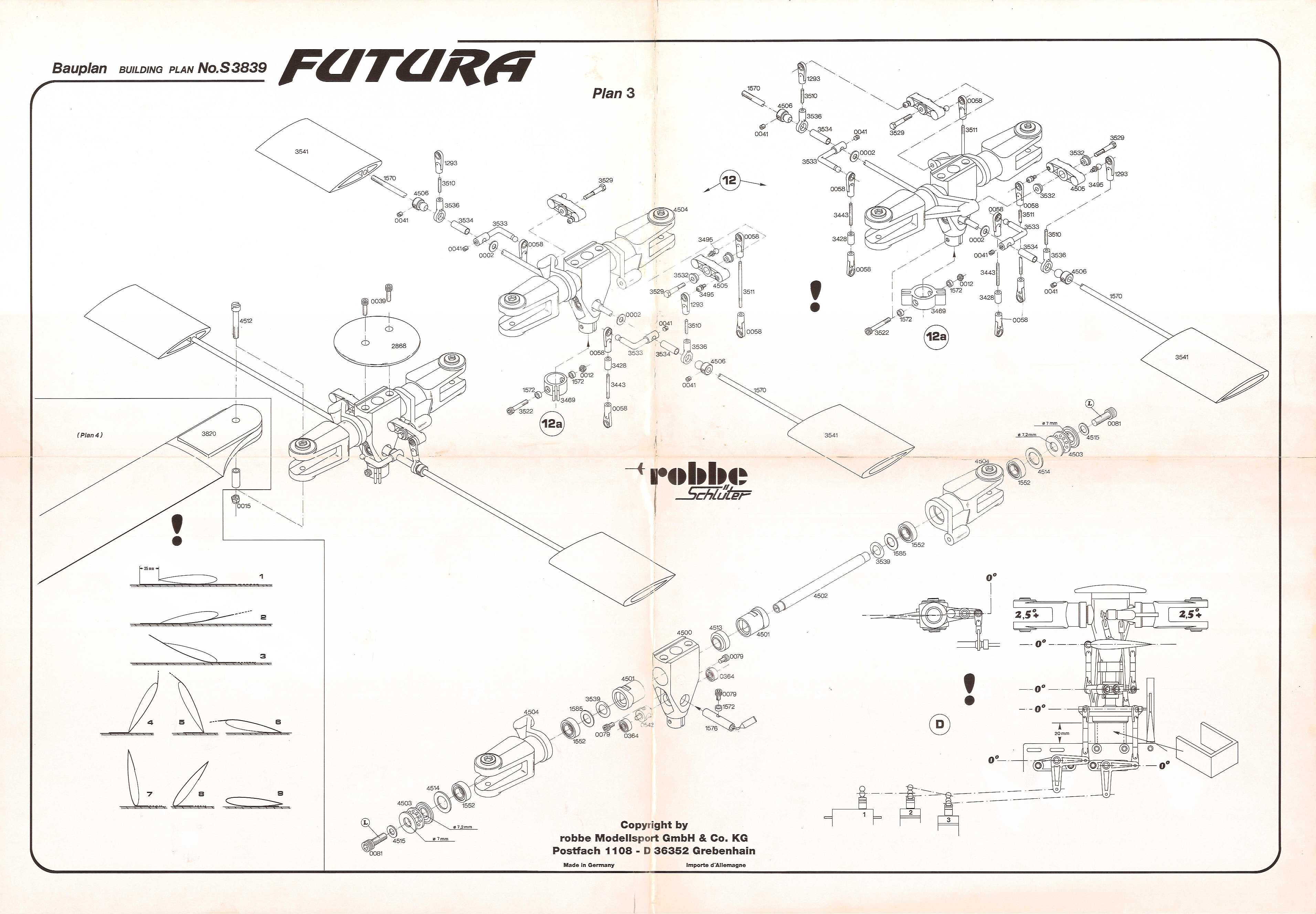

 Futura plans  -  4 sheets of construction diagram / parts listing

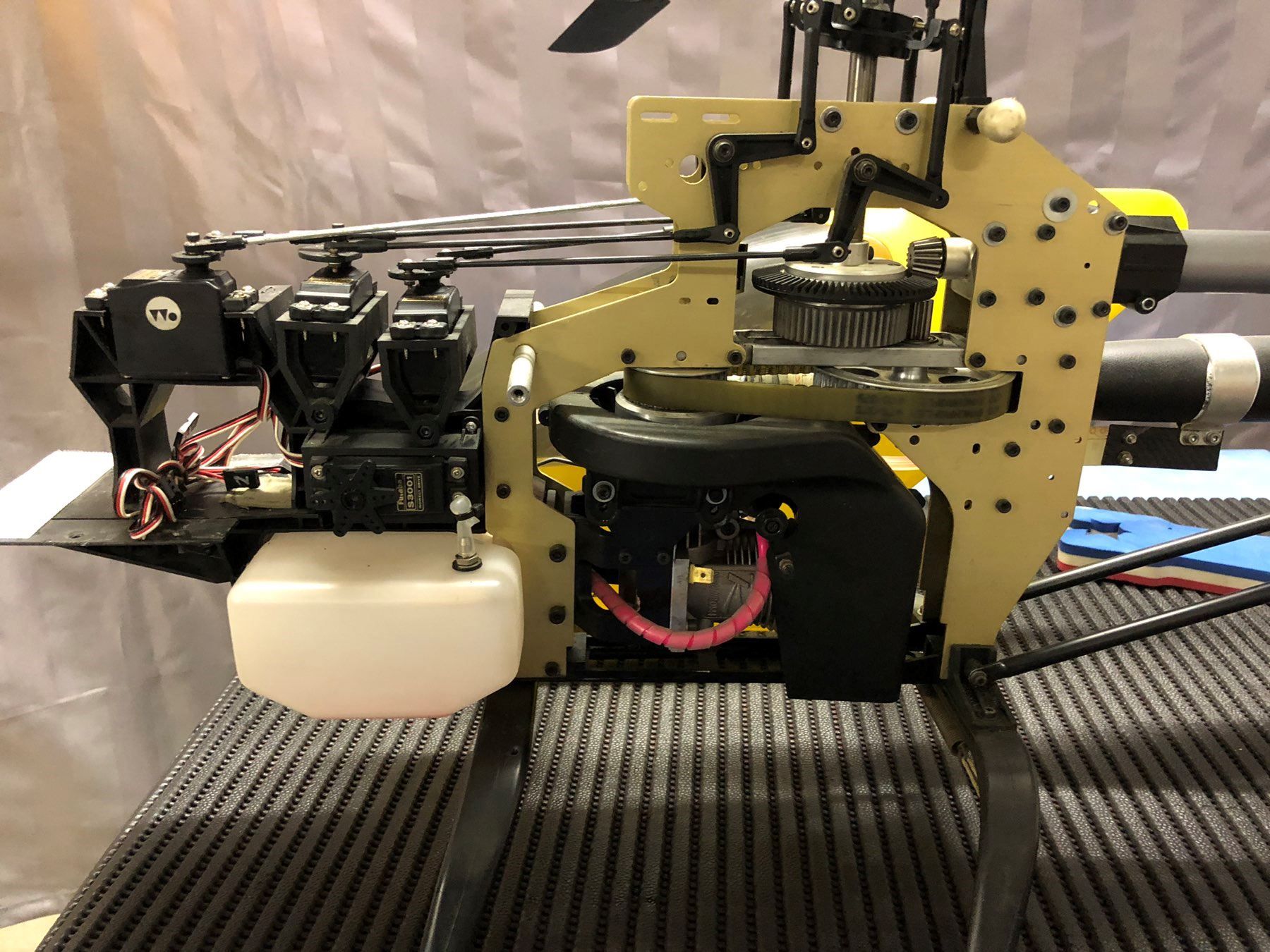

  • 2

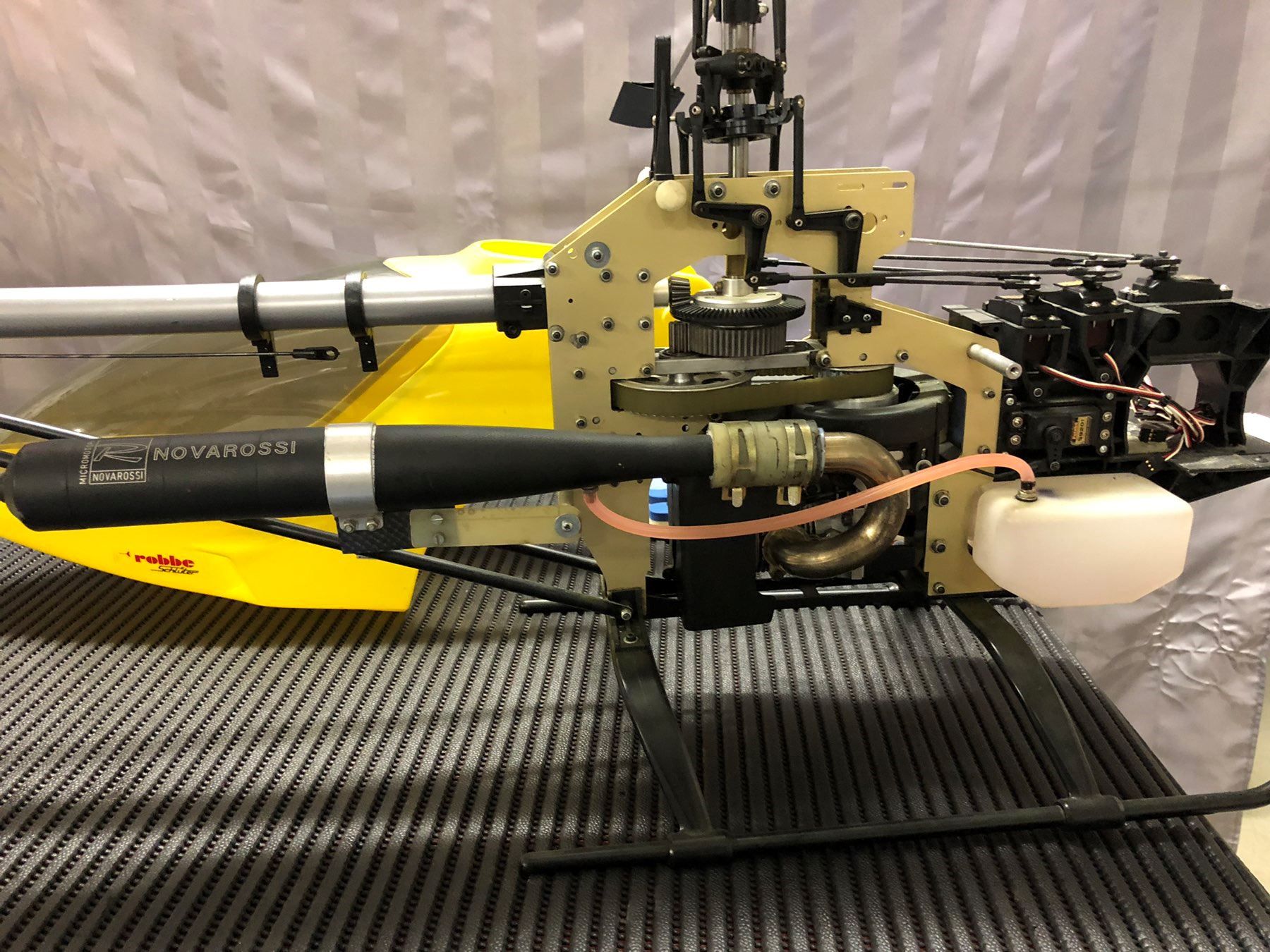

  • 3

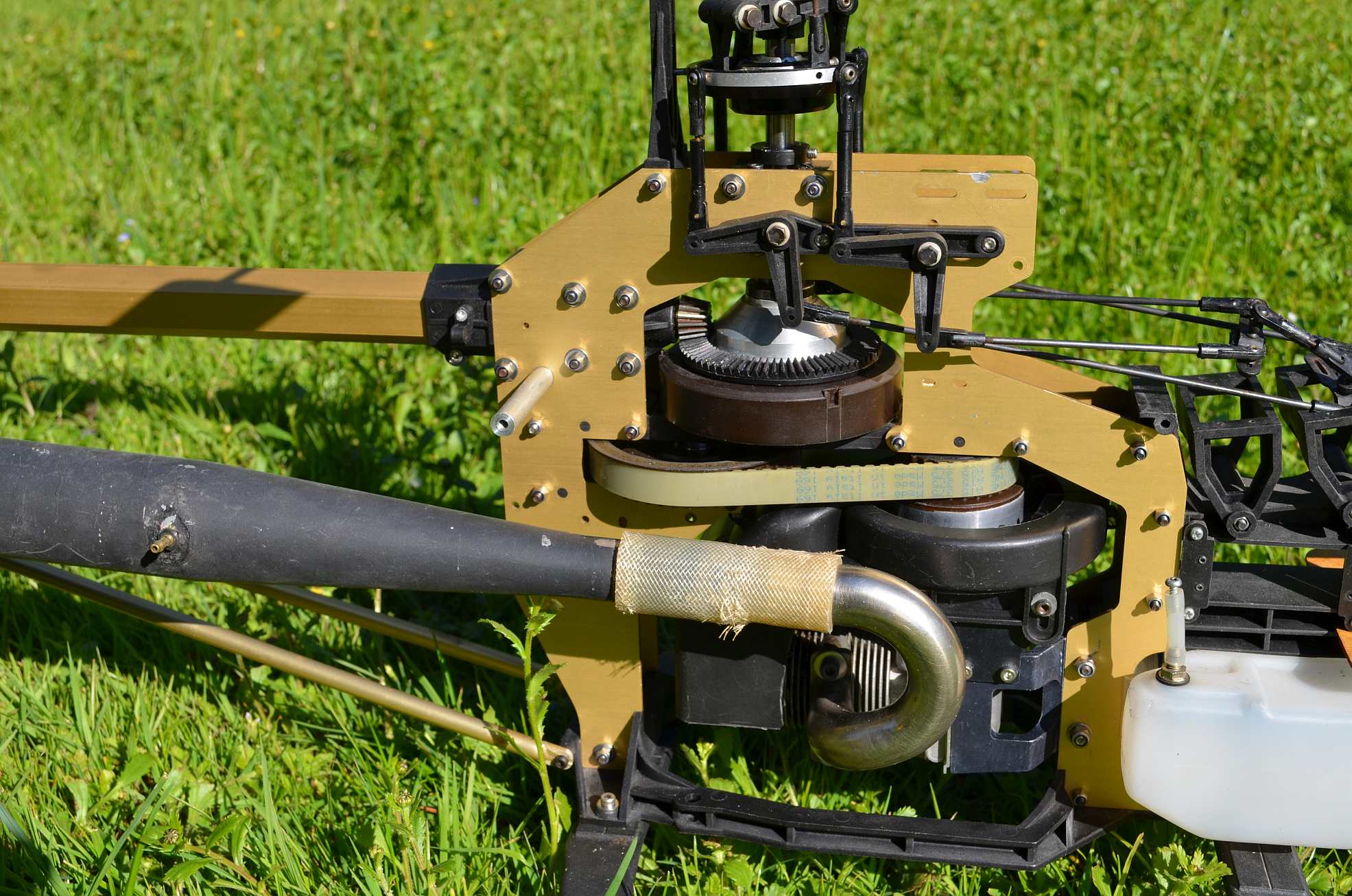

  • Futura Trainer 030
  • Futura Trainer 035

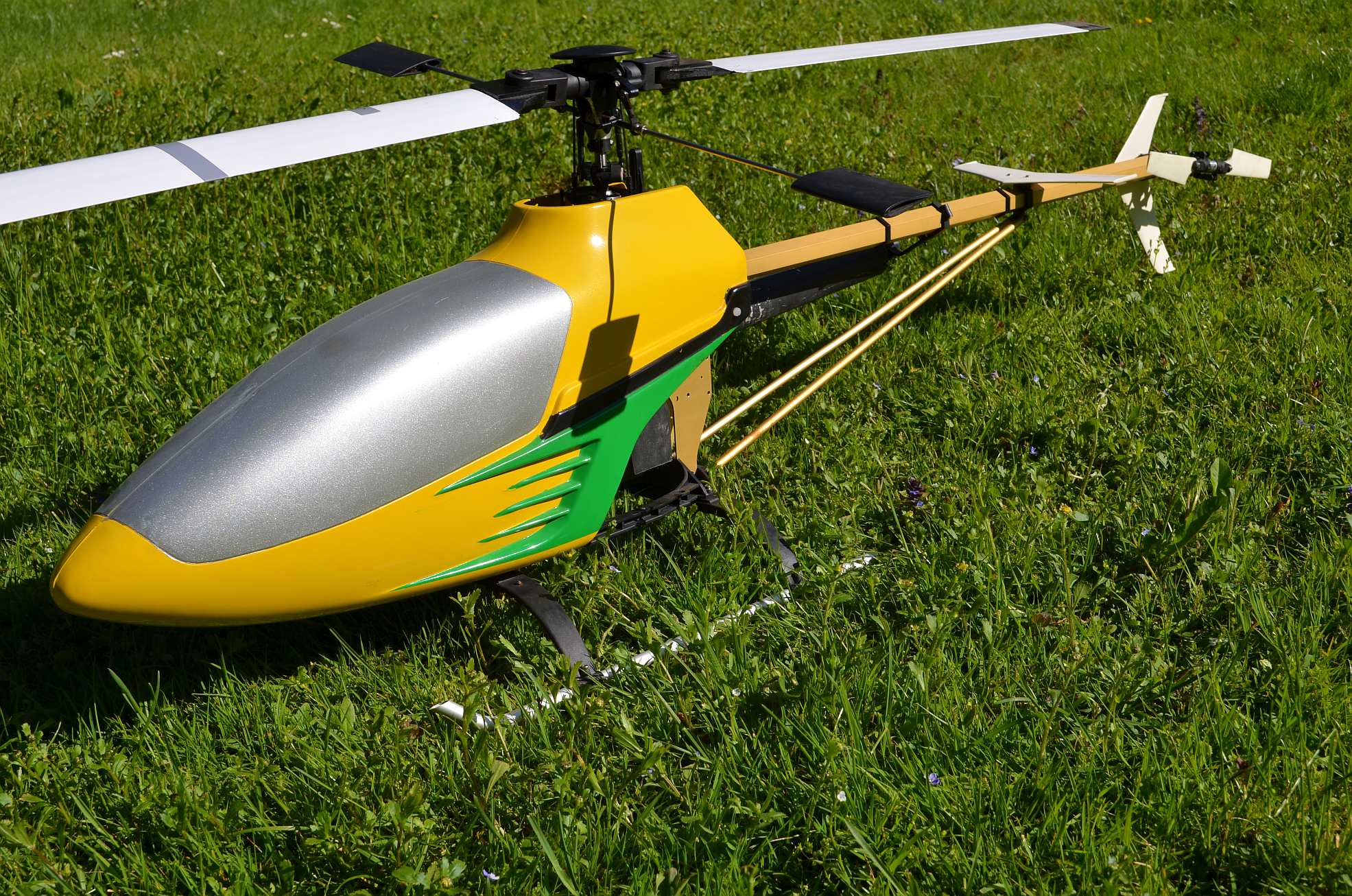

  • Futura Trainer 040

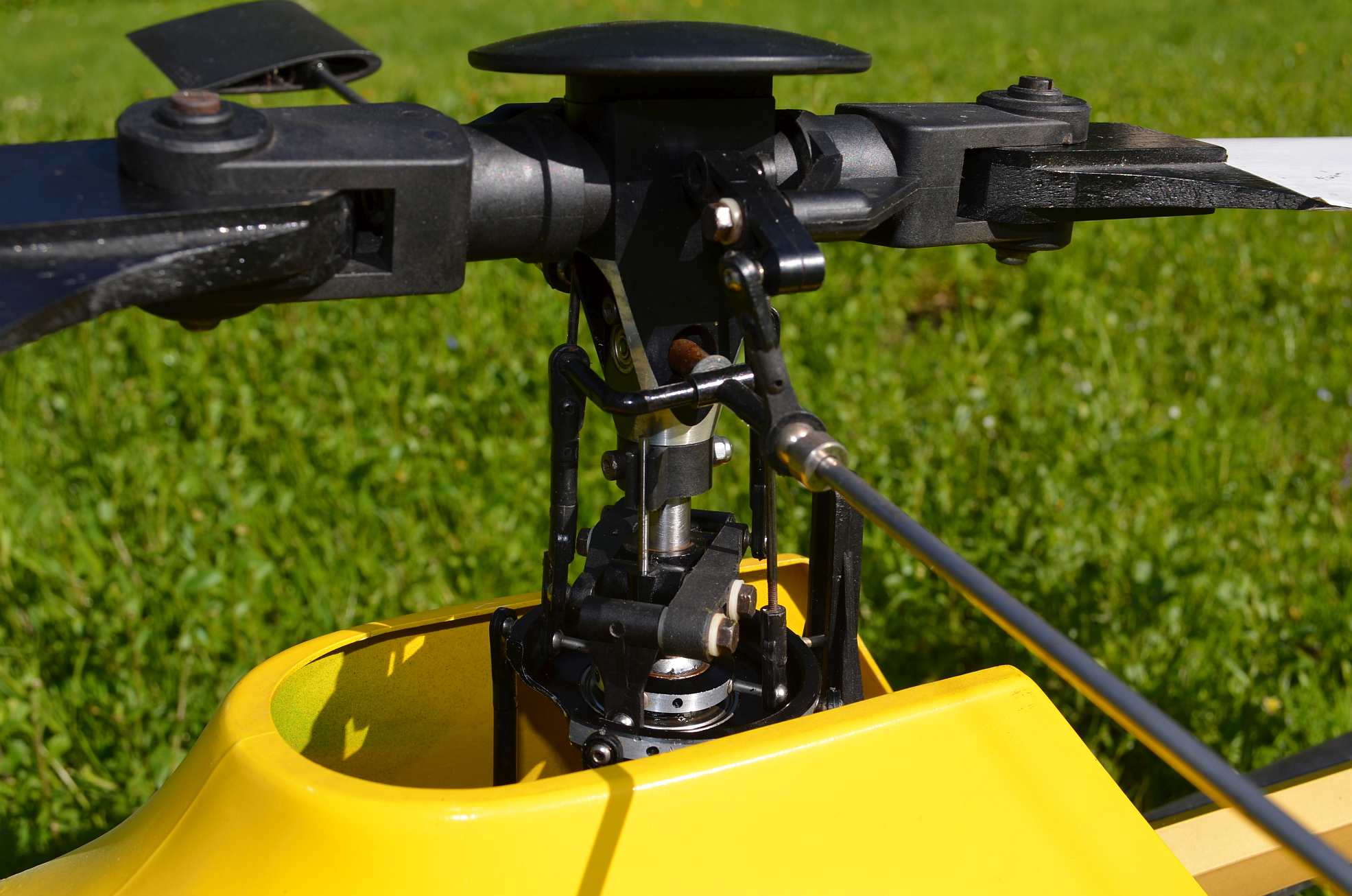

  • Futura Trainer 045

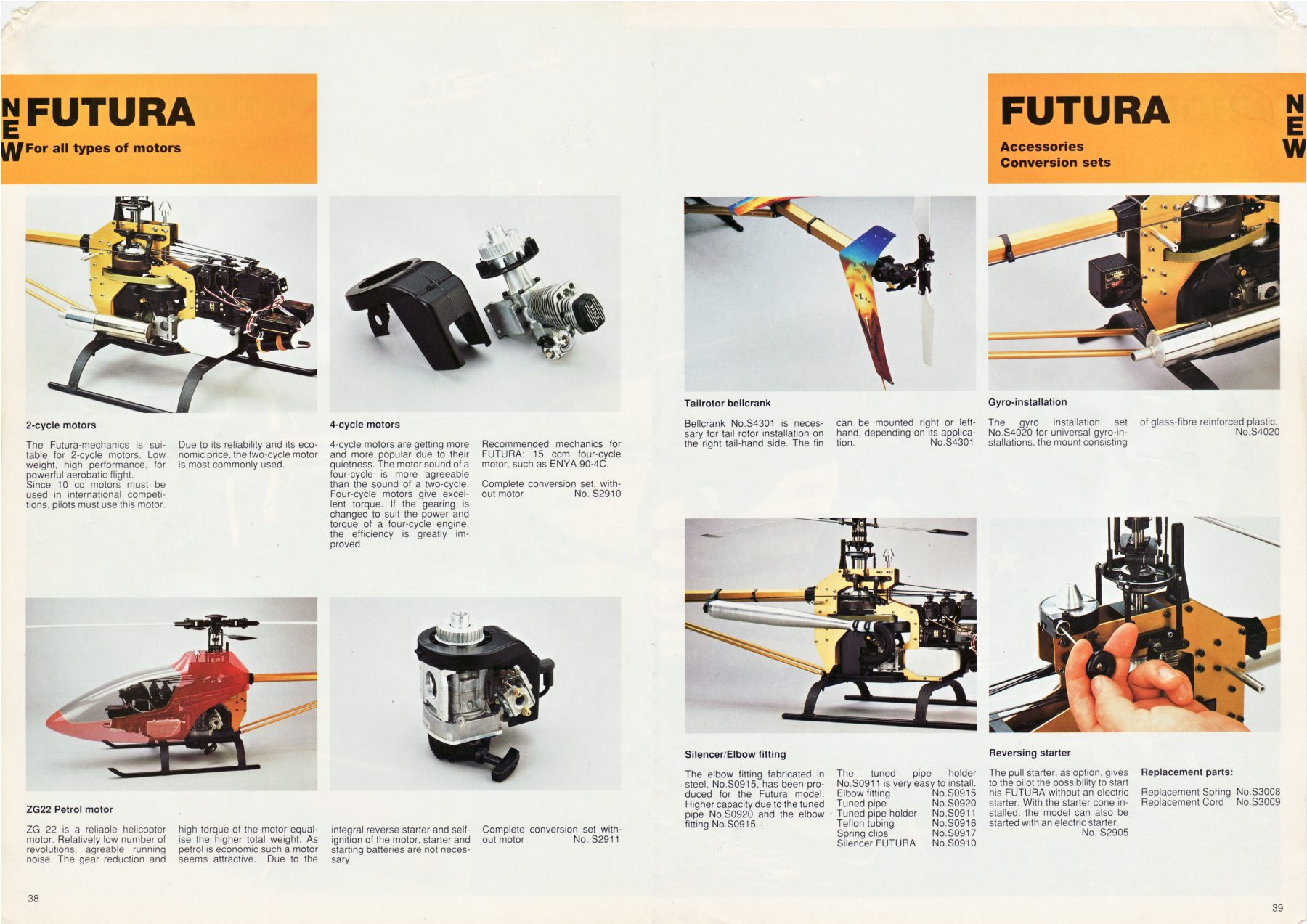

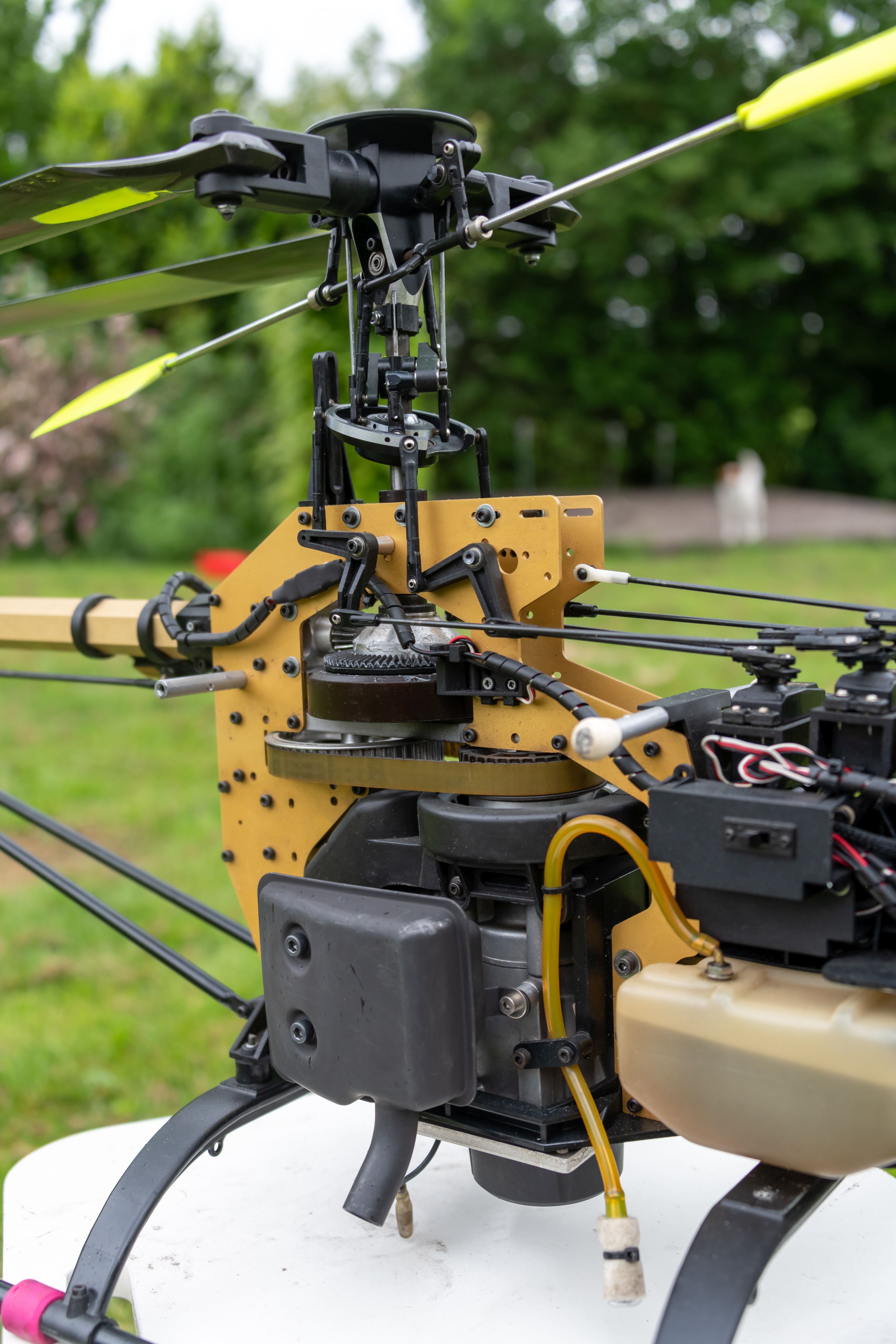

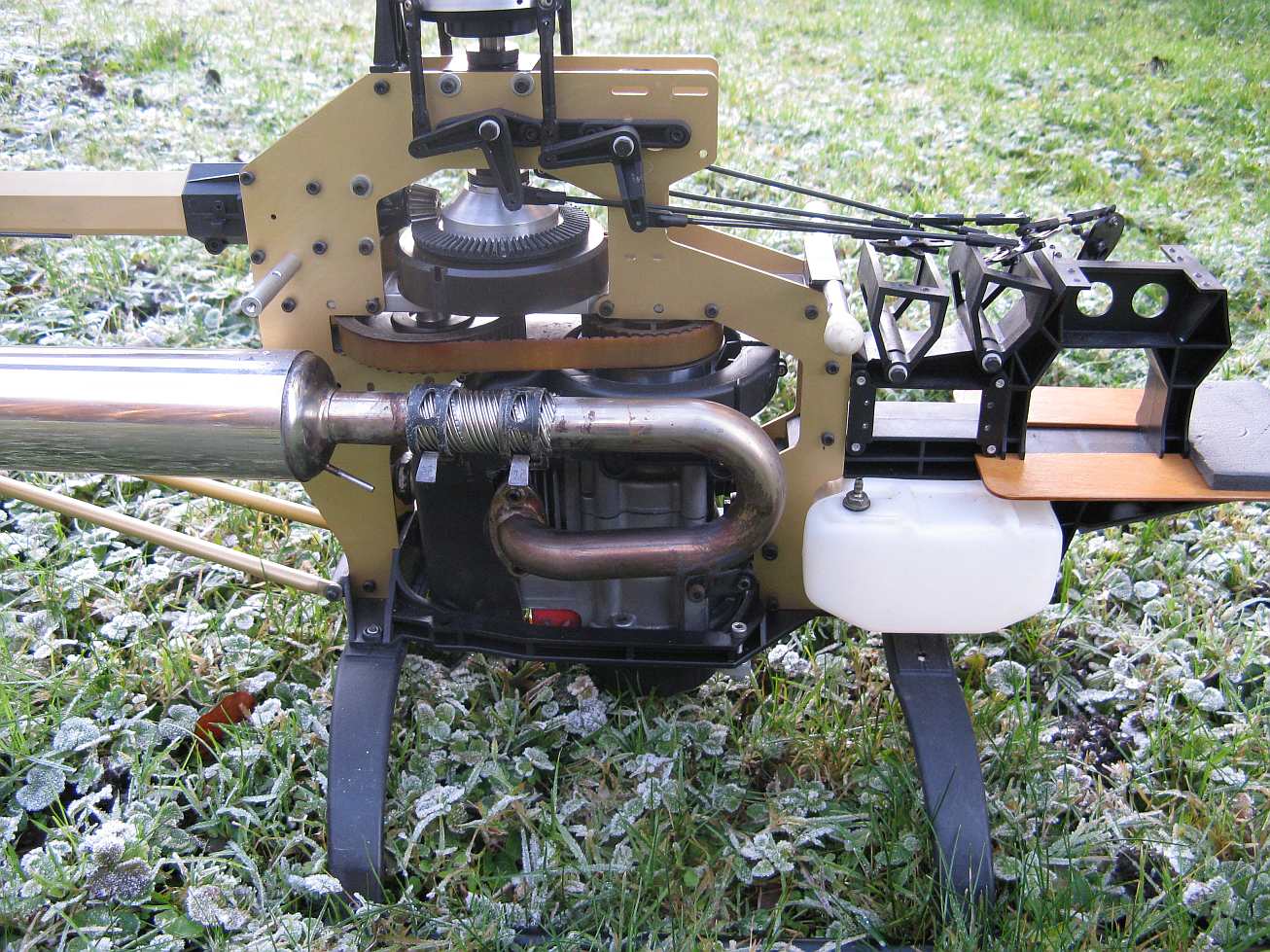

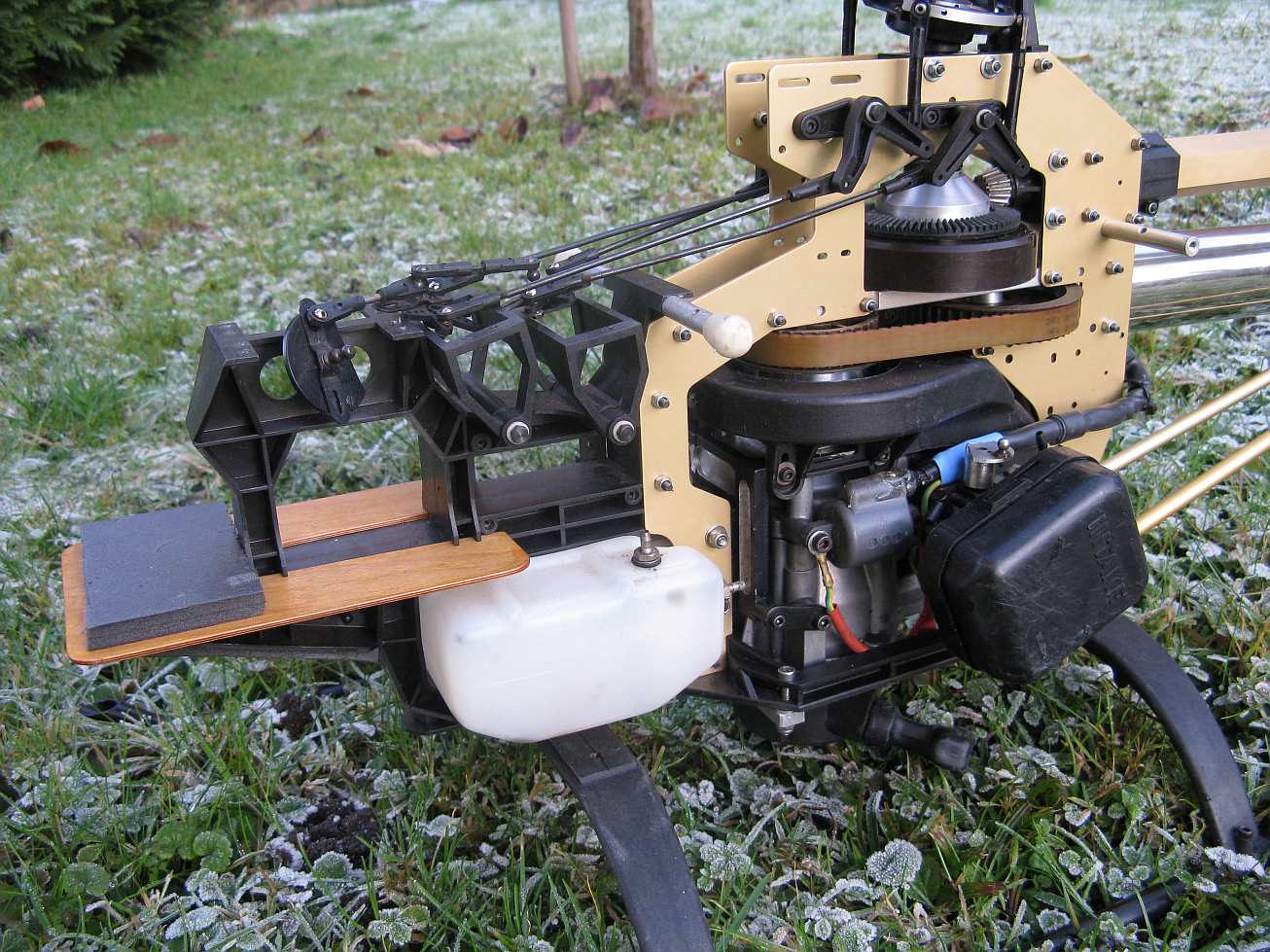

Futura trainer equipped with petrol Motor ZG22 / Kalt K22

  • Futura Trainer 005

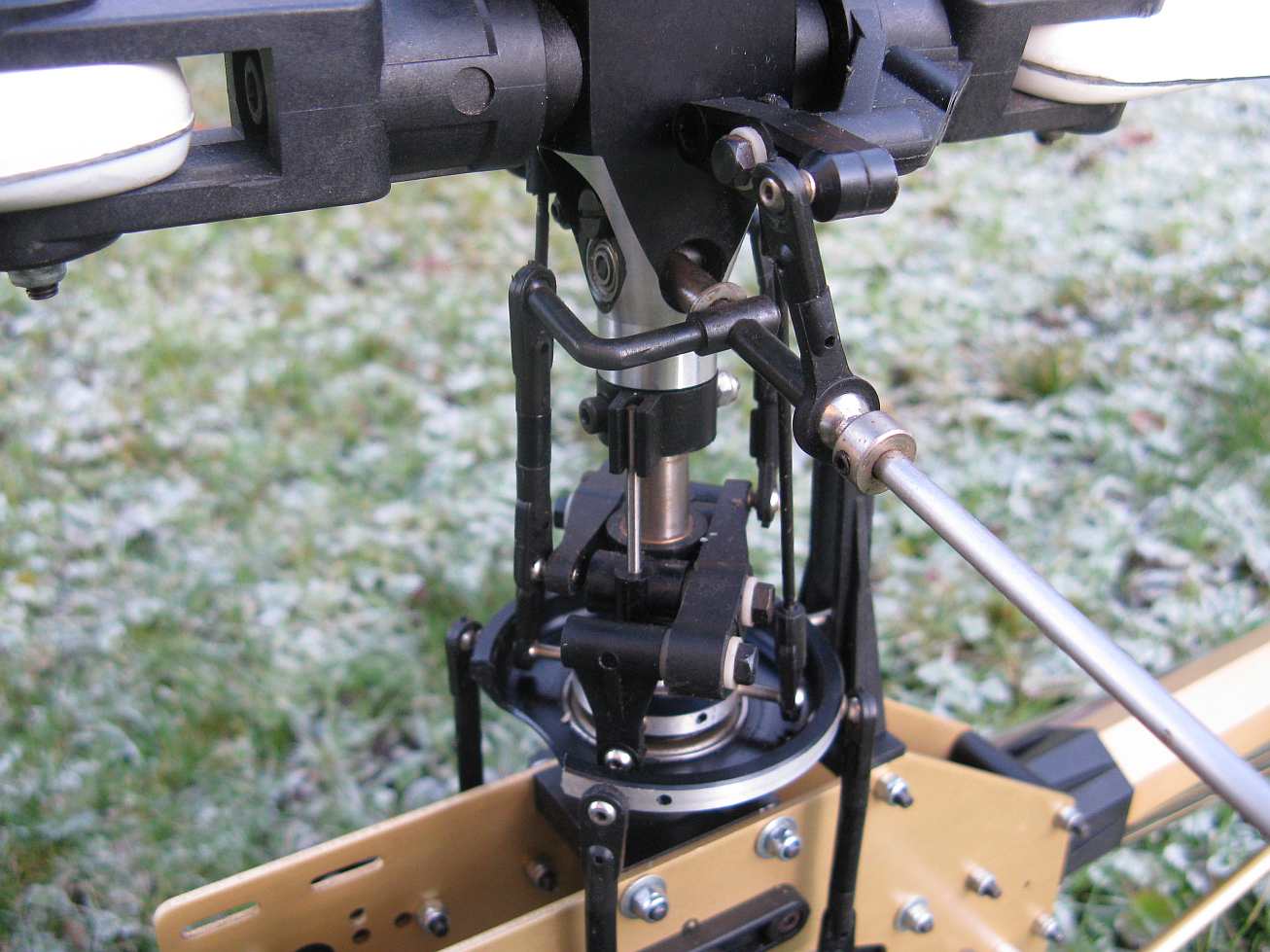

  • Futura Trainer 010
  • Futura Trainer 015

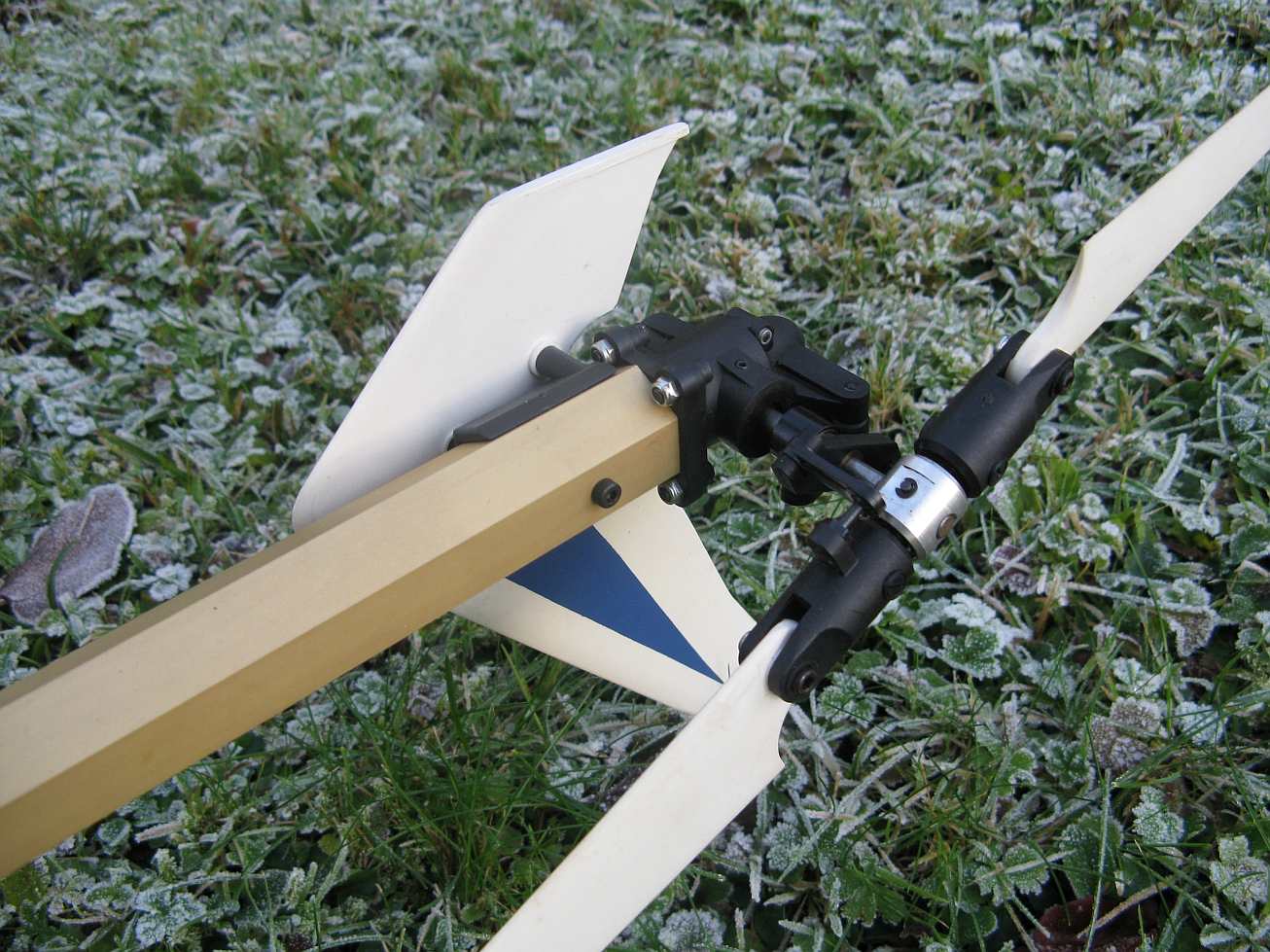

  • Futura Trainer 020
  • Futura Trainer 025
  • Robbe_Futira_Trainer_101

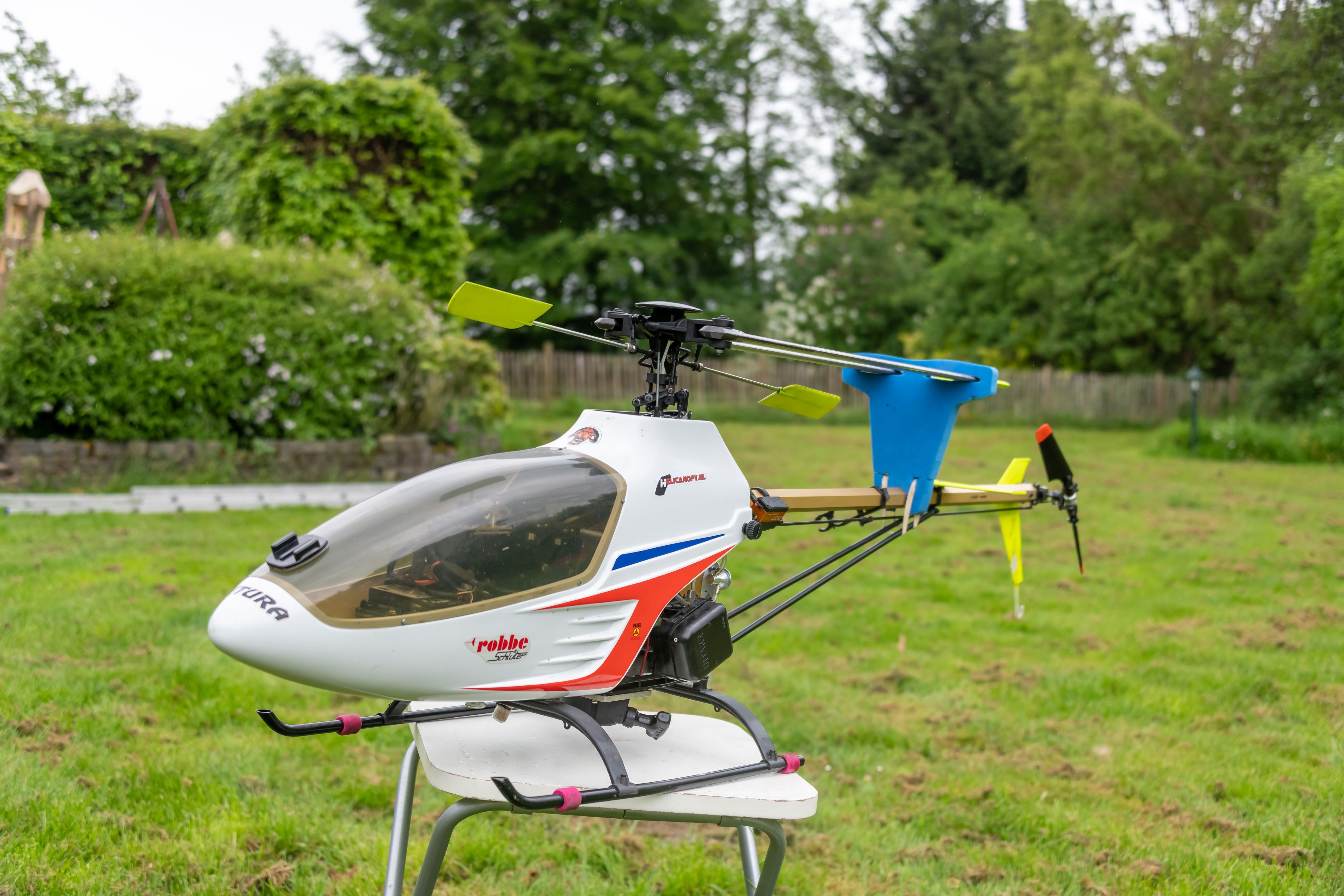

  • Robbe_Futira_Trainer_102

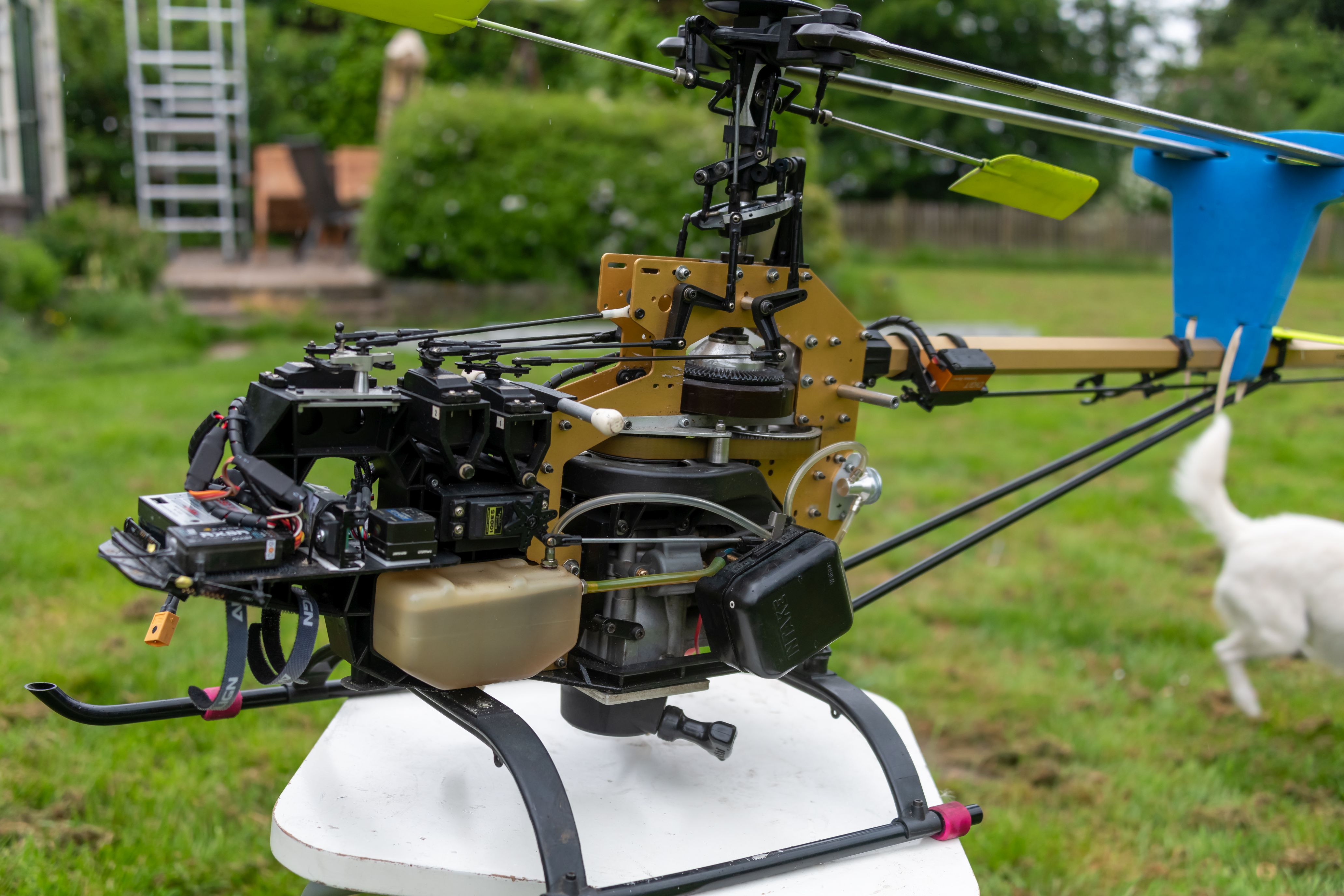

  • Robbe_Futira_Trainer_103

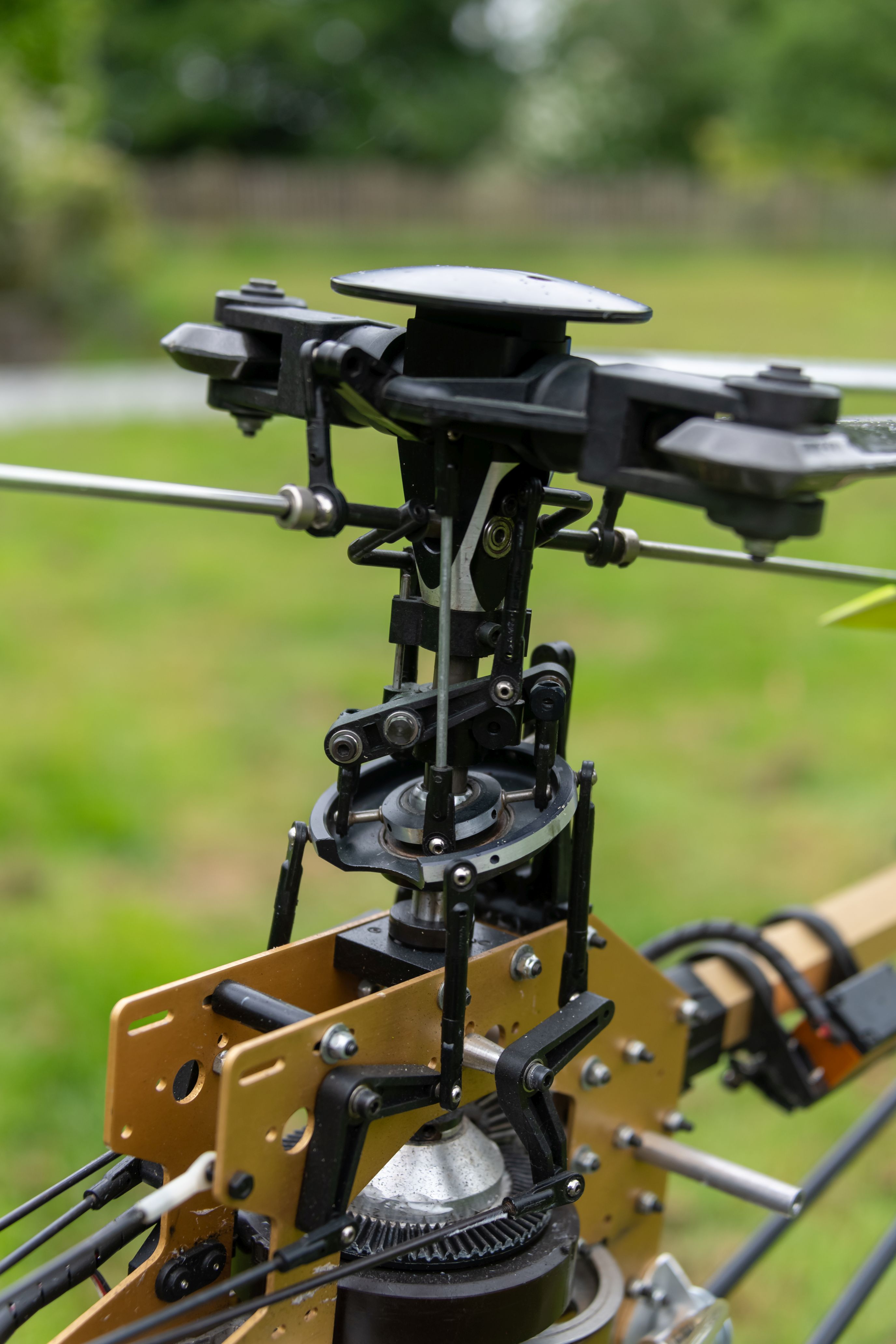

  • Robbe_Futira_Trainer_104
  • Robbe_Futira_Trainer_106
  • Robbe_Futira_Trainer_107
  • Robbe_Futira_Trainer_108
  • Robbe_Futira_Trainer_109

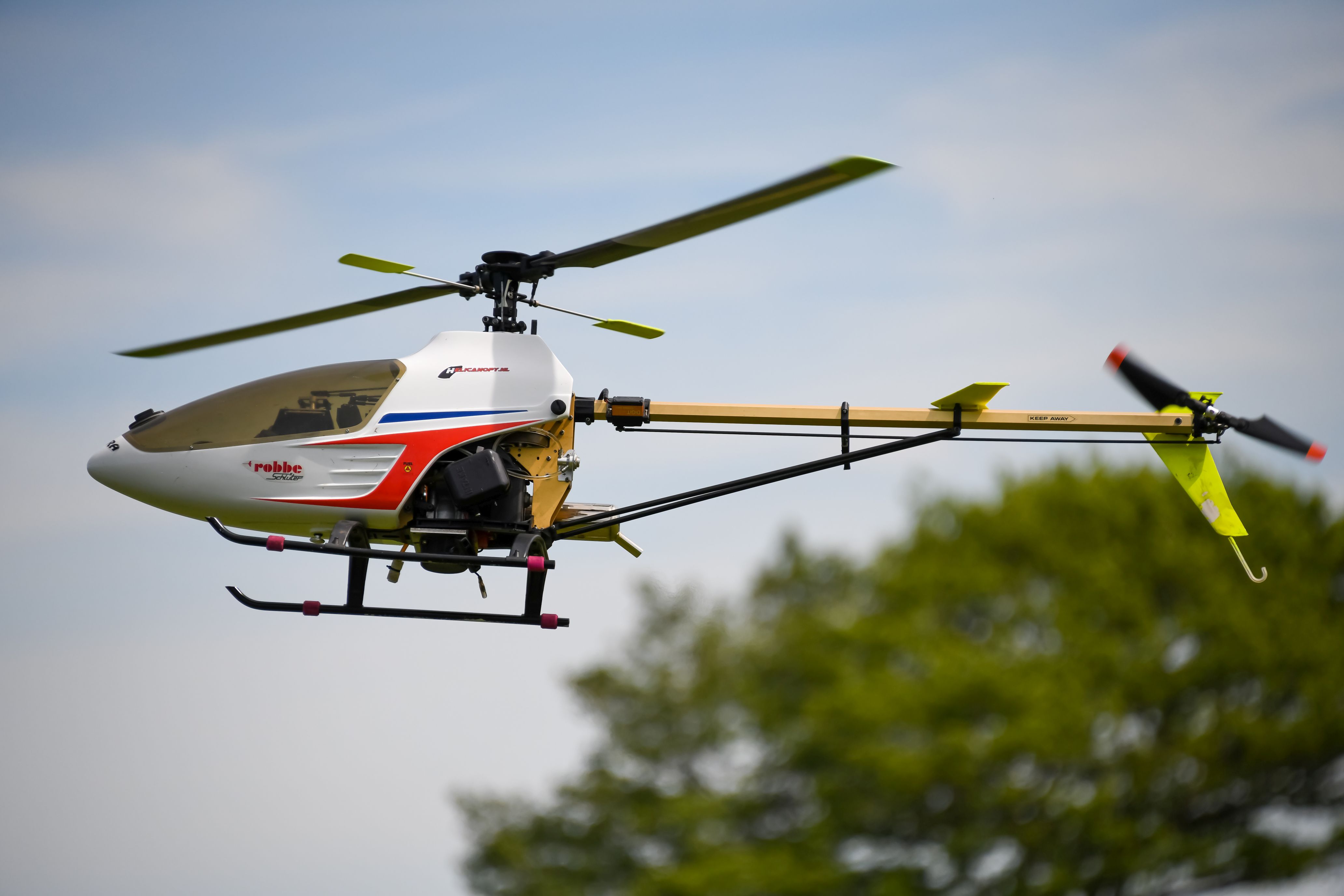

  • Robbe_Futira_Trainer_110

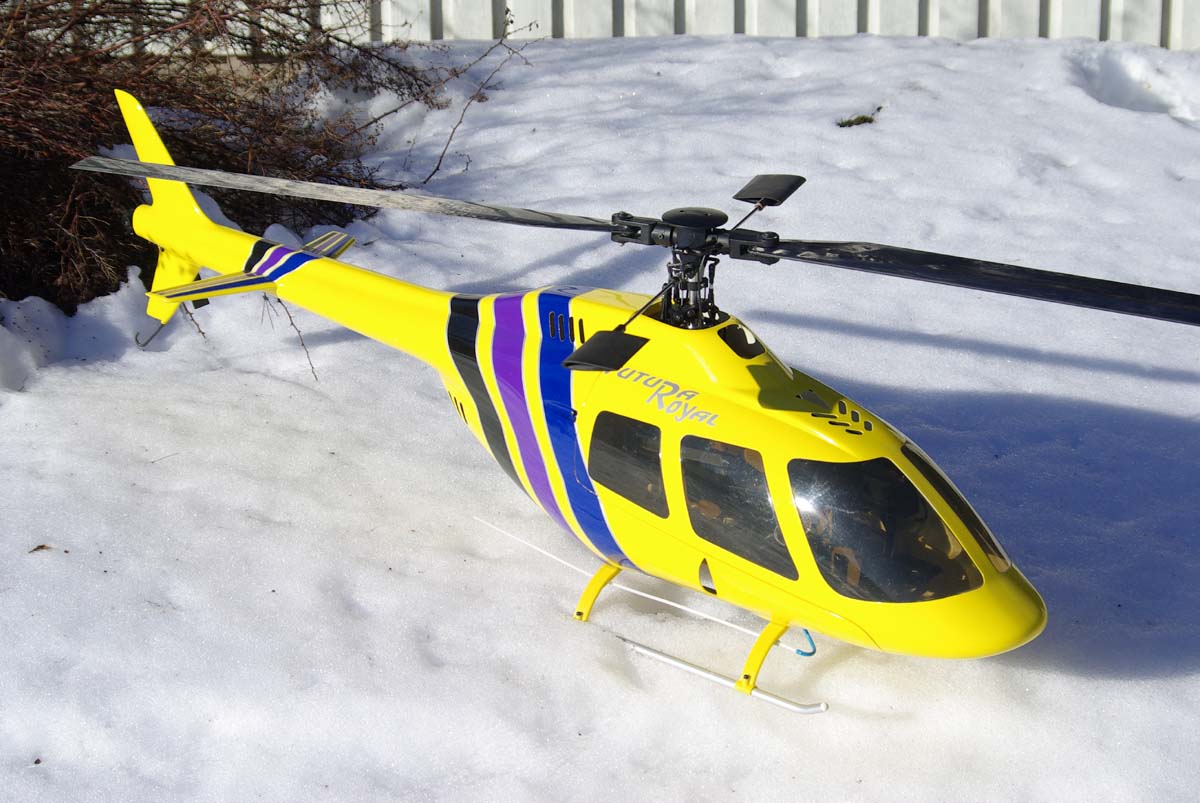

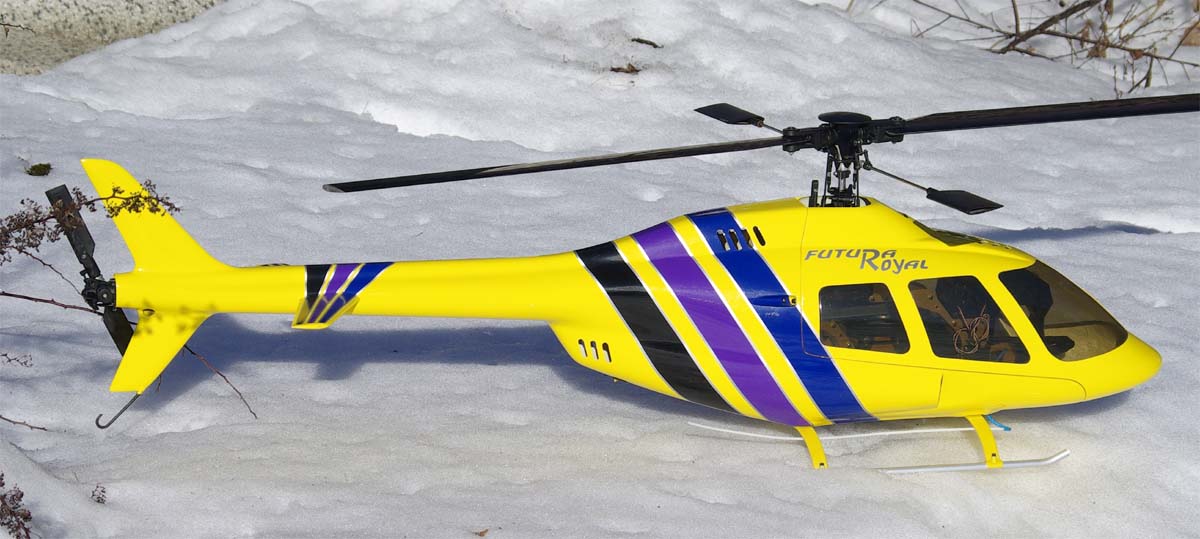

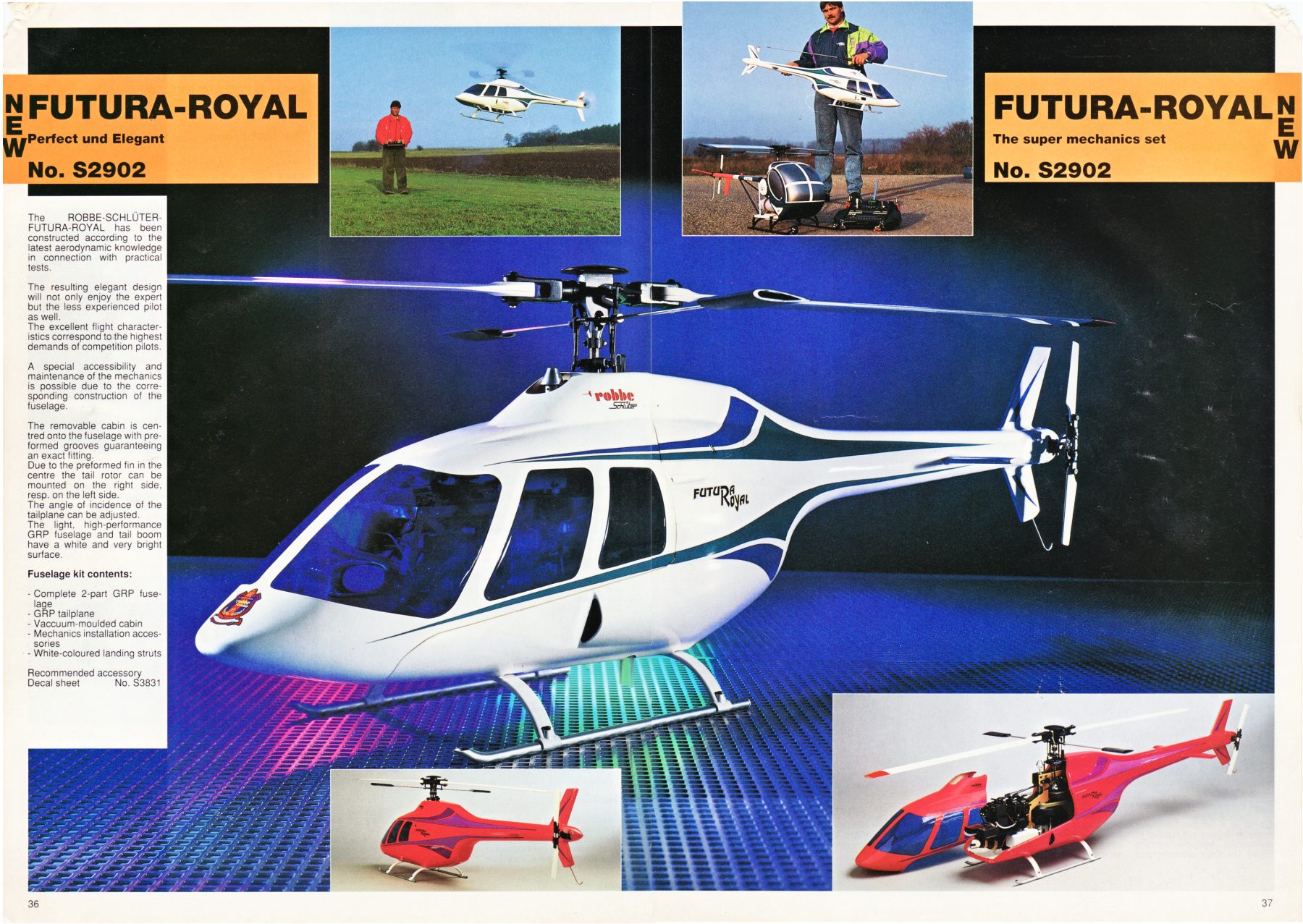

Robbe FUTURA ROYALE
