| Type |
Description |
Manual |

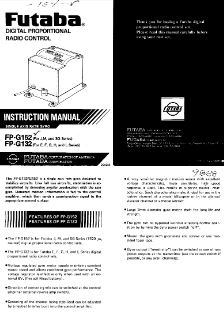

| FP-G152 |
Gyro for J,M,SG Series Servos (1520us)
Direction switable
channel centering trim by potentiometer
Gyro sensitivity switchable to presets
bypass by turning power off |
 |

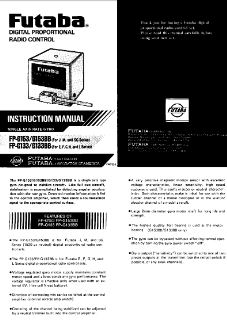

| FP-G153 |
Gyro for J,M,SG Series Servos (1520us)
Direction of correcting mix switable
channel centering trim by potentiometer
Gyro sensitivity switchable to presets
bypass by turning power off
voltage regulated gyro motor supply |
 |

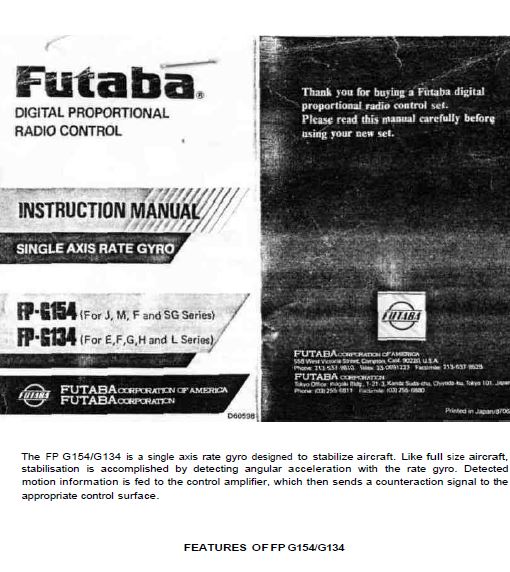

| FP-G154 |
Single axiy rate gyro
trimmer for gyro sensitivity
Direction of correcting mix can be switched at the control amplifier |
 |

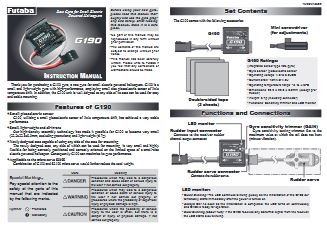

| G190 |
small piezoelectric sensor
lightweight all in one
applicable to micro servo S3108
Gyro sensitivity trimmer
operating voltage 4.8 - 6 V |
 |
| G301 |
piezoelectric gyro
very fast response speed
High gyro sensitivity
separated control amplifier to adjust sensitivity
(high-low side) and polarity
operating voltage 4.8 V |
 |

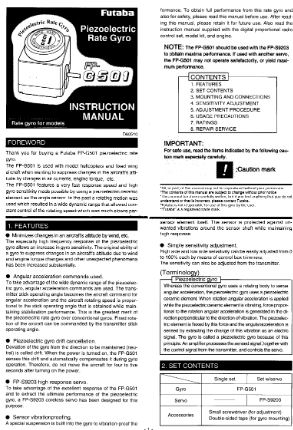

| G501 |
piezoelectric rate gyro
very fast response speed
high and low site sensitivity adjustable
high response servo S9203
sensor vibrationproofing |
 |

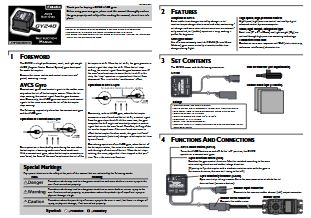

| GY240 |
high performance, small, and light weight
AVCS (Angular Vector Control System) gyro
SMM-Gyro sensor
sensitivity, direction adjustment
AVCS on/off switch
|
 |

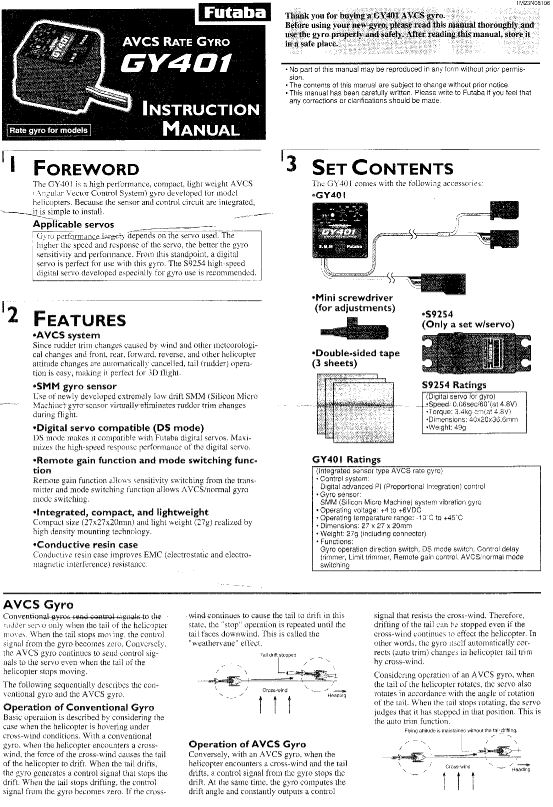

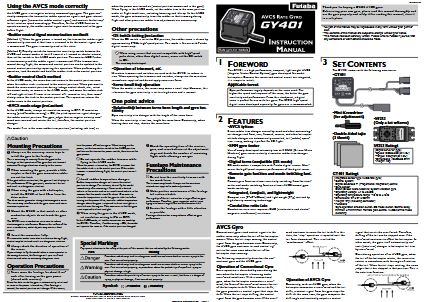

| GY401 |
high performance, small, and light weight
AVCS (Angular Vector Control System) gyro
SMM-Gyro sensor
sensitivity, direction adjustment
AVCS on/off switch
remote gain function and mode switching
digital servo compatible (DS mode)
|
  |

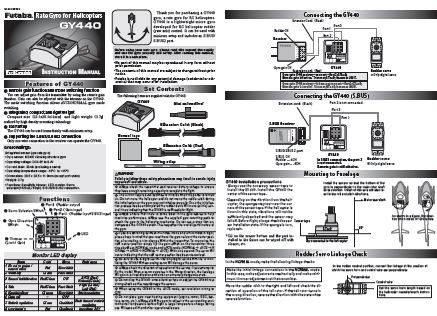

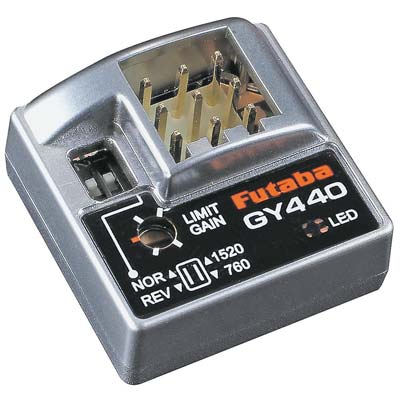

| GY440 |
 |
Remote gain function and mode switching function
Easy setup
Supporting S.BUS/S.BUS2 |
|
 |

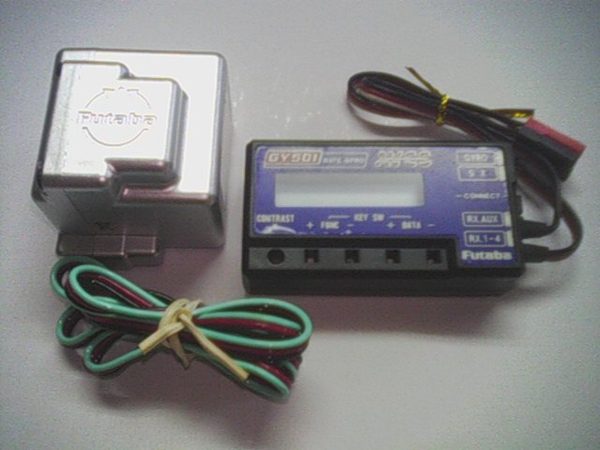

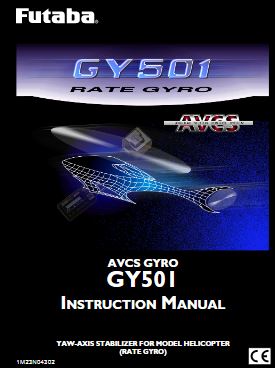

| GY501 |
 |
AVCS (Angular Vector Control System) gyro
Piezo-Gyro sensor
Input and display unit
remote gain function and mode switching
digital servo compatible (DS mode) |
|
 |

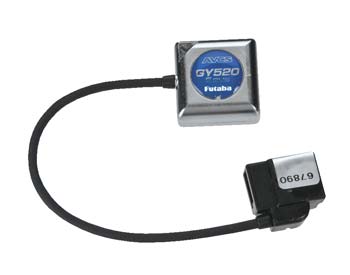

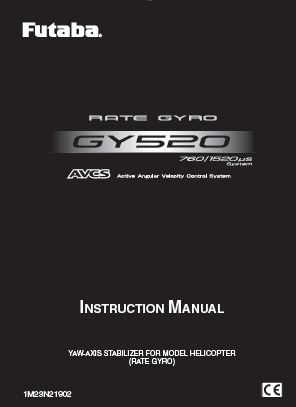

| GY520 |
 |
SPECIFICATIONS:
Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
Weight: 0.243 oz (6.9g)
Voltage Range: 3.8 - 6.0V DC
Control System: Advanced PID control
Current Draw: 40mA (without servo)
Sensor: MEMS vibrating structure gyro
Operating Temperature: 14°F - 113°F (-10°C - +45°C)
Sensor Rate Range: +/- 800° sec
Angular Velocity Range: +- 800 deg/sec
|
Ultra small and light weight gyro contained in one unit-no separate sensor and control unit
Utilizes a high speed advanced PID (Proportional-Integral-Derivative) control algorithm
Latest MEMS (Micro-Electro-Mechanical Systems) allows complete control system on one chip
Delivers superior performance with analog servos and excels with digital servos
F3C and 3D mode selectable, six programmable parameters
Operates at very high speed; 280Hz in the 1520uS mode and 506Hz in the 760uS mode
Programmable through single button and multi-color LED or through a PC using Futaba CIU-3 USB adapter
Registered AVCS (Angular Velocity Control System) architecture achieves unmatched tail holding ability |
|
 |

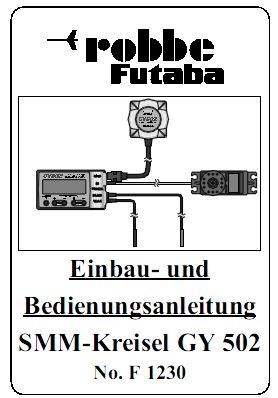

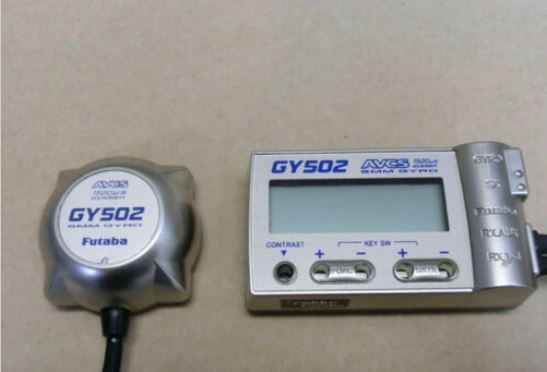

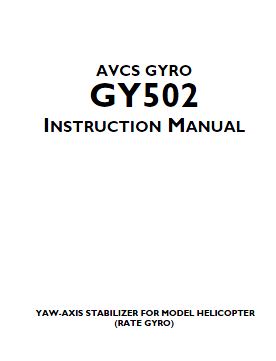

| GY502 |
 |
The Futaba GY502 has been designed for top F3C competition and 3D use. Features a seperate LCD controller that enables extensive functionality via refined software. The low profile sensor incorporates the latest SMM technology in a conductive anti - EMC case. |
|
  |

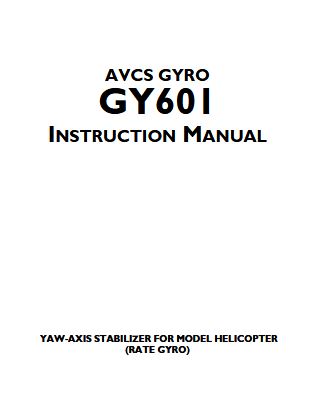

| GY601 |
 |
Display device: 8-character dot matrix liquid crystal display
Operating Voltage range: DC 3.8V to 6.0V
Current drain: 70mA (@5.0v, including sensor)
Amp Length: 57mm Sensor Length: 34mm
Width: 32mm Width: 34mm
Height: 15mm Height: 18mm
Weight: 34g Weight: 24.5g |
Super Narrow Pulse drive system substantially improves servo response.
Microcomputer high-speed arithmetic processing substantially improves gyro response.
High Resolution 12-bit A/D accurately converts the sensor output to a digital signal
Newest SMM (Silicone Micro Machine) and low-back aeroform case improves vibration resistance and neutral characteristic.
Amp mounts an LCD that allows accurate data settings.
S9251 servo- This special servo for the GY601 is compatible with Super Narrow Pulse drive.
Operation speed of 0.07sec/60degree High response is realized.
Alumite case w/heat sink effectively cools the motor from heat. |
|
 |

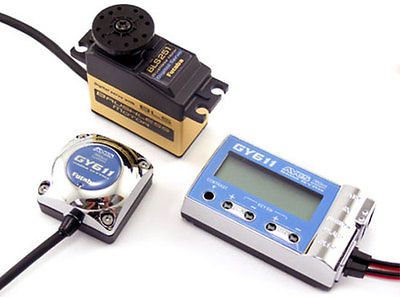

| GY611 |
 |
GY611 Features:
- 8-character dot matrix liquid crystal display
- Highly precise angular velocity sensor
- High-resolution 12-bit Analog to Digital accurately converts the sensor output to a digital signal.
- Newest generation SMM (Silicon Micro Machine) technology
- Low-back aeroform case to enhance vibration resistance
|
|
S9256 Specifications:
Dimensions: 40x20x36.6mm
(1.57x.79.1.44")
Weight: 57g
Speed: 0.06sec/60º (at 4.8V)
Torque: 3.4kg-cm (at 4.8V)
47 oz-in
|
GY611 Specifications:
- Sensor Type: SMM (Silicon Micro Machine)
- Weight: 64g (34g amp) + (30g sensor)
- Dimensions: 57x32x15mm (2.24x1.26x.59") (amp)
- Dimensions: 30x30x18 mm (1.18x1.18x.71") (sensor)
- Gain Type: Remote gain feature and transmitter-controlled switching to AVCS (heading hold)
- Operating Voltage: 3.8V to 6.0V DC
- Reversing Switch: Yes
- High/Low Frame Rate Select: Yes
- Servo Travel Limiter: Yes
- Power consumption: 70mA (@5.0V, including sensor)
|
|
|

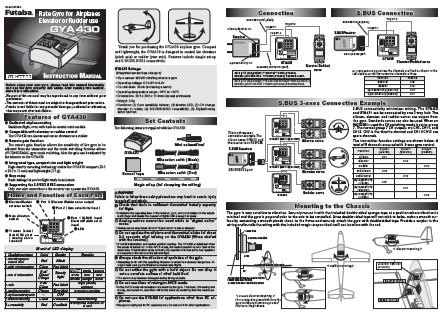

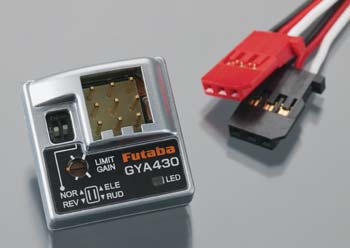

| GYA430 |
 |
 |

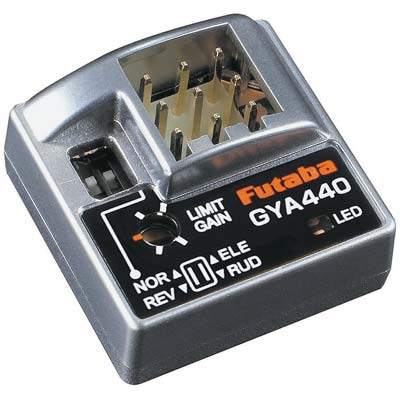

| GYA440 |
 |
 |

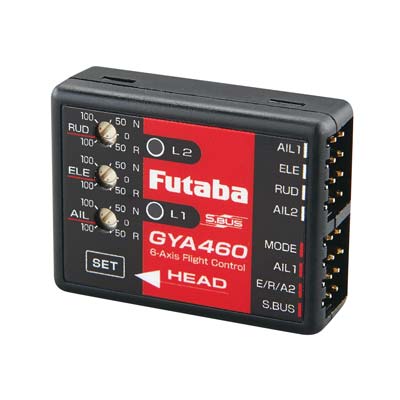

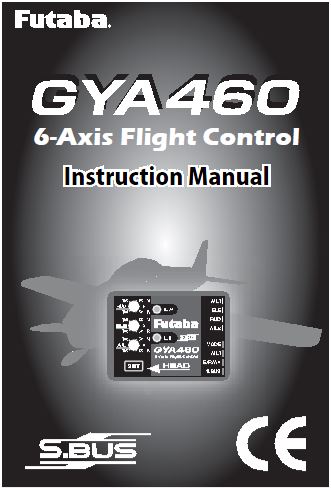

| GYA460 |
 |
 |
