KYOSHO EP-Caliber 700




Specification:


 Length  1110 mm
 Height  390 mm
 Width  210 mm
 Main Rotor Dia  1260 mm
 Tail Rotor Dia  -
 Engine  brushless
 Gear   -
 Weight  3500-3800 g


Documents:

Manuals
exploded view
Partslist

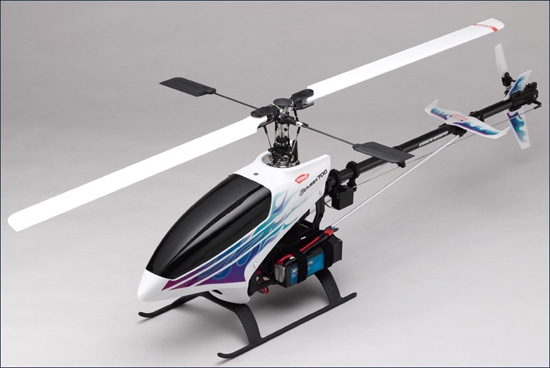

Similar in size to a 30-class engine powered helicopter, the electric CALIBER 700 uses brushless motor and Li-Po battery technology to produce powerful flight performance. The revolutionary design also packs enough performance to compete at F3C competition level. Featuring EMS (Swash Mode) and push-pull linkages on all control inputs including the rudder, the CALIBER 700 produces a responsive direct control feel. Also, the many metal parts around the rotor head and swash plate combine to deliver precision linear control and flight performance. Furthermore, the lightweight but high rigidity of the servo frame and main frame provides rock solid stability, even under extreme changes in posture. The low-vibration and quiet sound of an electric helicopter combines with flat high-torque characteristics to bring a new dimension to helicopter flight performance. From its lightweight dynamic maneuverability to low noise output, the CALIBER 700 takes electric helicopter flying performance to exciting new heights.

Features:

  • Includes one-way unit higher in strength (compared to same class GP helicopters) and is compatible with high-power motors.
  • The only helicopter in its class with full push-pull linkages including rudder for tight control response. *Excludes throttle as at December 2007.

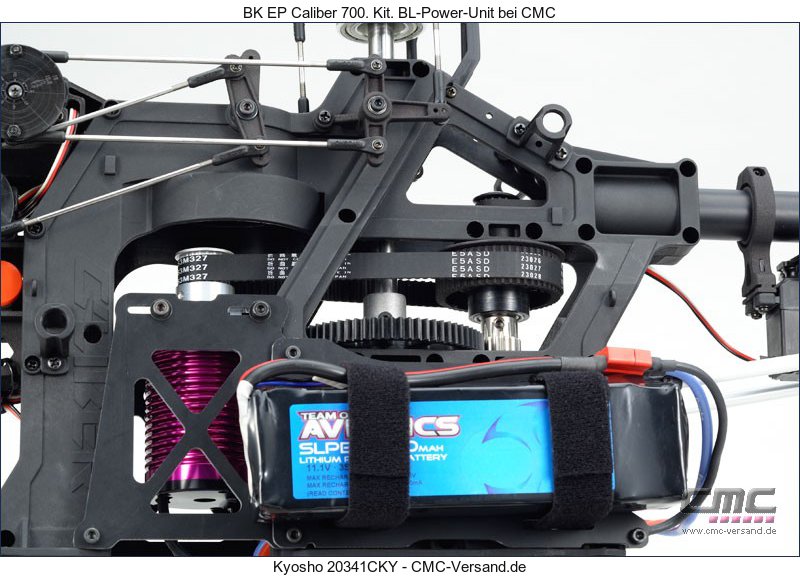

  • Features the CALIBER's signature belt driven 2-stage deceleration transmission that minimizes noise and delivers high-efficiency power transfer.

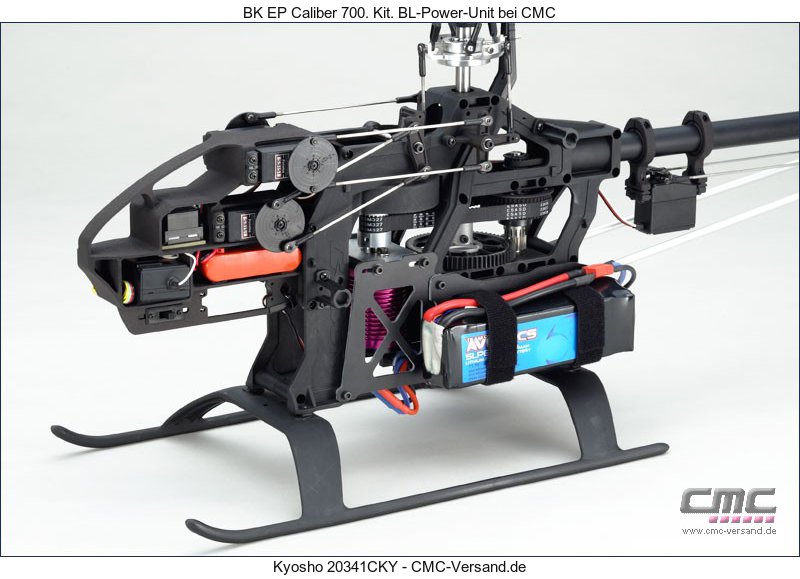

  • Precision finish to the unique design of the resin monocoque frame makes assembly easy. Provides the high strength and rigidity to withstand the intensity of 3D flying.
  • EMS (Swash Mode) control system realizes direct control response and feel.

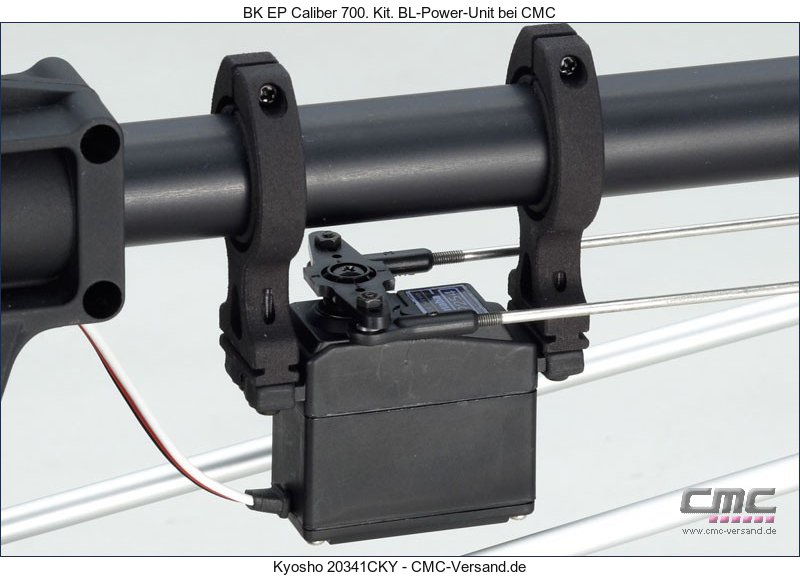

  • Rudder servo is mounted on tail boom to prevent linkage deviation when adjusting belt tension.

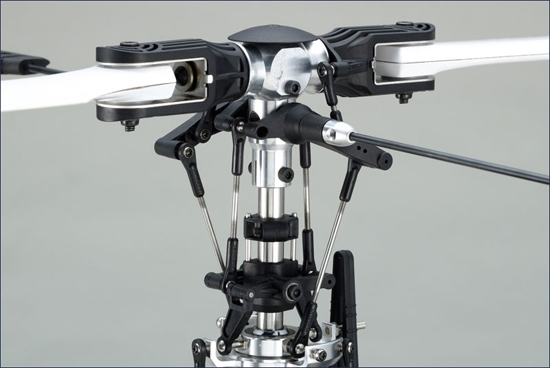

  • Upper section features machine cut aluminum HG swash plate that realizes precision control response.
  • Precision metal parts include yoke / center hub / see-saw that contribute to accurate control.
  • Features lightweight and maintenance-friendly servo frame.
  • Low height lightweight brace provides strong support even in hard landings.
