RC Helicopter Engines 1970's

By the end of the sixties most manufacturers had started replacing their old models for engines with improved gas flowing plus more efficient carburation resulting in power levels taking quite a 'hike' and increasing by 20-30%.  Scavenging was all using the cross-flow principle which required a large flat 'deflector' protruding from the top of the piston in order to deflect the incoming 'fresh' fuel/air charge up the cylinder, over the head and then out of the exhaust port; simple but very inefficient due to the turbulence caused by the dramatic changes in gas direction.

Engines 1970

60 size comparisons Part one  -  Part two  -  To be in with the 'in crowd' as an engine manufacturer, the 60 size was the most important engine in the range.  These two articles cover engines of this size generally available in early 1970.

Enya 60 III TV  -  Engine test - Jun 1970

Veco 61 - General overview plus OS max 80 aero - May 70

There was a definite trend for engines getting heavier but also more powerful which was to be expected, note the power above quoted at 1.4 BHP (without silencer).

Engines 1971

K&B Torpedo 40 - Engine test - Feb 1971

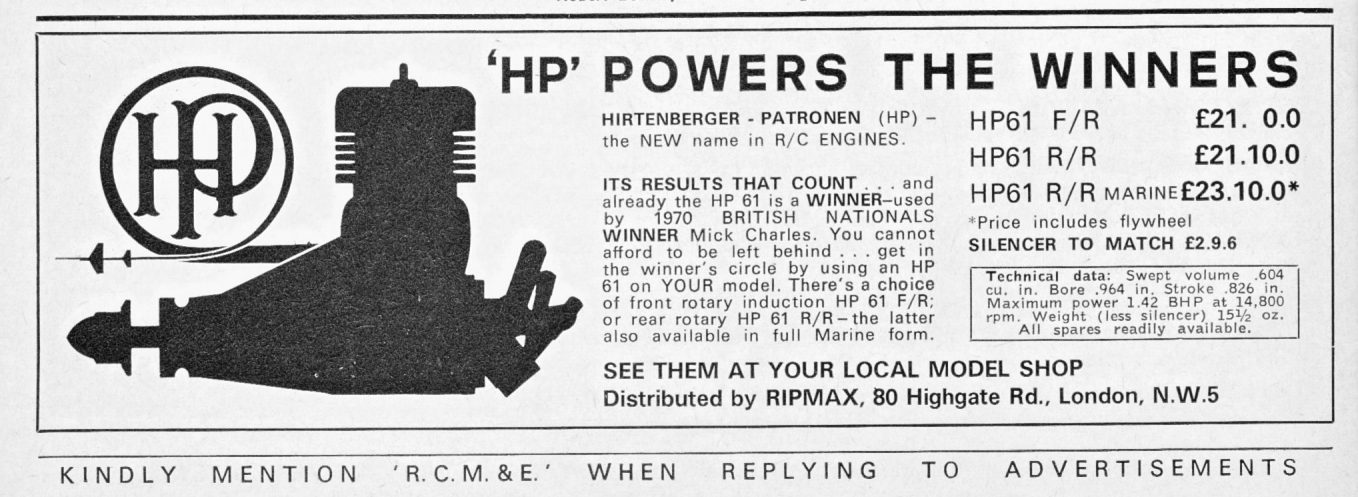

HP 61F - Engine test - May 1971

OS Max-H60 - Engine test - Aug 1971

Note that in later years the designation 'H' would be used by most manufacturers as a generic code for the specific helicopter variant of an engine however, for this model in the OS range it is (as yet) not the case.

Webra 40 - Quick look - Sep 1971

Webra 40 - Engine test - Oct 1971

Engines 1972

 Veco 61 - Engine test - Feb 1972

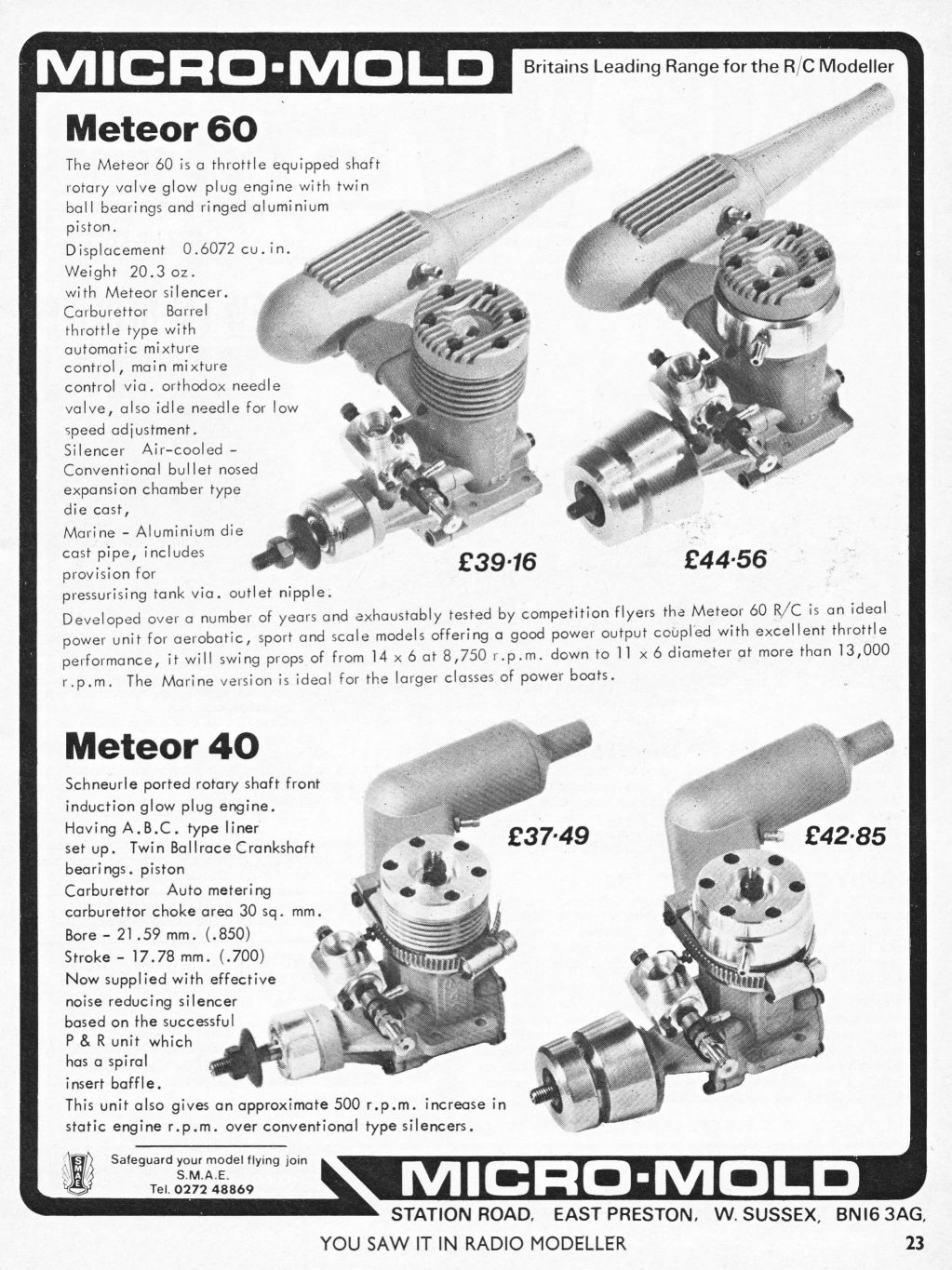

Meteor 60 RC - Engine test - Jul 1972

ST G60 RC - Engine test - Mar 1972

OS Series 72 Carb - Review - 1972

Engines 1973

Fox Eagle 60 - Engine test - May 1973

HP Range - Engine reviews - Aug 1973

ST G21-46 - Engine test - Aug 1973

Merco Mk4 & Yamada YS60 - Engine review - Sep 1973

OS Max 40 - Engine test - Oct 1973

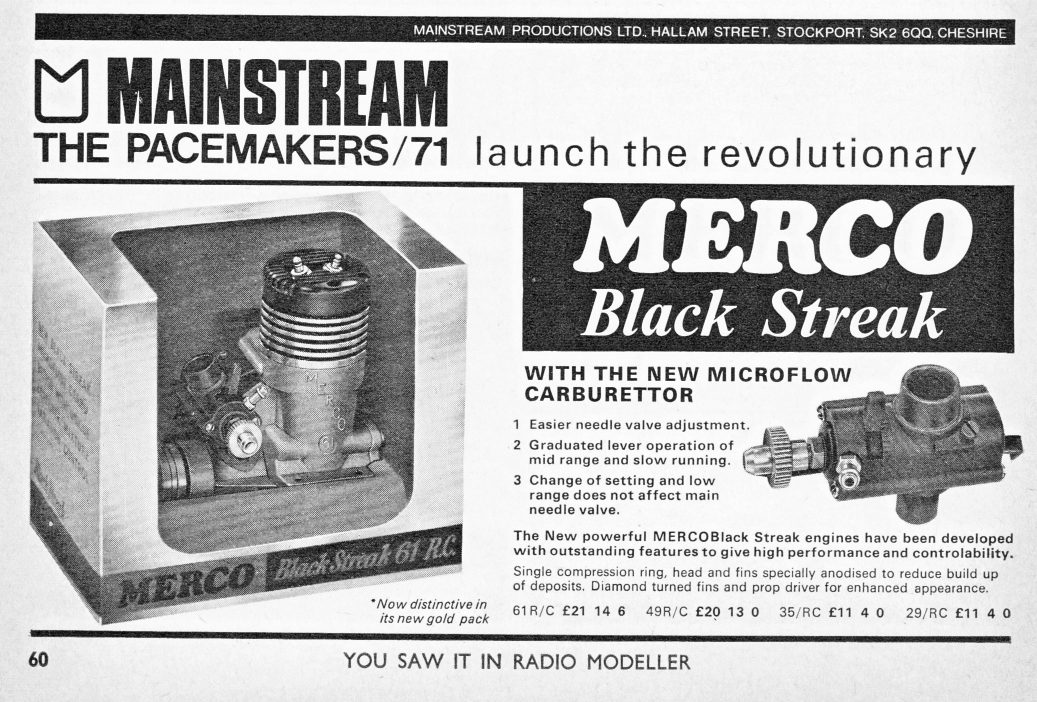

Merco 61 - Engine test - Dec 1973

The first engine specifically altered for helicopter use was introduced by HB, the 61 Stamo, for dedicated use in the Graupner bell 212.

Engines 1974

Webra Speed 61 RC - Engine test - Apr 1974

Enya 60-IIIB - Engine test - Apr 1974

OS Max-25RC - Engine test - Apr 1974

OS Max-H60F GR (Blackhead) - Quick look and preview test.

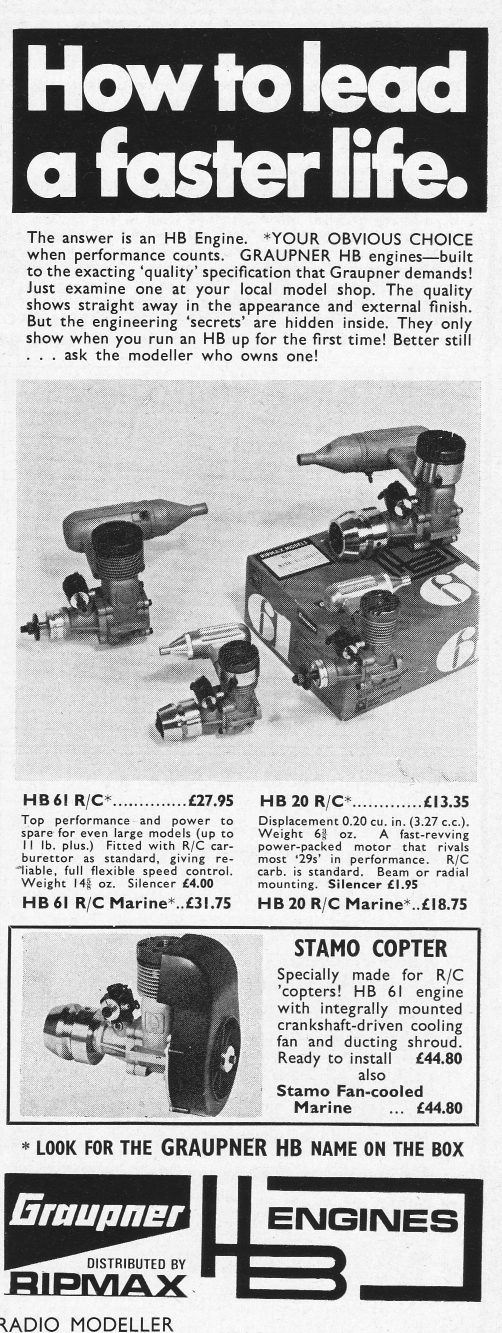

HB Stamo (red head) - Review with helicopter modifications.

HP 40F - Engine test - Nov 1974

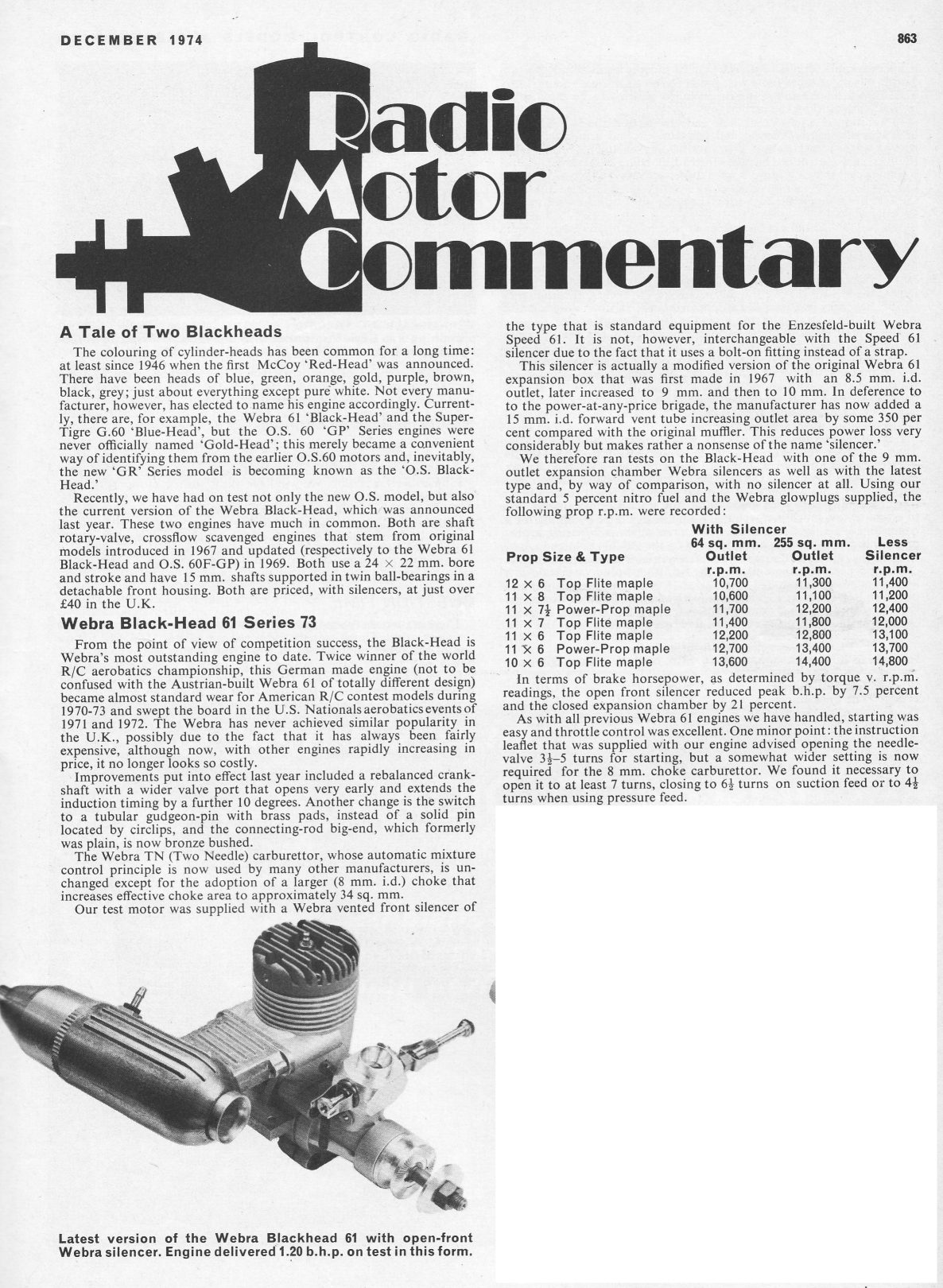

Webra Black-head 61 series 73 - First look review

Another year where the 'flagship' 60 models once again increase in power.

Engines 1975

Webra Speed 61 RC - Engine test - Jan 1975

Enya 40 - Engine review plus first look Fox 60 - Feb 1975

OS Max 60F - Engine overview of development - Feb 1975

OPS Ursus 60 - Engine test - Apr 1975

OS Max 60F-SR - Engine review - Jul 1975

Enya 40 - Engine test Aug 1975

OS Max 60F-SR - Engine test - Sep 1975

Webra Speed 61R - Engine test - Nov 1975

Engines 1976

OS Max 40F-SR - Engine review - Jan 1976

Kraft 61 RC - Engine test - Feb 1976

Carbs 76 - Review of carburettors fitted to RC engines.

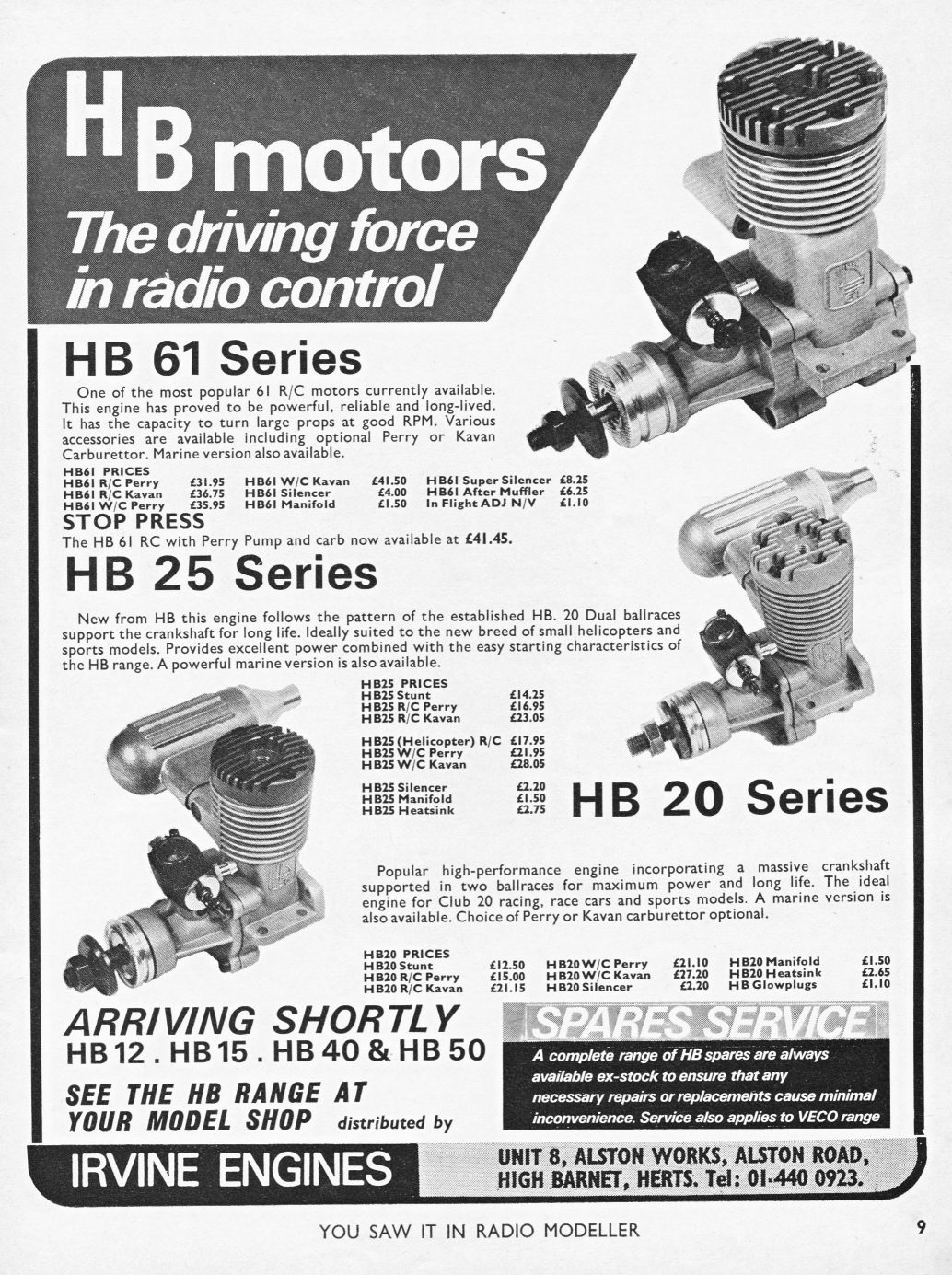

HB 40 & 50 - Engine reviews - may 1976

OS Max 40F-SR - Engine test - May 1976

Irvine 40 - Engine review - Jul 1976

Meteor 40 & 50 - Engine reviews - Sep 1976

Webra Speed 40 - Engine test Oct 1976

Engines 1977

HP 61 - Engine test - Jan 1977

ST G60F1 - Engine test - Mar 1977

Enya 60XF - Engine reviews - May 1977

Fox 45BB - Engine test - June 1977

Enya G60XF - Engine reviews - Sep 1977

HB 40 - Engine review both normal and PDP versions - Dec 1977

60 Engines - Part 1 of a survey of 60 size engines available at the time.

Engines 1978

60 Engines - Part 2 of the survey of 60 size engines available at the time.

OS 25FSR - Engine review - Jan 1978

OS 45FSR-H - Engine review - Feb 1978

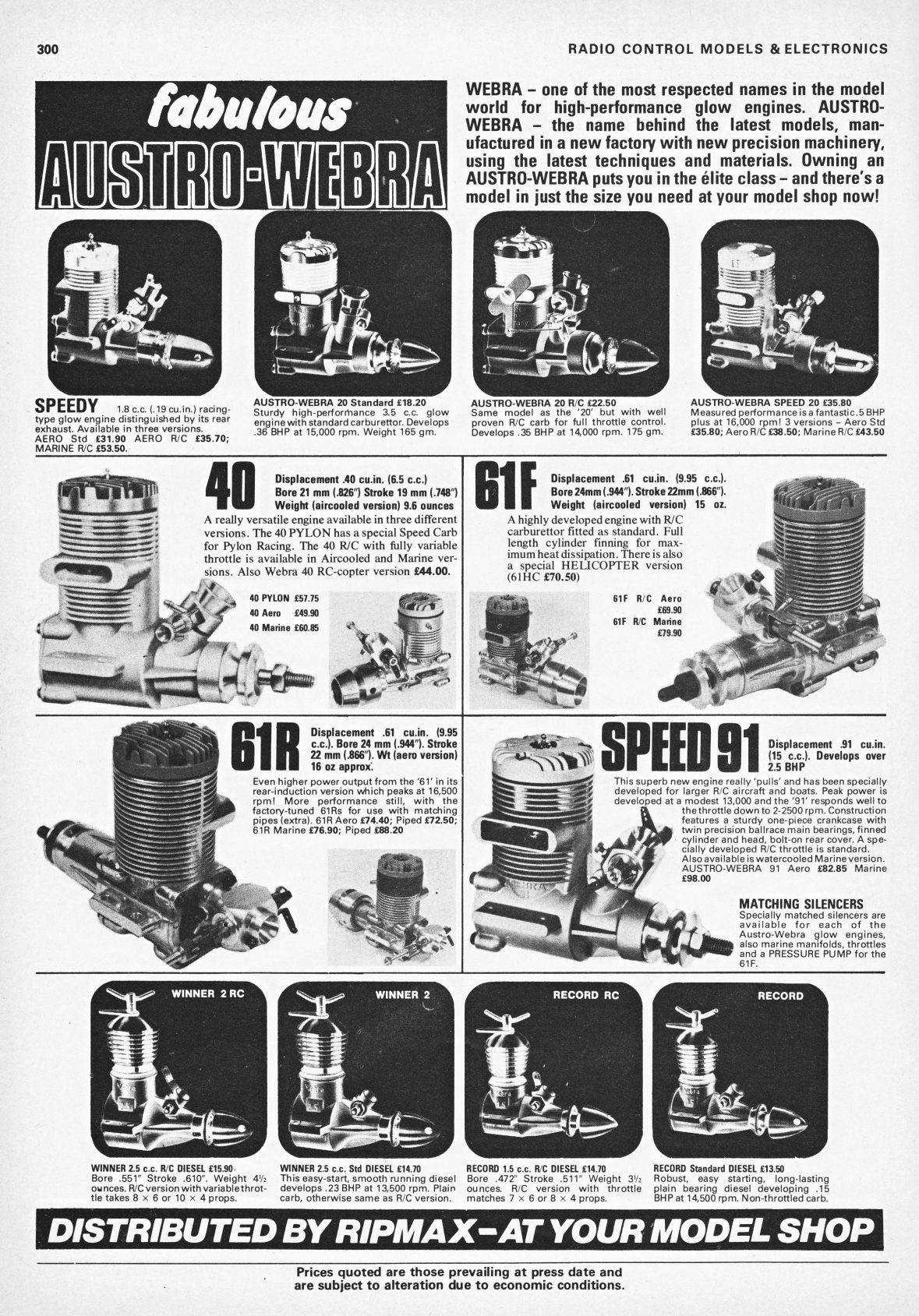

Webra Speed 61F - Engine review - Mar 1978

Enya 40X - Engine test - Jul 1978

Irvine 40 - Engine review - Jul 1978

Engines 1979

Irvine Sport 40 - Engine review - Feb 1979

Overview 70's

The Seventies saw engine powers increasing quite dramatically especially with the introduction of Schnuerle porting which resulting in a more efficient scavenging of the burnt gases than the previous method of cross-flow scavenging.  In this method of scavenging the piston does not require a deflector plate on the top as the incoming charge is administered from three sides and directed in such a way, because of the angling of the ports that it forms a 'virtual' deflector plate.  With a smooth topped piston combustion is also much more efficient and engine powers increases of 50% was the norm for a given engine size.

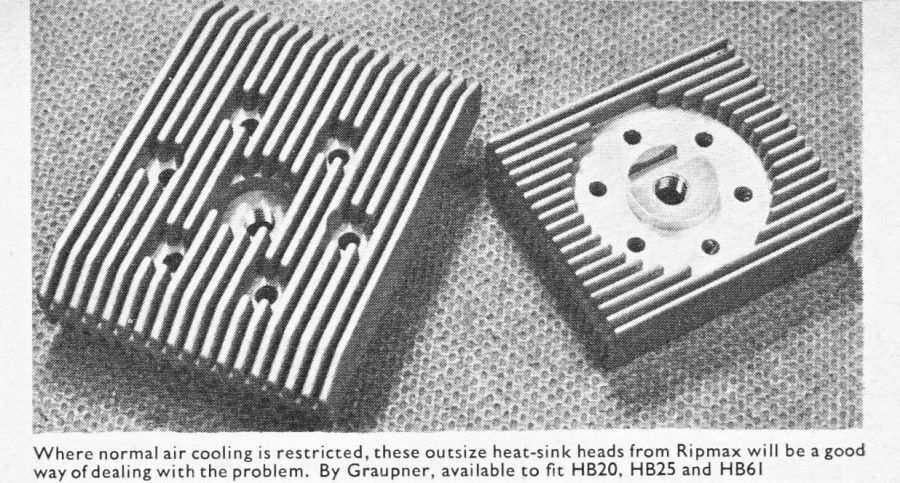

Generally, engines were provided for 'Aero' use and helicopter designs took into consideration the fact that engines required a positive airflow in order to provide effective cooling; one method being a flywheel mounted centrifugal fan passing air through a shaped duct to the cylinder head.  Some engines were developed with a design suitable for helicopter use in particular HB who produced the 61 for the Graupner Bell 212 with a rear crankcase extension to drive the cooling fan followed by the addition of an extended round heat sink head and also the 25 fitted to the Graupner Bell 47G, which incorporated a large oblong heat sink head (which was later to become the norm for helicopter engines).  Other manufacturers then followed suit and brought out engines specifically for helicopter use i.e.  One aspect noted at the end of the decade was the use of increasing more effective silencer / tuned pipes with development taking into account the porting requirements to work effectively with these fitted.

  Webra 40 and 61   OS 45FSR-H  HGK 45HC (supplied for Hirobo helicopters)
