With the exception of one piece of 3/8"sheet balsa which is used for the cowl pieces and bottom and various gussets, plus a small piece of 1/16in. sheet used for the cowl top, all wood in the kit was ready shaped. This is no mean achievement if you consider size of the model and the modest price.

The one small criticism I have relates to the wing ribs, which appear to have been produced on a bandsaw. Most of the ribs are intended to be identical but there was a considerable variation in the size and shape of those in the review kit. This could easily be corrected after construction by the use of a sanding block, but I chose to find the smallest and trim all the others to match before construction.

All the wire is supplied unshaped but this is relatively small in section and easily shaped to the patterns given on the plan.

The plan itself consists of two large sheets which are supplied rolled, and includes details of an alternative wing construction to ease transportation problems. More of this later.

Anyone who has built the traditional small rubber model will have no problems with the fuselage. The original design used 5/16" square balsa, but in the interest of price and availability, this has been changed to 3/8". I would advise the use of a mitre block or disc sander if available, otherwise, like me, you may use up lots of time trimming the ends of crosspieces, etc.

A hefty ply plate is used to anchor the undercarriage, whereas the original simply had the wire bound to the lower crosspieces. Nylon saddles are supplied to attach the wire to the ply. You could, of course, mount these on the outside but I chose to mount them inside as per plan. Here you have a choice in that you can take the u/c wire straight out through the side of the fuselage which leaves a considerable length of unsupported wire outside the saddles, or take the wire down through the ply and longerons to emerge at the bottom corners of the fuselage. The plan shows the latter, while the u/c sizes given will produce the formerl

Engine bearers are incorporated into the basic sides with the engine secured to further pieces of hardwood bolted inside the main bearers. This makes for very simple engine changes.

In the original design this was a very simple, light, one-piece all balsa structure. My own feeling is that this would be quite satisfactory for an R/C version provided that the model was flown in a sensible manner.

However, to cope with the sort of treatment it might be subjected to, the structure has been 'beefed up' with hardwood spars and ply dihedral braces. This is a vicious circle since the provision of either requires the use of the other The result is that the wing weighs roughly twice as much as the fuselage and u/c together.

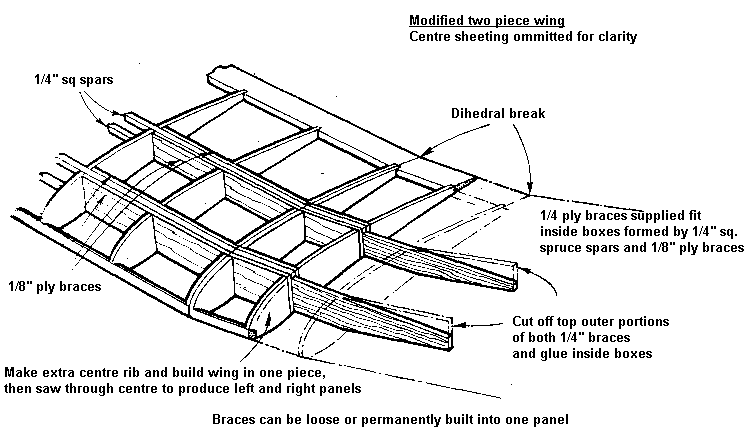

To cater for those who have difficulty transporting an 84 inch one piece wing, details are given for producing a three piece wing with the dihedral braces being sawn through in two places to produce boxes to accommodate 1/4" ply wing joiners. The logic of this escaped me since it meant that the wing joints would coincide with the wing retaining bands. Fortunately, there is a simpler answer; make the wing in one piece, saw it through the middle, and you have a two piece wing.

These are built up as flat structures with the tailplane being sanded to a thin lifting section after assembly. This is somewhat hampered by the fact that the spar material has, very sensibly, been changed to hardwood. Some preshaping of the spar is advisable.

As a concession to 'vintageism' the control surfaces were hinged by sewing with Terylene thread. If you can't find this material use some other method. Other types of thread are unsuitable.

Just how much of a problem this poses depends on the size of the tank you intend to use. A four ounce size can be fitted easily by cutting away the instrument panel bulkhead but is a little on the low side for satisfactory operation. If you use a vintage engine with integral tank, the problem does not exist.

There is almost too much room for this. Any type of gear could be easily accommodated. The only real restriction is in obtaining the correct CG position and this makes it advisable to keep everything well forward.

The battery pack was mounted under the tank (it could, if necessary, be installed below the motor), with the receiver immediately behind it. Three servos were mounted on hardwood rails which were, in turn, mounted below the lower cabin longerons.

Pushrods were of 3/8" square balsa with the threaded wire ends supplied. Rudder and elevator horns were as supplied, with the rudder horn mounted on the base of the rudder post which passes through the tailplane. This arrangement works well but it is necessary to cut away a large slice of the top longeron in order to easily install the tail.

One benefit of the Cotswold UHF gear was that it was possible to install the vertical dipole receiver aerial inside the fuselage.

Two centre of gravity locations are shown on the plan. For F/F purposes, it is recommended that the model be balanced on the rear spar as per the original design. For R/C purpose, the front spar is indicated as the balance point (these locations falling at roughly two thirds and one third of the wing chord).

My radio installation, in fact, produced a balance point mid-way between the spars which seemed like a fair compromise to begin with! All-up weight was exactly 5 lb.

Since the model was obviously going to be overpowered, a long exhaust extension was added to take all unburnt lubricant away from the model. This, together with a 13 x 5in. Topllfte propeller gave a flat-out speed of rather less than 8,000 rpm.

The first take-off, in flat calm conditions, took less than five yards and after reducing power to half throttle, the model climbed away at a good 30 degrees with a natural left turn.

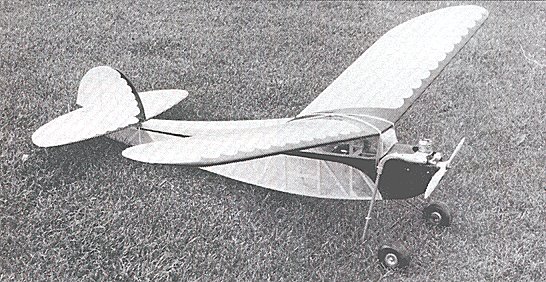

With the possible exception of the 'Windbag' inflatable wing model, the 'Power House' is the most vice-free model I have ever flown. For instance, it is necessary to hold on the rudder to maintain a turn; releasing it produces an instant return to a straight glide or gentle left climb. A complete flight can be made without ever touching the elevator control. However, in anything above a very light breeze, the model suffers badly from wind shear and tends to drop the last three or four feet before landing. As originally set-up, there was insufficient elevator travel to prevent this, so some differential was introduced by offsetting the servo arm to give more up than down. There is virtually no stall, holding on full up elevator merely produces a slow, nose high, descent.

I am still unsure about the CG position. To get the best performance it is necessary I add down trim for powered flight (it will maintain height on just one 'click' of the throttle ratchet above tick-over) and remove this for the glide. This suggests that the CG could probably be moved back to the free flight position on the rear spar and complete the whole flight on one trim setting.

Having flown the model, my only regret I that I did not finish it sooner. Need I say more?
