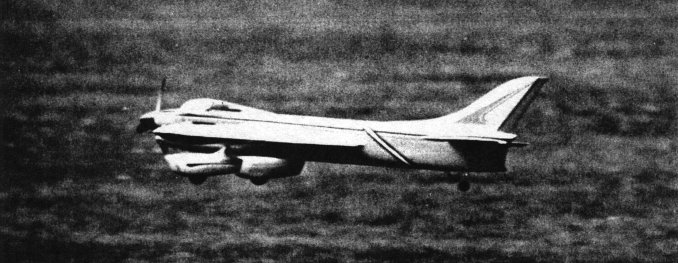

In a dead-stick glide, Dave Gierke's excellentIy designed NOVI displays it's srnooth, flewing lines.
In a dead-stick glide, Dave Gierke's excellentIy designed NOVI displays it's srnooth, flewing lines.
-----oooOooo-----
Reviewing the introduction to this informative series we may have supplied rather shaky reasons for going to all these lengths to properly design a "rock on a string. "The fact that most published designs were "brute force" (cut-nt-crash) developed didn't always detract from their final shape.
It has become apparent that anyone, no matter how misinformed, can run down the rest of us who "roll our own" designs. So let us elevate the purpose of these reports thusly: Your finished airplane is smarter than you are! It instinctively knows every solitary aerodynamic law, and unquestionly obeys them to the letter. It therefore behooves us to learn as many of the important laws as possible so that we don't demand something which that smart lil' ole' airplane cannot do.
We will deal mostly in how, and how much with flights into why, where it is important. Mathematics are an essential part of our process, since without numbers, the principles are pretty academic and often misleading. As promised, the derivations of equations generally won't be detailed, except where the final product is clarified. It is also planned to suggest test methods and/or devices, so that ultimately we may communicate on the firm base of measured performance, rather than "Gee Whiz, it sure looked good." So much for reintroduction.
Since you've already peeked at the sketches, we're dealing with the major lateral and vertical force diagram to evaluate surface lift requirements, maximum level flight altitudes and a method for measuring the maximum lift for an airplane. Also a discussion of the propeller as a gyroscope with perhaps the answer to some of your "mysterious" crashes.

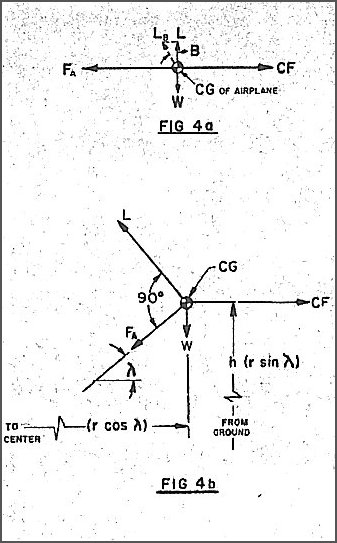

Fig. 4a illustrates the major physical forces generated by restraining a mass (our CG) in horizontal flight level with the handle. CF is centrifugal force from Part 1, Nomograph No.3. FA is line tension equal and opposite to CF. W & L are airplane weight and the surface lift necessary to just equal W. This is the simplest case, since each vector system is essentially "in line." This is the flight mode used to determine maximum line tension and trim lift.
It should be noted here that wing lift is assumed to be normal (perpendicular) to the chord line. If the airplane is banked into the circle (vector LB), the wing must generate more life to support W, buf will allow FA to decrease. For small angles, up to 10 degrees LB is almost equal to L, and the reduction of FA is W tan B, since L=W. For a heavy ship (3 lb.) at a l0-degree bank angle, line tension would be reduced almost 0.5 lb. without requiring additional lift. This effect is directly opposite if banked outward, and is not proportional to airspeed.
The use of this phenomenon is not desirable for aerobatics or combat, but could be used for in Navy Carrier (outbank) or a heavy Rat or Speed job (bank in). The most reliable method to obtain this force is to place the line(s) guide ahove (bank in) or below (outbank) the CG of the airplane. Any other method to generate a roll force (wing warping, ailerons, weight, etc.) will add detrimental side effects (no pun intended) such as added drag, an angle proportional to airspeed or adverse yawing effects.
It can be readily shown that a bank angle exists for any line length and airspeed which would give zero line tension (W tan B = CF). Actually, the amount of weight is not a factor, since CF can be reduced to its equivalent "g" factor by factoring out W. Therefore bank angle for zero line tension becomes a product of line length and airspeed. For 60' lines at 100 mph, angle B would be 85 degrees 51 minutes (11 g's) NOT too practical, but interesting. It is entirely possible that the wing cannot generate the lift necessary to do a kooky trick like that, anyway.
Points against banking in, are the landing and takeoff, where "g" factors of less than 1/2 are generated. Control can be lost, and/or the airplane could "come in" on you. Meanwhile, back to important stuff. Fig. 4b represents the real meat of this sandwich. CF is now calculated for a radius less than the line length (r cos &lambda). (&lambda) is the angle of elevation, which is somewhat easier to visualize than actual altitude (h), and is more convertible for varying line lengths. (sin (&lambda) = h/r). Under the conditions of 4b, FA is less than FA for horizontal flight (Fig. 4a) since the lift vector (L) now assumes some horizontal restraining forces. L will be shown to become tremendous at high angles, and maximum lift capability of an airplane will limit the maximum elevation angle.
Perhaps we should point out that we are dealing with level flight, not to be confused with looping and such maneuvers. It is not so difficult to prove that an airplane can be zoomed into lift factors not available in level sustained flight due to kinetic energy stored in the system.

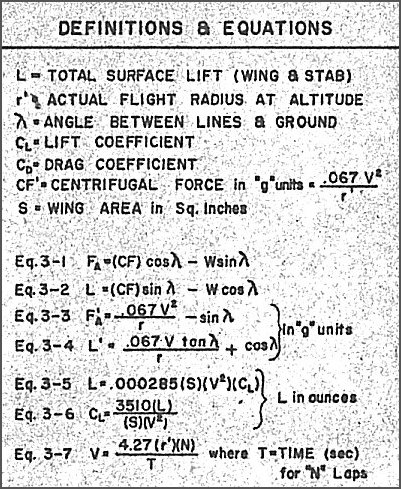

Equations 3-1 and 3-2 were derived by conventional vector analysis and are the basis for the rest of our juggling. To simplify trial analysis we factored out weight (W), reducing the force system to "g" units, now dependent only on airspeed (V) elevation angle (&lambda) and line length (r). We then substituted the equation for CF in terms of "g" units, arriving at equations 3-3 and 3-4. By specifying (V), and (r), we can calculate line tension and lift at various elevation angles. Calculations are reduced by use of Nomograph No.3 (July/Aug. '66) and Trigonometric Functions annoted in Table 4. Simple results are plotted on Graph 5 for an airplane on 60' lines traveling at a constant 100 mph. To get actual forces, simply multiply "g" factors by W. Sample numbers would apply to a slow Rat at 26 ounces. L in "g"s are listed.
Come now the engineering compromises. We cannot get lift without drag. Increased lift causes increased drag, so without being able to increase thrust, the higher we fly. the slower we go. O.K.? Since high flying is one large bone of contention in contest judging, we should know where a "point of diminishing returns" is reached. Or. should I fly at the maximum allowed height or not? (We do uot advocate cheating!) Space does not allow complete evaluation of induced drag at this sitting, so complete analysis of actual speed reduction versus "apparent speed increase" will merely be dangled before you. right now. ("Apparent speed" is equal to V actual/cos(&lambda).)

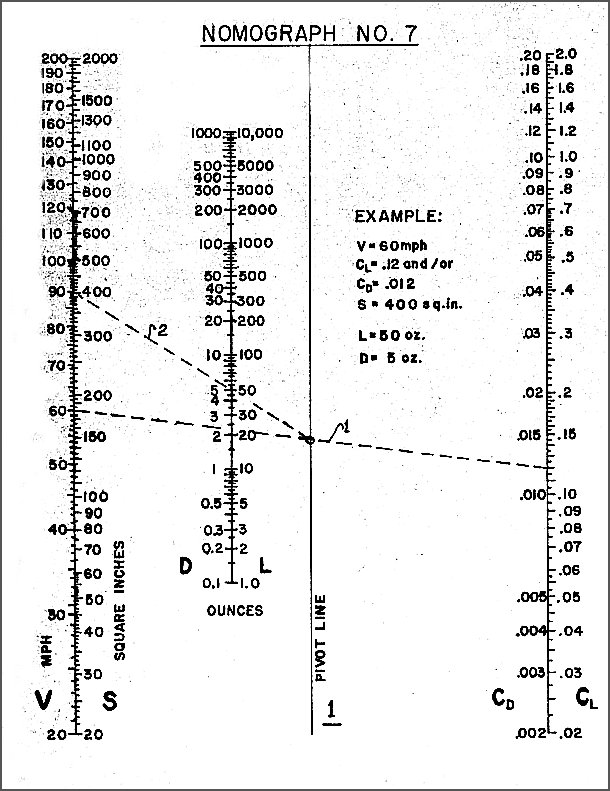

Of immediate interest is maximum lift, since we now have most of the machinery to measure it. To evaluate a given airplane, a graph or series of point calculations leading to L versus (&lambda) are necessary. For most CL airplanes a Lift Coefficient (CL) of 0.9 is about the limit before going into hard stall conditions. Nomograph 7 will
calculate L, D, or CL and CD depending on the order of procedure. (Eq. 3-5 and 3-6) If. as we have right now, values for L, we can calculate CL. The example shown on the face of the Nomoglaph can be solved for CL by proceeding as follows:
I ) Pick up wing area (S) and lift required (L) with straight edge and hold crossing point 1;
2) Holding 1, swing to V on left hand scale, reading answer CL on RH scale.
Lift coefficient (CL) is a figure of merit defining the lift per unit area of a wing for specific conditions of Reynolds Number and angle of attack. It is necessary to introduce it, unadorned, so that we have common ground to complete this discussion. As we said, except for a high efficiency stunt wing with high lift devices, most CL wings will stall at CL=0.9. At this point drag is extremely high, and lift will decrease if you force the wing to higher angles of attack. An end point for high lift without excessive decrease in airspeed due to induced drag is closer to 0.3 or 0.4.
Having plotted or tabled L and corresponding CL versus (&lambda), pick out the CL of interest, and note the elevation angle. This is the maximum angle at which you can fly level (if CL were 0.9) or maybe the highest to fly for best "apparent speed."
During all of this, a detailed study of PA indicates a small decrease in line tension as (&lambda) increases. From Eq. 3-1, at 90 degrees line tension disappears except for airplane weight coming down. From Eq. 3-3 it appears to be different, that line tension in g units is equal to horizontal g's reduced by sin (&lambda) (which varies from 0 to 1.0). The apparent mathematical anomaly is caused by the fact that under practical circumstances CF for a zero radius is infinite, such that correct procedures require definition ot max-min values by calculus. We cannot practically reach these limits, so they are hereby ignored.

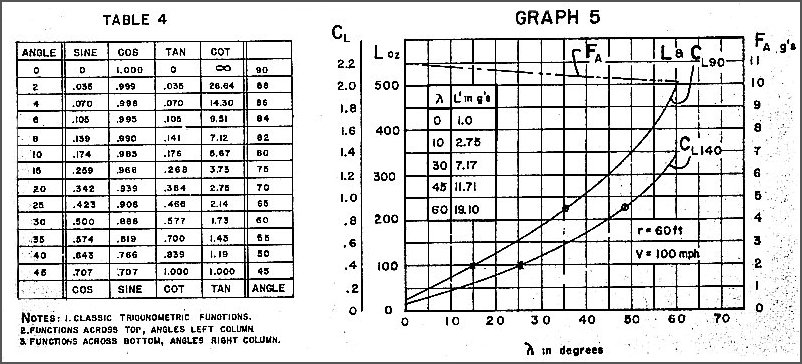

if we apply wing areas of 90 sq. in. and 140 sq. in. to our sample plot and a fixed weight of 26 ounces, we have a country fair argument for the larger area Rat Racers. F'rinstance, applying CL of 0.4 for best speed at altitude, the 90 comes in at 15 degrees, the 140 at 26. Maximum elevation for the 90 is conservatively 35 degrees as opposed to 49 degrees for the big one. Granted you can zoom maybe ten degrees higher to pass, but you won't stay up there long! Note also, that line tension is reduced by only 0.9 ,'g" even at 60 degrees, although the speed reduction we know exists will cause an actual reduction, since CF will decrease. Finally, 20' (max. racing al- titude, except passing) represents an (&lambda) of 19.5 degrees, not too encouraging for the 90, if the 140's decide to run at 20 ft!

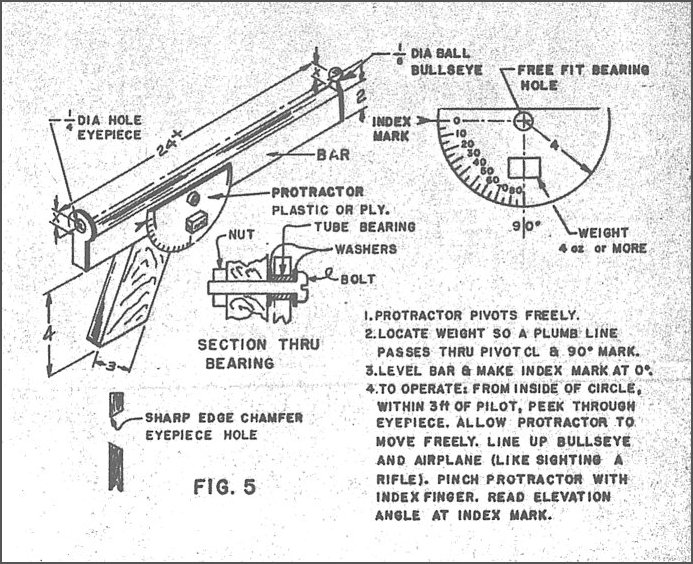

if we had a way to measure V and (&lambda) while flying our airplane, without wind, at its highest altitude, we could calculate its maximum lift coefficient. Luckily, both can be measured with reasonable accuracy, if you want to take a little time to build a crude theodelite from Fig. 5; Using the gadget like a pistol, sighting through the eyepiece until the bullseye covers the airplane, while several laps are clocked with a stop watch, you have both angle and velocity nailed down. (V) can be calculated from Eq 3-7.
Knowing the angle (&lambda) and velocity, we can plug these numbers, along with (r), into equation 3-4 and come up with (L') in g's. By multiplying (L') by (W), we have (L max) from which CL max can be calculated from Nomograph 7 (Eq 3-5 or 3-6). This would settle manv questions, like in stunt as to just what CL is a practical maximum. The reduction in airspeed from level flight (minimum drag) will give a measure of drag increase. It is needless to tell you that this information is useless, unless you dig in and apply it, isn't it?
Particularly significant in stunt and combat is maximum lift, since this determines the minimum looping radius. It has become apparent that indiscriminant use of full-size airfoil data has led to some extremely optimistic turn radii. We seldom achieve the efficiency of a large wing at high speed. Therefore, to derive usefulI data we are using experimental measurements such as this one to write our own book.

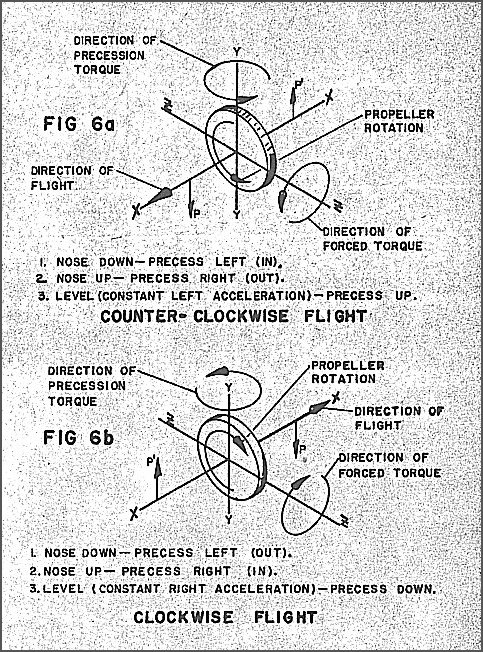

The next phenomenon has been published before, without specifically pointing out one dangerous area. The propeller acts as a gyroscope since it is a rotating mass and numerical analysis proves that under adverse conditions it can generate enough precession torque to cause trouble. Referring to Fig. 6a we see the conventional forces associated with a gyro. The physics of the system are too complex to put down here; only the results will be presented. Essentially what occurs for conventional prop rotation (CCW when viewed from front), when the rotation axis X-X (prop shaft) is tilted, a reaction torque appears in one of the axes perpendicular to the X-X axis.
In the case shown in Fig. 6a, we are flying in the conventional direction (CCW) and move the nose down (coupling forces P-P'). This rotation is about the Z-Z axis and the precession torque appears about the vertical axis Y-Y in the direction shown. All of the forces involved here are couples (two equal and opposite forces in the same plane, but not along the same line). A couple is handled as a torque (a force on an arm causing rotation) and can be balanced only with an equal and opposite couple. or torque. These facts cause the precession force to be independent of its distance from the CG, so long or short nose lengths do not affect it. Therefore, the illustrated torque appears at the CG turning the nose into the circle.
As noted, nose up turns produce nose out torque, while the steady left hand acceleration of level flight produces a small nose up torque. These arc all real, sport fans. The amount of precession torque depends directly on the mass (weight) of the propeller, its diameter (specifically the CG location of each blade), the engine rpm and the angular acceleration (rate of airplane turning) which is in turn dependcnt on airspeed and turn radius. The larger any of these, except turn radius, the larger the precession torque.
There are several danger points in the precision acrobatic pattern, where high rates of nose.down pitch are required, the square eight and the middle two corners of the hourglass. Noting the reversal of conditions in inverted flight (Fig. 6b) one can include the second and third reverse wingover comers and bottoms of outside square loops. The effect can vary from momentary loss of control to complete loss of airplane.
In the early days with the climb and dive maneuvers we had troubles, too. To deliberately look for this force John Barr and I took his late "Lil Satan" with ST 15 diesel power, increased the stabilator area for sharper turns and performed hairy climbs with sharp pullouts. Finally with a 9-3 prop, relatively slow airspeed (low line tension) and high rpm, we started getting it every time. The nose would swing in violently, the ship would completely slack off and float to the other side. During the initial test series we were ready and could regain control before it crashed, but during a night session she pulled the bit so quickly and accidentally that the end arrived. The stunt ship with its marginal centrifugal force and a combat rig with a slight warp and high rpm mill are prime victims for this force. Since plastic props weigh about 50 percent more than wood props they will generate 50 percent more precession force.
The effect of the small nose-up or down-down precession in level flight explains the apparent stability increase while flying inverted since the effect is destabilizing in CCW flight and stabilizing in CW. This probably explains why the majority of the "developed" stunt rigs end up with a raised thrust line, to partially compensate for the precession effect on trim.
